The Inno Color Beam Quad 7 is a high performance 70-Watt LED Moving Head fixture that offers a hard-edge beam effect sought after by lighting designers to help take their light shows to a new level. This fixture features 70-Watt high quality CREE LEDs This unit is compact & light weight and offers plenty of pro features such as: 2 DMX Channels for programming and a 4-Button LED DMX Menu. The Inno Color Beam Quad 7 is also great in sound active mode with plenty of...
Read More

Product Information

SKU: 1237000080
GTIN: 819730010537
HS-Code: 94054091 00

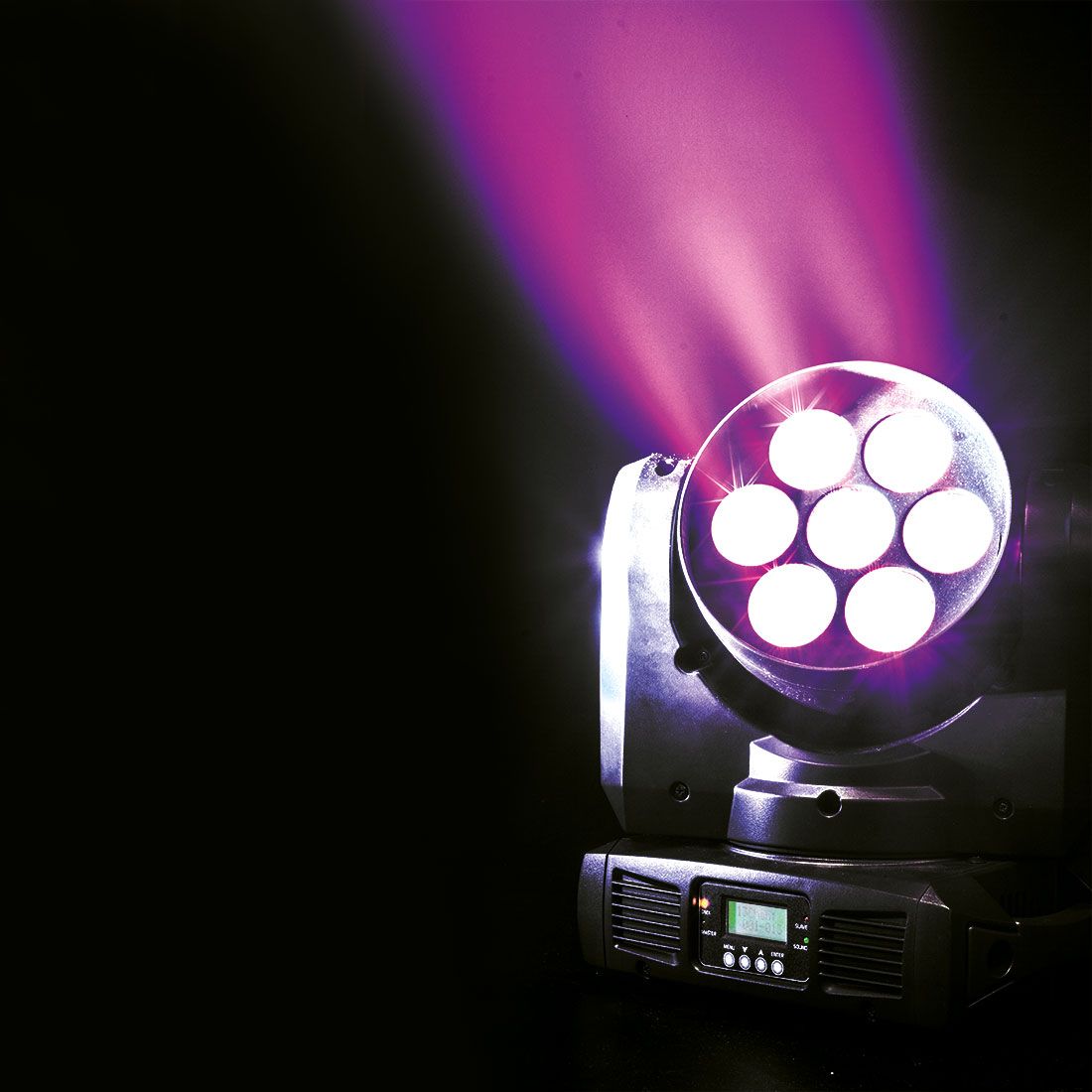

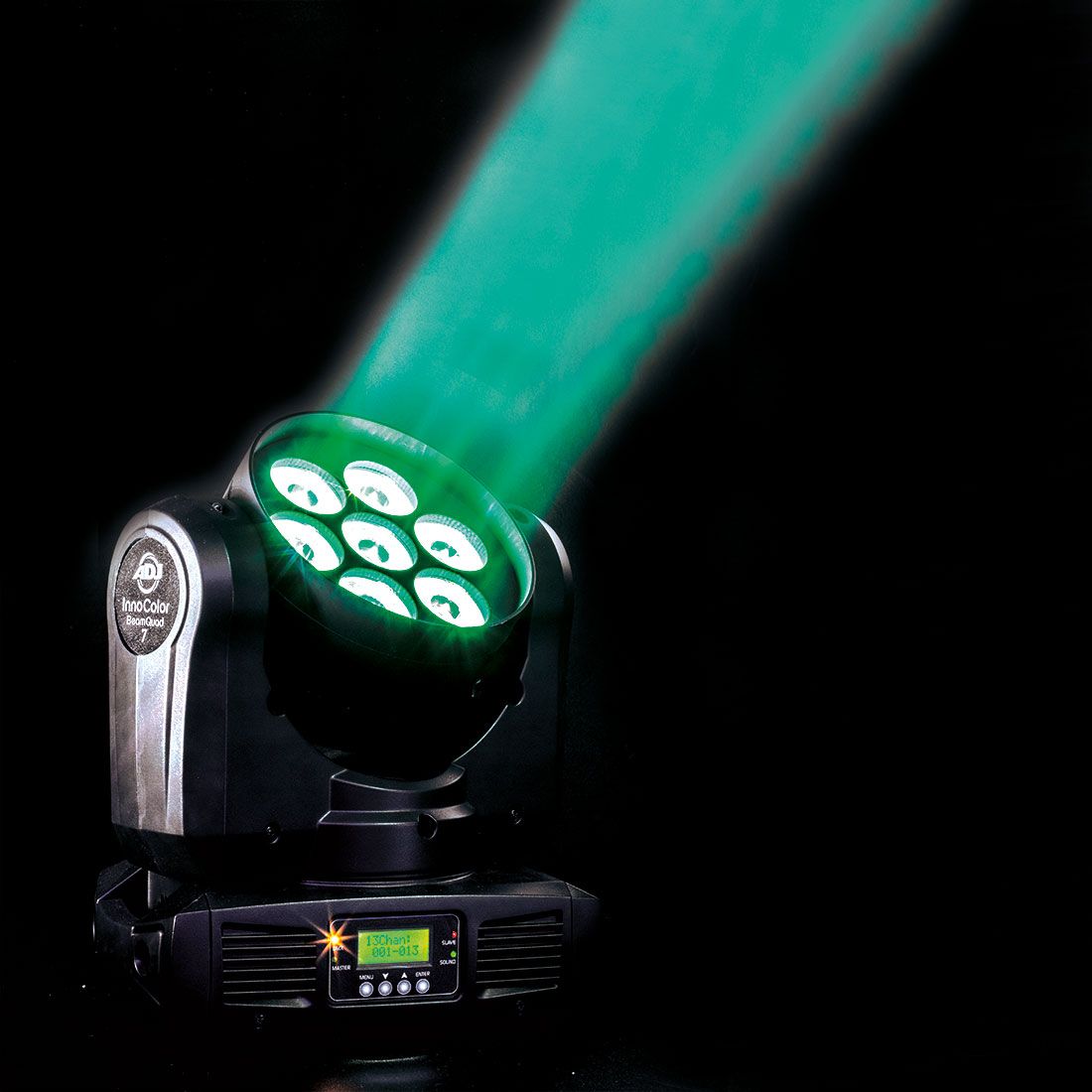

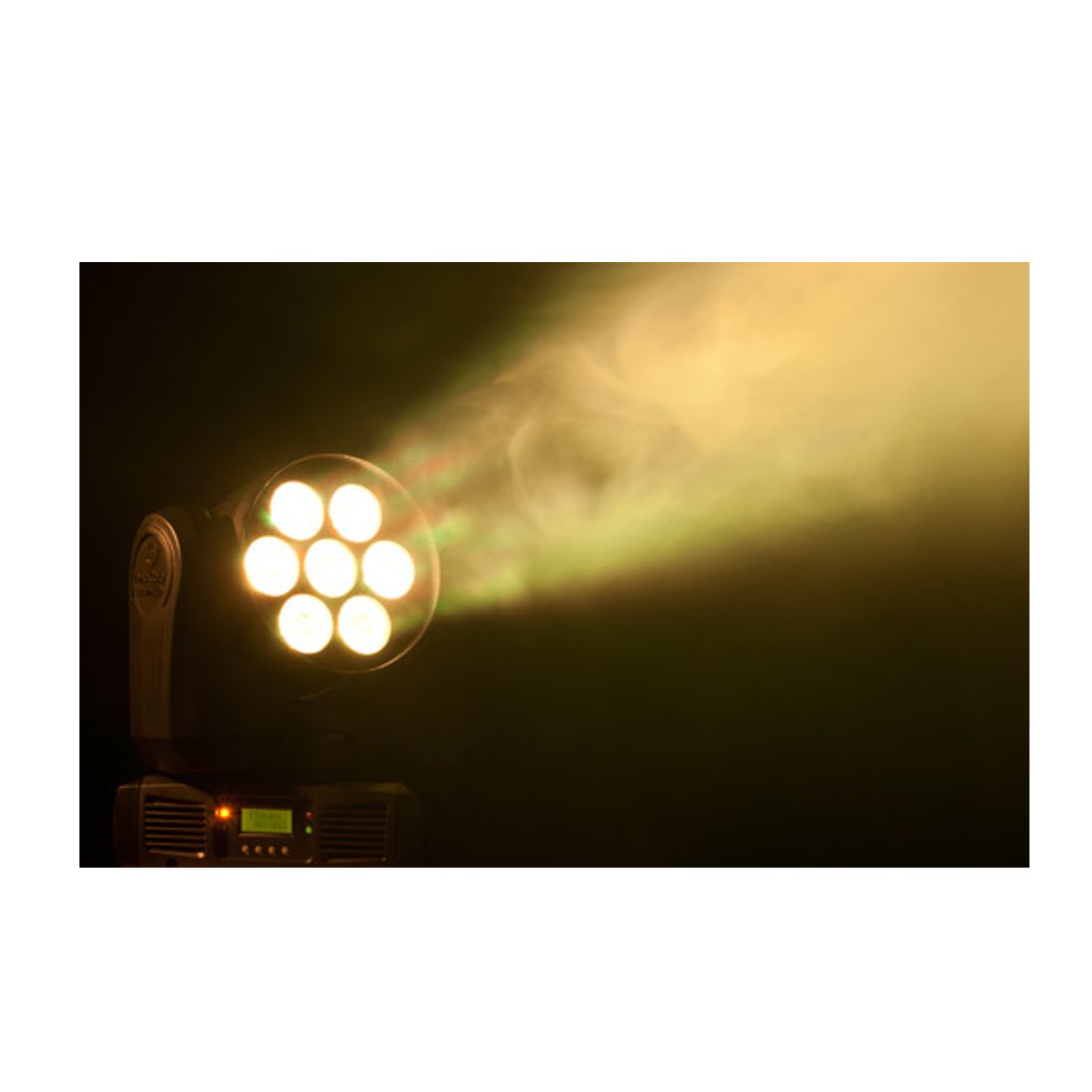

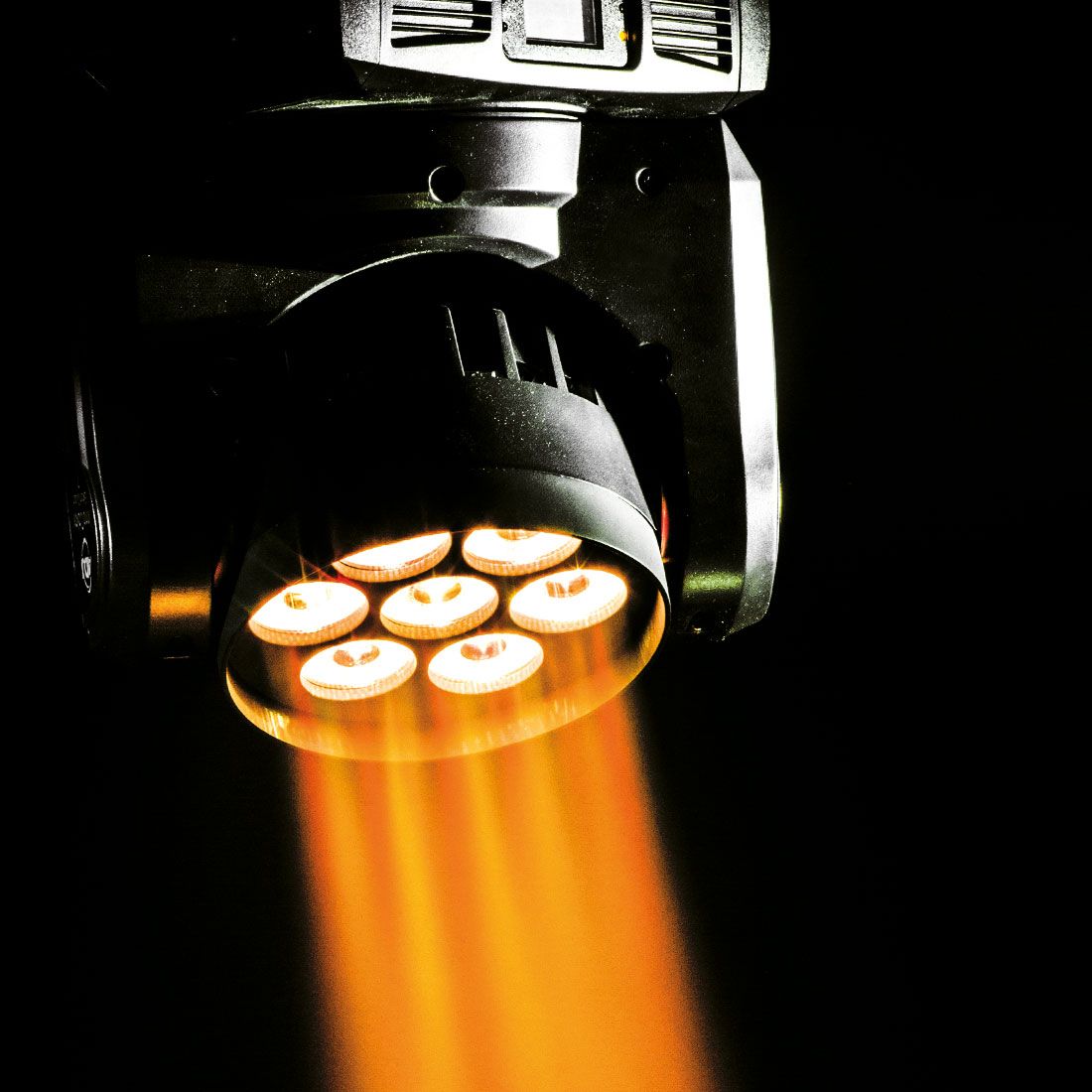

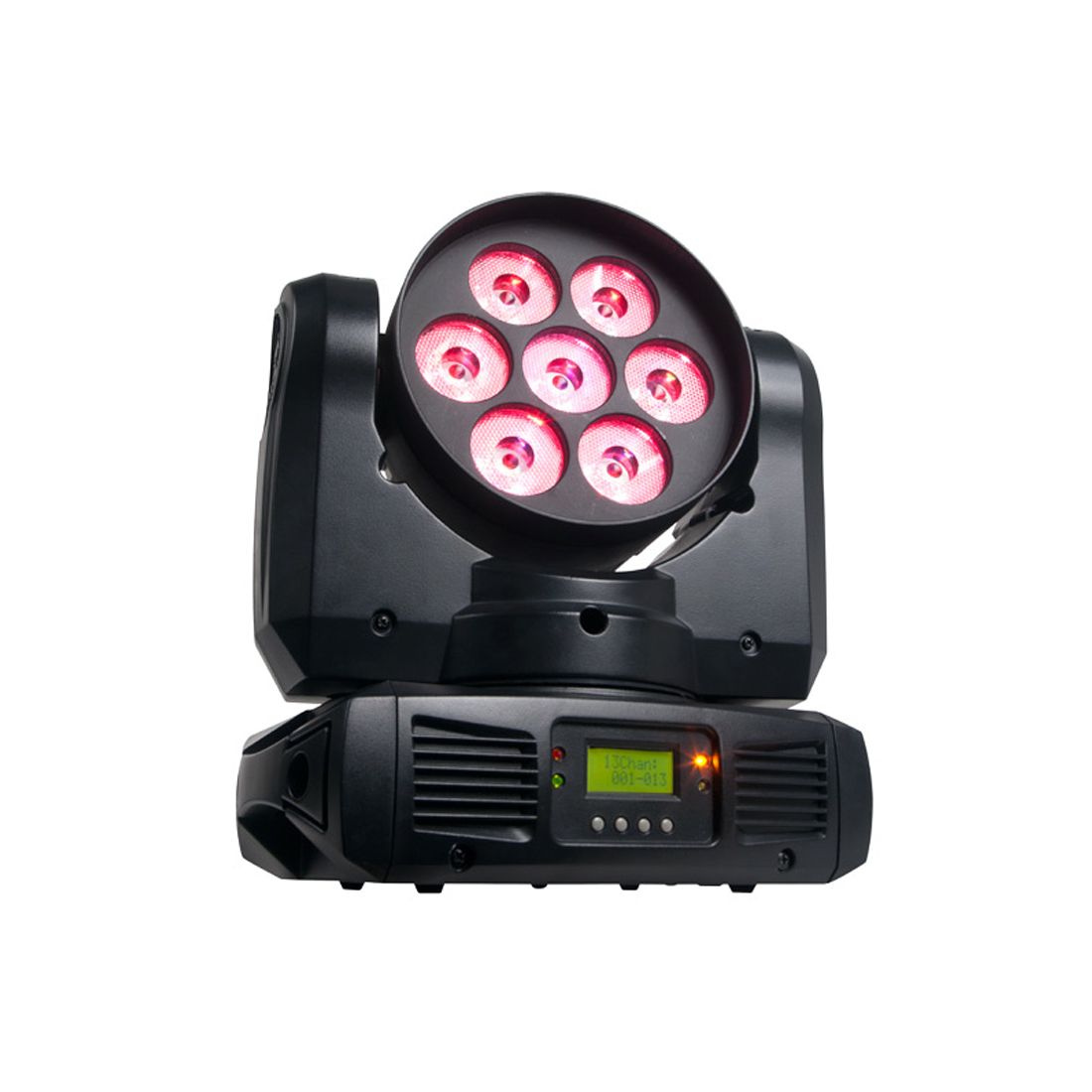

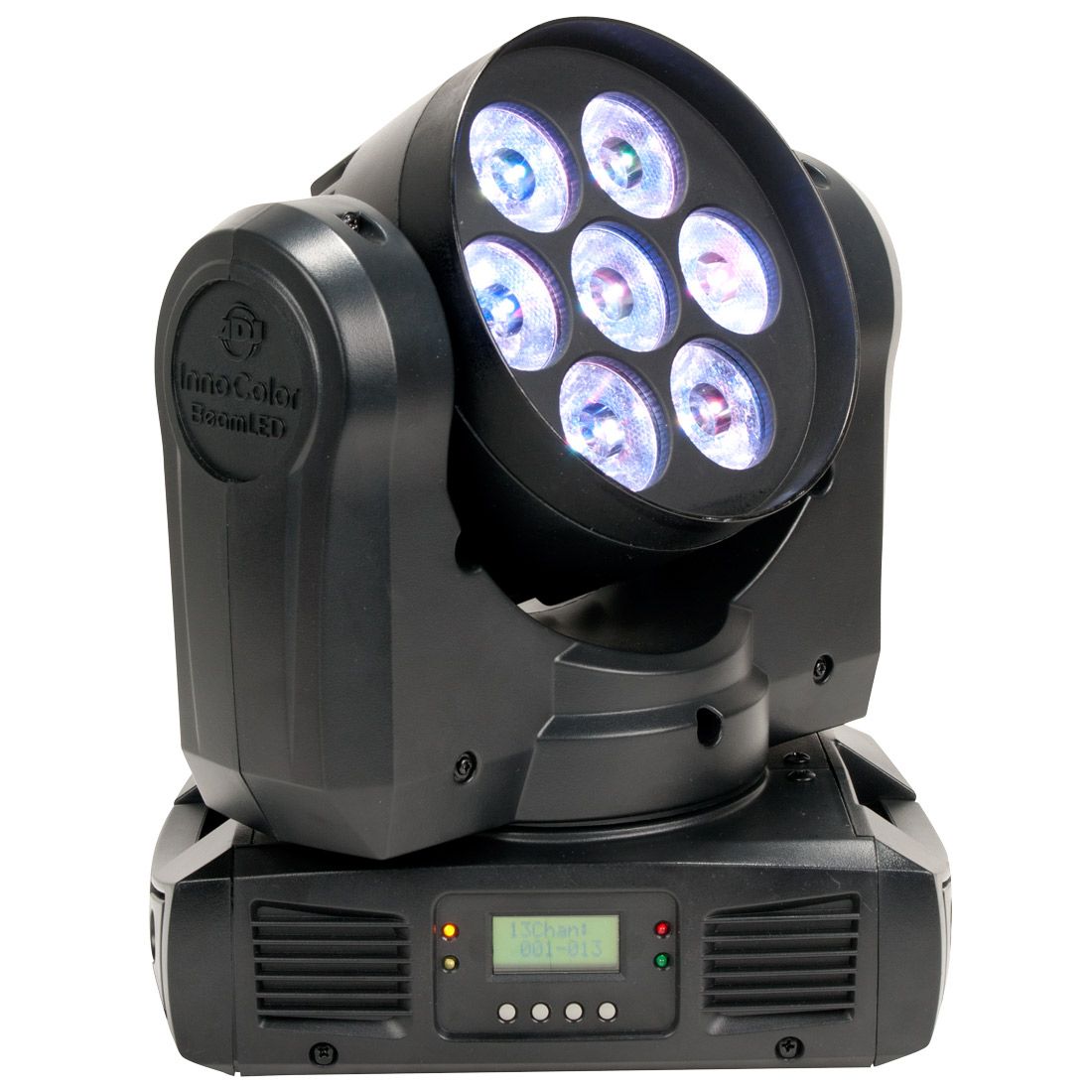

The Inno Color Beam Quad 7 is a high performance 70-Watt LED Moving Head fixture that offers a hard-edge beam effect sought after by lighting designers to help take their light shows to a new level. This fixture features 70-Watt high quality CREE LEDs

This unit is compact & light weight and offers plenty of pro features such as: 2 DMX Channels for programming and a 4-Button LED DMX Menu. The Inno Color Beam Quad 7 is also great in sound active mode with plenty of exciting built-in programs creating instant light shows. Plus, non-DMX users can use the easy-to-use UC3 Controller to operate this fixture.


Gallery

Specification

    Specifications:
    - 70w high output LED Moving Head Beam effect with 10w x 7 Quad RGBW Cree LED's
    - 3 operational modes: DMX-512, Sound Active or Master/Slave
    - 2 DMX Channel: 1 or 13 Channel
    - LED Zone Chasing
    - Electronic Dimming: 0% - 100%
    - 10-degree beam angle
    - Pan: 540-degree; Tilt: 200-degree
    - LED DMX 4-Button menu system
    - Stepper motors with micro stepping
    - Omega included for attaching a clamp
    - 3-pin XLR In/Out
    - Fan cooled
    - LED Strobe/Pulse effect; random strobe slow to fast
    - Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)

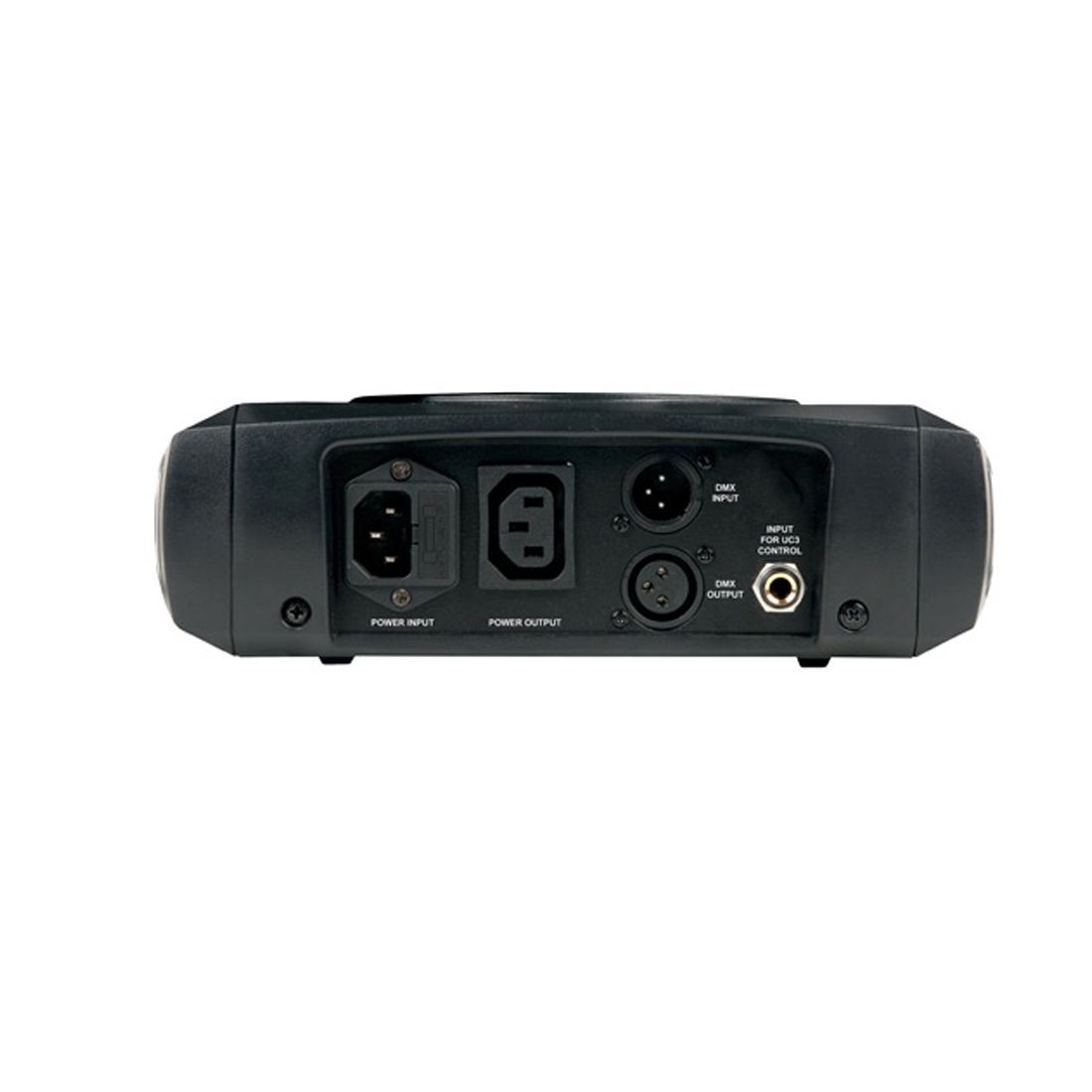

    - IEC AC input and output on rear to daisy chain power (up to 3 Inno Color Beam Quad 7’s @ 120V and 5 Inno Color Beam Quad 7’s  @ 230V )
    - Extreme long lifetime of the LED (50,000 hr. rating)
    - Multi-voltage Operation: 100-240V, 50Hz/60Hz
    - Power Consumption: 130W
    - Light source: Quad Cree LEDs 4 in 1 (RGBW)
    - Dimensions(LxWxH): 10.25” x 6.75” x 12”/ 260X168X304mm
    - Weight: 6 kgs / 14 lbs
    Specifications subject to change without notice
