Inno Beam LED
Archive

Brand
ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source. It produces a tight 6-degree beam projecting 8 colors plus white. It features a laser cut GOBO Wheel with 4 GOBOs and 4 Beam Reducers to change the size of your beam (for exciting effects and for pinspotting), an 8-facet prism and a Frost filter to create a wash effect. The Inno Beam LED is lightweight and small in size making it extremely...
Read More

Product Information

SKU: 1237000089
GTIN: 819730012333
HS-Code: 9405401000

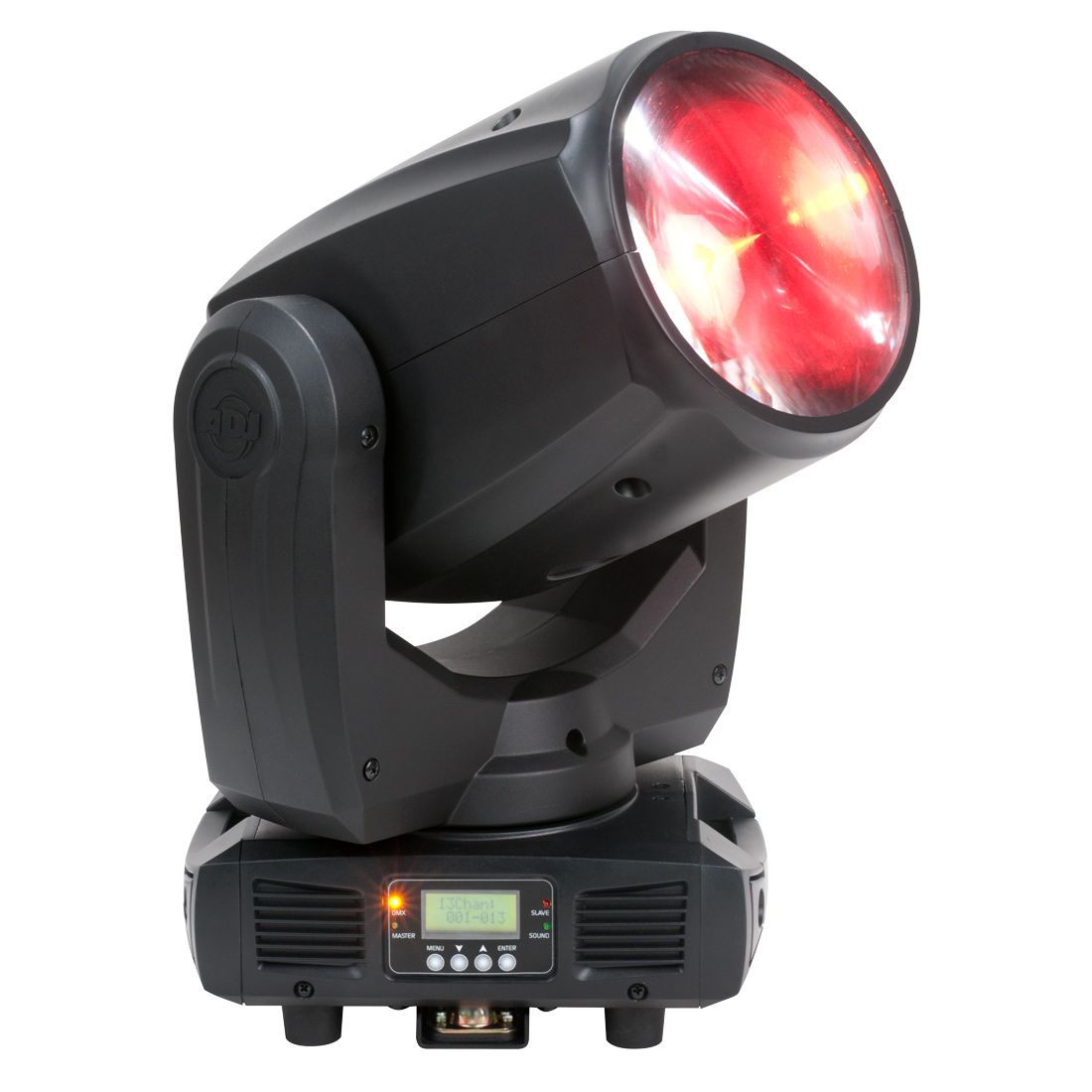

ADJ continues to push the boundaries of LED technology with the Inno Beam LED, a compact intelligent Moving Head with a bright 80W LED source. It produces a tight 6-degree beam projecting 8 colors plus white. It features a laser cut GOBO Wheel with 4 GOBOs and 4 Beam Reducers to change the size of your beam (for exciting effects and for pinspotting), an 8-facet prism and a Frost filter to create a wash effect.

The Inno Beam LED is lightweight and small in size making it extremely mobile for easy set-up and transport. It may be controlled via DMX, Sound Activation (with it’s own 4 built-in shows) or  from the ADJ UC3 easy-to-use controller. It has a Pan/Tilt Inversion mode that makes the heads produce contrasting movements. There are 2 DMX channel modes (12 or 14 channels).

The Inno Beam LED has 5 selectable dimming curves, a high speed shutter for slow to fast strobing and pulsing, and has a low power draw of 129W at maximum.



Gallery

Specification

    Specifications:
    - High output Moving Head beam effect with a bright white 80W LED source
    - 8 Colors + white
    Laser cut Gobo Wheel with 4 GOBOs and 4 Beam Reducers
    - Separate color & GOBO wheels
    - Beam Angle: 6-degrees
    - 3 Operational modes: DMX Controlled, Sound Active & Internal Show control modes
    - 2 DMX channel modes: 12 or 14 Channel
    - 4 Built-in shows
    - 8-facet Prism
    - Frost Filter
    - Gobo Shake effect
    - Gobo scroll mode
    - 540° pan / 210° tilt (16-bit)
    - Pan /Tilt Inversion mode
    - 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    - Shutter: Pulse effect; random strobe slow to fast
    - Dimming: 0% - 100%
    - Fan Cooled
    - Omega bracket included

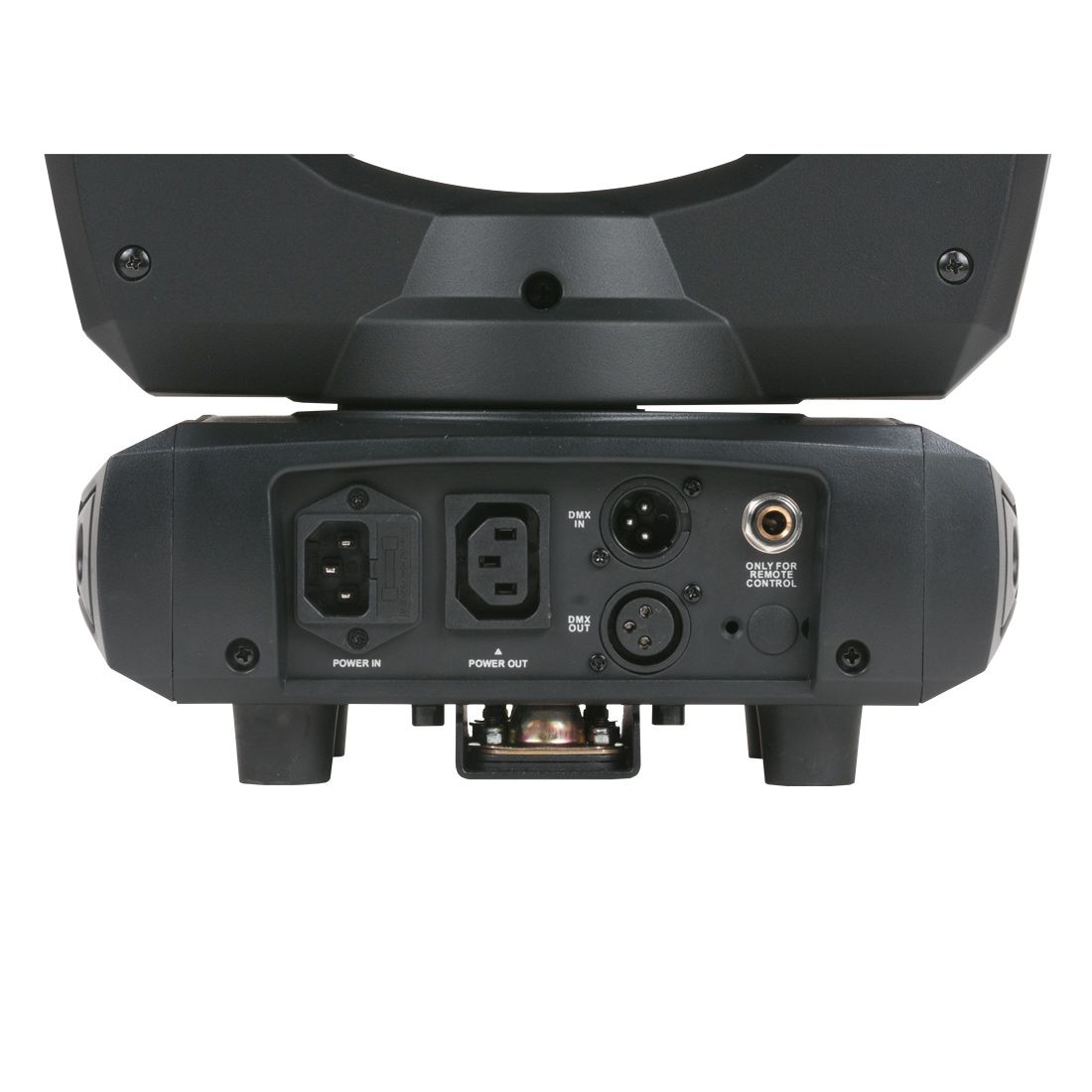

    - IEC AC IN/OUT on rear to daisy chain power (up to 3 Inno Beam LED’s @ 120V and 6 Inno Beam LED’s @ 230V )
    - Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
    - Power consumption: 129W Max
    - Multi-voltage Operation: AC 100 - 240V, 50/60Hz
    - Lux @ 3M: 40060 lux
    - LED Source: 80W White LED source ( Rated at 50,000 hrs)
    - Dimensions (LxWxH): 289 x 188 x 461mm
    - Weight: 8.2 kg

      Specifications subject to change without notice.

    Videos

    Downloads

    User Manual

    Inno Beam LED User Manual
    (Size: 2.4 MB)
