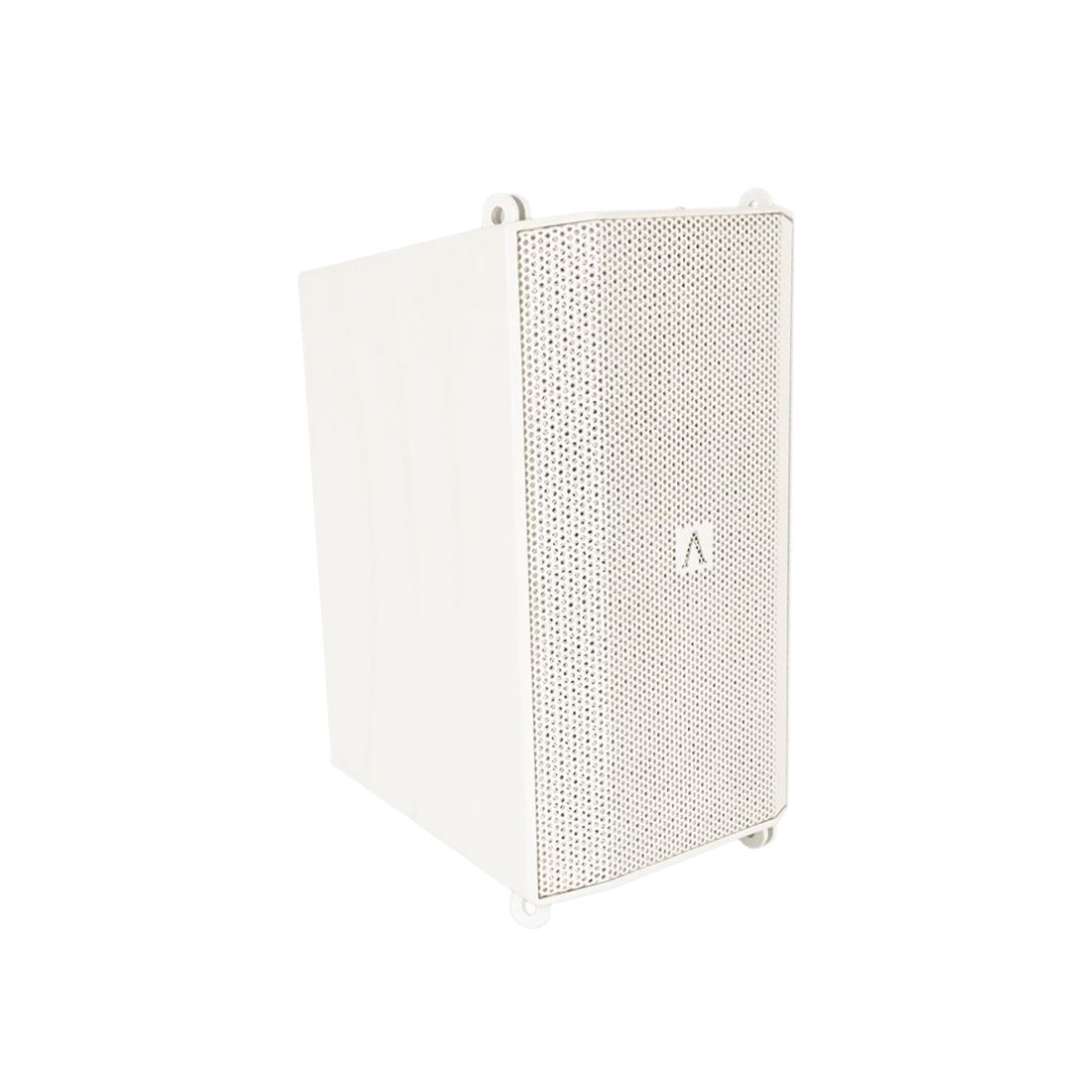

Imperio White Select
240W RMS Class D Power Amplifier with dual 4.75" woofers and 6x 1.75 IDVAT (inverted Dome Vertical Array Technology) HF Drivers. Part of the Imperio Mini Line Array Series with White housing.
Product Information
SKU: 1163900025
GTIN: 818651027723
HS-Code: 8518220090
240W RMS Class D Power Amplifier with dual 4.75" woofers and 6x 1.75 IDVAT (inverted Dome Vertical Array Technology) HF Drivers. Part of the Imperio Mini Line Array Series with White housing.
Gallery
Specification
- • 2-way active closed Design loudspeaker
- 2x 4.75" Neodymium Woofer with 1-inch voice coil
- 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
- • Max Output SPL: 117dB (single box measured on Axis @1m)
- • Nominal Coverage: 90° x 15°
- • Frequency Range (-10db): 150Hz – 20KHz
- • Cabinet: White ABS Plastic
- • Grill: 1.0mm steel
- • Splay Angles: 0, 4, 8 & 12-degrees
- • Integrated Rigging: Yes
- • LinkPins for connecting 2 Imperio or pole mounting included.
- • 0,6m Locking Power and XLR Link cables included
- • Volume: Selectable Input Sensitivity Dial
- • Amplification Power: 600W Peak
- • 2x 120W RMS Class D Amplifier Module
- • Switching Power Design
- • LED Power / Signal / Clip Indicator
- • 24-bit DSP Selectable Configurations
- • Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
- • Signal Input/Output : Locking 3pin XLR
- • Power Input/Output: Locking Power
- • Power Input: 100-240V ~ 50/60Hz
- • Dimensions: (W x D x H) 184.8x224x324mm
- • Weight: 6,3 kg
Specifications subject to change without notice
