Imperio Sub 210 white
Select

Brand
Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System White.  Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt...

Product Information

SKU: 1163900026
GTIN: 818651027693
HS-Code: 8518220090

Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System White.

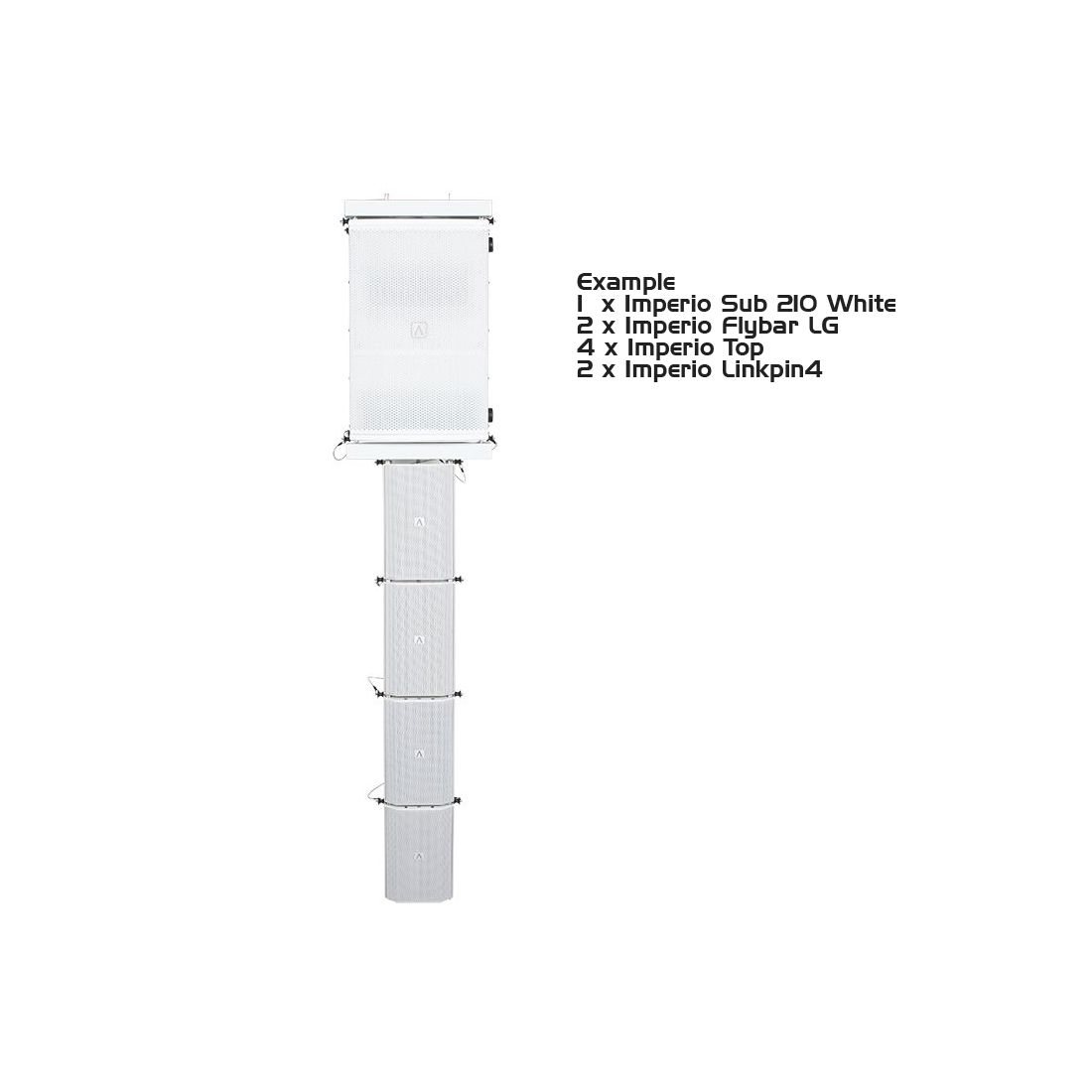

Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier

Imperio accessories include: Imperio Flybar Lg White, Imperio Flybar Small White, Imperio Pole w/mounting bracket White, LinkPin Kit4

Specification

  • • Dual 10-inch Active Subwoofer
  • • Driver Information: Two 10" woofers with 2.5” Voice Coils
  • • Max Output SPL: 124dB

  • • Frequency Range: 40Hz – 150Hz
  • • 6th Order Bandpass Design

  • • Cabinet: Plywood, white finish
  • • Grill: 1.2mm steel
  • • 2x M20 Screw Pole Mount (Can be used vertically or horizontally)
  • • Flyable with optional flybar

  • • 2x 350W Class D Amplifier Module, 1400W Peak
  • • LED Power / Signal / Clip Indicator
  • • Phase Switchable (0 / 180)
  • • Internal Selectable X-Over (90Hz or 120Hz)
  • • Volume Control Dial
  • • Impedance: 8 Ohm

  • • Signal Input/Output : Locking 3pin XLR
  • • Power Input/Output: Locking Power

  • • 100-120V / 220-240V ~ 50/60Hz (country specific)

  • • Dimensions: (W x D x H) 670 x 362 x 575mm
  • • Weight: 34,5 kg
Specifications subject to change without notice
