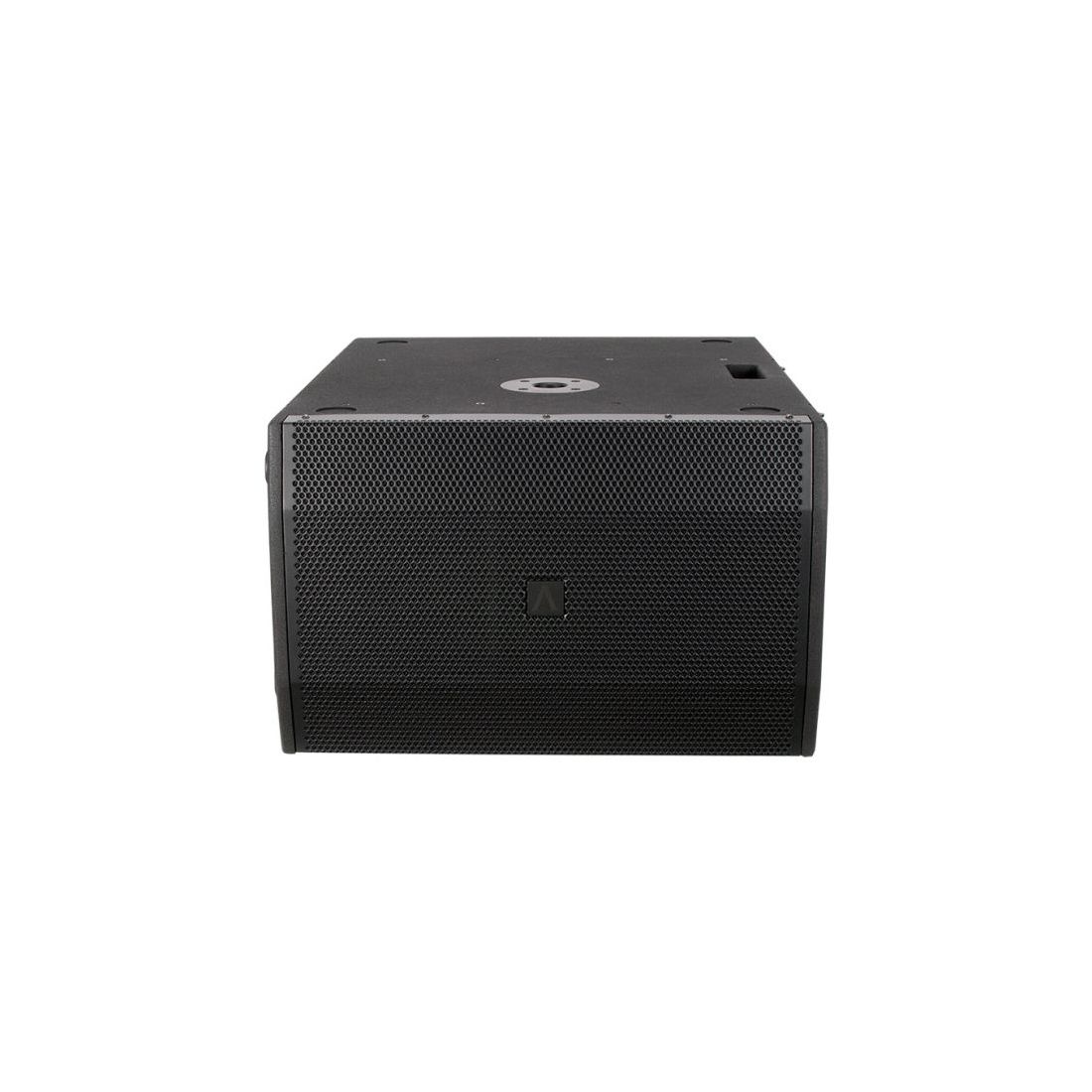

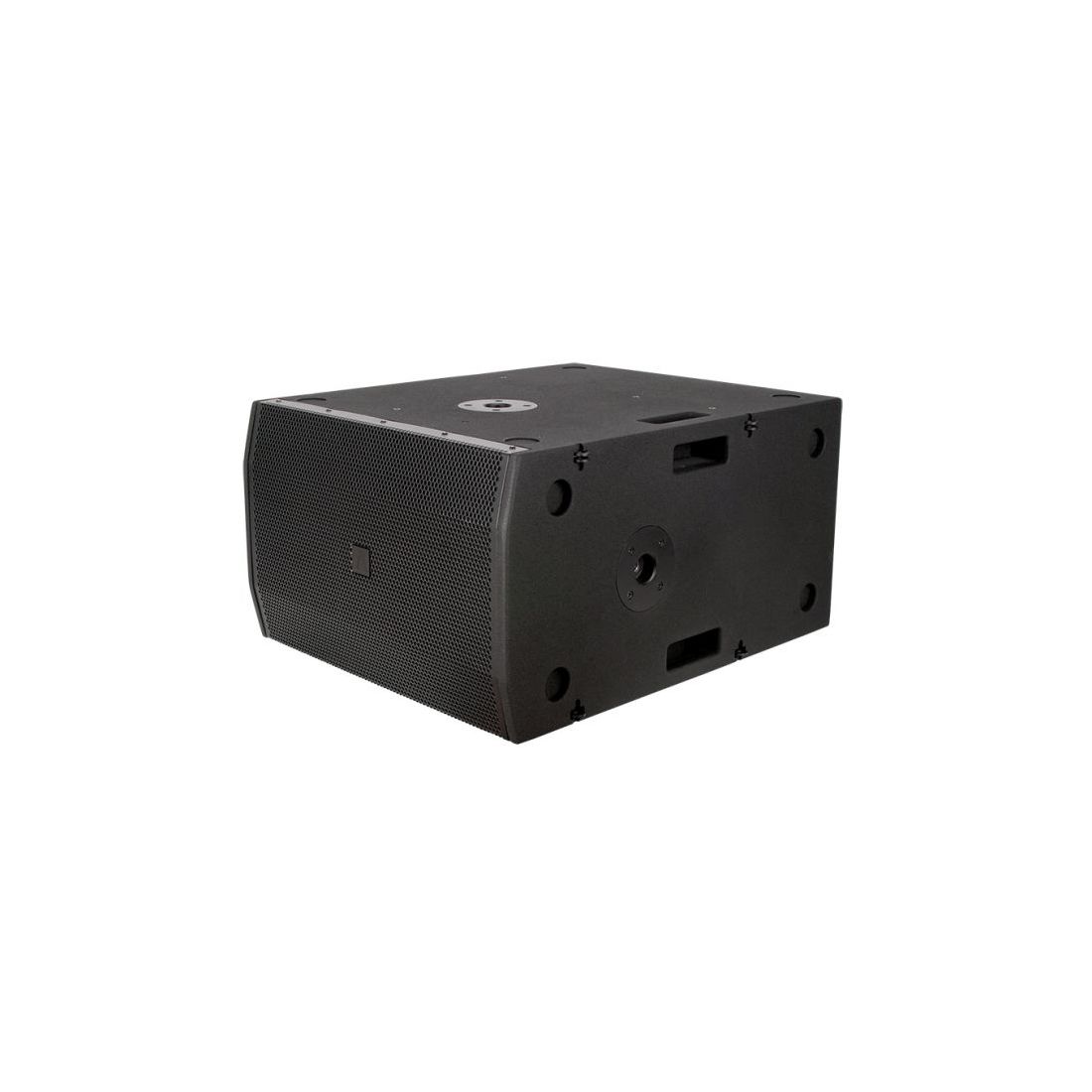

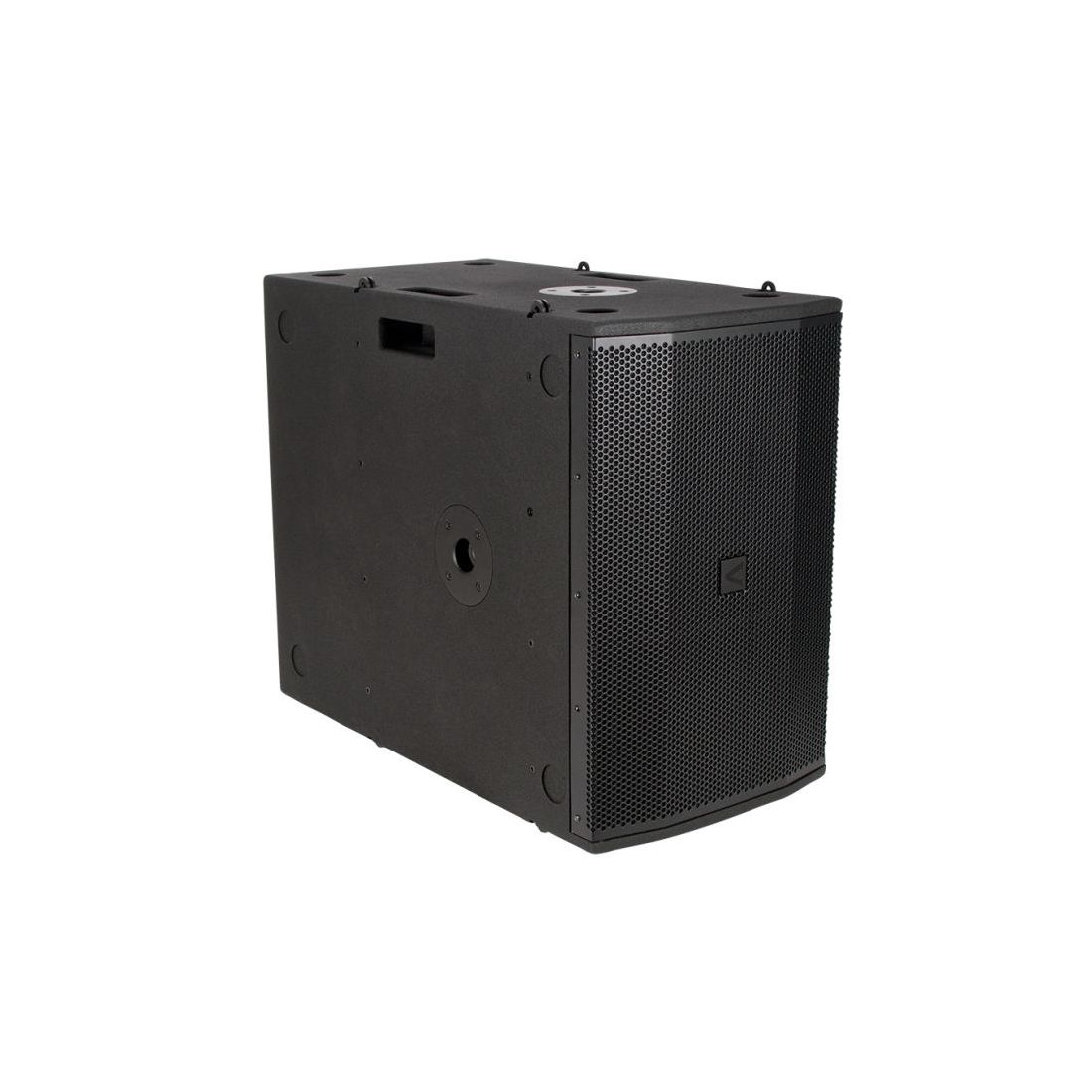

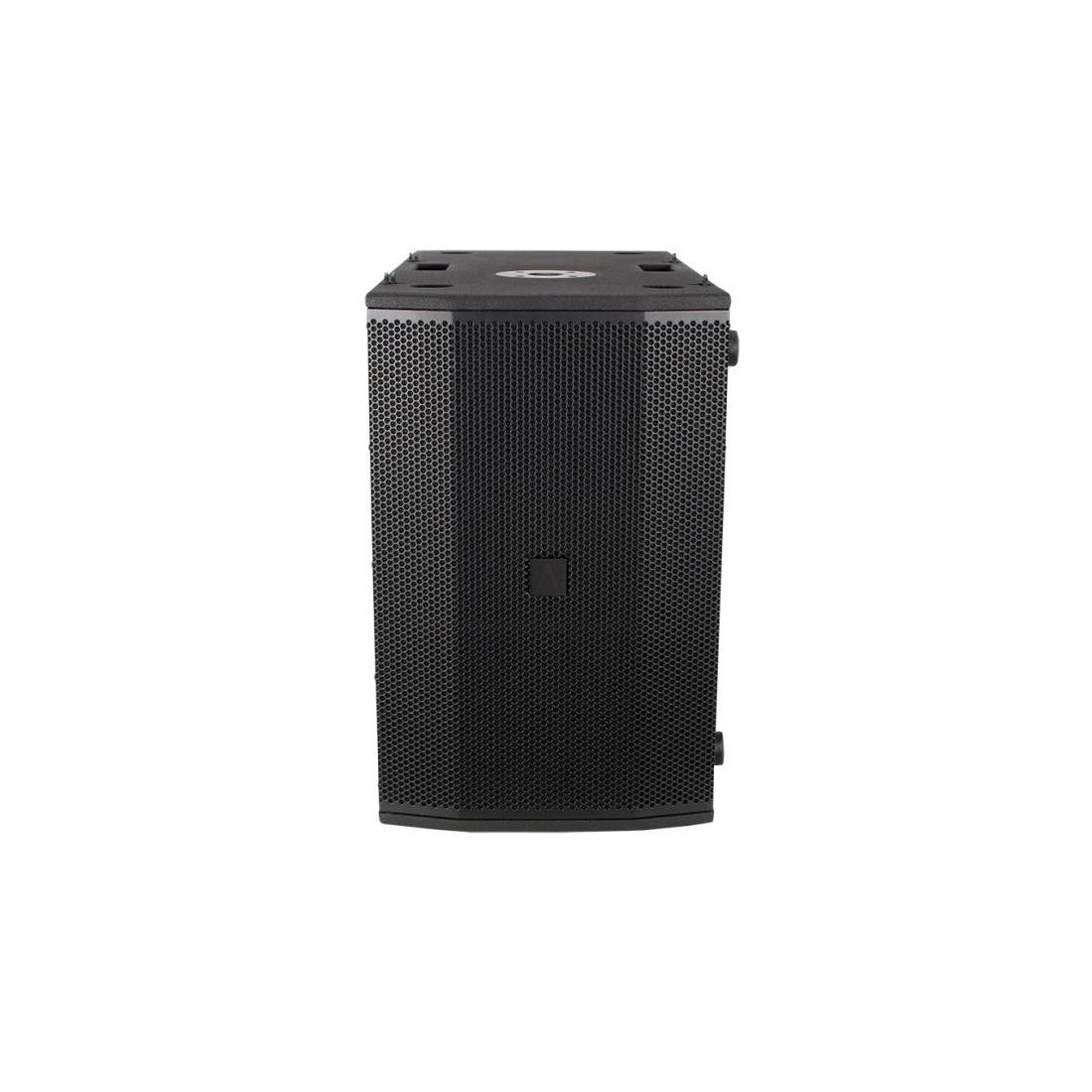

Imperio Sub 210 Select
Product Information
Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System
Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier
Imperio accessories include: Imperio Flybar Lg, Imperio Flybar Small, Imperio Pole w/mounting bracket, LinkPin Kit4
Gallery
Specification
- • Dual 10-inch Active Subwoofer
- • Driver Information: Two 10" woofers with 2.5” Voice Coils
- • Max Output SPL: 124dB
- • Frequency Range: 40Hz – 150Hz
- • 6th Order Bandpass Design
- • Cabinet: Plywood
- • Grill: 1.2mm steel
- • 2x M20 Screw Pole Mount (Can be used vertically or horizontally)
- • Flyable with optional flybar
- • 2x 350W Class D Amplifier Module, 1400W Peak

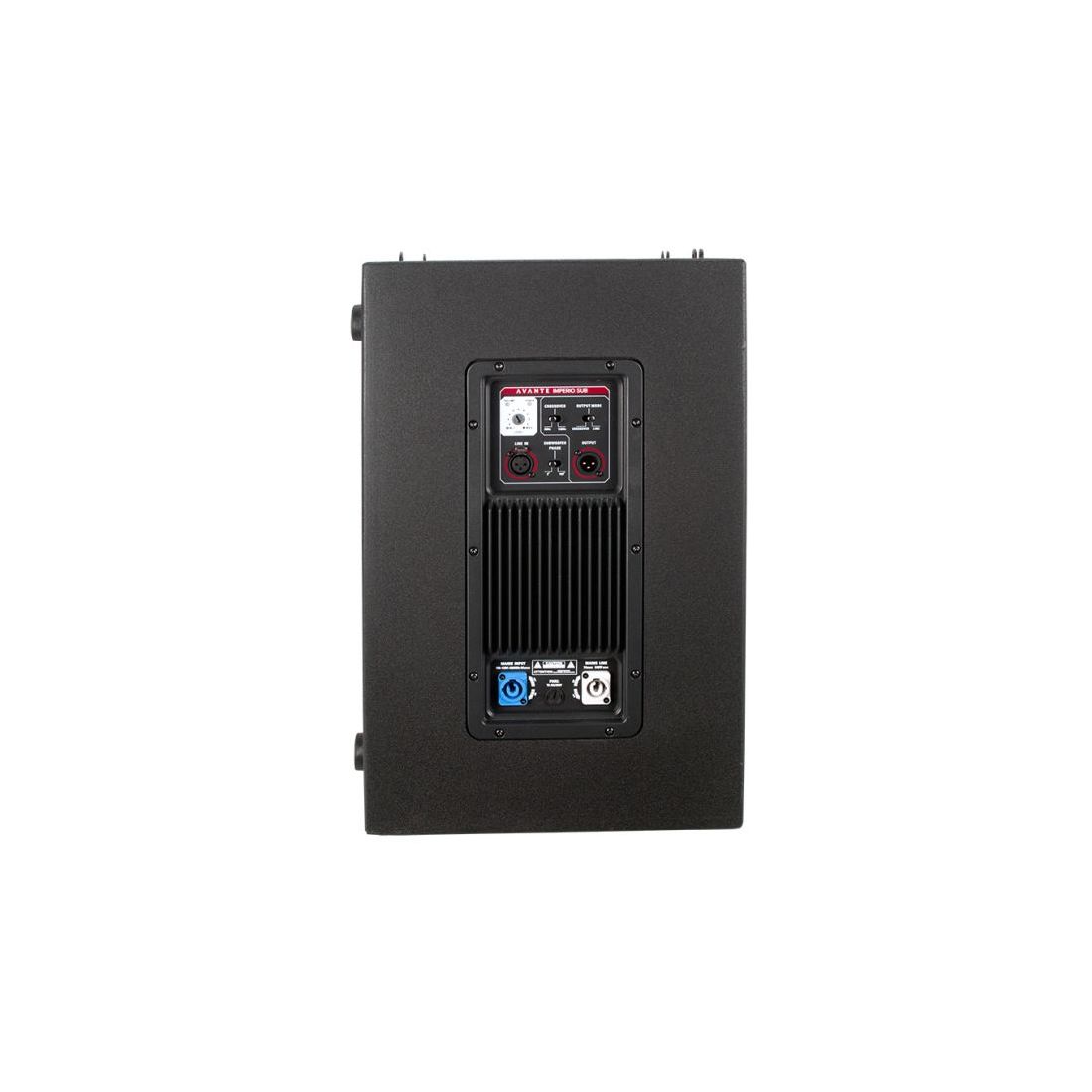

- • LED Power / Signal / Clip Indicator
- • Phase Switchable (0 / 180)
- • Internal Selectable X-Over (90Hz or 120Hz)
- • Volume Control Dial
- • Impedance: 8 Ohm
- • Signal Input/Output : Locking 3pin XLR
- • Power Input/Output: Locking Power
- • 100-120V / 220-240V ~ 50/60Hz (country specific)
- • Dimensions: (W x D x H) 670 x 362 x 575mm
- • Weight: 34,5 kg
