Ikon Profile

Brand
DISCONTINUED. Please check the replacement: 1221500032 - Ikon Profile Plus The Ikon Profile is a high output mini profile spot powered by a bright 32W (7500K) white LED. This fixture used high quality optics for crisp, clear projection. User can adjust the LED brightness, strobe effect and dimmer curve via DMX or with the UC-IR remote (sold separately). The Ikon Profile includes...

Product Information

SKU: 1221500028
GTIN: 10819730017960
HS-Code: 9405423990

DISCONTINUED. Please check the replacement: 1221500032 - Ikon Profile Plus

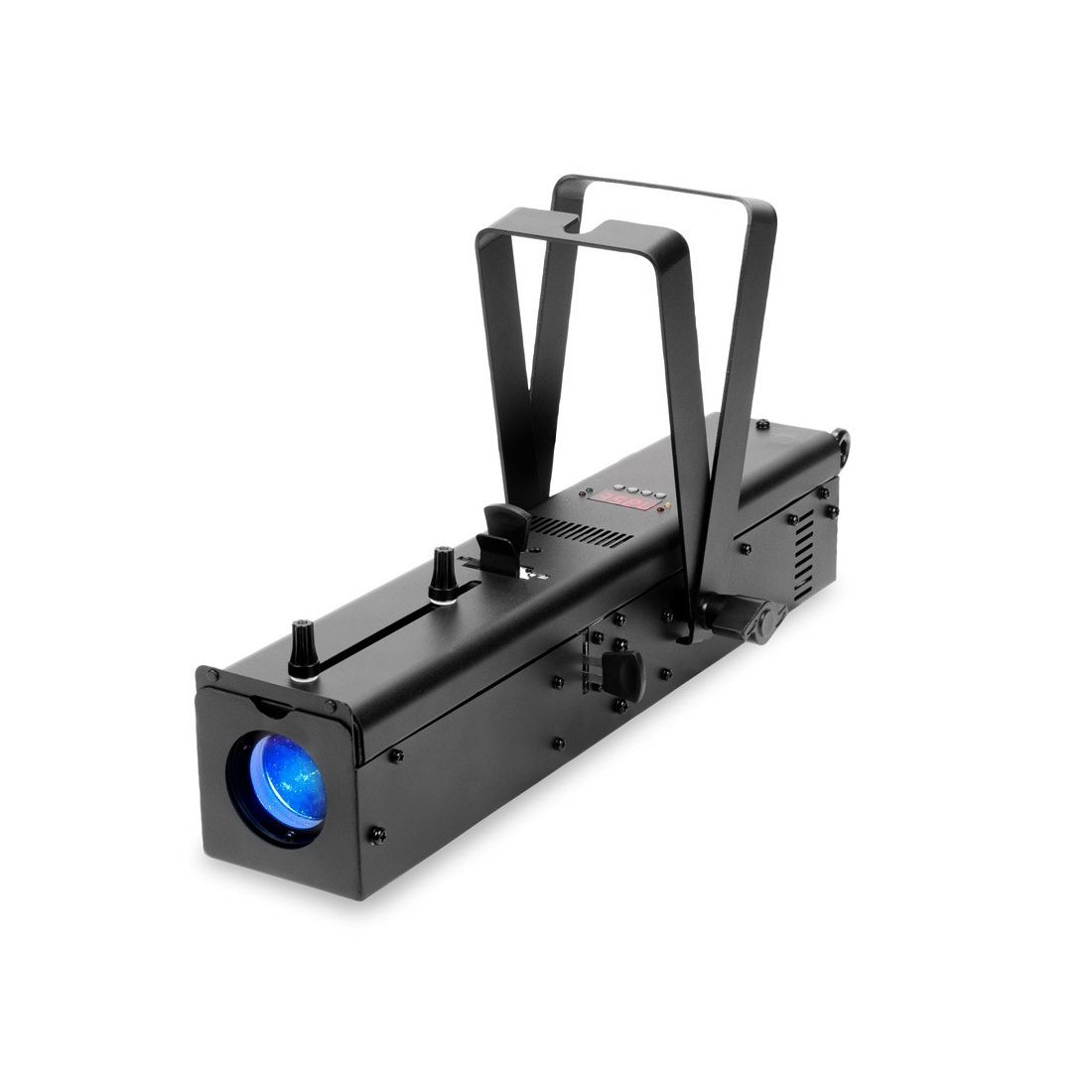

The Ikon Profile is a high output mini profile spot powered by a bright 32W (7500K) white LED. This fixture used high quality optics for crisp, clear projection. User can adjust the LED brightness, strobe effect and dimmer curve via DMX or with the UC-IR remote (sold separately).

The Ikon Profile includes one textured glass GOBO and 4 metal gobos. Users may also easily insert custom GOBOs in the fixtures GOBO slot on the top of the fixture. Users may also manually control the beam angle, the focus and the 4 framing shutters



Specification

    Specifications
    - Bright white 32W LED indoor GOBO Projector
    - High quality optics - Clear powerful output
    - 3 DMX Channels
    - 5 Dimmer Curves
    - Beam Angle: 15-30 degrees
    - Manual adjustable Beam Angle and Focus
    - Manual Framing Shutters

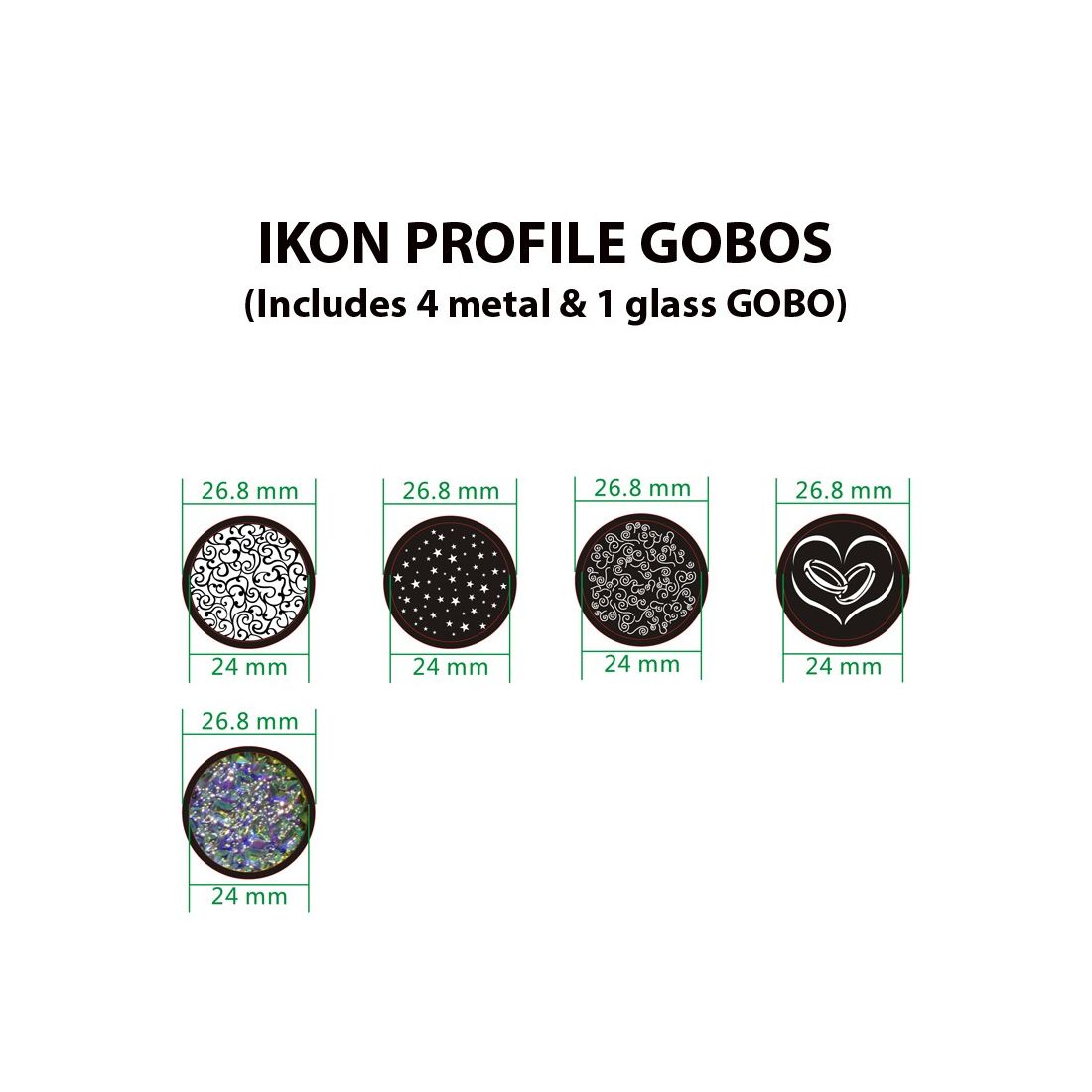

    - Includes 1 textured glass GOBO and 4 metal gobos
    - Gobo size: 26,8mm; Viewable size: 24mm
    - Drop in GOBO Slot for Metal or Glass Gobos
    - Color Frame For Color Filters, Color Correction Filters of Frost filter
    - Run all night – No Duty Cycle
    - Ideal for Mobile DJs, Clubs, Bars, Retail Stores and Promotional Events
    - Very low heat output
    - Long life LED (Rated at approximately 50,000 hrs.)
    - IEC AC outlet to daisy chain power (up to 27 Ikon Profile’s @ 230V)
    - Includes yoke to mount on a wall or hang from trussing
    - Multi-voltage: 100-240V, 50/60Hz
    - Power consumption: 44W max
    - Dimensions (LxWxH):  448 x 150 x 127mm
    - Weight:  2.7 kg.
