Hydro IP Tester Select
Product Information

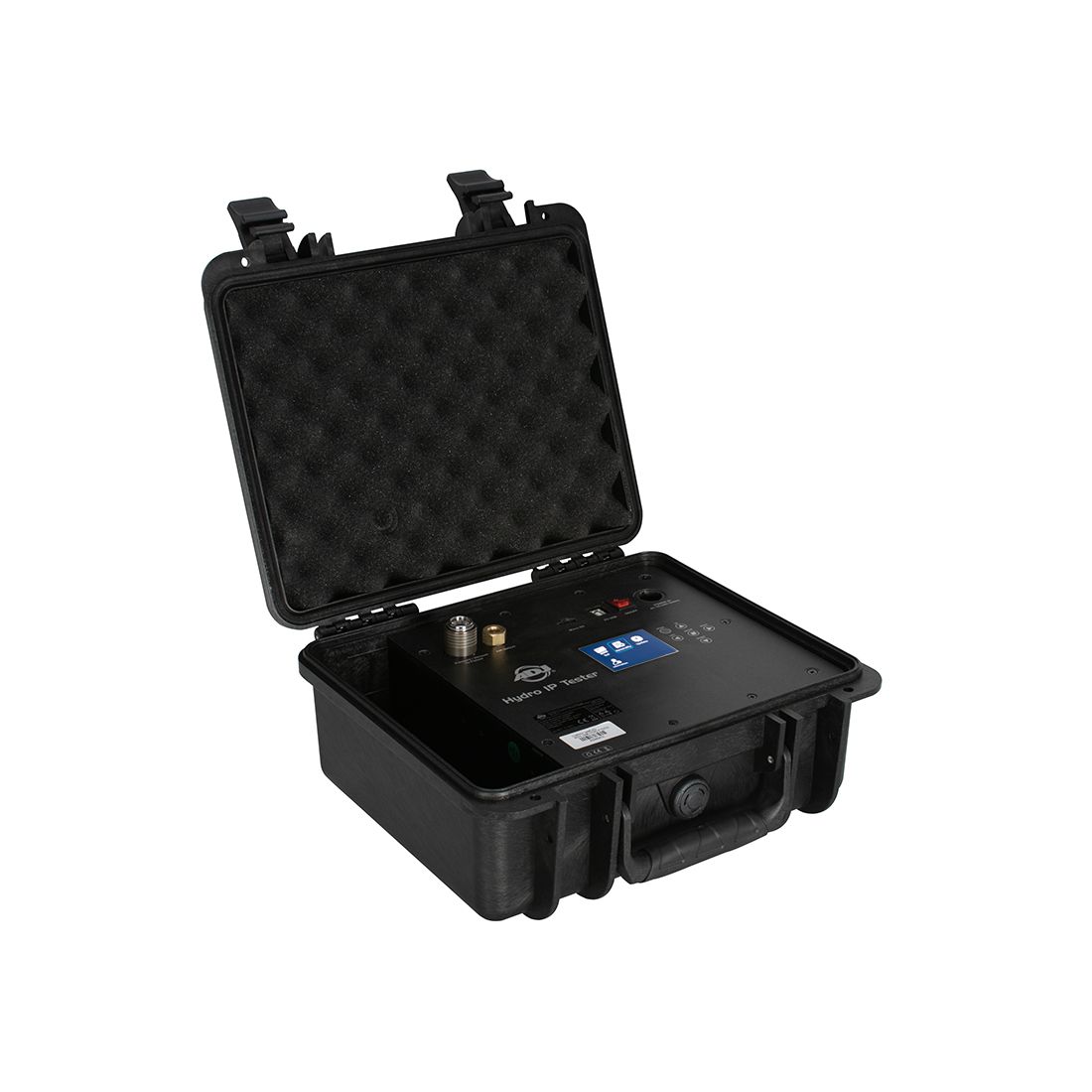

ADJ's Hydro IP Tester is a mobile service tool specifically designed to assess the integrity of compatible IP-rated lighting fixtures, including ADJ's Hydro series fixtures. This versatile device is capable of both vacuuming and detecting pressure leaks, making it ideal for use after a fixture has been opened for tasks such as lamp replacement, gobo replacement, or regular maintenance.

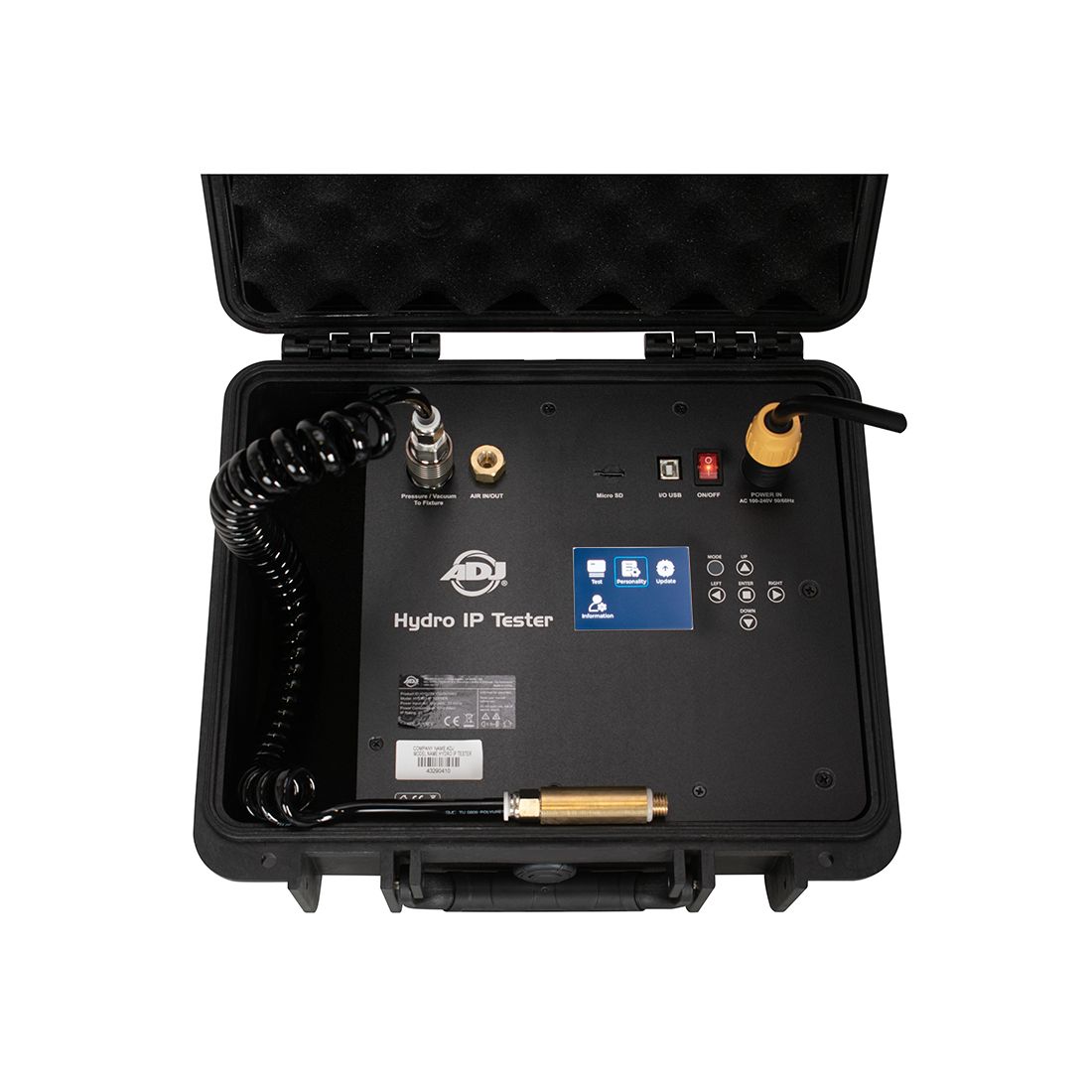

The Hydro IP Tester boasts several impressive features. It comes in a durable flight case that is easy to transport. The user-friendly interface features a 6-button LCD control menu display, allowing for effortless navigation. Progress bars on the display indicate the remaining test time, ensuring efficient testing. The Micro SD card slot provides a convenient means to update the testers software.

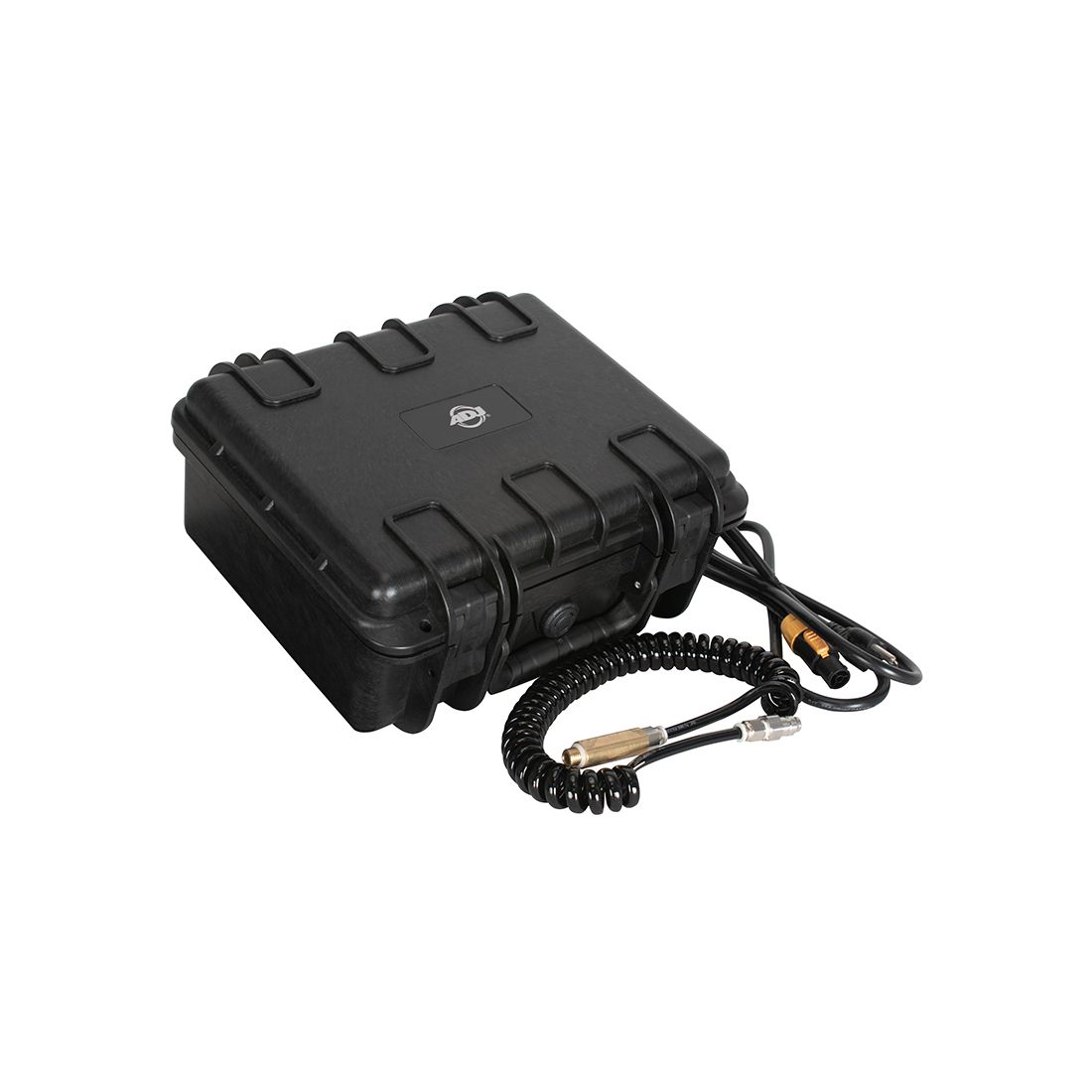

Included with the Hydro IP Tester are a 3-5 ft (0.9-1.5m) coiled air hose with a quick-connect fitting, a threaded M12 brass nozzle with a push-to-connect fitting, two M12 x 1.5 nylon bolts, a 6ft (1.8m) USB cable, a 5ft (1.5m) IP65 Locking Power Cable, a Micro SD card, and a durable, easy-to-carry case.
Gallery
Specification
- • Mobile IP Fixture Vacuum and Pressure Tester
- • Compatible with any IP Fixture such as ADJ's Hydro Series
- • Preloaded ADJ's IP Rated Lighting Fixture Test Presets
- • Manual and Auto Testing Modes
- • Easy to navigate LCD Control Menu Display
- • Micro SD Card Slot for updating Hydro IP Tester Device

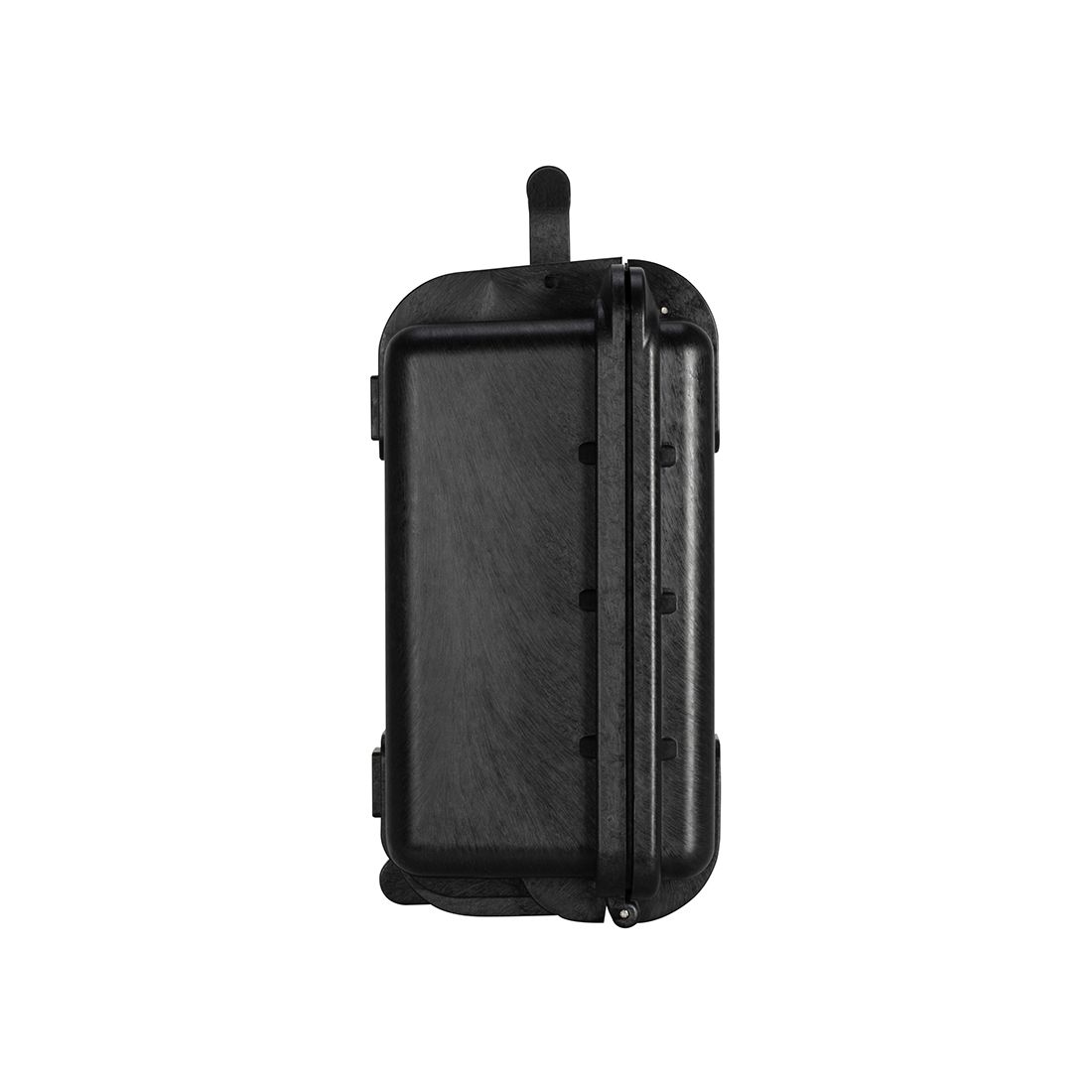

- • Easy To Carry Rugged Case
- • LCD Control Menu Display
- • Air In/Out Vent
- • Quick-Release Air Hose Fitting
- • Micro SD Card Slot
- • USB B Port
- • IP65 Locking Power In
- • Length: 419.1mm
- • Width: 165.1mm
- • Vertical Height: 362mm
- • Weight: 7.0kg
- • AC 100-240V - 50/60Hz
- • 40W Max Power Consumption
- • 0.9-1.8m Air Hose with Quick-Connect Fitting
- • M12 Threaded Brass Nozzle with Push-to-Connect Fitting
- • (x2) M12 x 1.5 Orange Colored Nylon Bolt
- • 1.8m USB Cable
- • 1.5m IP65 Power Cable
- • Micro SD Card (4GB min)
