Gobo Motion LED Archive
Product Information

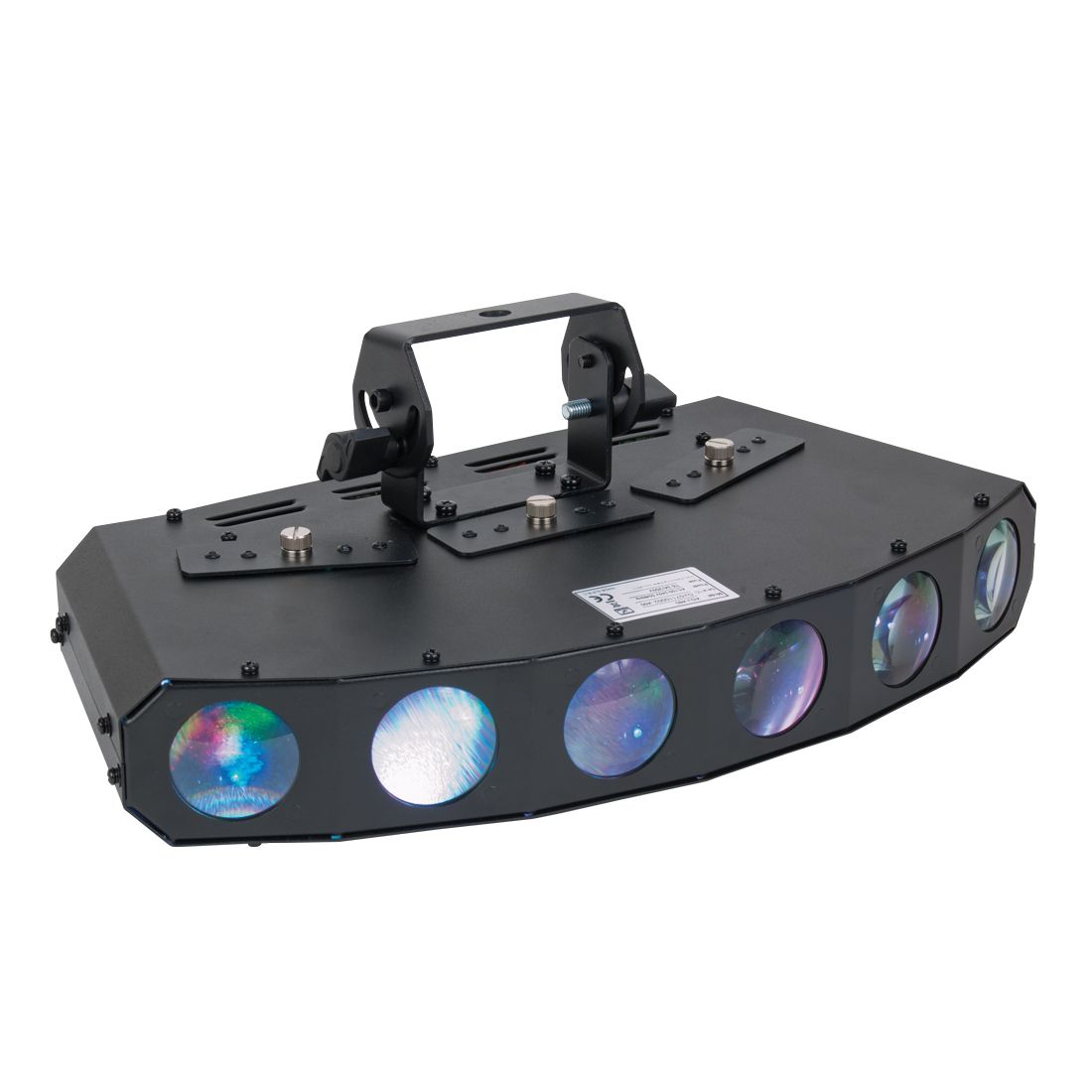

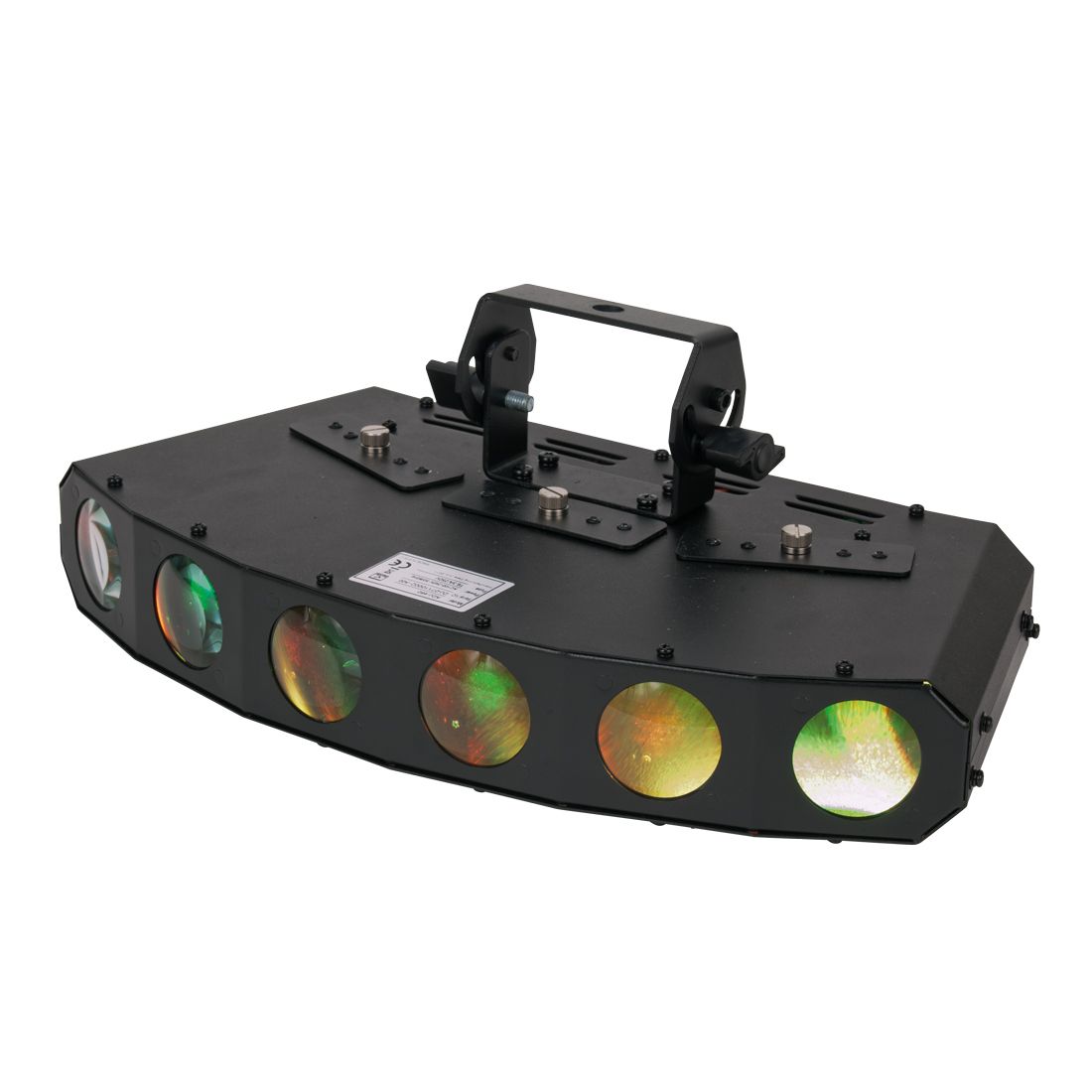

The American DJ Gobo Motion LED features fast scanning TRI LED colored beams with 6 replaceable gobo patterns. The gobos may be taken out and the fixture can be used as 6 solid beams of light. This effect offers small clubs and mobile entertainers the convenience of having multiple effects in one light show without having to transports multiple fixtures.
The Gobo Motion LED is easy-to-use and has 3 operational modes: DMX controller, Master/Slave & Sound Active. There are several built-in programs when used in Sound Active or Master/Slave modes. Users can also use the easy-to-use UC3 controller from American DJ to turn the unit On/Off and scroll through different programs. Up to 9 Gobo Motion LEDs may be power linked together via the units IEC connectors.
Gallery
Specification
Specifications:
- 2-FX-IN-1 DMX LED multi-beam effect – 6 quick moving solid beams or 6 beams with
gobos
- 6x 3-watt 3-in-1 RGB “TRI Color” LEDs - produces a variety of color effects
(Red, Green, Blue, Purple, Yellow, Cyan & White)

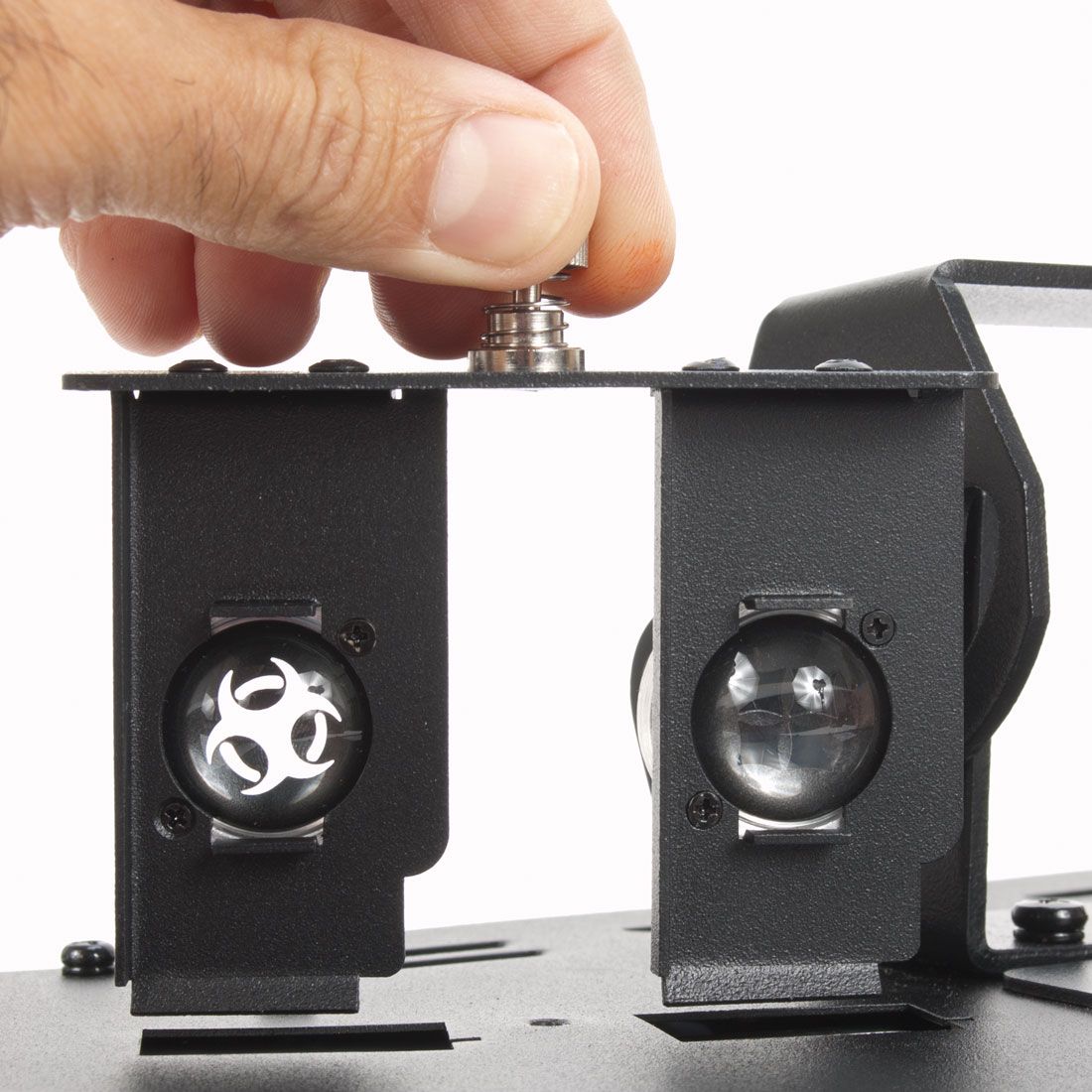

- Includes 6 replaceable gobo patterns (Gobo size: 20.5mm; Viewable size: 12mm)
- 3 DMX Channel Modes (1, 3 or 18 Channels)
- 4-Button menu system LED Display making it easy to navigate
- 3 Operational modes: DMX controller, Master/Slave & Sound Active
- Exciting built-in lighting programs
- Dimming: 0-100%
- Strobe effect
- Beam angle: 8.5 degrees (single beam), 75 degrees (multiple beams)
- No moving parts
- Hanging Bracket + safety hook included
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Run all night – No duty cycle – Unit stay cool all night

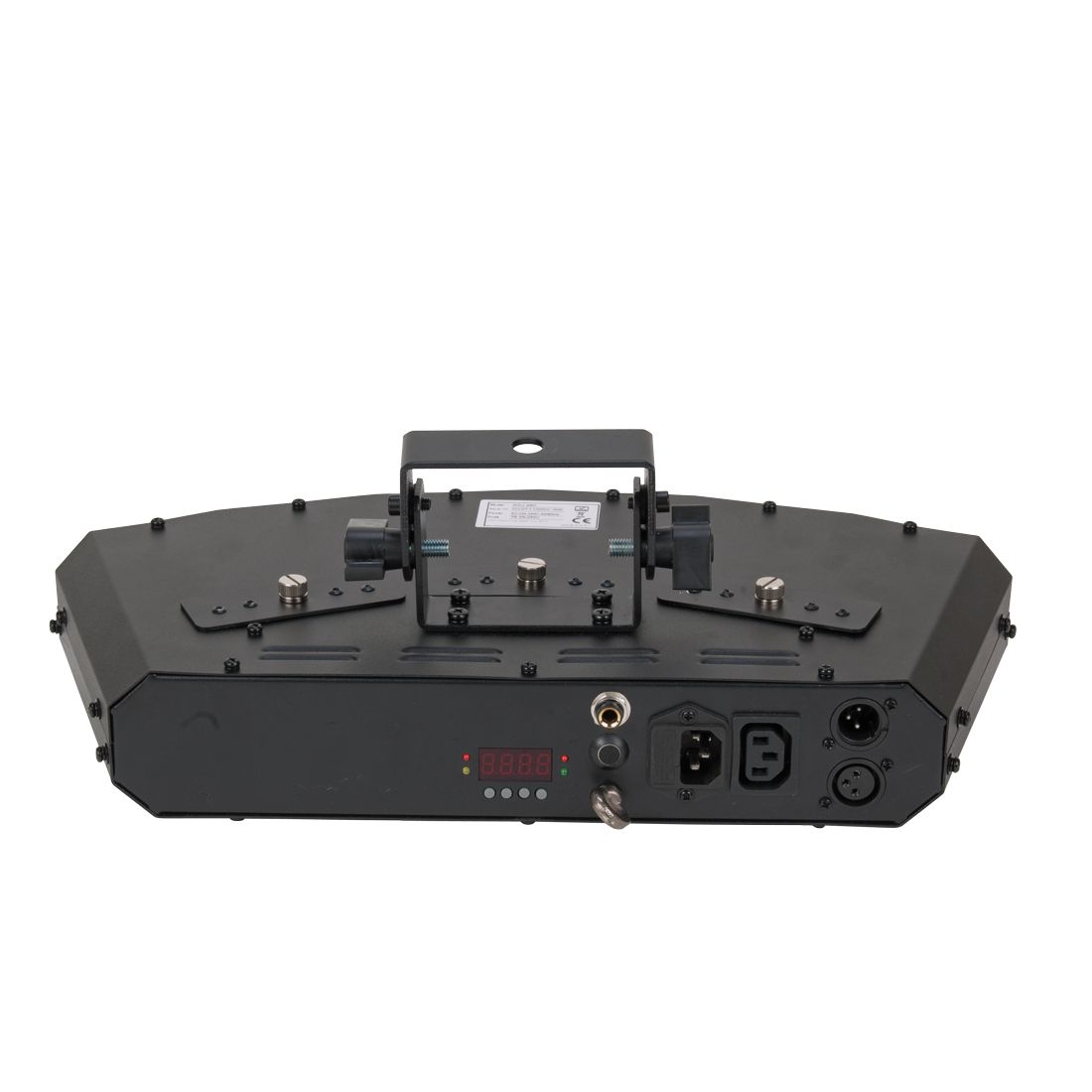

- IEC AC IN/OUT on rear to daisy chain power (up to 9 units)
- Extreme long lifetime of the LED (50,000 hr. rating)
- Power consumption: 39W max
- Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
- Dimensions (LxWxH): 428x211x143mm
- Weight: 3.6kg.
Specifications subject to change without notice.
