Focus Wash 400 Select
Key Features
• RGBACL Color Mixing (Red, Green, Blue, Amber, Cyan, Lime)
• CRI: 94
• Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)
• Zoom range: 9 - 41°
• Field Angle: 19 - 54°
• Fresnel Lens
• Source: 400W RGBACL LED Engine
• 7783 Lumen
Product Information

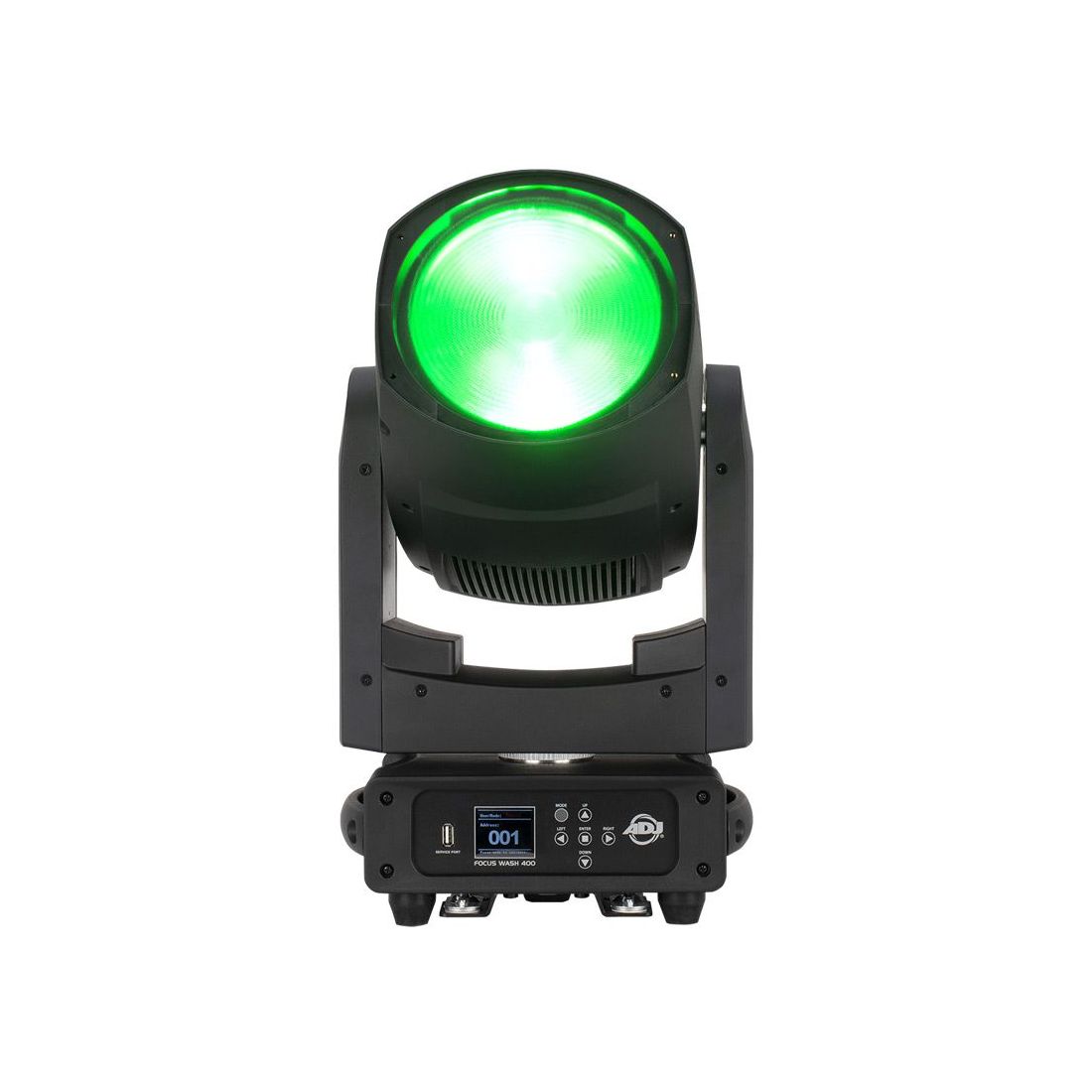

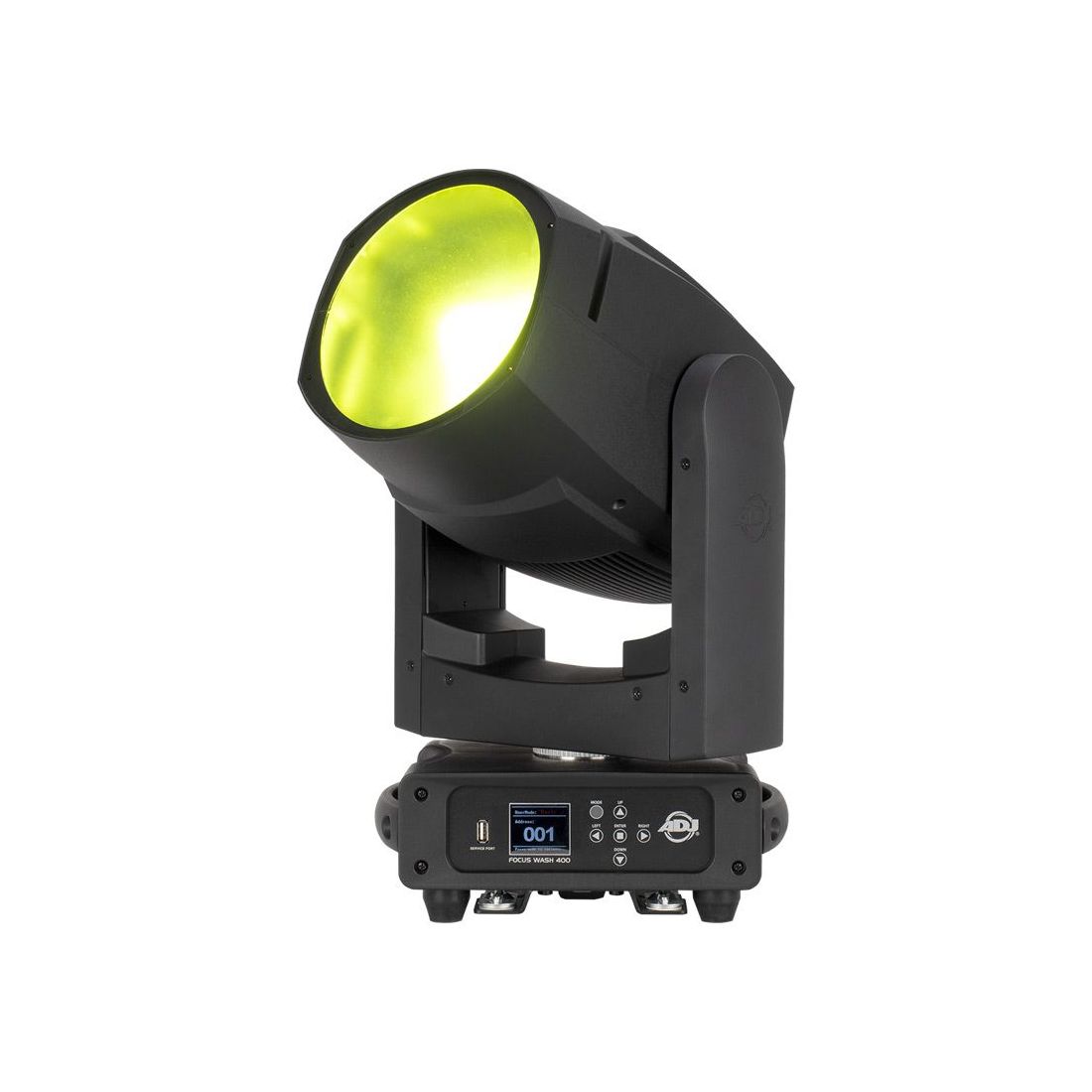

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43° motorized zoom produces an even field light output.
Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 10000K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.
The FOCUS WASH 400’s unique color engine produces a high CRI of 92+ for bright whites and a CRI R9 of 87.3 to help make red tones more vibrant. The fixture also includes 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

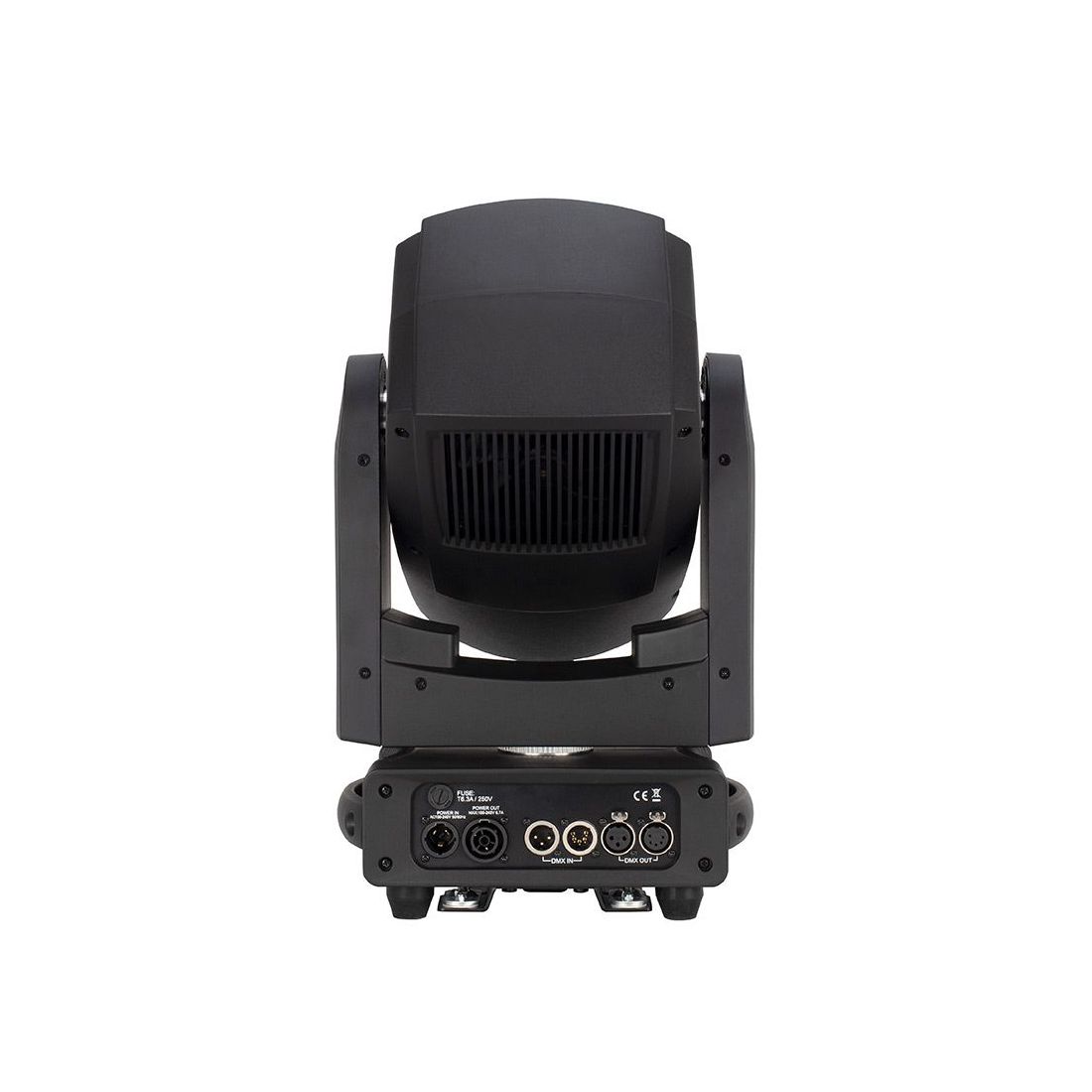

The fixture comes standard with IP65 locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.
Gallery
Specification
- • Source: 400W RGBACL LED Engine
- • 7783 Lumen
- • 730 Lux@5m/43°
- • 4451 Lux@5m/9°
- • Average lifetime: approximately 50,000 hrs
- • Zoom range: 9 - 41°
- • Field Angle: 19 - 54°
- • Fresnel Lens
- • Motorized Zoom
- • DMX-512 Protocol
- • 5 DMX Channel Modes (Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24))
- • RDM compatible (Remote Device management)
- • 16bit dimming 0-100%
- • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- • 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
- • Various strobe effects
- • LCD Menu Display with 6-button Control
- • 3 Fan settings : Auto, High and Low Noise
- • RGBACL Color Mixing (Red, Green, Blue, Amber, Cyan, Lime)
- • CRI: 94
- • Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)
- • Metal casting with ABS housing

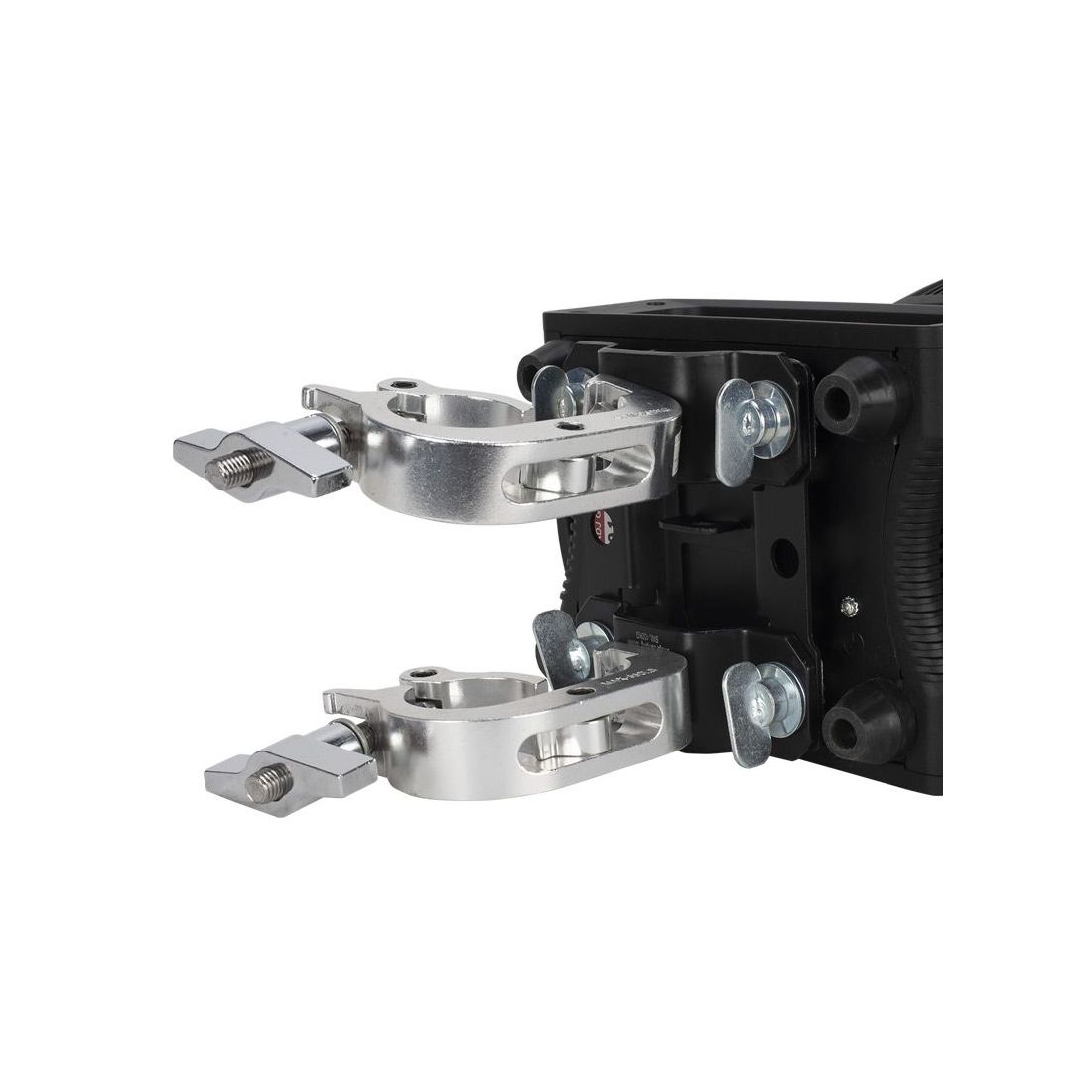

- • Omega bracket with quick locks
- • Multivoltage : 100-240V 50/60Hz
- • Power Draw : 438W
- • Locking 3- & 5-pin DMX In/Out
- • IP65 Locking Power In/Out
- • Dimensions: 213 x 278 x 568mm
- • Weight: 10,7 kg.
- • Snoot
- • 1x40° Linear Lens
- • 2 Omega Brackets
- • Safety Cable
- • IP65 Locking Power Cable
