Focus Spot TWO Archive
Product Information

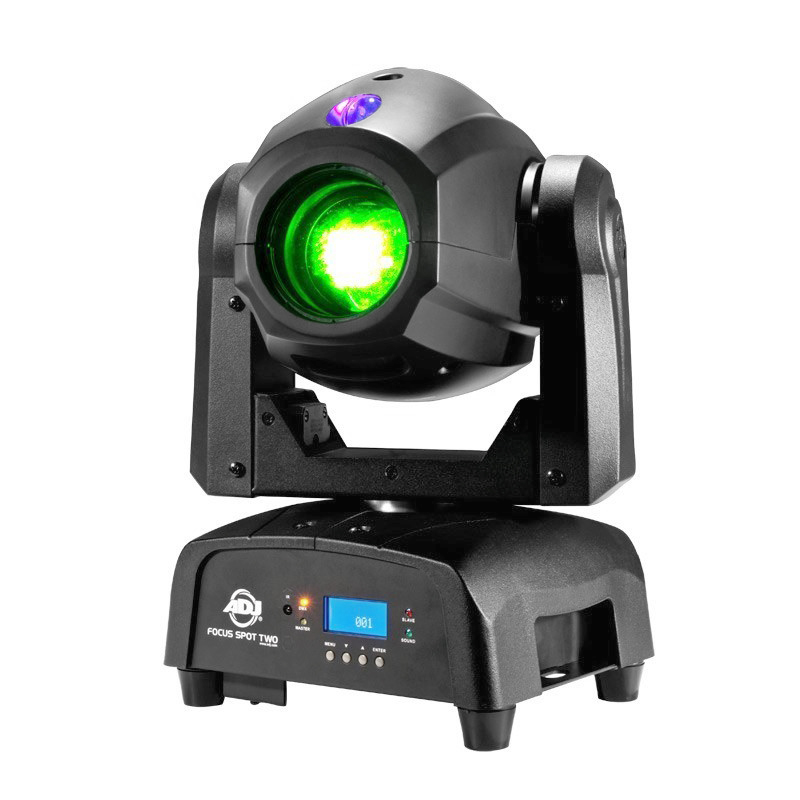

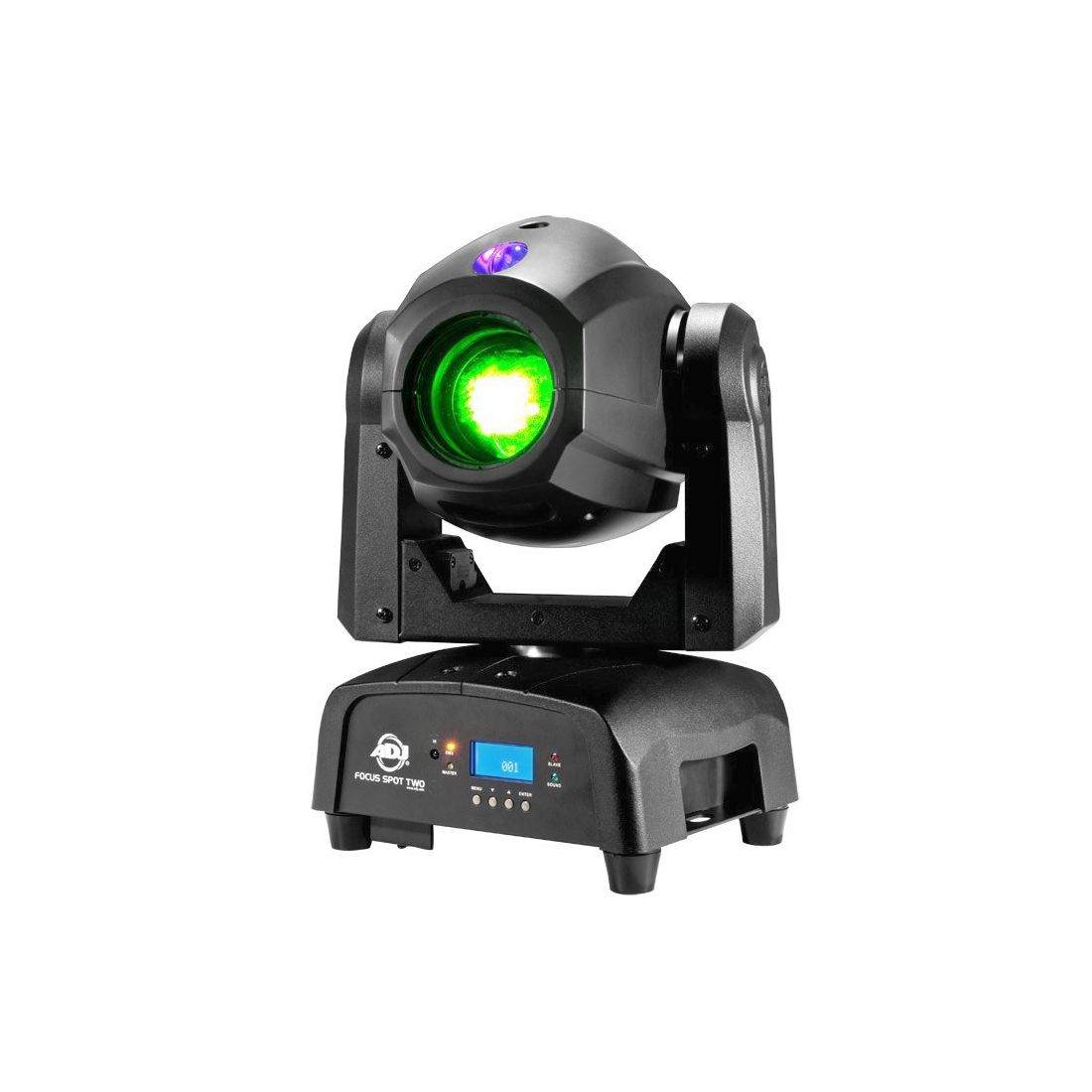

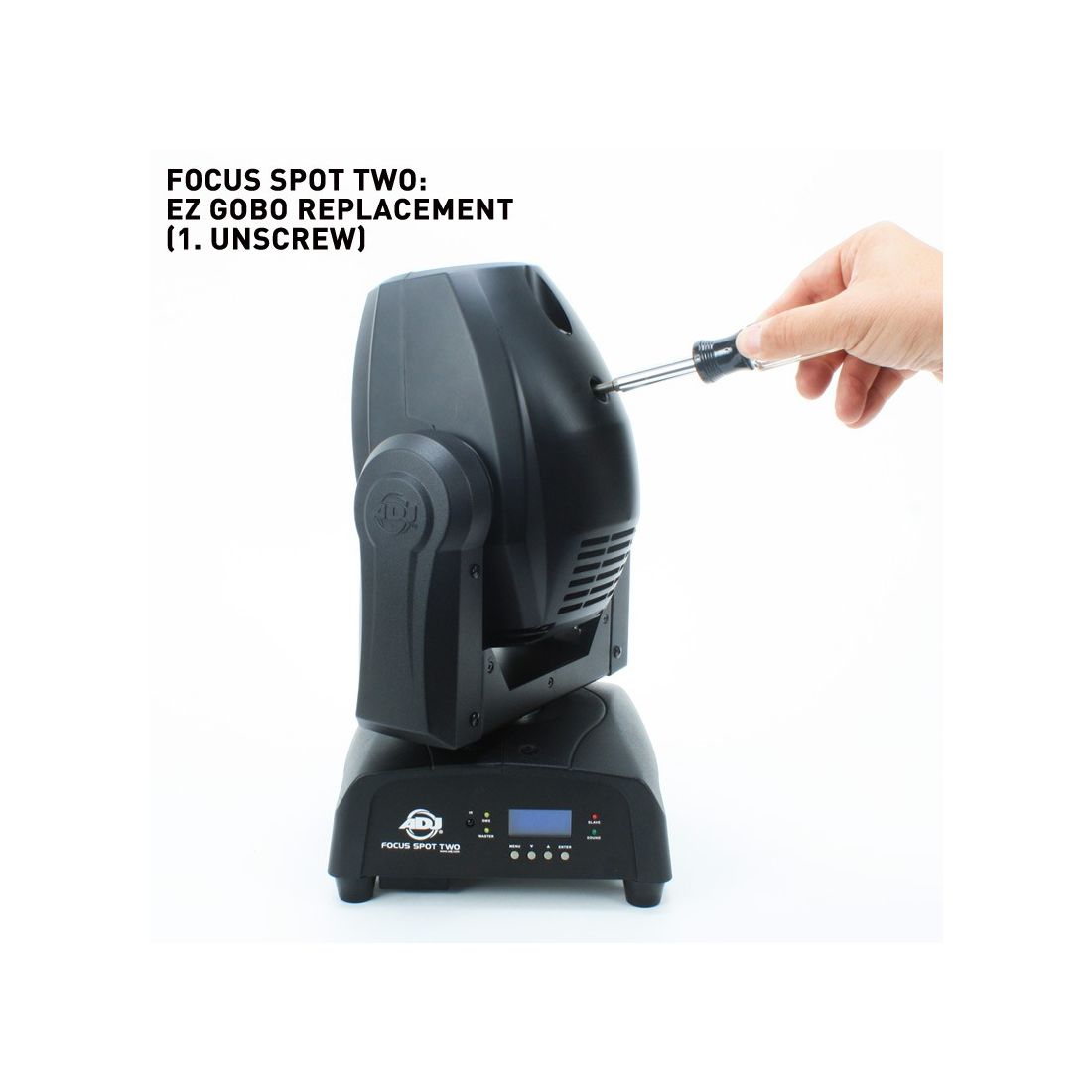

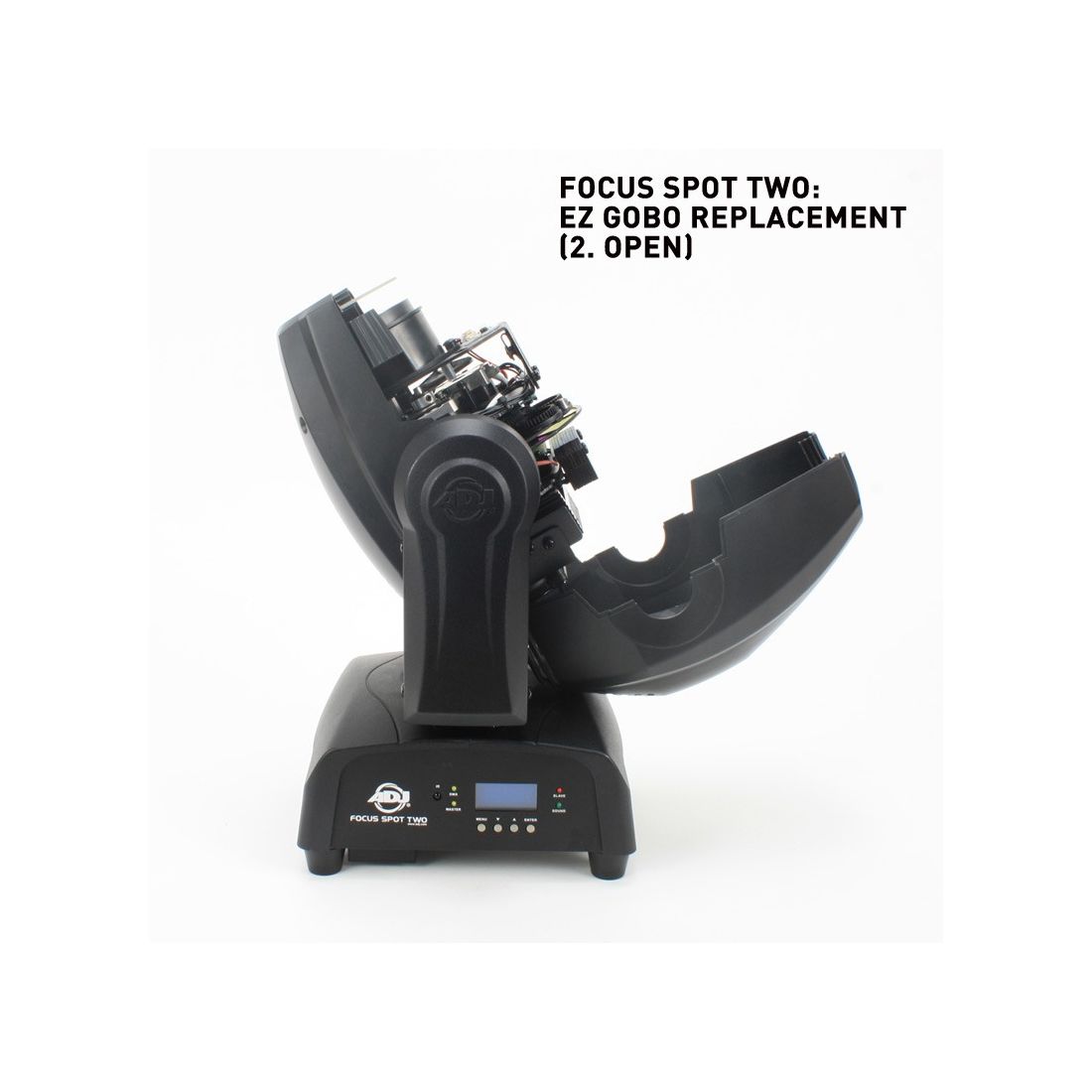

The ADJ Focus Spot Two is a 75W LED Moving Head with a 3W UV included for black lighting or additional color hues. In addition, ADJ has fitted the FS2 with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 15 ~ 20-degrees.
The Focus Spot Two is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a an LED spot Moving Head. It has 16 & 17 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, Locking Power In/Out power connectors, and a 4-Button DMX LCD menu.
Gallery
Specification
- • High Output LED Moving Head spot
- • 1 x 75W Cool White LED & 3W UV LED
- • Motorized Focus

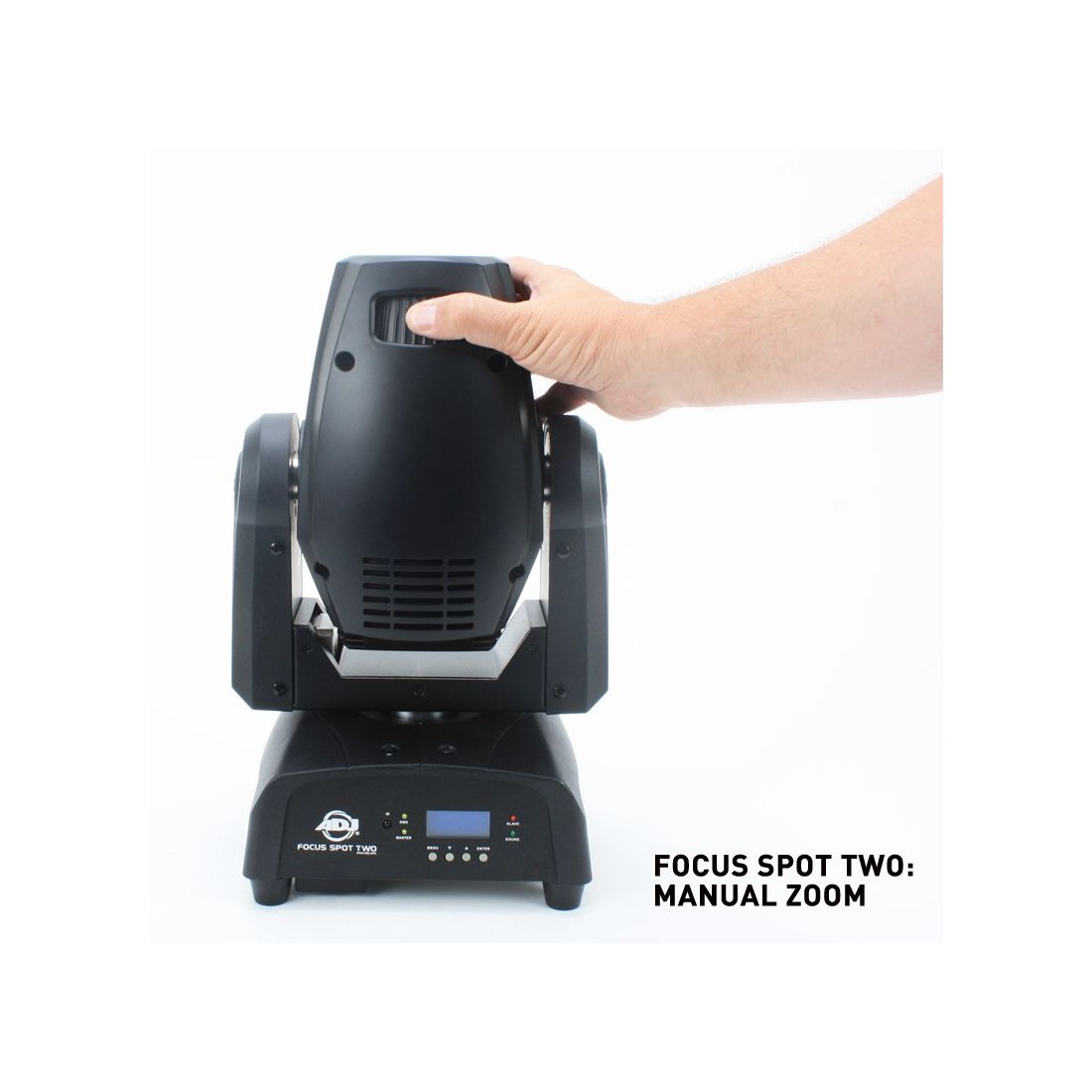

- • Manual Zoom knob on head: 15 ~ 20-degree beam angle
- • 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
- • 4 Built-in lighting shows
- • 16 & 18 DMX channel modes
- • 8 Colors + Spot & Split Colors
- • 6 Rotating, replaceable Gobos + Spot
- • Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm, Glass Gobos up to 1,2mm thickness
- • Gobo Indexing

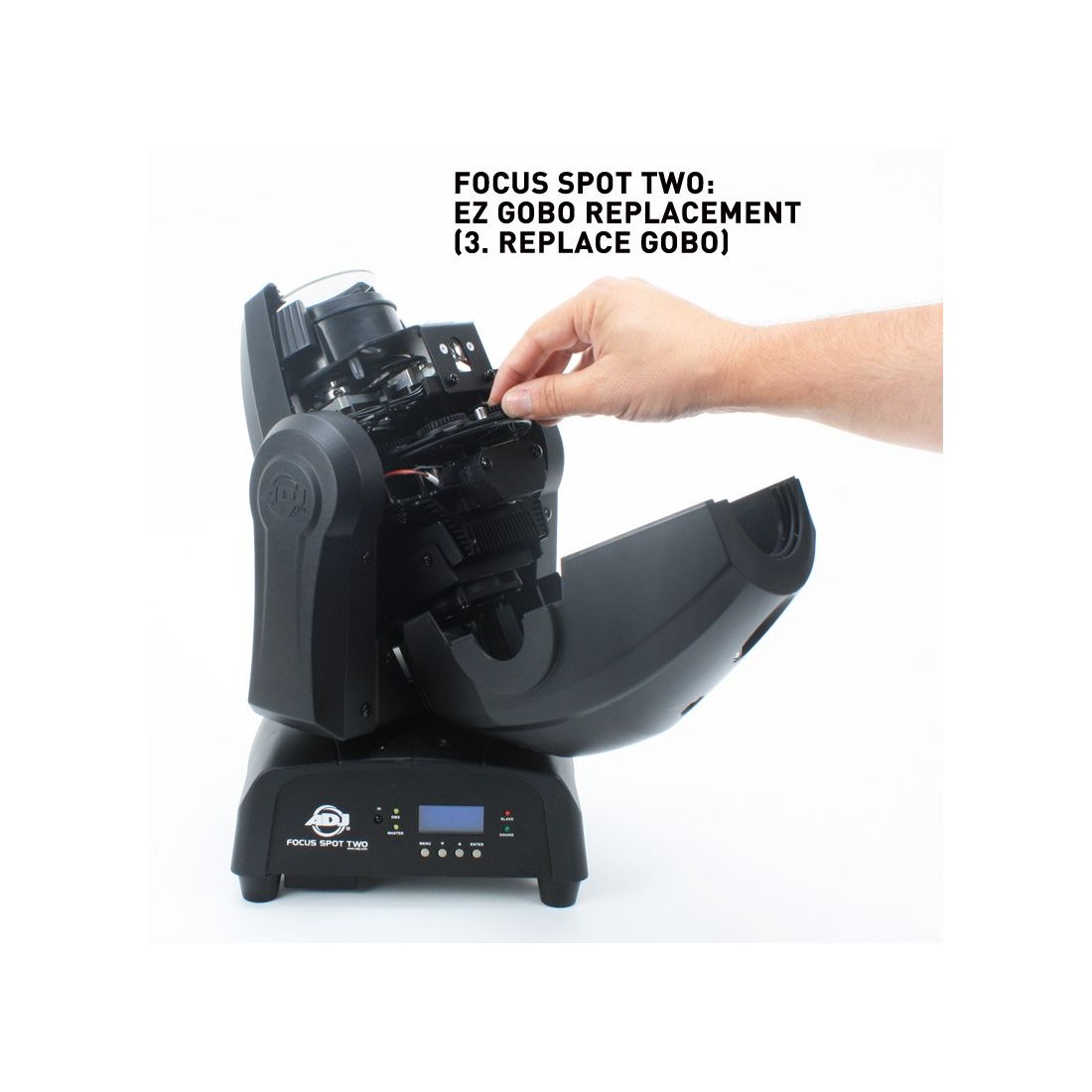

- • EZ Gobo replacement with hinged head cover
- • Electronic Dimming: 0% - 100%
- • 5 Dimmer Curves
- • Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
- • Fast Pan Tilt Movement
- • Pan: 540-degree; Tilt: 230-degree
- • Gobo Shake effect
- • 6-facet prism effect
- • 16-Bit Fine Pan/Tilt control
- • 4-Button DMX LED menu
- • Stepper motors with micro stepping

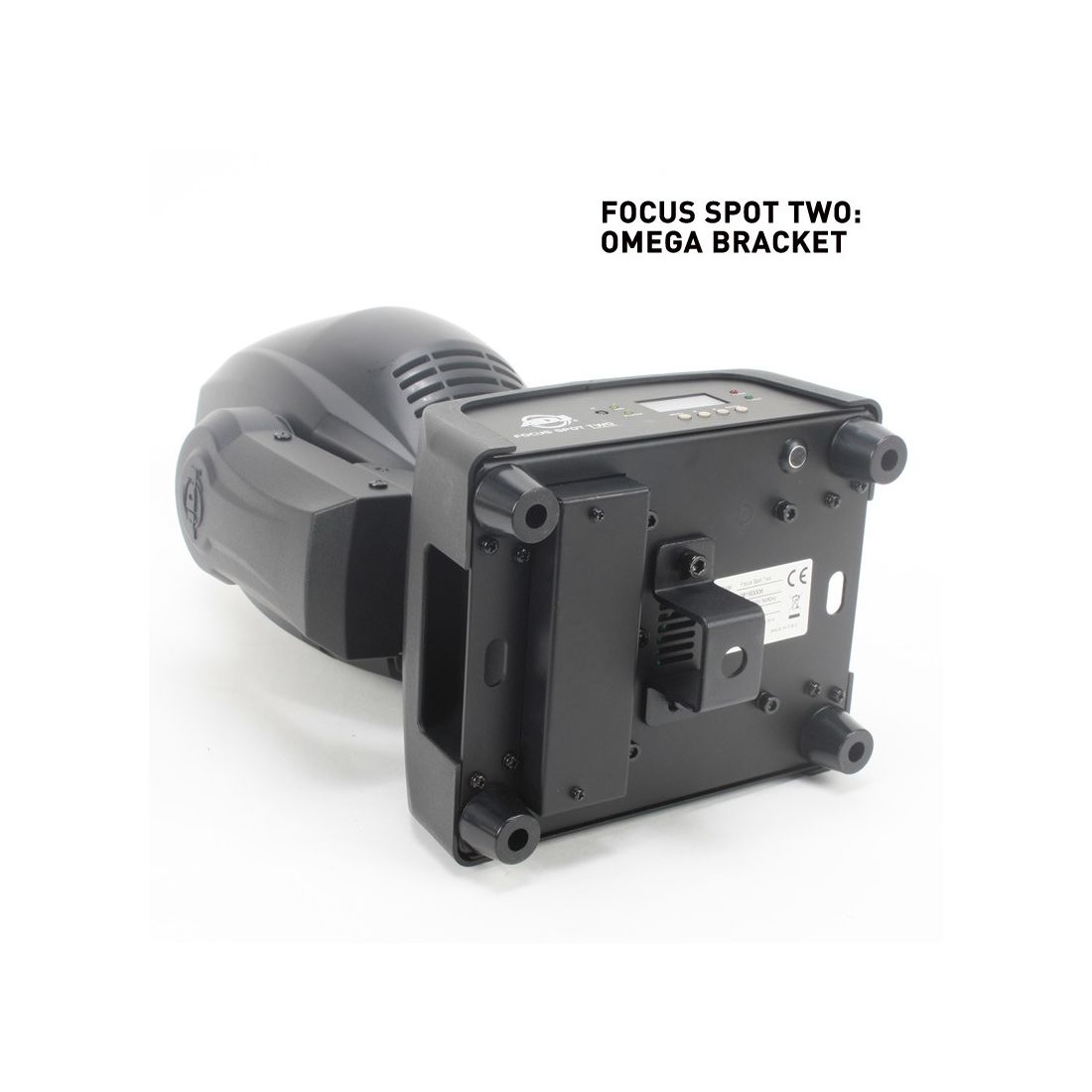

- • Includes Omega bracket for truss mounting
- • 3-pin XLR In/Out
- • Fan cooled
- • Strobe/Pulse effect; random strobe slow to fast
- • UC IR & Airstream IR Compatible (Sold Separately)

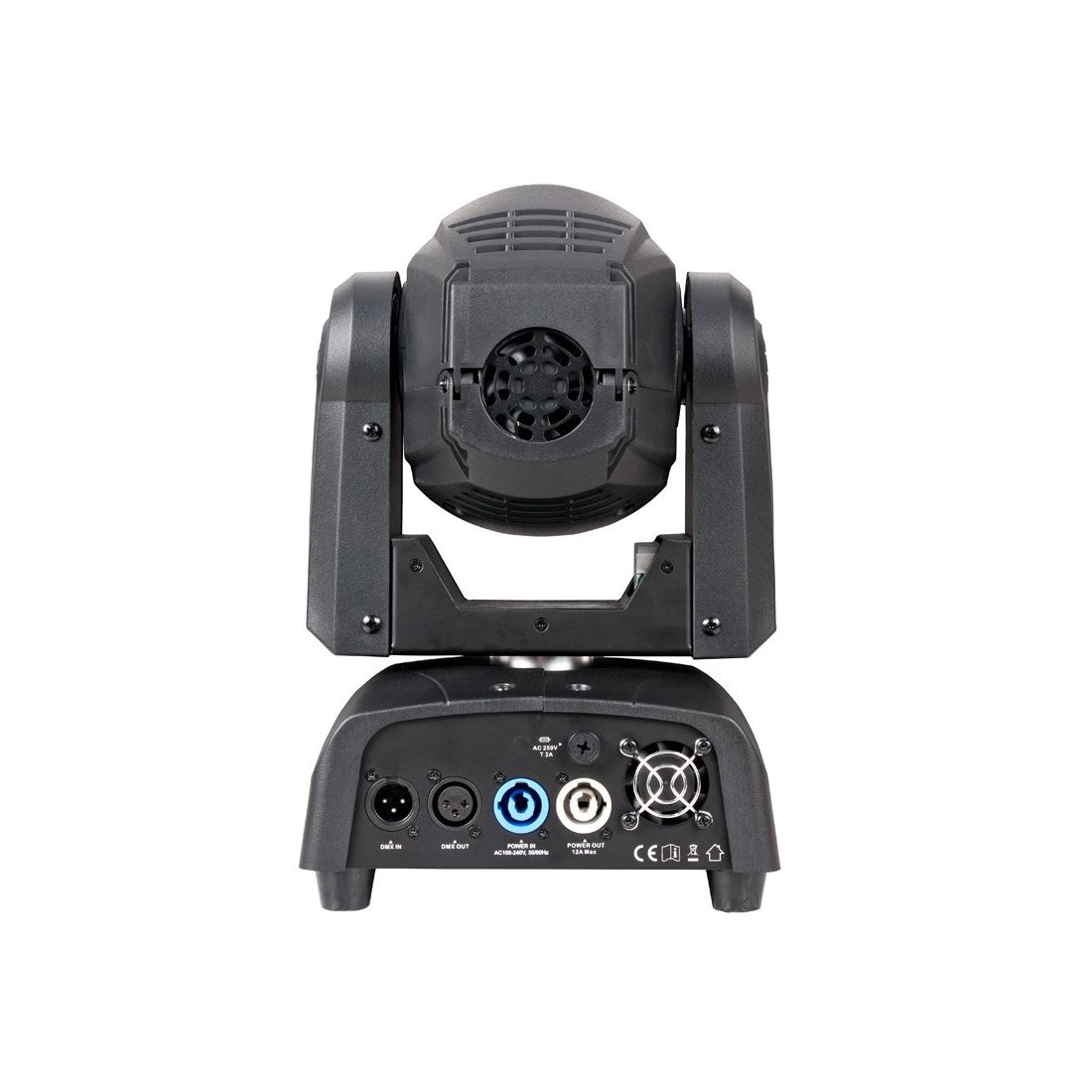

- • Locking PowerAC In/Out on rear to daisy chain power (up to 14 Focus Spot Two’s @ 120V and 26 Focus Spot Two’s @ 240V )
- • Light Source: 1 x 75W Cold White LED (8000?K, 50,000 hr.) & 3W UV LED
- • Long Life LED (Rated at approximately 50,000 hrs)
- • Multi-voltage Operation: 100-240V, 50Hz/60Hz
- • Power Consumption: 108W
- • Dimensions (LxWxH): 6.75” x 9.25” x 15.25”/ 173 x 237 x 385mm
- • Weight: 16lbs. /7.3 kgs.
