Focus Spot 5Z
Select

Brand

Key Features

Gobo
Gobo
• 1 gobo wheel with 6 aluminium GOBOs + open
• All gobos removable, rotatable and indexable
• Gobo Shake Effect
Optics
Optics
• Motorized Zoom: 11 ~ 22° plus 16-bit Fine Zoom
• Motorized Focus
• Rotating 5-facet Linear & rotating 6-facet Circular Prism
Source
Source
• Cool White LED Engine
• Individual LED wattage : 200W
• Average lifetime: approximately 50,000 hrs

Product Information

SKU: 1237000300
GTIN: 818651028201
HS-Code: 94054210

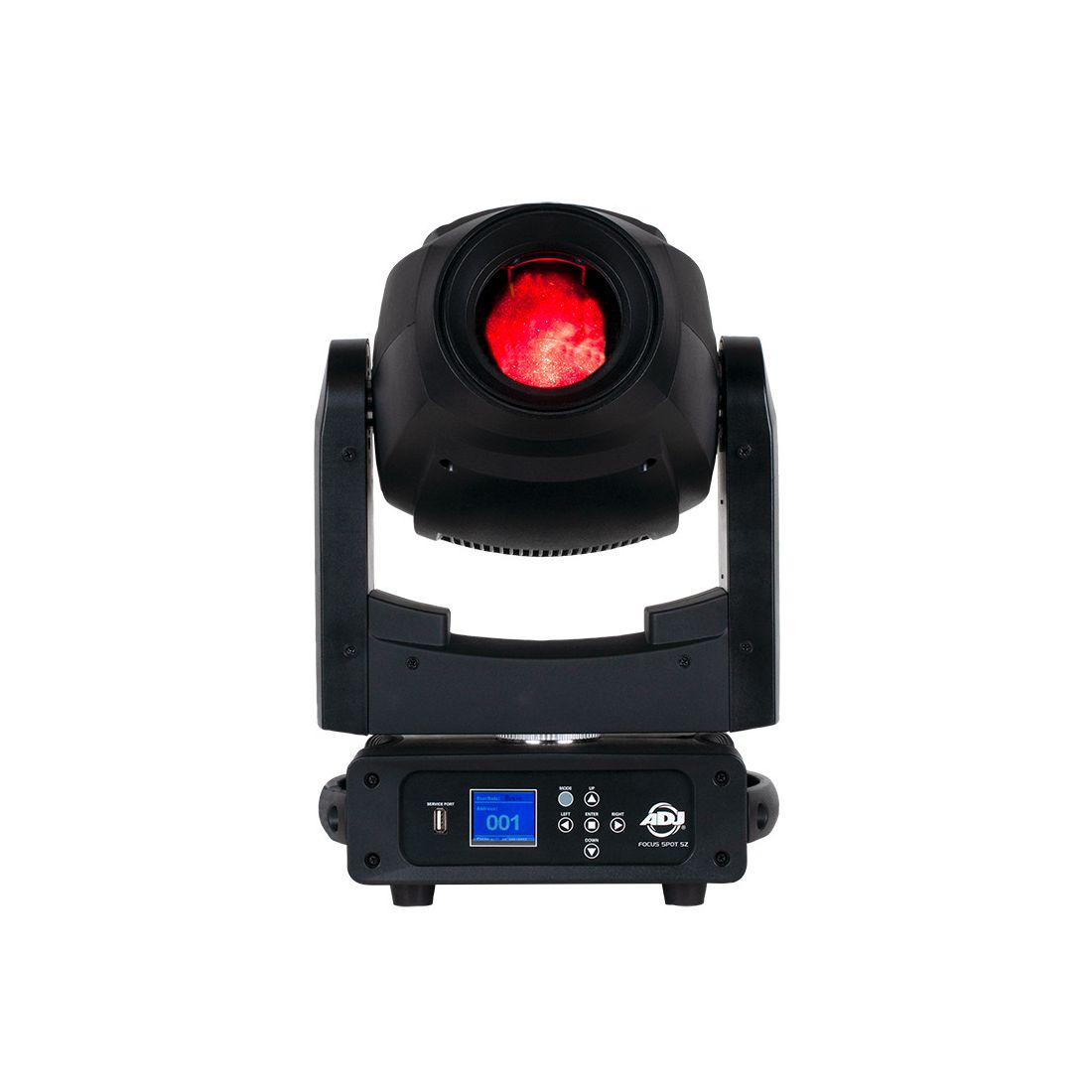

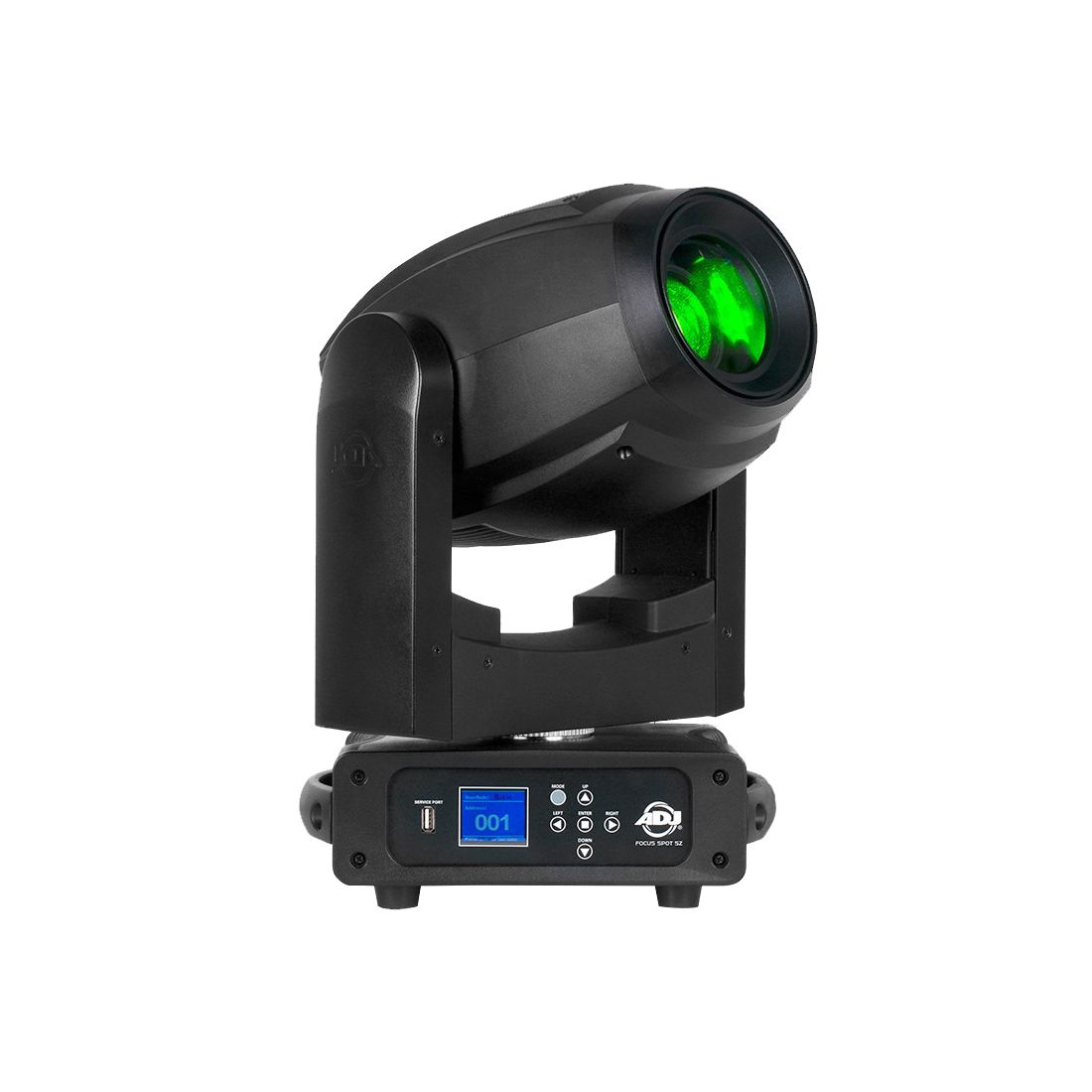

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom) and two Frost filters(heavy frost and light frost). It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel (7 aluminum and 1 glass GOBO) with 7 rotating/replaceable GOBOS, two COLOR wheels, each with 7 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular).

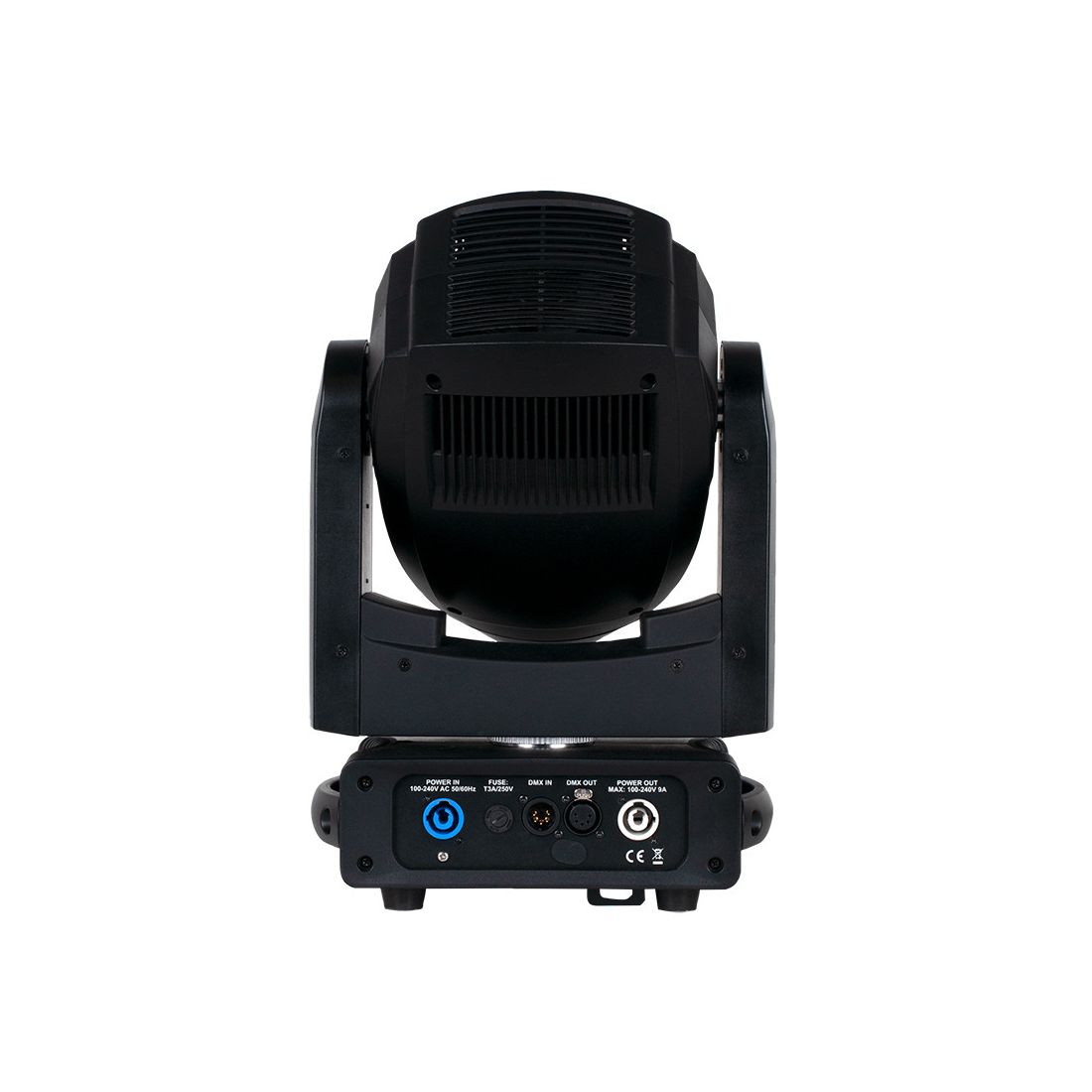

The Focus Spot 5Z has Locking Power In and Out connectors to daisy chain the power, as well as Locking 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes and 6 different dimming curves. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds/10kg).

Specification

  • • Source: Cool White LED Engine
  • • Individual LED wattage : 200W
  • • Average lifetime: approximately 50,000 hrs

  • • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
  • • Motorized Focus
  • • Rotating 5-facet Linear & rotating 6-facet Circular Prism
  • • Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and Prism FX

  • • 2 operational modes : Program Mode or DMX control
  • • 3 DMX Channel Modes: 16/18/22 Channels
  • • RDM compatible (Remote Device management)
  • • Internal Programs with built-In DMX Recorder
  • • 16bit dimming 0-100%
  • • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
  • • Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
  • • Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
  • • Various strobe effects
  • • 6-button Color display
  • • Battery inside, allowing to access the fixture Menu without power connection
  • • 16bit Pan: 540 & 630 degrees
  • • 16 bit Tilt: 270 degrees
  • • 3 Fan settings : Auto, High and Low Noise

  • • 2 separate color wheels each with 7 dichroic colors + white (includes CTO, CTB and UV filters)

  • • 1 gobo wheel with 6 aluminum GOBOs + open
  • • All gobos removable, rotatable and indexable
  • • Gobo Shake Effect
  • • Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

  • • White Plastic housing
  • • 2 cooling fans

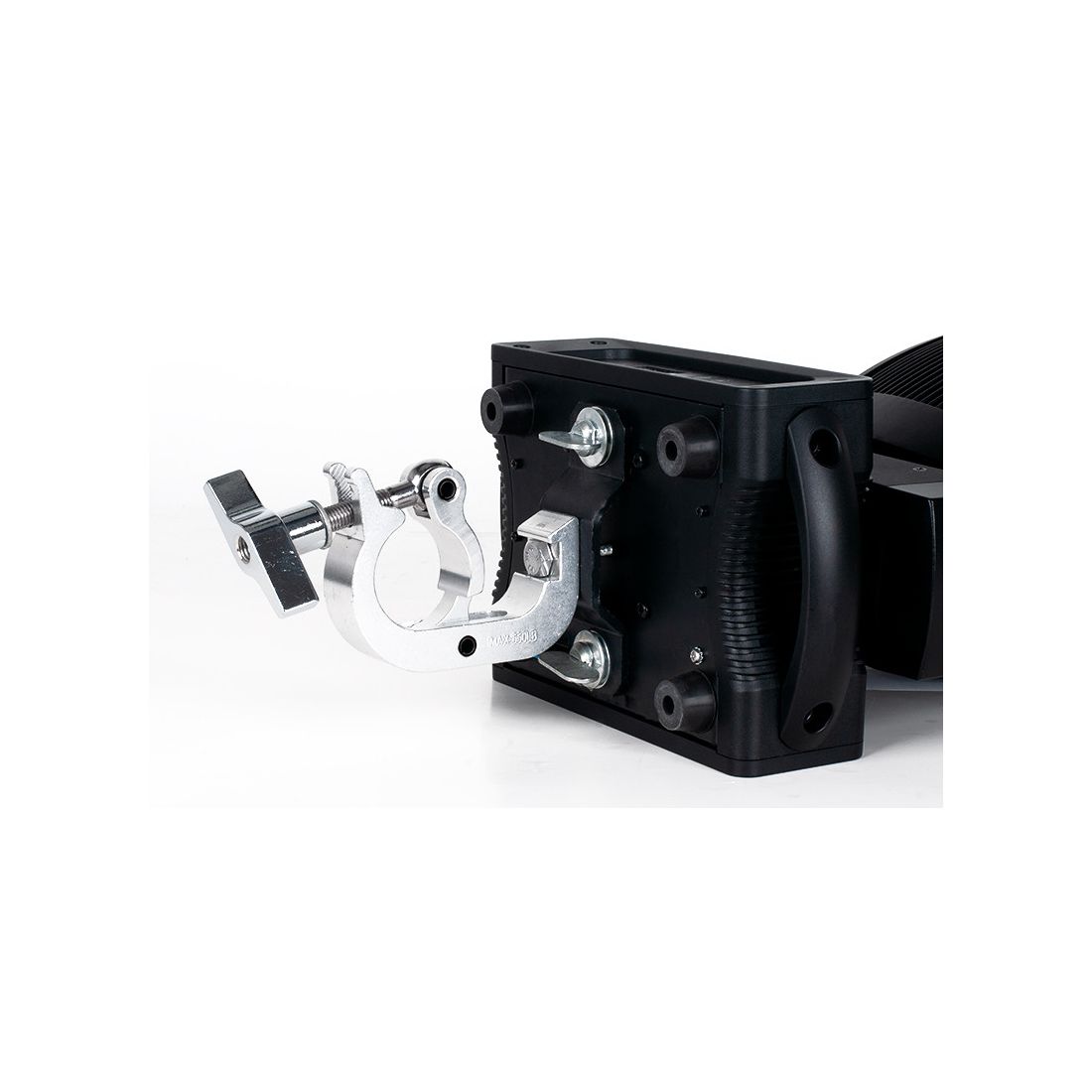

  • • Omega bracket with quick locks

  • • Multivoltage : 100-240V 50/60Hz
  • • Power Draw : 256W

  • • Locking 5-pin DMX In/Out
  • • Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
  • • USB firmware update port

  • • Dimensions: 457 x 279 x 182mm
  • • Weight: 10 kg.
Specifications subject to change without notice

COLORS AND GOBOS

Color Wheel 1

Deep Blue
Deep Blue
 Green
Green
 Light Blue
Light Blue
 Magenta
Magenta
 Orange
Orange
 Purple
Purple
 Red
Red
 Yellow
Yellow

Color Wheel 2

Blue
Blue
 CTB 5600K
CTB 5600K
 CTO
CTO
 Green
Green
 Lavender
Lavender
 Pink
Pink
 UV
UV
 Yellow
Yellow

Gobo Wheel 1 Rotating

Gobo 17
 Gobo 20
 Gobo 40
 Gobo 64
 Gobo 68
 Gobo 88
