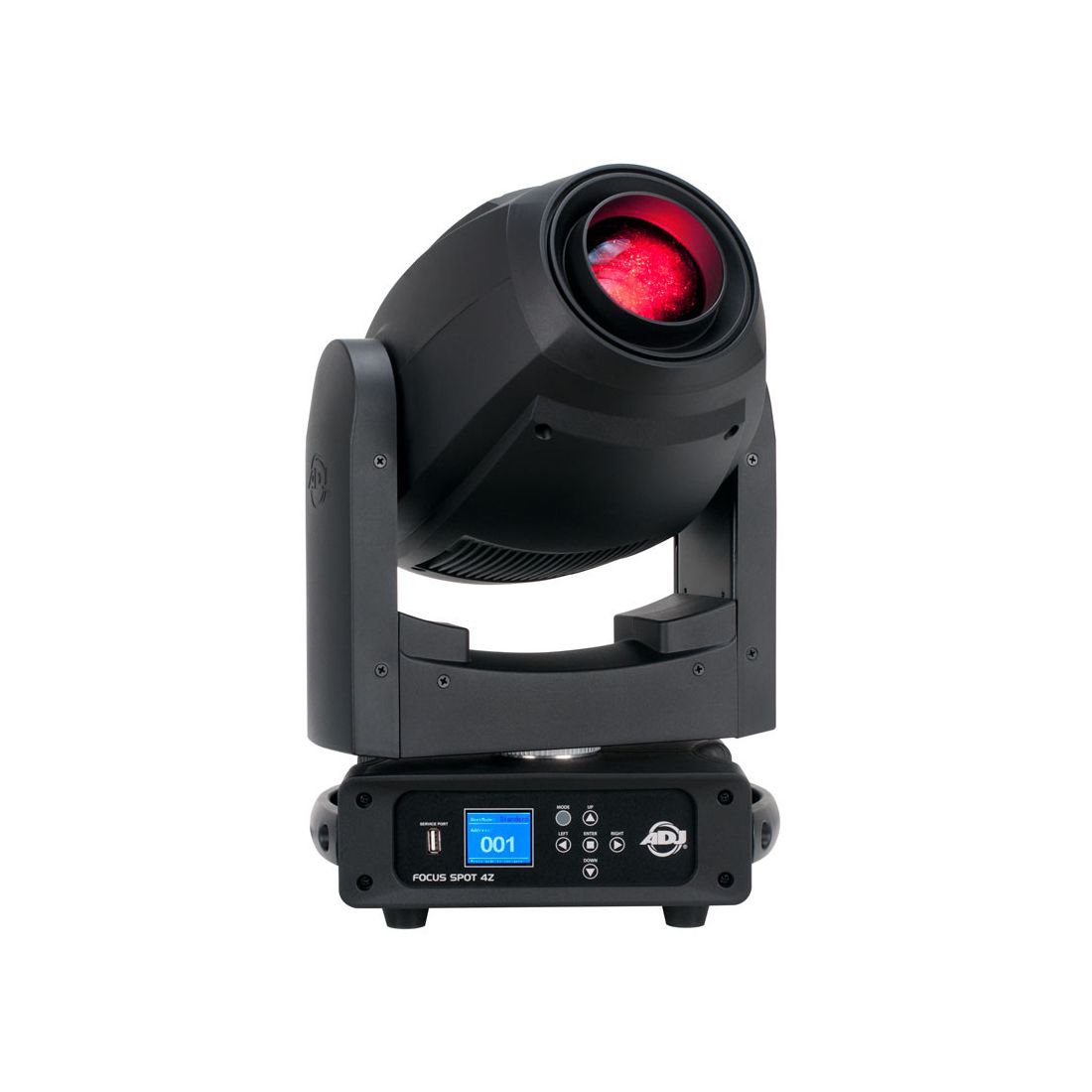

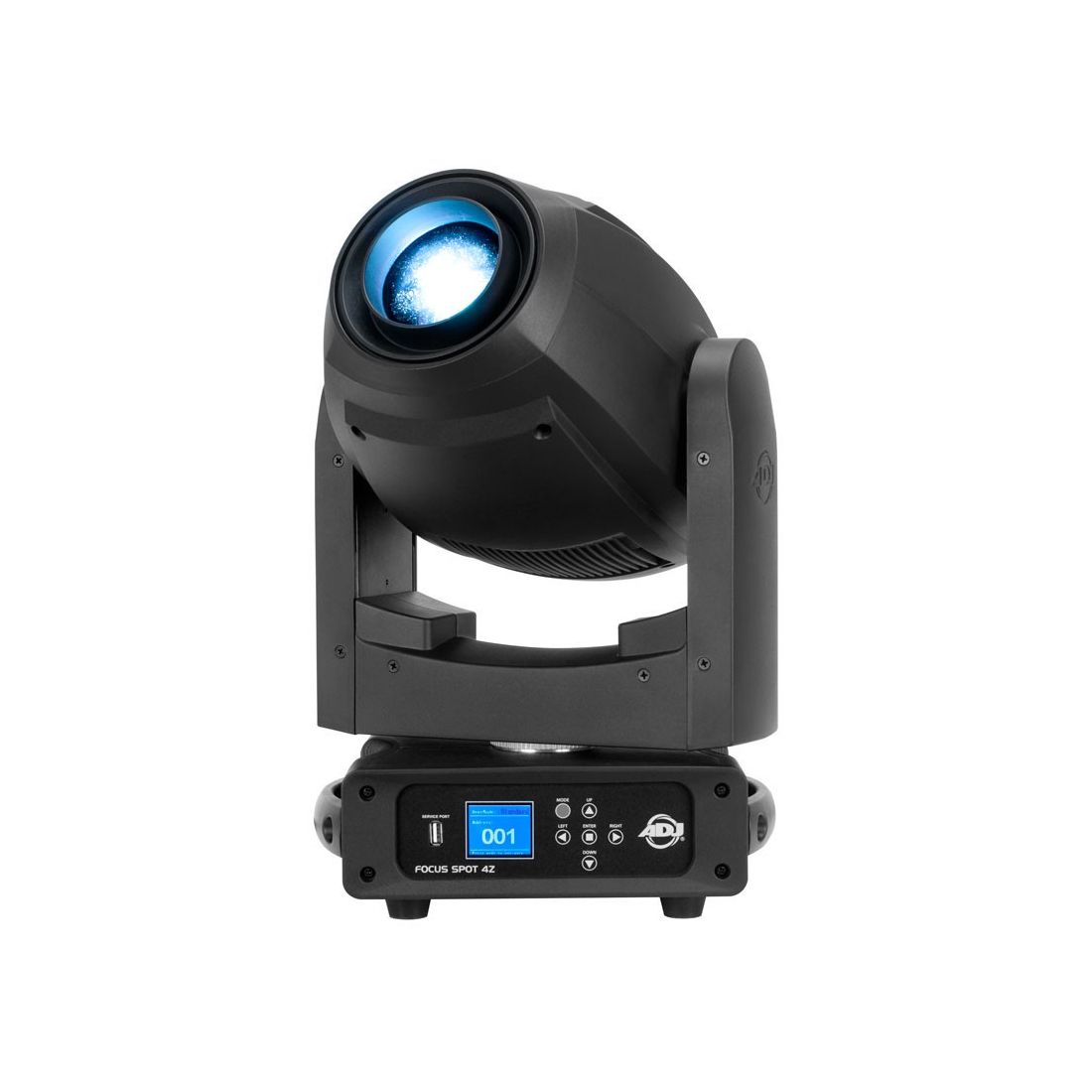

Focus Spot 4Z Select
Key Features
• 1 gobo wheel with 6 aluminium GOBOs + open
• All gobos removable, rotatable and indexable
• Gobo Shake Effect
• Motorized Zoom: 11 ~ 22° plus 16-bit Fine Zoom
• Motorized Focus
• Rotating 5-facet Linear & rotating 6-facet Circular Prism
• 200W Cool White LED Engine, 24.000K
• 7000 Lumen
• CRI: 76
Product Information
The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

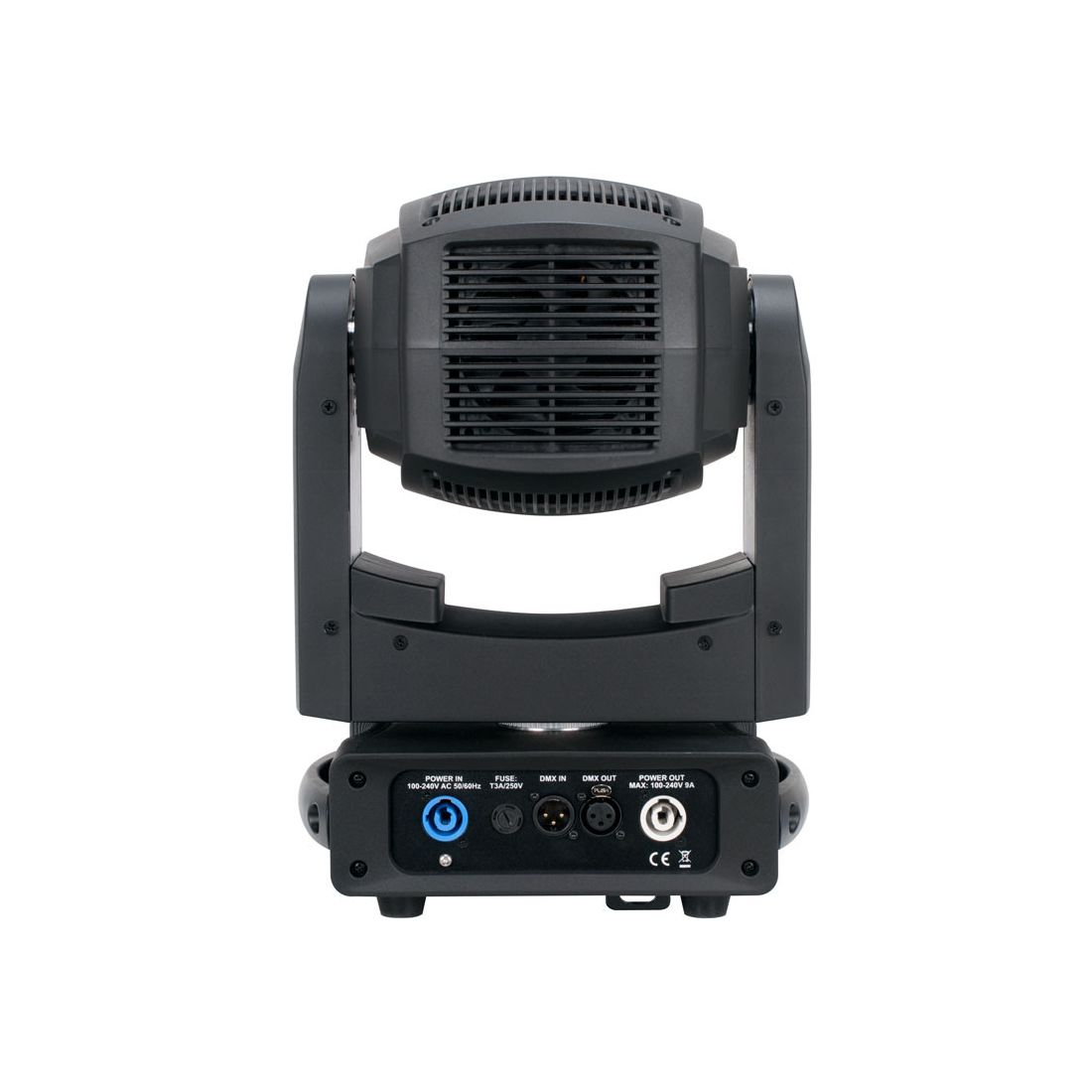

The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).
Gallery
Specification
- • Source: Cool White LED Engine, 24.000K
- • 7000 Lumen
- • CRI: 76
- • Individual LED wattage : 200W
- • Average lifetime: approximately 50,000 hrs
- • Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
- • Motorized Focus
- • Rotating 5-facet Linear & rotating 6-facet Circular Prism
- • 2 operational modes : Program Mode or DMX control
- • 3 DMX Channel Modes: 16/18/22 Channels
- • RDM compatible (Remote Device management)
- • Internal Programs with built-In DMX Recorder
- • 16bit dimming 0-100%
- • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- • Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- • Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- • Various strobe effects
- • 6-button Color display
- • Battery inside, allowing to access the fixture Menu without power connection
- • 16bit Pan: 540 & 630 degrees
- • 16 bit Tilt: 270 degrees
- • 3 Fan settings : Auto, High and Low Noise
- • 1 color wheel with 8 dichroic colors + white
- • 1 gobo wheel with 6 aluminum GOBOs + open
- • All gobos removable, rotatable and indexable
- • Gobo Shake Effect
- • Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
- • Plastic housing
- • 2 cooling fans
- • Omega bracket with quick locks
- • Multivoltage : 100-240V 50/60Hz
- • Power Draw : 256W
- • Locking 3-pin DMX In/Out
- • Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
- • USB firmware update port
- • Dimensions: 457 x 279 x 182mm
- • Weight: 10 kg.
COLORS AND GOBOS
Color Wheel 1
Gobo Wheel 1 Rotating
