Focus Spot 2X Archive
Product Information

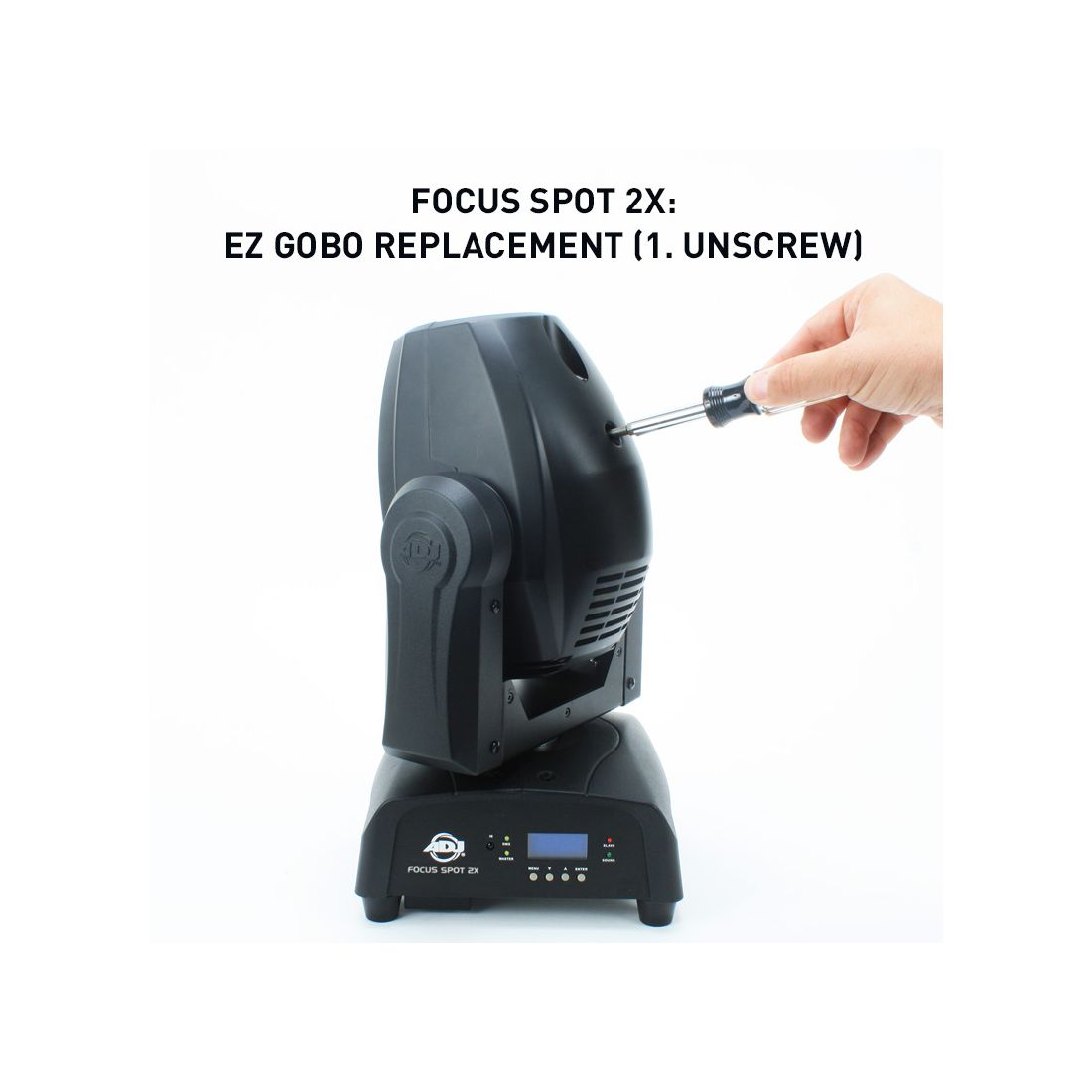

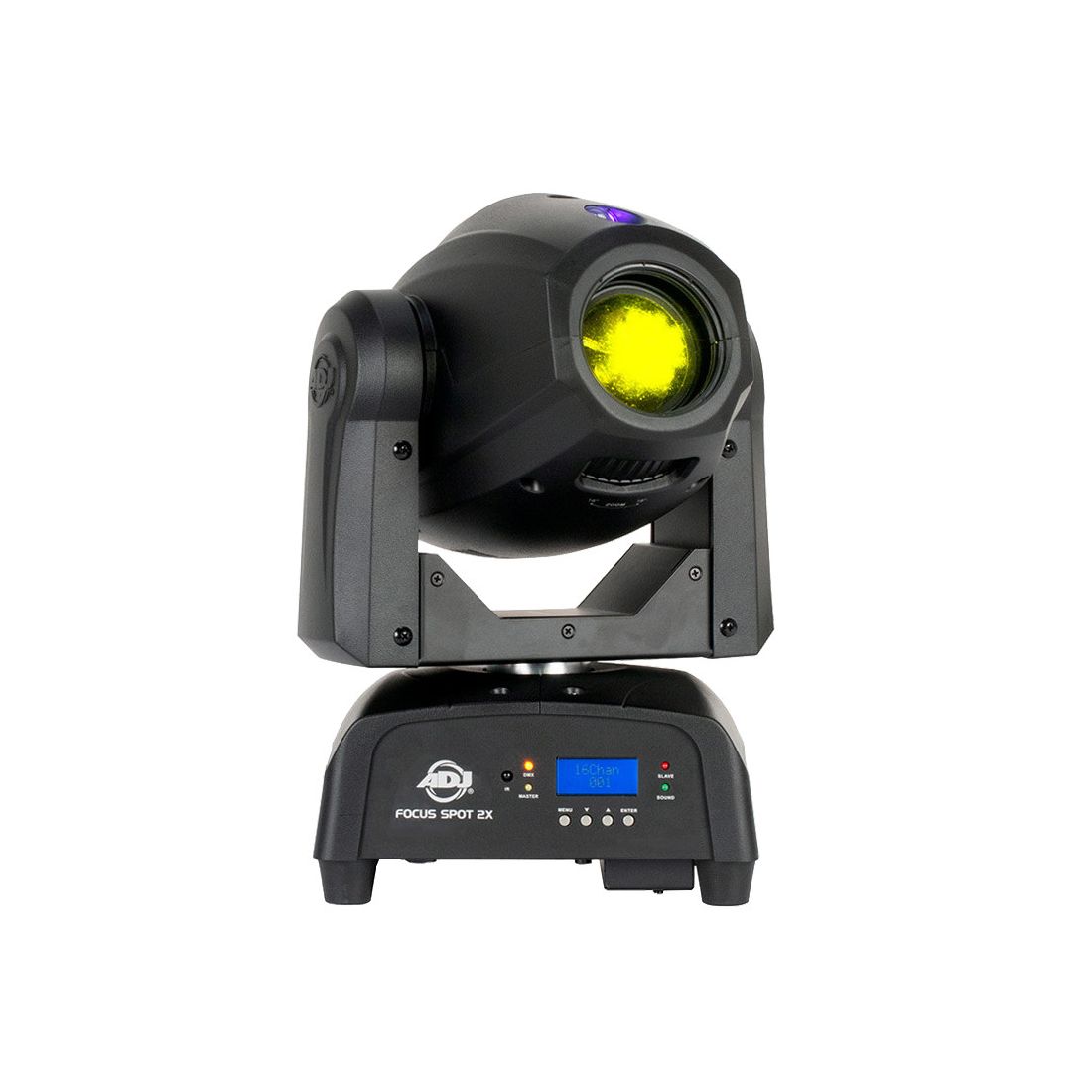

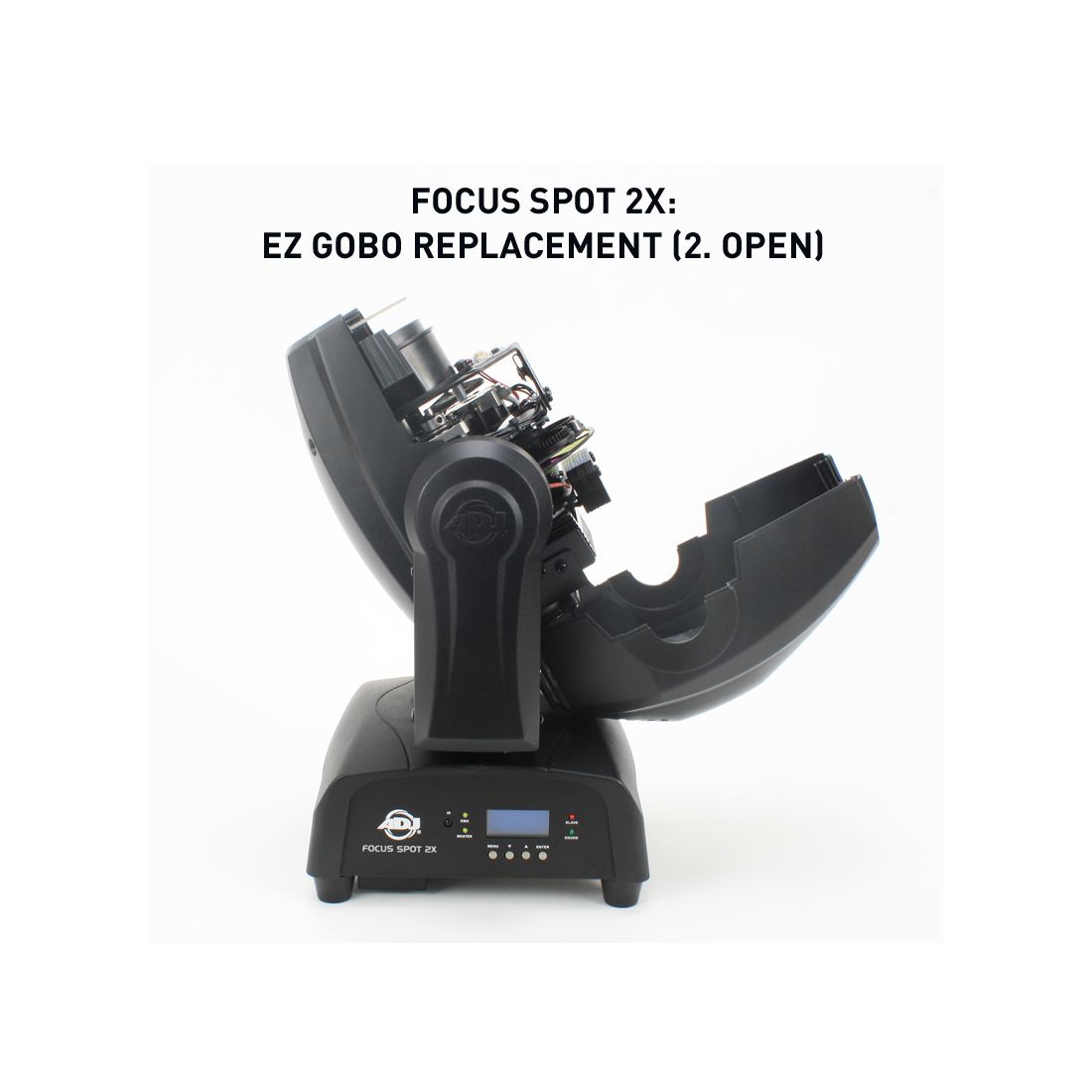

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the Focus Spot 2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.
The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, locking 3-pin DMX In/Out, Locking Power In/Out connectors, and a 4-Button DMX LCD menu.
The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.
Gallery
Specification
- • 1 x 100W Cold White LED (7600?K, 50,000 hr.)• 1 x 3W UV LED
- Features:

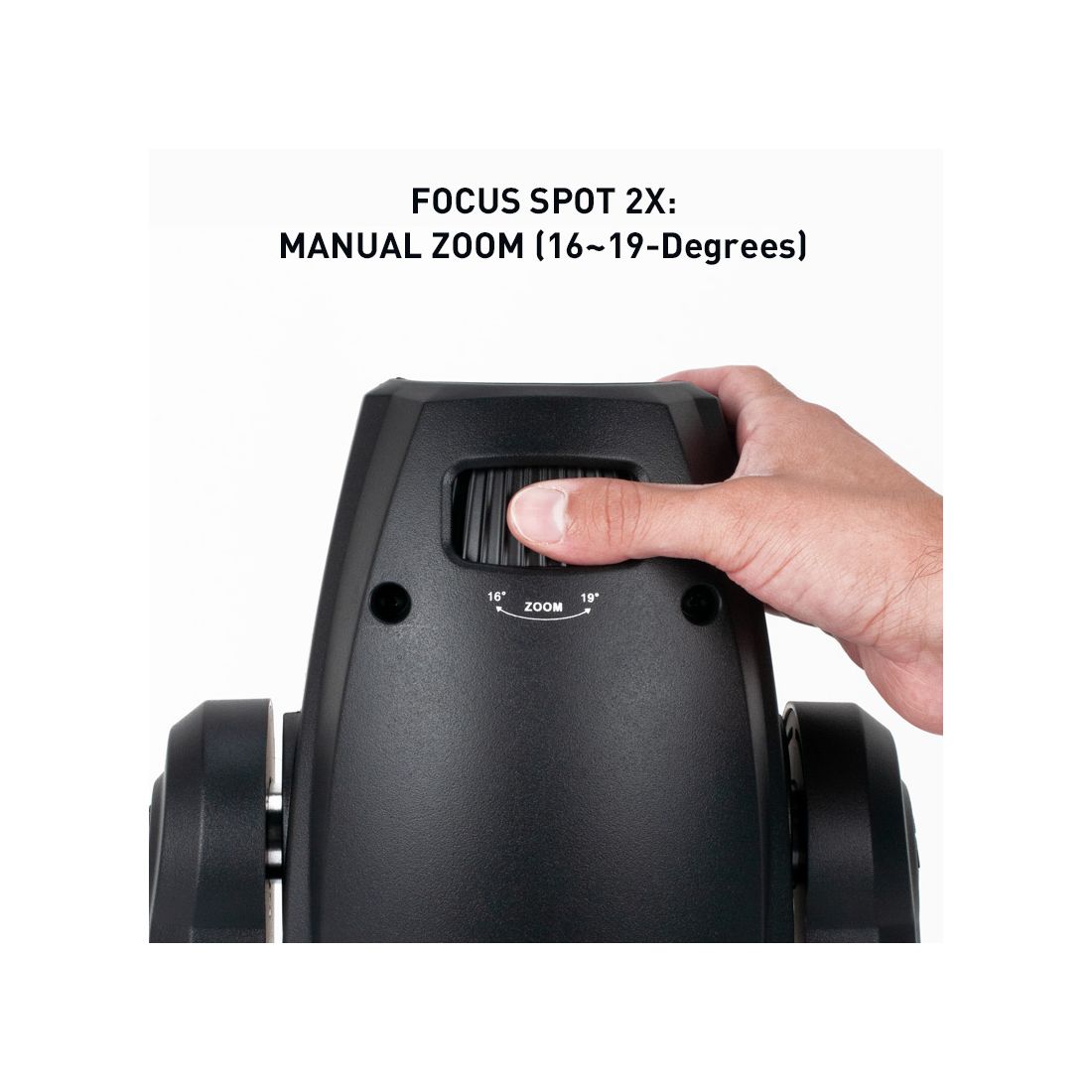

- • Motorized Focus• Manual Zoom knob on head: 16 ~ 19-degree beam angle• Fan cooled• Strobe/Pulse effect; random strobe slow to fast• UC IR compatible (Sold Separately)
- • 8 Colors + White & Split Colors

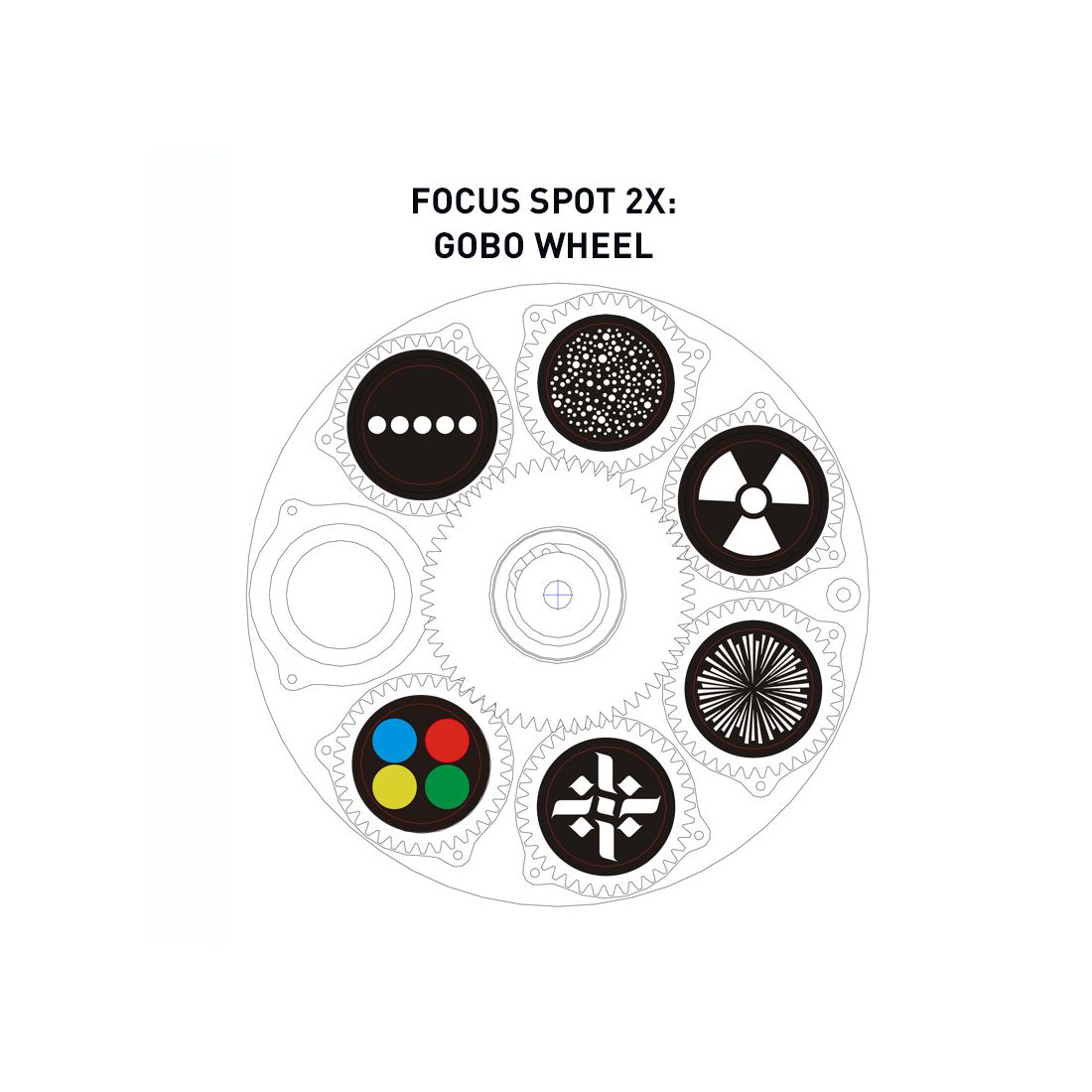

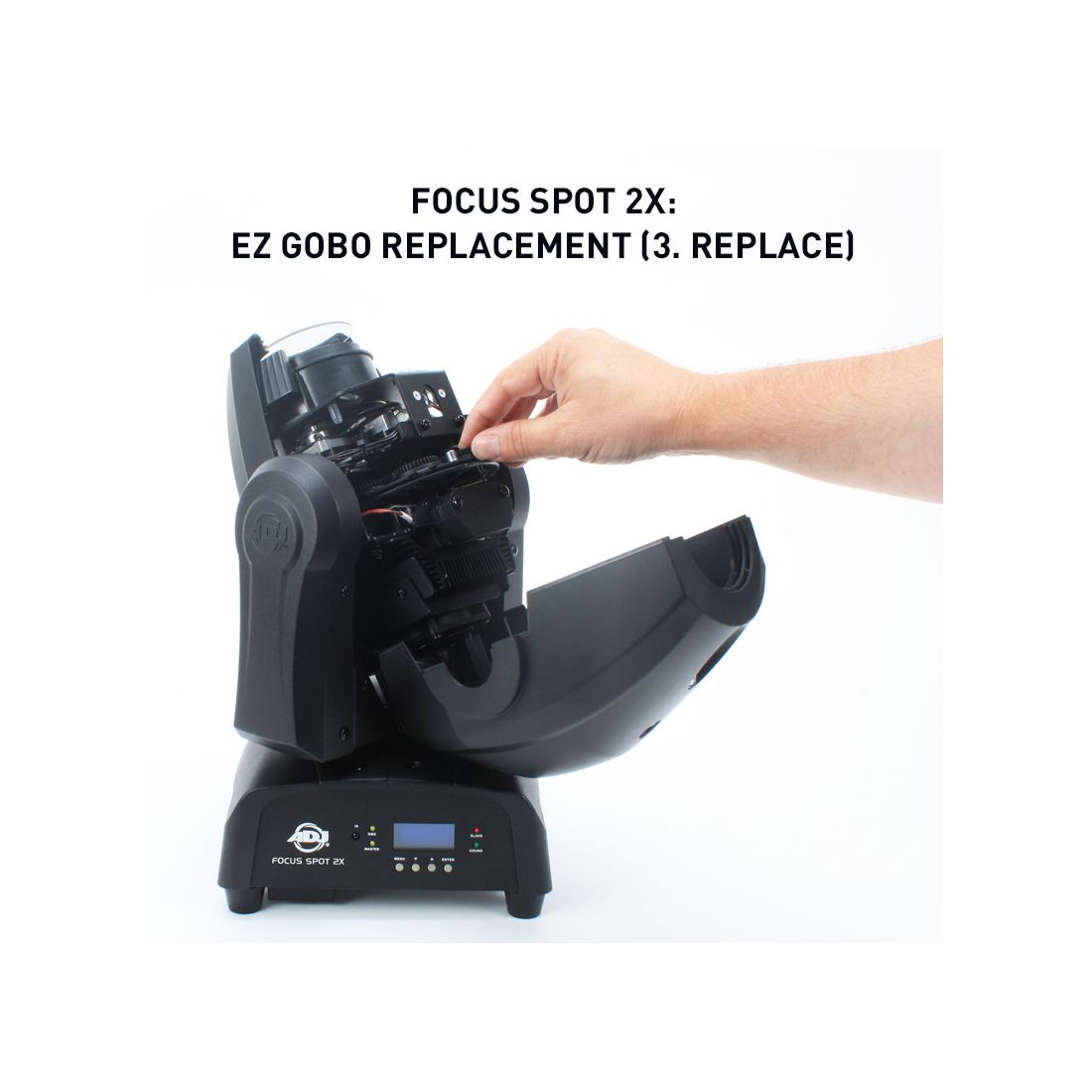

- • 6 Rotating, replaceable Gobos + Spot• Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm• Gobo Indexing• EZ Gobo replacement with hinged head cover• Gobo Shake effect
- • 6-facet circular prism• 6-facet linear prism
- • 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled• Primary/Secondary Mode• 4 Built-in lighting shows• 16 & 18 DMX channel modes• Electronic Dimming: 0% - 100%• 5 Dimmer Curves• 4-Button DMX LED menu• Stepper motors with micro stepping• With Wired Digital Communication Network

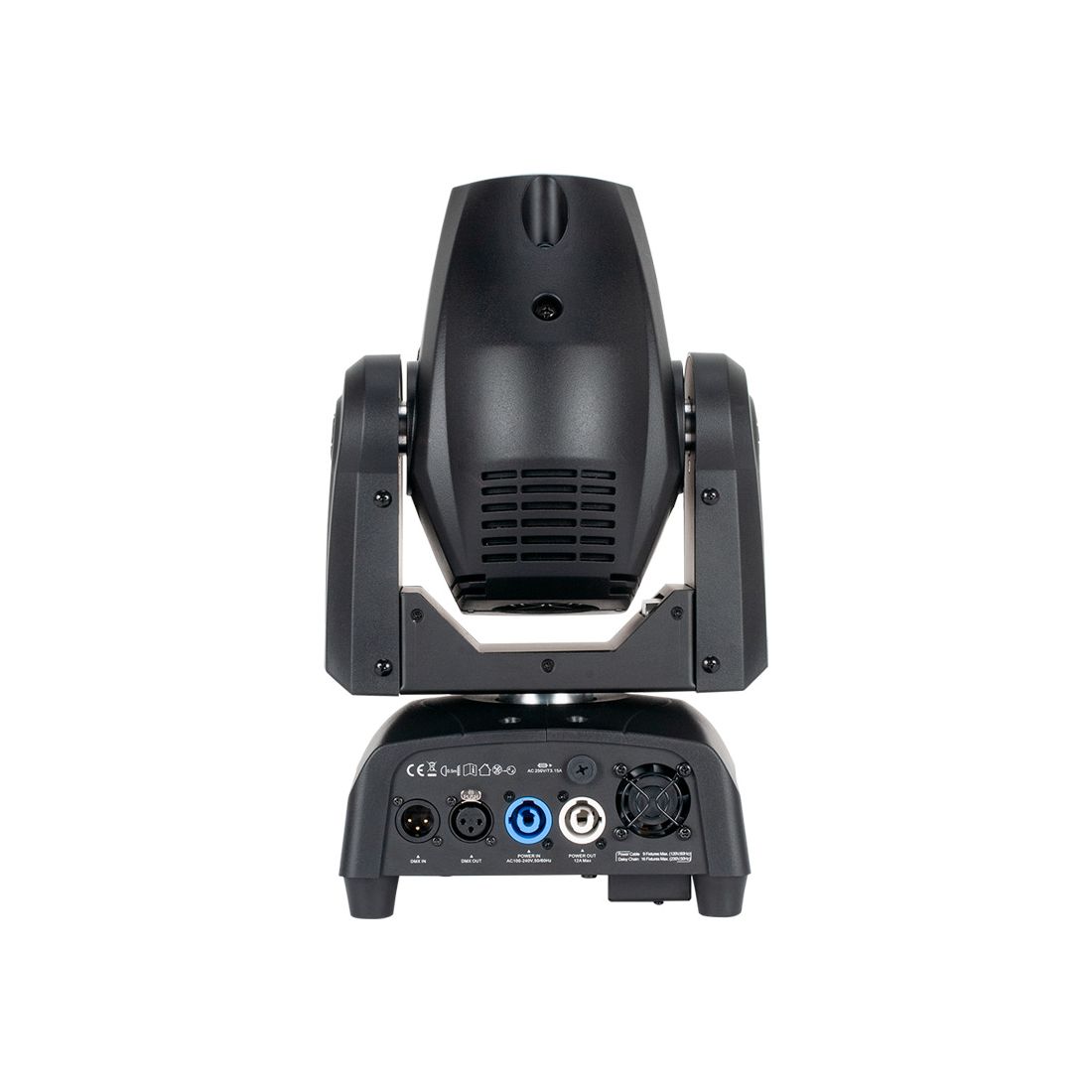

- • Locking 3-pin DMX In/Out• Locking Power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
- • Fast and precise Pan/Tilt Movements• 16-Bit Fine Pan/Tilt control• Pan: 540-degree• Tilt: 270-degree • Pan/Tilt Invert Mode• 4 Built-In Pan/Tilt Target Modes
- • Multi-voltage Operation: 100-240V, 50Hz/60Hz • Power Consumption: 175W
- • Dimensions (LxWxH): 9.33” x 9.10” x 15.15”/ 237 x 231 x 385mm• Weight: 14.5lbs. / 6.5kgs.

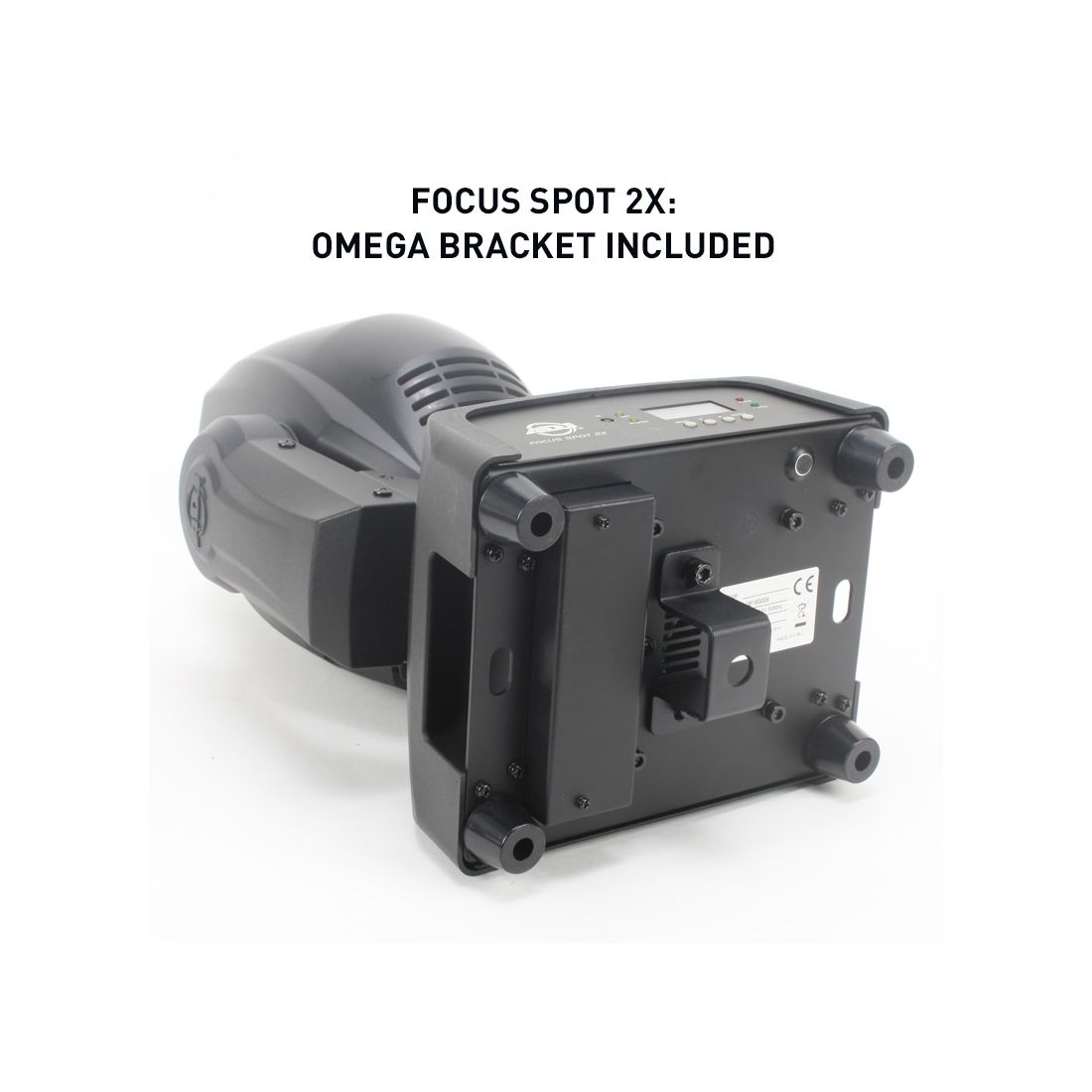

- • Includes Omega bracket for truss mounting• Includes Locking Power cable
COLORS AND GOBOS

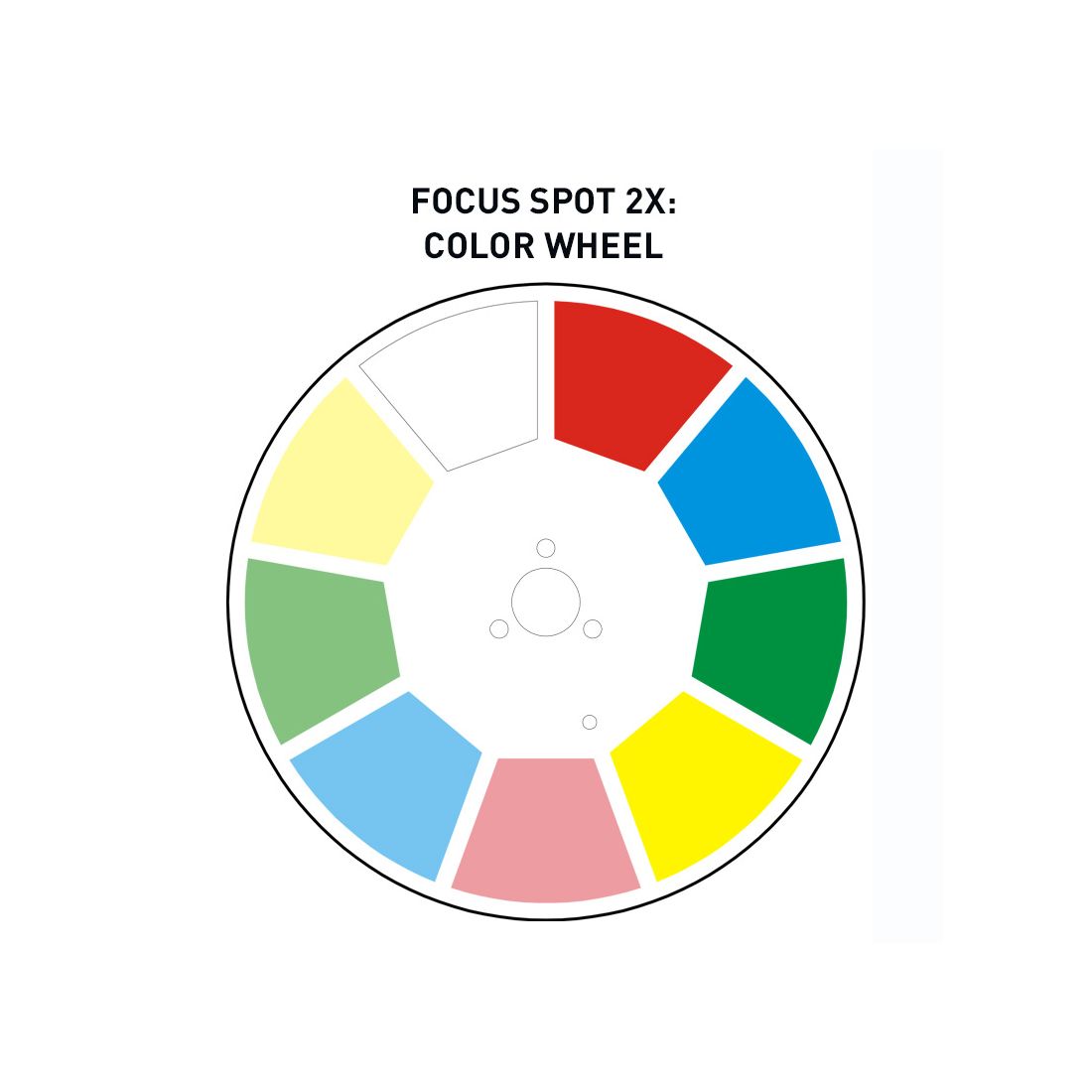

Color Wheel 1
Gobo Wheel 1 Rotating
