Focus Beam LED Select
Key Features
• 1 color wheel with 13 dichroic colors + white (includes CTO)
• Beam Angle: 2.5 degrees
• Motorized Focus
• Rotating 6-facet Linear & rotating 8-facet Circular prism with overlay
• Source: Cool White LED Engine
• Individual LED wattage : 80W
• Color Temperature: 7400K
Product Information

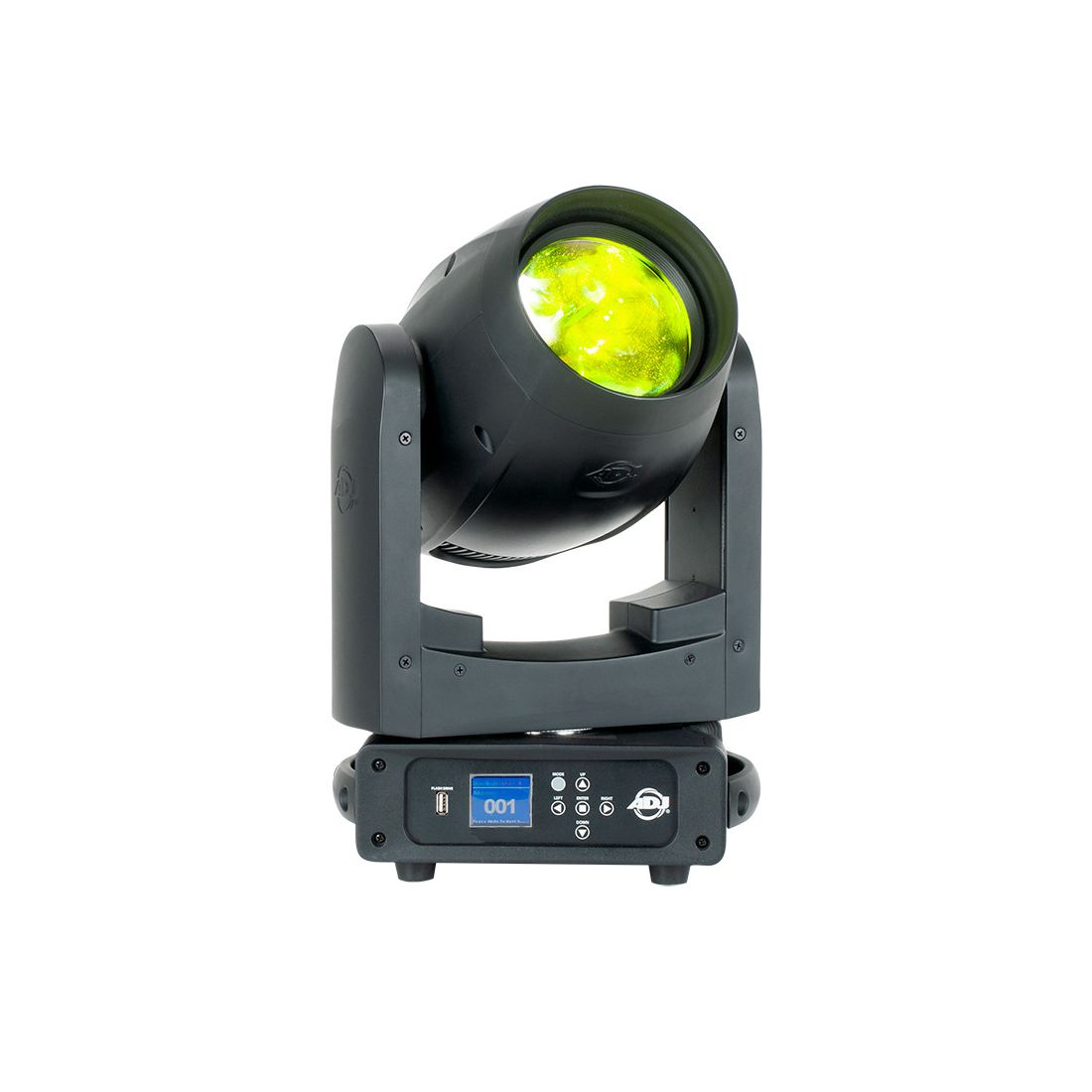

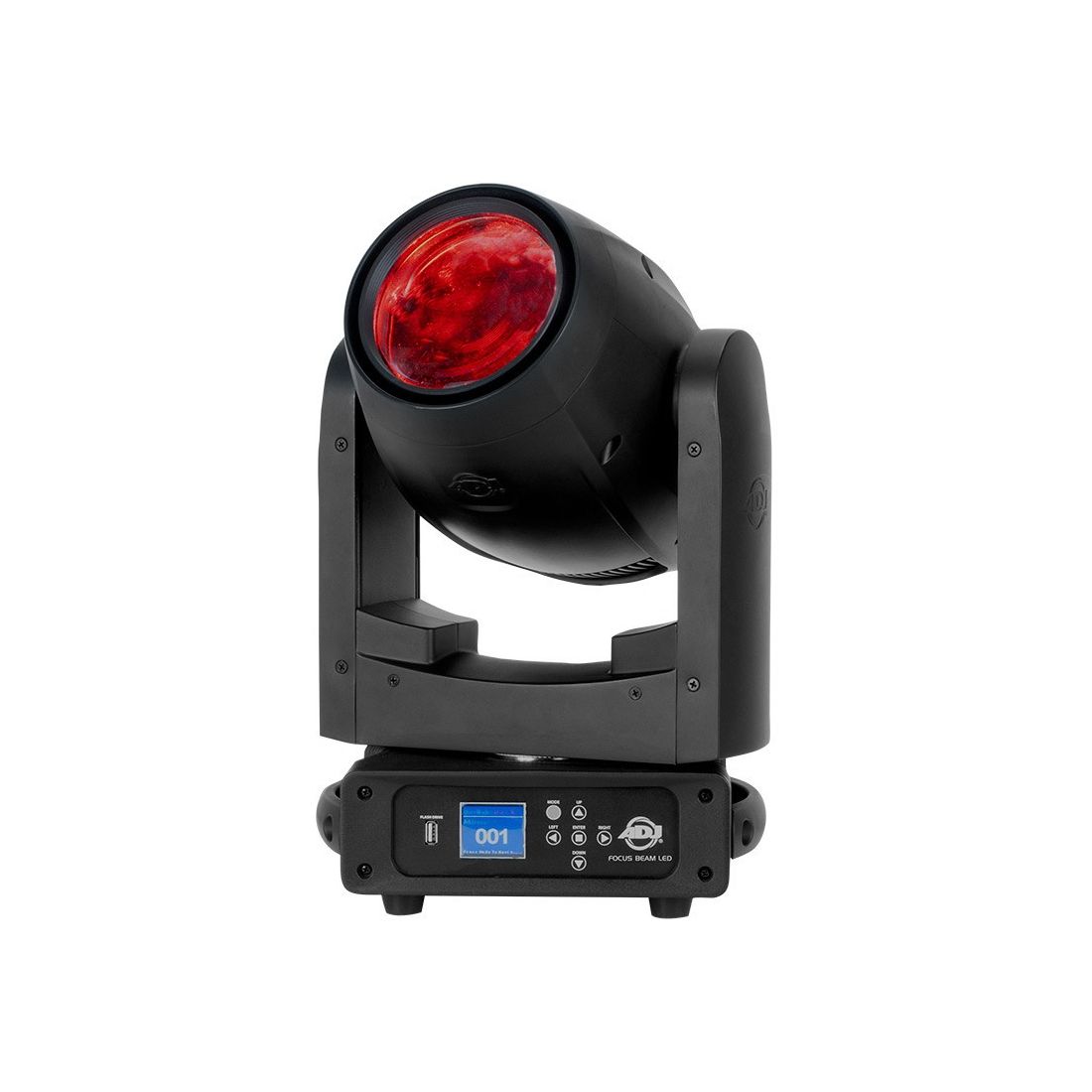

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear, prism layering), and it has a built-in in frost filter for wash effects.

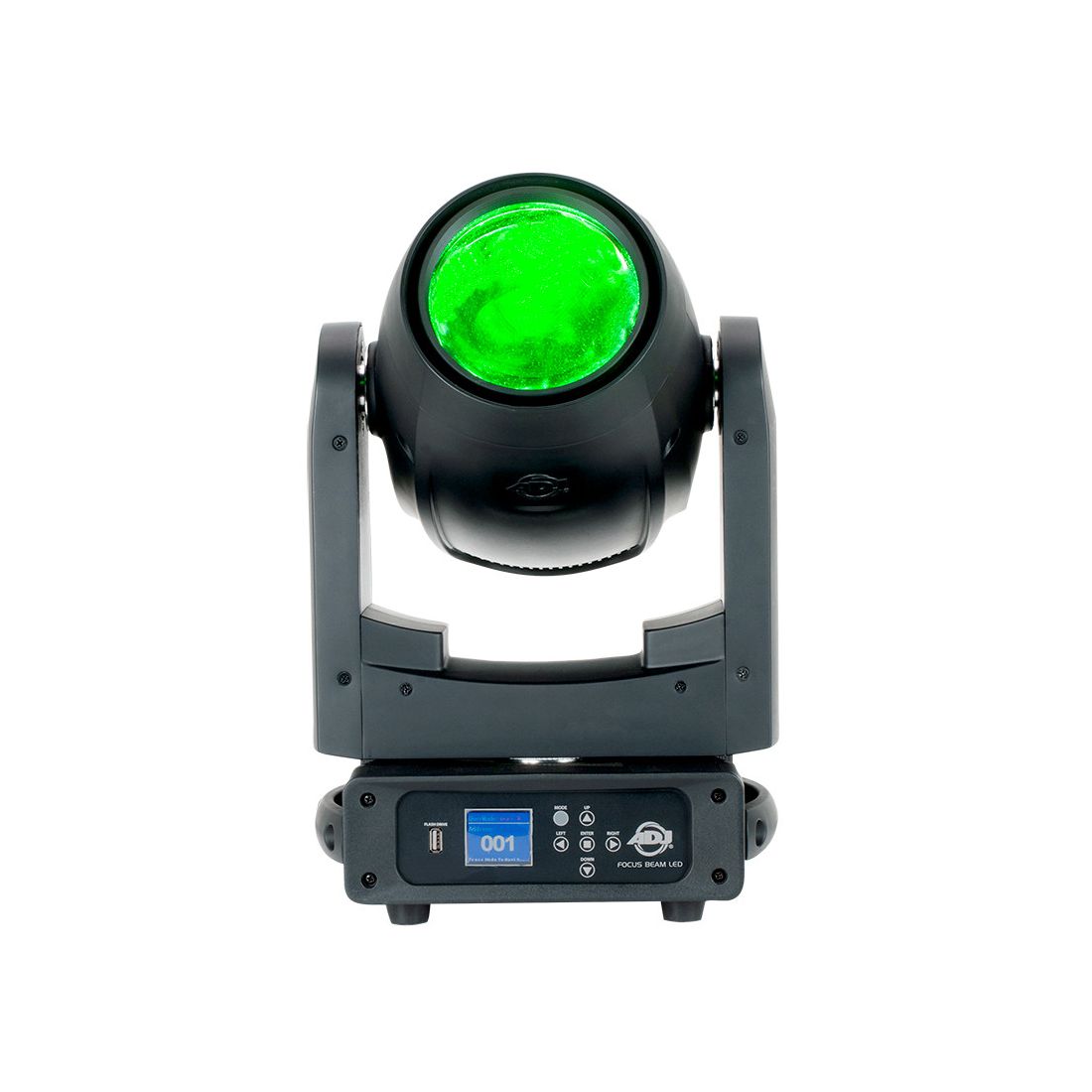

There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of diming modes, fine pan and fine tilt options, and adjustable dim curve and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.
The Focus Beam LED offers 13 dichroic colors plus white and has 14 fixed GOBOs plus open and a GOBO shake effect.

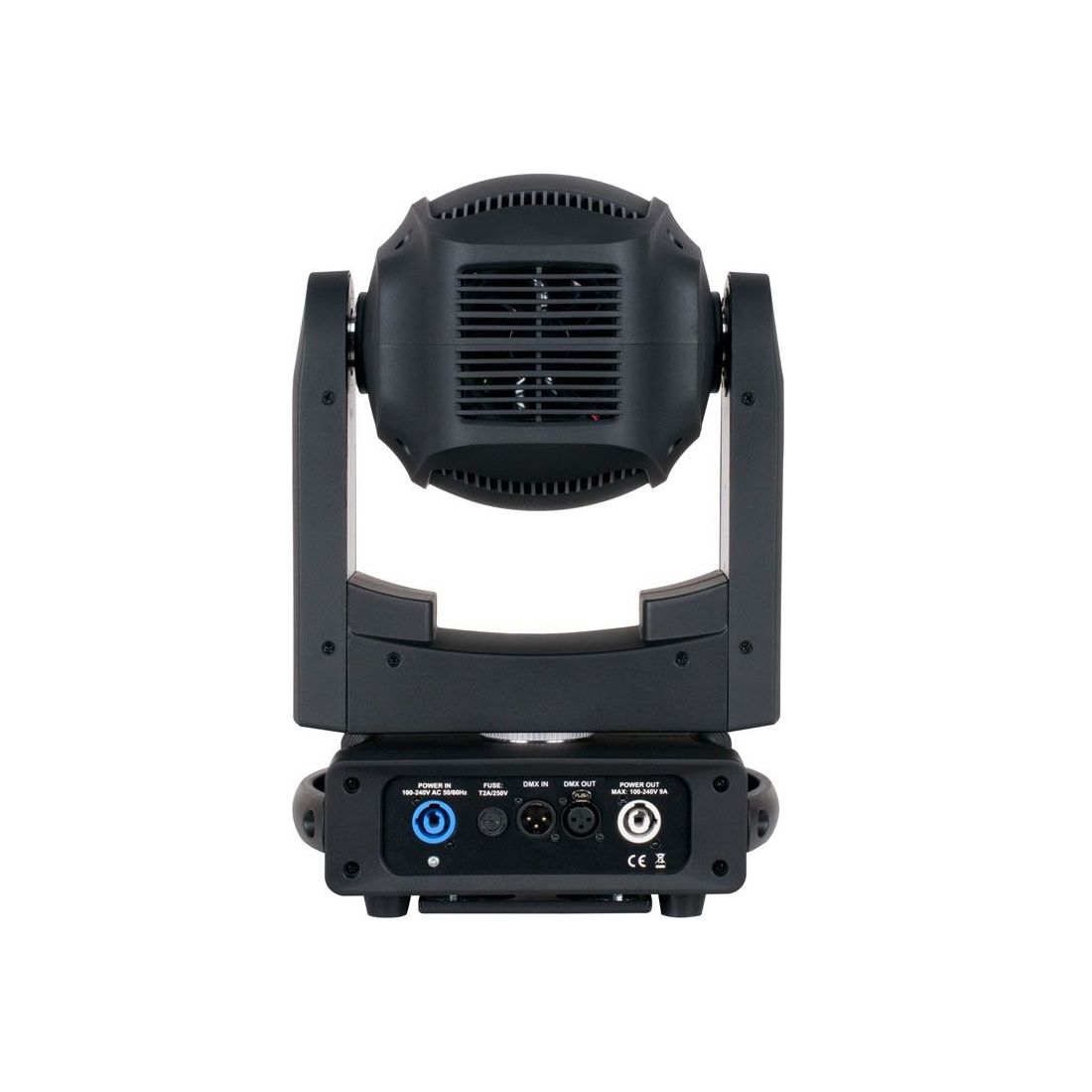

There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Power In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.
Gallery
Specification
- • Source: Cool White LED Engine
- • Individual LED wattage : 80W
- • Average lifetime: approximately 50,000 hrs
- • Colore Temperature: 7400K
- • Lux: 24470lux@10m
- • Beam Angle: 2.5 degrees
- • Motorized Focus
- • Rotating 6-facet Linear & rotating 8-facet Circular prism with overlay
- • Linear Frost
- • DMX-512 Protocol
- • 2 DMX Channel Modes: 16 & 18 Channels
- • RDM compatible (Remote Device management)
- • 16bit dimming 0-100%
- • 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- • 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
- • Adjustable Gamma Brightness : 1.0 / 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- • Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- • Various strobe effects
- • 6-button Color display
- • 16bit Pan: 540 & 630 degrees
- • 16 bit Tilt: 270 degrees
- • 3 Fan settings : Auto, High and Low Noise
- • 1 color wheels with 13 dichroic colors + white (includes CTO)
- • 1 Gobo wheel with 14 fixed Gobos + open
- • Gobo Shake Effect
- • Plastic housing

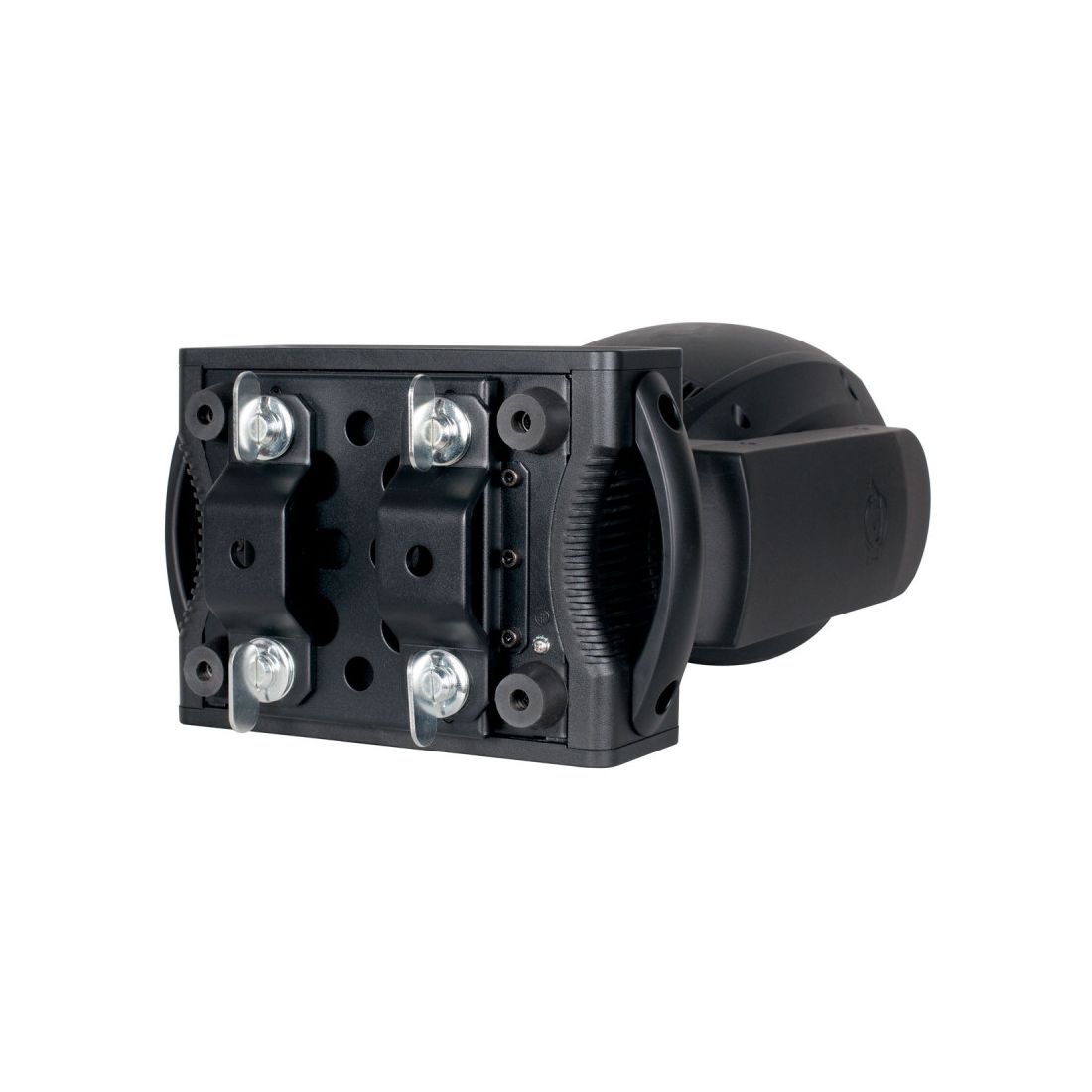

- • Omega bracket with quick locks
- • Multivoltage : 100-240V 50/60Hz
- • Power Draw : 136W
- • Locking 3-pin DMX In/Out
- • Locking Power In/Out
- • USB firmware update port
- • Dimensions: 278,61 x 191,8 x 447,3mm
- • Weight: 12,25 kg.
COLORS AND GOBOS
Color Wheel 1
Gobo Wheel 1 Static
Videos
