FLAT PAR TRI18XS
Archive

Brand

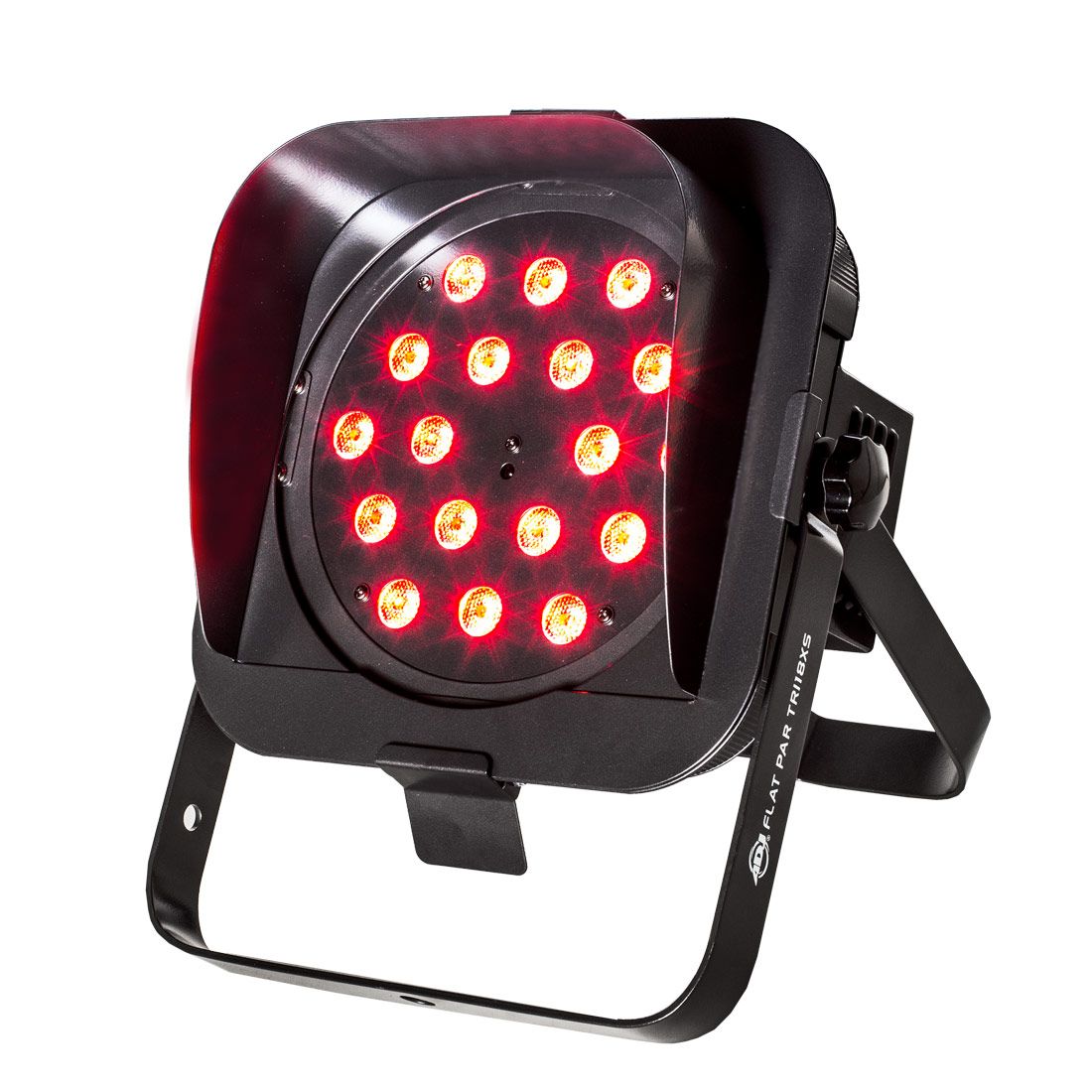

The ADJ Flat Par TRI18XS is a professional “low profile” LED Par Can with extremely bright output. It features eighteen 3-Watt TRI LEDs (3-in-1 RGB) and will not cast any RGB shadows. The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss for uplighting. The Flat Par TRI18XS has 7 different DMX channel modes, and may also run in Sound...

Product Information

SKU: 1226100310
GTIN: 819730016522
HS-Code: 9405409989

The ADJ Flat Par TRI18XS is a professional “low profile” LED Par Can with extremely bright output. It features eighteen 3-Watt TRI LEDs (3-in-1 RGB) and will not cast any RGB shadows. The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss for uplighting.

The Flat Par TRI18XS has 7 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go “wireless” with the ADJ LED RC wireless remote (sold separately). This LED Par Can also features: 32 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 40-degree beam angle. The Flat Par TRI18X’s LEDs are rated at 50,000 hours, and only draws 60-Watts of power per fixture.



Specification

    Specifications:
    - Ultra bright slim Par Can with 18x 3-Watt TRI LEDs (3-in-1 RGB)
    - New Feature – Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
    - Great for performance stages where traditional par cans emit a lot of heat onto performers
    - Low profile case design
    - Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC - sold separately)
    - 7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel modes
    - 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
    - Smooth RGB color mixing (fast or slow color change operation)
    - TRI LED (3-in-1) projects no RGB shadows
    - 32 built-in Color Macros
    - Color strobe effect
    - Electronic Dimming: 0 - 100%
    - Beam angle: 40-degree
    - Fan cooled
    - Linkable via 3-pin XLR cable (In/Out)

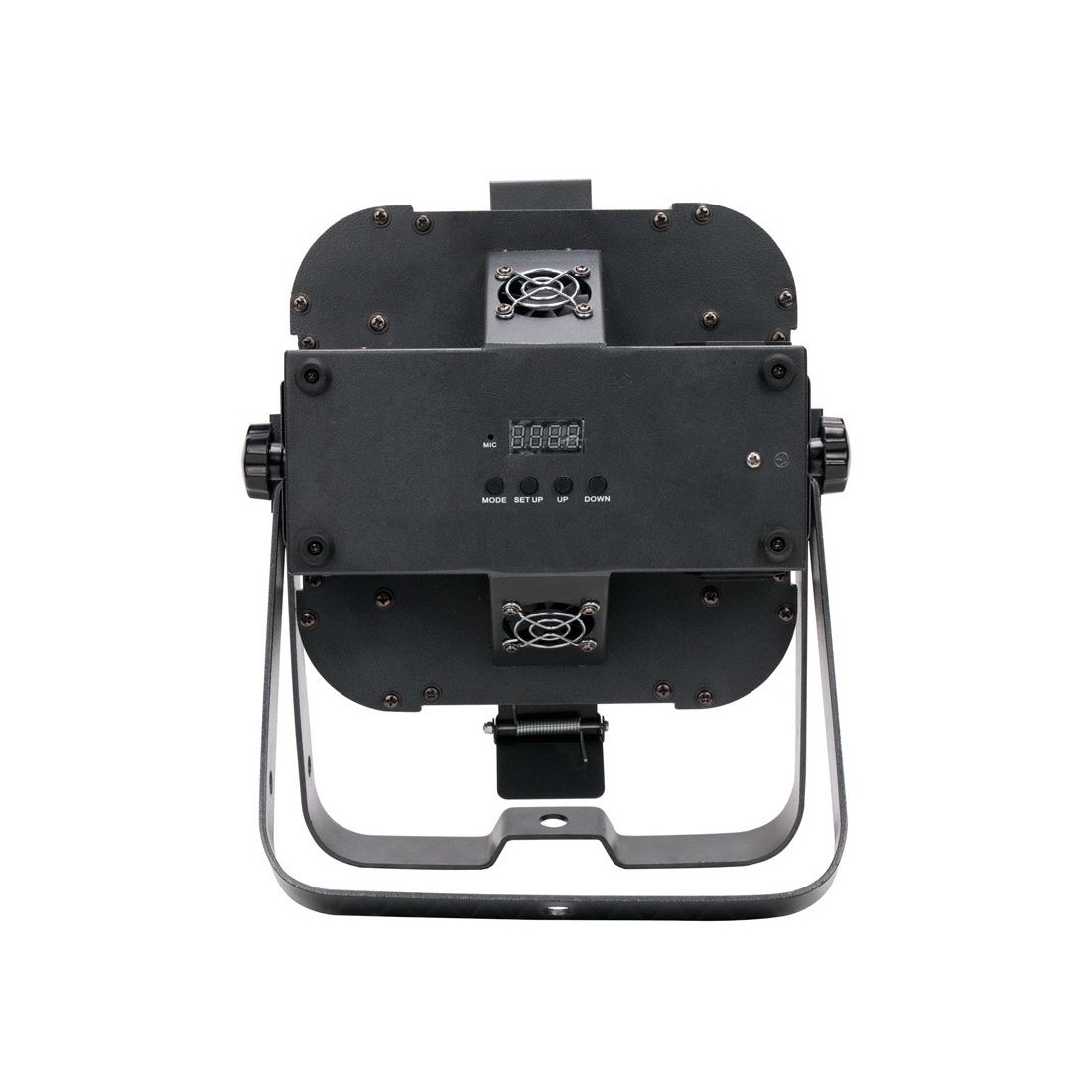

    - 4-button LED DMX display on rear panel
    - Dual bracket system allows fixture to be hung or set on the ground
    - IEC AC IN/OUT outlets on rear to daisy chain power
    - Safety hook on rear panel
    - Includes gel frame for optional diffusion filters
    - Run all night – No duty cycle
    - Long Life LEDs (50,000 hrs.)
    - Power Draw: 60W max
    - Fuse: 1,5A
    - Multi-voltage operation: AC 90V-240V 50/60Hz
    - Dimensions (LxWxH): 328x280x105mm
    - Weight: 3.3 kg.
    -Specifications subject to change without notice
