Encore LP5 IP Select
Key Features
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• Beam angle: 10-degree
• Light Source: 5 x 20-Watt Quad RGBL LEDs (Red, Green, Blue & Lime)
• Lumens: 620
• CRI: 86.2 / CRI R9: 82.8
Product Information

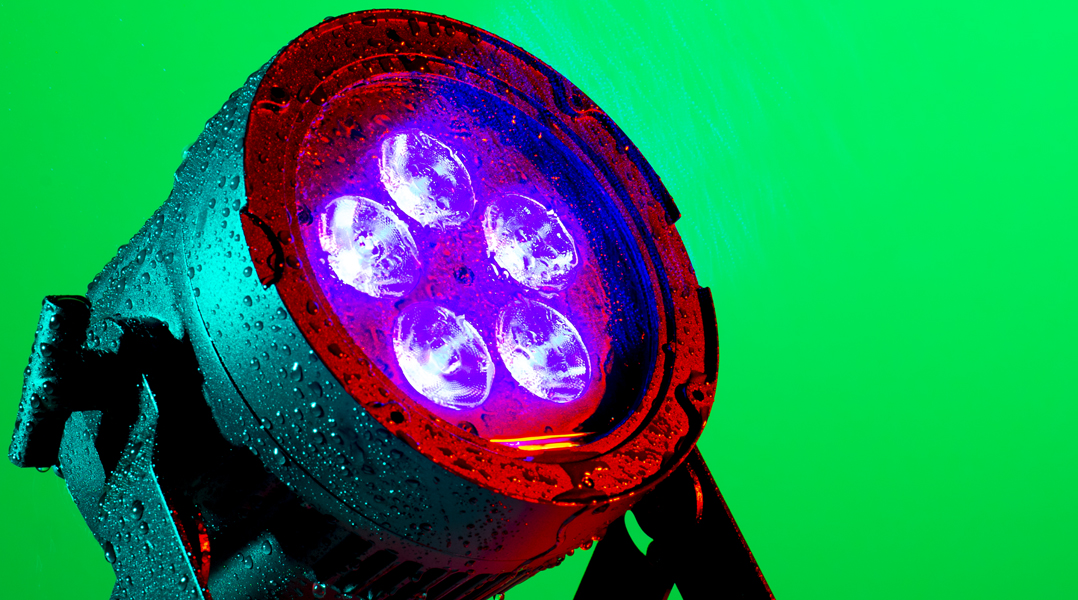

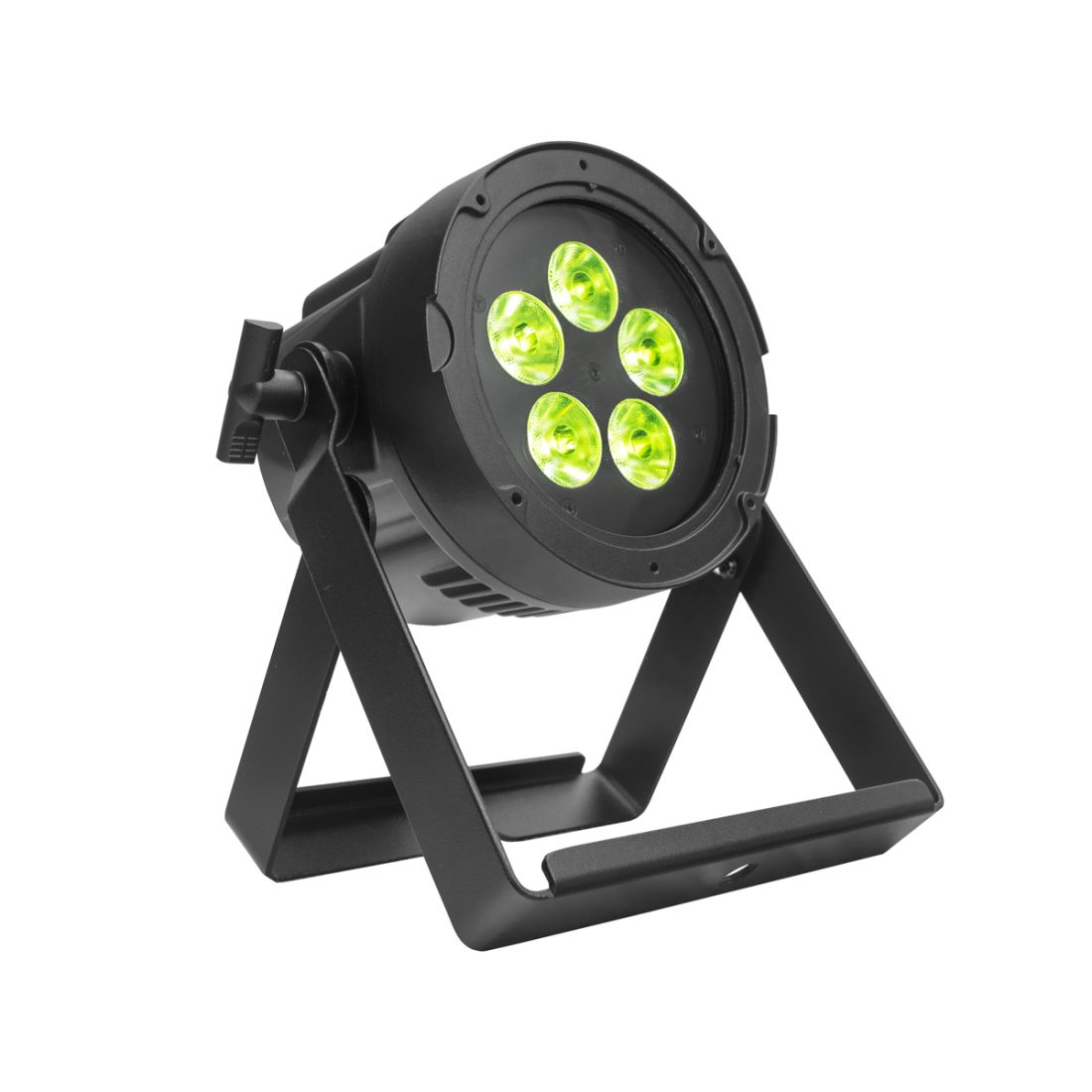

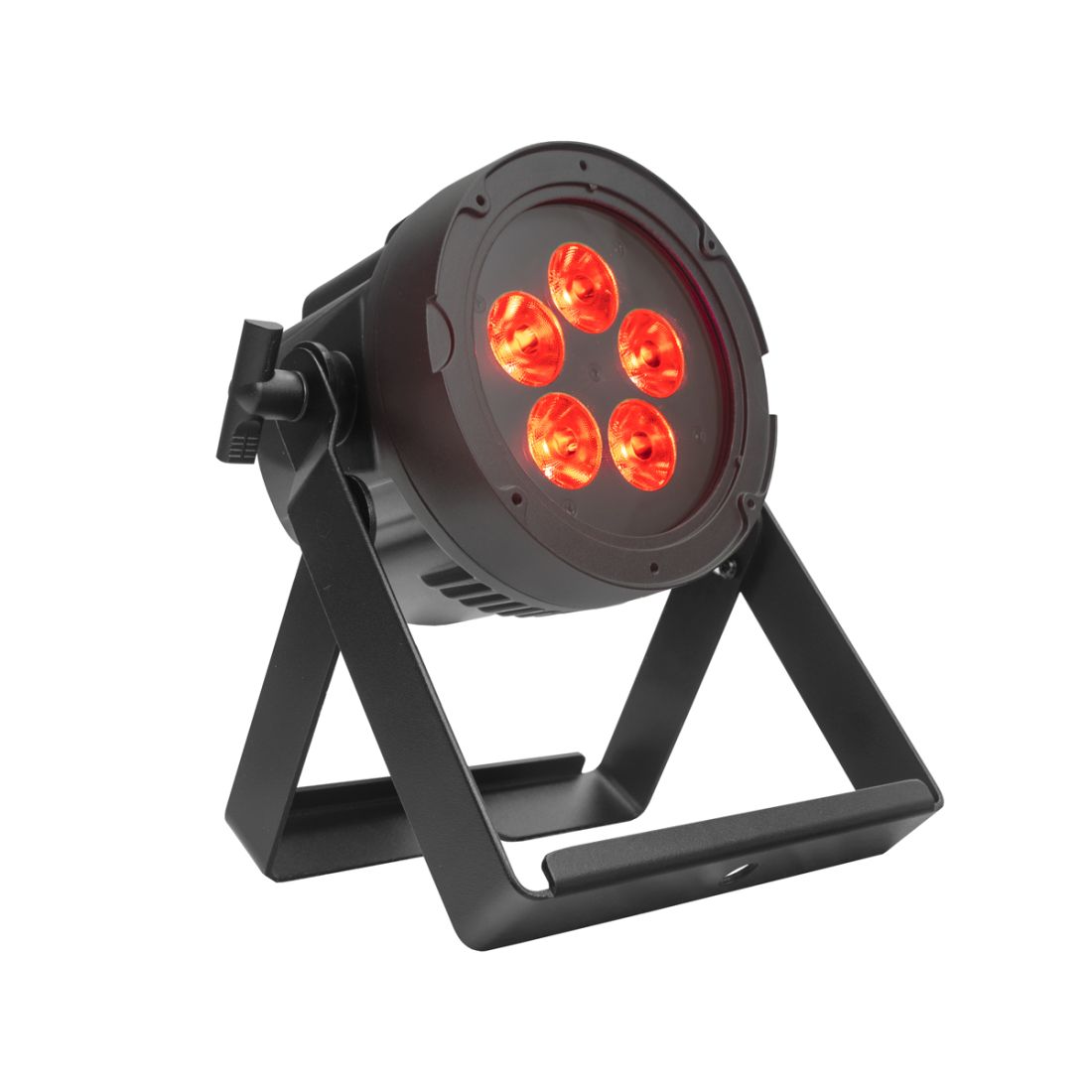

The ADJ Encore LP5 IP is a versatile, heavy duty Par with 5 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K.
The ADJ Encore LP5 IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10-degree beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.
The Encore LP5 IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power connectors and IP65 rated 5-pin DMX connectors with rubber covers. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.
There are several additional frost filter options that customize the beam angle. One 25° double frost filter is included in the package and optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately.
Gallery
Specification
- • Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
- High CRI Data
- • Beam Angle: 9.7°
- • Field Angle: 18.8°
- • CRI: 83
- • CRI R9: 54
- • Color Temperature: 6942K
- • Lux: 2179 @ 3M, 785 @ 5M
- • Lumens: 771
- Full ON Data
- • Beam angle: 9.6°
- • Field Angle: 18.8°
- • CRI: 67
- • CRI R9: -98
- • Color Temperature: 21188K
- • Lux: 1766 @ 3M, 636 @ 5M
- • Lumens: 607
- • Linear Color Temperature Control (2700K to 7000K)
- • Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
- • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
- • 64 built-in Color Macros
- • 4-button, DMX digital display on rear panel
- • Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
- • Supports RDM (Remote Device Management)
- • With Wired Digital Communication Network
- • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
- • Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
- • Flicker Free operation (No flickering on camera)
- • LED pulse and strobe effect
- • Electronic Dimming: 0 - 100%
- • 6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel
- • Quiet fan mode
- • IP65 Rated: Ingress Protection against liquid, snow, dust and sand
- • All metal construction

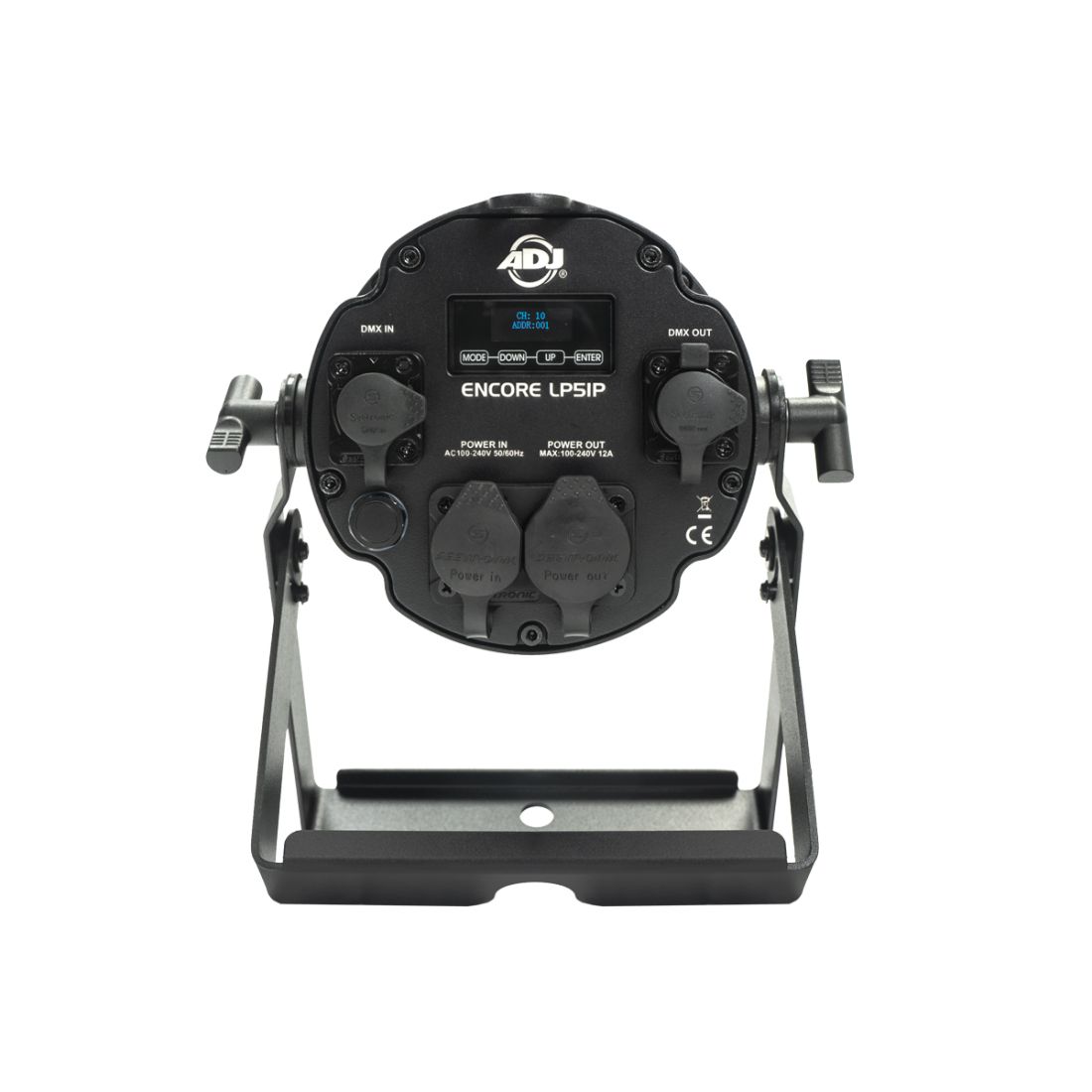

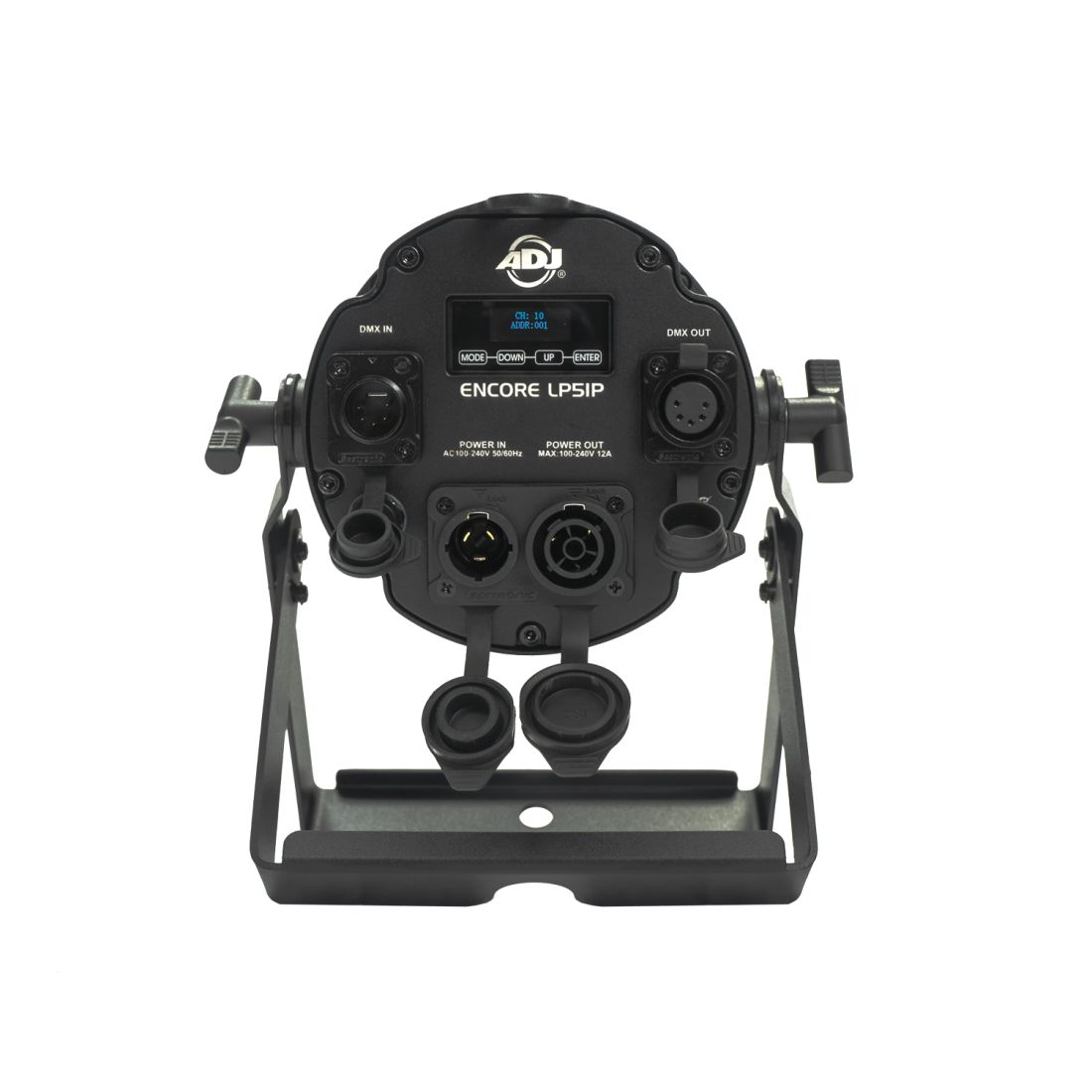

- • IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
- • Locking, outdoor IN/Out Power connectors
- • Data linkable via 5-pin XLR DMX connections
- • Scissor Yoke & safety eye
- • Multi-voltage operation: AC 100-240V, 47/63Hz
- • Daisy chain: 44 units max (240v)
- • Max power: 32W
- • Dimensions (LxWxH): Dimensions (LxWxH): 150.6mm x 209.0mm x 255.0mm
- • Weight: 2.4 kgs
- • IP65
- (1) 25° Frost Filter
- (1) Power Cord
- ELP5L100: 100-degree frost filter for the Encore LP5IP
- ELP5L60: 60-degree frost filter for the Encore LP5IP
- ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP
- ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP
- ELP5L20: 20-degree frost filter for the Encore LP5IP
