Encore FR20 DTW white Select
Key Features
• Robust extruded aluminium housing

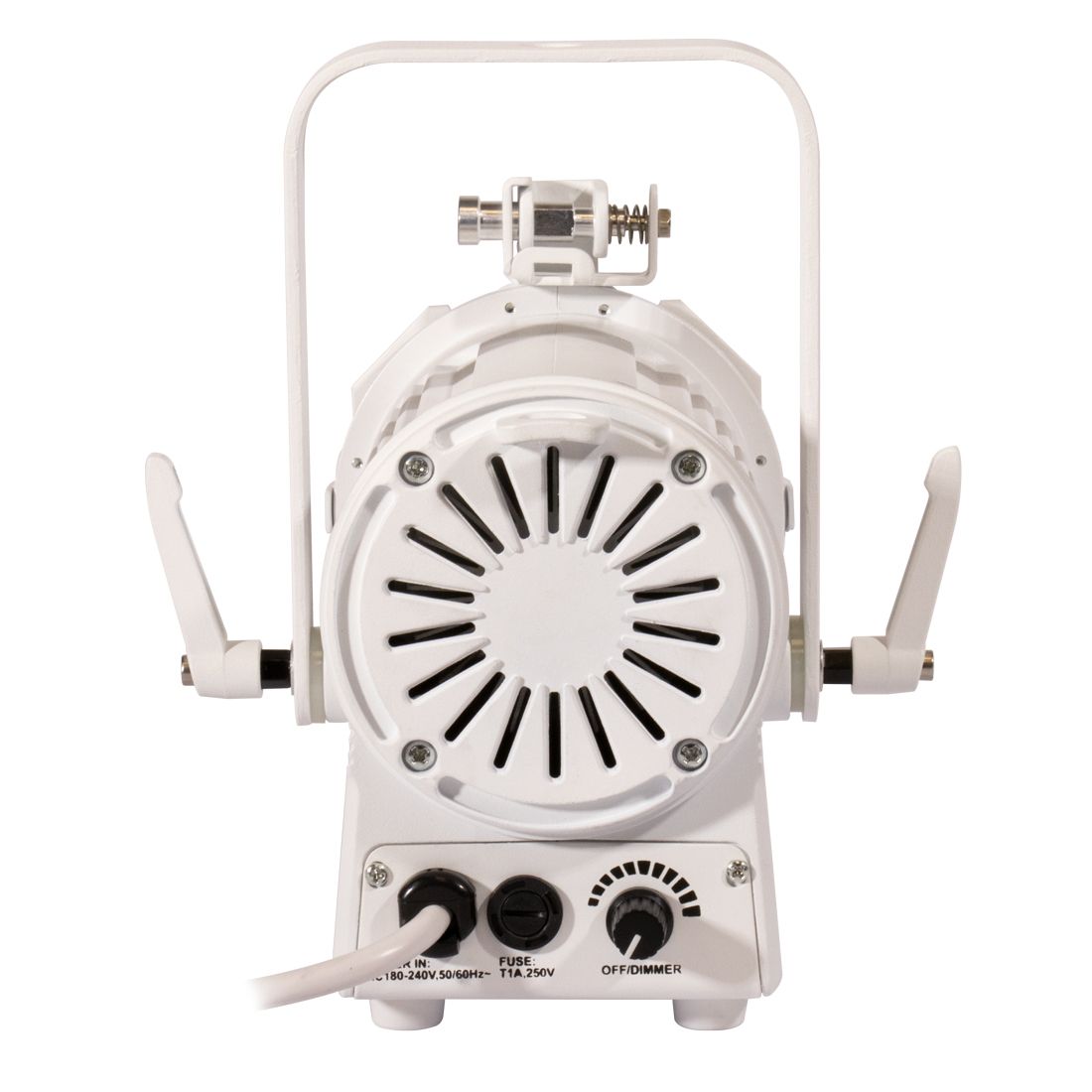

• Manual Dimming knob on rear
• Barndoors & Gel Filter Frame included
• Beam Angle: 19°
• Additional 45° Lens-Kit included
• Light Source: 1x 17W WW COB-LED
• Color Temperature: 3000K
• CRI: 92
Product Information

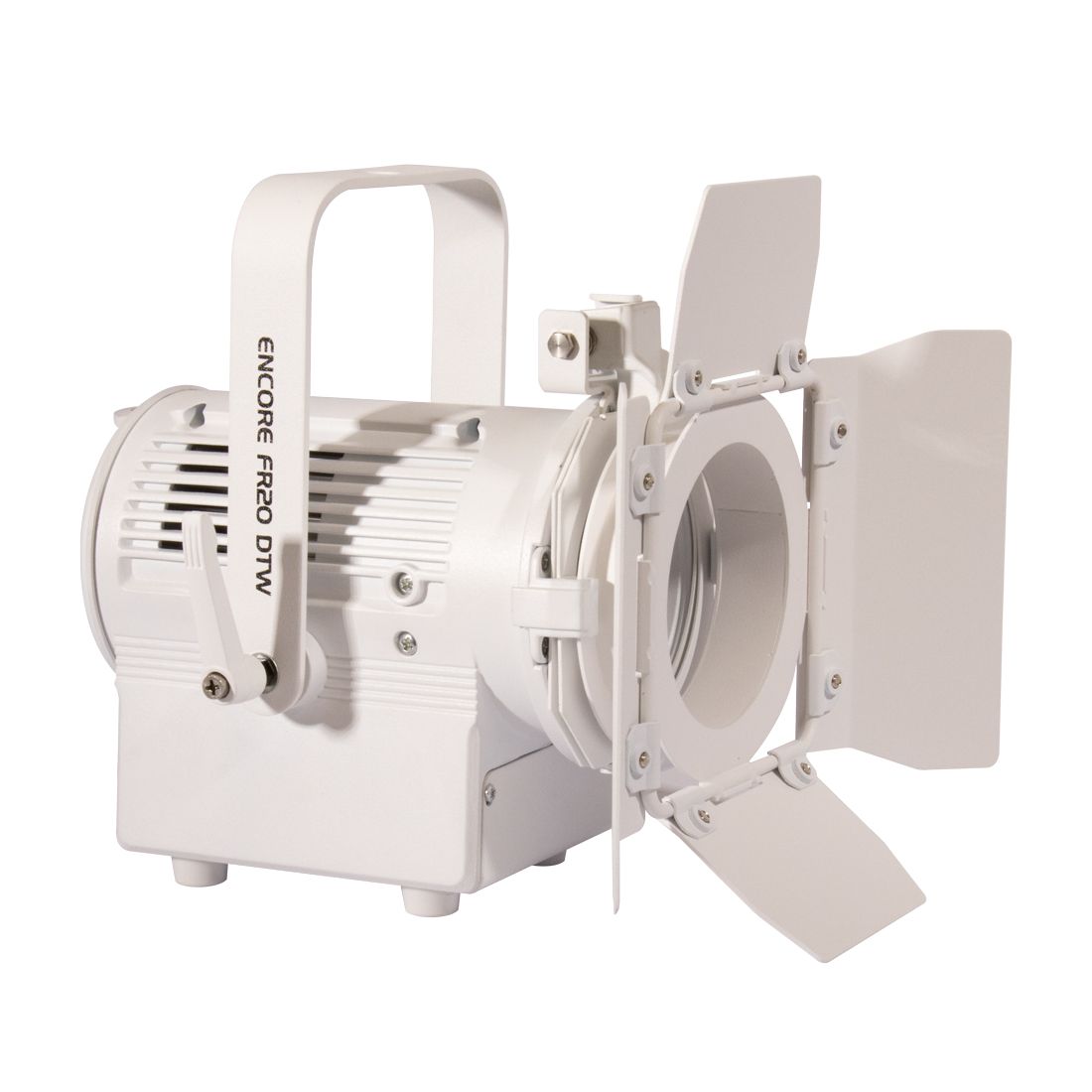

Part of the Encore stage lighting series, the Encore FR20 DTW white lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes in a white housing with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers.

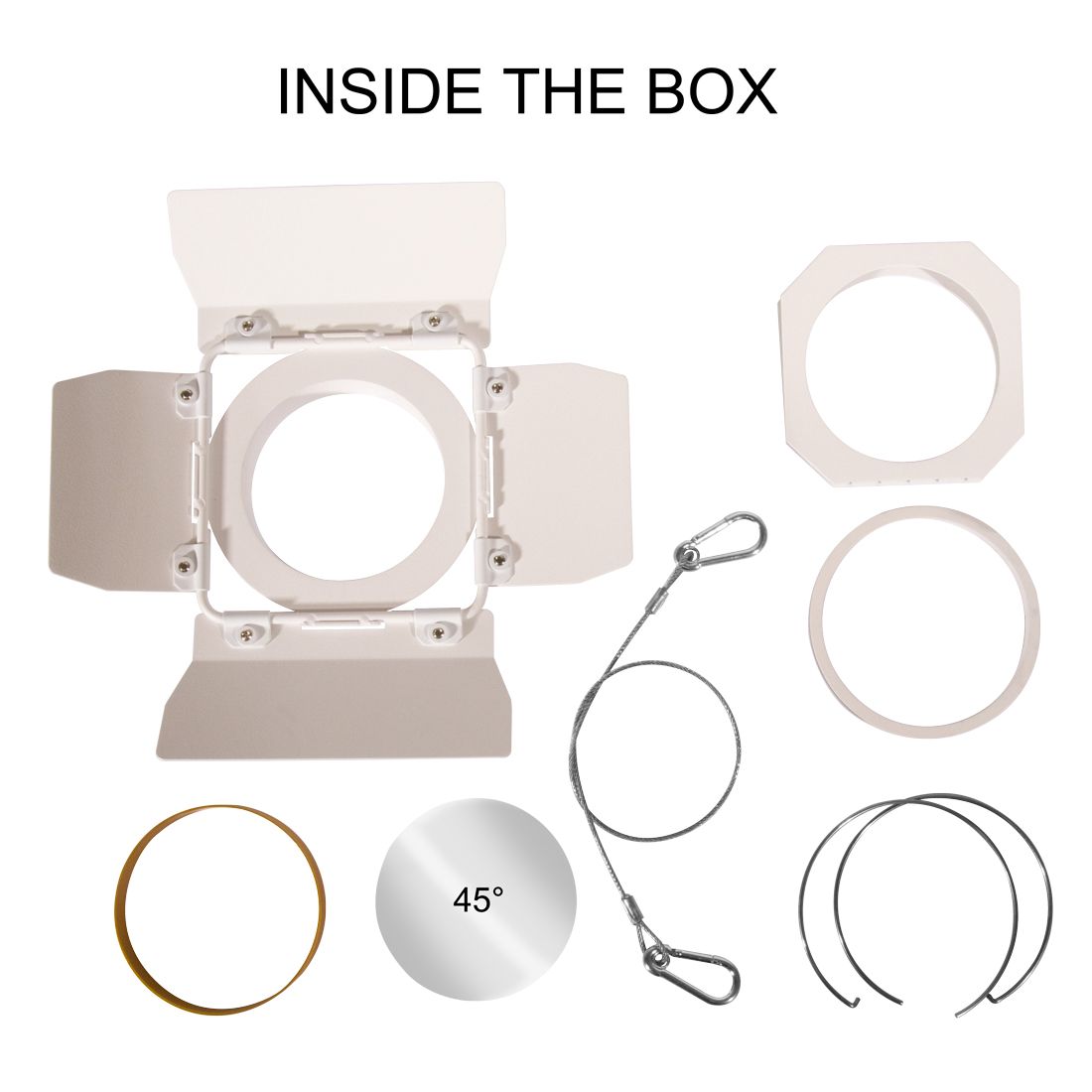

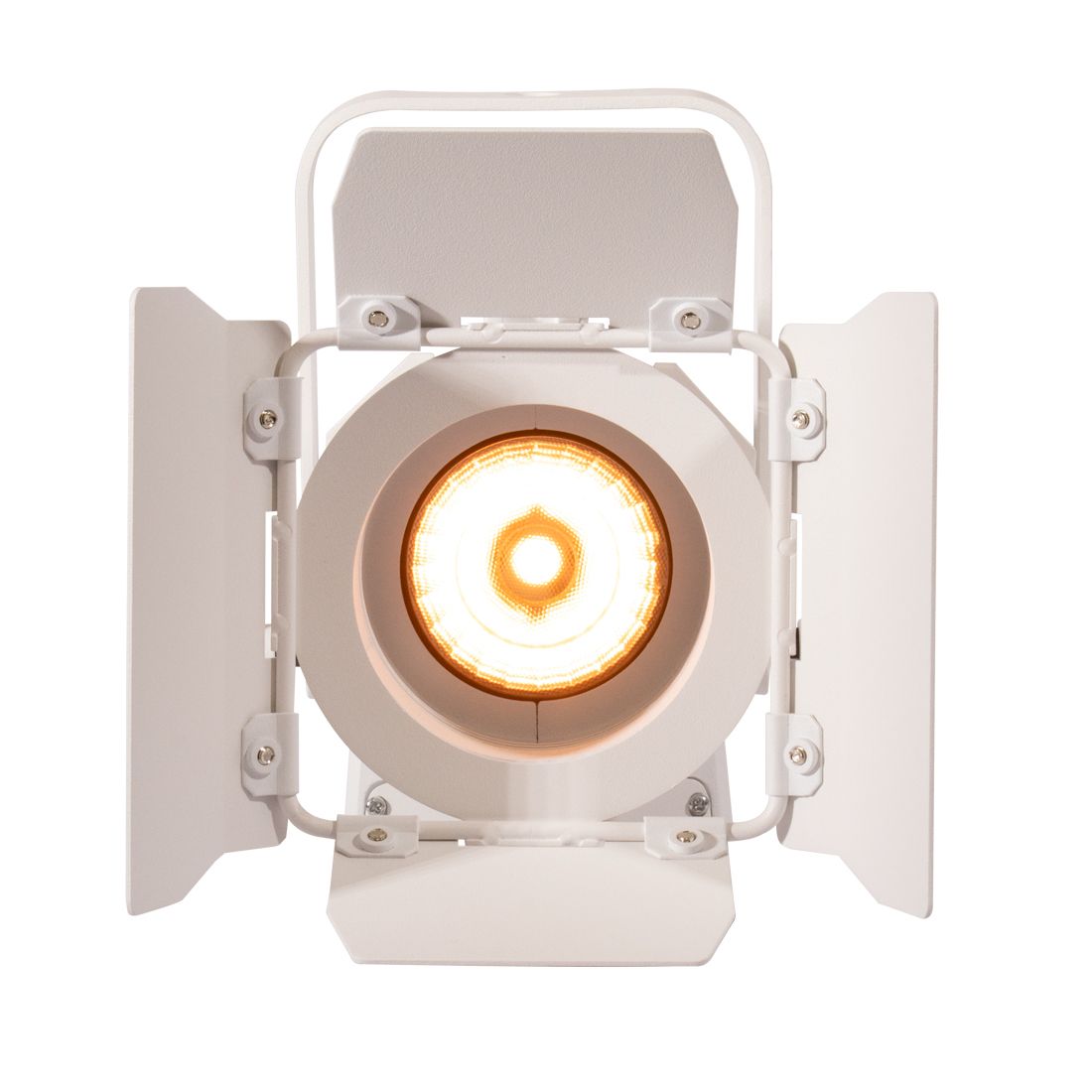

The Encore FR20 DTW comes equipped with a hanging bracket, white barn doors to manually shape the beam of light, a frost filter to change the beam angle from 19-degrees to 45-degrees, a white gel frame to add a color gel (sold separately) and a safety cable.
Gallery
Specification
- • Light Source: 1 WW COB-LED
- • Individual LED wattage : 17W
- • Average LED lifetime : approximately 50,000 hrs.
- • Color Temperature: 3000K
- • CRI: 92
- • Beam Angle: 19 degrees
- • Additional 45-degrees Lens-Kit included
- • 2 operational Modes : Manual Dimming Potentiometer or DMX Control via external TRIAC Dimmer
- • Electronic Dimming: 0 - 100%
- • Warm White 3000K
- • Robust extruded white aluminium housing
- • Manual Dimming knob on rear
- • Barndoors & Gel Filter Frame included
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 17W
- • Fixed Power CableL
- Without Barndoors: 185 x 160.89 x 209.85mm
- With Barndoors: 269.21 x 160.89 x 209.85mm
- Without Barndoors: 1,95 kg.
- With Barndoors: 2,25 kg
