Encore FR150Z Select
Key Features
Construction
• Robust extruded aluminium housing
• Manual Zoom Knob
• Barndoors included
• Robust extruded aluminium housing
• Manual Zoom Knob
• Barndoors included
Optics
• Adjustable Beam Angle: 15-38°
• 8-inch/200mm Fresnel Lens
• Adjustable Beam Angle: 15-38°
• 8-inch/200mm Fresnel Lens
Source
• Light Source: 1x 130W WW COB-LED
• Color Temperature: 3000K

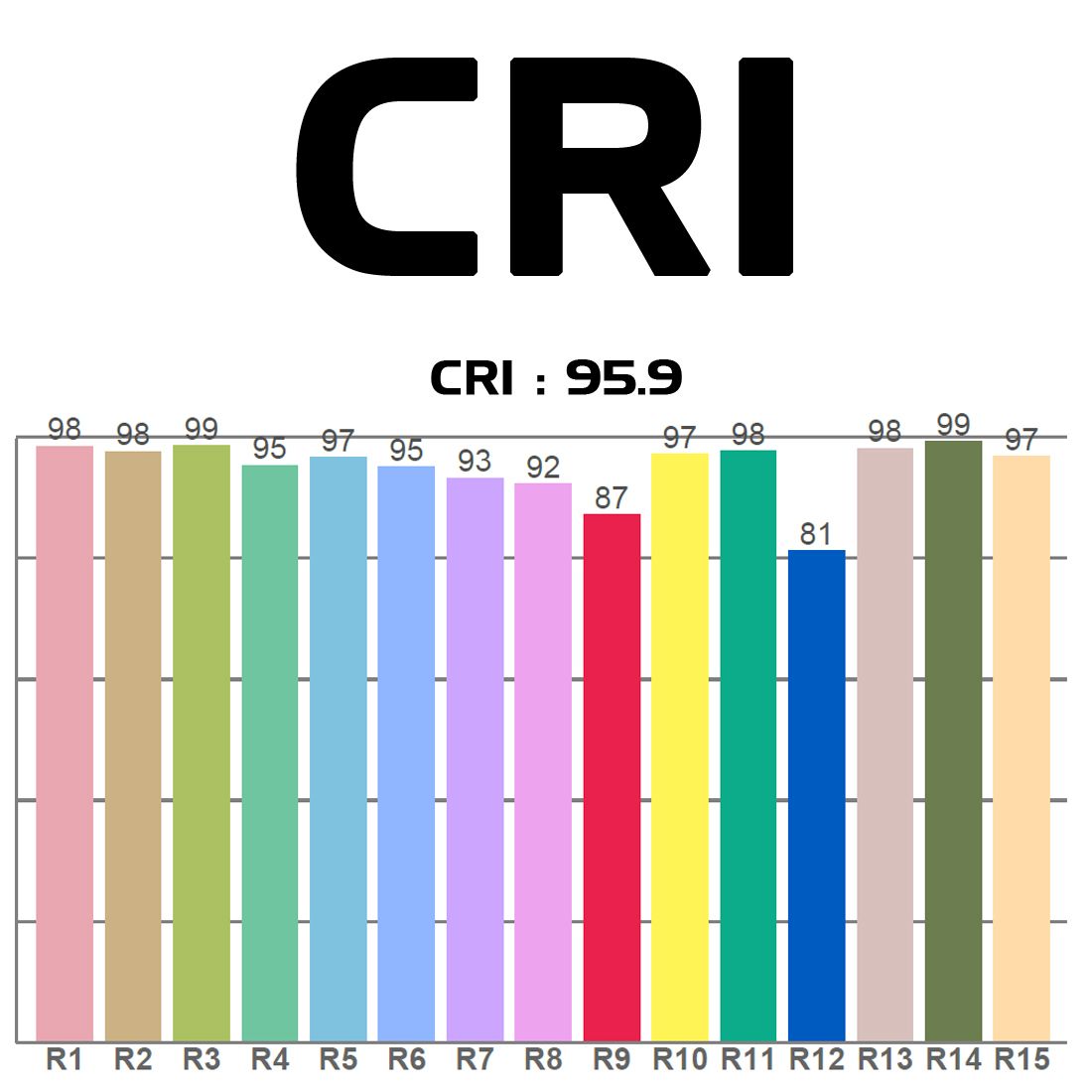

• CRI: 95.9
• Light Source: 1x 130W WW COB-LED
• Color Temperature: 3000K
• CRI: 95.9
Product Information
SKU: 1237000174
GTIN: 818651020977
HS-Code: 9405423990

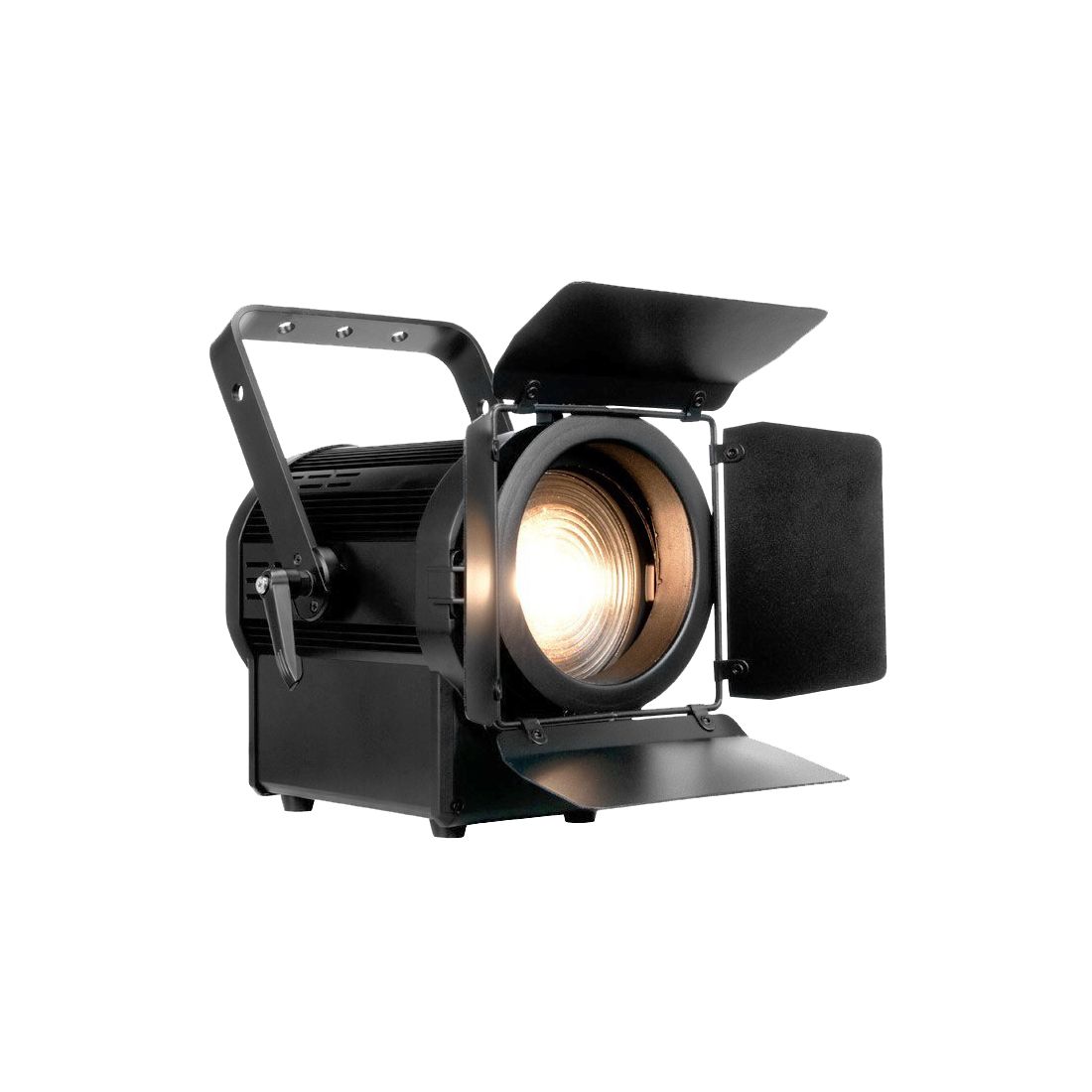

Part of the Encore stage lighting series, the Encore FR150Z lighting fixture is equipped with an 8-inch Fresnel lens and powered by a 130W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 15 to 38 degrees.
The Encore FR150Z has a 4-button LCD operational menu, 3-pin and 5-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.
Gallery
Specification
- • Light Source: 1 WW COB-LED
- • Individual LED wattage : 130W
- • Average LED lifetime : approximately 50,000 hrs.
- • Color Temperature: 3000K
- • CRI: 95.9
- • Adjustable Beam Angle: 15-38 degrees
- • 8-inch/200mm Fresnel Lens
- • 2 operational Modes : Manual WW Dimmer Mode and DMX Control
- • 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
- • RDM compatible
- • 16bit Electronic Dimming: 0 - 100%
- • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
- • Adjustable Fanmodes (Auto, Low, High)
- • LED pulse and strobe effect
- • 4-button, DMX digital display on rear panel
- • Warm White 3000K
- • Robust extruded aluminium housing
- • Manual Zoom Knob
- • Barndoors included
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 150W

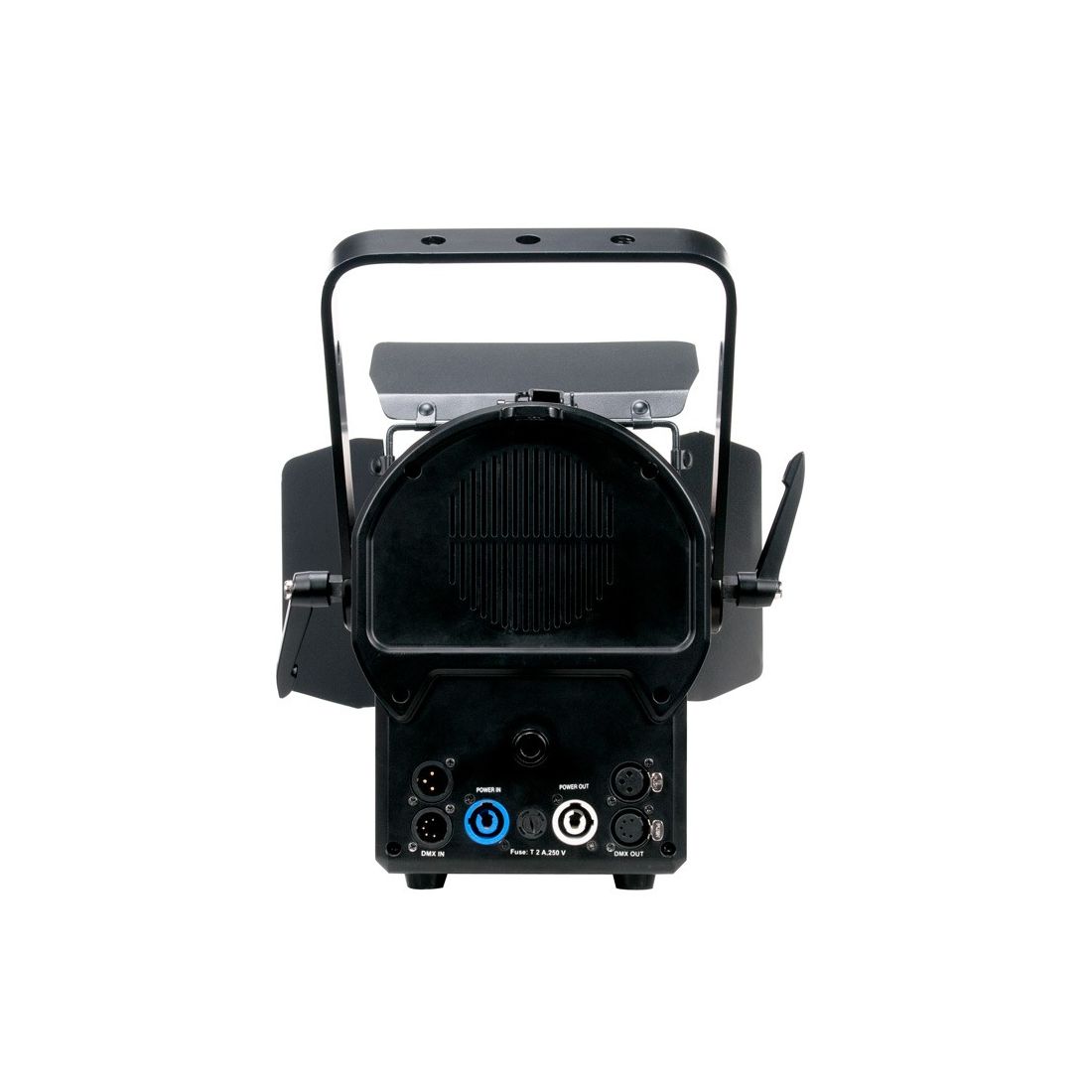

- • 3 & 5-pin Locking DMX In/Out connections
- • Locking Power In/Out connections
- • USB port for Firmware Update
- Without Barndoors: 276 x 298.62 x 416mm
- With Barndoors: 422.23 x 298.62 x 416mm
- Without Barndoors: 6,8 kg.
- With Barndoors: 7,4 kg
Specifications subject to change without notice
