Encore DBX Select New
Key Features
Construction
• IP65-Rated
• IP65-Rated
Optics
• Variable White Color Temperature Control (2,700K ~ 6,500K)
• Total Lumen Output: 11,465
• Variable White Color Temperature Control (2,700K ~ 6,500K)
• Total Lumen Output: 11,465
Source
• 2x 150W RGBAW LEDs
• RGB Background LEDs
• 2x 150W RGBAW LEDs
• RGB Background LEDs
Product Information
SKU: 1236200098
HS-Code: 9405423990

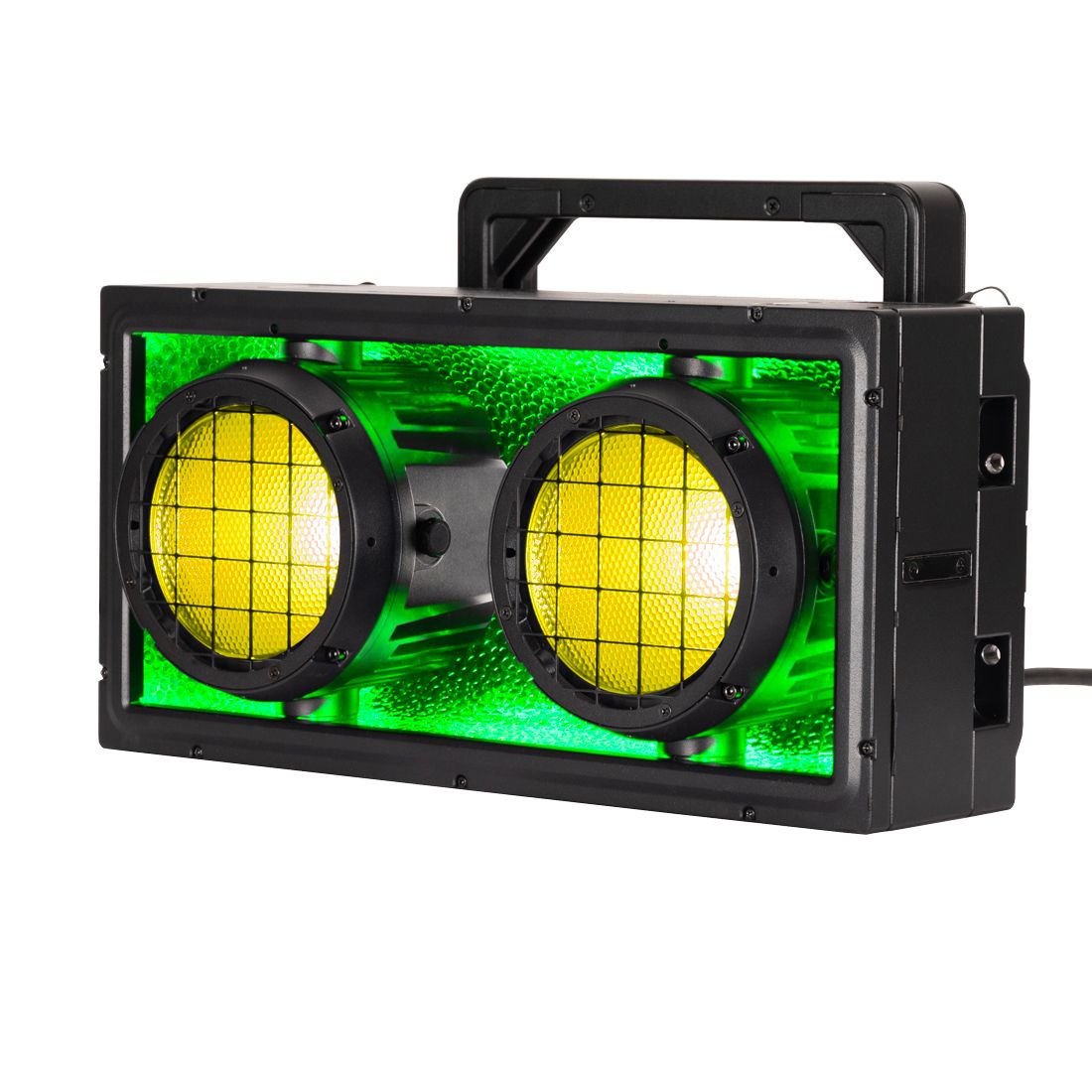

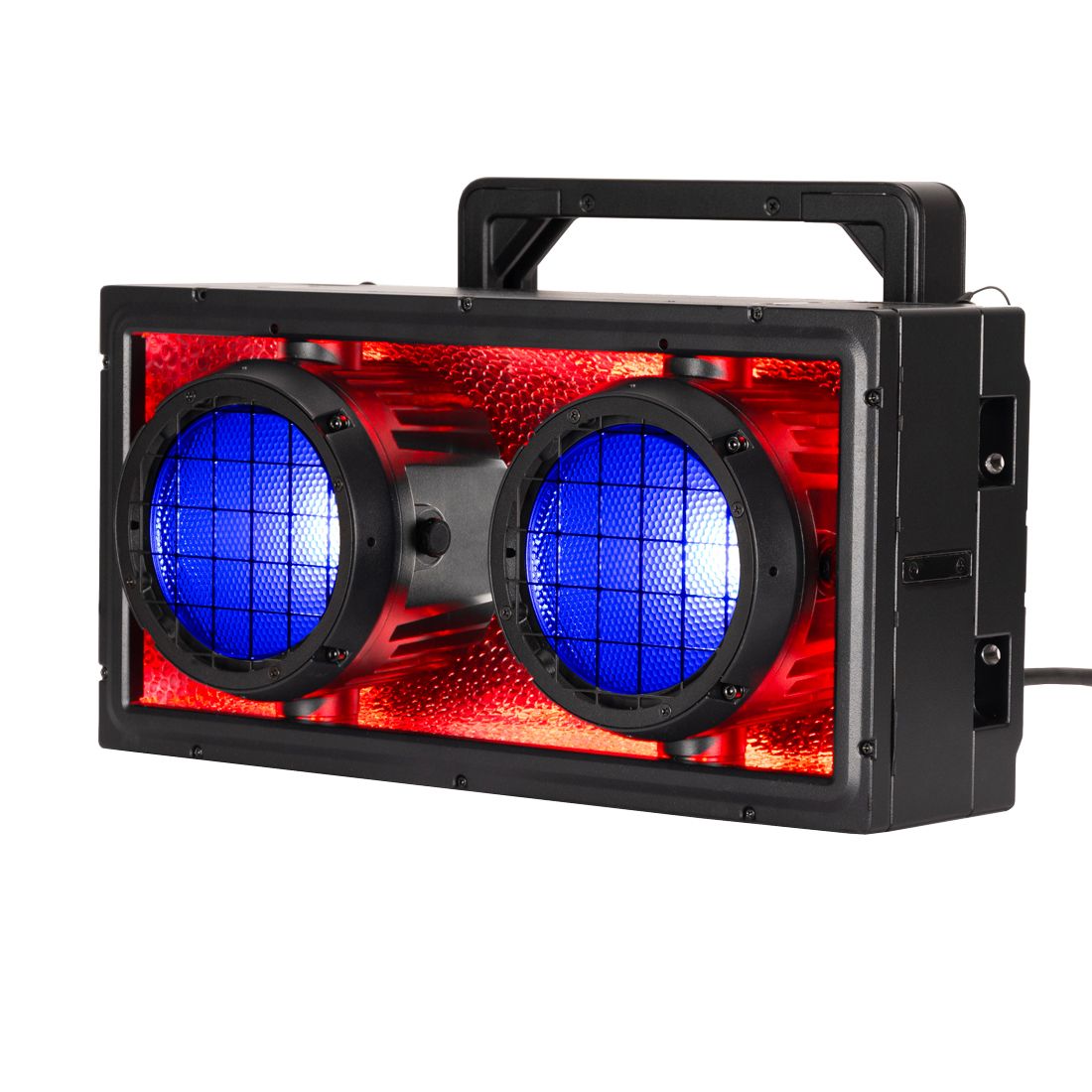

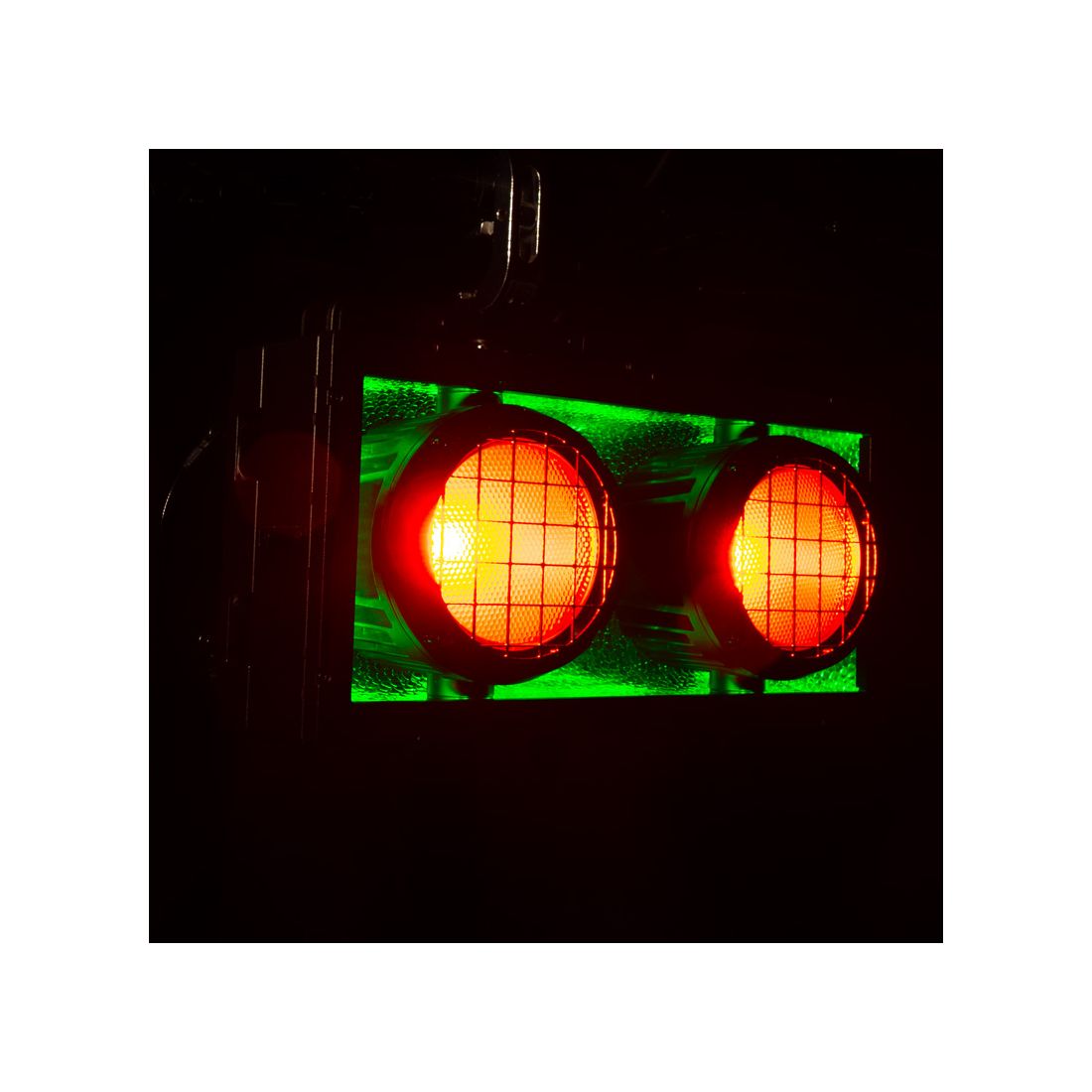

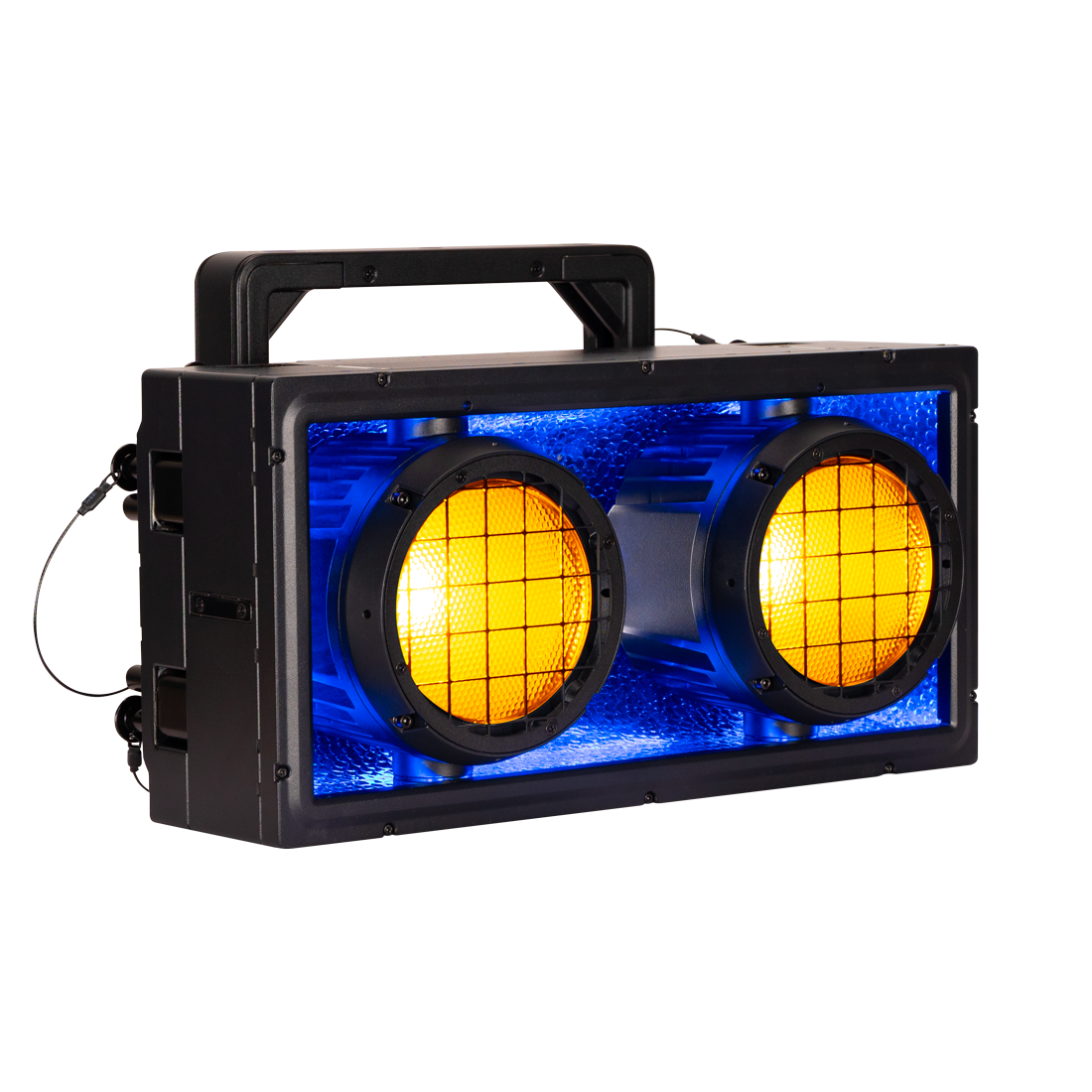

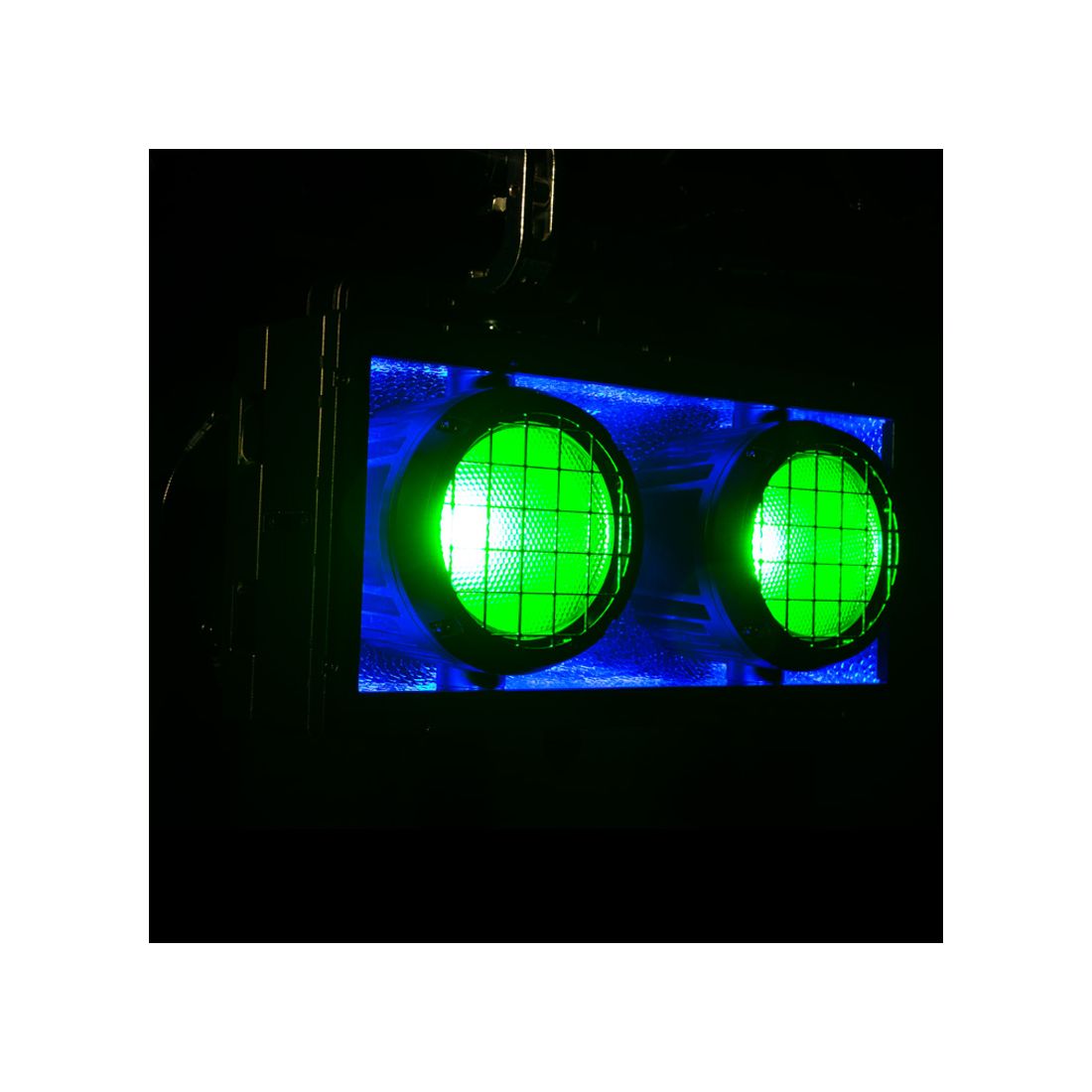

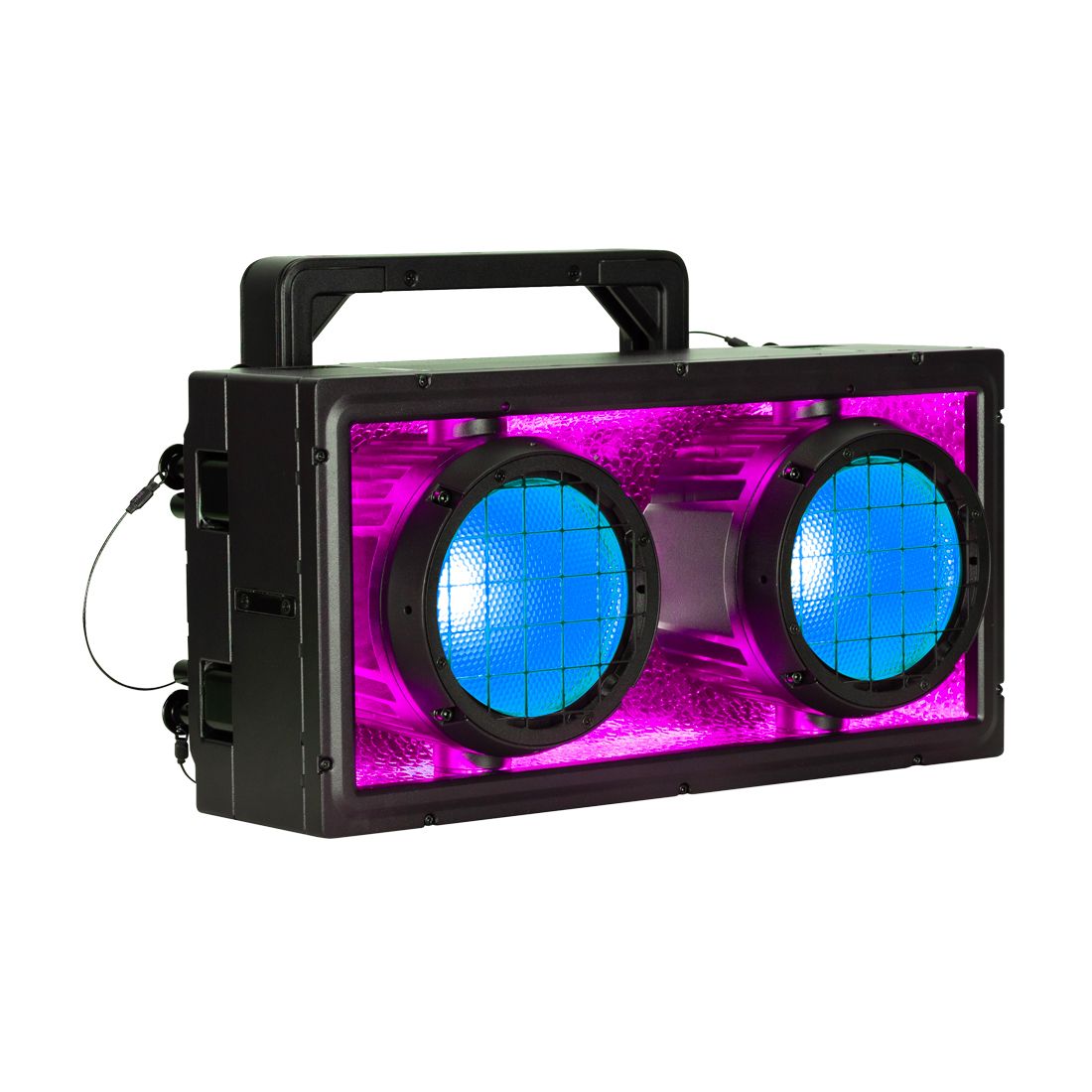

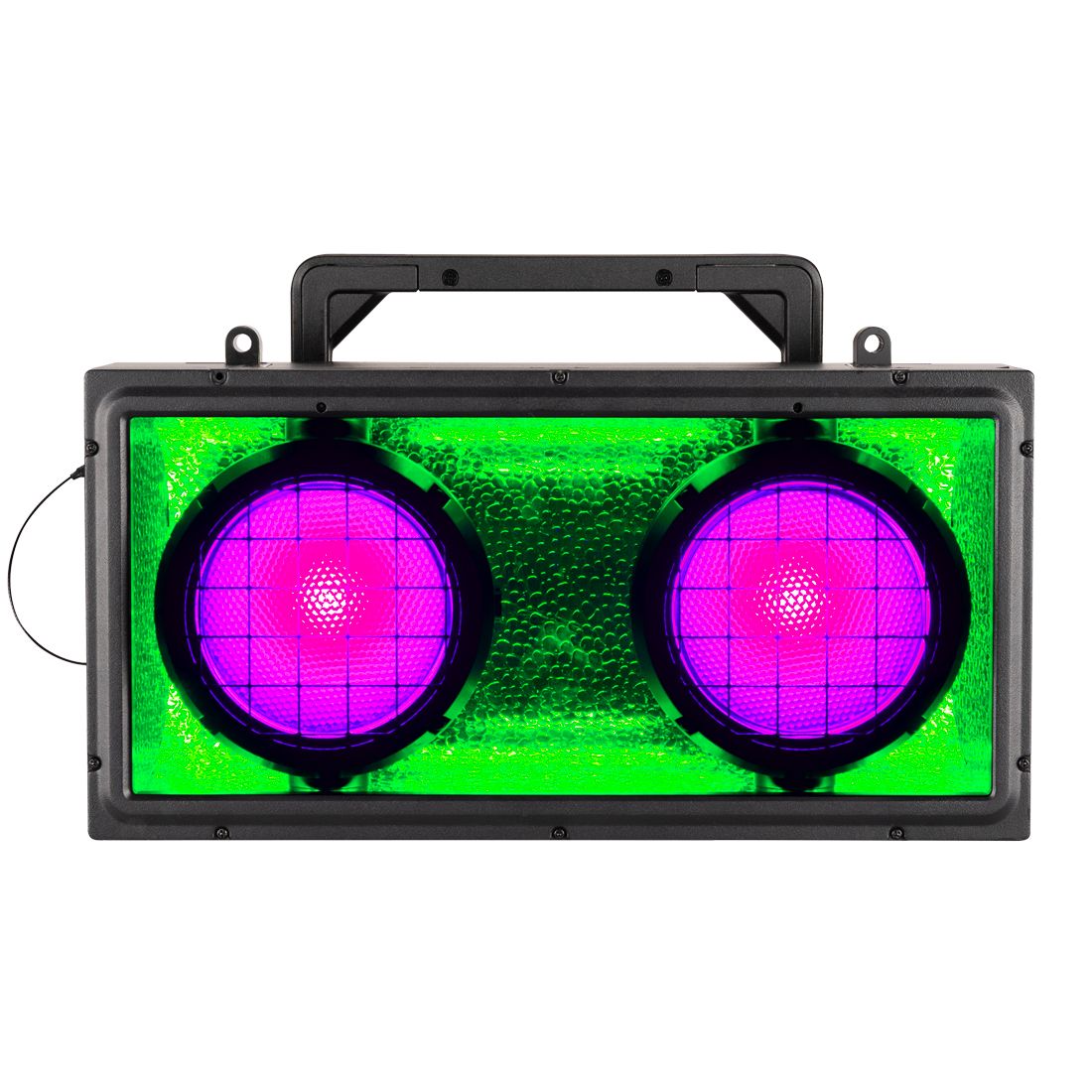

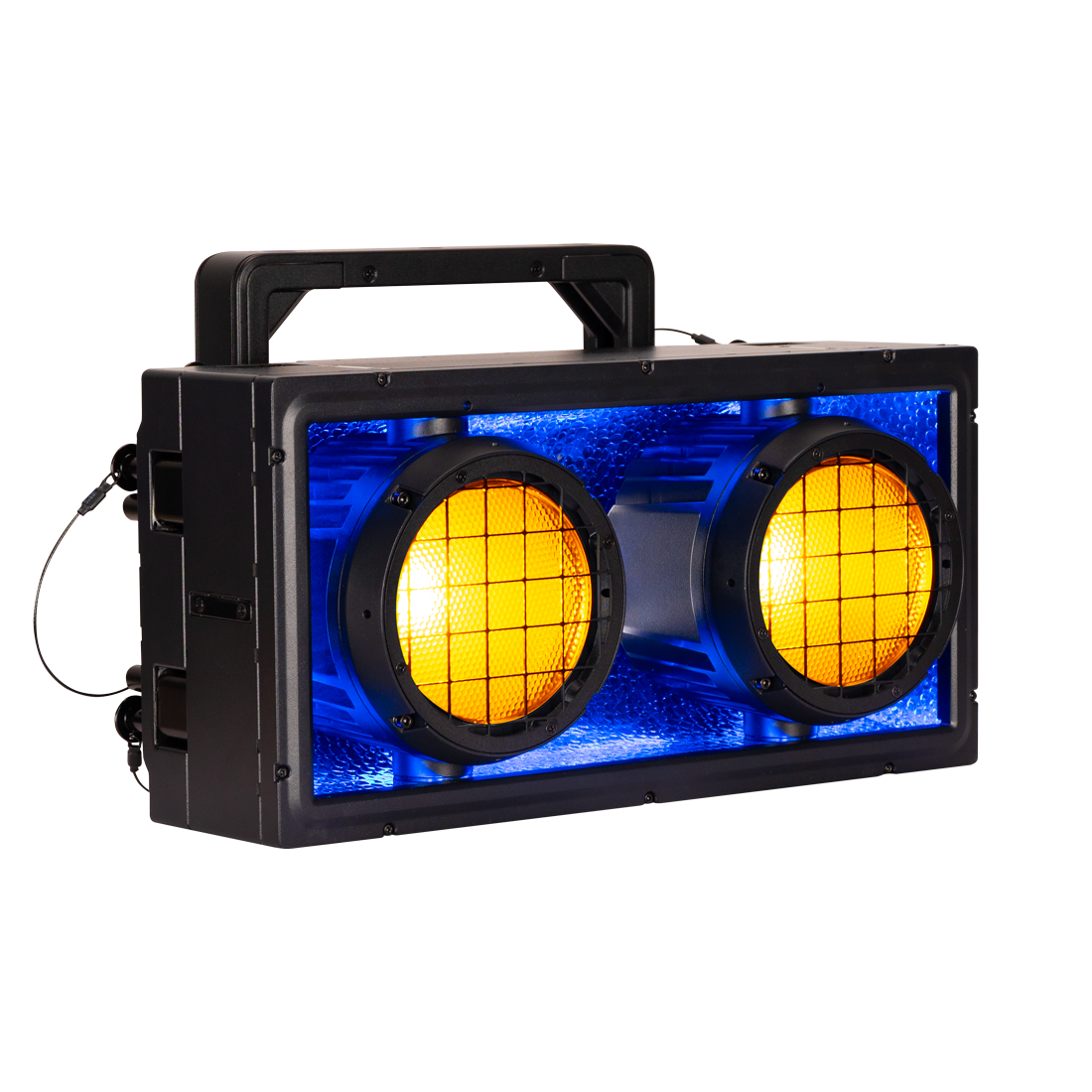

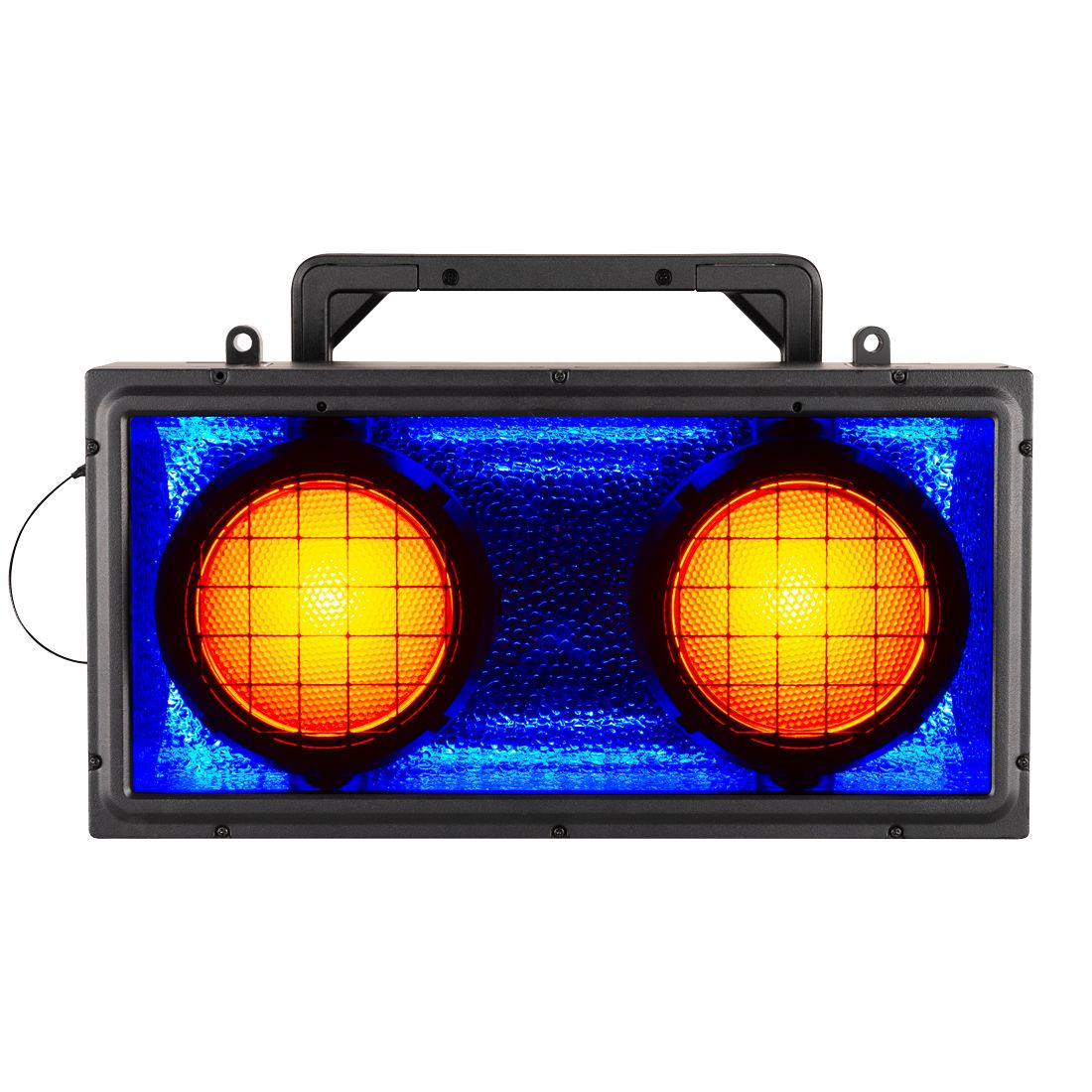

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colors and sharp contrast.
With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Aria X2 Wireless Management, and Bluetooth, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.

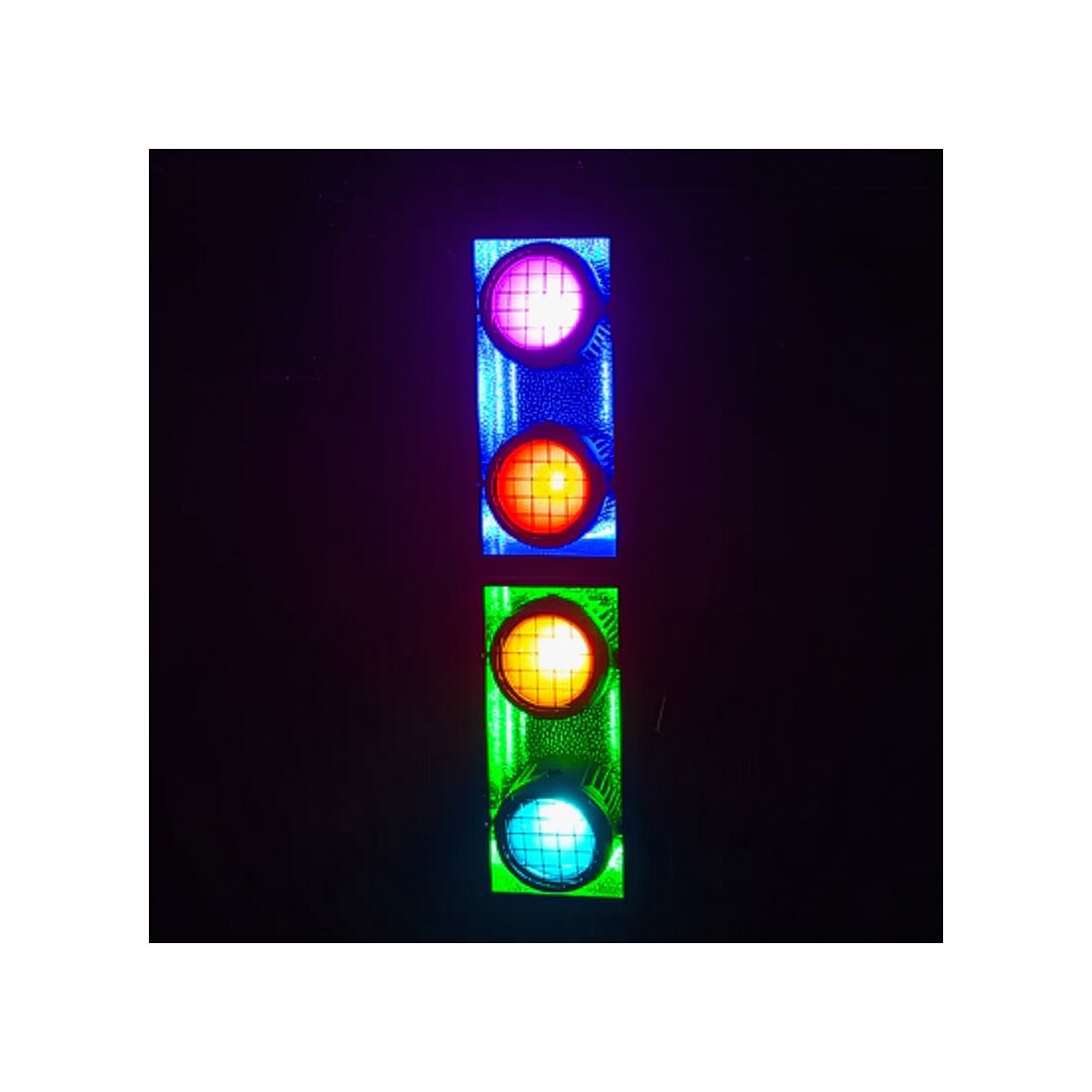

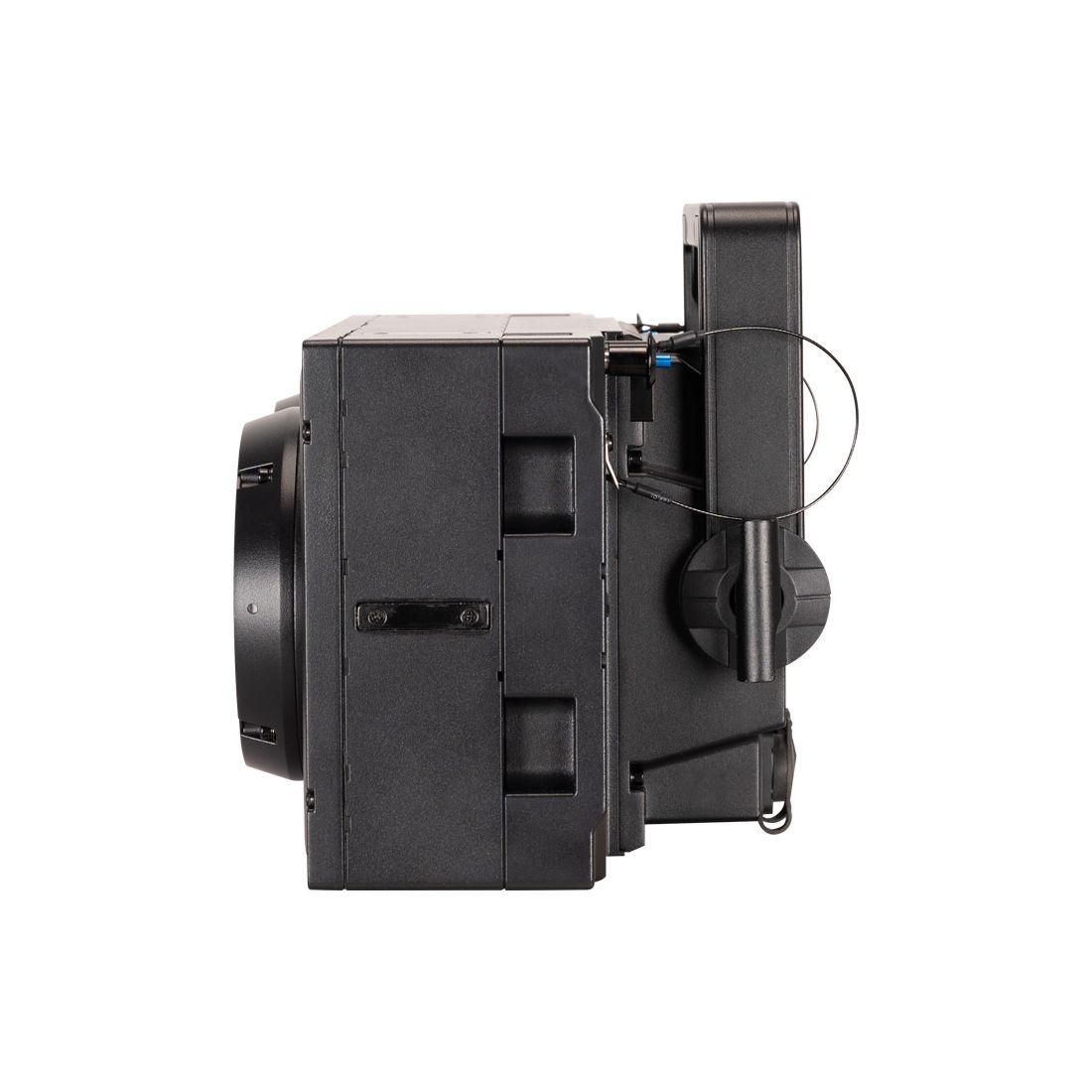

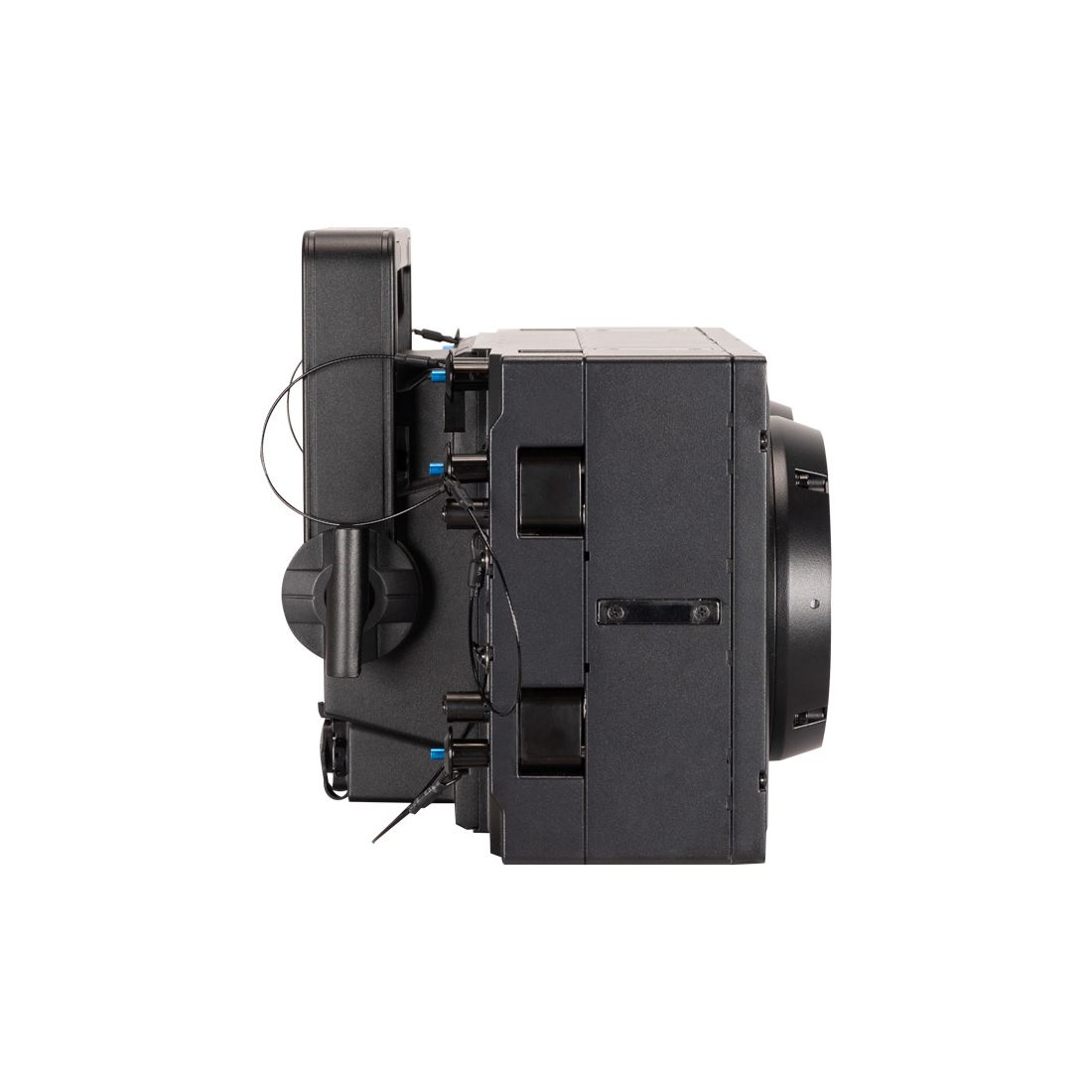

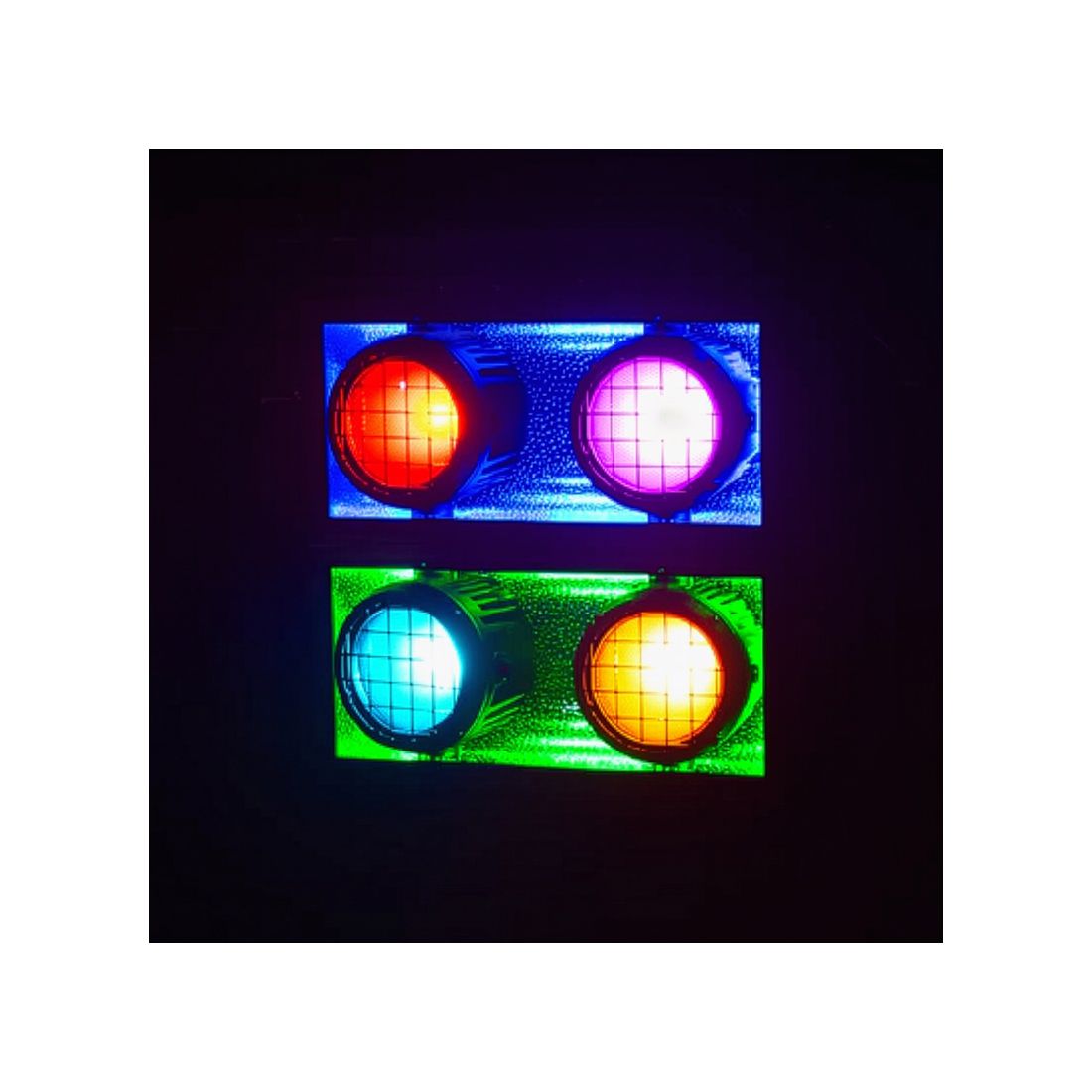

Gallery
Specification
- • 2x 150W RGBAW LEDs
- • RGB Background LEDs
- • 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
- • 2 Cell, Five Color (RGBAW) LED Blinder
- • Background RGB LEDs
- • Individually Controllable Cells
- • Built-In Cell Programs
- • Built-In Background LED Programs
- • Variable White Color Temperature Control (2,700K ~ 6,500K)
- • User Selectable LED Refresh Rates (900Hz ~ 25K)
- • 6 User Selectable Dim Modes
- • 4 User Selectable Dim Curves
- • Electronic Strobe (1 ~ 20Hz)
- • Electronic Dimming
- • Aria X2 Wireless Management System
- • Total Lumen Output: 11,465
- • CRI: 89
- • Beam Angle: ?
- • Field Angle: ?
- • Variable Strobe Rate: 1- 20Hz
- • Variable 16-bit Dimming Modes and Curves
- • RGB Background Reflector Effect
- • RGBAW Color Array
- • RGB Background
- • Variable CCT 2700K - 6500K
- • Five Preset CCTs
- • IP65 Housing

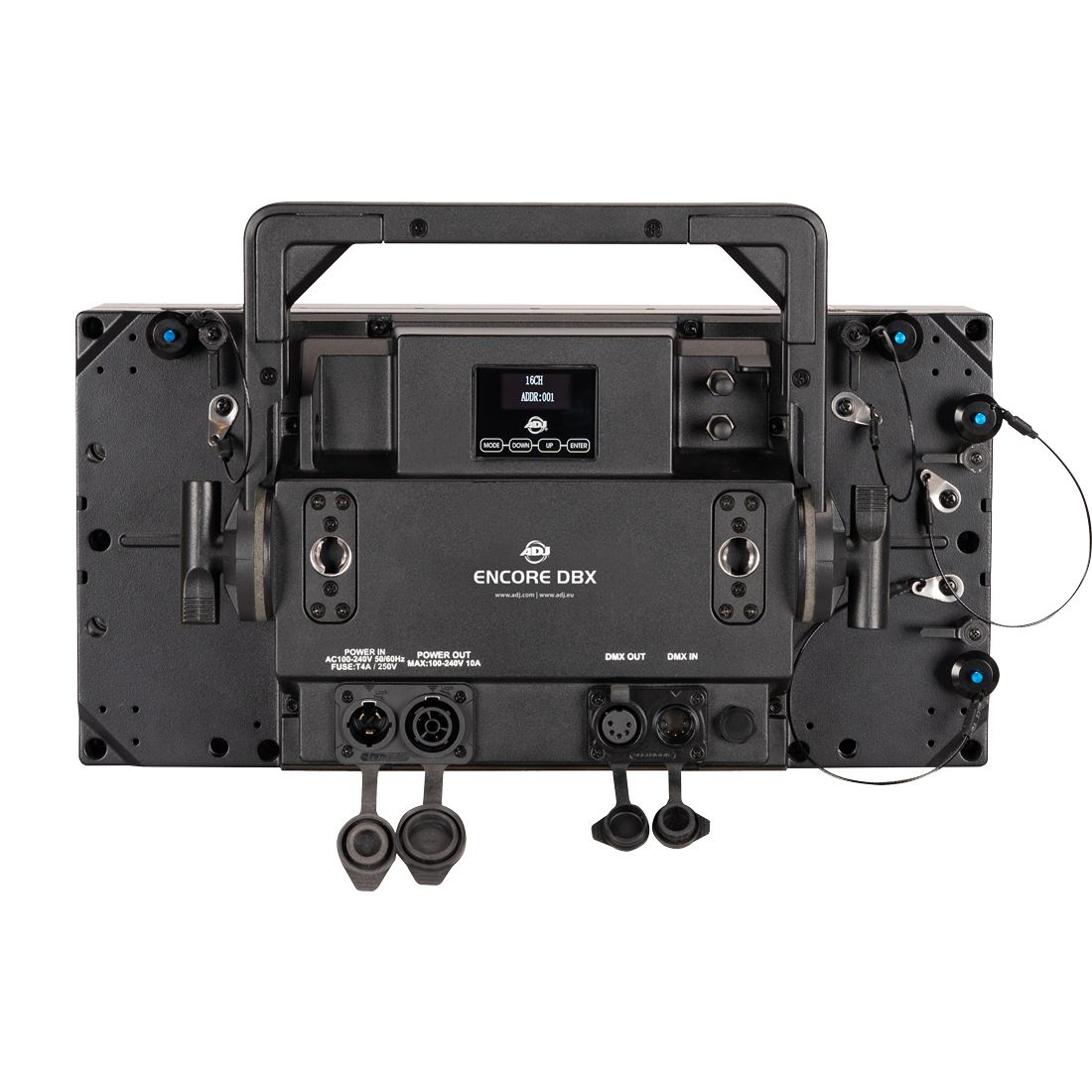

- • OLED Digital display
- • Adjustable Mounting Yoke with Omega Receivers
- • Second Set of Omega Receivers on Rear
- • DMX512
- • Aria X2 Wireless Management / DMX System
- • Bluetooth
- • RDM (Remote Device Management)
- • (17) DMX Channel Modes (5CH / 8CH / 10CH / 11CH / 12CHA / 12CHB / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)
- • On-board Manual Control Mode
- • Primary / Secondary Mode
- • 5-pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- • IP65 Locking Power Sockets
- • Length: 420mm Width: 261mm height: 231.3mm
- • Weight: 11.85 kg
- • AC100-240V/50Hz-60Hz Input
- • 347W Power Consumption
- • Link 2 pieces @120VAC or 6 pieces @ 230VAC
- • Ambient Operational Temperature: -20°C to 45°C
- • Storage Temperature: -30°C to 45°C
- • IP65
- • (1) Outdoor Locking Power Cable
- • (1) Safety Cable
Specifications subject to change without notice
