Encore Burst UV IP Select Archive
Key Features
Construction
• Metal Housing
• IP Rating: IP65
• Metal Housing
• IP Rating: IP65
Optics
• Beam Angle: 50 degrees
• Beam Angle: 50 degrees
Source
• 1x 50W UV COB-LED
• UV Wavelength: 365nm
• 1x 50W UV COB-LED
• UV Wavelength: 365nm
Product Information
SKU: 1226100376
GTIN: 818651026481
HS-Code: 9405423990

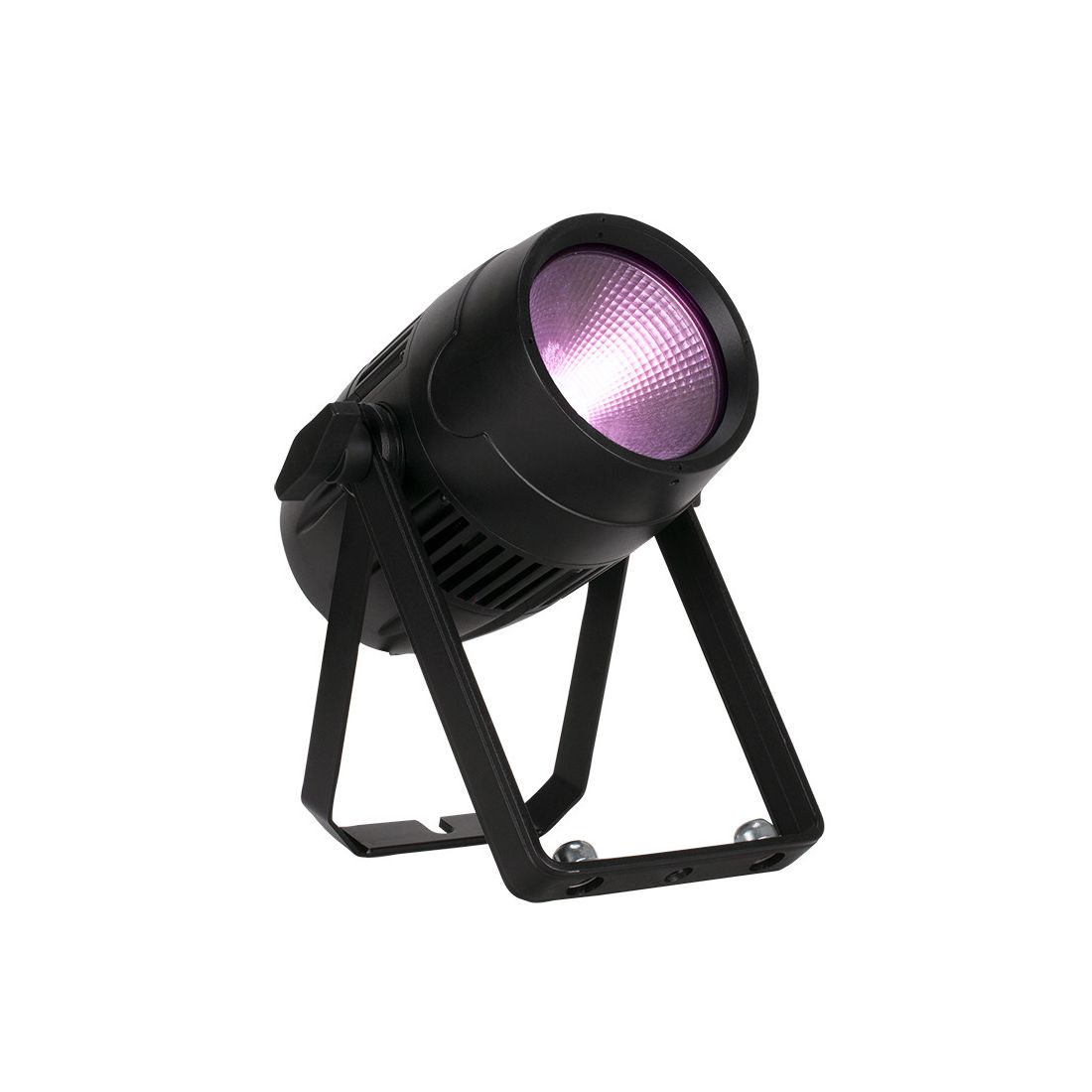

The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated UV Washer/Strobe with a 50W UV C.O.B.LED. The fixture is constructed of a rugged metal housing. The fixture features a 50-degree beam angle.
The Encore Burst UV IP has different selectable dimming curves, strobe effect, 4-button LED menu system, IP65 rated, 5-pin DMX In/Out plus IP65 Locking Power IN/Out connections to daisy chain power (rubber protective covers over all connections).
Gallery
Specification
- • Light Source: 1 UV COB-LED
- • Individual LED wattage : 50W
- • Average LED lifetime : approximately 50,000 hrs.
- • UV wavelength : 365nm
- • Beam Angle: 50 degrees
- • 2 operational Modes : Manual UV Dimmer Mode and DMX Control
- • 4 DMX Modes: 1, 2, 3 & 6-channel
- • RDM compatible
- • 16bit Electronic Dimming: 0 - 100%
- • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • Adjustable Dim Speed 0,1secs - 10secs
- • Adjustable LED refresh Rate : 900Hz - 25kHz
- • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
- • LED pulse and strobe effect

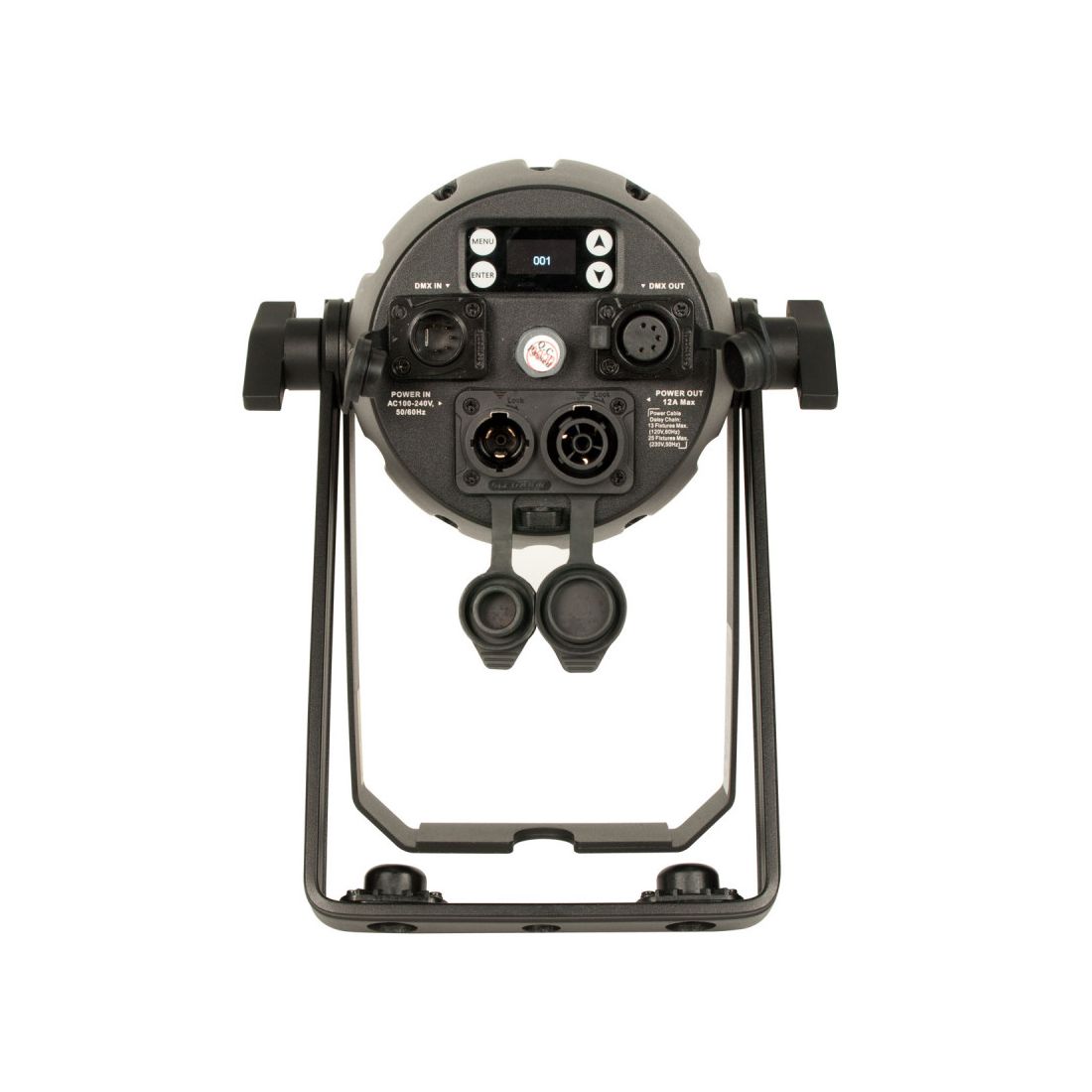

- • 4-button, DMX digital touch OLED display on rear panel
- • UV (365nm)
- • Metal Housing
- • IP Rating: IP65

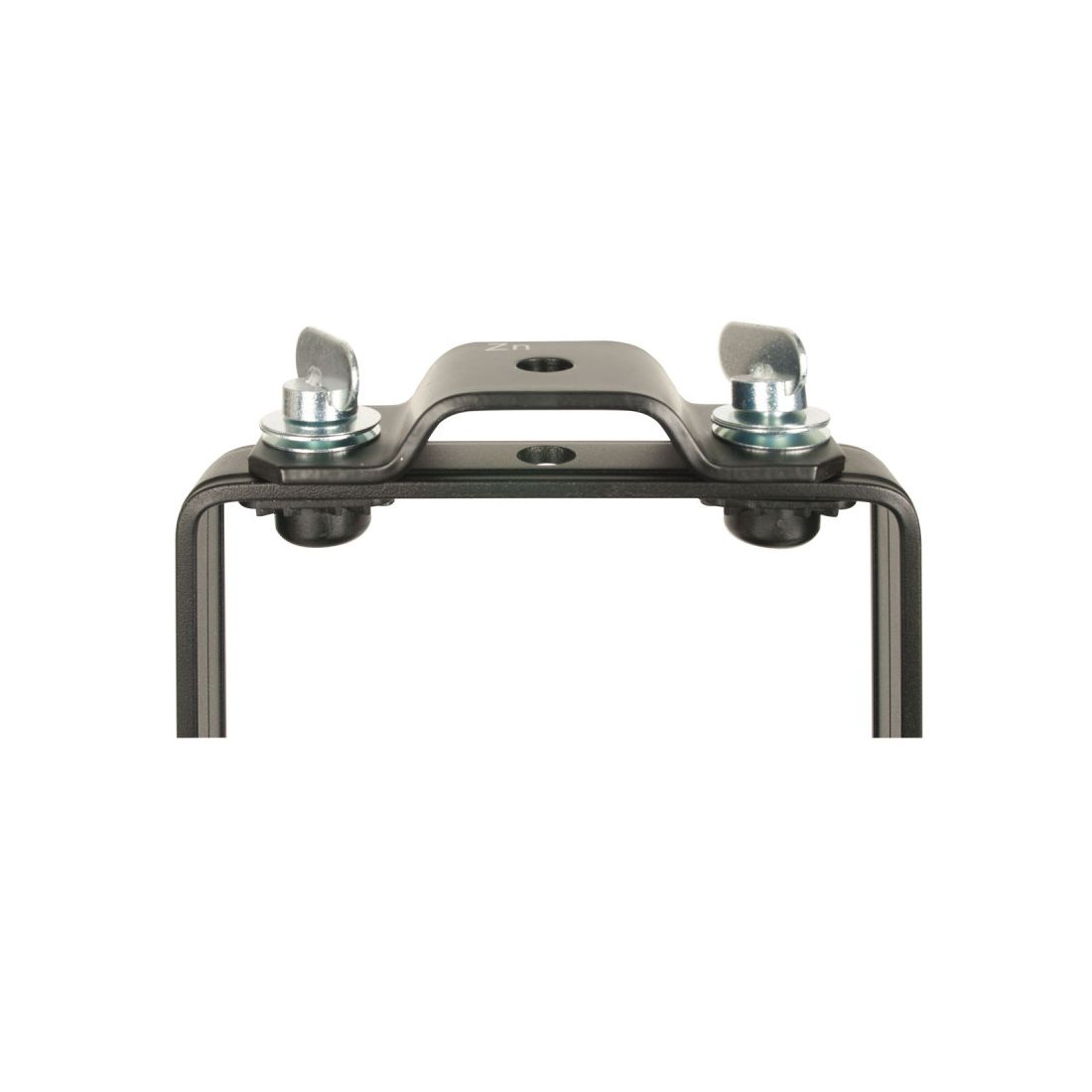

- • Scissor yoke
- • Optional Quicklock Bracket (order Code 9900007439 OmegaBracket 108mm)

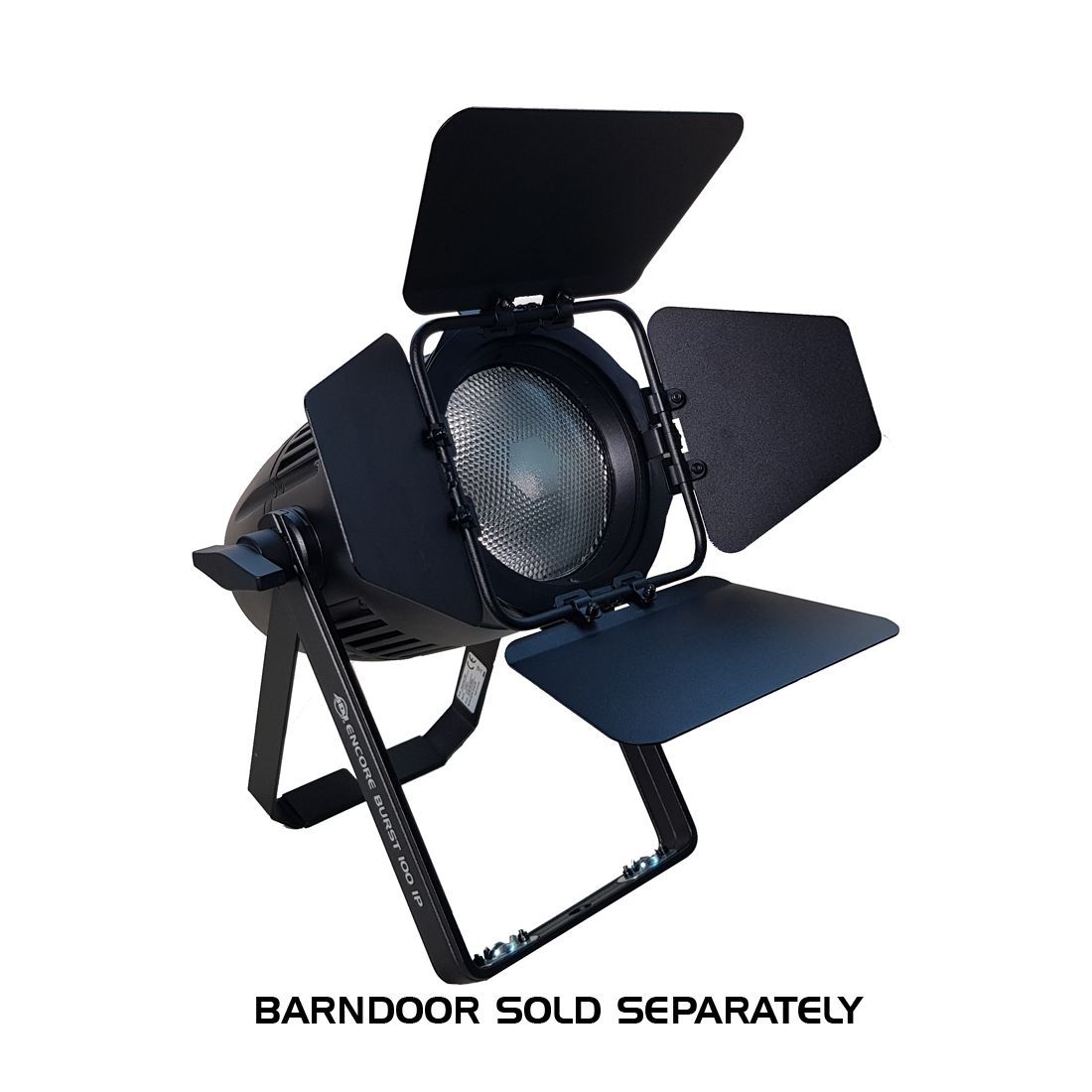

- • Optional Barndoors (order Code 1226100380)
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 63W
- • 5-pin IP65 Locking DMX In/Out connections

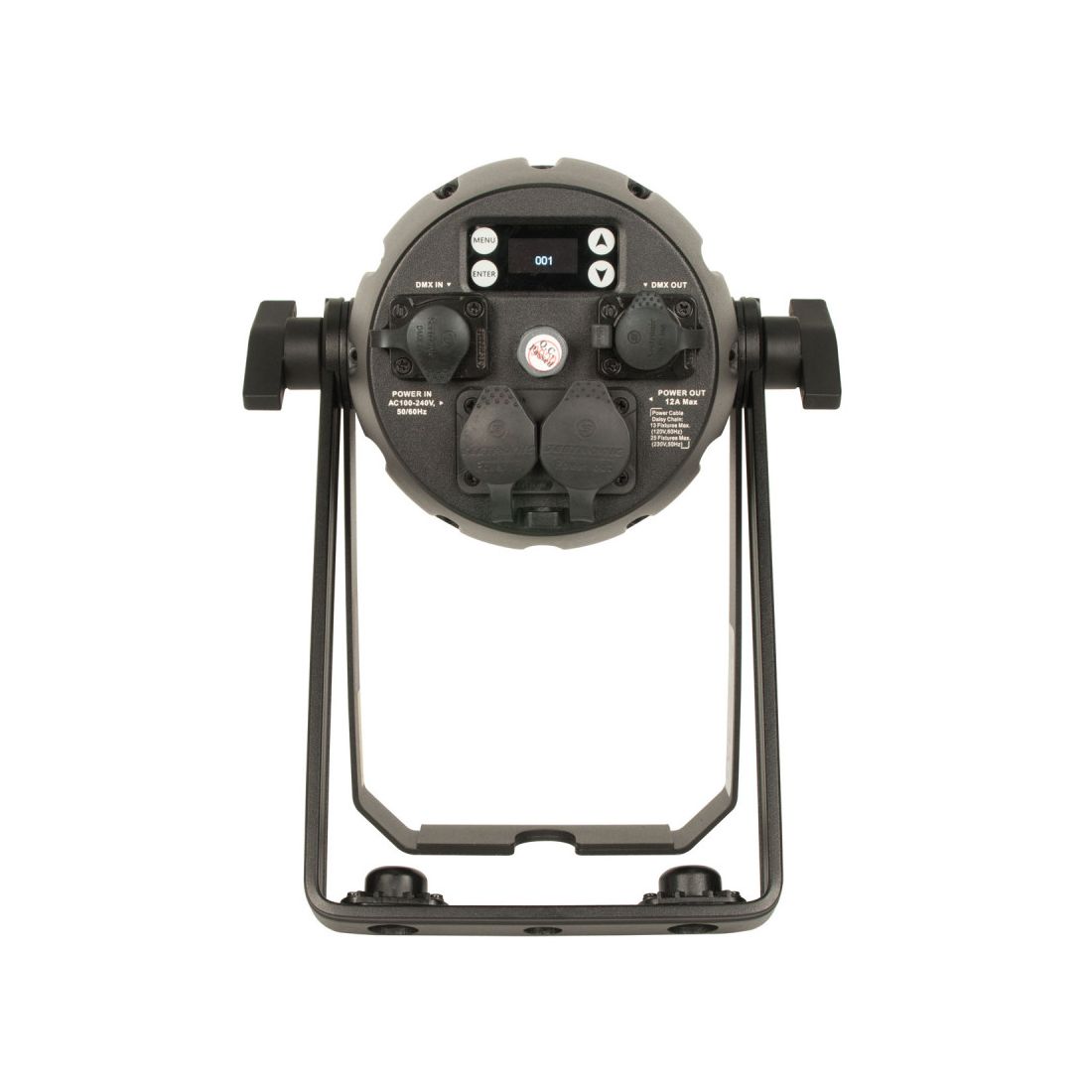

- • IP65 Locking Power In/Out connections
- • Dimensions (LxWxH): 234 x 249 x 308mm
- • Weight: 3,76 kg.
