Encore Burst 200 Select
Key Features
Construction
• Metal Housing
• IP Rating: IPX4
• Metal Housing
• IP Rating: IPX4
Optics
• Beam Angle: 50°
• Manual Adjustment of Lens Position -15° to + 15°
• Beam Angle: 50°
• Manual Adjustment of Lens Position -15° to + 15°
Source
• 2x 110W WW CREE COB-LEDs
• Color Temperature: 2700K (1200K Tungsten Mode)
• 2x 110W WW CREE COB-LEDs
• Color Temperature: 2700K (1200K Tungsten Mode)
Product Information
SKU: 1236200075
GTIN: 818651024692
HS-Code: 9405423990

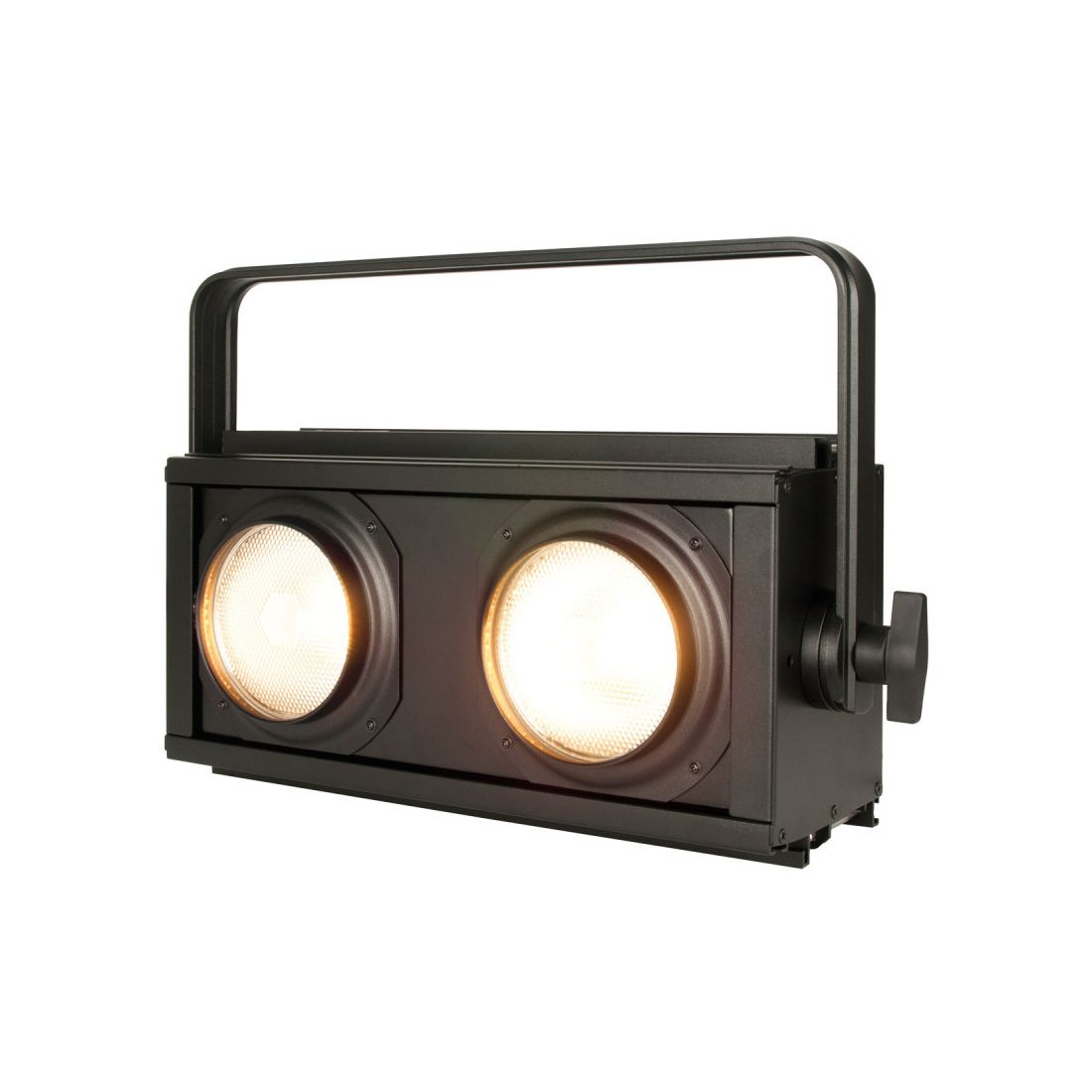

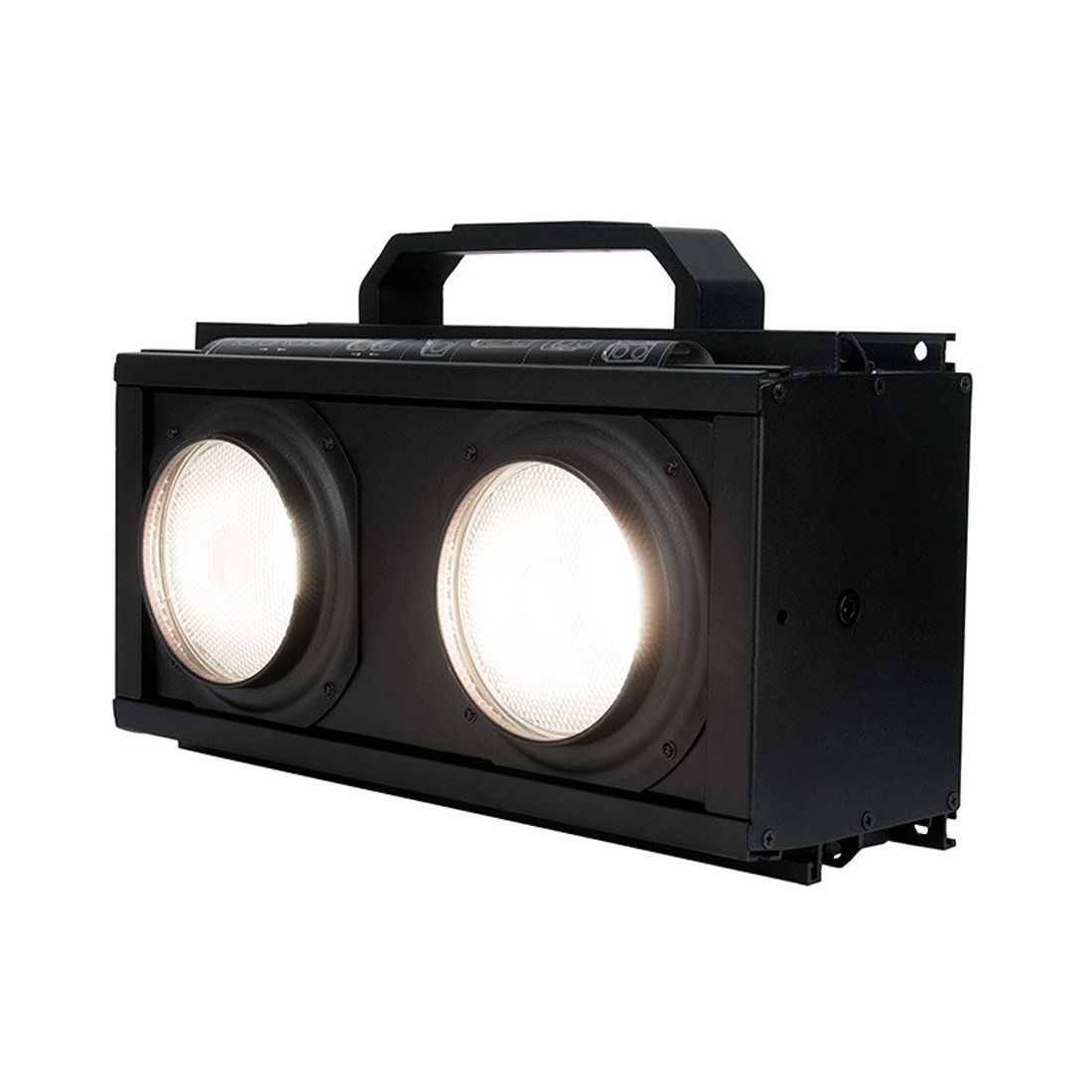

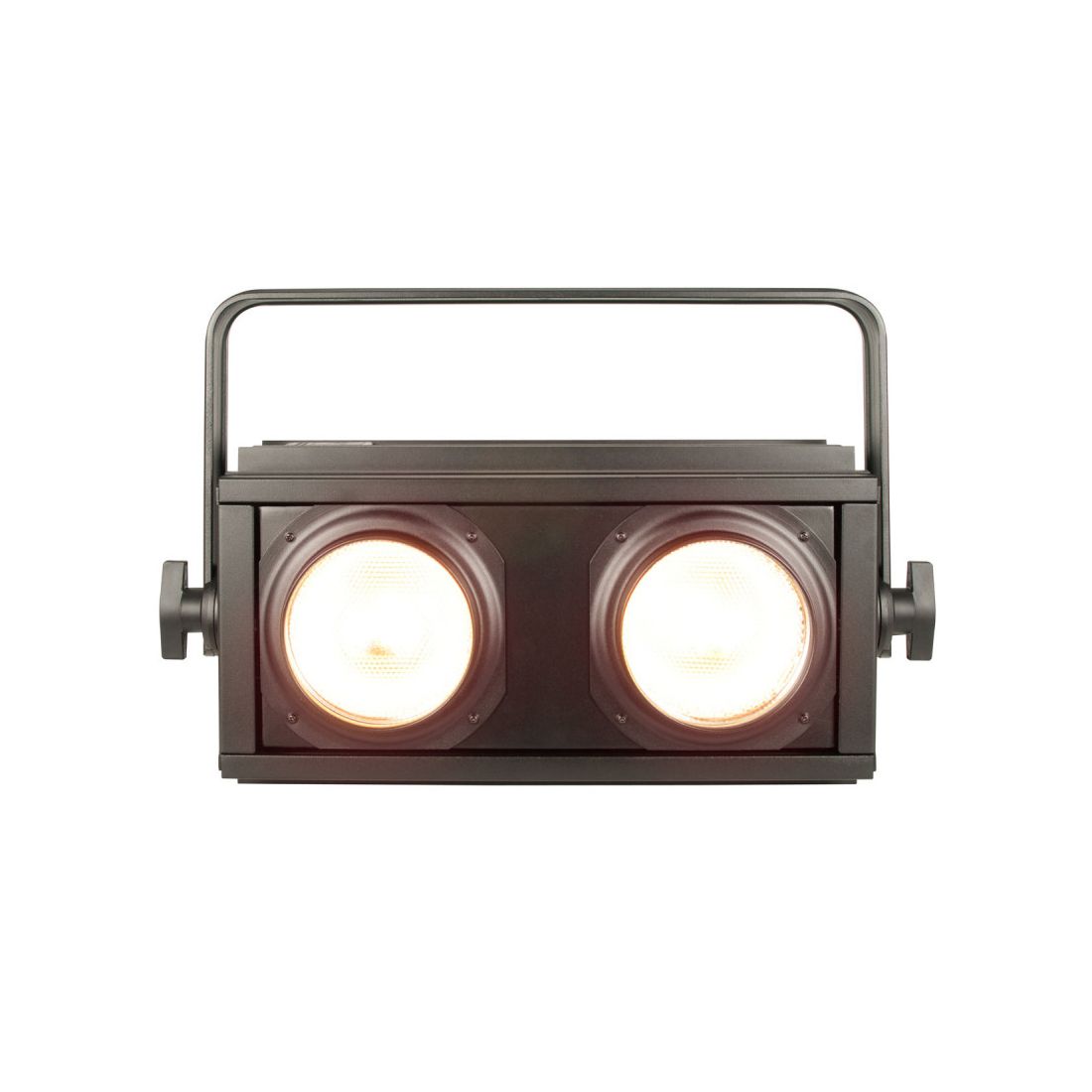

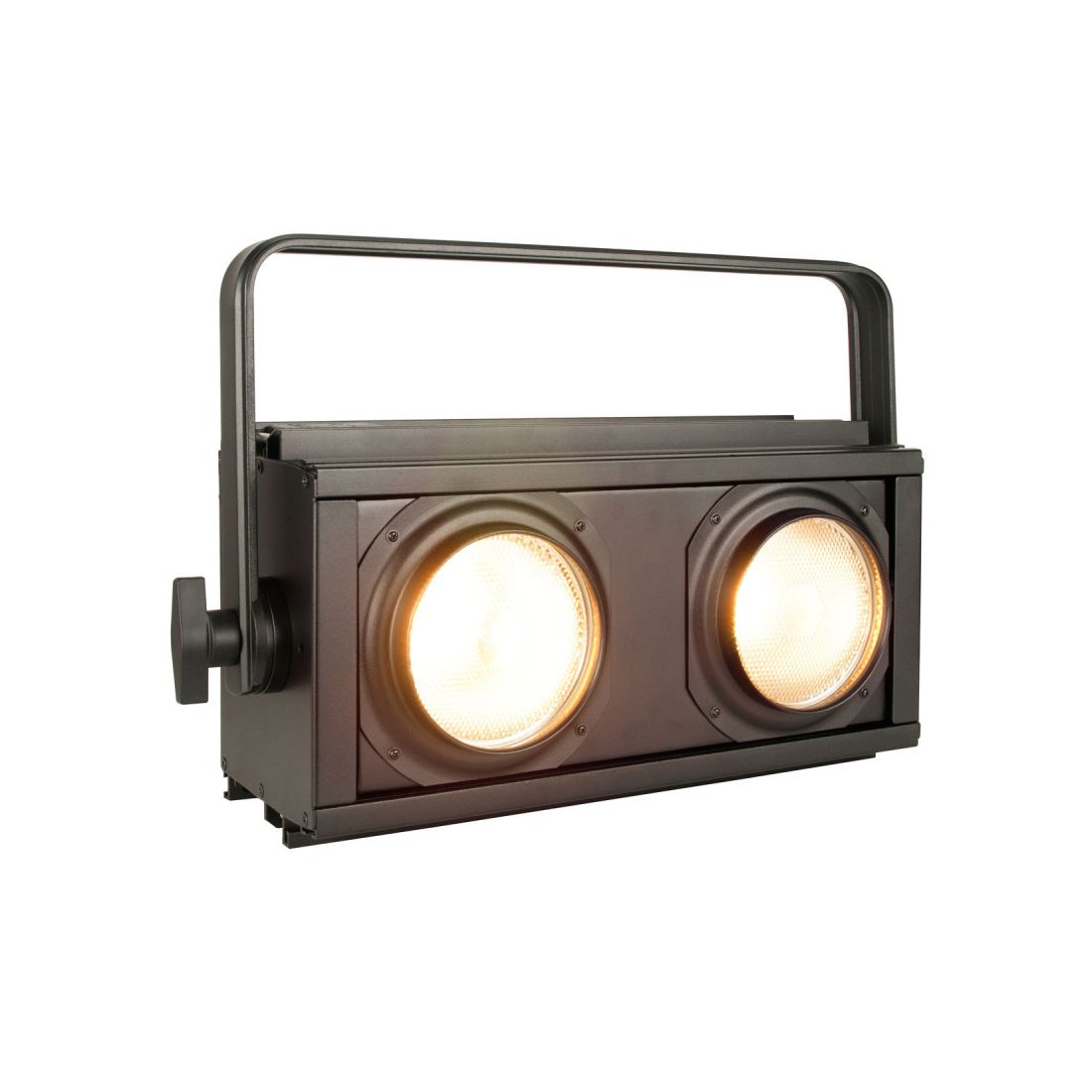

The Encore Burst 200 is an IPX4 rated, high intensity dual lens audience blinder/strobe. It’s powered by two 110W warm white (2700K) CREE COB LEDs. The fixture is constructed with a rugged metal housing and an aluminum extrusion rails system to connect multiple fixtures to create a larger cluster of fixtures in a vertical or horizontal array.
The fixture features a Tungsten Mode effect that replicates a halogen-like dimming profile.
Gallery
Specification
- • Light Source: 2x WW CREE COB-LEDs
- • Individual LED wattage : 110W
- • Average LED lifetime : approximately 50,000 hrs.
- • Color temperature : 2700K (1200K Tungsten Mode)
- • Beam Angle: 50 degrees
- • Manual adjustment of lens position -15 to +15 degrees
- • 3 operational Modes : Manual Dimmer Mode, Tungsten Mode and DMX Control
- • 6 DMX Modes: 1, 2, 2A, 3, 4 & 6-channel
- • Individual Pixel Control
- • RDM compatible
- • 16bit Electronic Dimming: 0 - 100%
- • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • Adjustable LED refresh Rate : 900Hz - 25kHz
- • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.8
- • LED pulse and strobe effect
- • 4-button, DMX digital display on rear panel
- • Warm White 2700K (1200K Tungsten Mode)
- • Metal Housing
- • IP Rating: IPX4

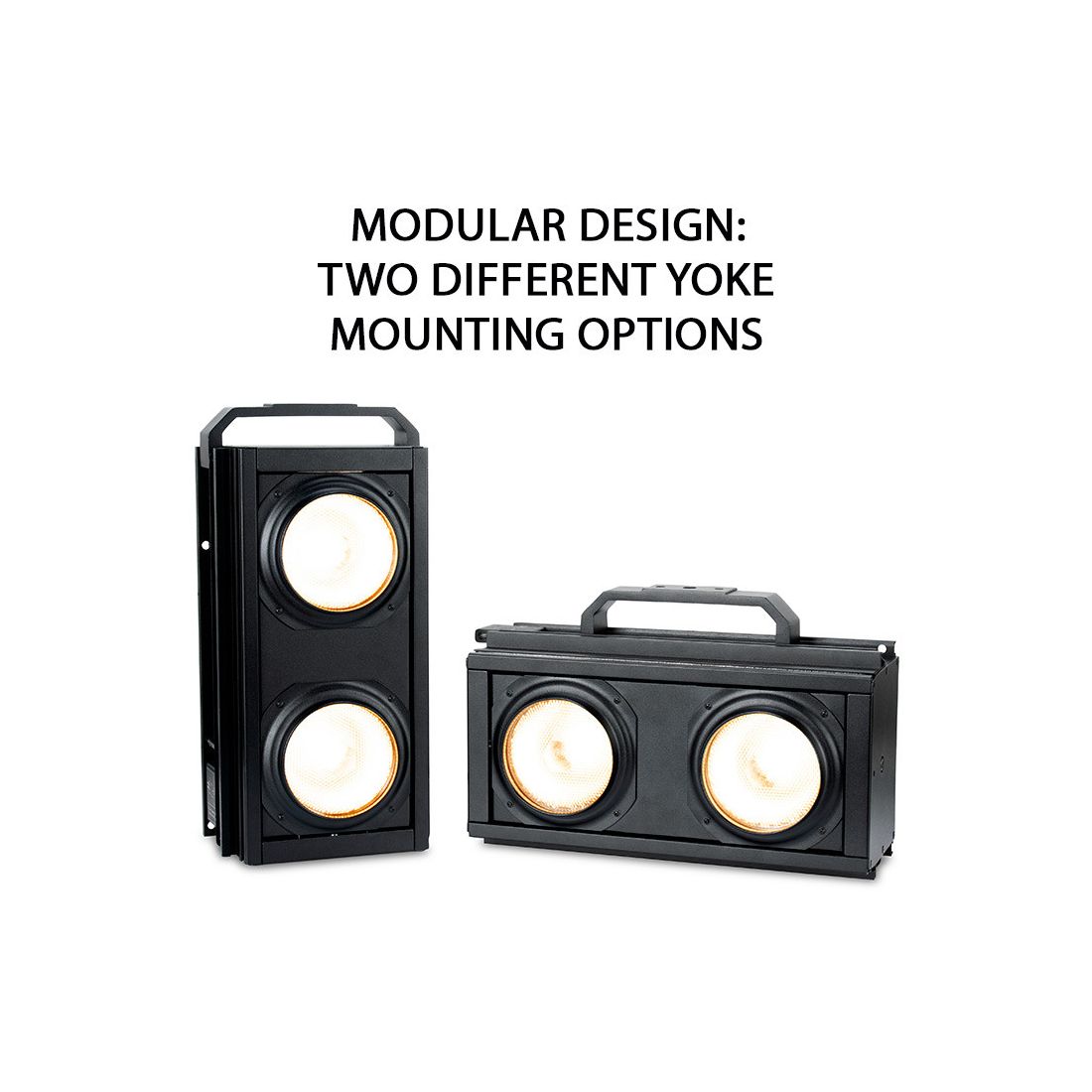

- • Can be assembled in vertical or horizontal fixture clusters
- • Yoke and omega bracket included
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 235W

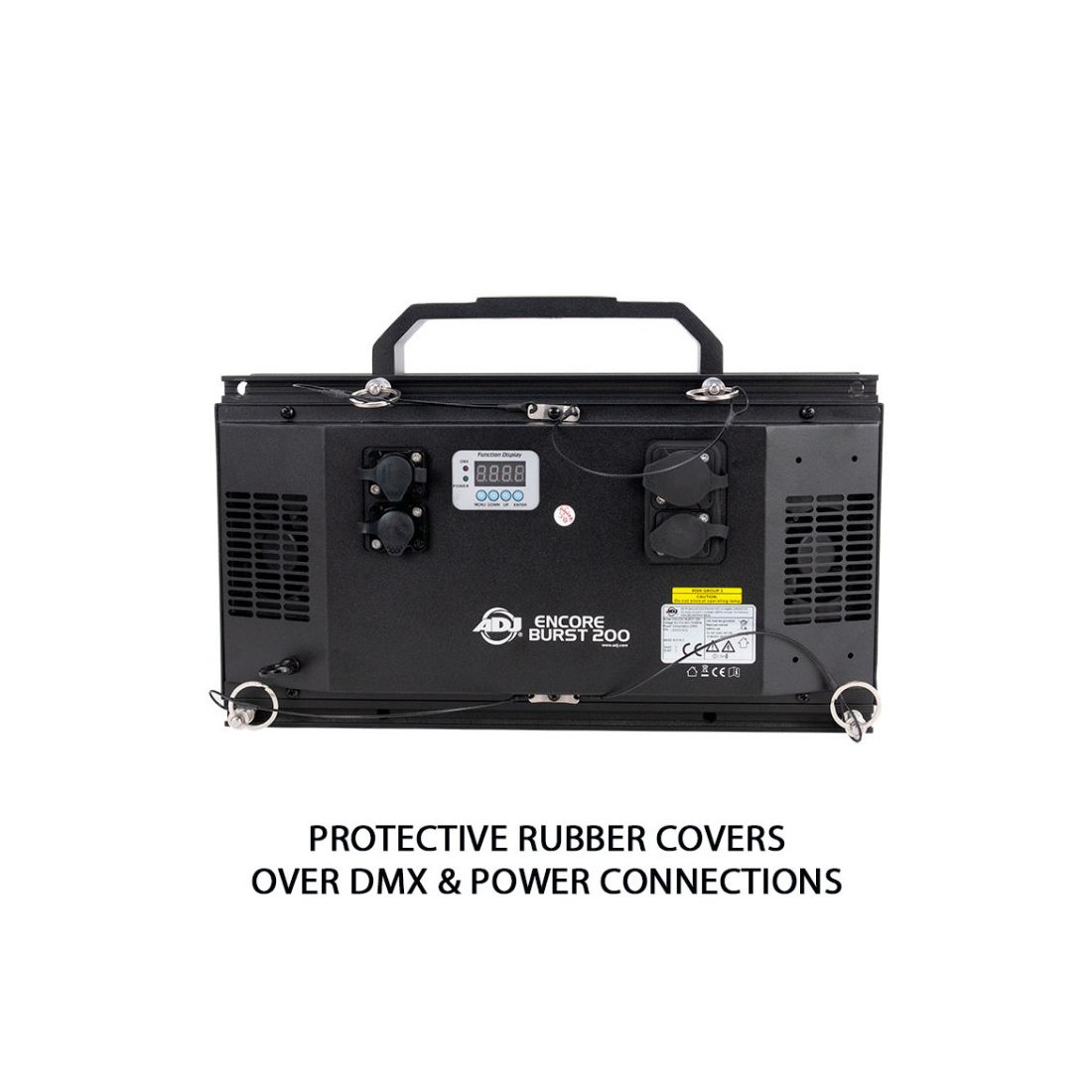

- • 5-pin IP65 Locking DMX In/Out connections
- • IP65 Locking Power In/Out connections
- Fixture only : 400 x 200.5 x 215.5mm
- With bracket : 400 x 200.5 x 264mm
- With Yoke : 503 x 200.5 x 325.3mm
- • Weight: 6,8 kg.
Specifications subject to change without notice
