ELX 2000 Archive

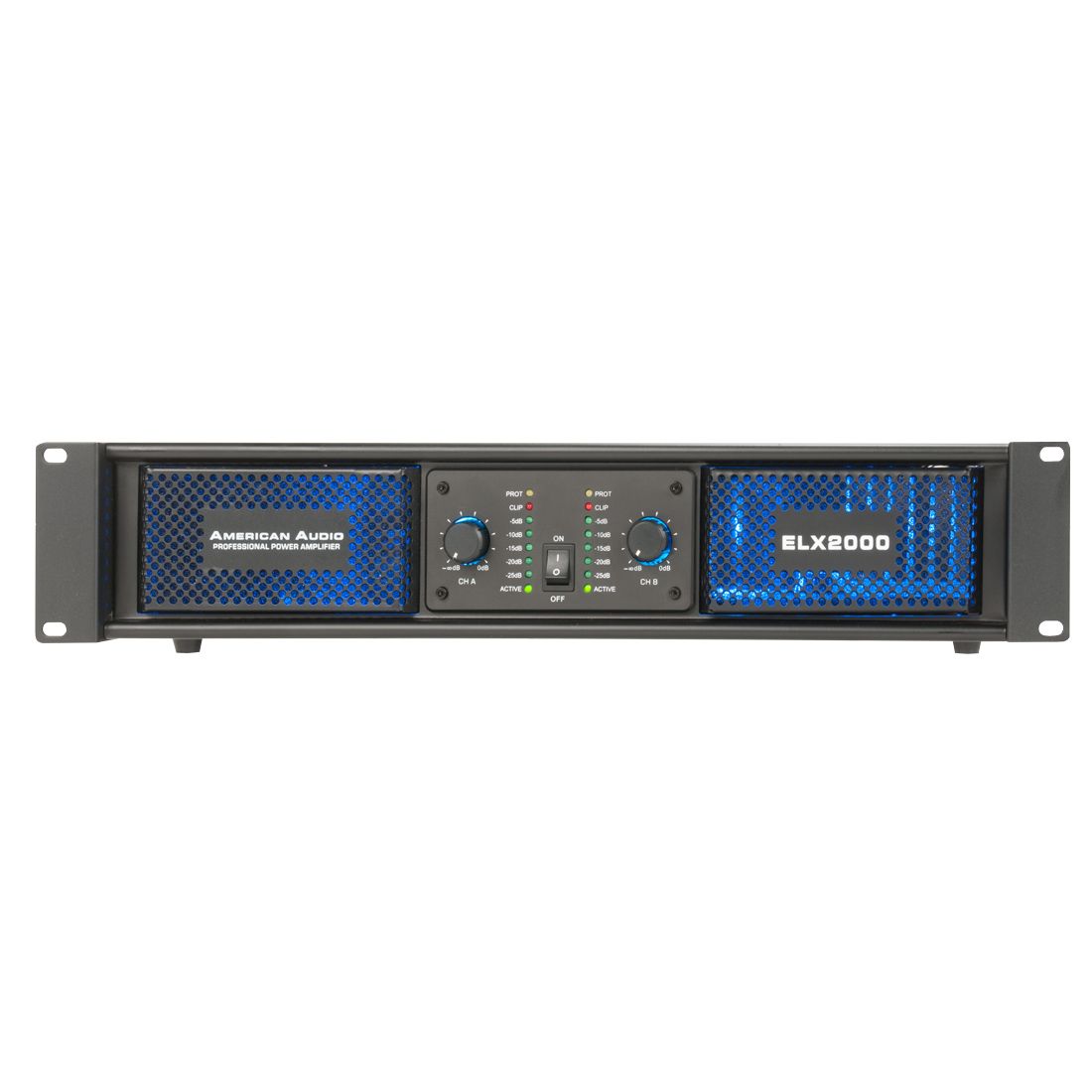

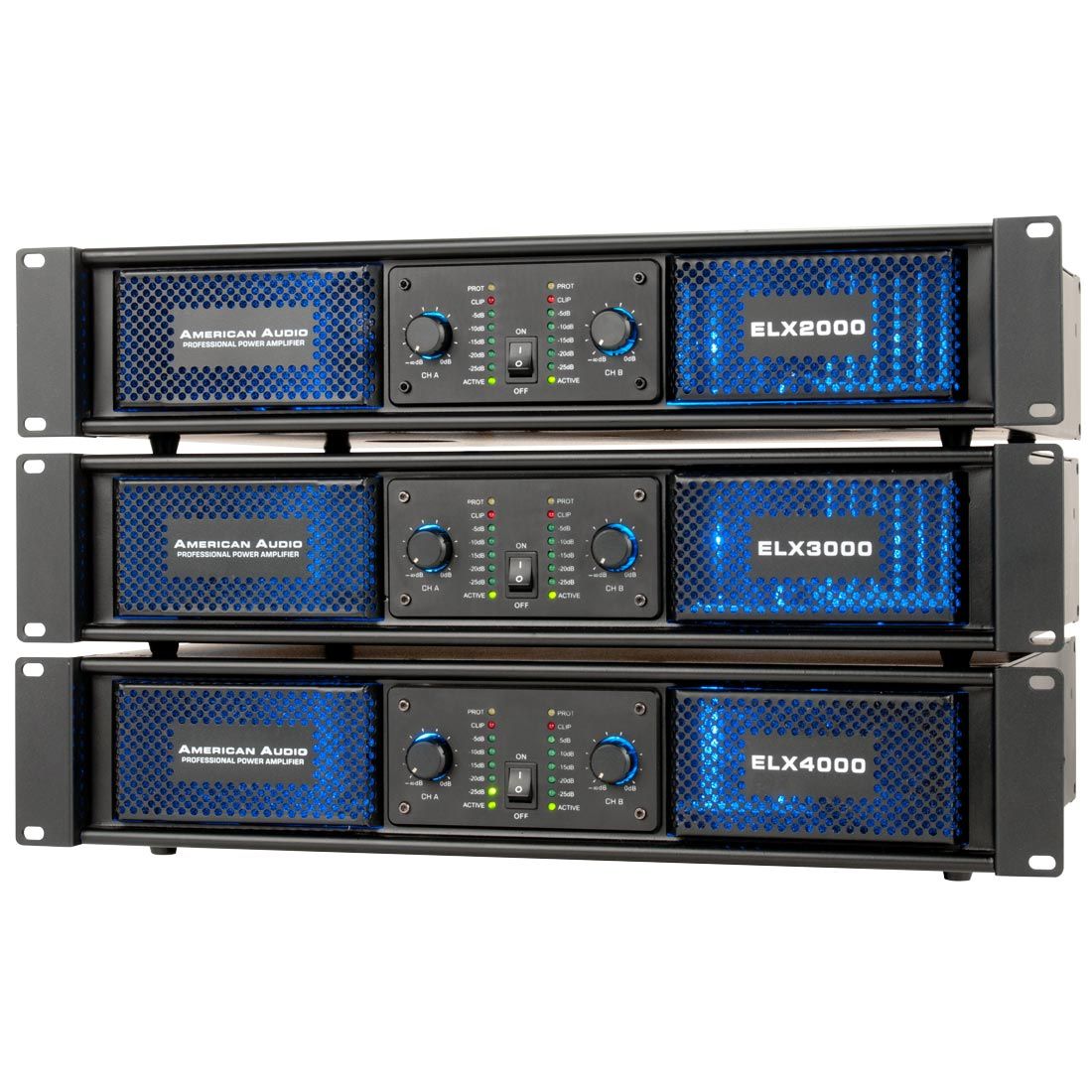

The American Audio ELX Power Amplifier Series offers professional features at an affordable price. It features pro In/Out/Thru connections, has a high powered fan to keep the amplifier cool, and has an unique illuminated crystal blue glowing front panel.
The ELX2000 offers 300W RMS @ 8 Ohms (Bridged Mono), a Frequency Response of 20Hz - 20KHz (+/-1.0dB @ 8 Ohms) and features Balanced XLR Inputs and Speakon and Binding Posts for outputs.
Product Information
The American Audio ELX Power Amplifier Series offers professional features at an affordable price. It features pro In/Out/Thru connections, has a high powered fan to keep the amplifier cool, and has an unique illuminated crystal blue glowing front panel.
The ELX2000 offers 300W RMS @ 8 Ohms (Bridged Mono), a Frequency Response of 20Hz - 20KHz (+/-1.0dB @ 8 Ohms) and features Balanced XLR Inputs and Speakon and Binding Posts for outputs.
Gallery
Specification
Output Power:
2x 90W RMS Per Channel @ 8 Ohms, 1K Hz, 1% THD
2x 150W RMS Per Channel @ 4 Ohms, 1kHz, 1% THD
(Bridged Mode, Mono)
300W RMS @ 8 Ohms, 1kHz, 1% THD
Specifications:
- Total Harmonic Distortion: Less Than 0.1% (20Hz – 20kHz @ 8 Ohms)
- Frequency Response: (+/-1.0dB, @rated output Power, 8 Ohms): 20Hz – 20K Hz
- Slew Rate: 20V Per usec
- Damping Factor @ 8 Ohm: 60
- Impedance: 20 K Ohms balanced
- Cooling System: 1 individual fan

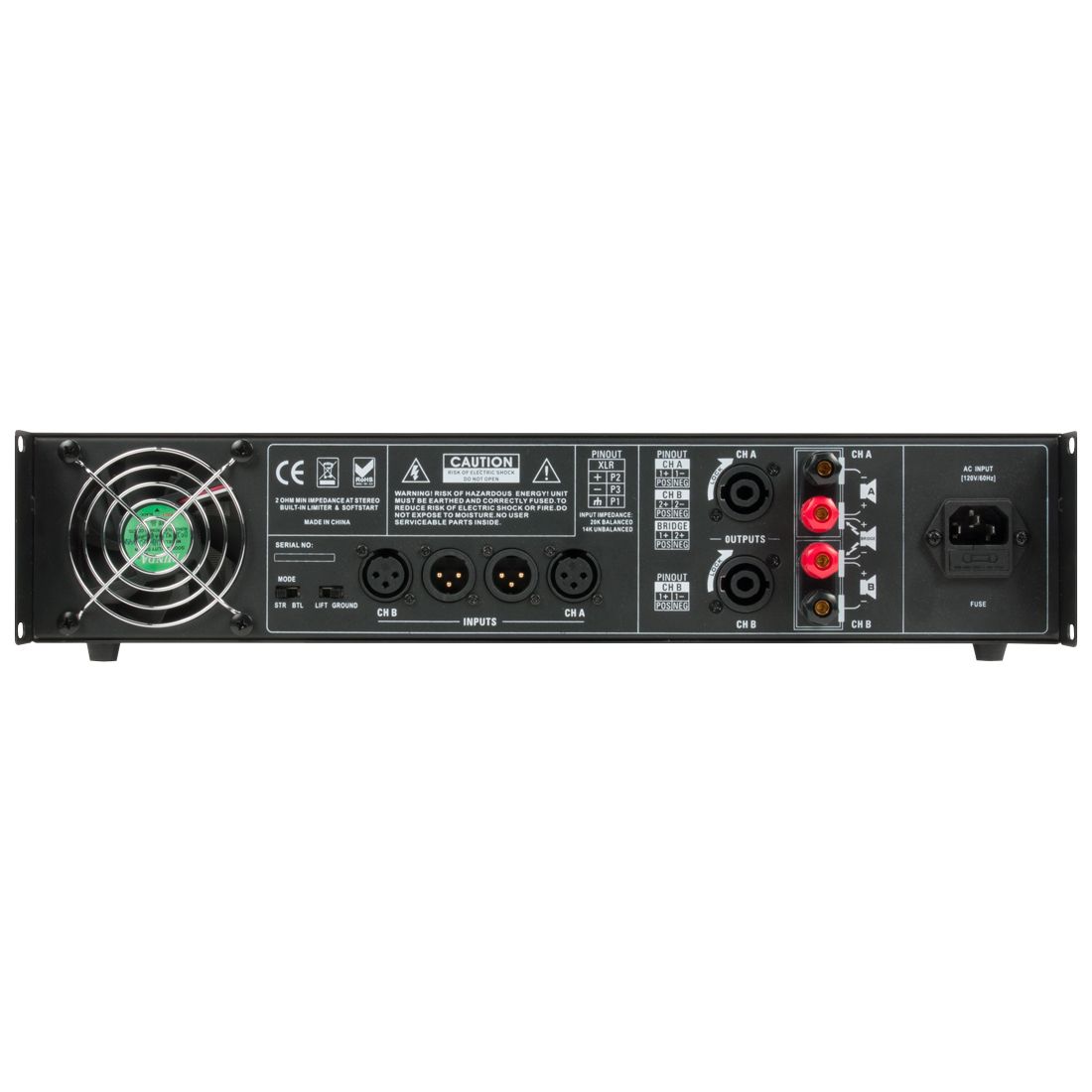

- Special Feature: Ground Lift
- Input: Balanced XLR
- Outputs: Speakon, Binding Post
- Dimensions (LxWxH): 483 x 345 x 88mm 2 rack mount spaces
- Weight: 10 Kg.
Specifications subject to change without notice.
