Element ST HEX Select
Product Information

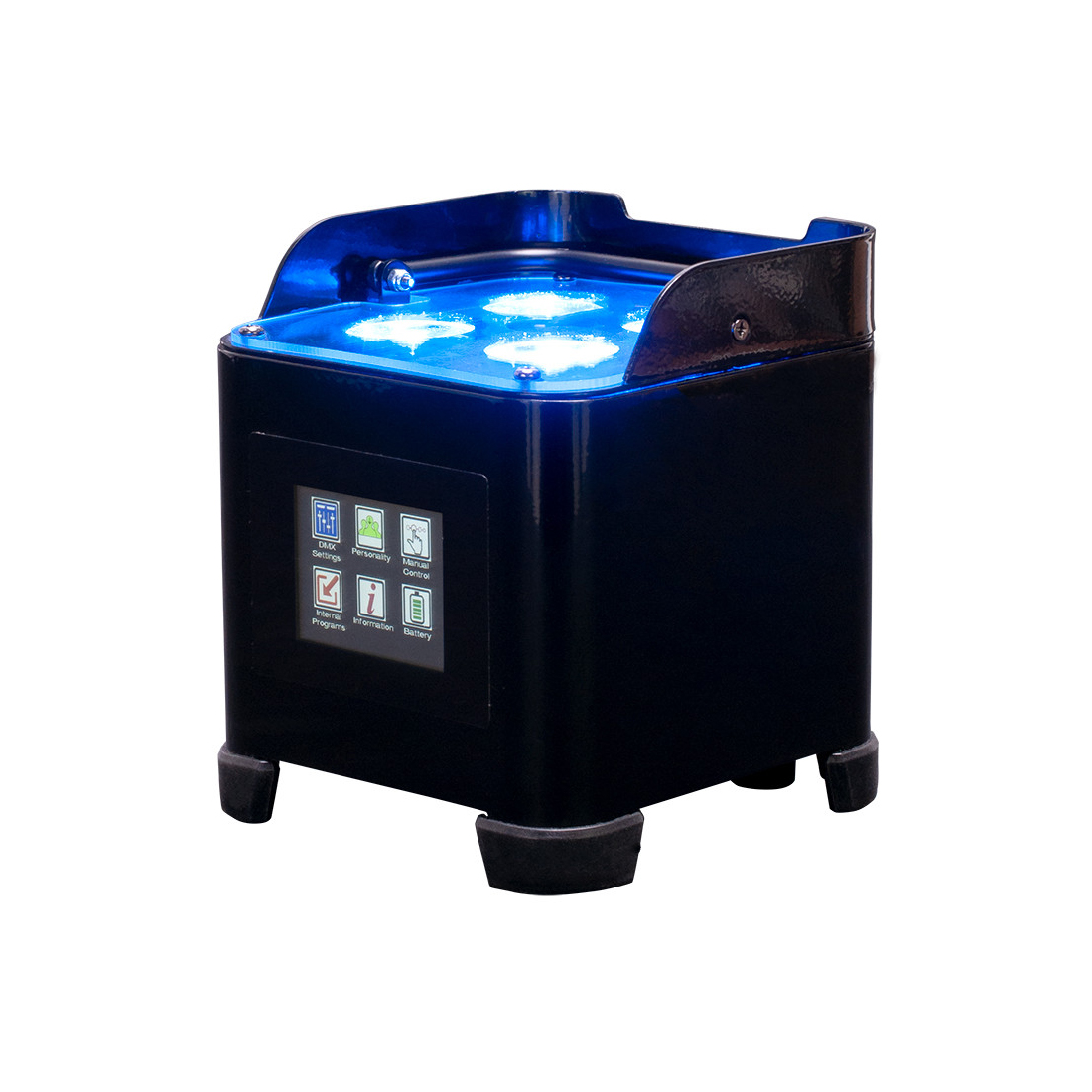

The ADJ Element ST HEX is the of the latest addition to ADJ’s Element series of battery powered wireless LED up-lighters. Building on the success of ADJ’s popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ’s WiFly EXR wireless DMX connectivity. Cleverly designed with a built-in variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, décor specialists and mobile entertainers.
Gallery
Specification
- • 4 x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
- • Life expectancy: rated at 50,000 hrs.
- • LUX: 1017@2M
- • Beam angle: 20-degree

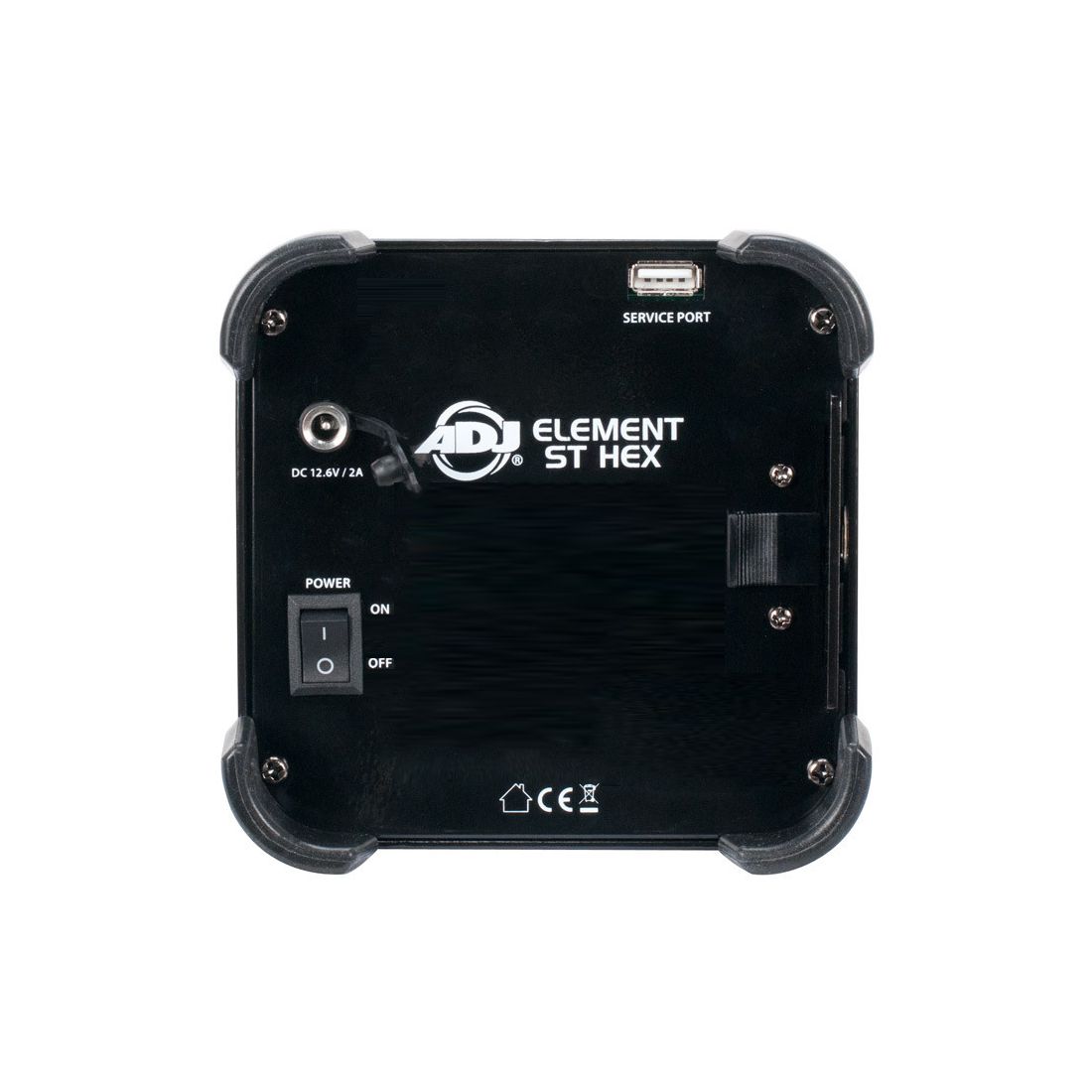

- • 12.6VDC Power Input
- • Control protocol: WiFLY EXR wireless DMX
- • 5 DMX Channel modes: 6, 7, 8, 11 & 12

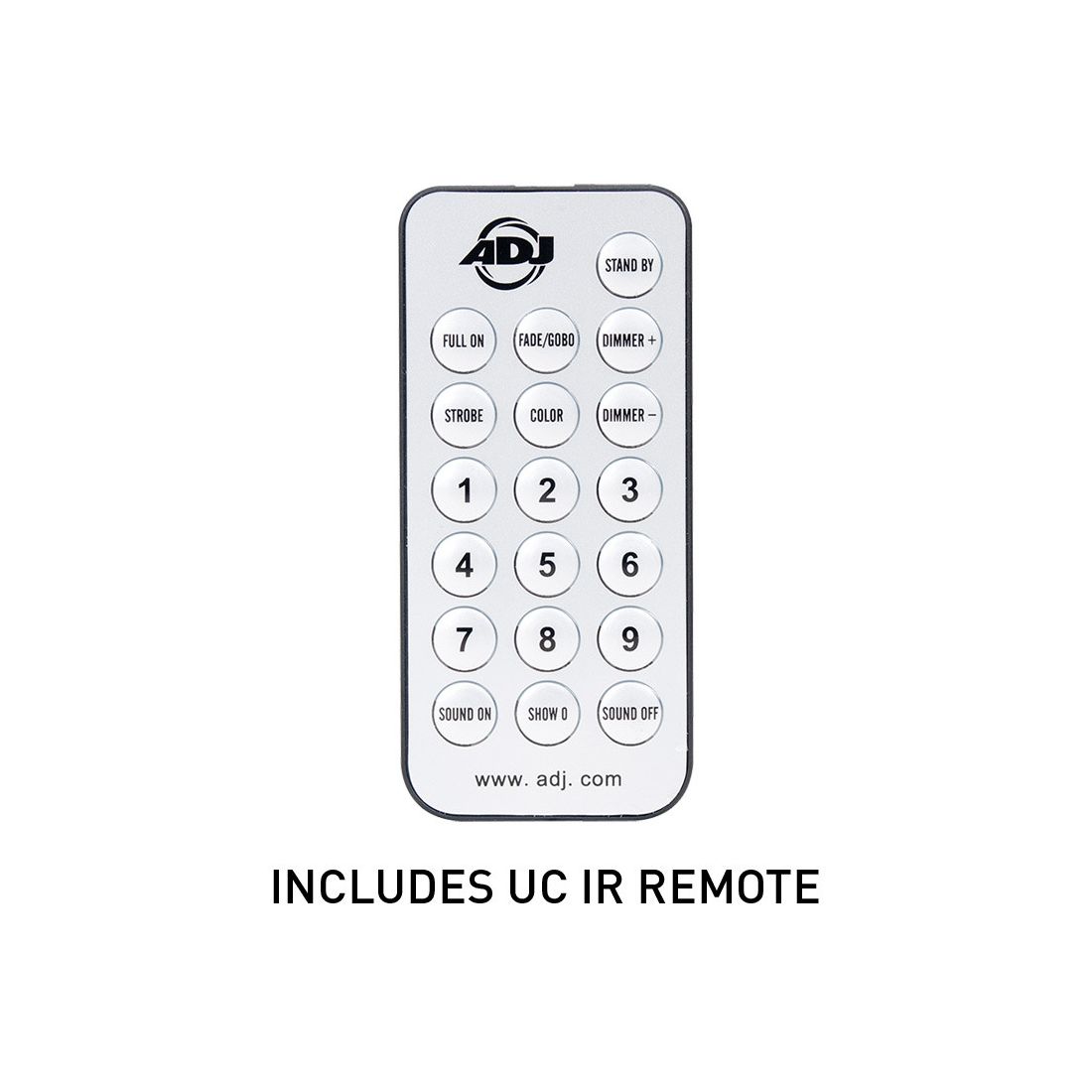

- • Remote control: WiFLY EXR DMX and UC-IR
- • 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled
- • Selectable, English or Spanish User Menu

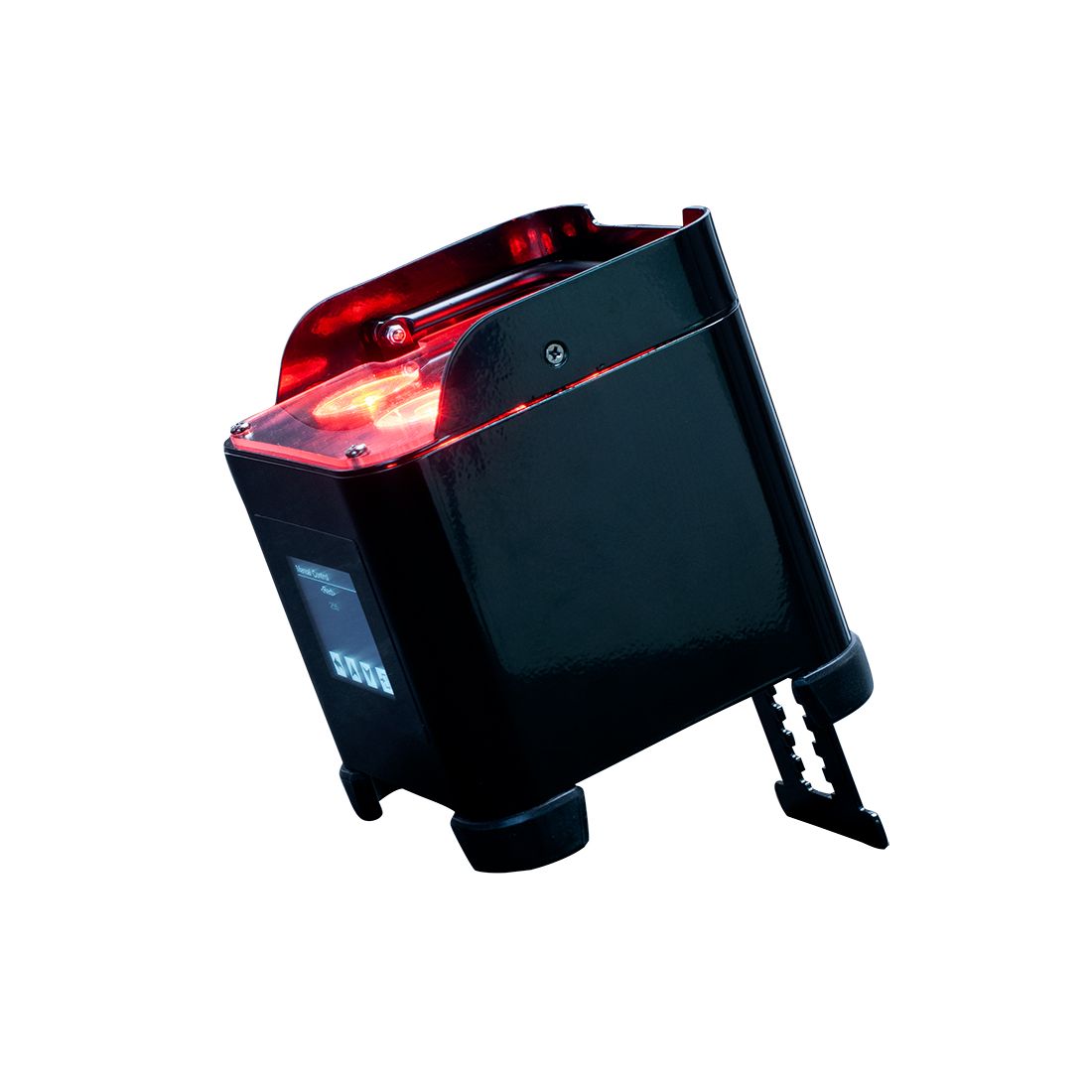

- • Built-in kickstand to angle figure while it’s on the floor

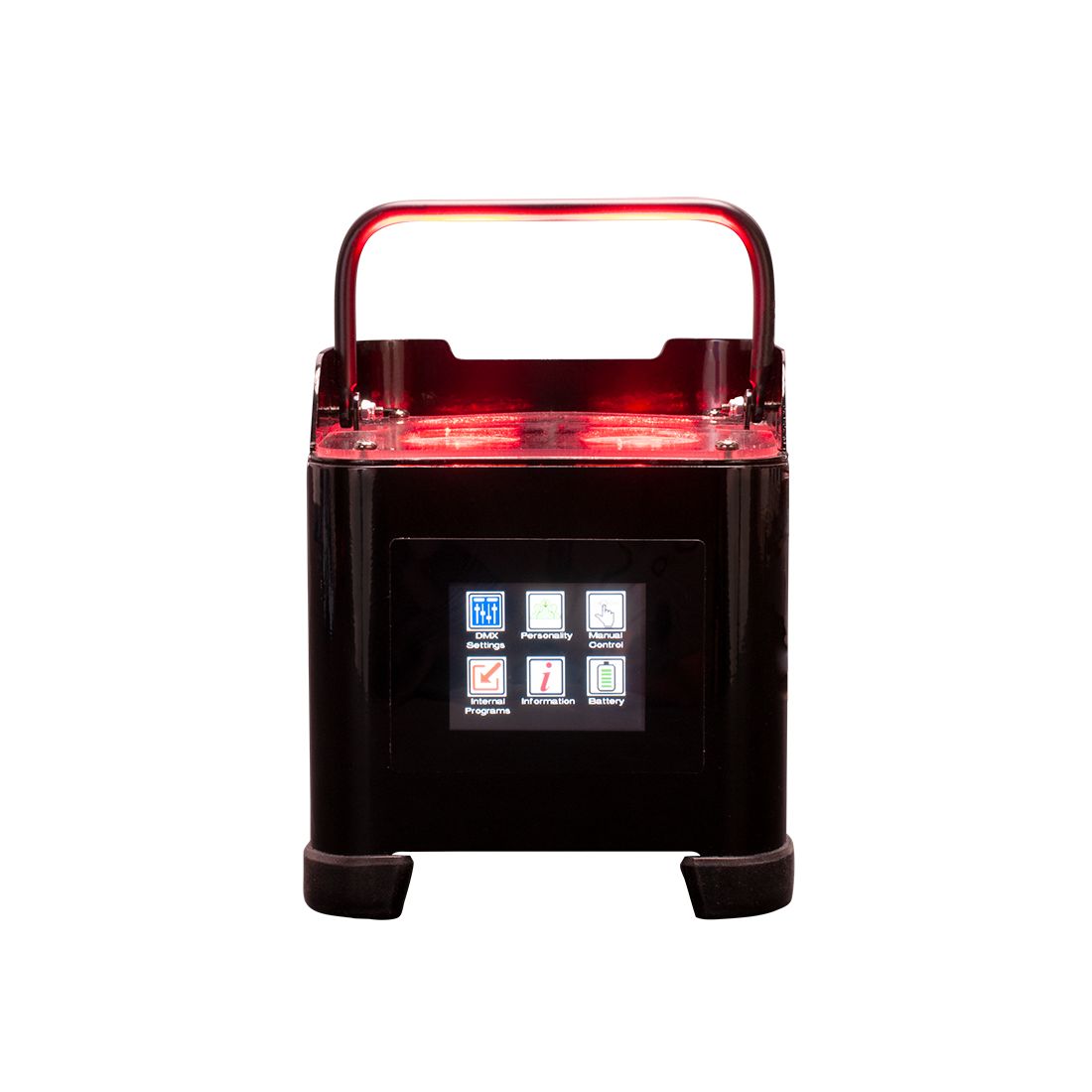

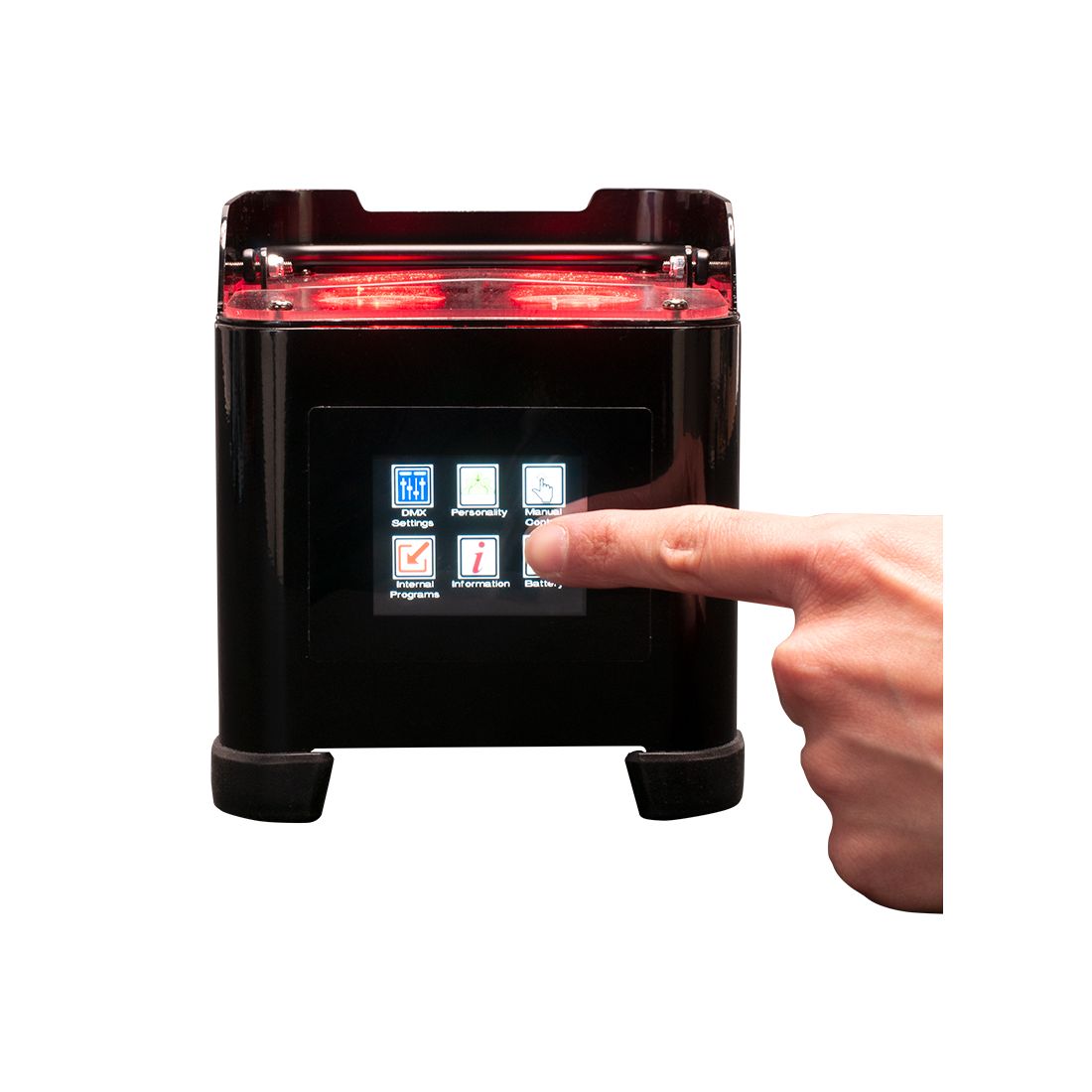

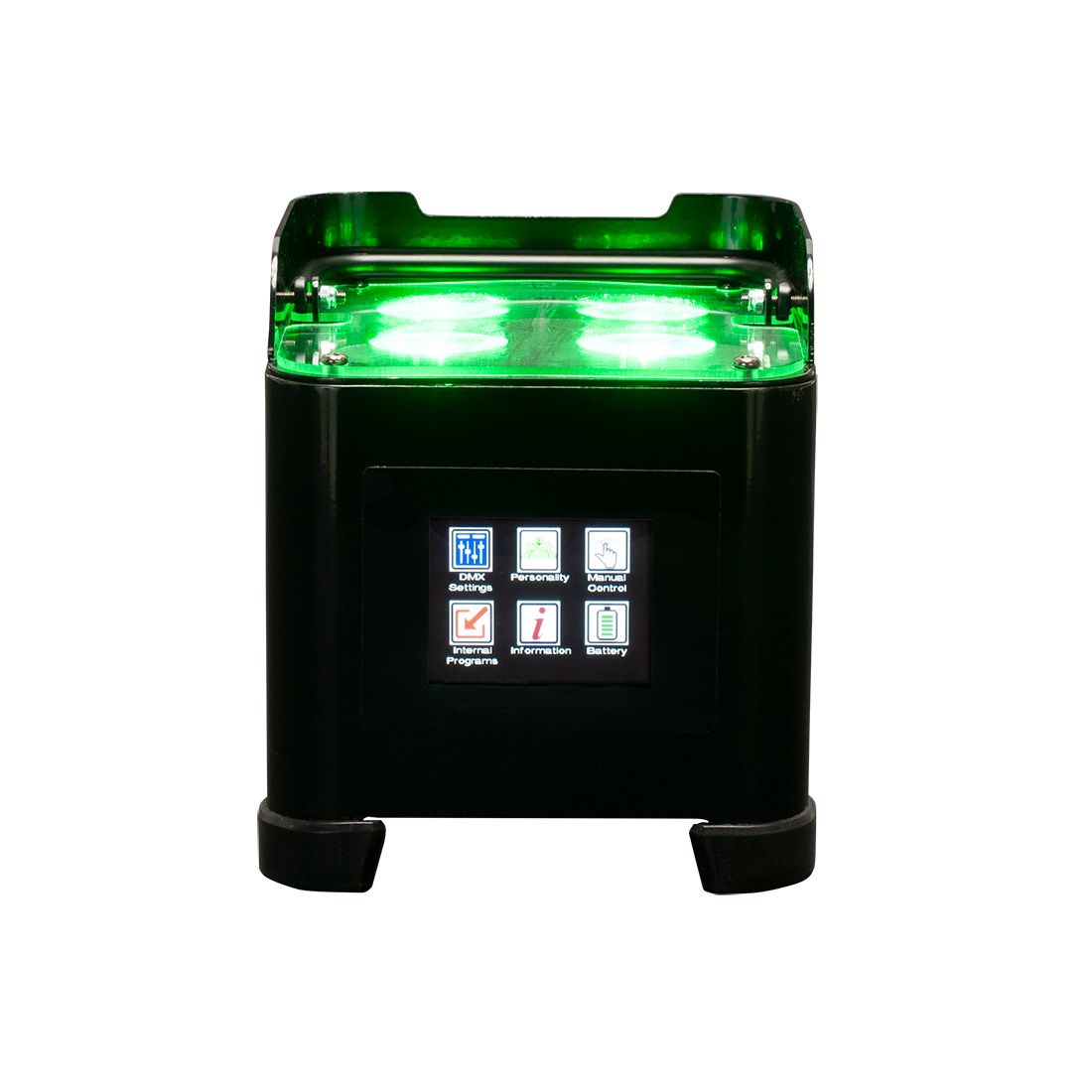

- • DMX menu touch screen display on rear panel
- • Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
- • 63 built-in Color Macros
- • Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
- • LED pulse and strobe effect (0.1Hz-11Hz)
- • Flicker Free Operation
- • Electronic Dimming: 0 - 100% with 5 dimming curves
- • Run all night – No duty cycle
- • Energy Save Mode to preserve battery life
- • Carry handle and snoot to hide handle and LED lenses
- • Power Draw Total (All LED’s @ Full On): 42W, 0.2A @ 220V/50Hz,
- • Multi-voltage operation: AC 100-240V, 50/60Hz
- • Dimensions (LxWxH): 127 x 125 x 143mm
- • Weight: 1.6kg.
- • Battery Type: Fixed Lithium Battery
- • Battery Energy: 73.26WH (Watt Hours)
- • Battery Weight: 0.42 kg.
- • Battery Voltage: 11.1V
- • Battery Capacity: 6.6AH
- • Total Lithium Ion Cells: 9 pieces
- • Battery Wrap Material: PVC sleeving + highland barley paper
- • Battery Charge Time: 5 Hours (With POWER switch On)
- • Battery Life: 4 Hours Full On, 6 and 8 Hour Energy Save operation modes (Full Charge)
- • IP20 Indoor rated
