ElectraPix Bar 8 Pak Select New
The ElectraPix Bar 8 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.
Key Components:
1. ElectraPix Bar 8 fixtures (x6): Unleash the power of six (6) ElectraPix Bar 8 fixtures, each equipped...
Product Information
SKU: 1226100505
GTIN: 810087372743
The ElectraPix Bar 8 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.
Key Components:

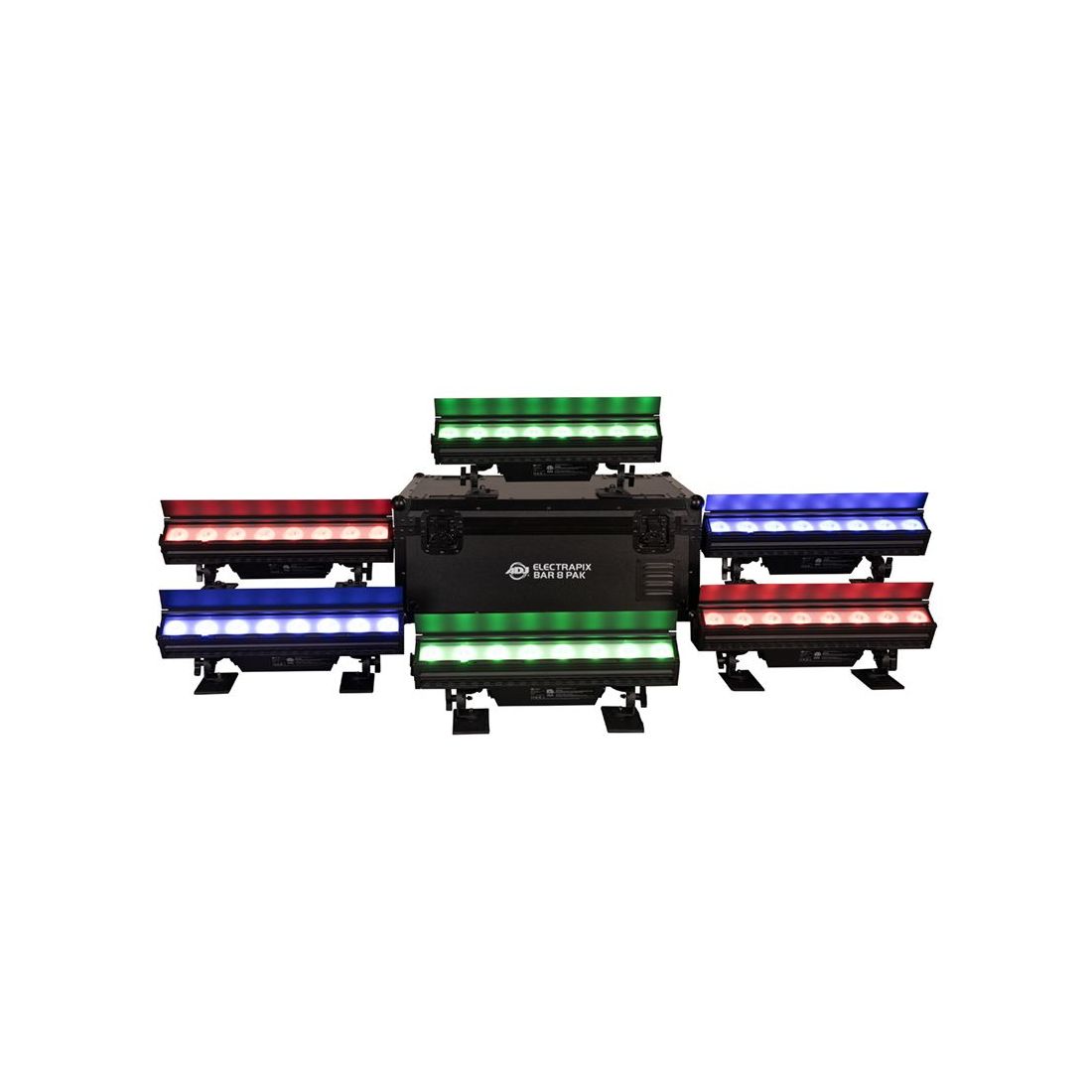

1. ElectraPix Bar 8 fixtures (x6): Unleash the power of six (6) ElectraPix Bar 8 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.

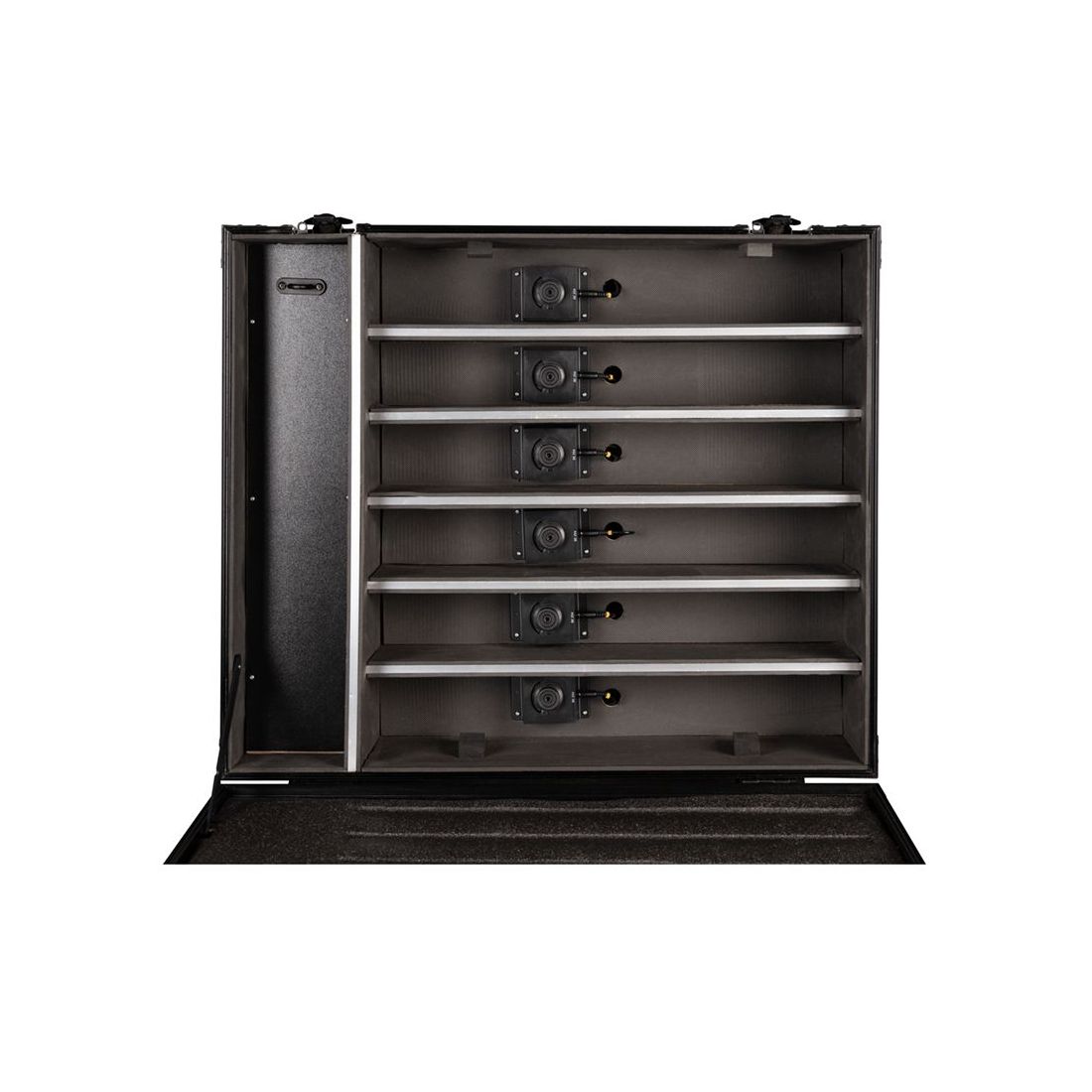

2. Charging Bases (x6): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.
3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.
4. Outdoor Locking Power Cable (x6): Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

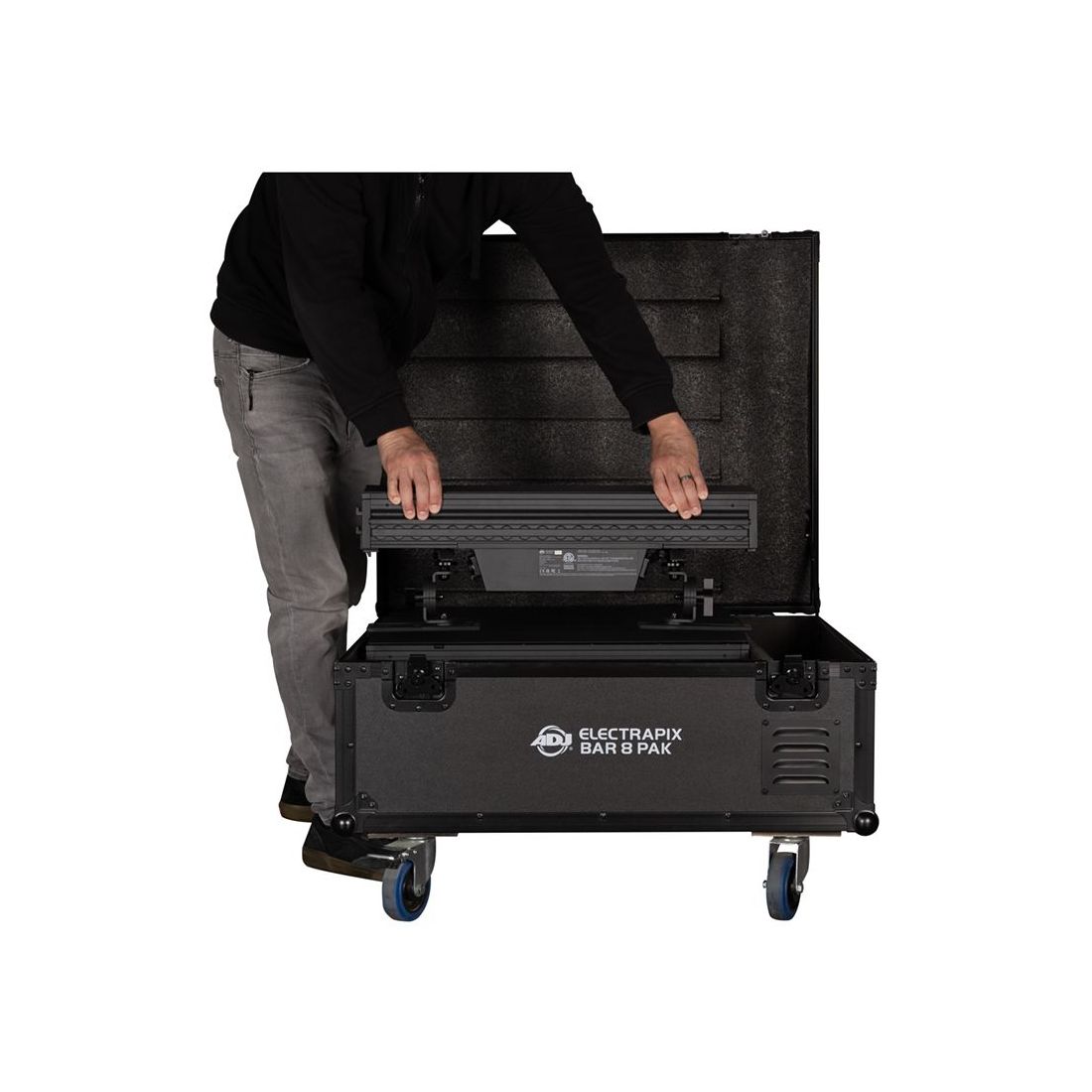

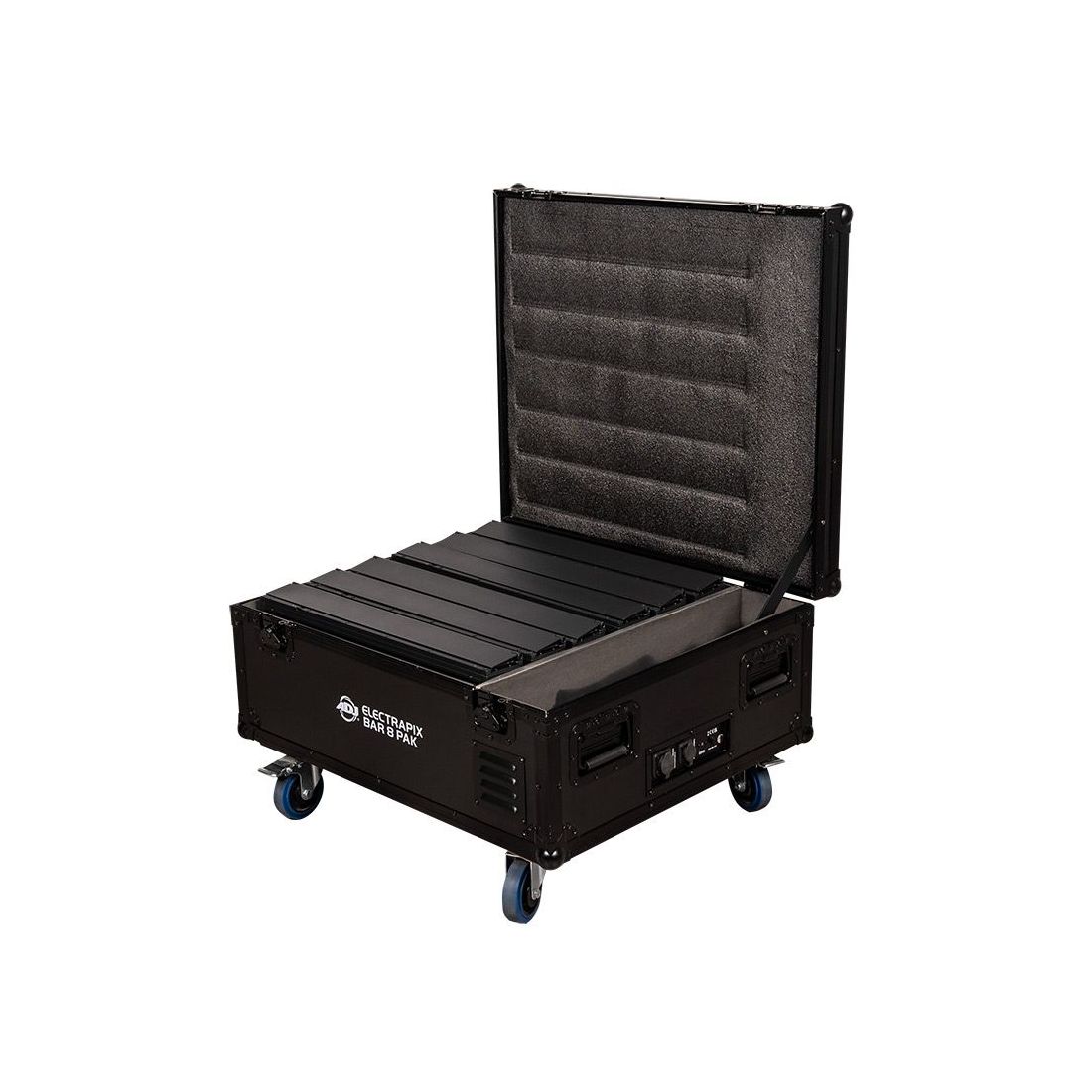

5. ElectraPix Bar 8 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 8 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 31.8” x 27.42” x 17.4” (807.5x696.4x441.9mm) ensure that your lighting setup remains protected during transit.
With the ElectraPix Bar 8 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 8.
Gallery
Specification
- • (6) ElectraPix Bar 8 Pak (Fixtures)
- • (1) ElectraPix Bar 8 FC (Flight Case)
- • (6) ElectraPix Bar 8 IPCB (Charging bases and power supplies)
- • (1) UC-IR24 Wireless Infrared Controller
- • (6) IP65 Locking Power Cable
- • Houses / Transports and Charges (6) ElectraPix Bar 8™ fixtures
- • Length: 807.5mm
- • Width: 696.4mm
- • Vertical Height: 441.9mm
- • Loaded Weight: 79 kg
- • Power Input: AC100VAC~240VAC, 50/60Hz

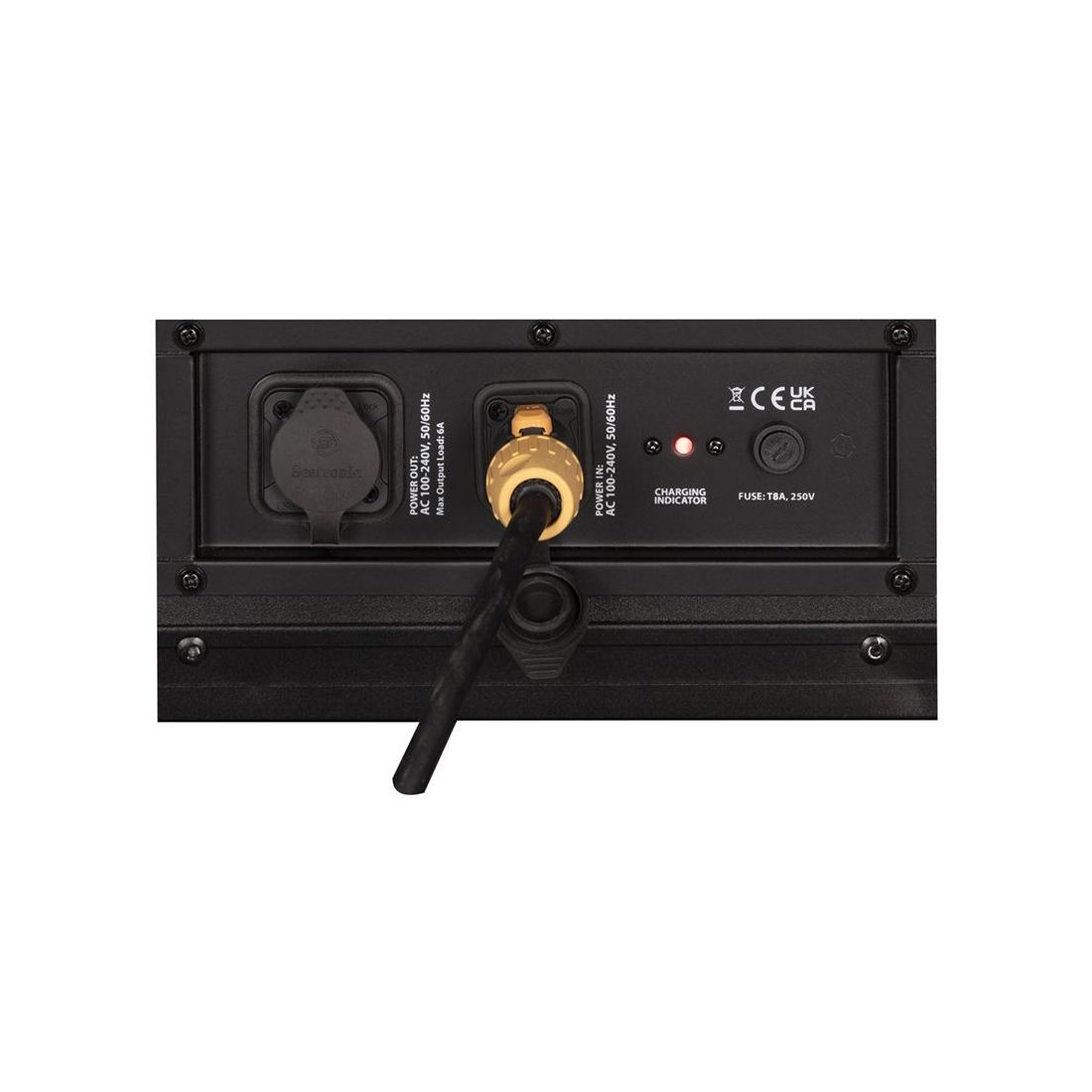

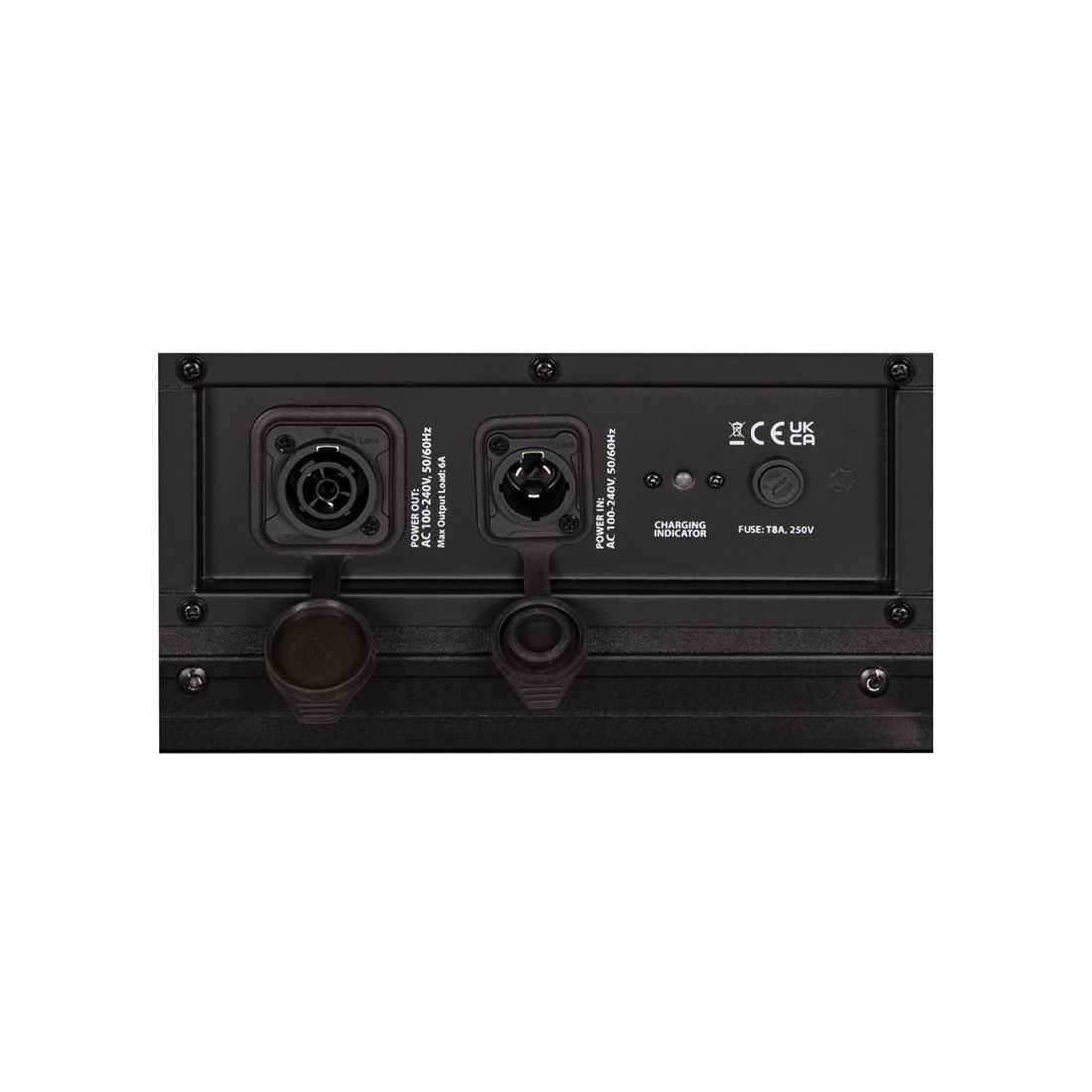

- • IP65 Power Locking Input and Output
- • Max Power Consumption: 400 Watts
- • Power Draw: 2A @230VAC.
- • Charge status indicator
- • -10°C to 45°C
- 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar Battery or Wall Powered Up to 20 Hour Battery Operation Battery Operation (Menu Option) Individual Pixel Control Built-In Foreground LED Programs Built-In Background LED Programs Variable White Color Temperature Control (2,300K ~ 9,900K) English & Spanish User Menu Built-In Alarm Color Calibrated LED's User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (0.3Hz ~ 11Hz) Electronic Dimming Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base
- (8) 20W Hex Color RGBAL+UV Foreground LED's (32) 0.2W RGB Background LED's 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- 2,300K ~ 9,900K White Color Temperature Range 17° Beam Angle 45mm Lens Diameter x8
- IP65 Housing OLED Digital display L Track system for locking accessories / rigging Glare Shield Diffusion Filter slot Angle adjustable feet Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
- DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM and RDM Net Compatible IR (Includes UC-IR24 wireless remote) (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes) On-board Manual Control Mode Primary / Secondary Mode
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal) IP65 Locking Power Sockets Battery Charging Socket
- Length: 94.5mm Width: 586.7mm Height: 268.7mm Weight: 7.3 kg
- AC100-240V/50Hz-60Hz Input 60W Power Consumption Link 28 pieces @ 230VAC
- Rechargeable Lithium ion Battery Capacity: 7,000mAh Battery Voltage: 22.2V Charge Time, AC Power: 5 Hours (To Full) Charge Time, Flight Case: 5 Hours (To Full) Up to 20 Hour Battery Operation Battery Cycles: 500
- Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C
- IP65
- (1) IP65 Locking Power Cable (1) UC-IR24 Remote (1) 20° Diffusion Filter
- Accu-Stand VFB (Floor Base) LTrack A2 (LTrack Adapter Only) LTrack CA2 (LTrack Adapter with Narrow Clamp)
Specifications subject to change without notice
