ElectraPix Bar 8 Select New
PRELIMINARY DATA - SPECIFICATIONS SUBJECT TO CHANGE
The ADJ Lighting ElectraPix Bar 8 is a cutting-edge, 0,5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers 5 hours of standard battery operation or an extended 10-hour saver...
Product Information
SKU: 1226100502
GTIN: 10810087372702
HS-Code: 9405423990
PRELIMINARY DATA - SPECIFICATIONS SUBJECT TO CHANGE
The ADJ Lighting ElectraPix Bar 8 is a cutting-edge, 0,5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers 5 hours of standard battery operation or an extended 10-hour saver mode.
With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.
The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

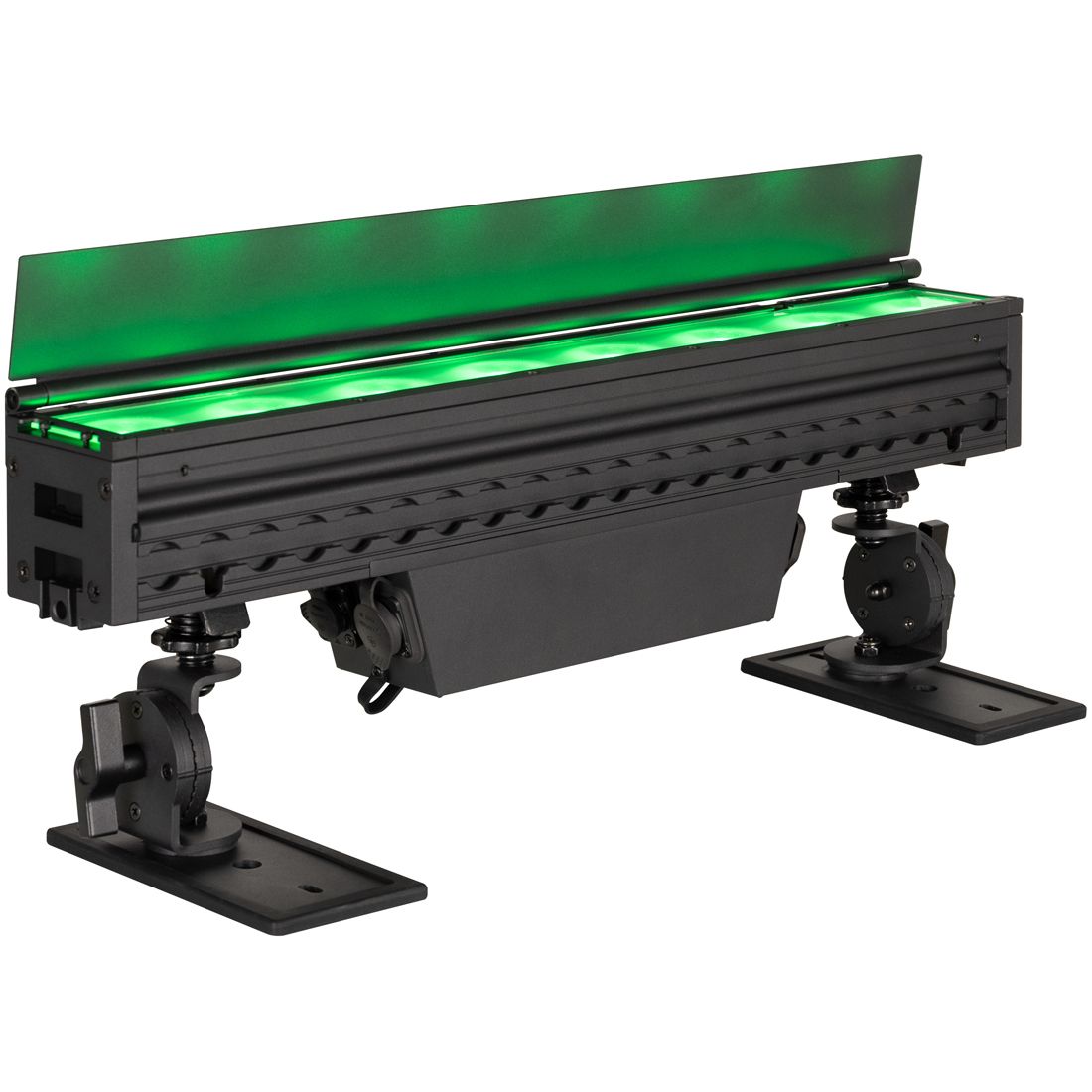

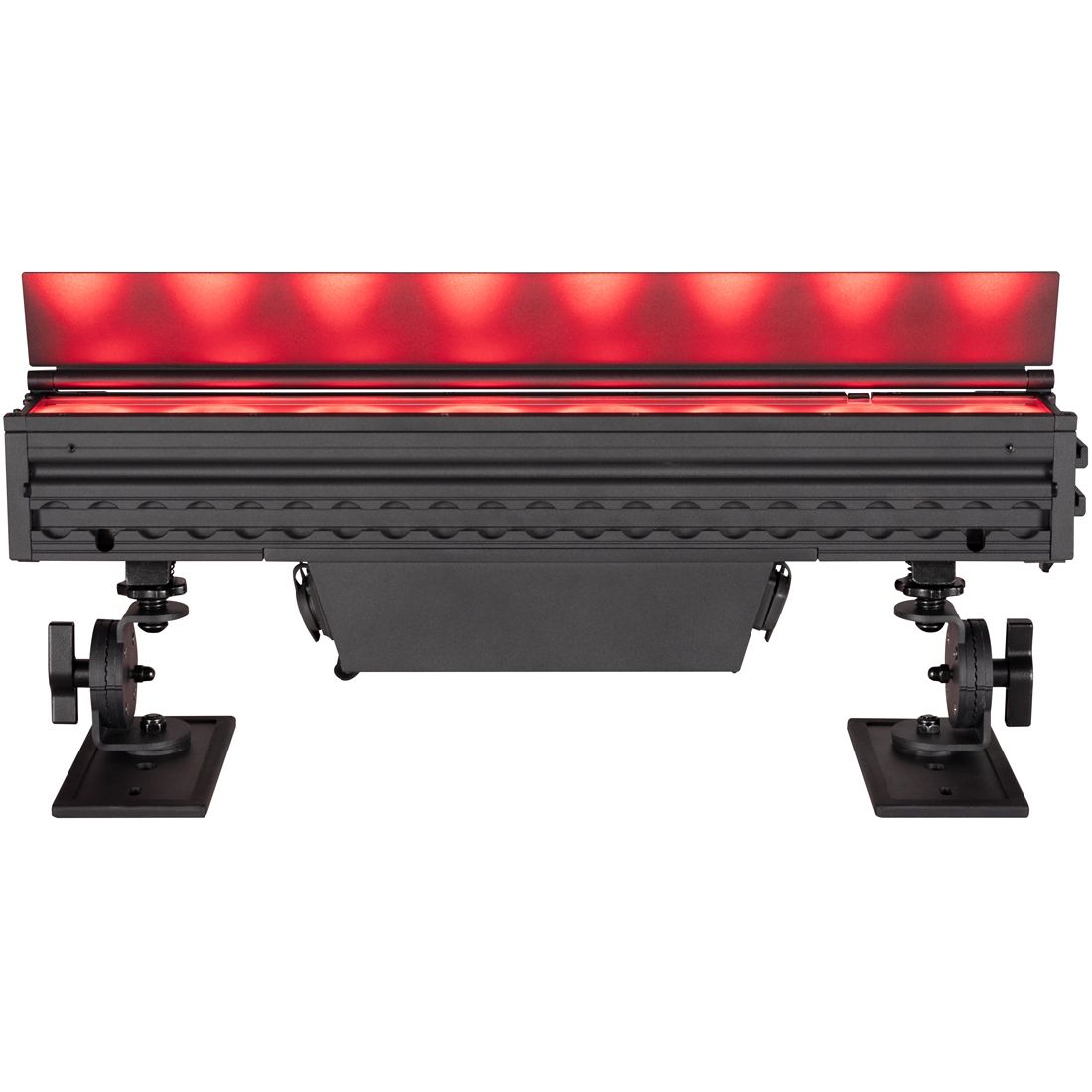

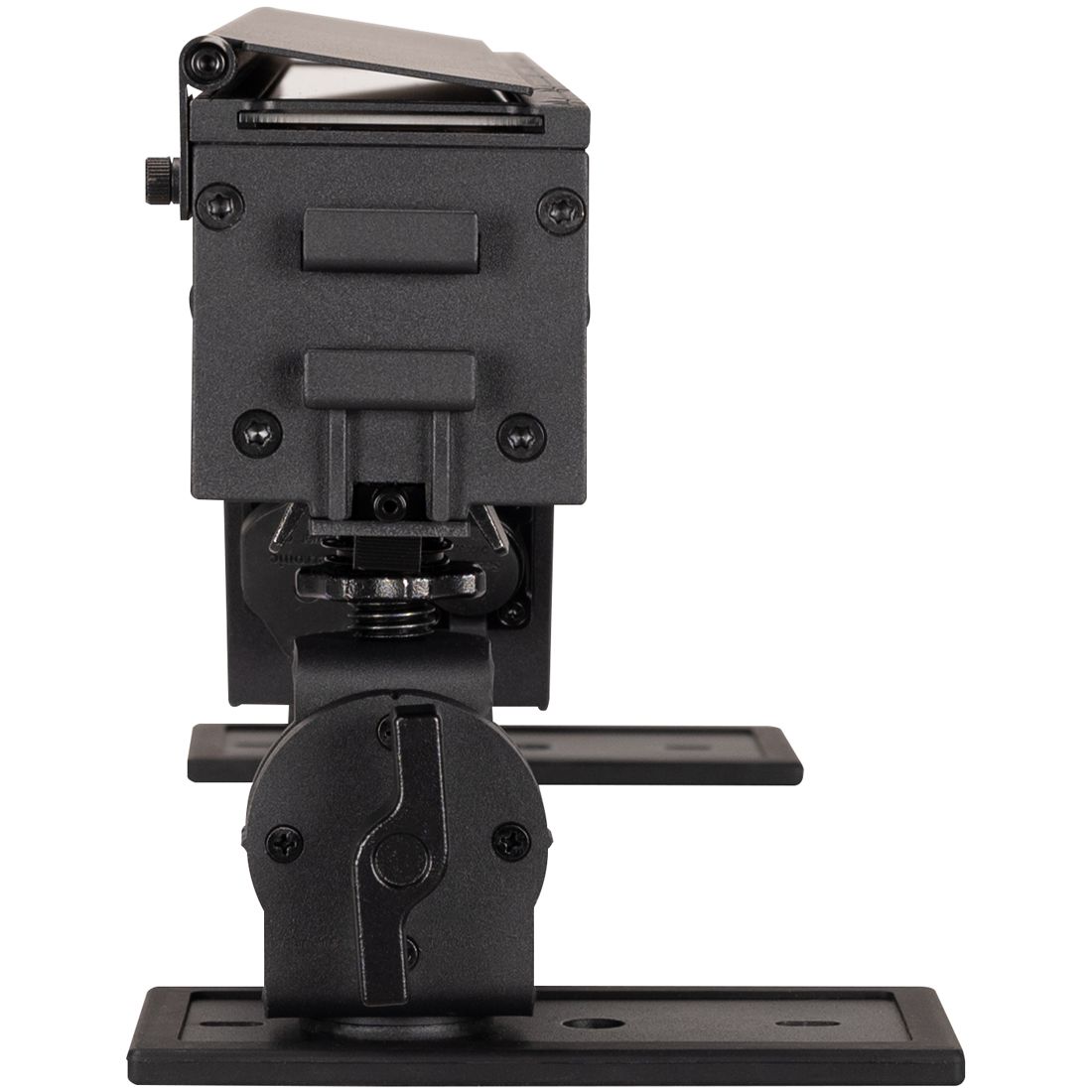

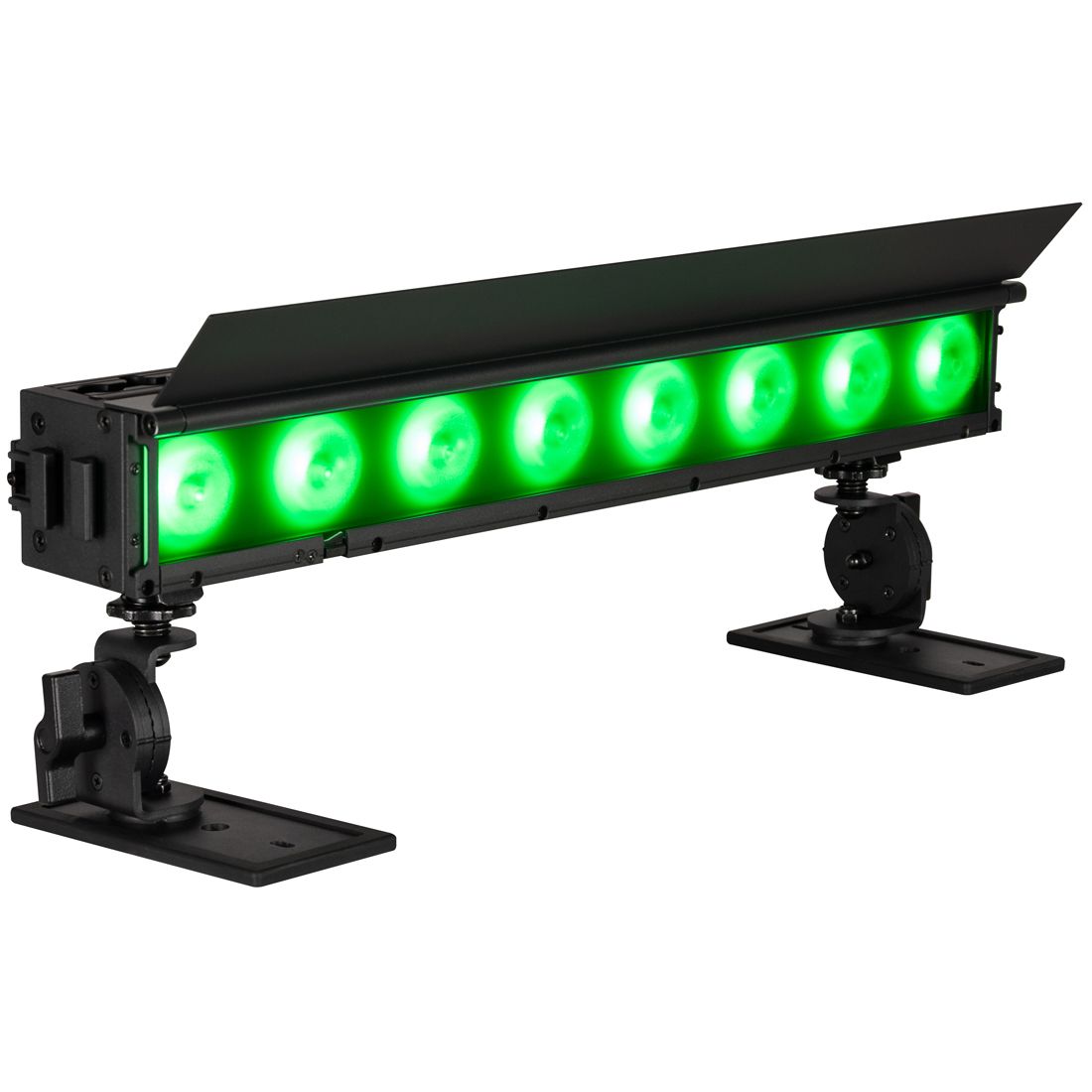

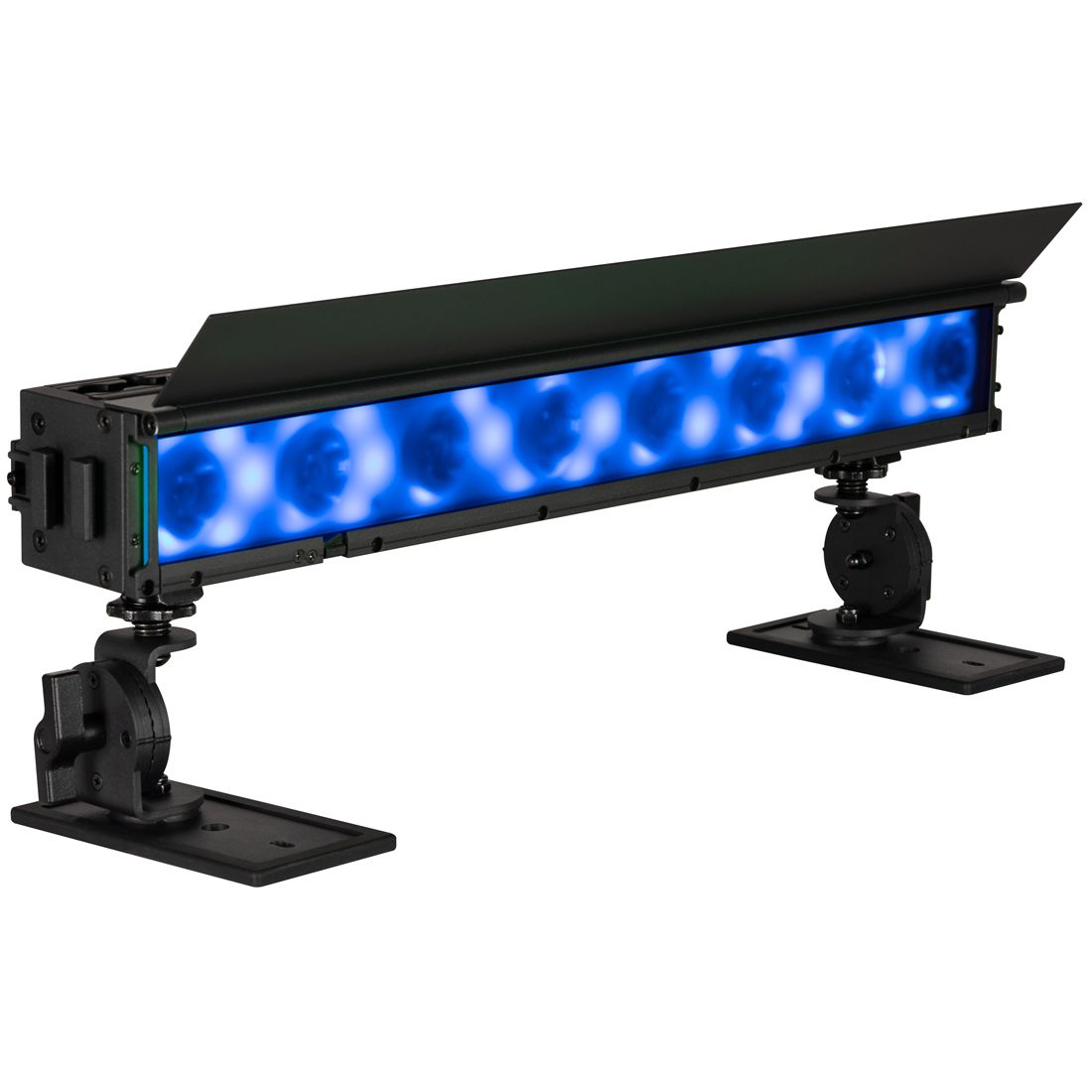

Gallery
Specification
- • 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
- • Battery or Wall Powered
- • 5 Hour Standard Battery Operation and 10 Hour Saver Battery Operation (Menu Option)
- • Individual Pixel Control
- • Built-In Foreground LED Programs
- • Built-In Background LED Programs
- • Variable White Color Temperature Control (2,700K ~ 9,900K)
- • English & Spanish User Menu
- • Built-In Alarm
- • Color Calibrated LED's
- • User Selectable LED Refresh Rates (900Hz ~ 25K)
- • 6 User Selectable Dim Modes
- • 4 User Selectable Dim Curves
- • Electronic Strobe (0.3Hz ~ 11Hz)
- • Electronic Dimming
- • (8) 20W Hex Color RGBAL+UV Foreground LED's
- • (32) 0.2W RGB Background LED's
- • 50,000 Hour Average Life*
- *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- • 2,300K ~ 9,900K White Color Temperature Range
- • 17° Beam Angle
- • 45mm Lens Diameter x8
- • IP65 Housing

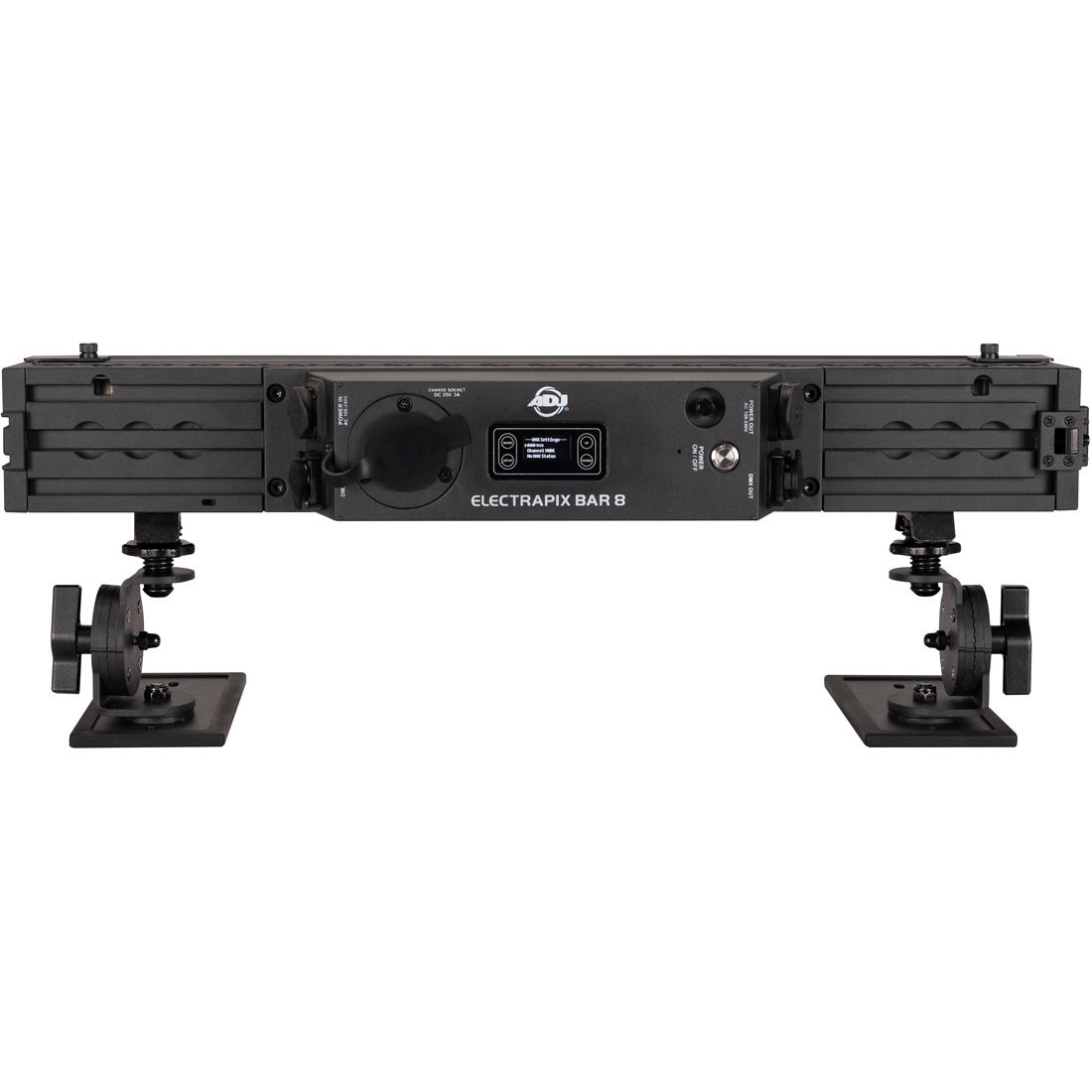

- • OLED Digital display
- • L Track system for locking accessories / rigging

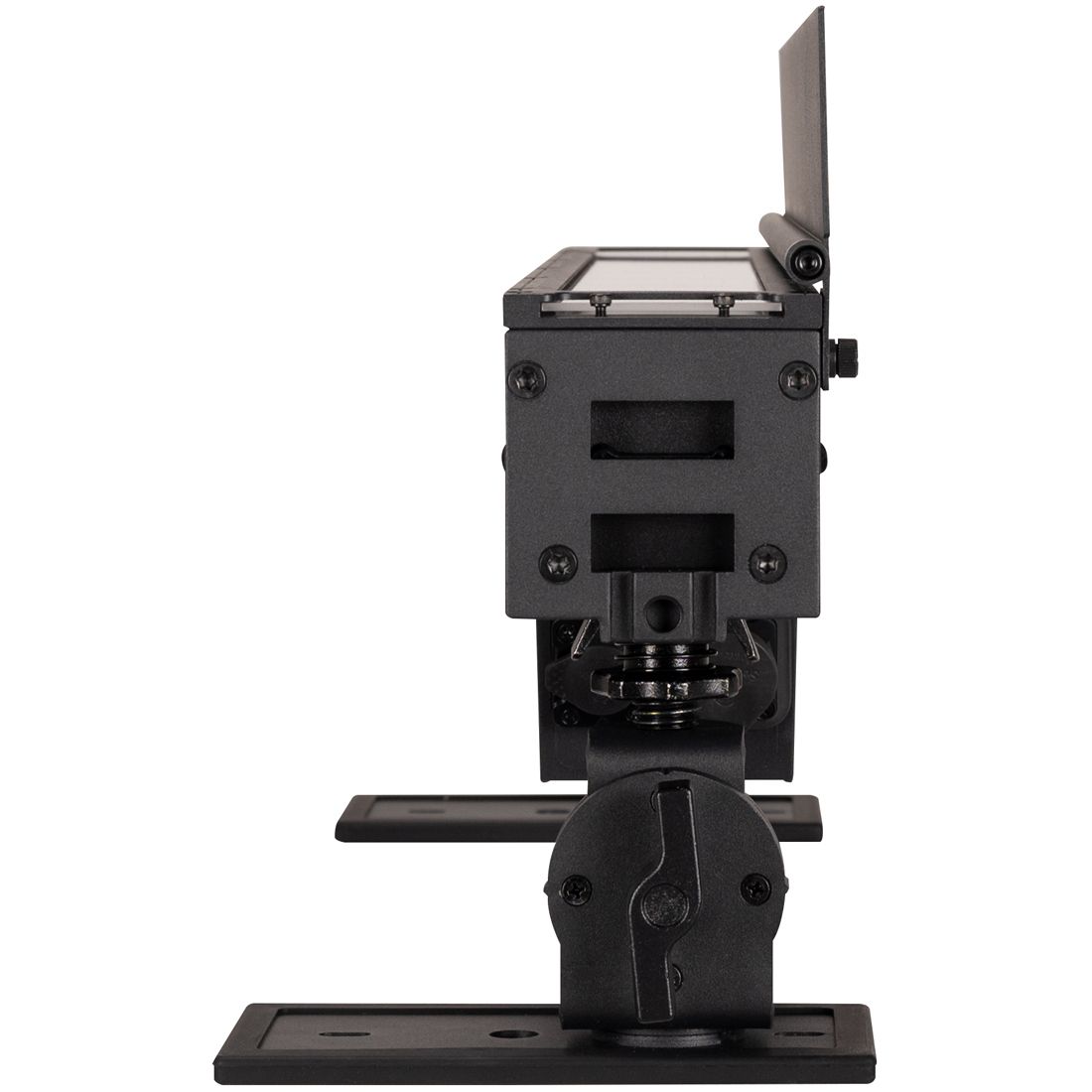

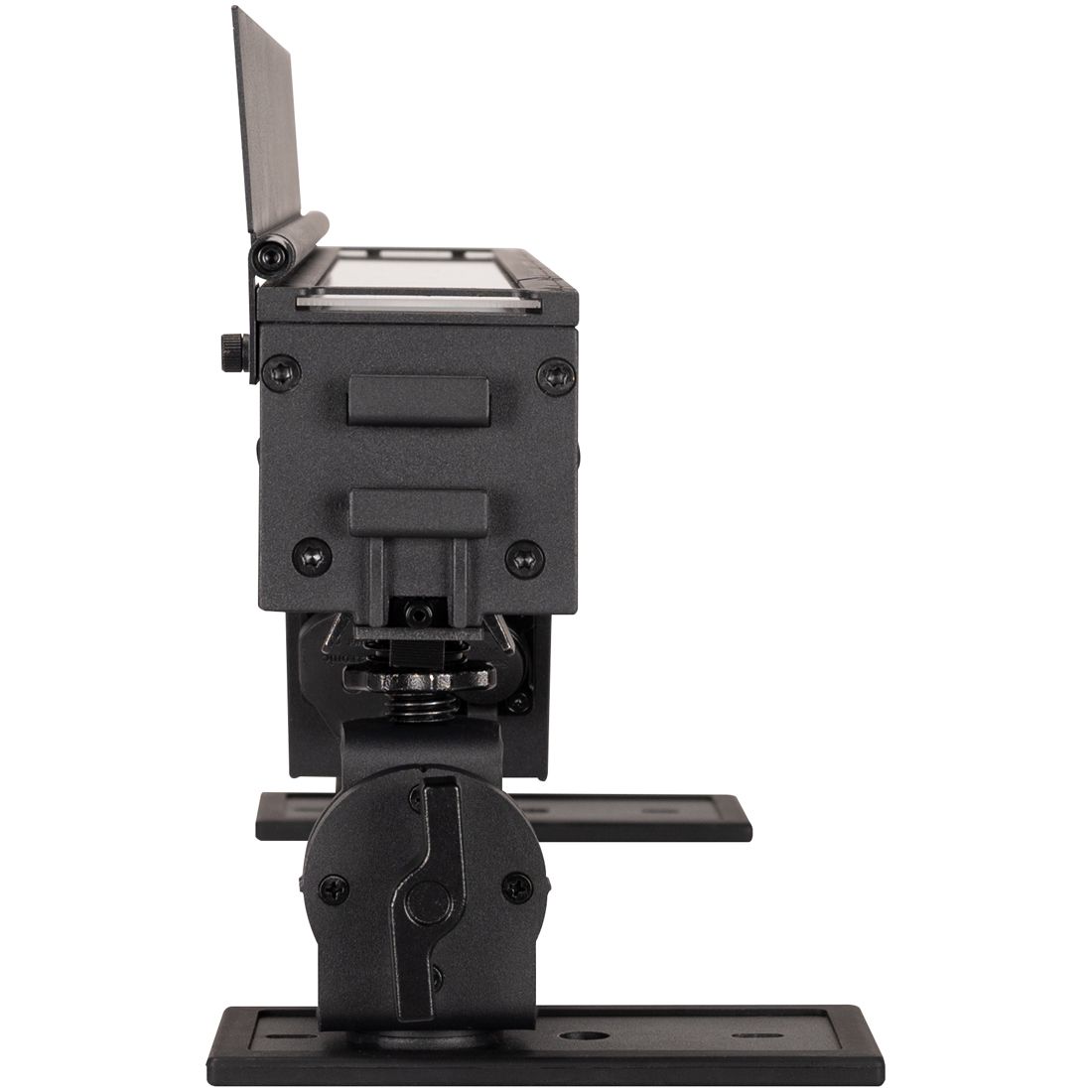

- • Glare Shield
- • Diffusion Filter slot
- • Angle adjustable feet
- • Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
- • DMX512
- • Aria X2 Wireless DMX
- • Bluetooth
- • RDM and RDM Net Compatible
- • IR (Includes UCIR24 wireless remote)
- • (4) DMX Channel Modes (5, 6, 9,13, 21, 24, 48, 52 & 66 Channel modes)
- • On-board Manual Control Mode
- • Primary / Secondary Mode
- • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- • Outdoor Locking Power Sockets
- • Battery Charging Socket
- • Length: 85.7mm, Width: 590.3mm, Height: 191.2mm
- • Weight: 8 kg
- • AC100-240V/50Hz-60Hz Input
- • 60W Power Consumption
- • Link 28 pieces @ 230VAC
- • Rechargeable Lithium ion
- • Battery Capacity: 7,000mAh
- • Battery Voltage: 22.2V
- • Charge Time: 6 Hours (To Full)
- • 5 Hour Standard Operation at Full Output and 10 Hour Saver Mode Operation at Full Output Selectable in the menu
- • Battery Cycles: 500
- • Ambient Operational Temperature: -20°C to 45°C
- • Storage Temperature: -30°C to 45°C
- • CE
- • cETLus (Pending)
- • FCC
- • IP65
- • (1) Outdoor Locking Power Cable
- • (1) UCIR24 Remote
- • (1) 20° Diffusion Filter
- • ElectraPix Bar FB
- • LTrack A2 (LTrack Adapter Only)
- • LTrack CA2 (LTrack Adapter with Narrow Clamp)
Specifications subject to change without notice
