ElectraPix Bar 16 Pak Select New
The ElectraPix Bar 16 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.
Key Components:
1. ElectraPix Bar 16 fixtures (x4): Unleash the power of four (4) ElectraPix Bar 16 fixtures, each...
Product Information
SKU: 1226100506
GTIN: 810087372750
HS-Code: 9405423990
The ElectraPix Bar 16 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.
Key Components:

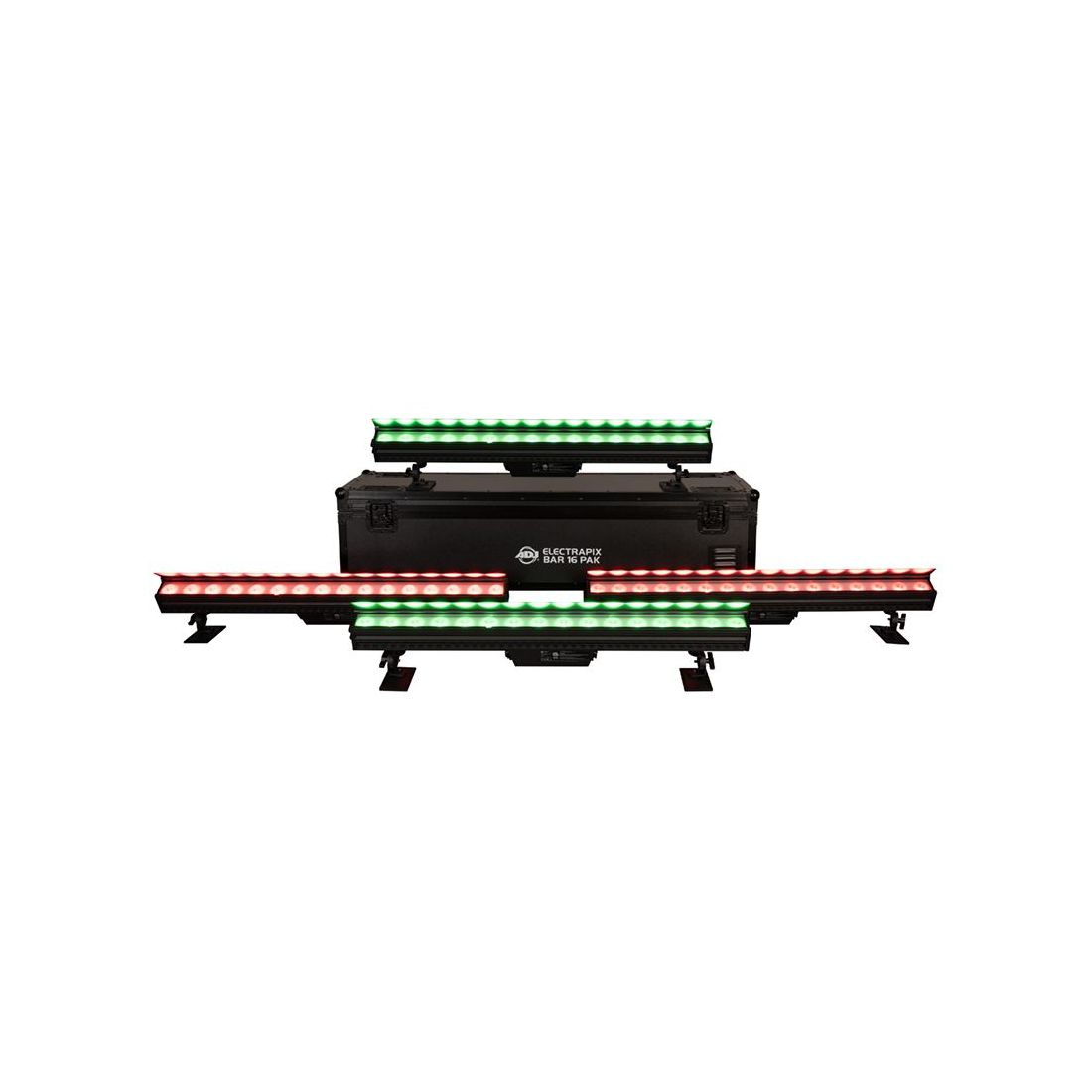

1. ElectraPix Bar 16 fixtures (x4): Unleash the power of four (4) ElectraPix Bar 16 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colors, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.
2. Charging Bases (x4): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.
3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colors, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.
4. IP65 Locking Power Cable (x4): Designed for durability and reliability, the IP65 locking power cables ensures a secure and weather-resistant connection.

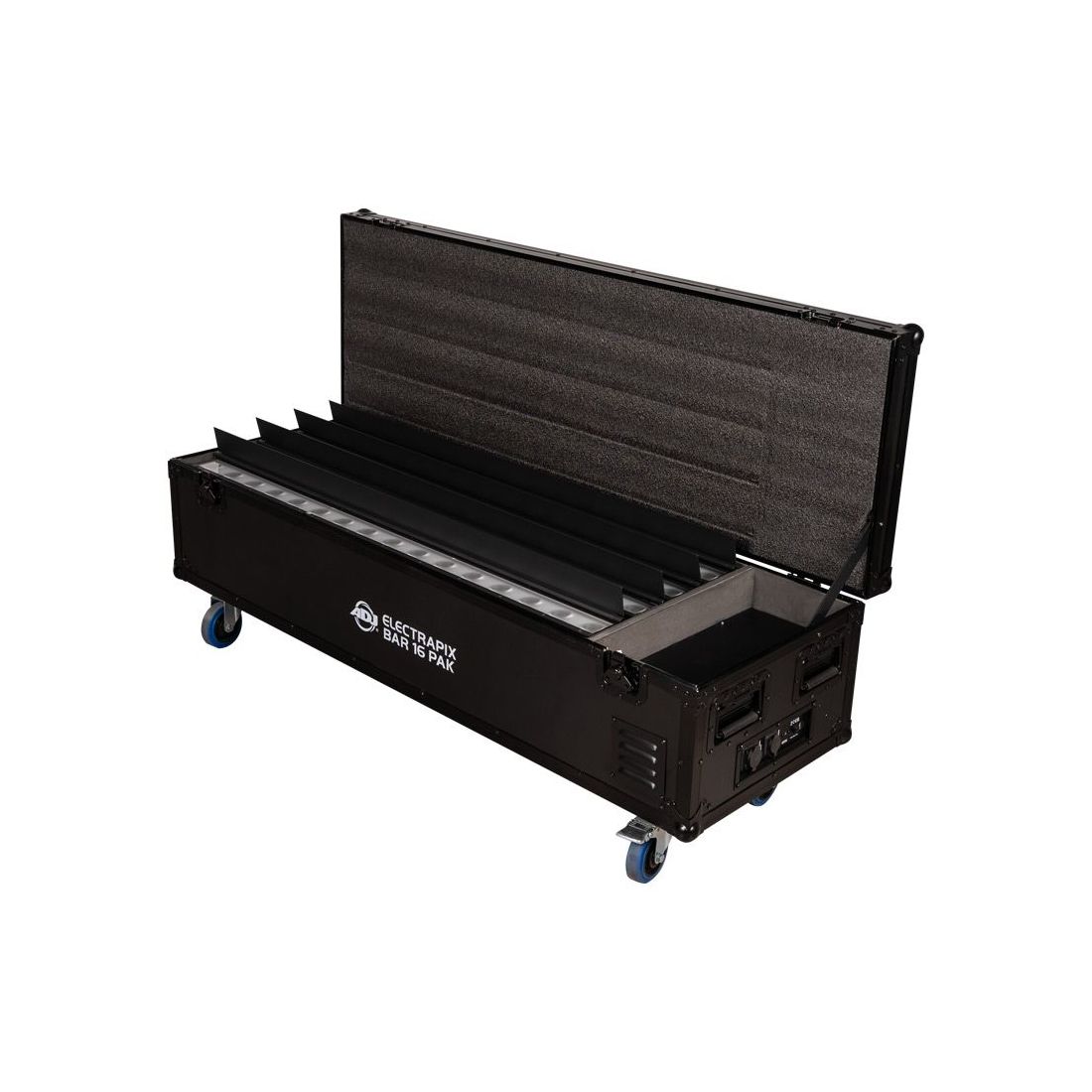

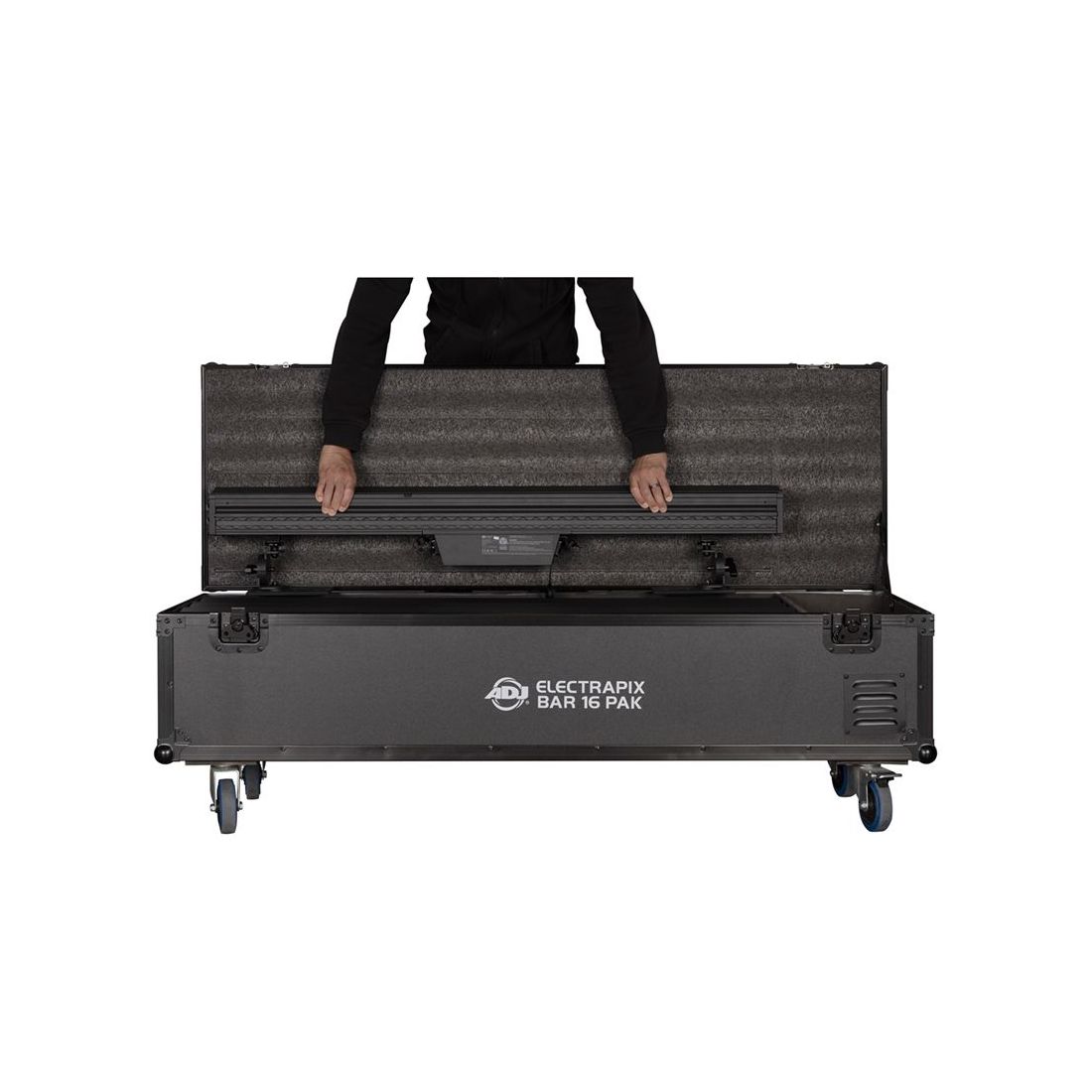

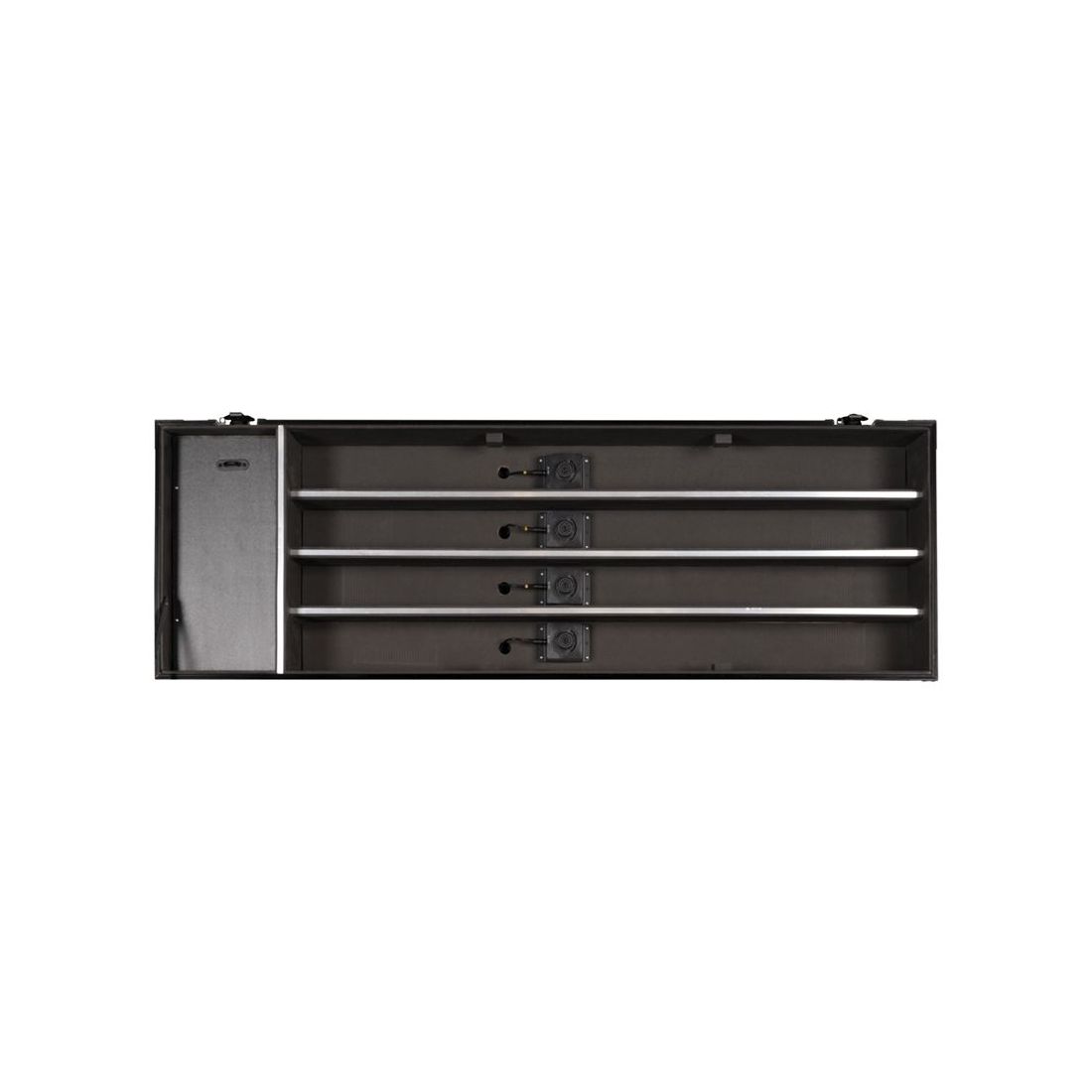

5. ElectraPix Bar 16 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 16 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 1443x498.4x459.9mm ensure that your lighting setup remains protected during transit.
With the ElectraPix Bar 16 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 16.
Gallery
Specification
- • (4) ElectraPix Bar 16 Pak (Fixtures)
- • (1) ElectraPix Bar 16 FC (Flight Case)
- • (4) ElectraPix Bar 16 IPCB (Charging bases and power supplies)
- • (1) UC-IR24 Wireless Infrared Controller
- • (1) IP65 Locking Power Cable
- • Houses / Transports and Charges (4) ElectraPix Bar 16 Pak™ fixtures
- • Length: 1443mm
- • Width: 498.4mm
- • Vertical Height: 459.9mm
- • Loaded Weight: 87 kg

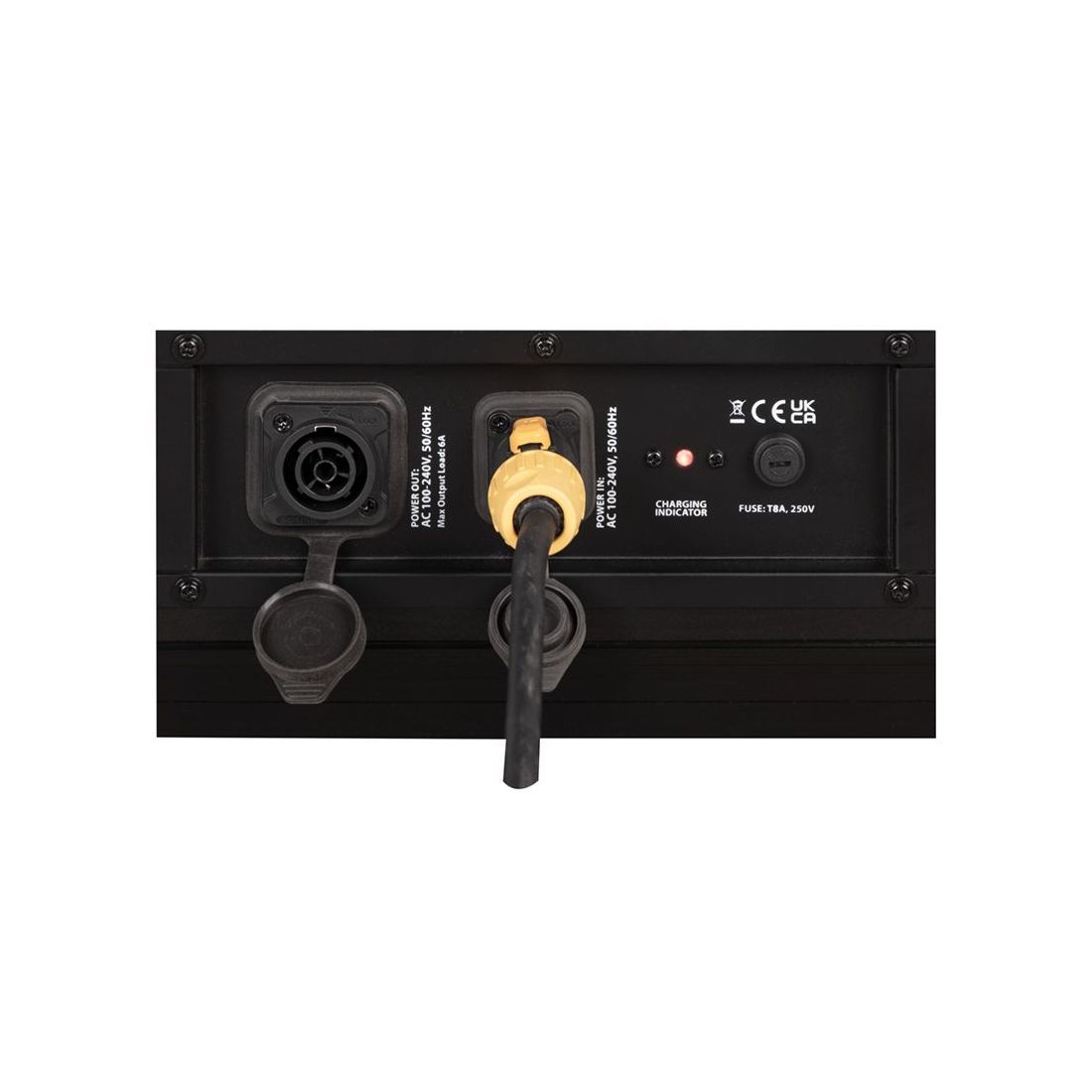

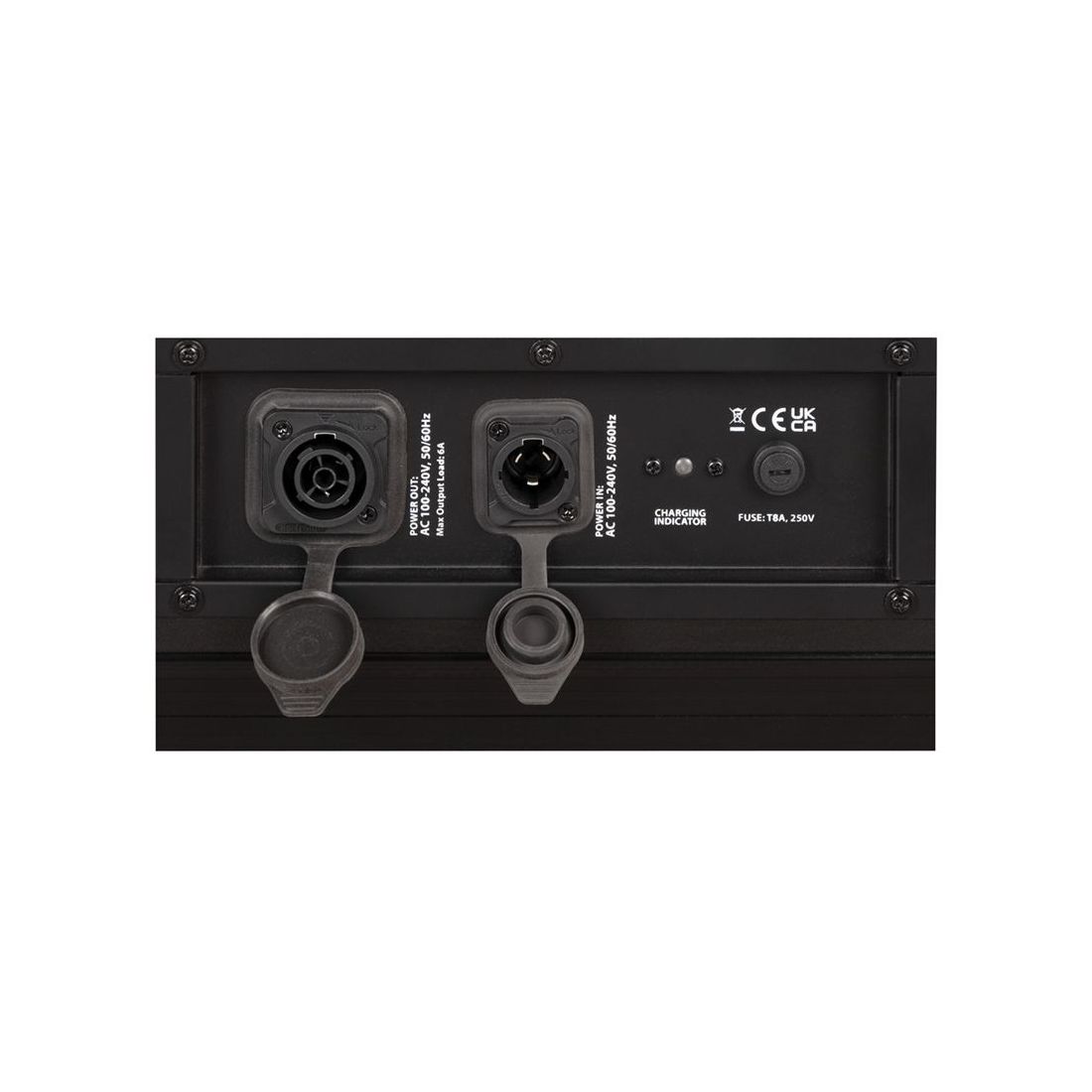

- • Power Input: AC100VAC~240VAC, 50/60Hz
- • IP65 Power Locking Input and Output
- • Max Power Consumption: 400Watts
- • Power Draw: 2A @ 230VAC
- • Charge status indicator
- • -10°C to 45°C
- 16 Pixel, Hex Color LED (RGBAL+UV) LED Bar Battery or Wall Powered Up to 20 Hour Battery Operation Battery Operation (Menu Option) Individual Pixel Control Built-In Foreground LED Programs Built-In Background LED Programs Variable White Color Temperature Control (2,300K ~ 9,900K) English & Spanish User Menu Built-In Alarm Color Calibrated LED's User Selectable LED Refresh Rates (900Hz ~ 25K) 6 User Selectable Dim Modes 4 User Selectable Dim Curves Electronic Strobe (0.3Hz ~ 11Hz) Electronic Dimming Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base
- (16) 20W Hex Color RGBAL+UV Foreground LEDs (66) 0.2W RGB Background LED's 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- 2,300K ~ 9,900K White Color Temperature Range 17° Beam Angle 45mm Lens Diameter x16
- IP65 Housing OLED Digital display L Track system for locking accessories / rigging Glare Shield Diffusion Filter slot Angle adjustable feet Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
- DMX512 Aria X2 Wireless Management / DMX System Bluetooth RDM and RDM Net Compatible IR (Includes UC-IR24 wireless remote) (9) DMX Channel Modes (5, 6, 9,13, 22, 24, 96, 99 & 114 Channel modes) On-board Manual Control Mode Primary / Secondary Mode
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal) IP65 Locking Power Sockets Battery Charging Socket
- Length: 94.5mm Width: 1158. 7mm Height: 268. 7mm Weight: 12.2 kg
- AC100-240V/50Hz-60Hz Input 90W Power Consumption Link 18 pieces @ 230VAC
- Rechargeable Lithium ion Battery Capacity: 14,000mAh Battery Voltage: 22.2V Charge Time, AC Power: 5.5 Hours (To Full) Charge Time, Flight Case: 5.5 Hours (To Full) Up to 20 Hour Battery Operation Battery Cycles: 500
- Ambient Operational Temperature: -20°C to 45°C Storage Temperature: -30°C to 45°C
- IP65
- (1) IP65 Locking Power Cable (1) UC-IR24 Remote (1) 20° Diffusion Filter
- Accu Stand VFB1 (Floor Base) LTrack A2 (LTrack Adapter Only) LTrack CA2 (LTrack Adapter with Narrow Clamp)
Specifications subject to change without notice
