Double Phase LED
Archive

Brand

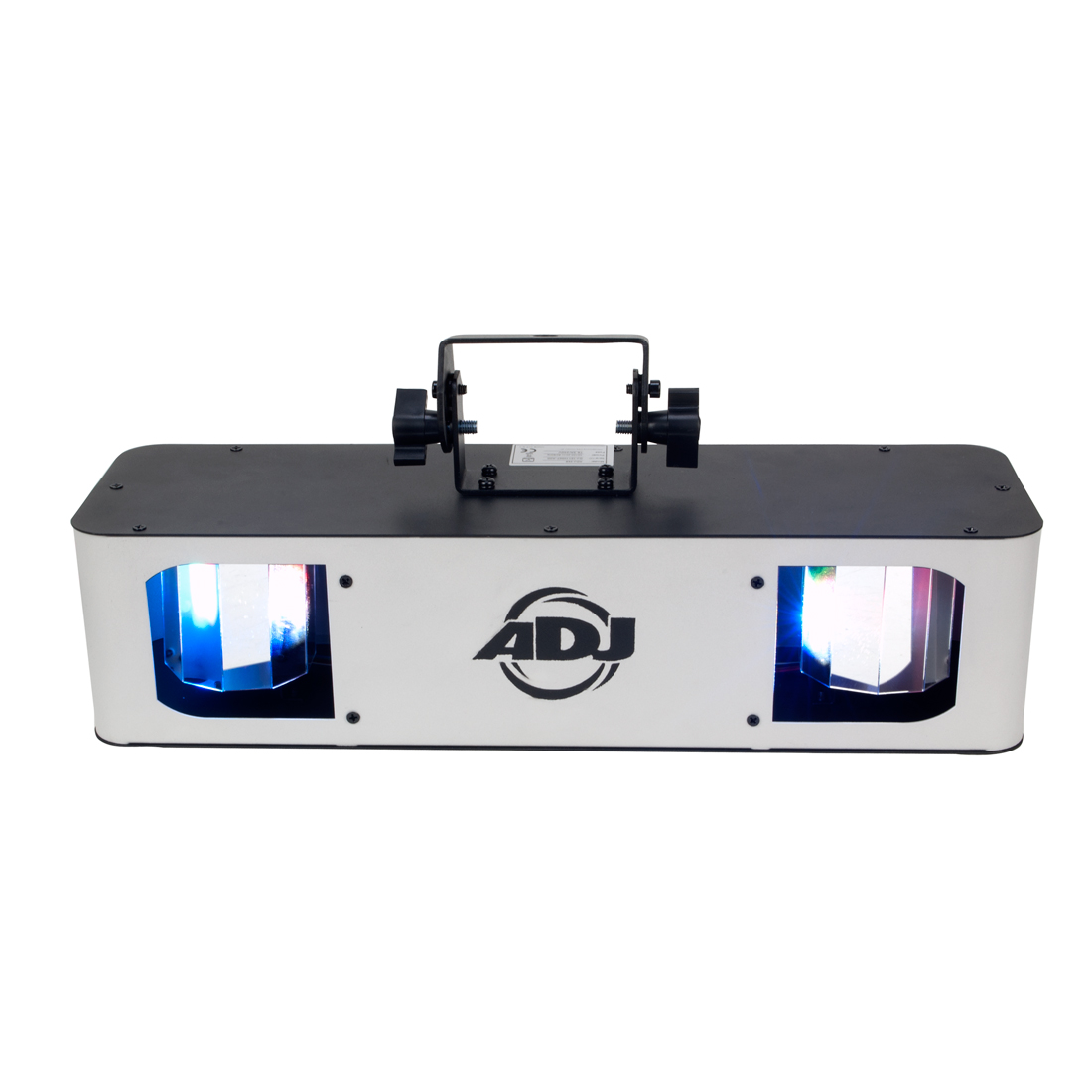

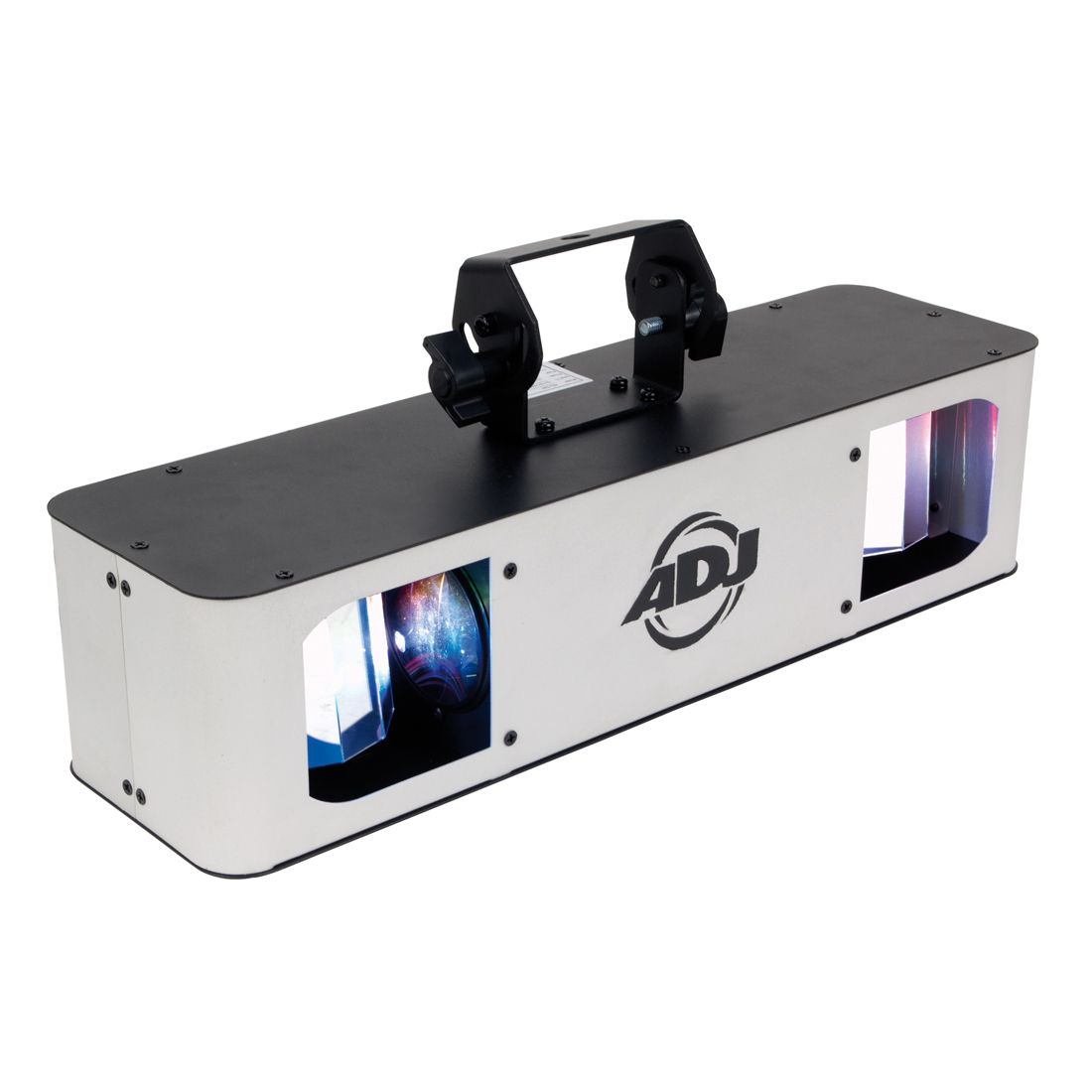

The American DJ Double Phase LED is an exciting dual barrel mirrored lighting effect with two 10W, high quality, CREE 4-IN-1 RGBW LEDs. The barrel mirrors produce a large beam with up to 15 different color combinations. The Double Phase LED offers 3 different operational modes: Sound Active and Master/Slave (both from built-in programs), as well as a DMX-512 programming mode. This lighting fixture offers DMX In/Out as well as Power Linking (IEC In/Out) to connect multiple...

Product Information

SKU: 1222300013
GTIN: 640282002738
HS-Code: 94054010 00

The American DJ Double Phase LED is an exciting dual barrel mirrored lighting effect with two 10W, high quality, CREE 4-IN-1 RGBW LEDs. The barrel mirrors produce a large beam with up to 15 different color combinations.

The Double Phase LED offers 3 different operational modes: Sound Active and Master/Slave (both from built-in programs), as well as a DMX-512 programming mode. This lighting fixture offers DMX In/Out as well as Power Linking (IEC In/Out) to connect multiple units together for the ultimate light show. Users can also use the American DJ UC3, easy-to-use lighting controller to operate the Double Phase LED.

The Double Phase LED’s long LED life and exciting built-in programs make it ideal for mobile entertainers, night clubs, roller rinks, and bowling centers. This lighting effect is best when used with fog.



Specification

    Specifications:
    - Double Barrel Mirror effect with large RGBW beams
    - Powered by two CREE 10W 4-IN-1 RGBW (Red, Green, Blue and White) high output color beams
    - Produces 15 different color combinations
    - 3 operational modes: Sound active with built-in programs; Master/Slave or DMX-512
    - 6 DMX channels (Dimmer/Strobe, Color & Roller Speed & Rotation)

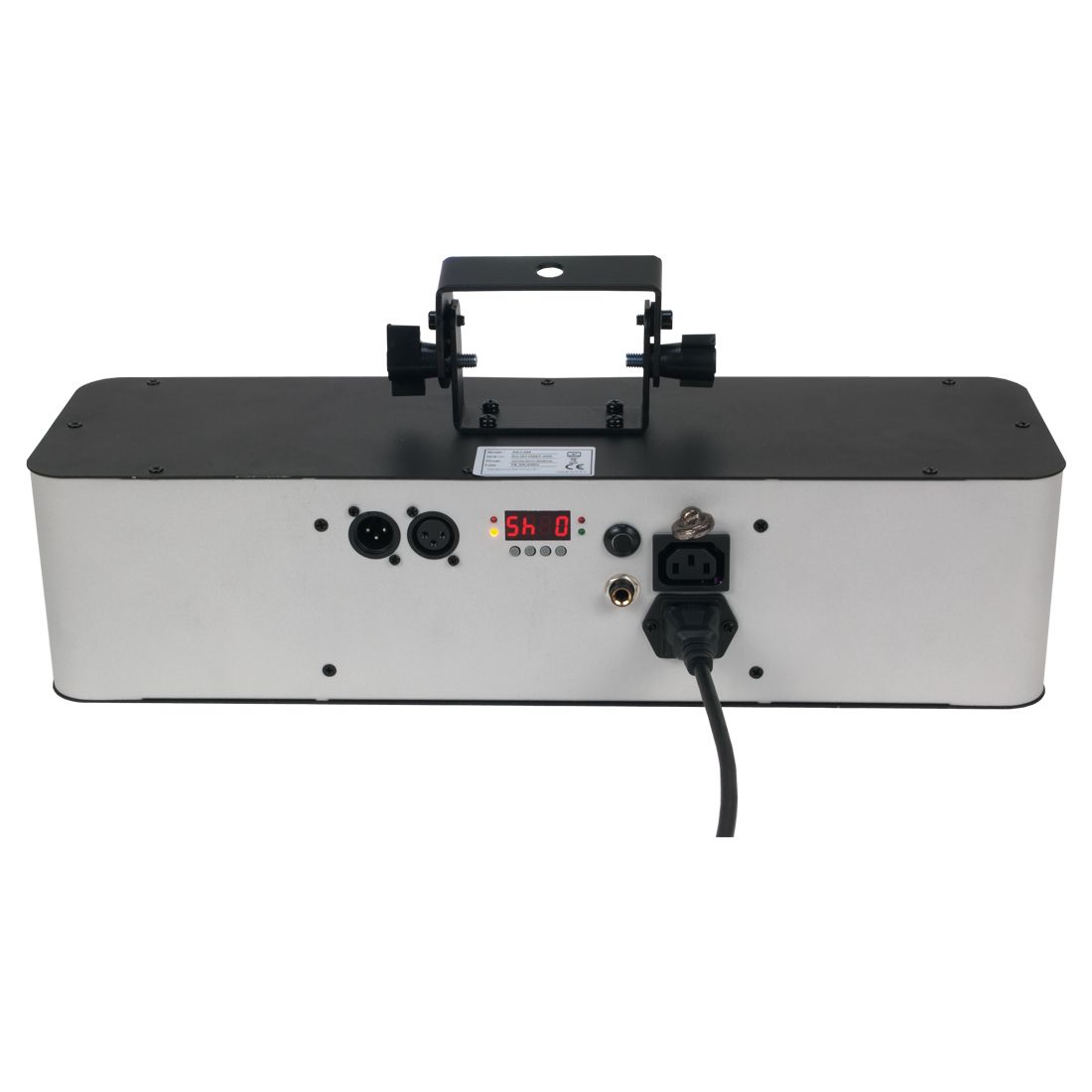

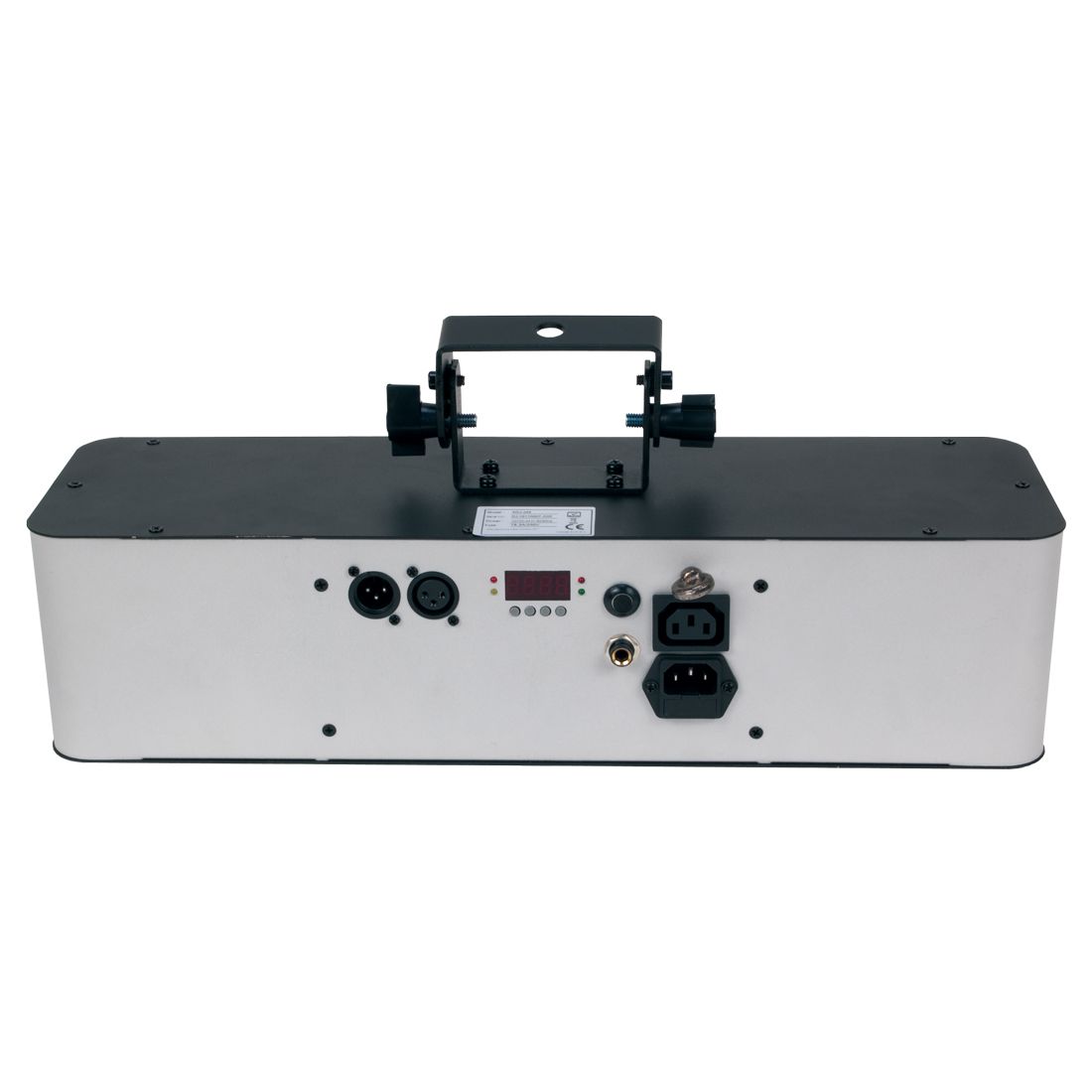

    - 4-button DMX LED Display or rear panel
    - Built-in programs (Sound Active & Master/Slave modes)
    - Linkable via 3-pin XLR cable
    - Strobe effect
    - Dimming 0-100% (when using DMX mode)
    - Wide beam spread covers a large area
    - Beam angle: 150 degrees
    - Long life LEDs (50,000 hr. rating)
    - Includes hanging bracket & safety hook
    - Very low heat output
    - Run all night - no duty cycle
    - Compatible with the American DJ UC3 easy-to-use controller (sold separately)
    - In/Out IEC Plugs to daisy-chain power (link up to 9 units)
    - Multi-voltage: 100-240V, 50/60Hz (IEC Plug)
    - Power consumption: 40W max
    - Dimensions (LxWxH): 478x194.5x134mm
    - Weight: 4.5kg.
    - ETL approved (see user manual for more info)
