Dotz TPAR System Archive
Product Information
DISCONTINUED. Please check the replacement: 1900000043 - Dotz TPAR SYS Plus

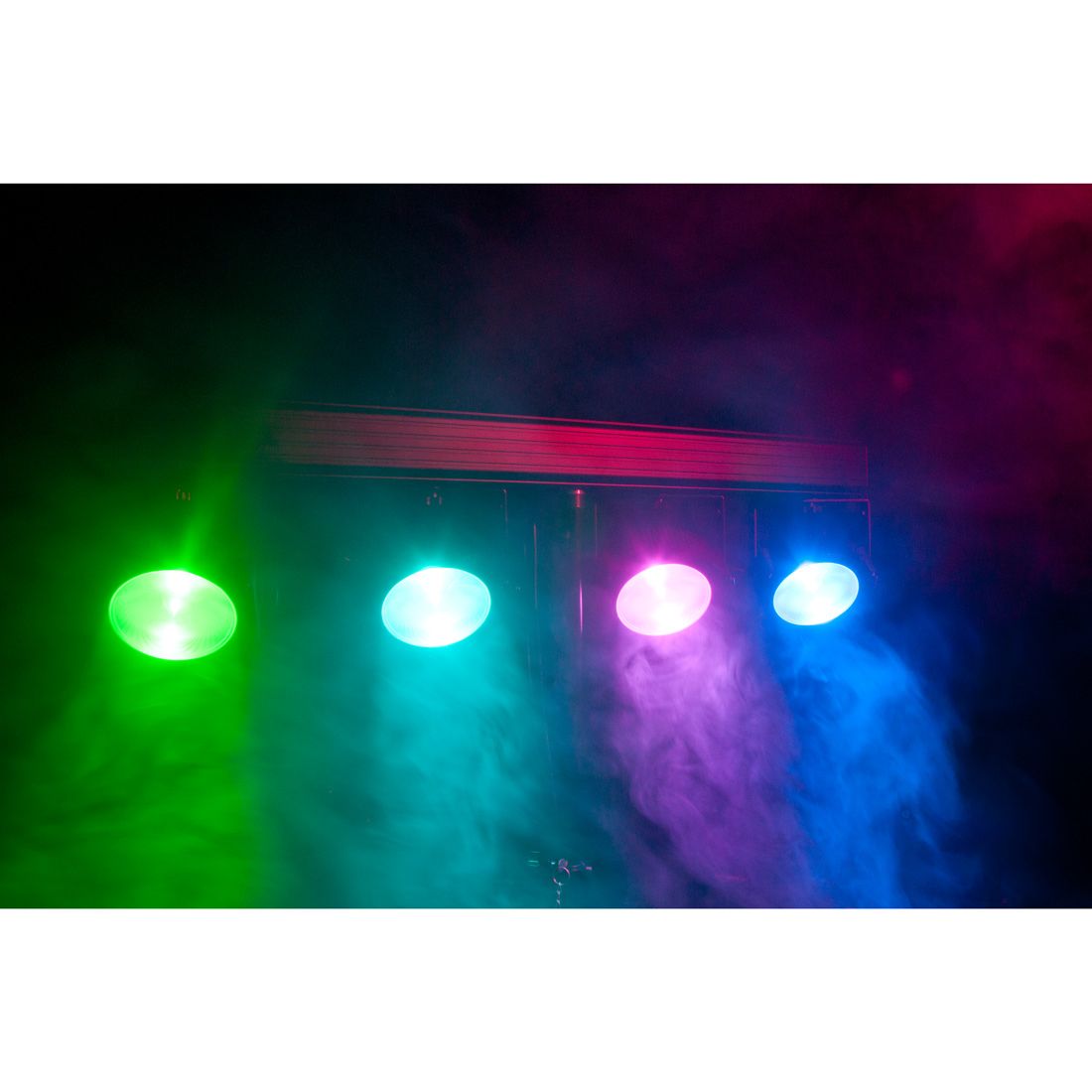

The Dotz TPar System is a exciting all-in-one LED Wash system for mobile entertainers bands and stage lighting. This lighting system features a 4-head T-Bar light system each with one 30-Watt COB TRI LED (RGB), producing wide, saturated color washes of light with LEDs rated at an extremely long life of 50,000 hours. The system washes a very large area with its 90-degree beam angle. Or change the light output to a 25-degree beam with the included lens kit.
Great for any performer on-the-go, the Dotz TPar System is easy to set-up and take down. Plus, with low heat emitting LEDs performers stay cooler on stage. The system includes a tripod stand, a foot controller, RF remote control and a gig bags to help protect your equipment.

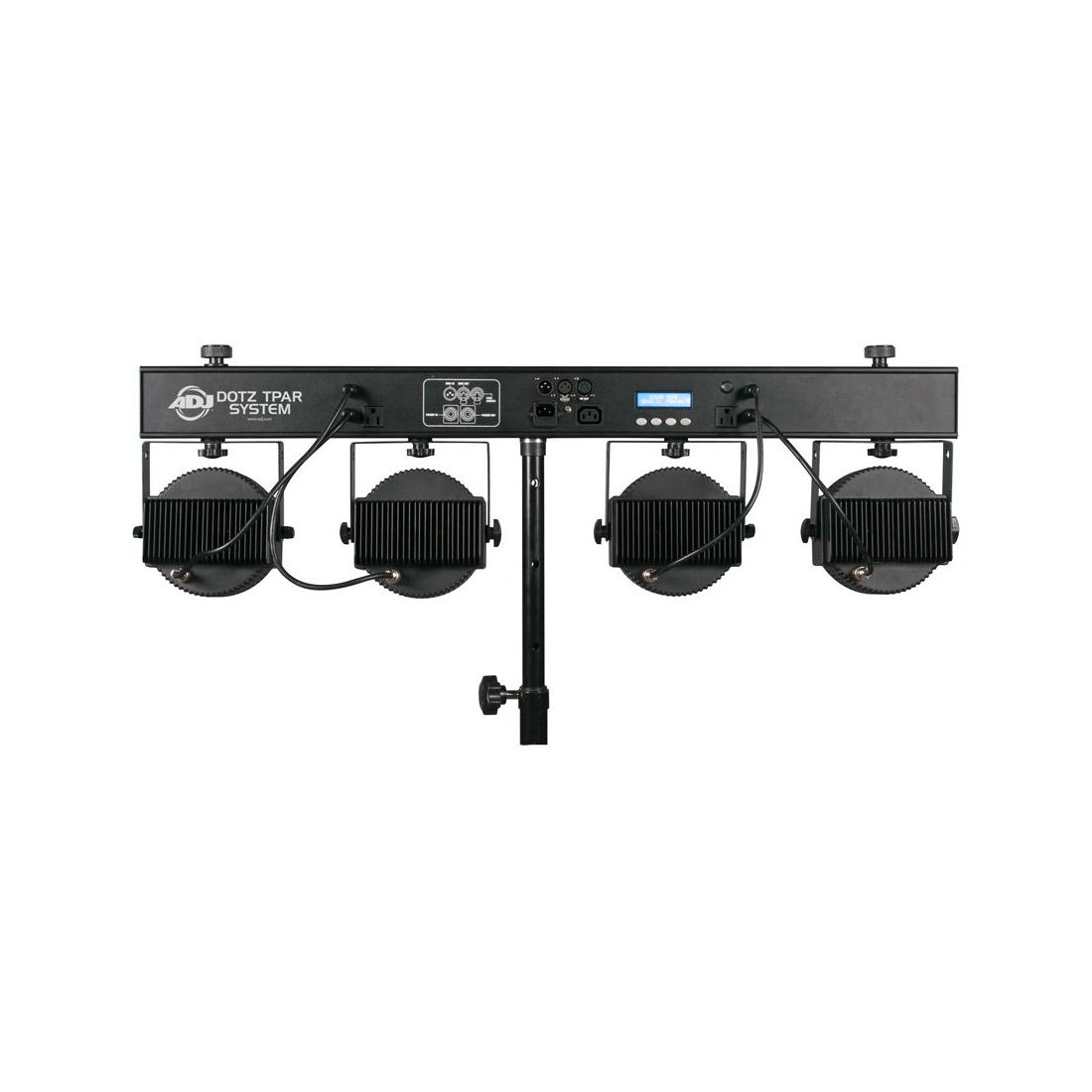

In addition to it’s built-in programs and the wired foot controller , the Dotz TPar System may also be controlled by an external DMX Controller via it’s XLR In/Outs. User can also mount two smaller lighting fixtures on top of the T-bar and plug them in directly on the back of the bar.

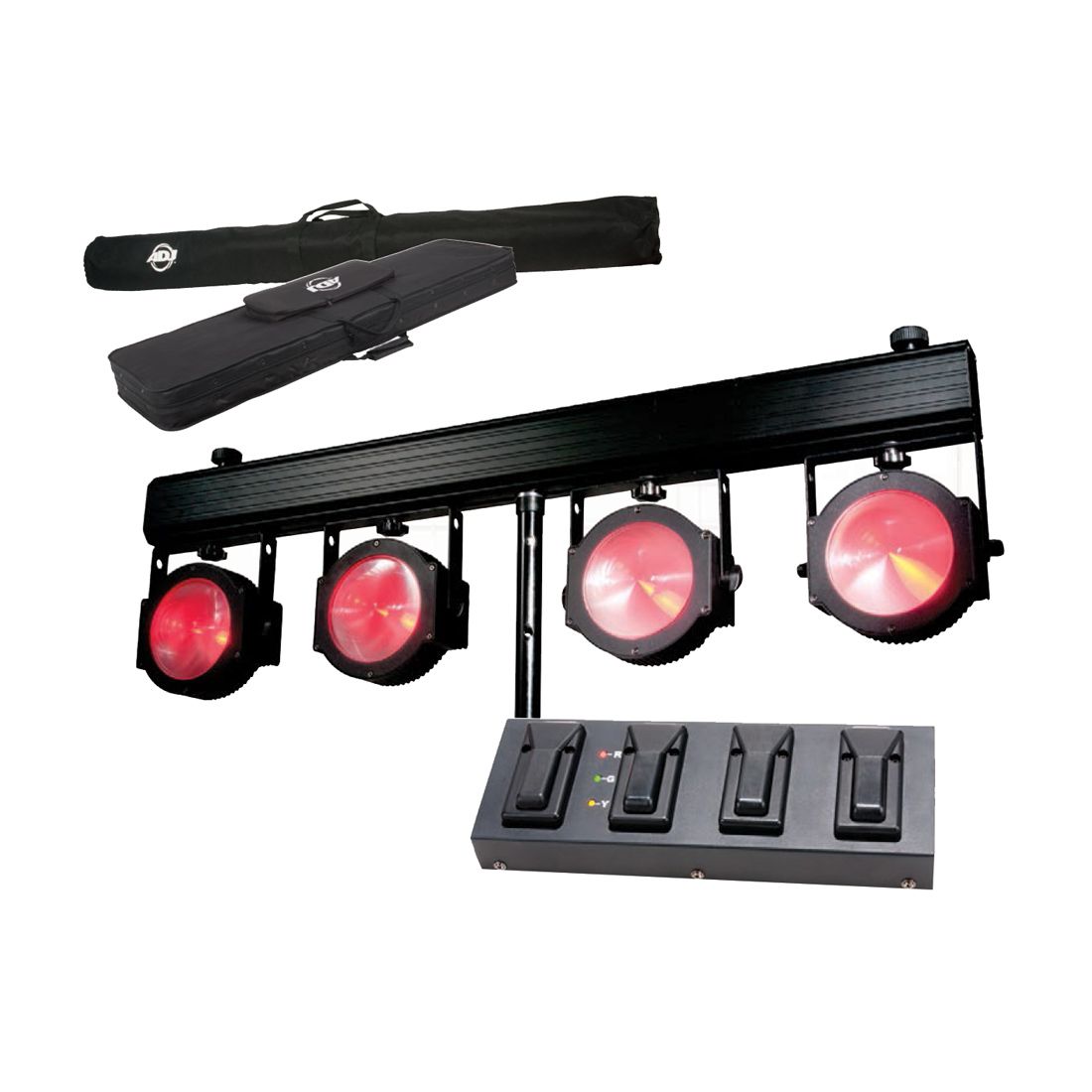

System includes:

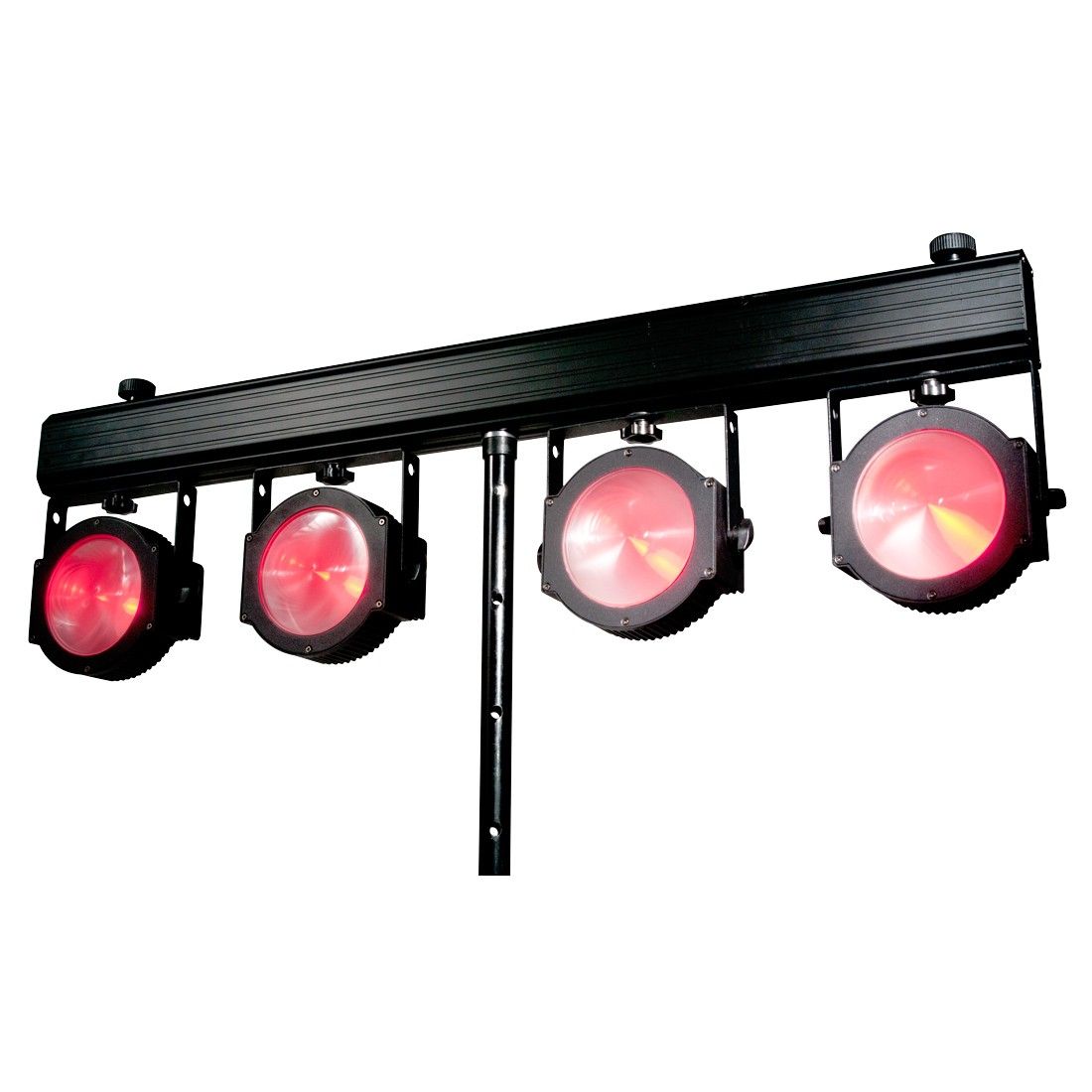

- 4x COB LED Par Wash Fixtures

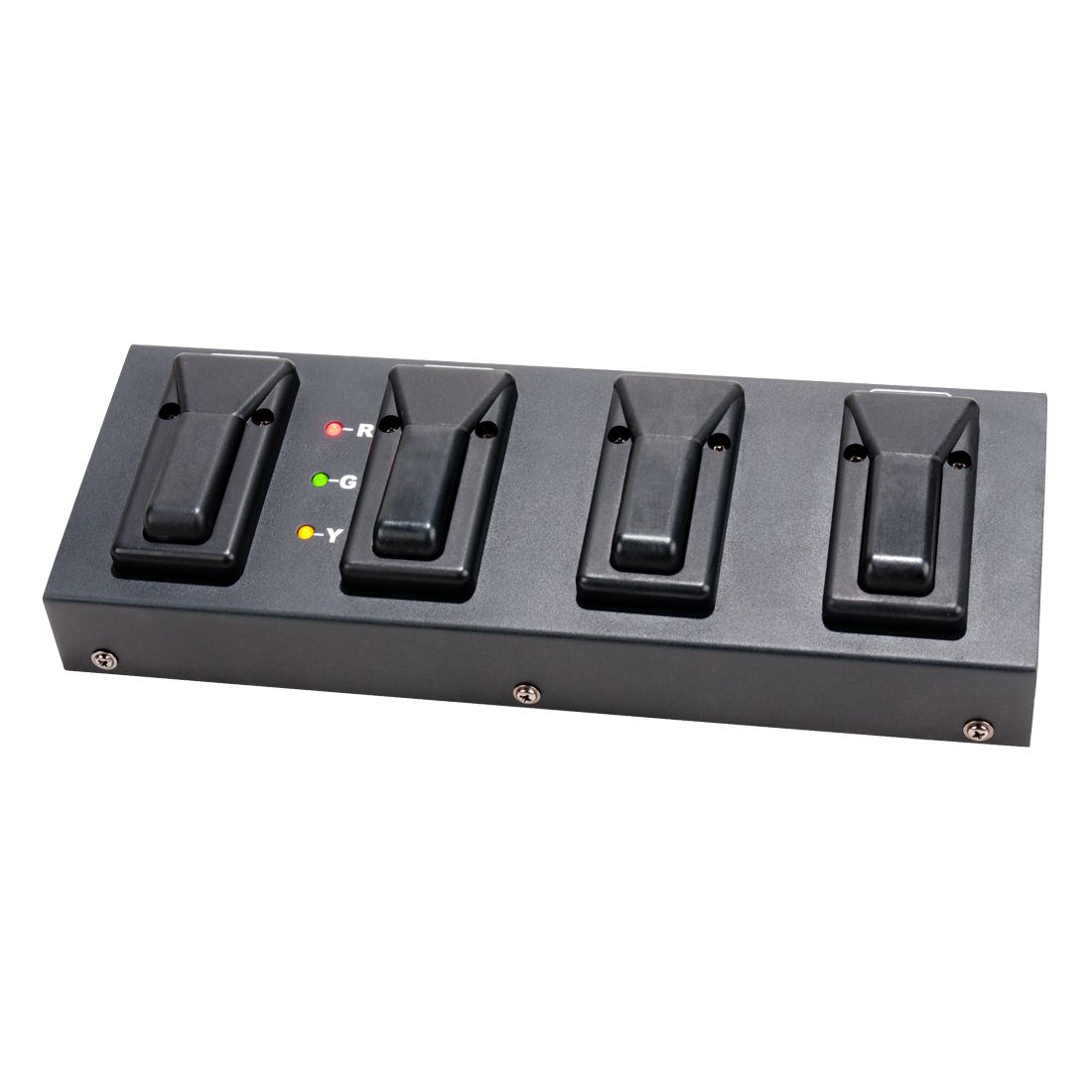

- 1x wired Foot Controller

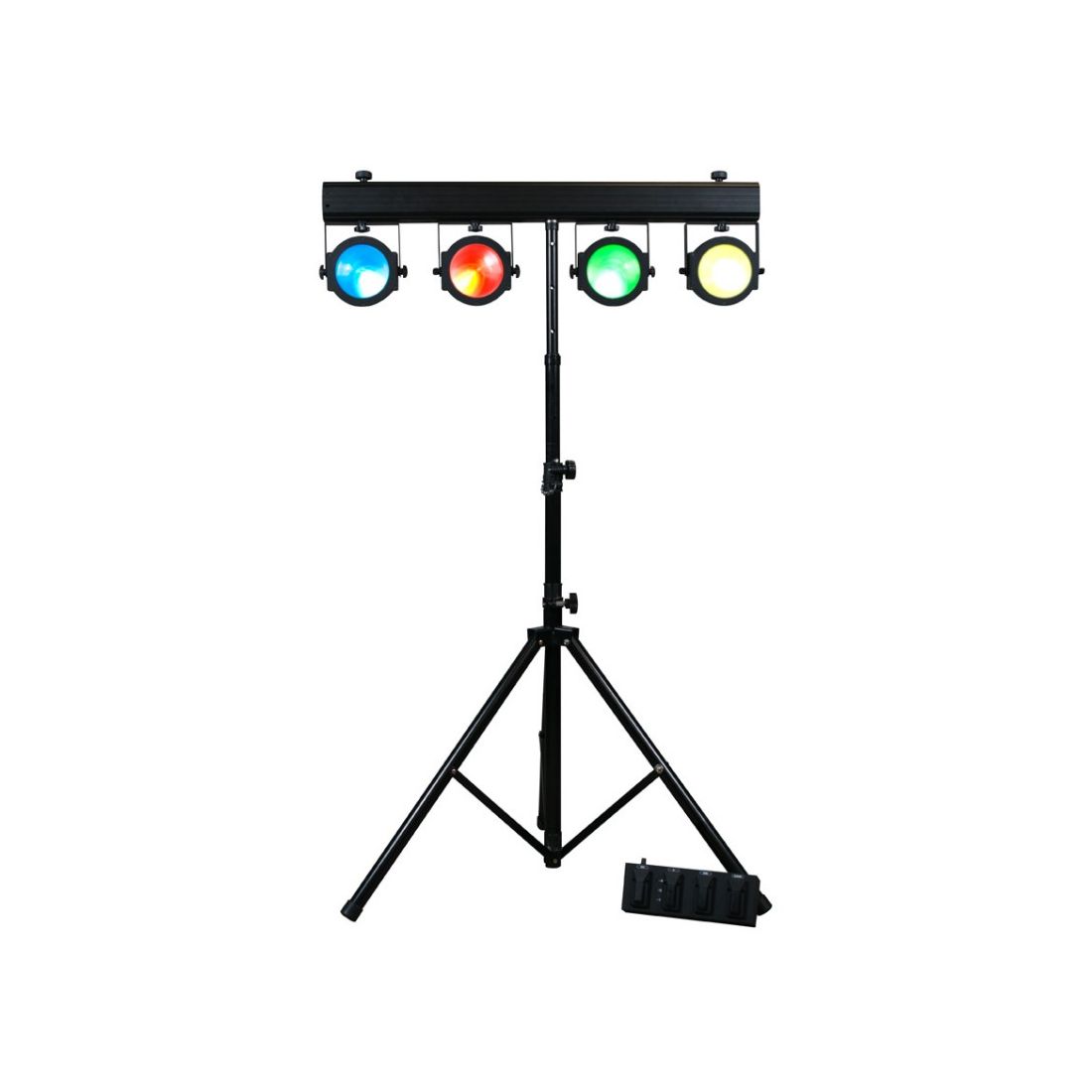

- 1x Lighting Stand

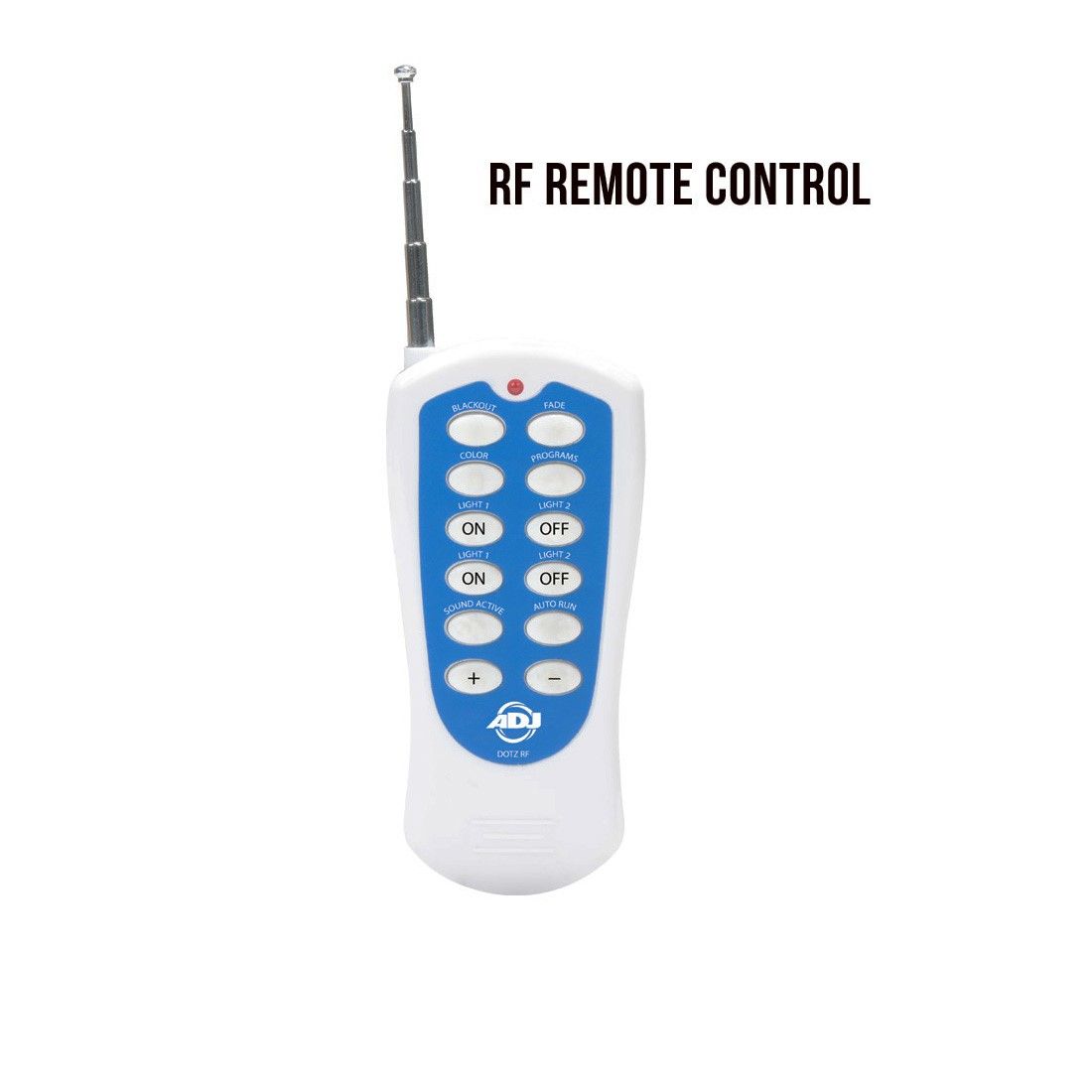

- 1x RF Remote Control

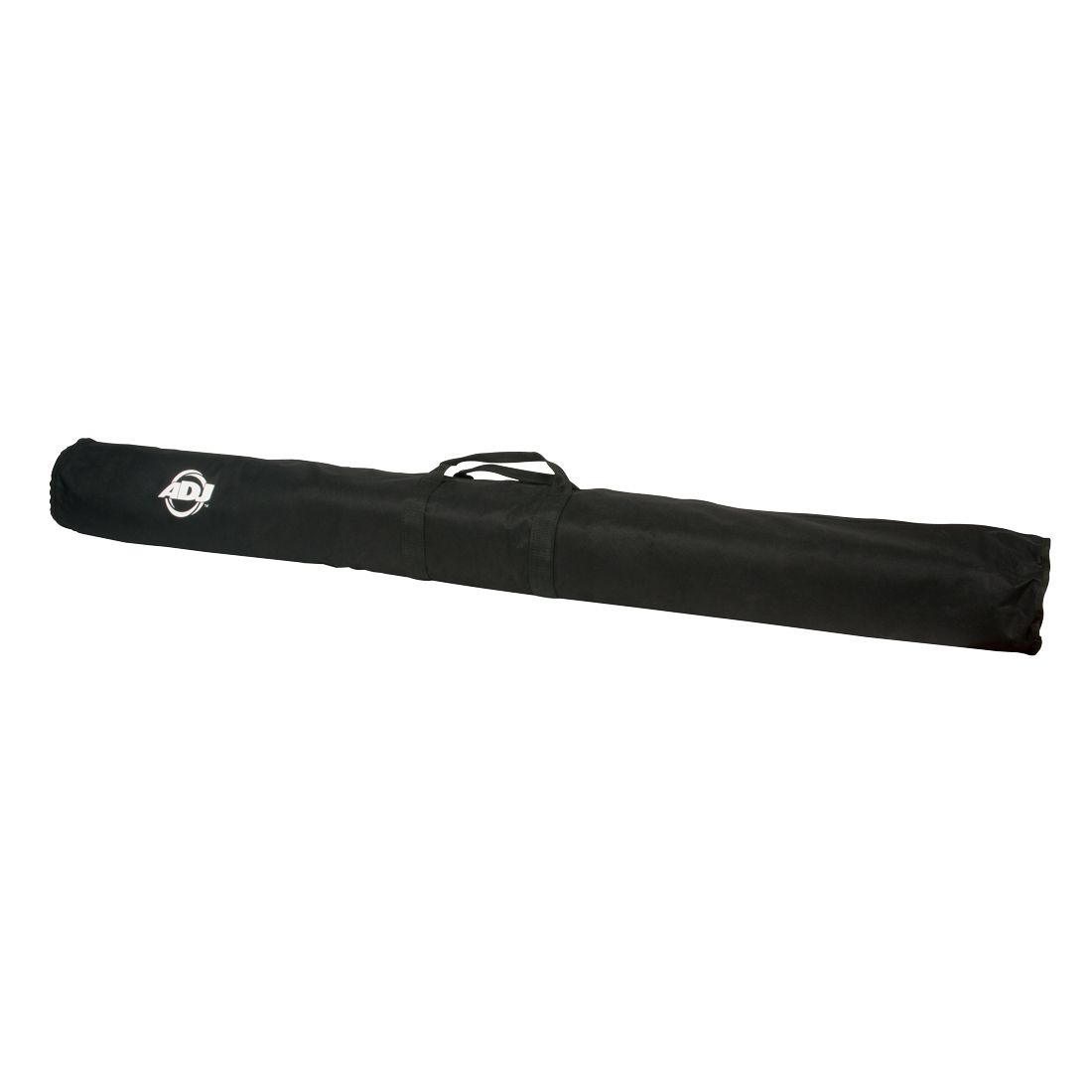

- 1x Stand Bag

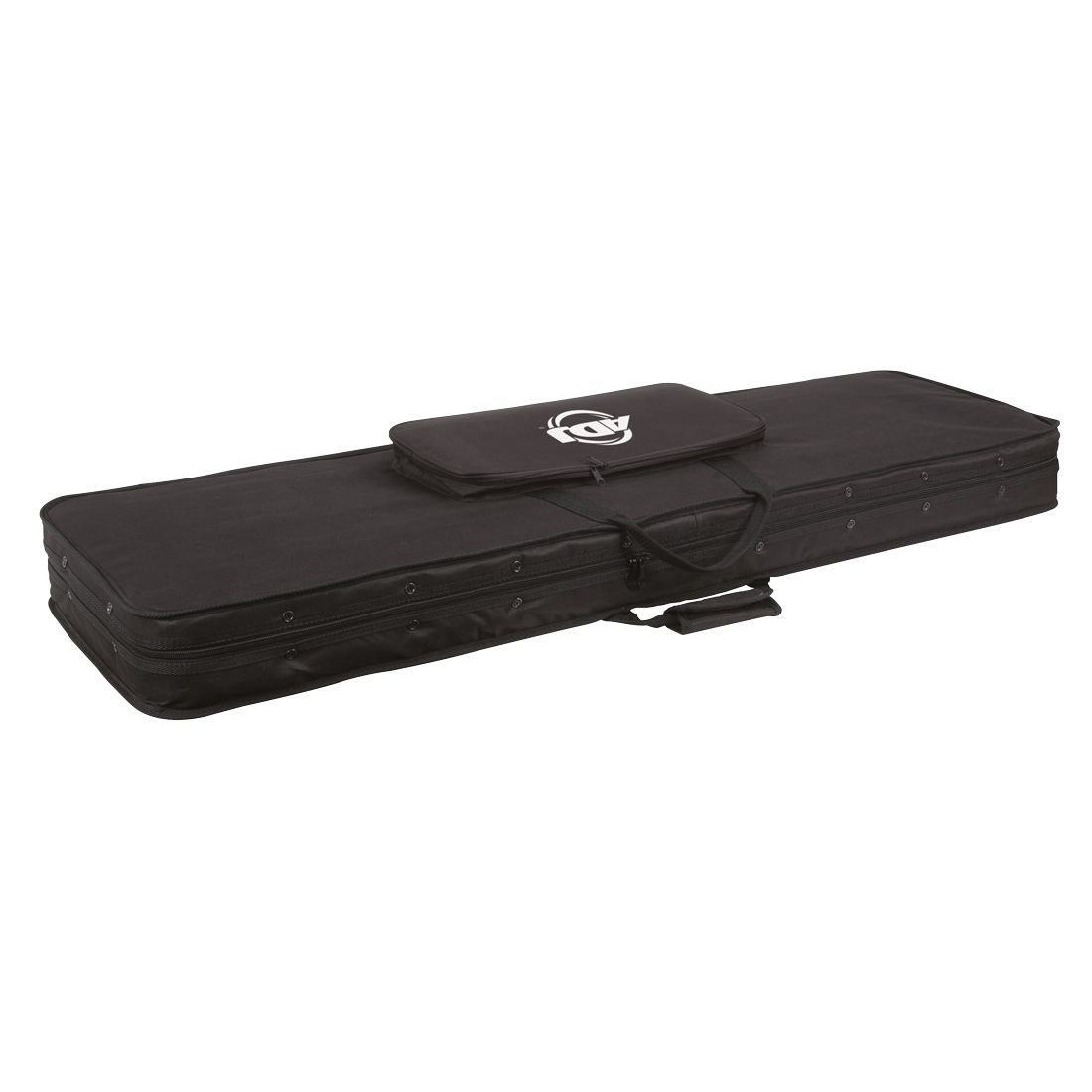

- 1x Soft case for lighting system
Gallery
Specification
- Features:- COB LED Par Wash System with 4 Par fixtures- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color- Smooth RGB Color Mixing (fast or slow color change operation)- Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers- Emits less heat on performers on stage as opposed to conventional stage lighting- 4 Operational modes: Sound Active, Auto Run, Primary/Secondary & DMX Controlled- Pixel Flip option changes pixel orientation- 15 Built-in Programs- 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels- Digital DMX Display with 4-button menu for easy navigation- 3-Pin DMX In/Out- Strobe & Pulse LED Effect- Electronic Dimming: 0-100%- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)- Beam angle: 90-degree- Includes 25-degree beam angle lens kit- Long Life LEDs (Rated at approximately 50,000 hrs.)- Foot Controller Features: Mode, Black Out and Program Change- Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs- LUX @ 3M: 1345- Power Draw: 144W Max (entire system)- 2x power plugs on rear or plug in other lighting fixtures (120V = Edison, 230V = Shuko)- Includes hardware to mount lighting fixtures on top of bar- Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)- Dimensions (LxWxH): 1000 x 285 x 96mm- Weight: 16 kg. (Fixture Bar, Stand & Controller)
