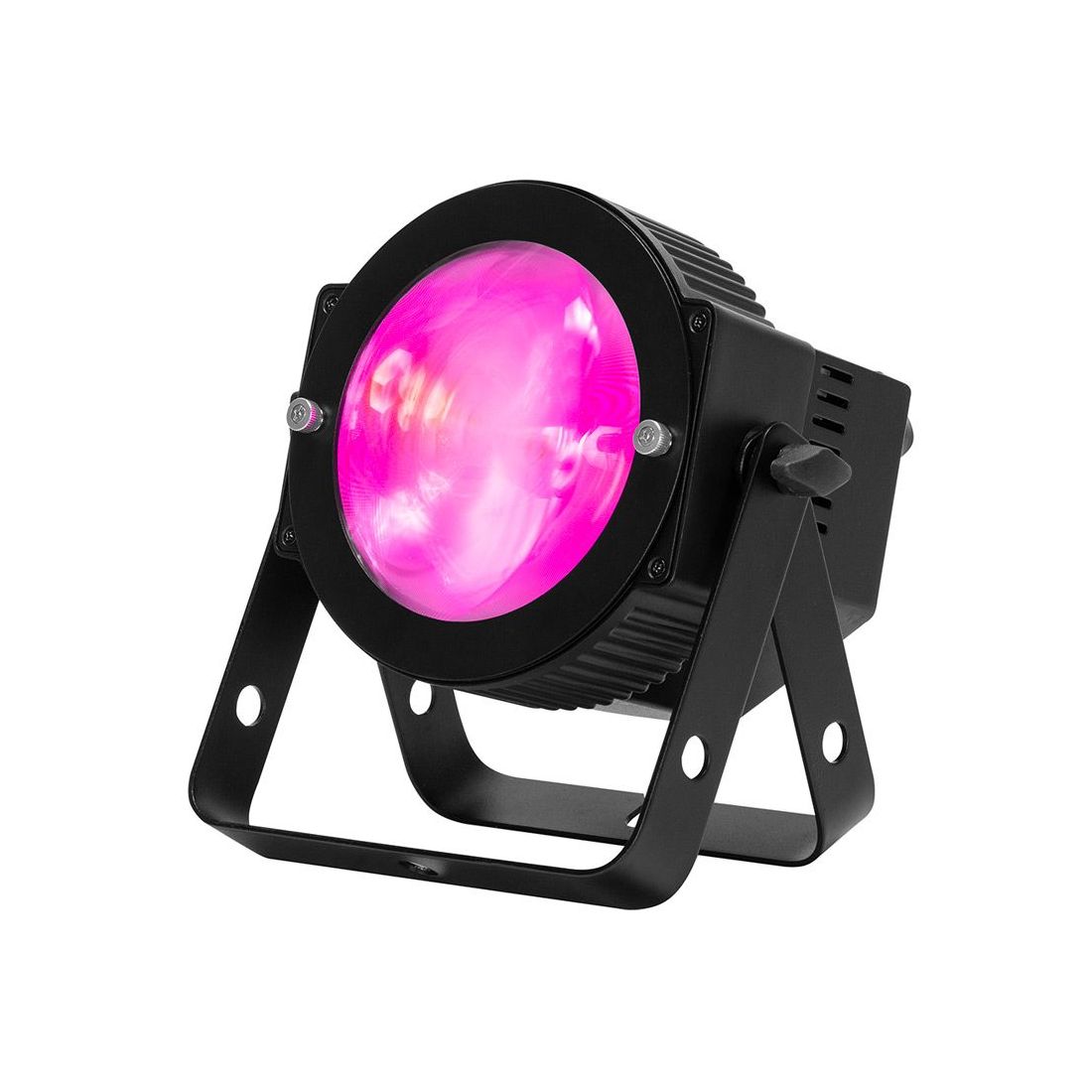

Dotz Par RGBL
New

Brand

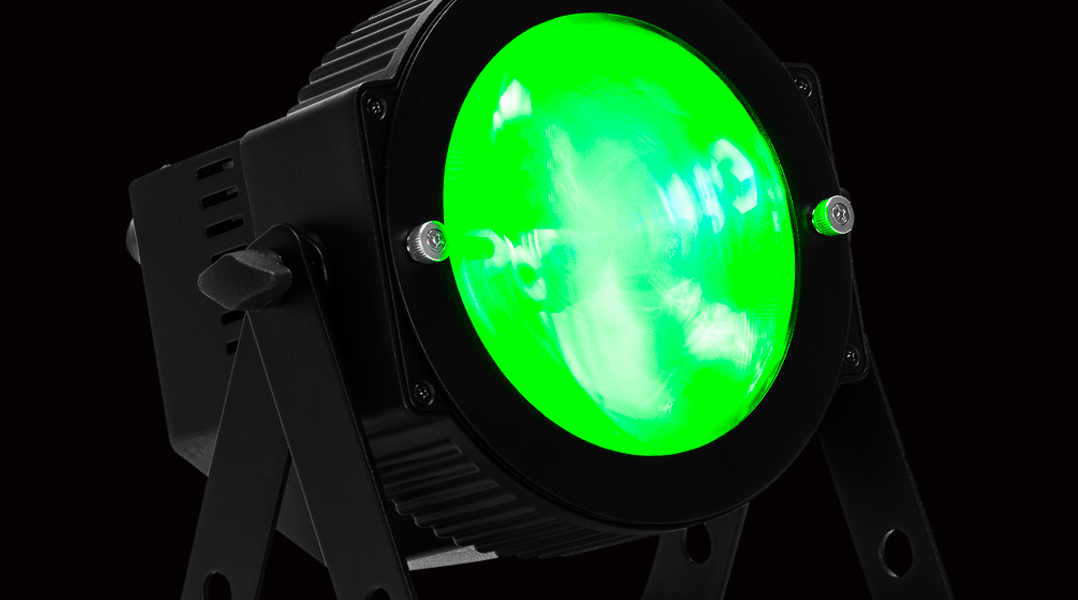

The ADJ Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip On Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of...

Product Information

SKU: 1223200107
GTIN: 810087372835

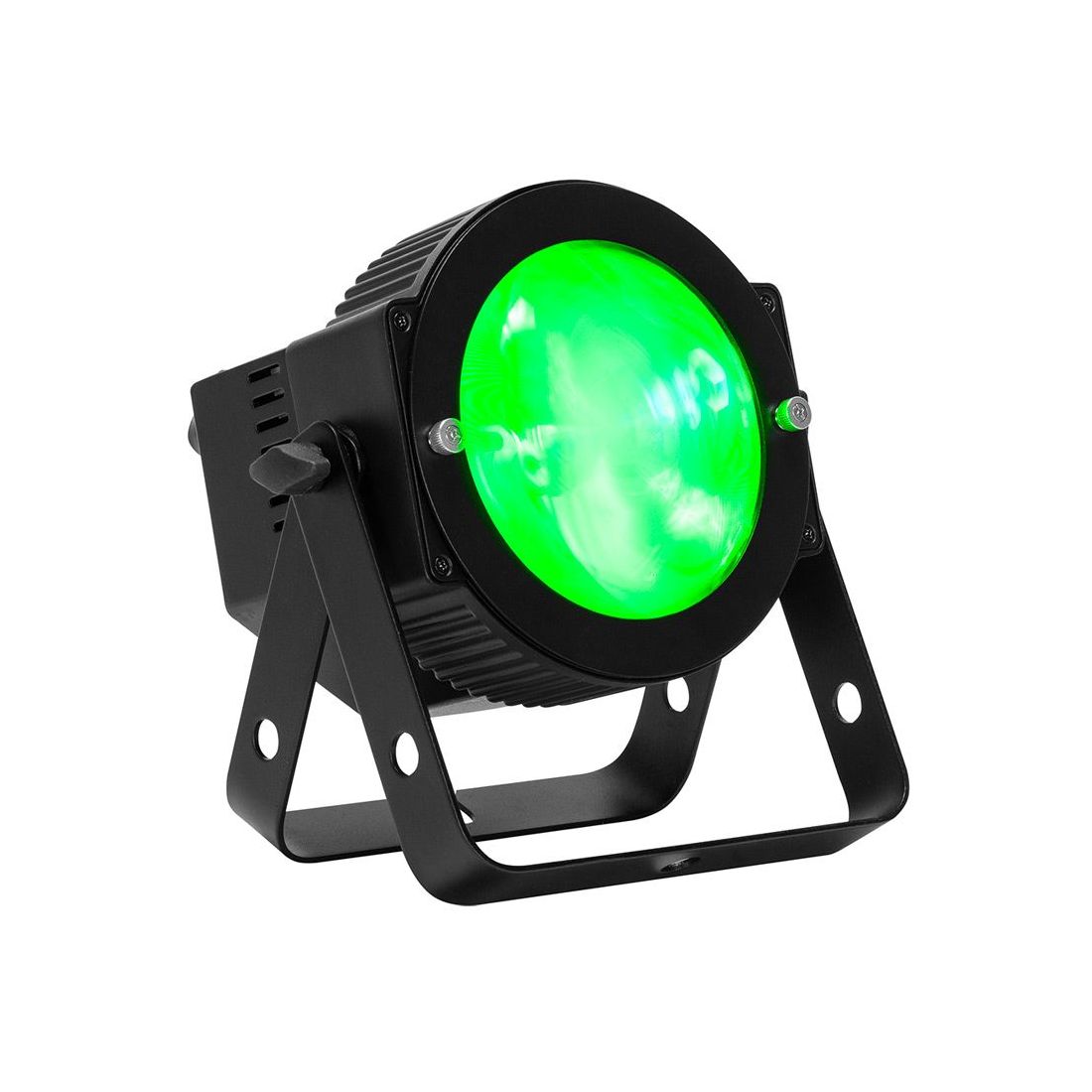

The ADJ Dotz Par RBGL offers lighting designers a brilliant, even wash of light using the highly efficient Chip On Board (C.O.B.) with red, green, blue and lime LED chips. With the addition of lime, the Dotz Par RGBL offers a high CRI output, advanced color mixing, plus linear color temperature color 2700K to 6500K) with built-in preset color temperatures. Additionally, the fixture has 16-Bit fine color control with 64 built-in color macros and a beam output of 35-degrees.

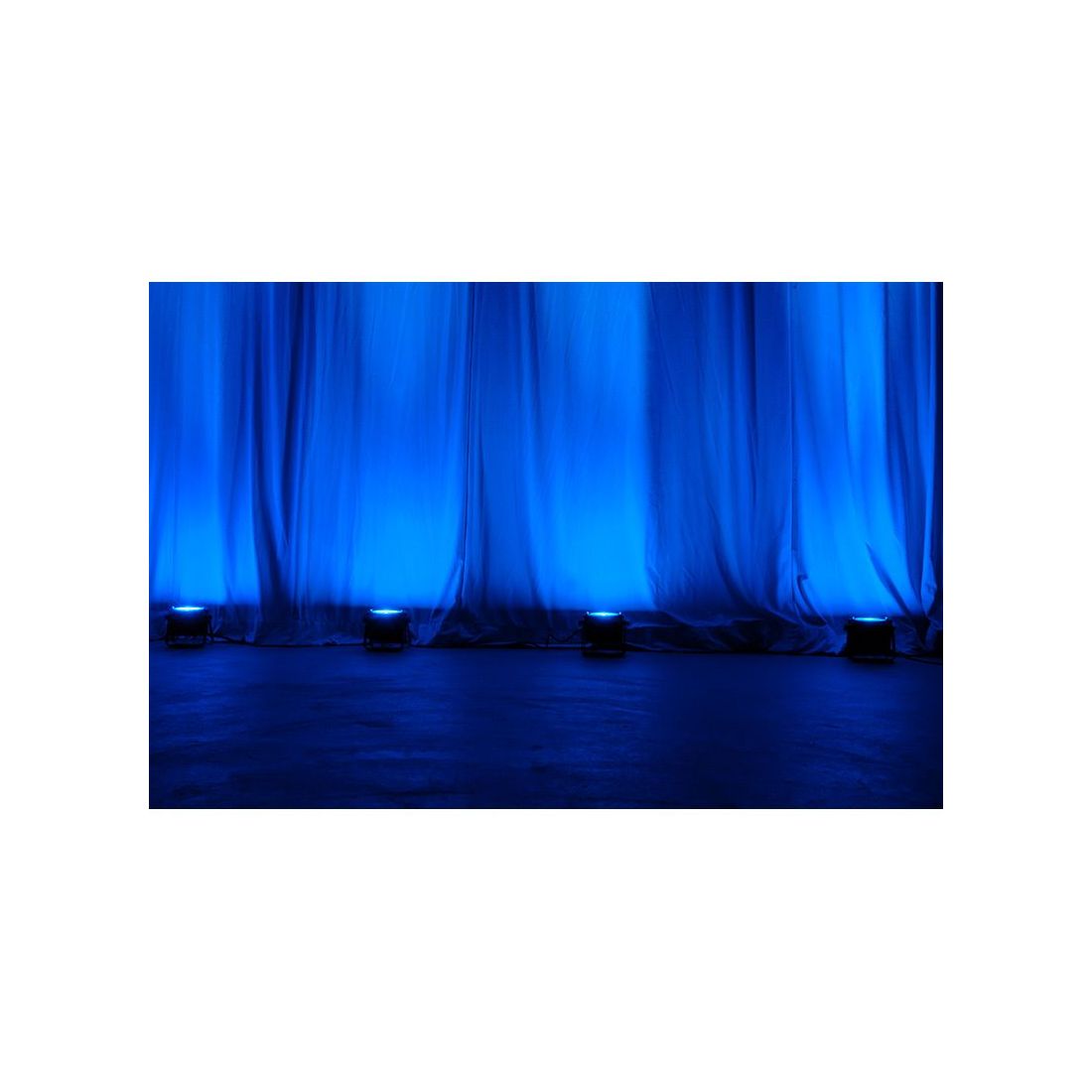

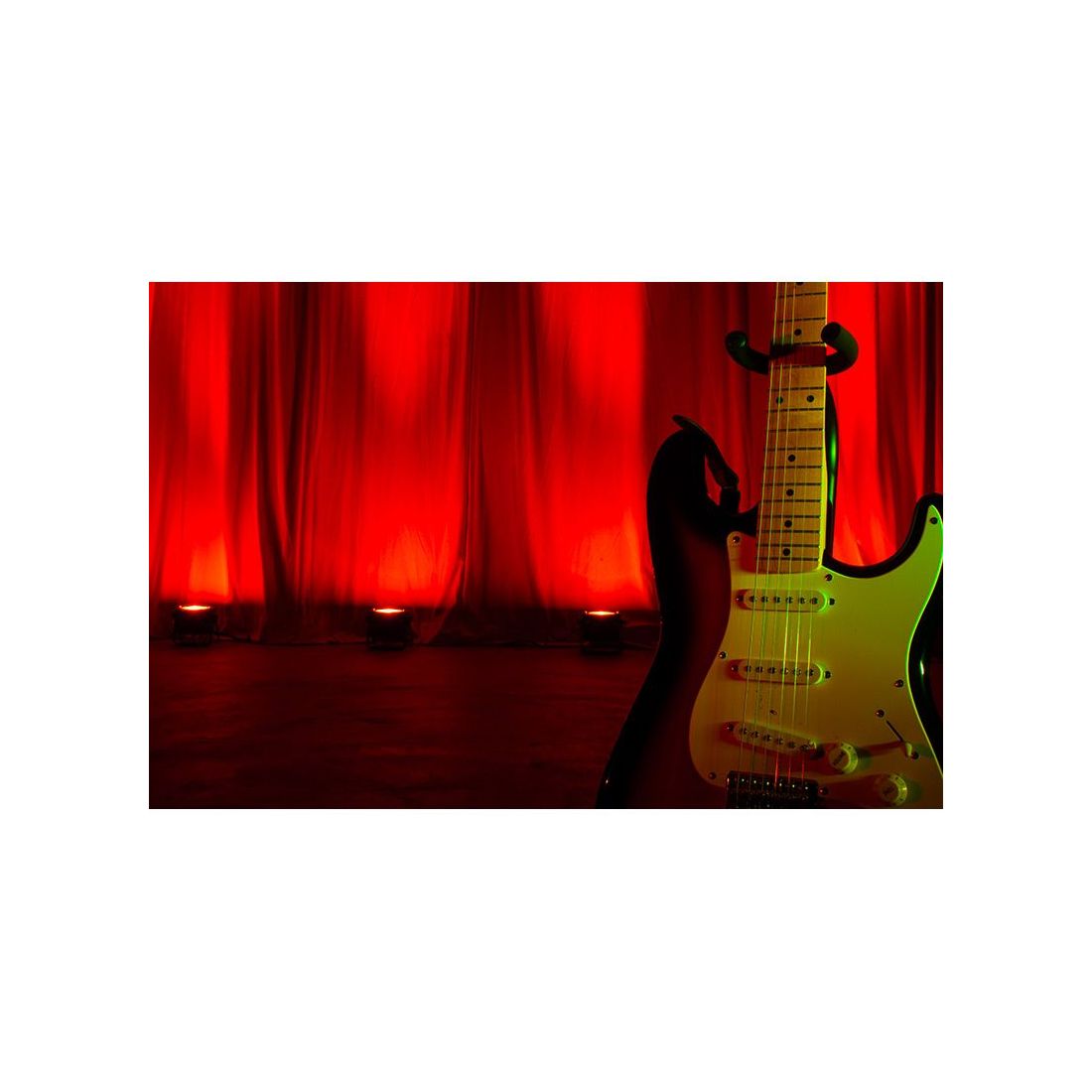

The Dotz Par RGBL has a small footprint and is light in weight making it idea for temporary event production or installation into small stages, churches nightclubs or anywhere entertainment lighting is required. The 4-button, DMX display allows for easy navigating into the fixtures flexible functions. There are 6 operational modes, 6 dimmer curve modes, 4 selectable dim curves and supports DMX and RDM protocols.

The fixture has locking power in and out sockets to daisy chain power, plus 3-pin DMX in/out sockets. The supplied scissor yoke allows for flexible use allowing the fixture to be hung in the air or set on the ground.


Specification

  • • Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
  • • 20,000 Hours Rated Life

  • • CRI: TBA
  • • CRI R9: TBA
  • • Lumens: 1250

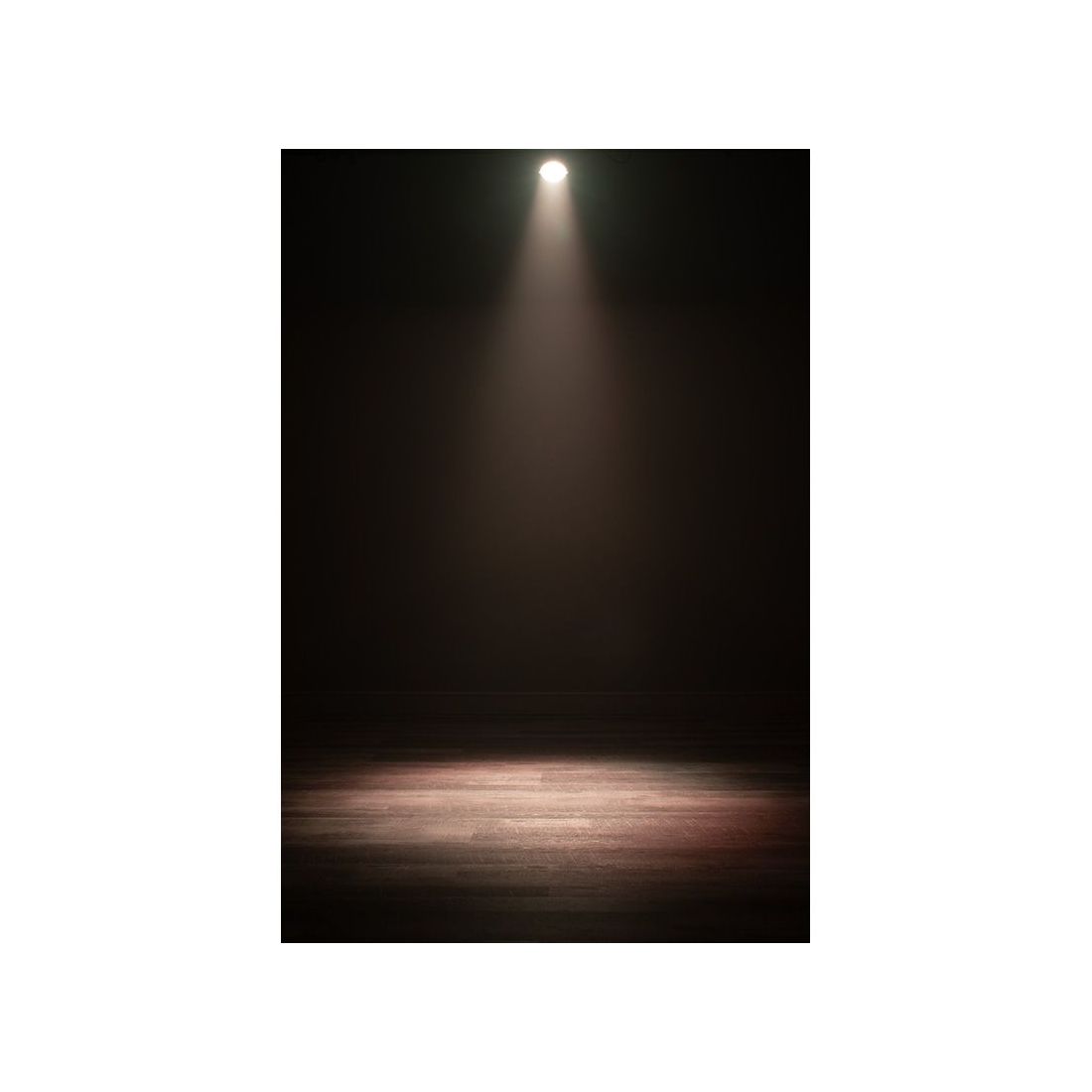

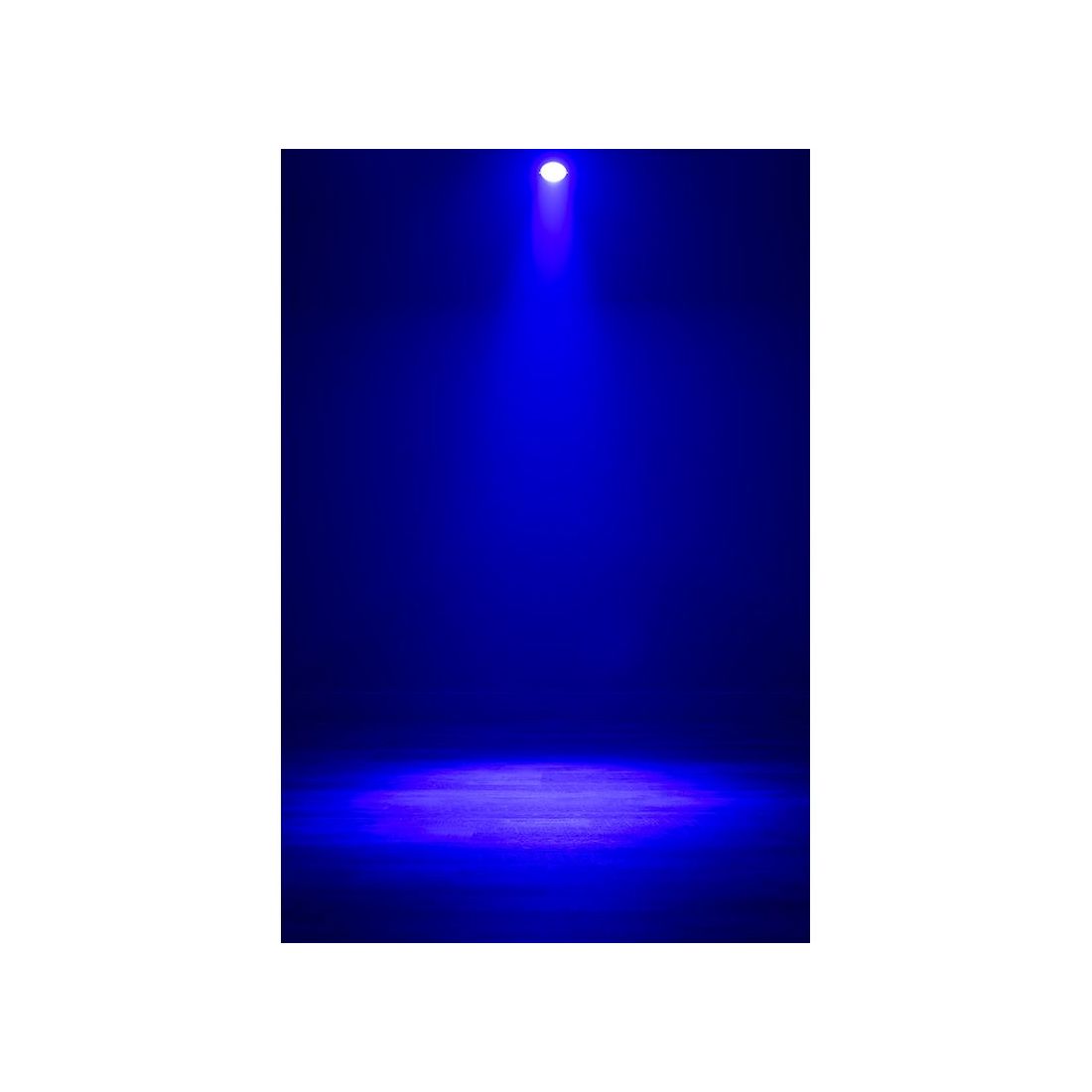

  • • 35° Beam Angle
  • • Linear Color Temperature Control (2700K to 6500K)
  • • Preset Color Temperatures
  • • 16-Bit Fine Color Control (Red, Green, Blue & Lime)
  • • 64 built-in Color Macros

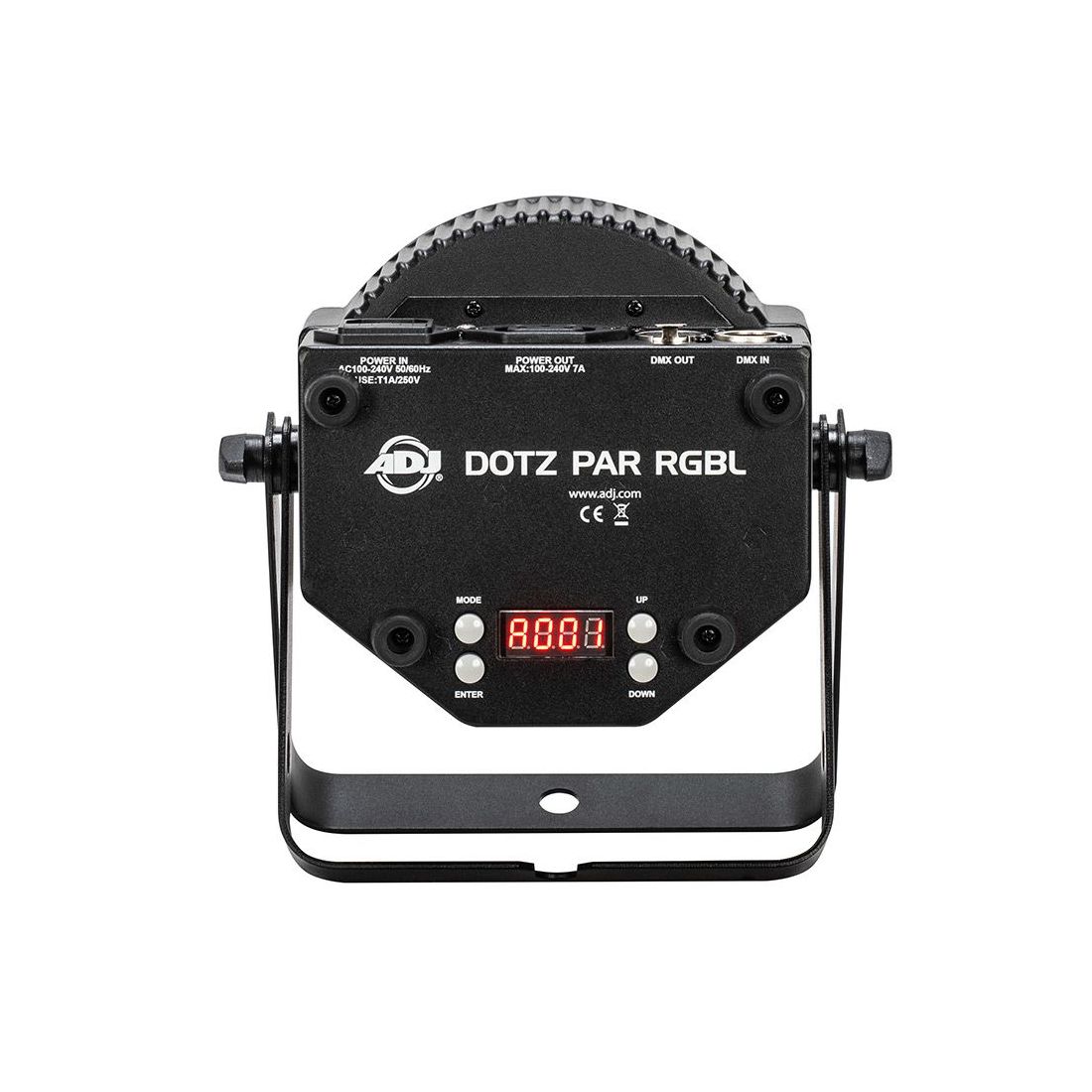

  • • 4-button, DMX digital display on rear panel
  • • 6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
  • • Supports RDM (Remote Device Management)
  • • With Wired Digital Communication Network
  • • 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • • 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
  • • 1200Hz LED Refresh Rate
  • • LED pulse and strobe effect
  • • Electronic Dimming: 0 - 100%

  • • Plastic construction

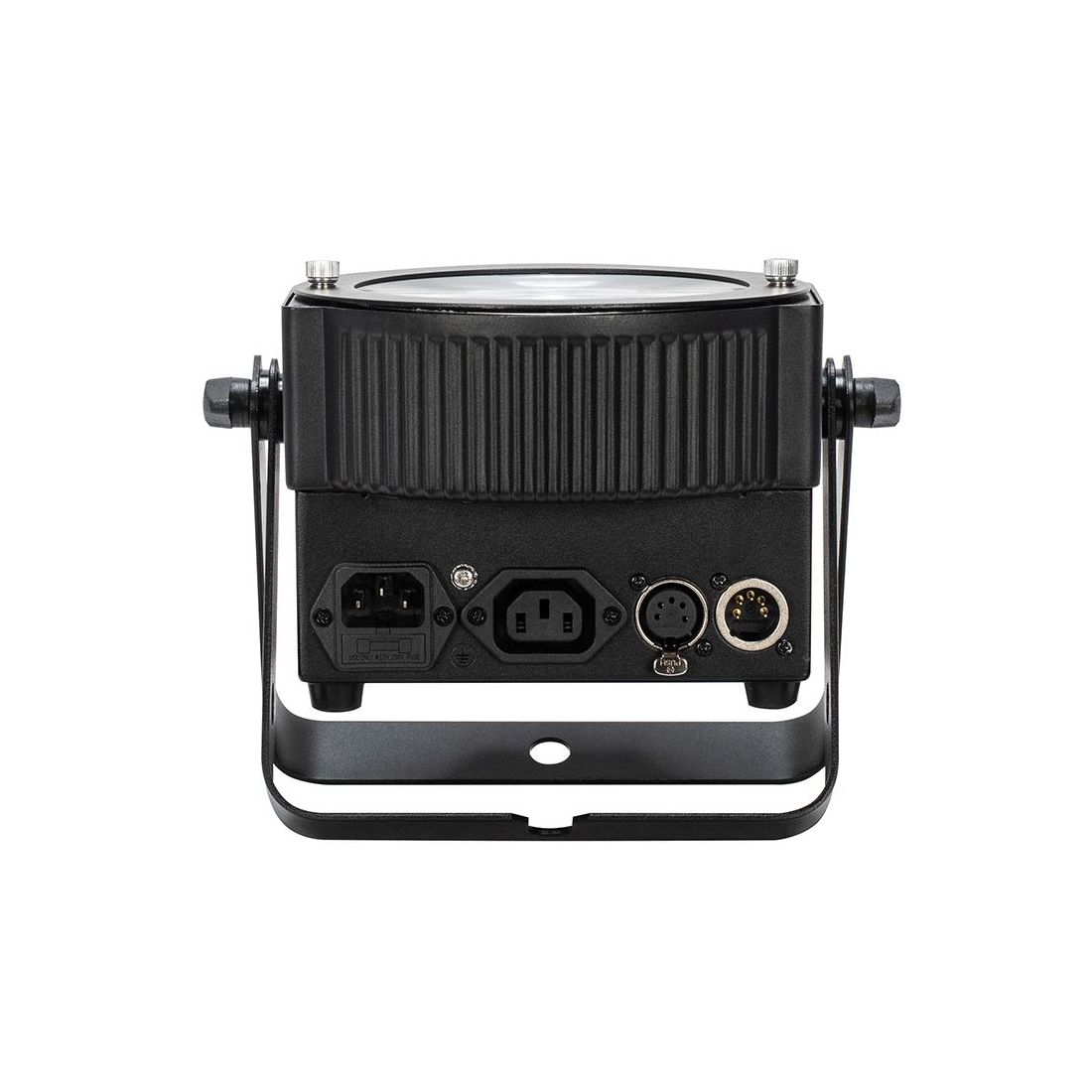

  • • IEC Locking, In/Out Power connectors
  • • Indoor 5-pin, XLR DMX, In/Out sockets
  • • Scissor Yoke

  • • Multi-voltage operation: AC 100-240V, 50/60Hz
  • • Max Power LInk: 30 @120V., 57 @230V.
  • • Max power consumption: 36W
  • • Fuse protected: T1A/250V (5*20mm)

  • • Length: 131.8mm
  • • Width: 209mm
  • • Height: 221.44mm
  • • Weight: 2kg

  • • CE
  • • ETL
  • • CSA
  • • IP20

  • (1) Power Cord
  • (1) Lens Kit
Specifications subject to change without notice
