Dotz Par 100 Select Archive
Product Information

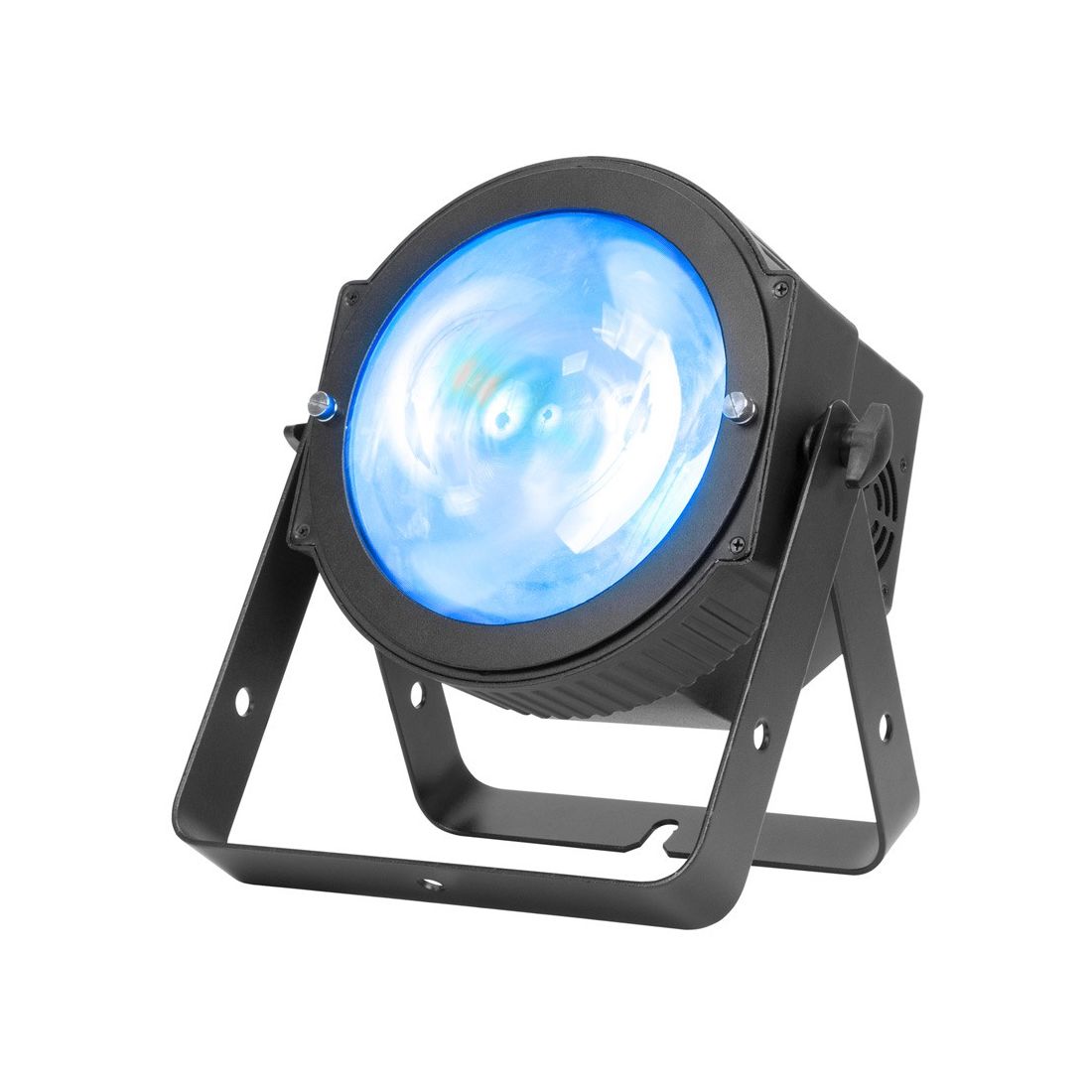

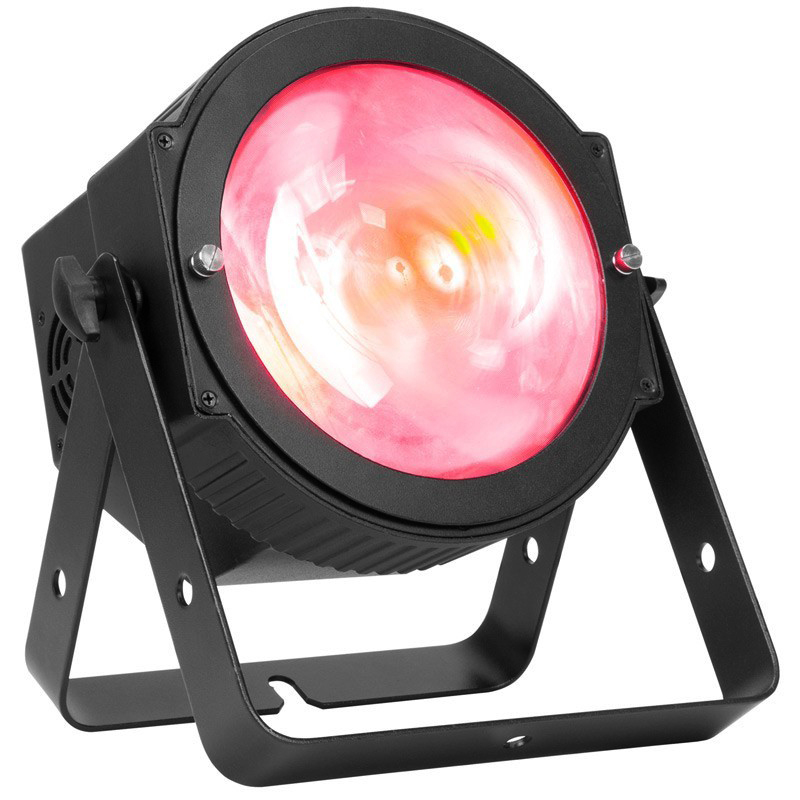

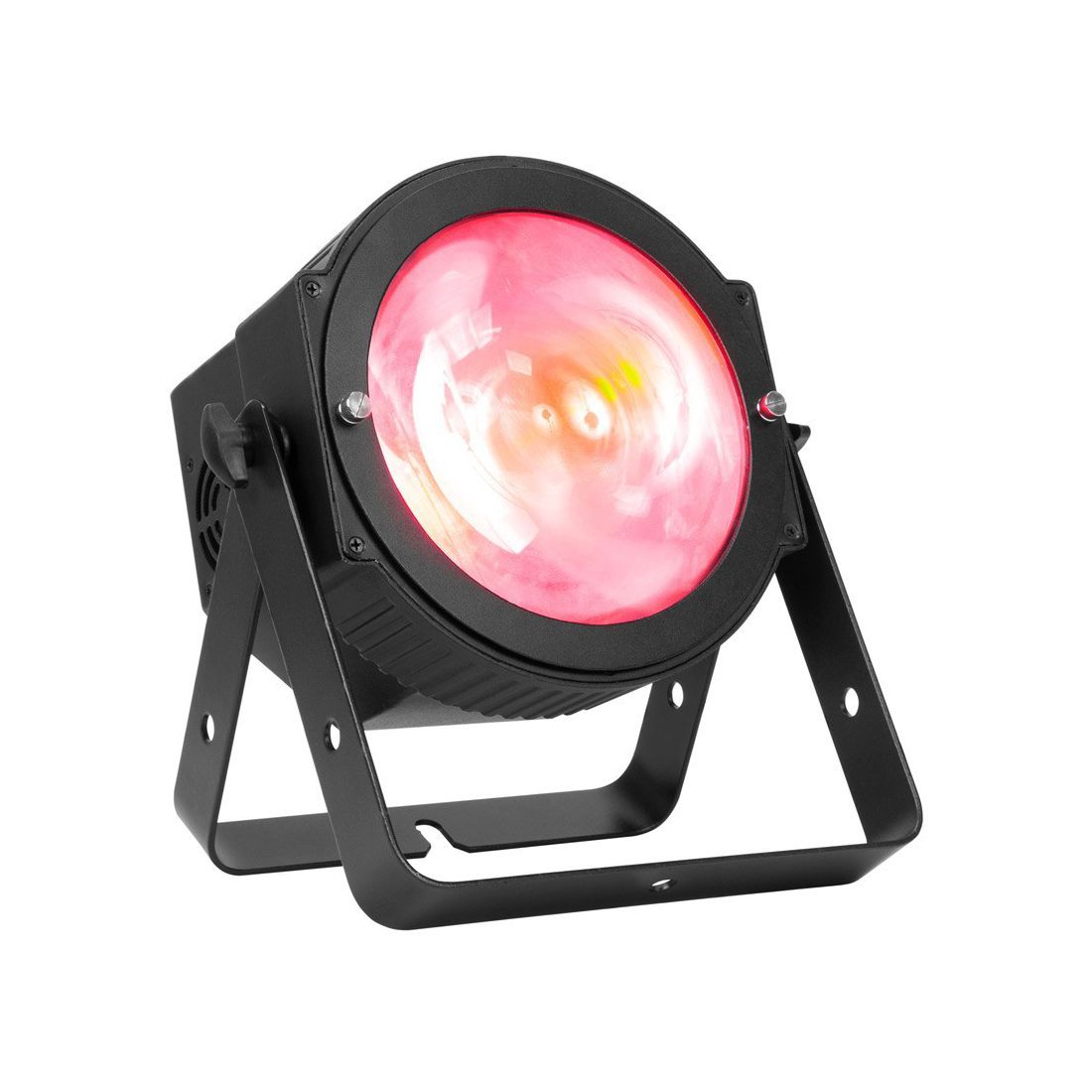

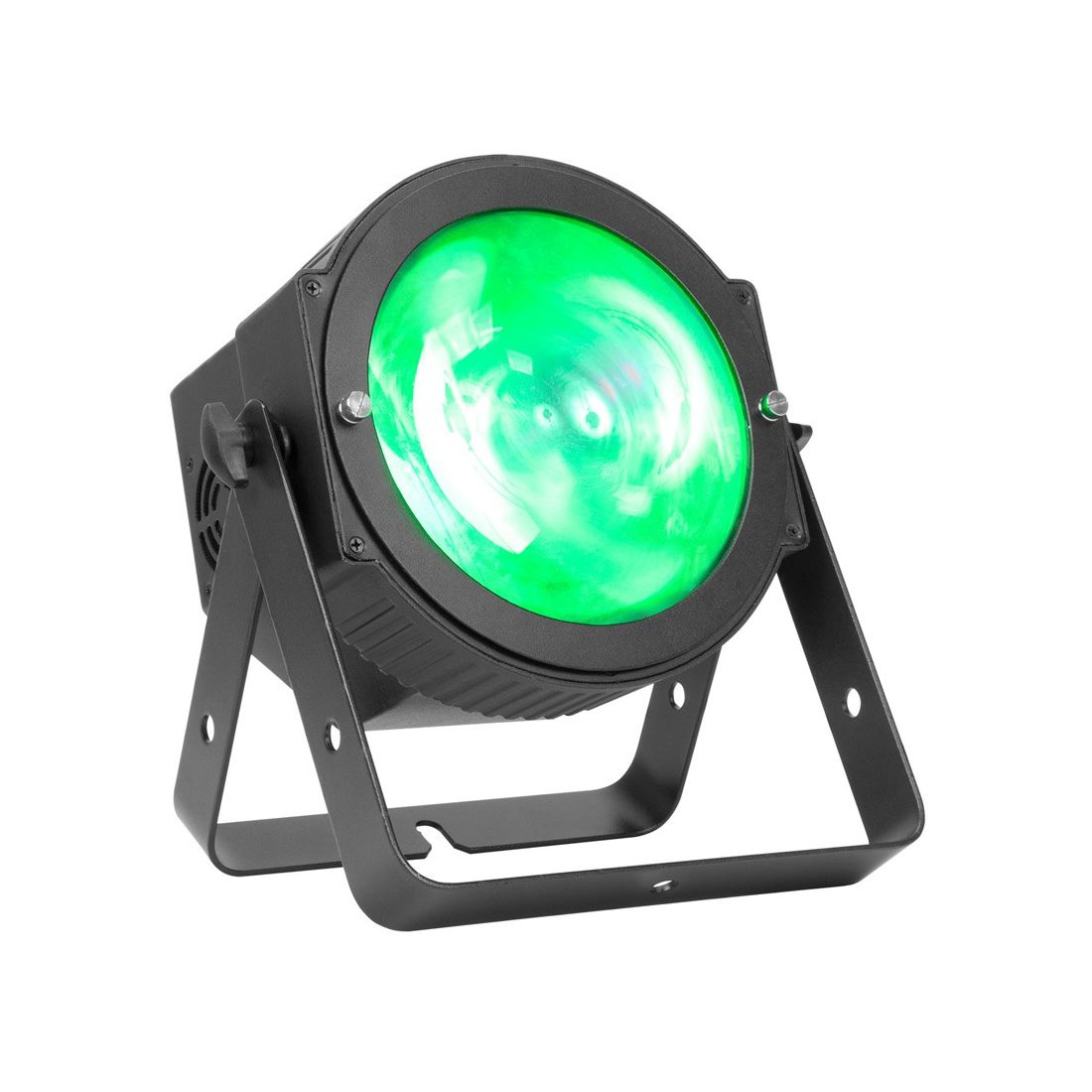

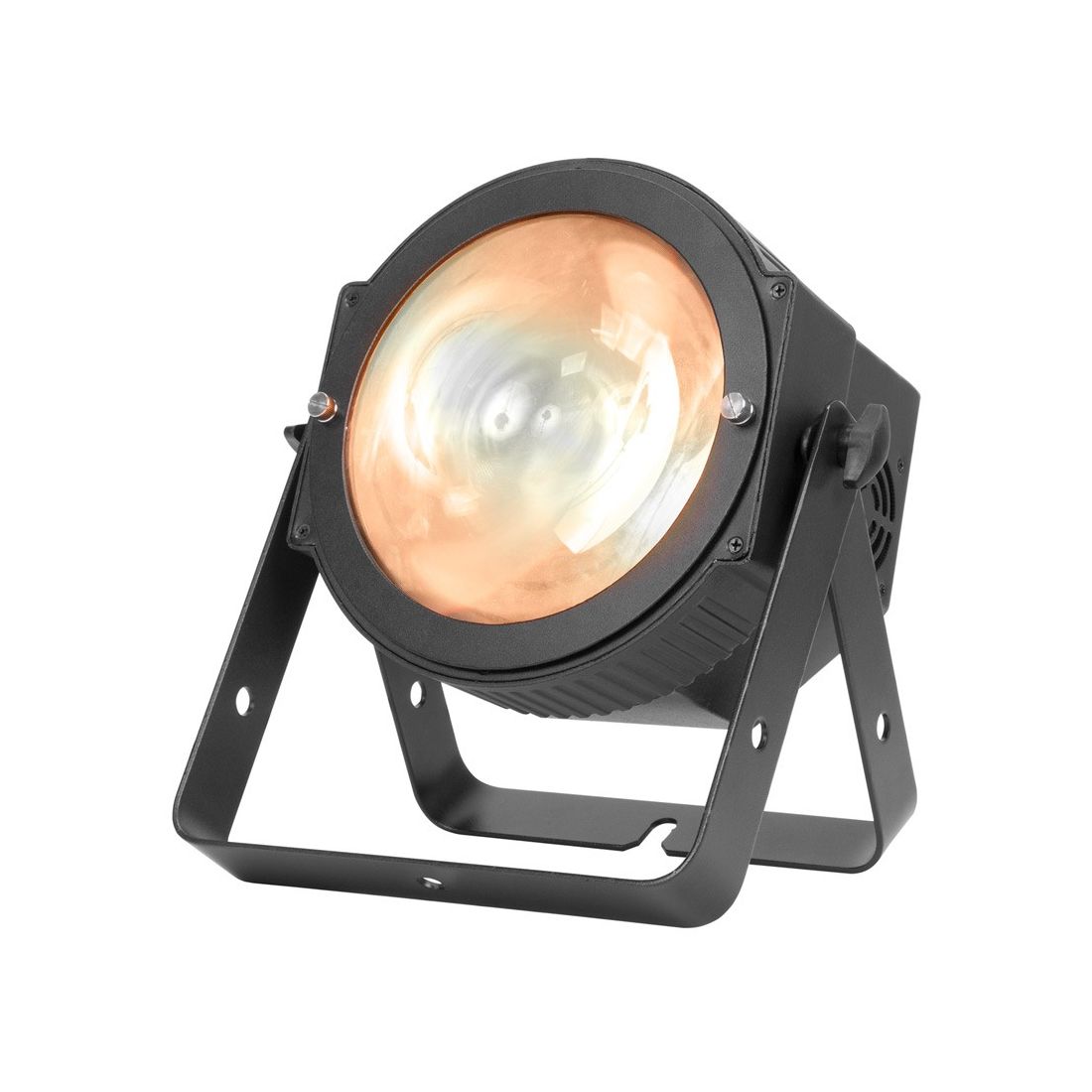

The ADJ Dotz Par 100 uses advanced COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGB shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the Dotz Par 100 is a TRI 100W (3-In-1).
The Dotz Par 100 produces wash of 80-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 32 built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Dotz Par RF wireless remote control.
Gallery
Specification
- • Light Source: 1 RGB COB-LED (Red, Green, Blue)
- • LED wattage : 100W
- • Average LED lifetime : approximately 50,000 hrs.
- • Beam Angle: 80 degrees
- • Additional lense included : 25 degrees
- • 5 operational Modes : Manual RGB dimmer Mode, AutoRUn Mode, Sound Active, Color Macro Mode and DMX
- Control
- • 4 DMX Modes: 3, 4, 5 & 9-channel
- • 32 Color Macros
- • Electronic Dimming: 0 - 100%
- • 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
- • LED refresh Rate : 3600Hz
- • LED pulse and strobe effect

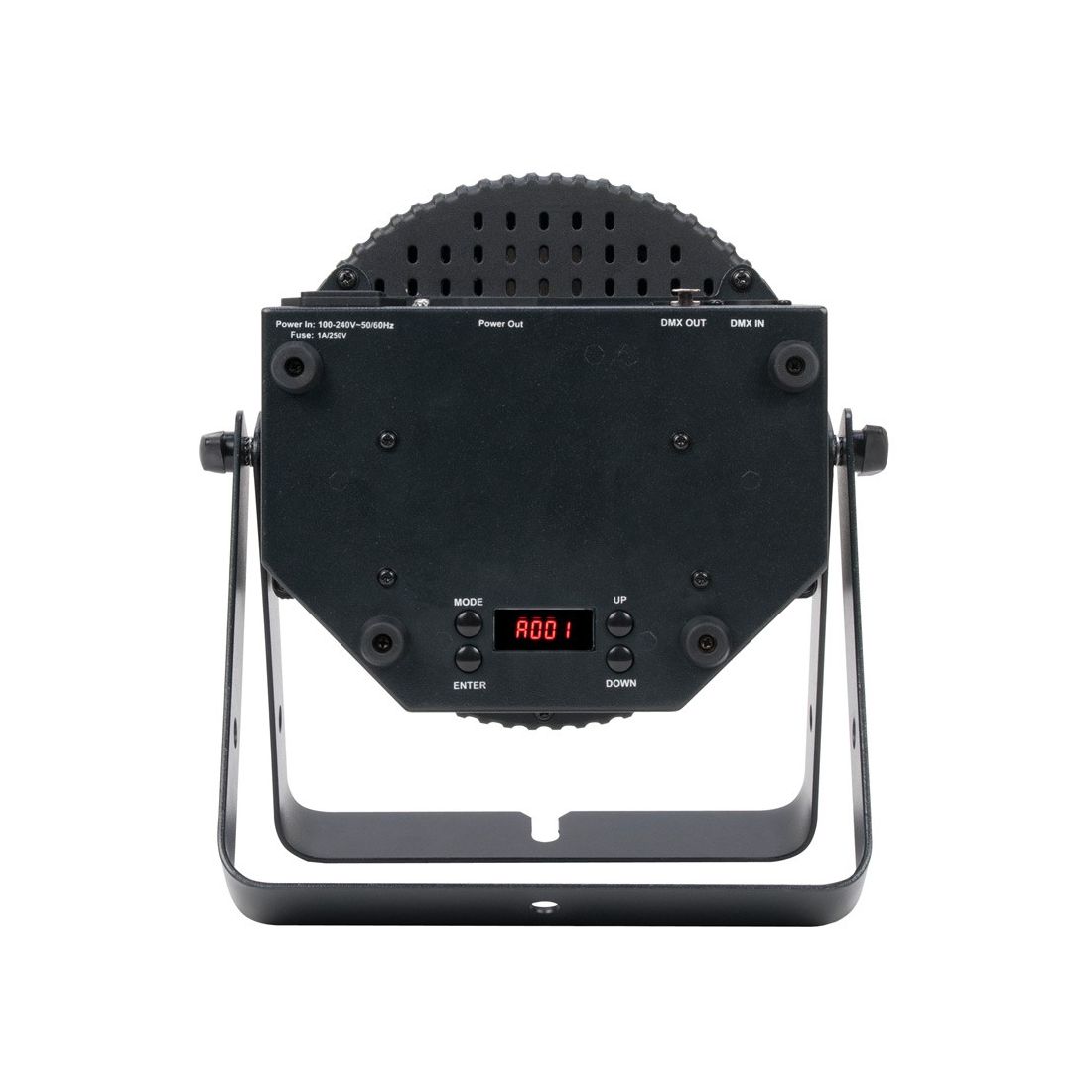

- • 4-button, DMX digital display on rear panel
- • Optional Dotz PAR RF Remote available (order code 1223200035)
- • RGB Color Mixing
- • Black Housing
- • Scissor Yoke
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 115W
- • 3-pin Locking DMX connectors
- • IEC Power In/Out connections
- • Dimensions (LxWxH): 255 x 284 x 120mm
- • Weight: 3,1 kg.

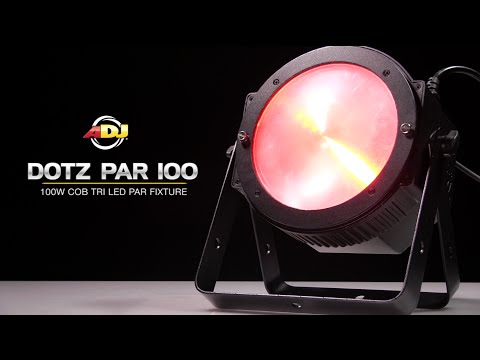

Videos
