Key Features

Optics
Optics
• 80° beam angle
• Includes lens kit to change to 40° or 50° beam angle
Source
Source
• 1x 150-Watt RGBA COB LED

Product Information

SKU: 1223200052
GTIN: 818651025712
HS-Code: 9405409989

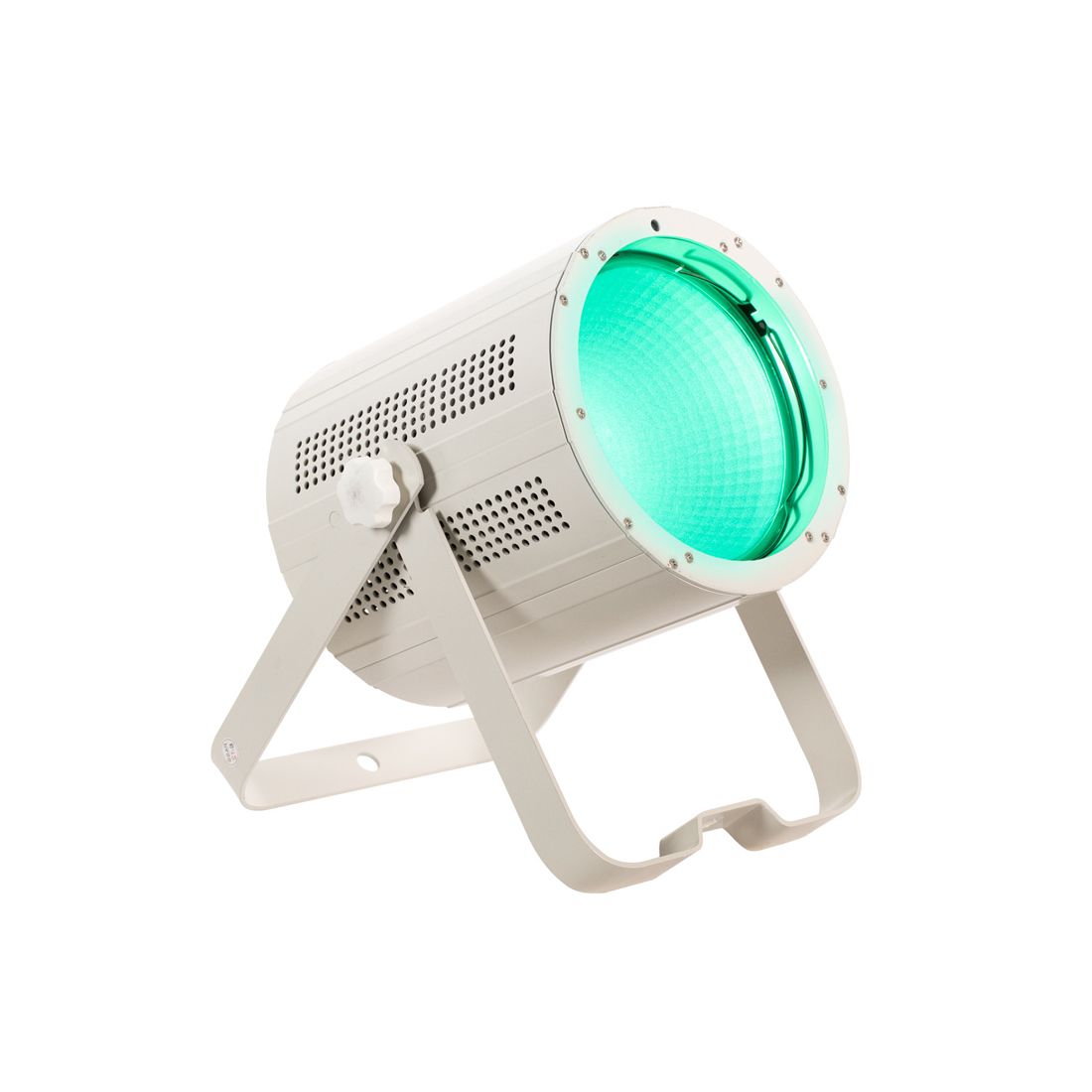

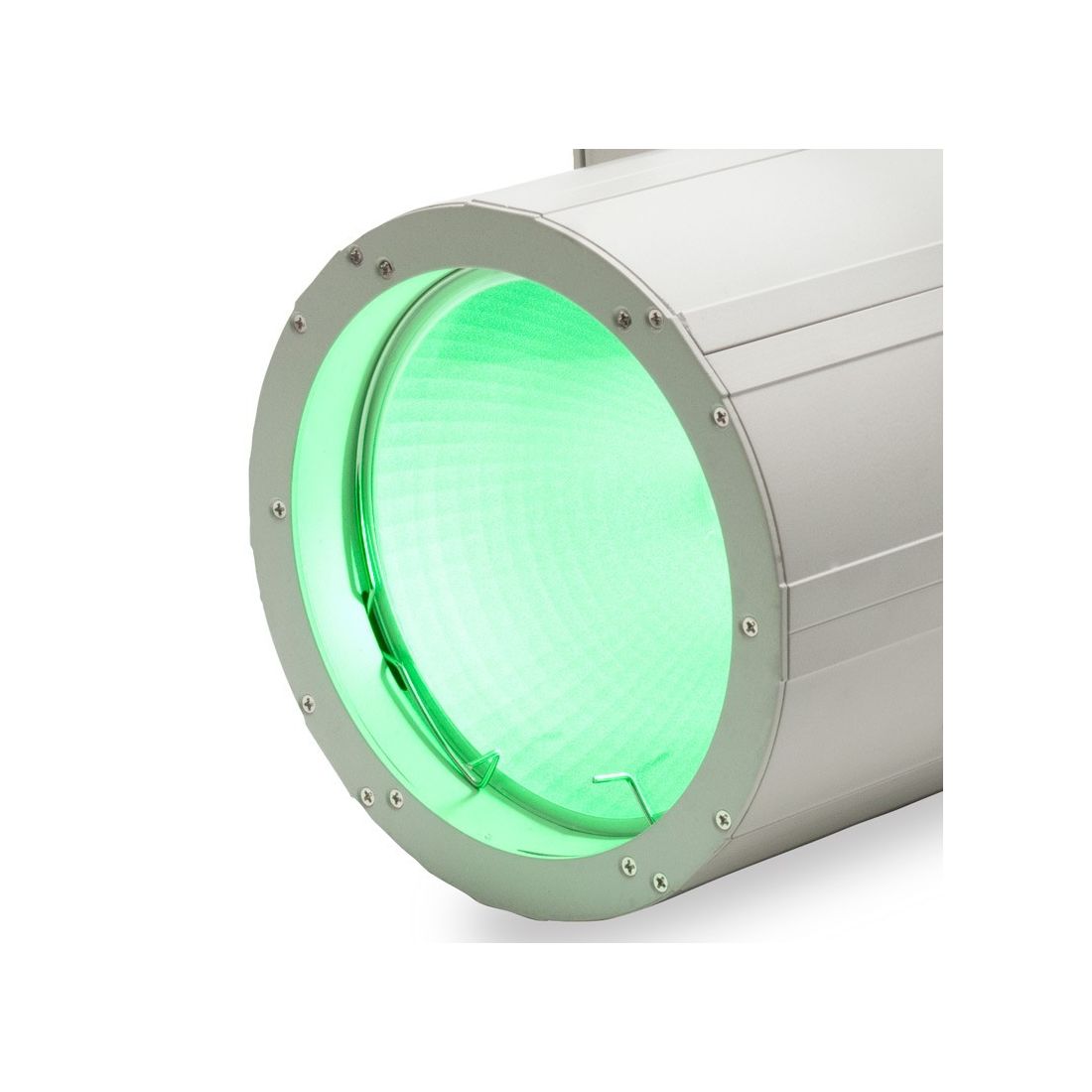

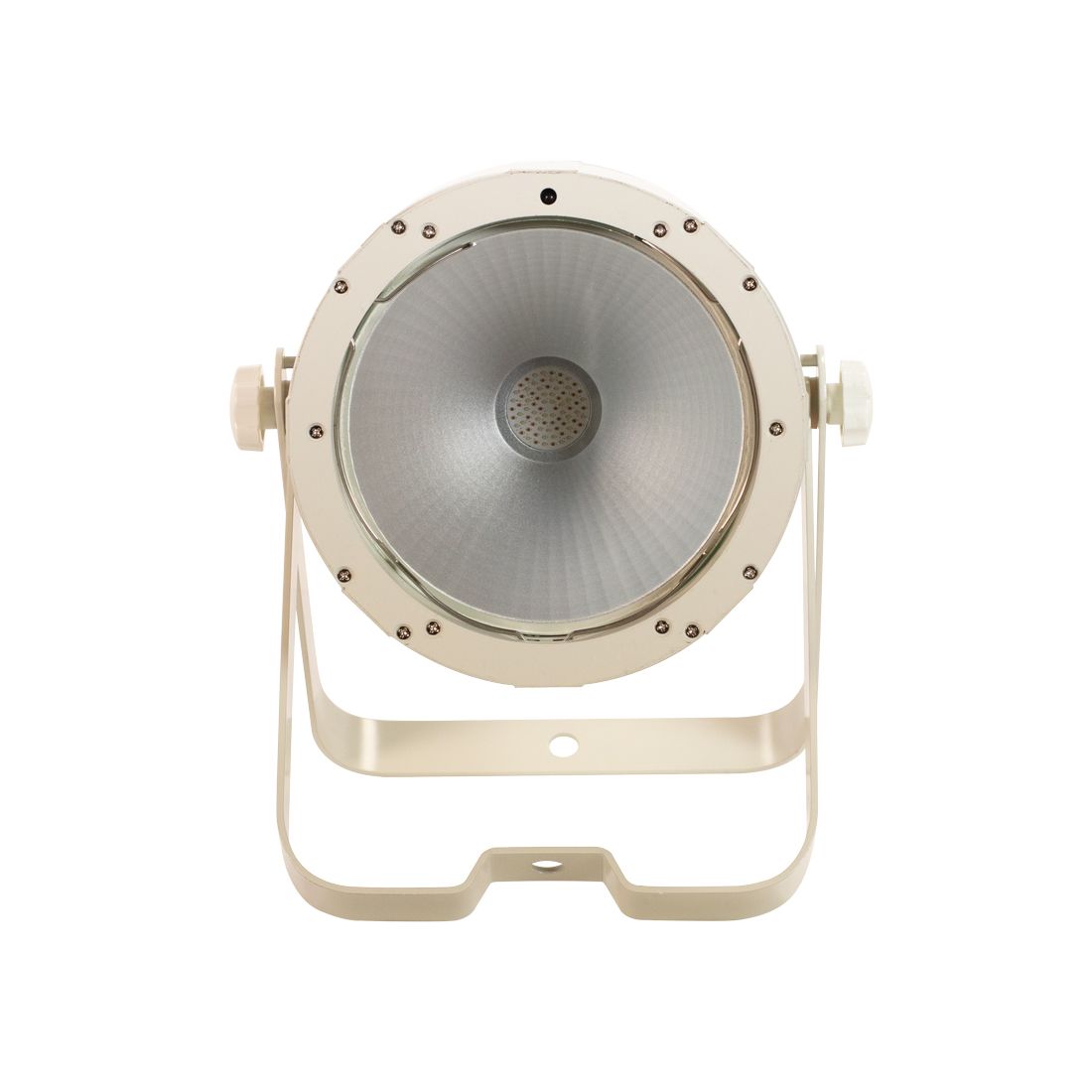

The ADJ COB Cannon Wash ST Pearl is a shorter version of the popular COB Cannon Wash Pearl fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of retail stores, stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1. It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

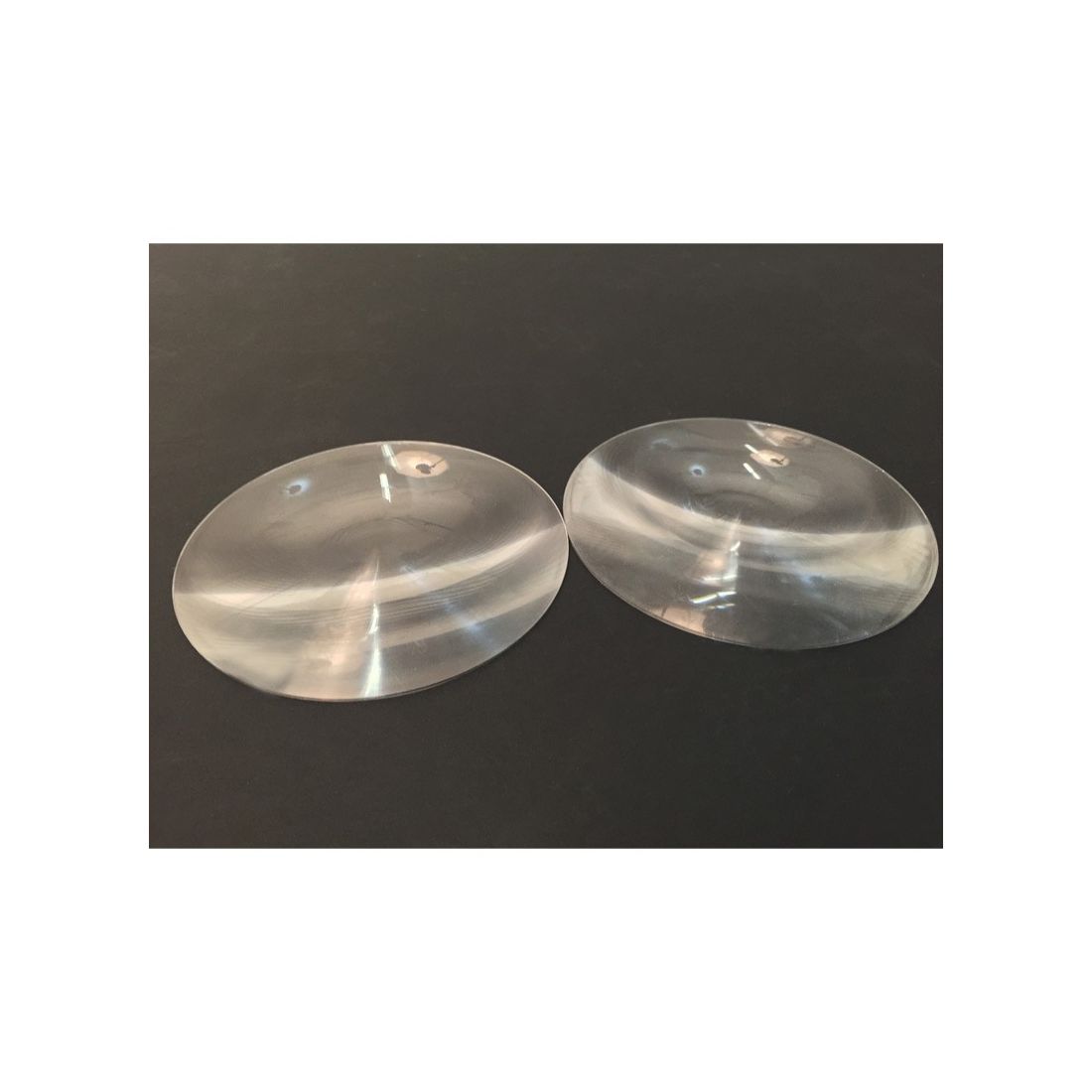

The COB Cannon Wash ST Pearl comes in a white housing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lenses are included so that the beam angle may be changed.

It has 8 DMX Channel modes for programming flexibility, built-in color macros and 6 selectable Dim Curves. The fixture has many pro features such as: 16bit 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3- & 5-pin DMX and Locking Power power daisy-chaining and a 4-button DMX display. COB Cannon Wash ST Pearl may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.

Gallery

Specification

  • • Light Source: 1 RGBA COB-LED (Red, Green, Blue & Amber)
  • • LED wattage : 150W
  • • Average LED lifetime : approximately 50,000 hrs.

  • • Beam Angle: 80 degrees
  • • 2 additional lenses included : 40 degrees & 50 degrees
  • • Optional White Barndoors (order Code 1223200048)

  • • 5 operational Modes : Manual RGBA dimmer Mode, AutoRUn Mode, Sound Active, Color Macro Mode and DMX
  • Control
  • • 8 DMX Modes: 3, 4, 6, 7, 8, 8A, 10 & 11-channel
  • • RDM compatible
  • • 63 Color Macros
  • • 16bit Electronic Dimming: 0 - 100%
  • • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • • LED refresh Rate : 1000Hz
  • • LED pulse and strobe effect

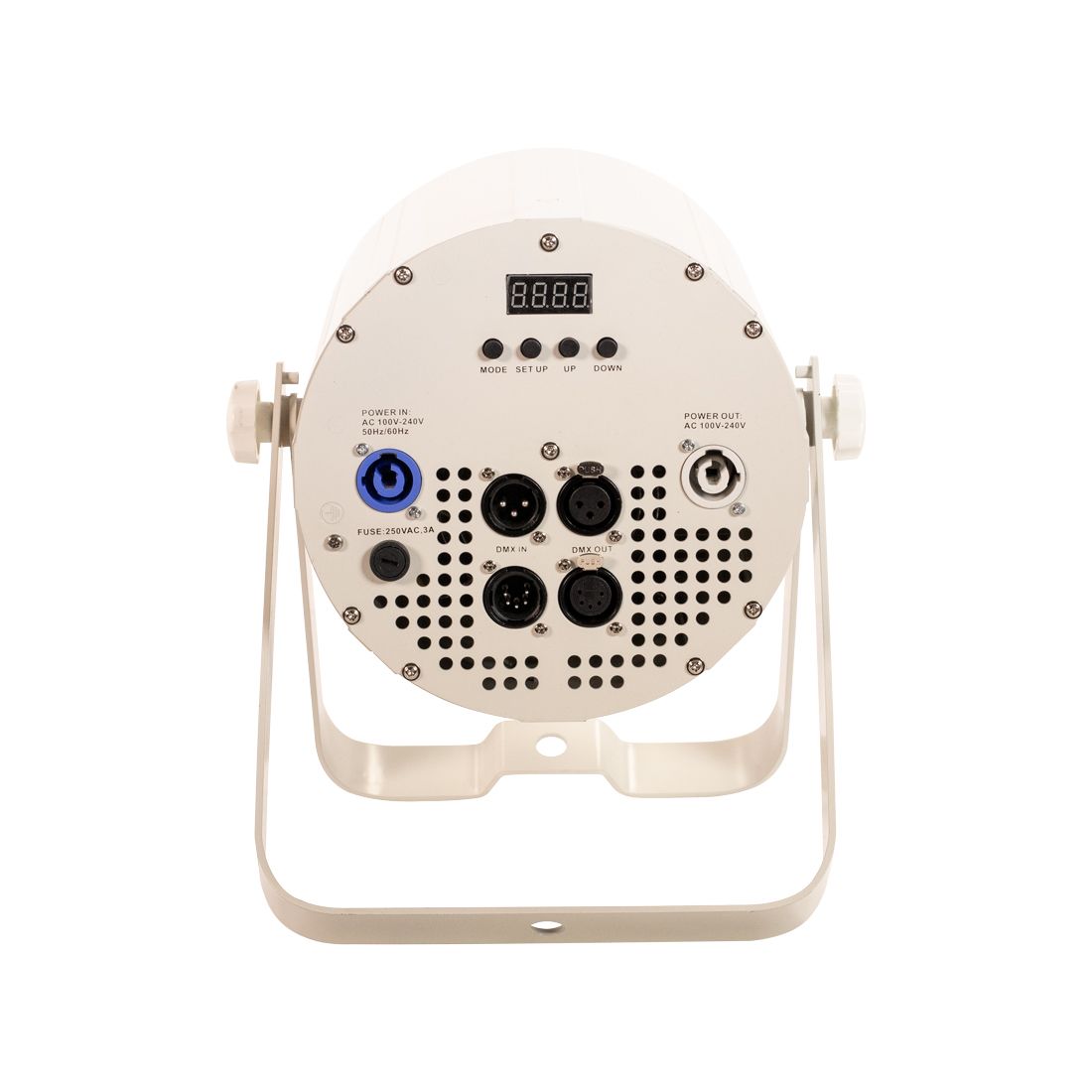

  • • 4-button, DMX digital display on rear panel

  • • RGBA Color Mixing

  • • White Metal Housing

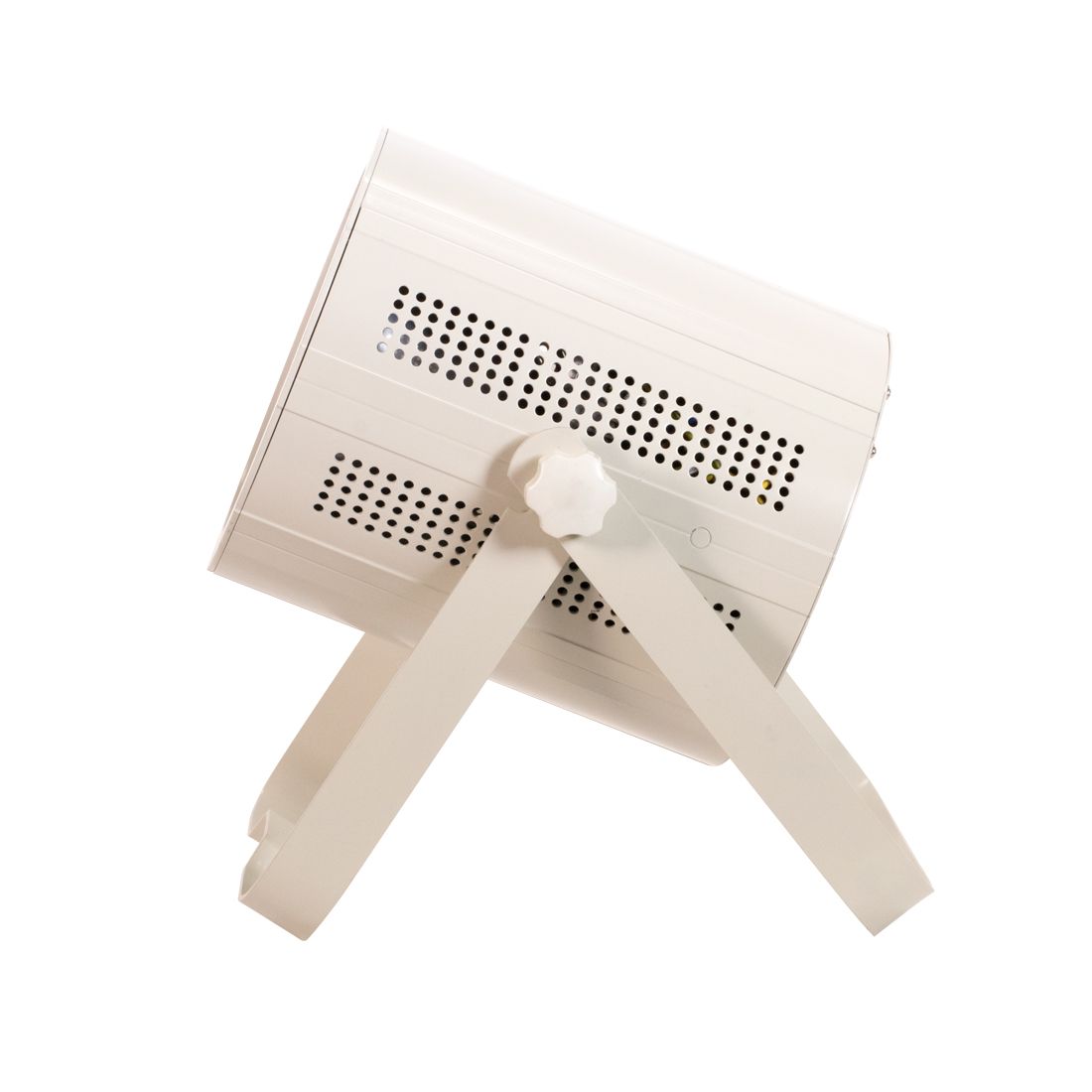

  • • Scissor Yoke

  • • Multivoltage 100-240V 50/60Hz
  • • Power Consumption: 148W

  • • 3 & 5-pin Locking DMX connectors
  • • Locking Power In/Out connections

  • • Dimensions (LxWxH): 330 x 256 x 190mm
  • • Weight: 4,2 kg.
