COB Cannon Wash ST DW Select Archive
Key Features
• 80° beam angle
• Includes lens kit to change to 40° or 50° beam angle
• Stepless CW/WW Color Mixing 2700K-6000K
• 1x 150-Watt CW/WW COB LED
• Light Output: 891 LUX @3M/40°/Full On, 711 LUX @3M/50°/Full On, 410 LUX @3M/80°/Full On
• CRI: 97.2
Product Information

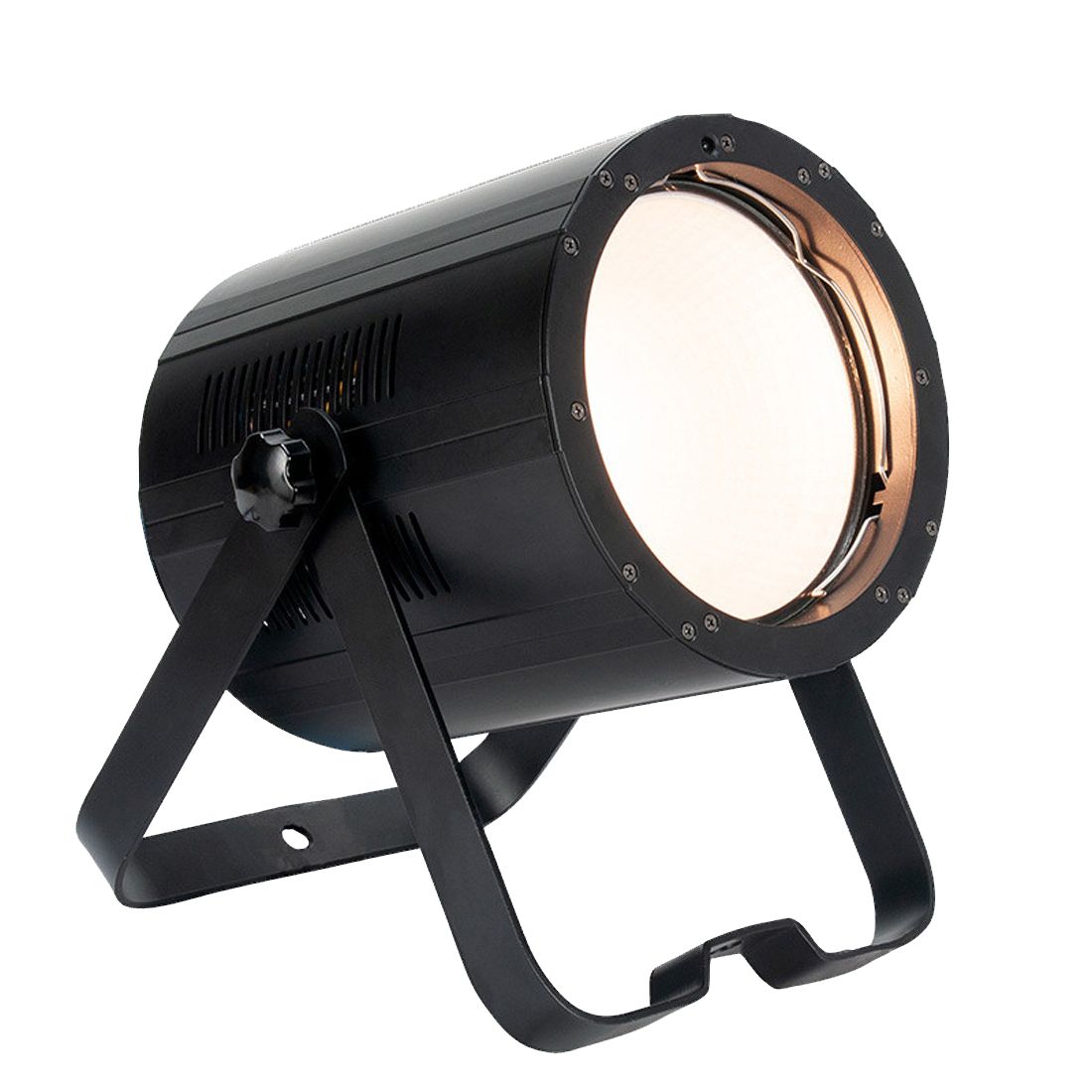

The ADJ COB Cannon Wash ST DW is a shorter version of the popular COB Cannon Wash DW fixture. It uses advanced Warm White / Cool White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no WW/CW shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST DW is a dual WW/CW 2-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

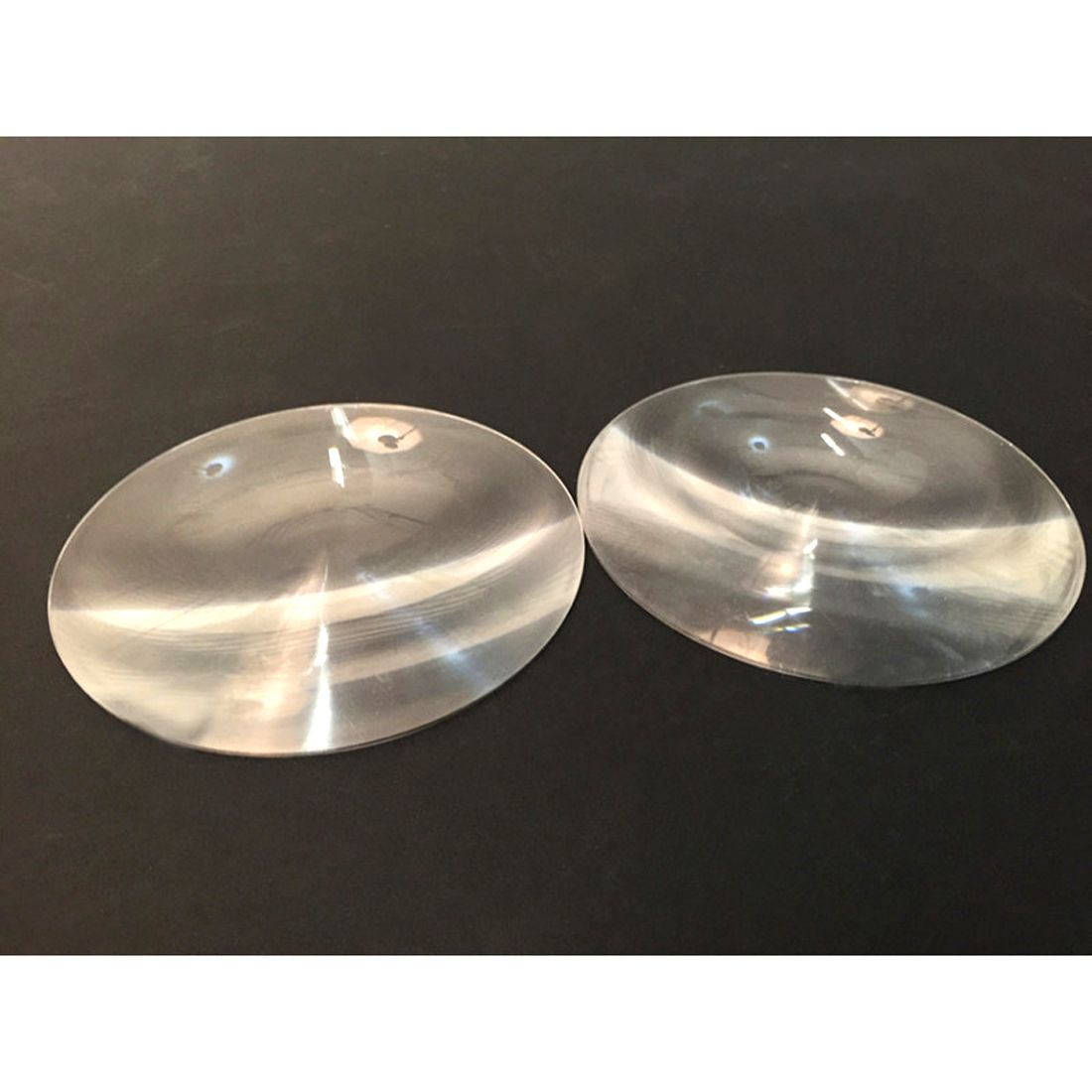

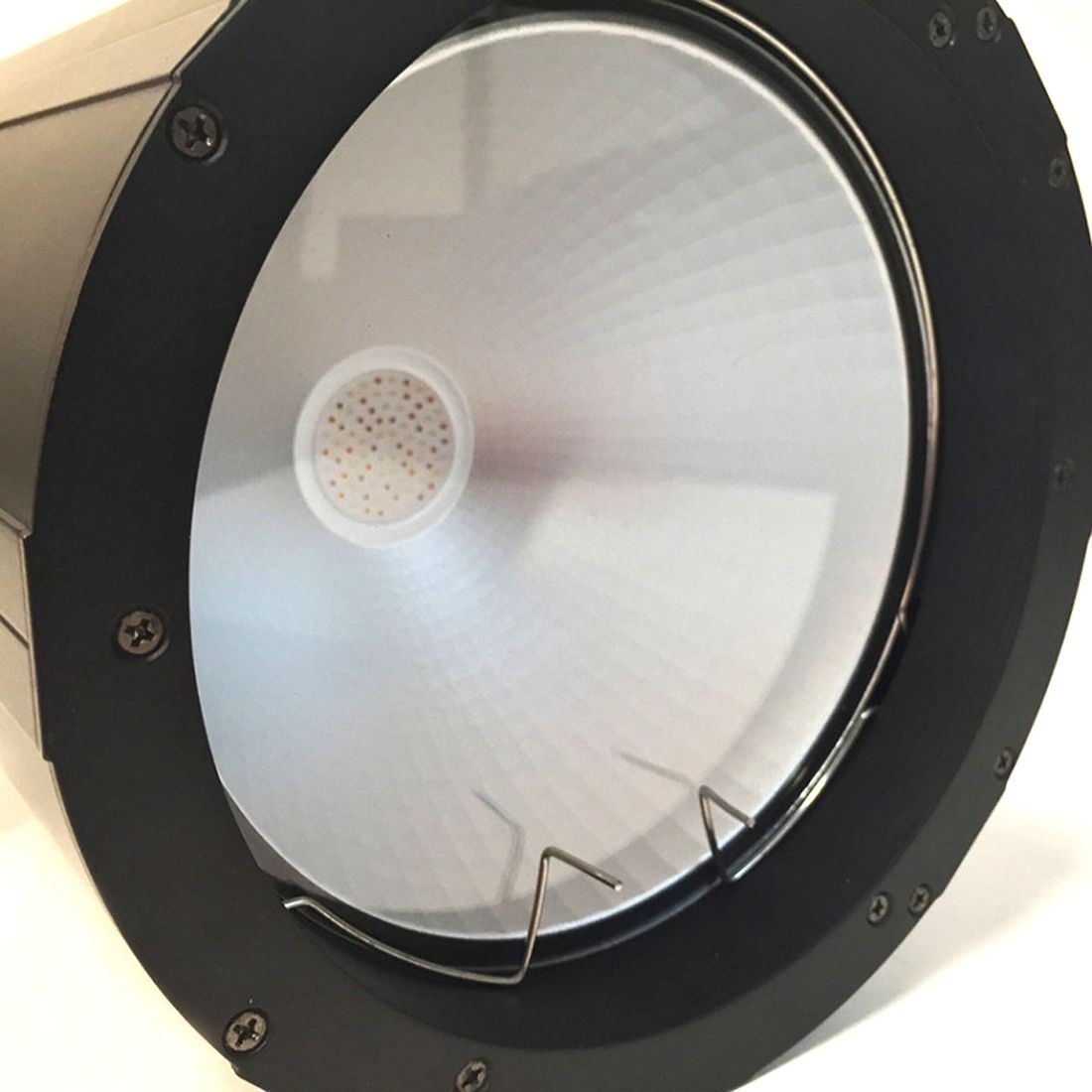

The COB Cannon Wash ST DW comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.
It has 7 DMX Channel modes for programming flexibility, built-in color macros and 6 selectable Dim Curves. The fixture has many pro features such as: 16bit 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and Locking Power daisy-chaining and a 4-button DMX display. COB Cannon Wash ST DW may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.
Gallery
Specification
- • Light Source: 1 CW/WW COB-LED
- • LED wattage : 150W
- • Average LED lifetime : approximately 50,000 hrs.
- • CRI 97.2
- • Light Output: 891 LUX @3M/40 degree/Full On, 711 LUX @3M/50 degree/Full On, 410 LUX @3M/80 degree/Full On
- • Beam Angle: 80 degrees
- • 2 additional lenses included : 40 degrees & 50 degrees
- • Optional Barndoors (order Code 1223200047)
- • 5 operational Modes : Manual CW/WW dimmer Mode, AutoRun Mode, Sound Active, Color Preset Mode, and DMX
- Control
- • 7 DMX Modes: 1, 2, 4, 4A, 5, 6 & 7-channel
- • RDM compatible
- • 16bit Electronic Dimming: 0 - 100%
- • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • LED refresh Rate : 1000Hz
- • LED pulse and strobe effect

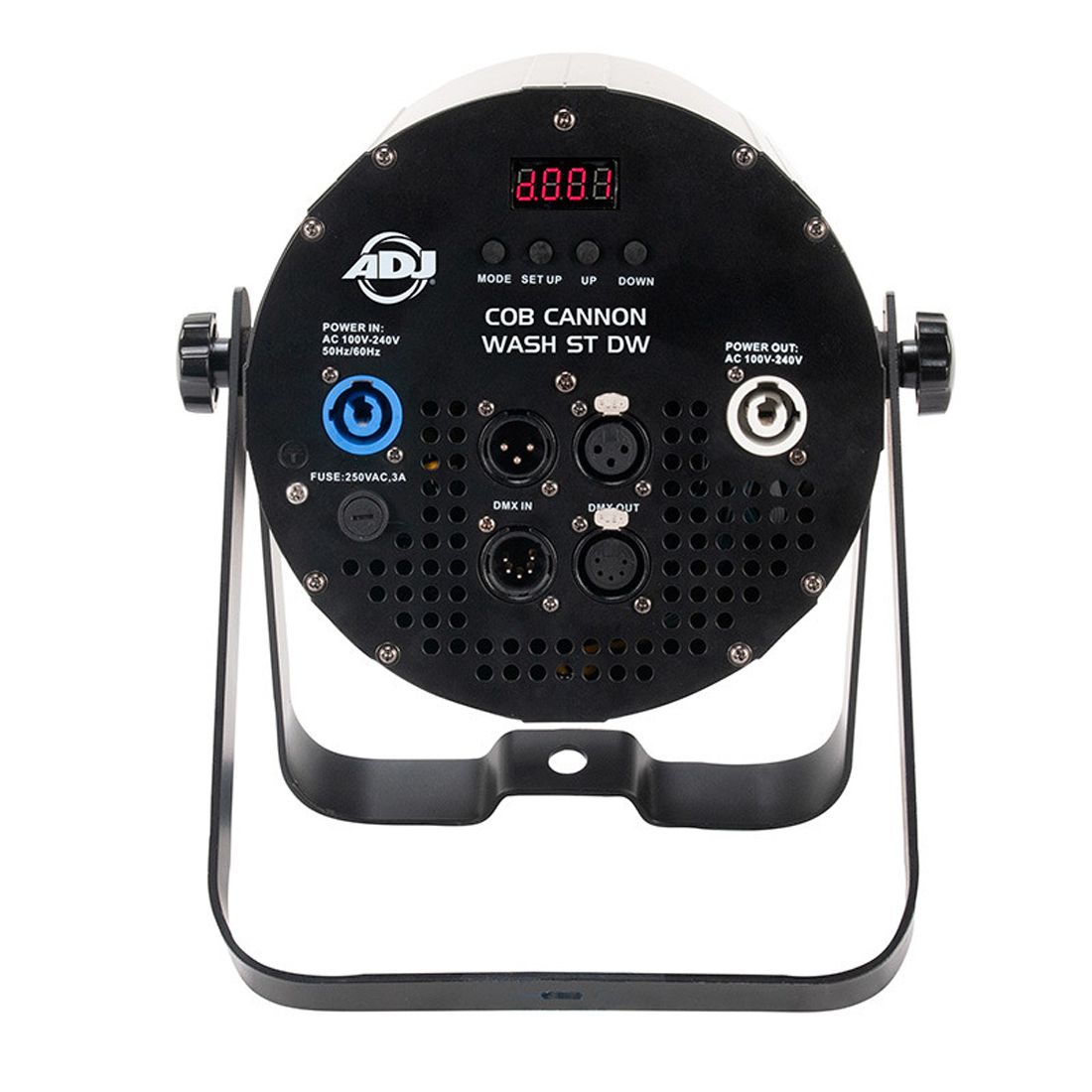

- • 4-button, DMX digital display on rear panel
- • Stepless CW/WW Color Mixing 2700K-6000K
- • 8 built-in Color Temperature Presets 3200k - 6400k
- • Metal Housing
- • Scissor Yoke
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 132W
- • 3 & 5-pin Locking DMX connectors
- • Locking Power In/Out connections
- • Dimensions (LxWxH): 330 x 256 x 190mm
- • Weight: 4,2 kg.
