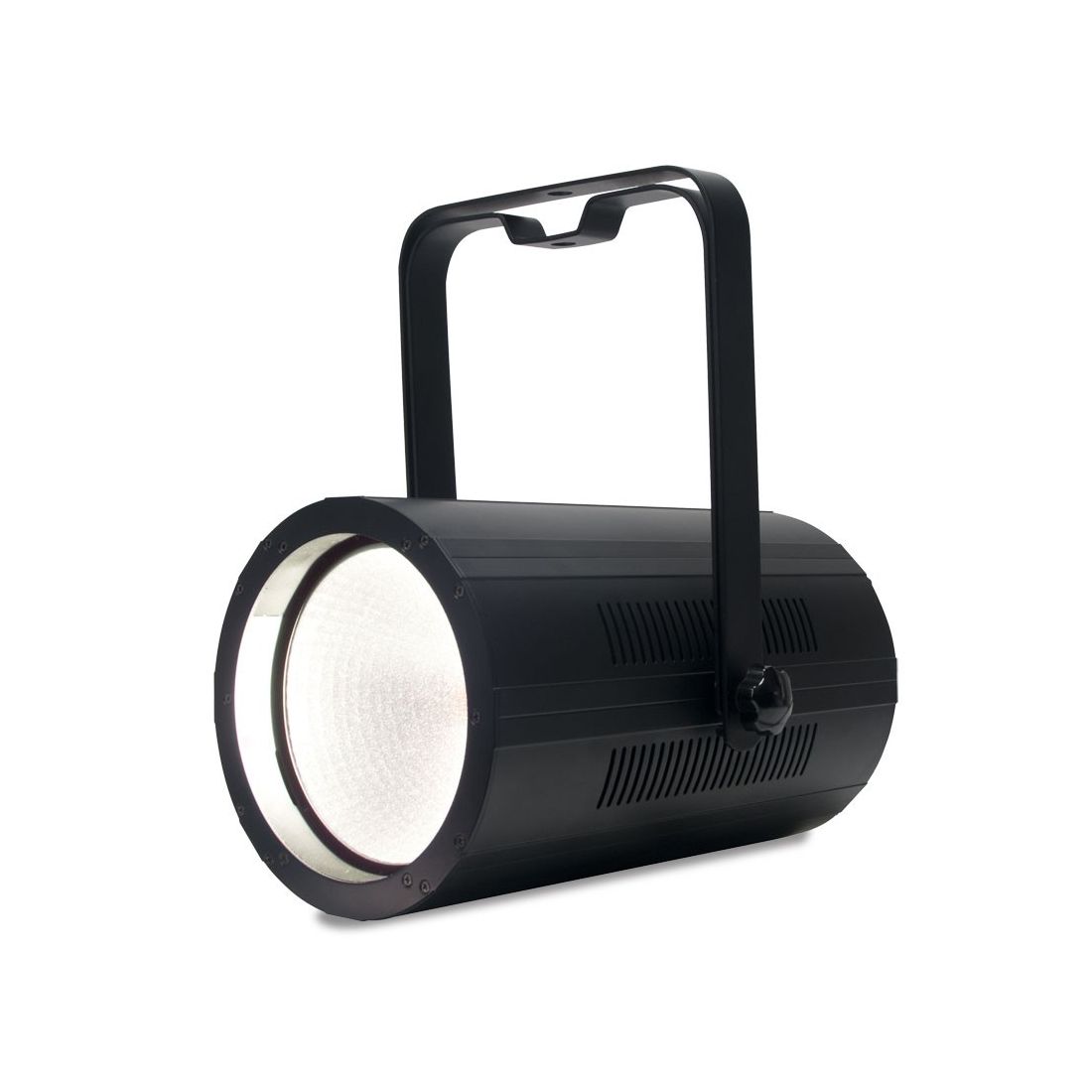

The ADJ COB CANNON WASH DW uses advanced Cool White and Warm White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB Cannon Wash DW produces wash of 40 & 50 degree with supplied optics and 120 -degrees without special optics. It has DMX Channel modes...
Read More

Product Information

SKU: 1223200045
GTIN: 819730019233
HS-Code: 9405423990

The ADJ COB CANNON WASH DW uses advanced Cool White and Warm White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches.

The COB Cannon Wash DW produces wash of 40 & 50 degree with supplied optics and 120 -degrees without special optics. It has DMX Channel modes for programming flexibility,  built-in color macros and  selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button  DMX display. It may run in its stand-alone mode from built-in programs,from a DMX controller

Gallery

Specification

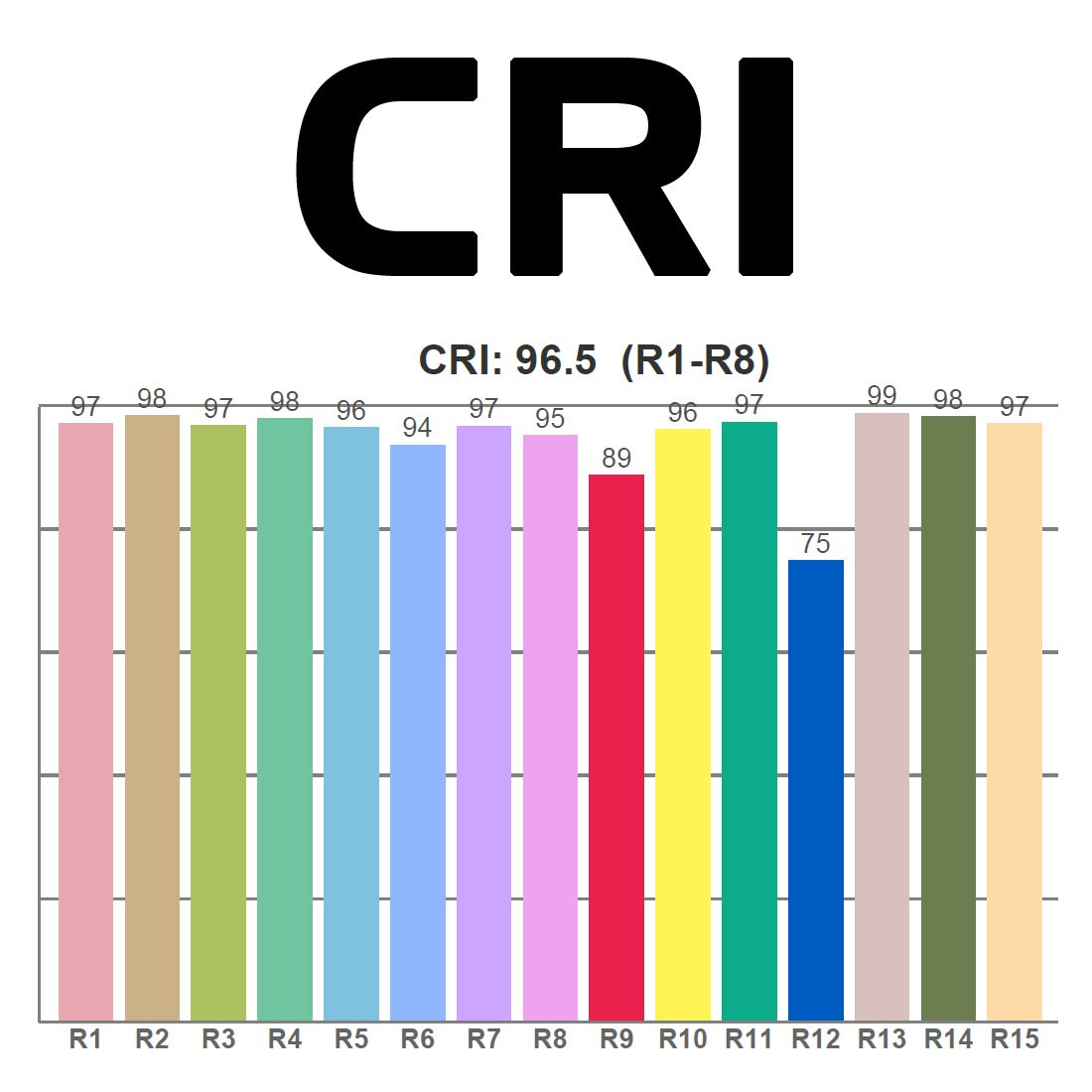

  • • Light Source: 1x 150-Watt COB Warm White/Cool White LED (CRI 96.5; Warm White: 3000K, Cool White: 6500K, rated at approximately 50,000 hrs)
  • • 6 DMX Channel modes (1, 2, 3, 4, 5, & 6 Ch.)
  • • 8 warm white/cool white macros

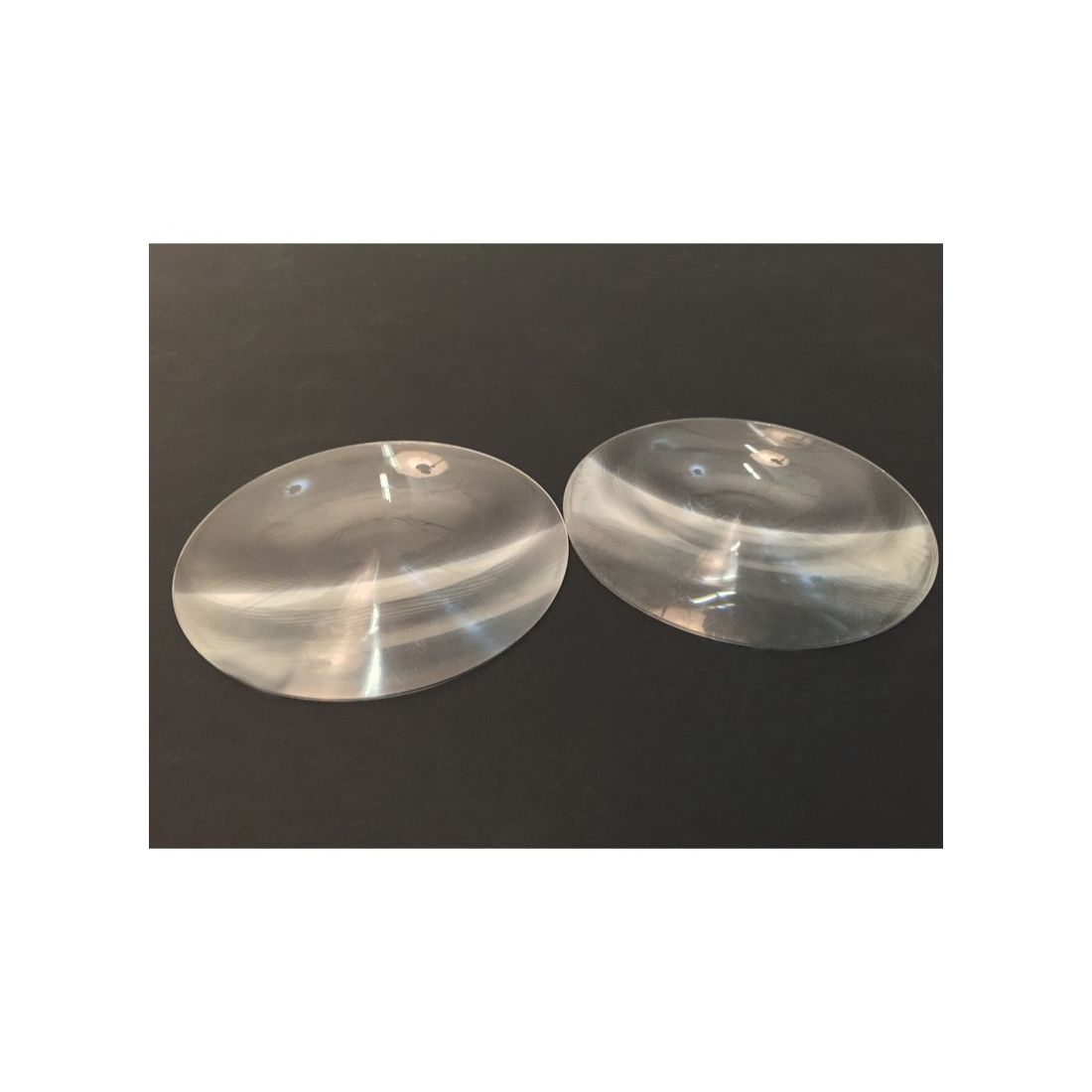

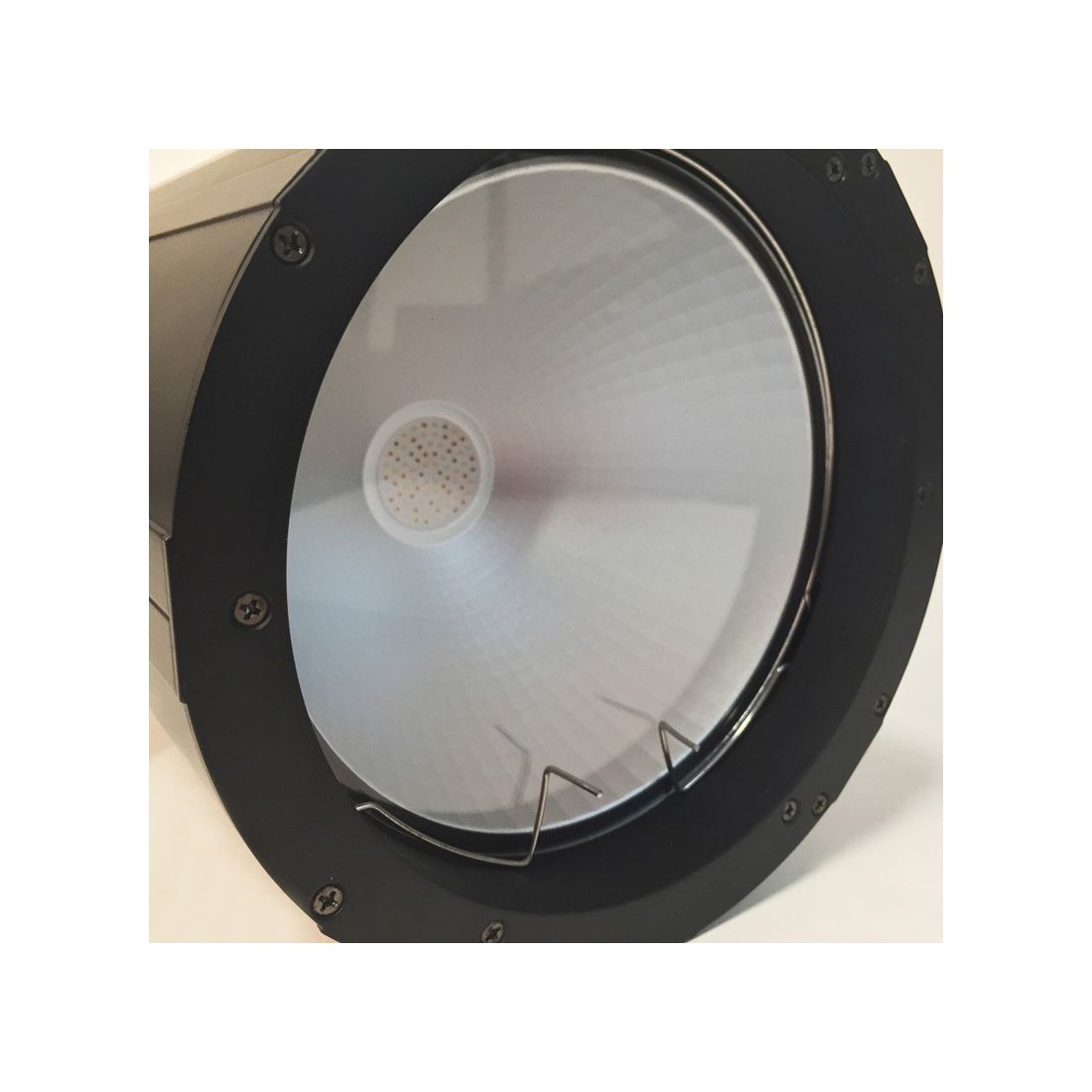

  • • 80-degree beam angle (no lens), 50 and 40 degree lens kit included
  • • Dual White LEDs for color temperature adjustment, plus 64 built-in color macros
  • • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • • Flicker Free operation (No flickering on camera)
  • • LED pulse and strobe effect
  • • Electronic Dimming: 0 - 100%

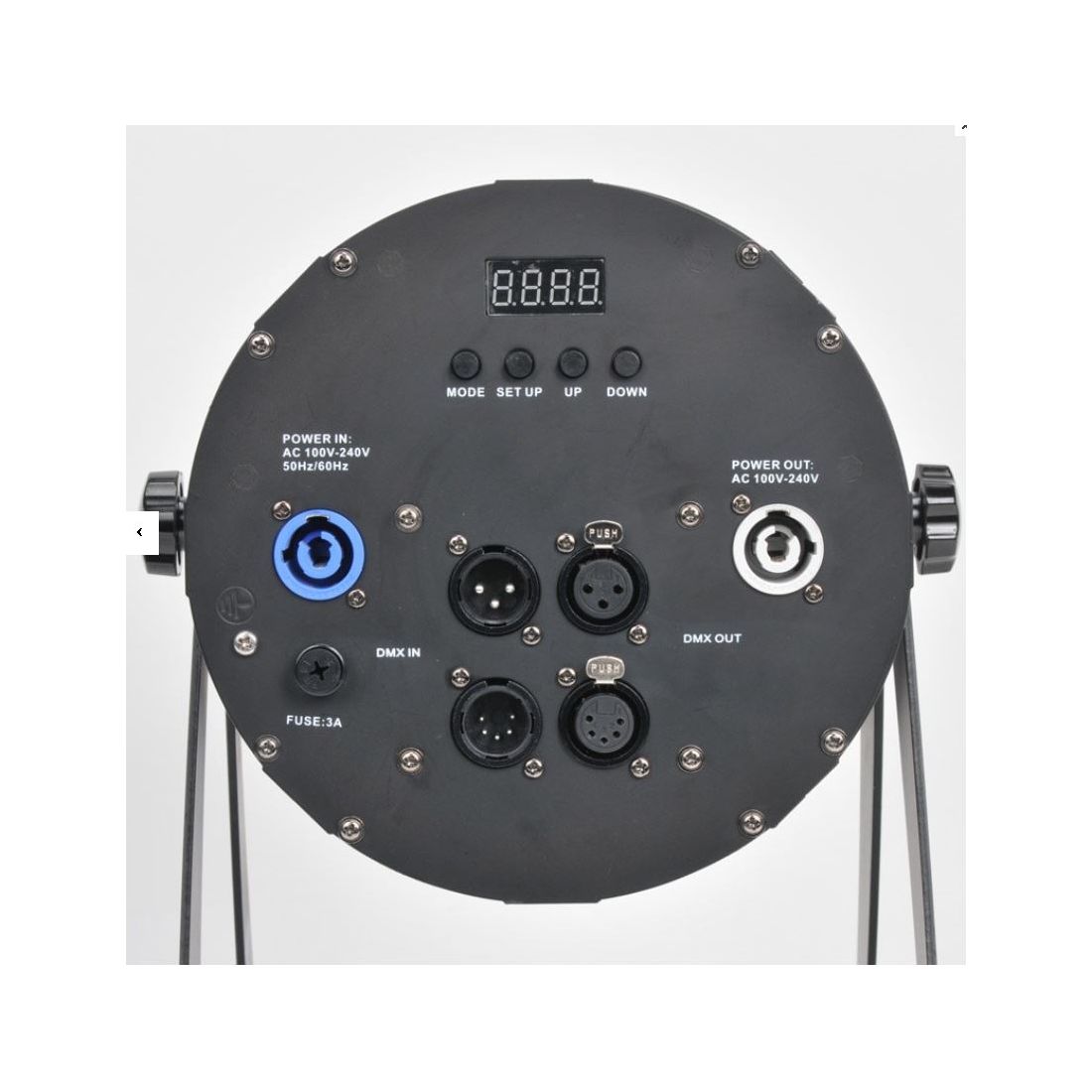

  • • 4-button digital DMX display on rear panel
  • • Compatible with wireless remote control (sold separately)
  • • Dual yoke allows fixture to be mounted on truss or set on the ground
  • • 3 Pin and 5 Pin XLR chassis mount connectors for DMX linking
  • • Locking Power AC IN/OUT to daisy chain power (up to 5 fixtures @110V)
  • • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • • Power Draw: 132 W
  • • Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm
  • • Weight: 9 lbs. / 4.1 kg.

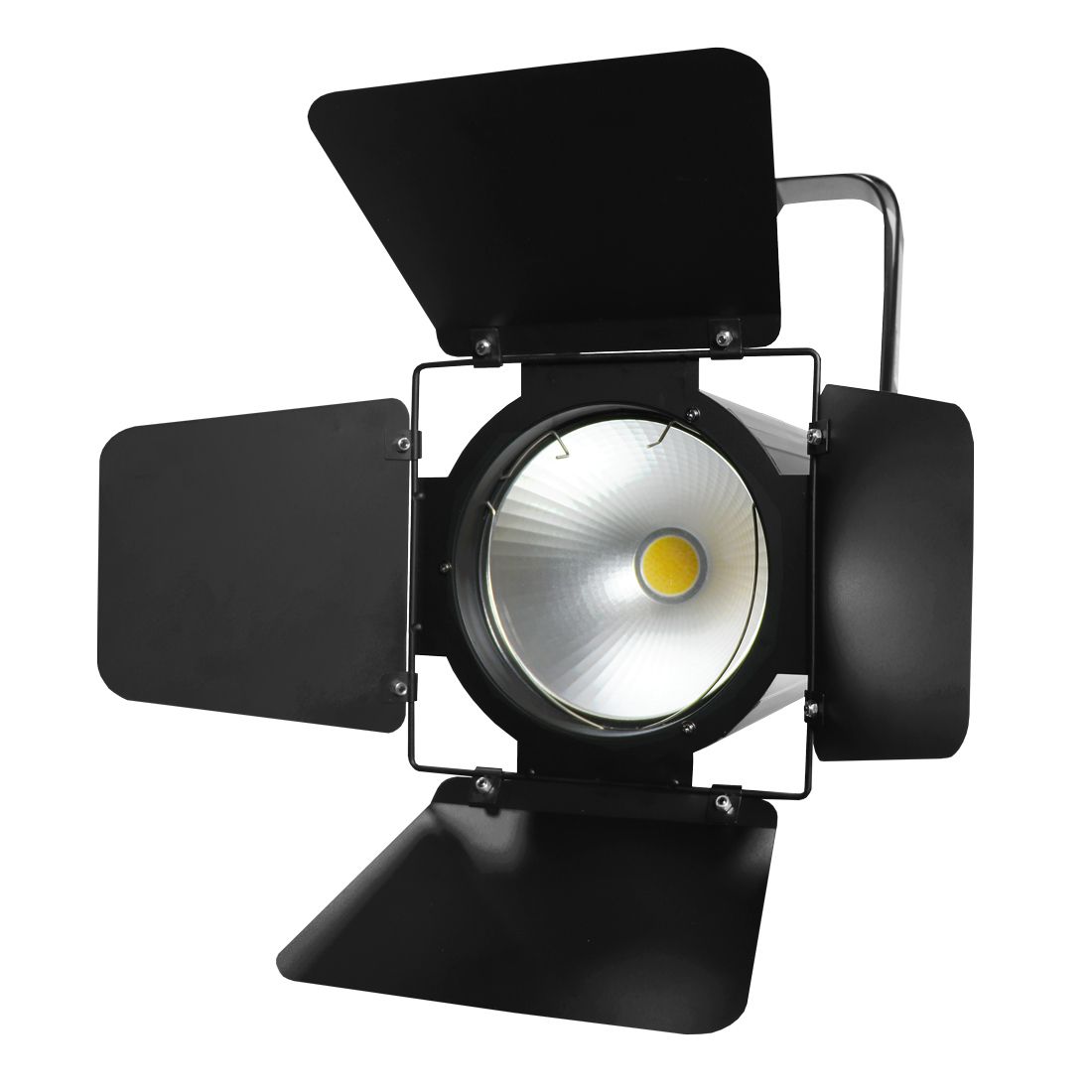

  • -Accessory : 1223200047 Barndoor BLK for COB Cannon Wash (sold separately)
