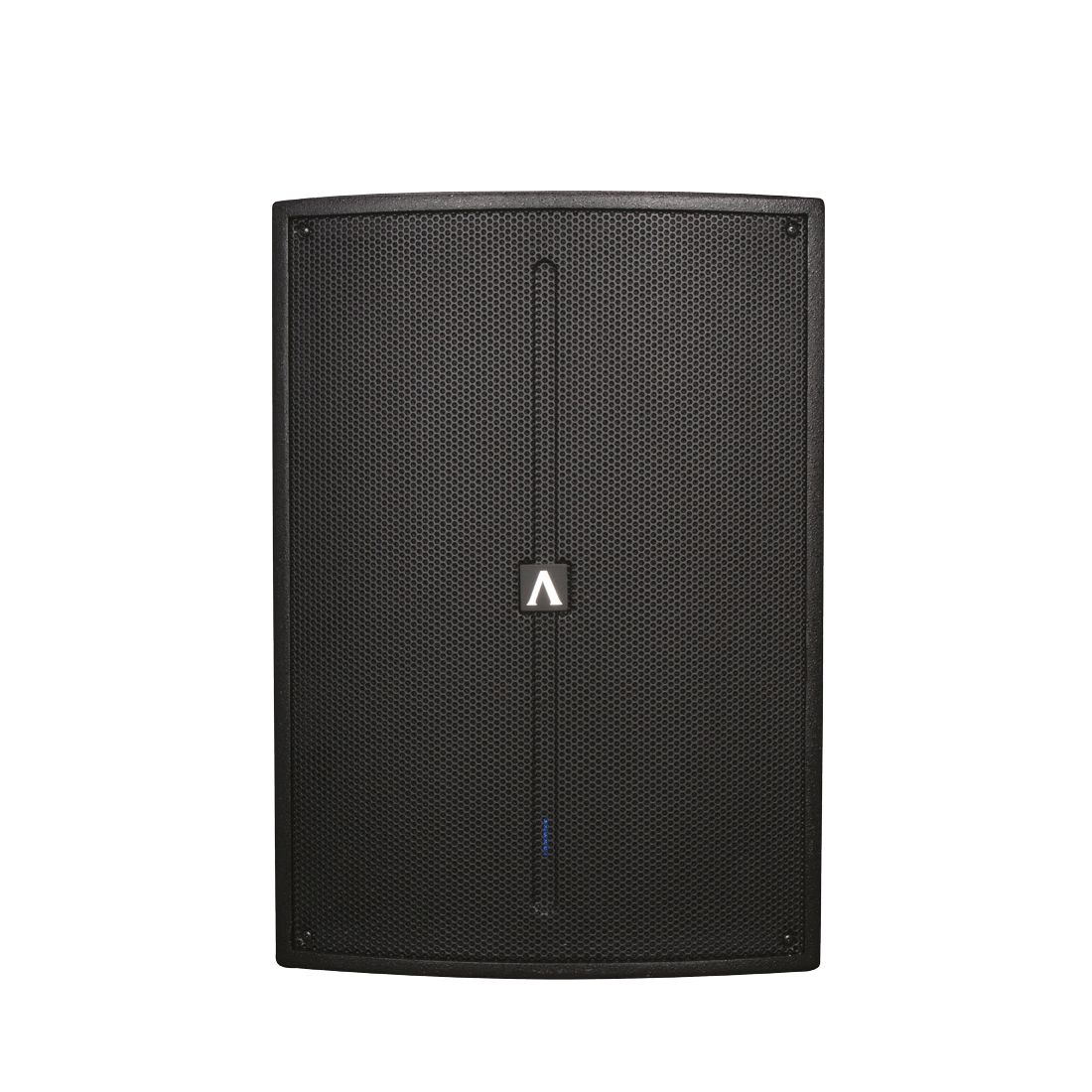

AVANTE A18S
Select

Brand

The Avante A18S, part of the Achromic Series from Avante Audio, is an active Subwooofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.


Product Information

SKU: 1161350019
GTIN: 818651020861
HS-Code: 8518220090

The Avante A18S, part of the Achromic Series from Avante Audio, is an active Subwooofer that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.

Specification

  • • 18-inch, active Subwoofer
  • • Driver Information: 18” Woofer w/3” Voice Coil.
  • • Output (Peak SPL @1M): 127dB

  • • Nominal Coverage: Omni-Direction, Cardioid
  • • Frequency Range (-10db): 35Hz-150Hz

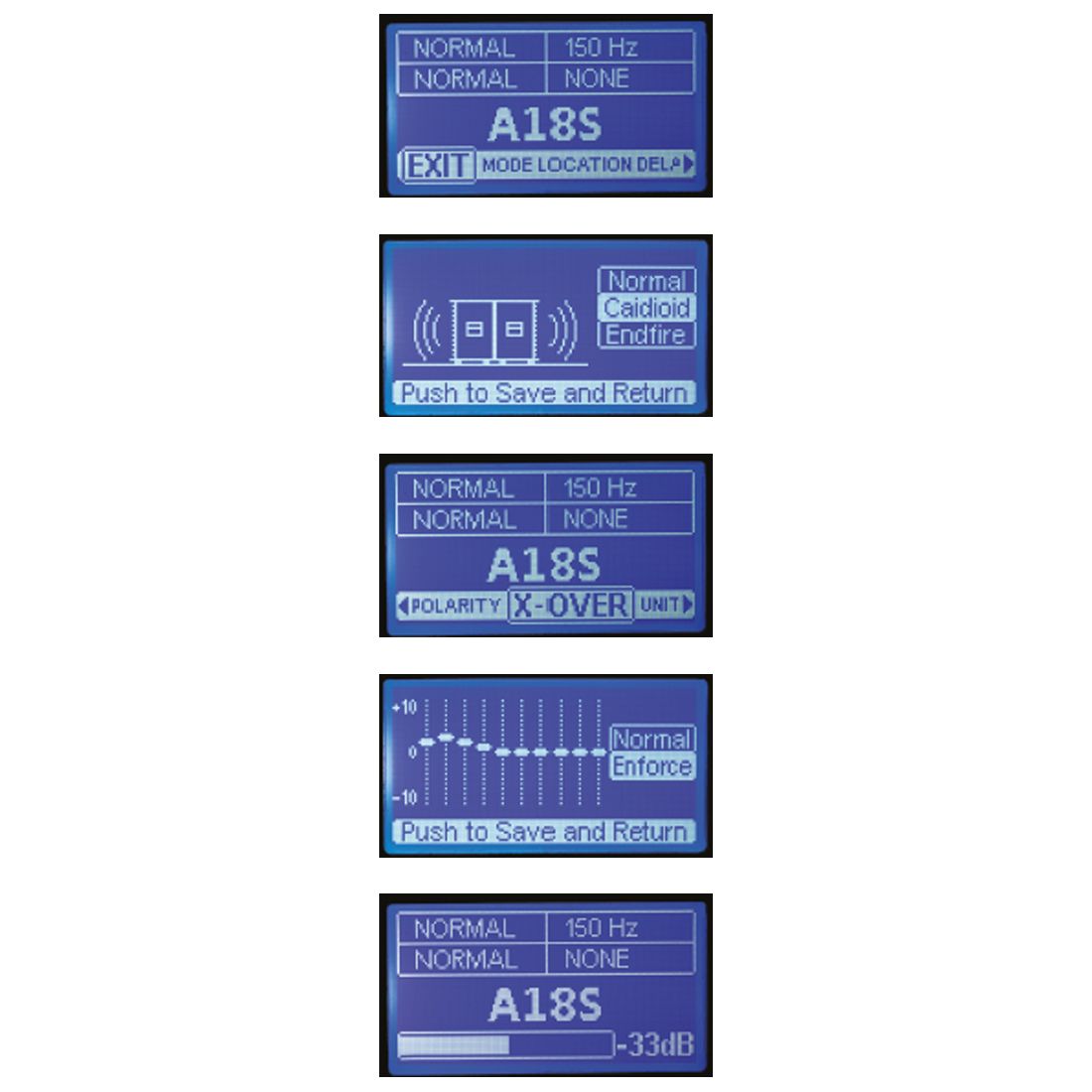

  • • Built-In DSP : LCD screen with EQ and multiple presets
  • • Normal, Cardioid and End-Fire Setups
  • • Enclosure: 15mm Plywood
  • • Grill: 1.5 mm steel
  • • Handles: 1 handle on each side
  • • Fly Points: None
  • • Pole Mounting: Ground Stack

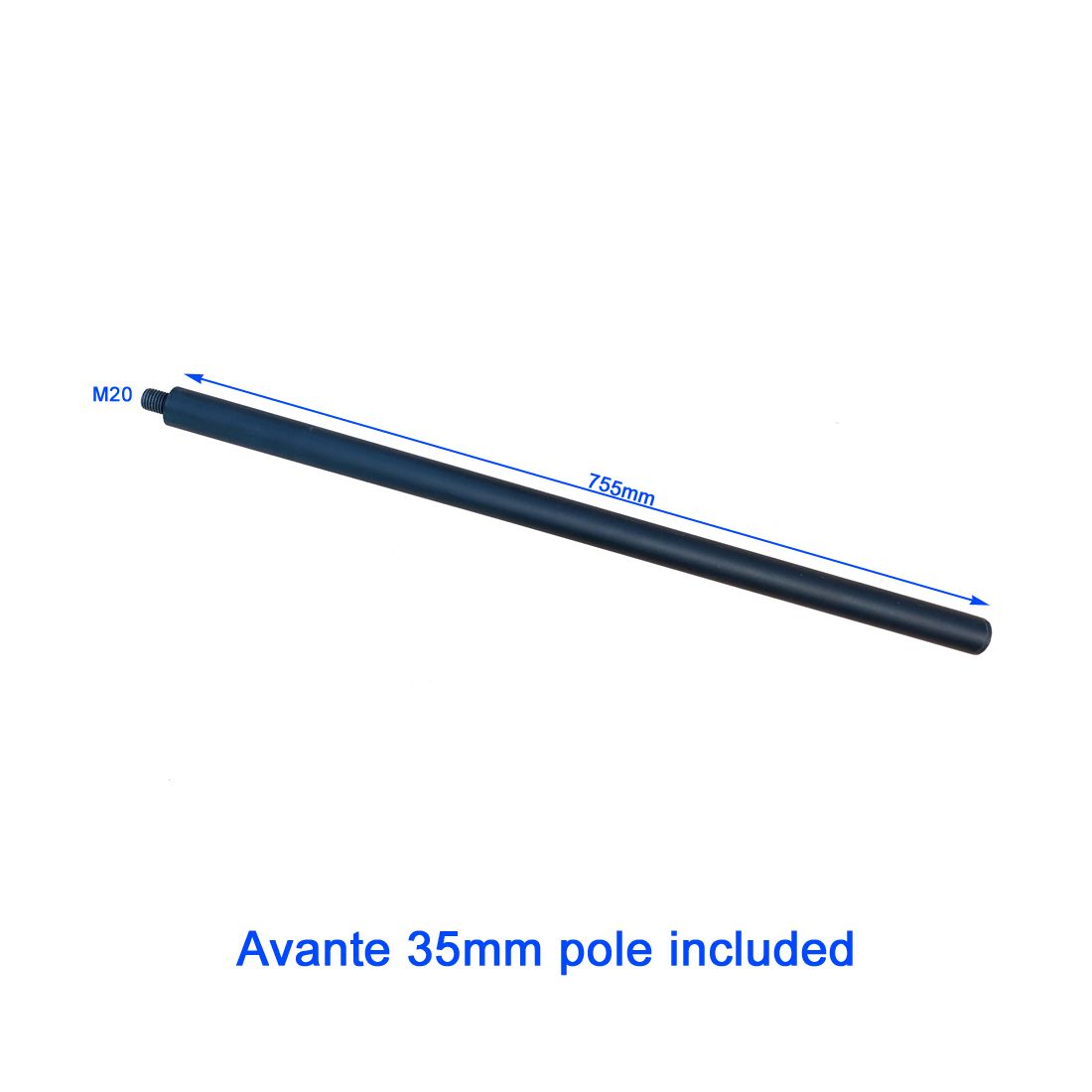

  • • Threaded M20 Standard 35mm Speaker Pole included

  • • Amplifier Power : 1600 W Dynamic
  • • 1x 500W RMS Class D

  • • 2 x Balanced female XLR/Jack 6.3mm combo Input
  • • 2 x Balanced XLR Output
  • • IEC Power In

  • • Power Input: 120V/60Hz or 230V/50Hz
  • • Power Draw: 600W

  • • Dimensions: (W x D x H) 4510 x 647 x 662 mm
  • • Weight: 33,1 kg
Specifications subject to change without notice

Downloads

Specifications Sheet
