The Avante A12, part of the Achromic Series from Avante Audio, is an active loudspeaker cabinet that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.


Product Information

SKU: 1161350016
GTIN: 818651020830
HS-Code: 8518220090

The Avante A12, part of the Achromic Series from Avante Audio, is an active loudspeaker cabinet that offers powerful output, detailed audio clarity, built-in DSP and sleek exterior design. Created for musicians, bands, houses of worship, audio production companies and rental houses, the Achromic Series speakers are equally suited to permanent installation as they are to one-off and touring productions.

Specification

  • • 12-inch, 2-way active loudspeaker
  • • Driver Information: 12” Woofer w/2.5” Voice Coil. 1.35” HF Compression Driver
  • • Output (Peak SPL @1M): 123dB

  • • Nominal Coverage: 90° x 60°
  • • Frequency Range (-10db): 60Hz-20kHz

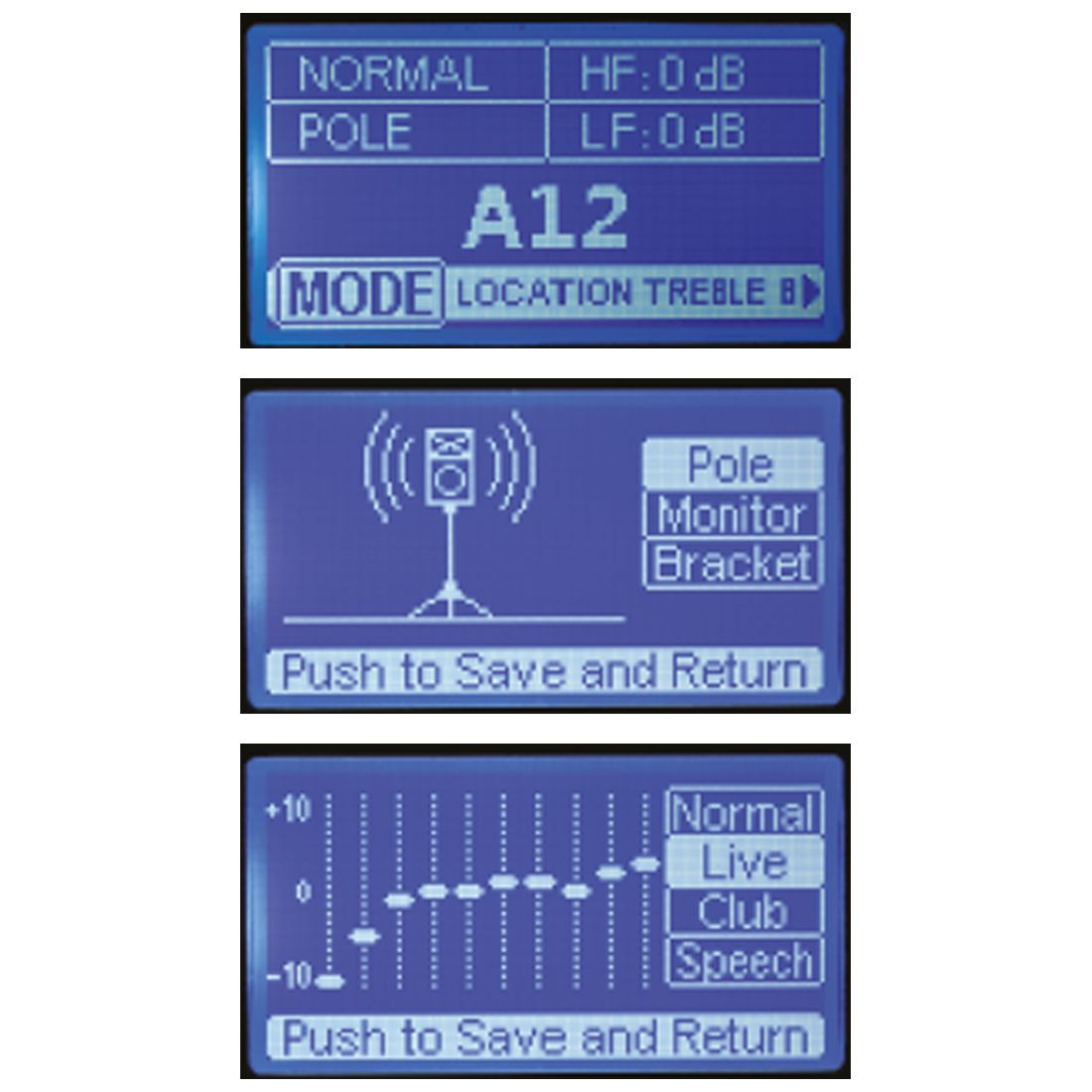

  • • Built-In DSP : LCD screen with EQ and multiple presets
  • • Enclosure: H-PP Molded
  • • Grill: 1.2 mm steel
  • • Handles: 1 handle on Top, 1 handle on Side
  • • Fly Points: 2 Fly Points on Top, 1 Fly Point on the Back (M10)

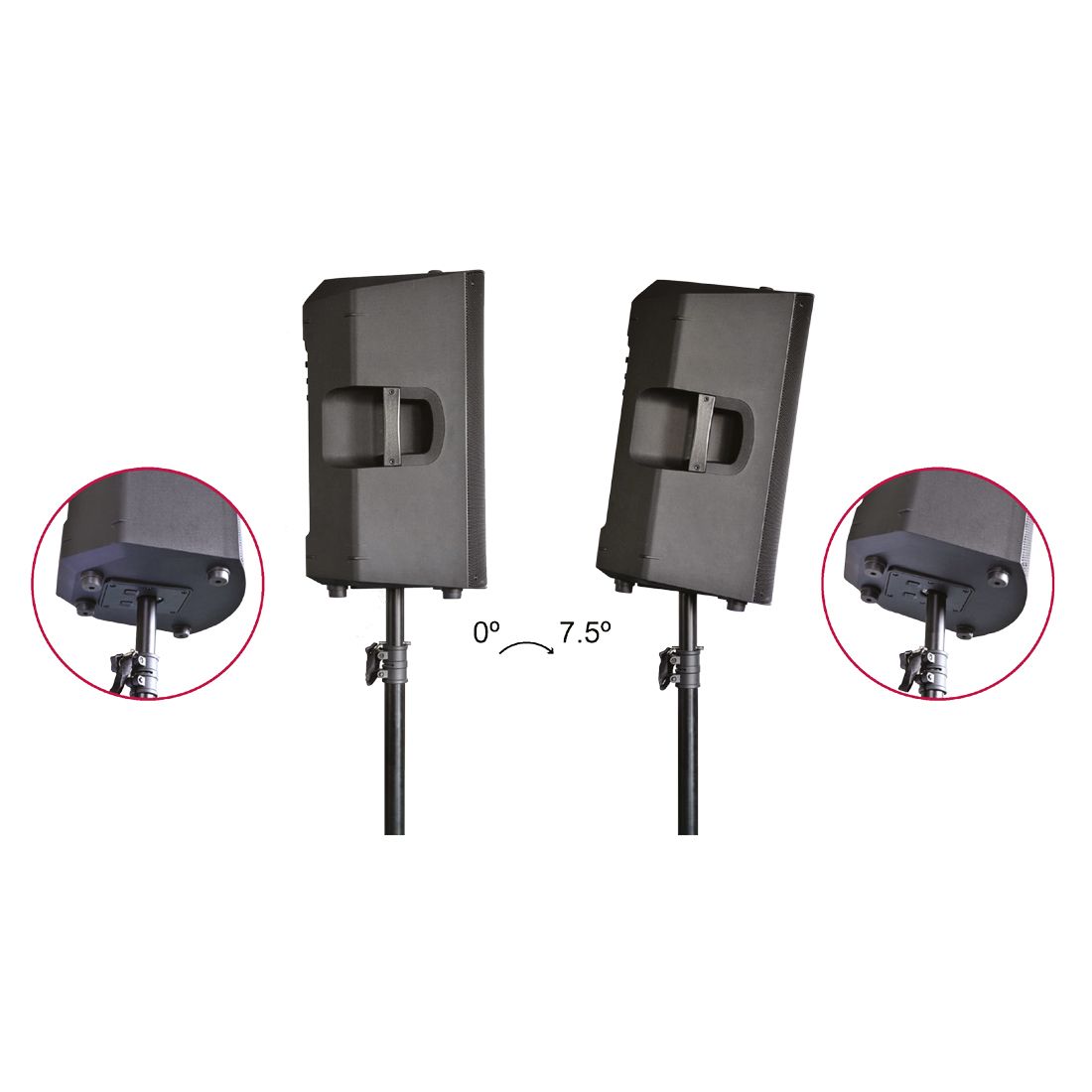

  • • Pole Mounting: Dual position 0° , 7.5°

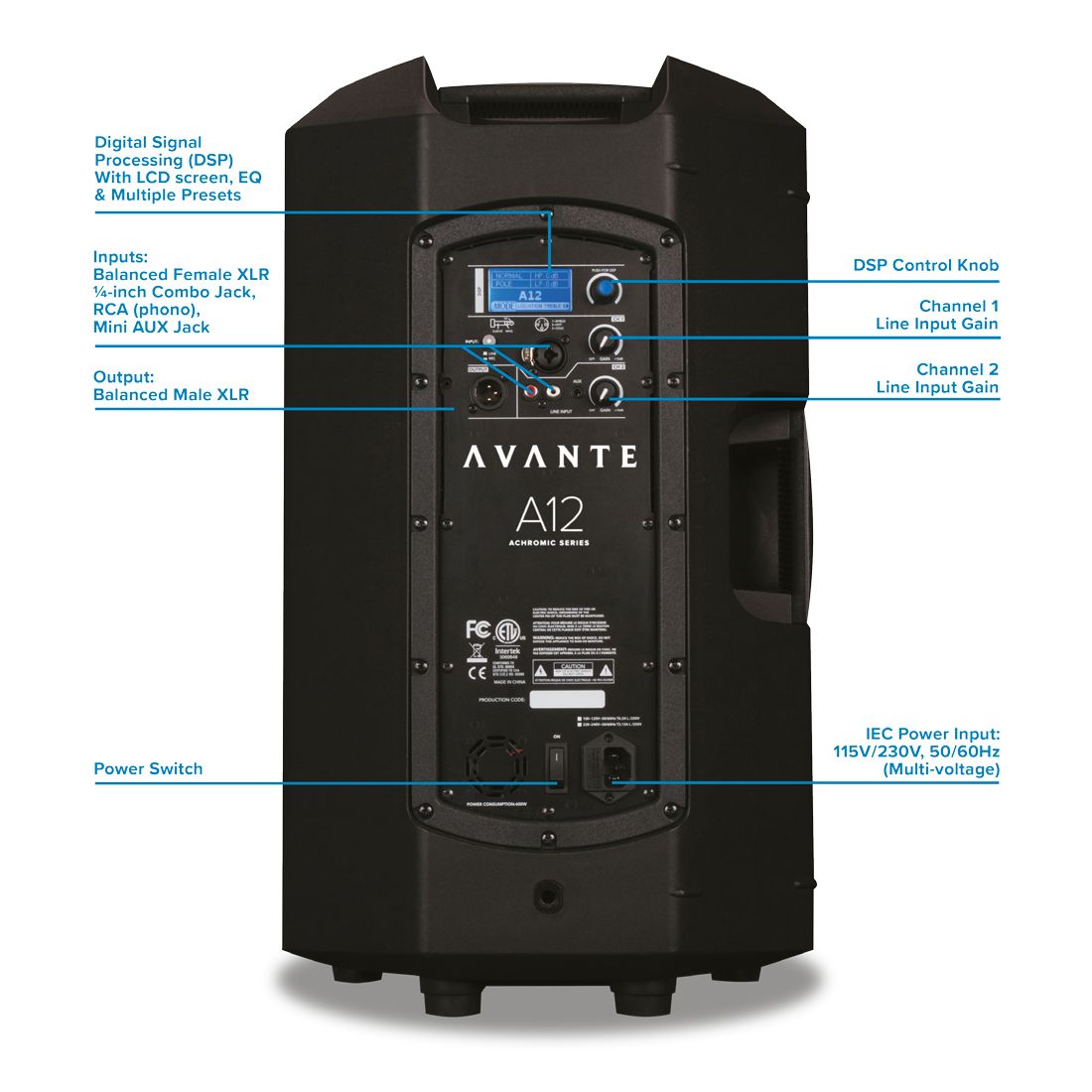

  • • 2x Line Input Gain control on rear

  • • Amplifier Power: 1200 W Dynamic
  • • 1x 350W Class D (LF)
  • • 1x 50W Class AB (HF)

  • • 1 x Balanced female XLR/Jack 6.3mm combo Input
  • • 1 x RCA (phono) Input
  • • 1 x Mini-Jack 3.5mm Input
  • • 1 x Balanced XLR Output
  • • IEC Power In

  • • Power Input: 120V/60Hz or 230V/50Hz
  • • Power Draw: 400W

  • • Dimensions: (W x D x H) 365 x 354 x 628 mm
  • • Weight: 15,9 kg
