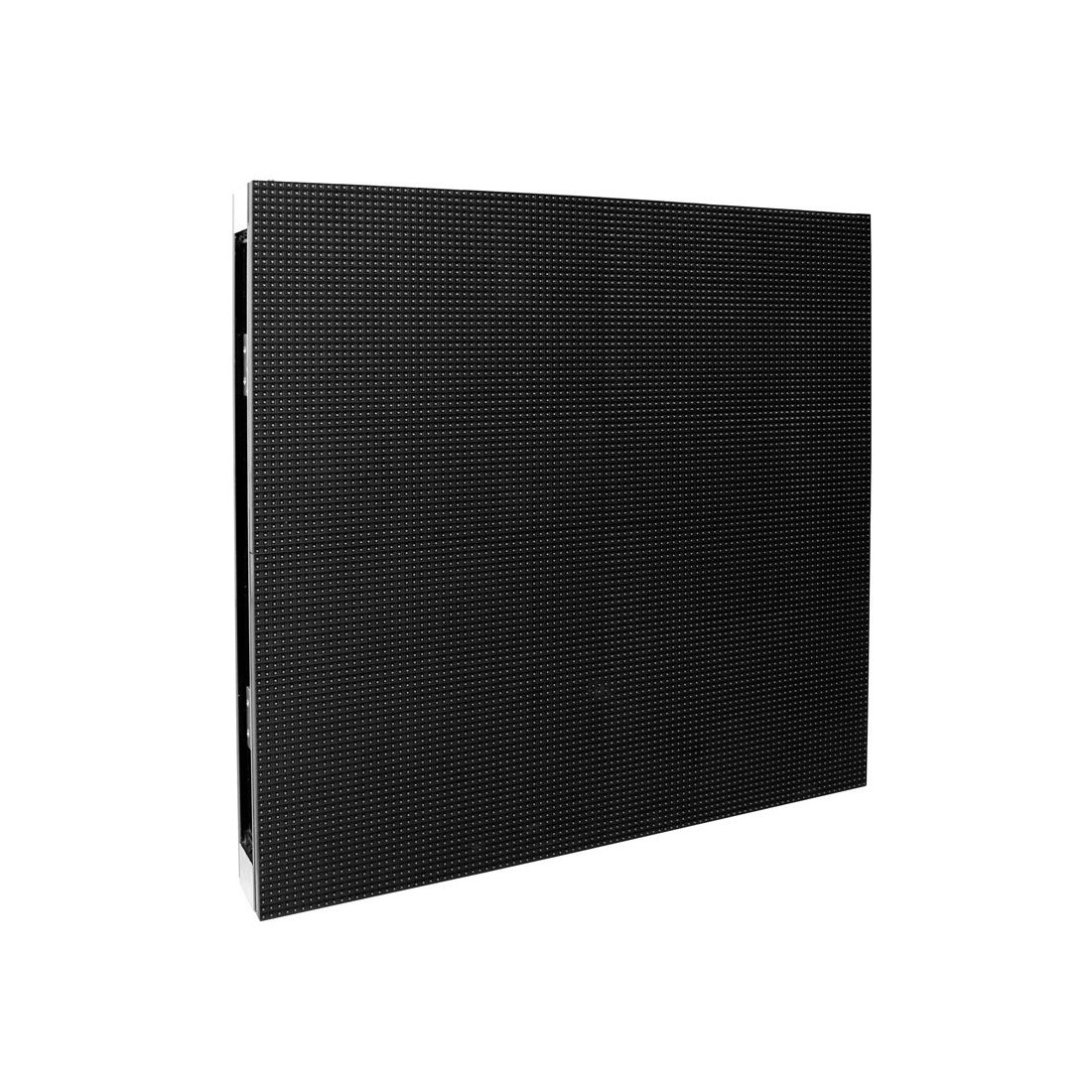

AV6X Select
6mm pixel pitch, High Resolution video panel. 576x576mm. Locking Power In & out, Locking RJ45 In & out. Novastar receiving card. IMPROVED MASK FOR HIGHER CONTRAST AND IMPROVED LED FOR BETTER QUALITY AND COLOR CONSISTENCY.
Product Information
SKU: 1226300054
GTIN: 819730019271
HS-Code: 8529909299
6mm pixel pitch, High Resolution video panel. 576x576mm. Locking Power In & out, Locking RJ45 In & out. Novastar receiving card. IMPROVED MASK FOR HIGHER CONTRAST AND IMPROVED LED FOR BETTER QUALITY AND COLOR CONSISTENCY.
Gallery
Specification
- • Light Source: RGB SMD2121 LEDs
- • Pixel Density : 96 x 96 pixels, 27777 per square meter
- • Average LED lifetime/MTBF : 100,000 hrs./5,000 hrs.
- • Pixel Pitch: 6mm
- • Brightness: 1200 NITS
- • View Angle: Horizontal 140°/Vertical 140°
- • Gray Scale / Display Color: 14-bit
- • Brightness Adjustment: 0~100% 100 Levels
- • Processing: 14-bit
- • Built-In Novastar Receiving Card
- • LED Refresh Rate: 1200Hz
- • Control Distance: Ethernet Cable <100m or Fiber Optic >120m
- • Optional Novastar Sending Cards and Accessories available
- • RGB
- • Aluminium Frame
- • Module Quantity: 4
- • Module Size : 288 x 288mm
- • IP Rating: IP20 (Front & Back)
- • Multivoltage 100-240V 50/60Hz
- • Max Power Consumption: 300W/panel
- • Average Power Consumption: 120W/panel
- • Operational temperature: -20 to +40 degrees
- • Operational humidity: 10% — 90% (no condensation)

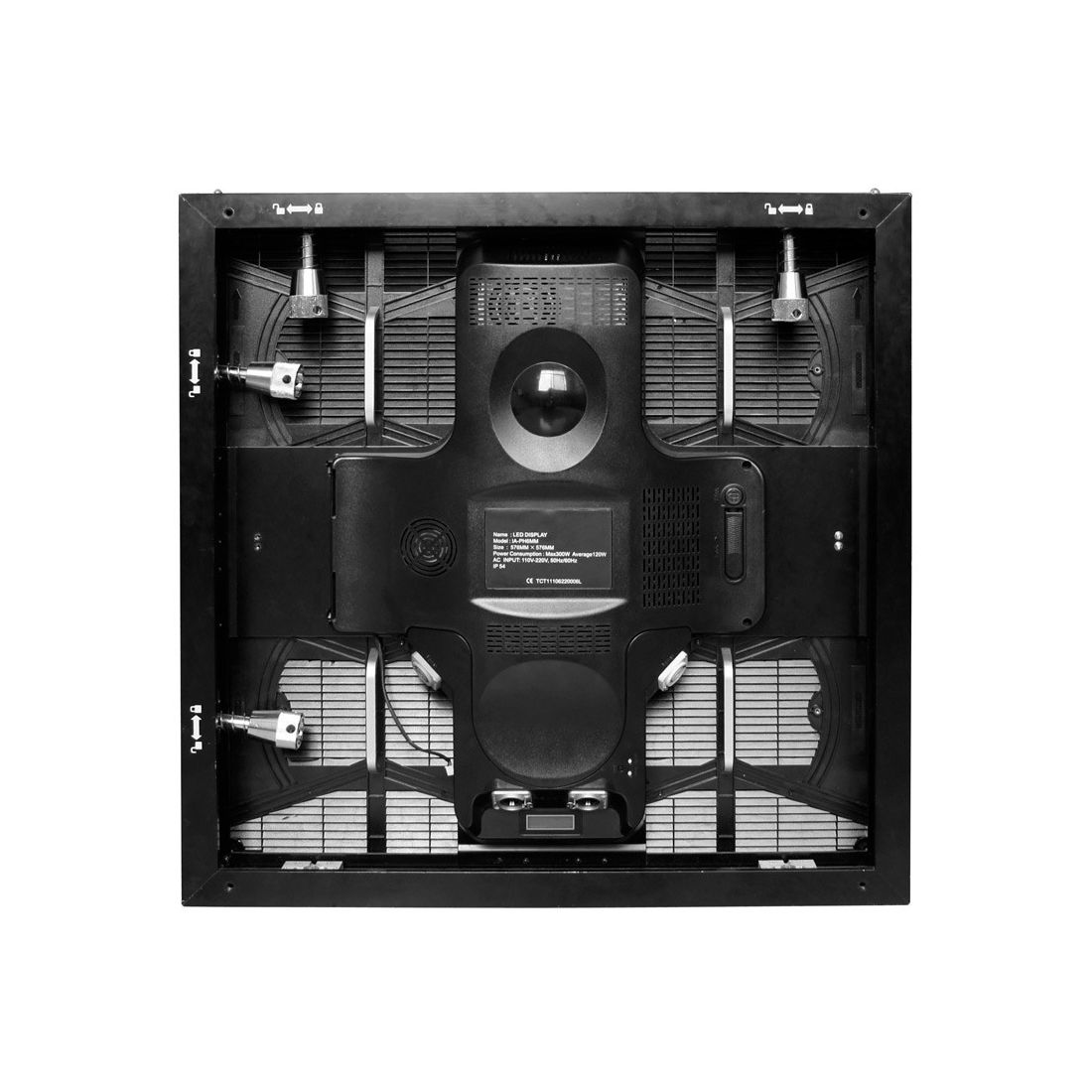

- • Locking RJ45 In/Out connections
- • Locking Power In/Out connections
- • Dimensions (LxWxH): 576 x 75 x 576mm
- • Weight: 10,5 kg.
Specifications subject to change without notice
