AV6 Select

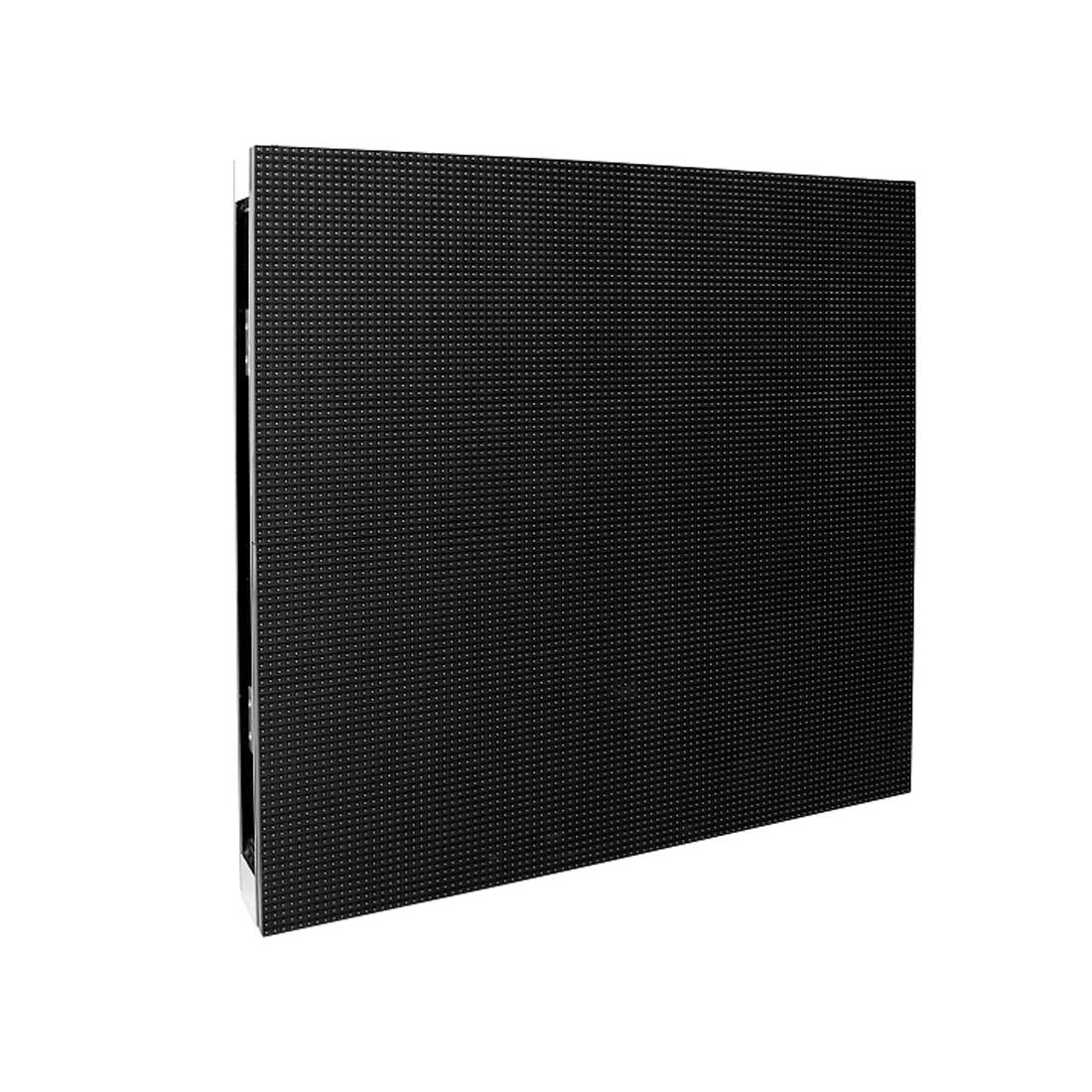

The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
Check out the “AV6 Video Wall Systems” brochure for ideas on popular configurations and components needed to build the systems: http://read.uberflip.com/i/649707-adj-av6-video-wall-systems
Check out 140 AV6 panels at the Fatboy Slim...
Product Information
SKU: 1226300032
GTIN: 819730016584
HS-Code: 8529909299
The AV6 is an affordable 6mm LED Video panel designed for nightclubs, bars, bands, mobile entertainers, event productions and houses of worship. cETL Approved.
Check out the “AV6 Video Wall Systems” brochure for ideas on popular configurations and components needed to build the systems: http://read.uberflip.com/i/649707-adj-av6-video-wall-systems
Check out 140 AV6 panels at the Fatboy Slim + Basement Jaxx event: http://tinyurl.com/jzqyn2s

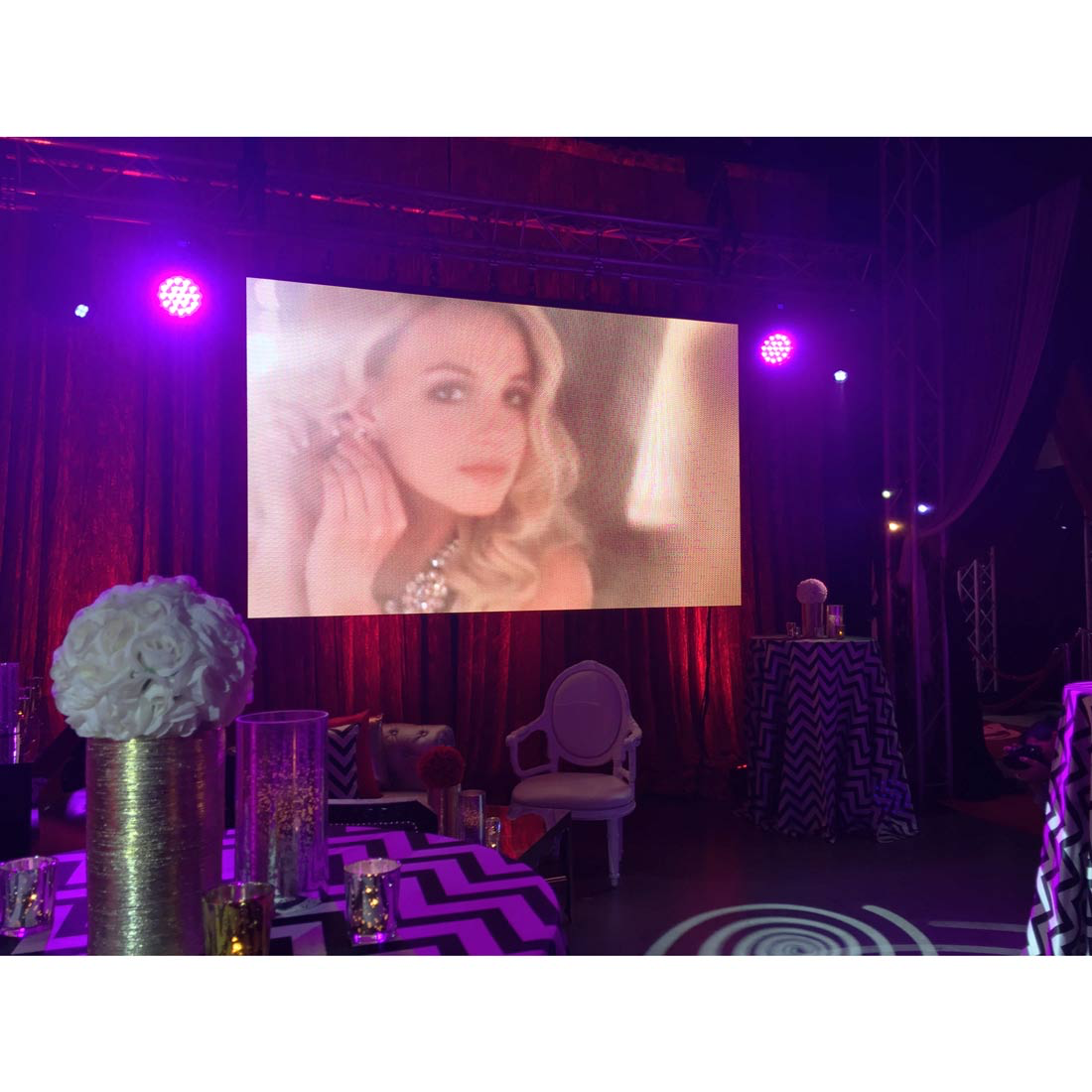

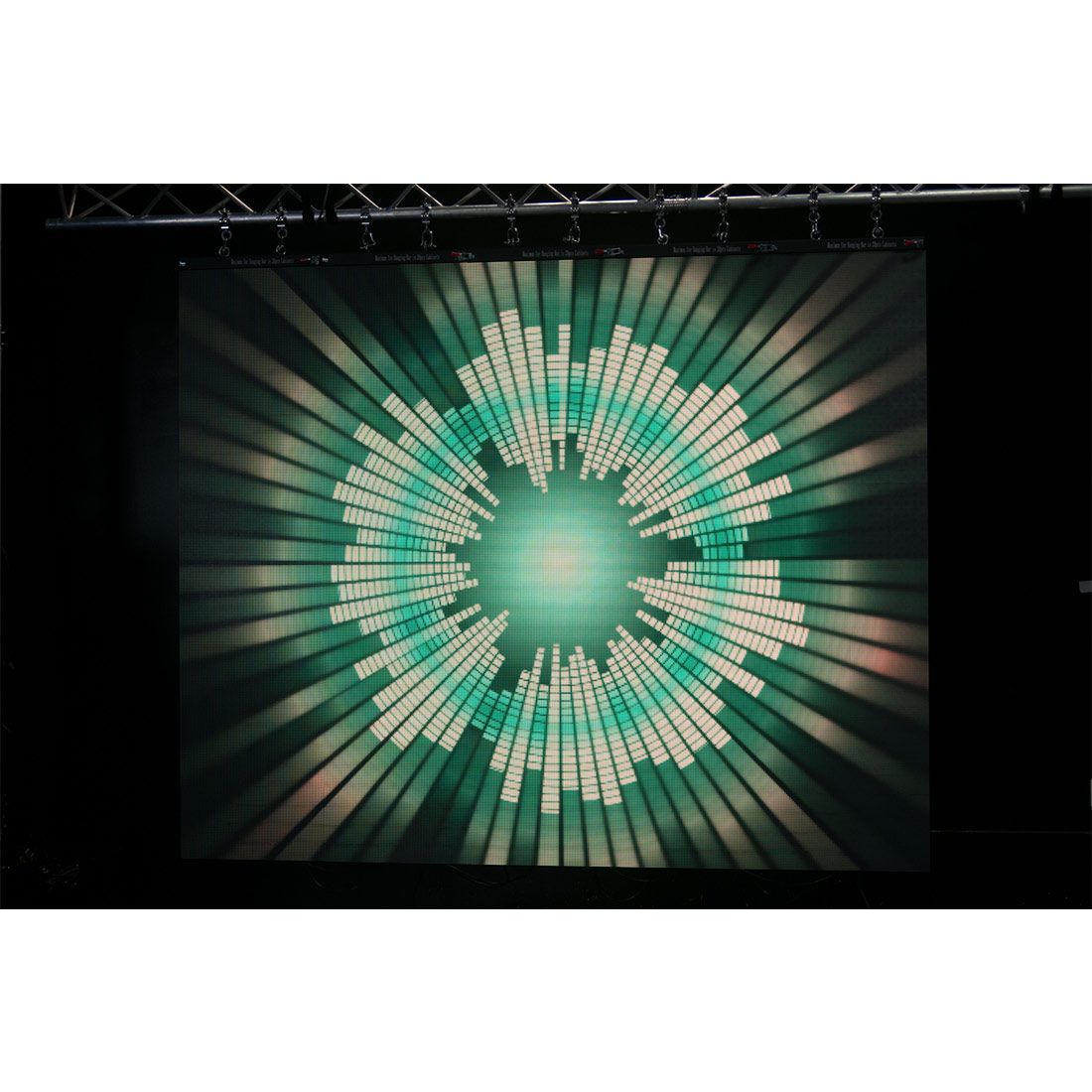

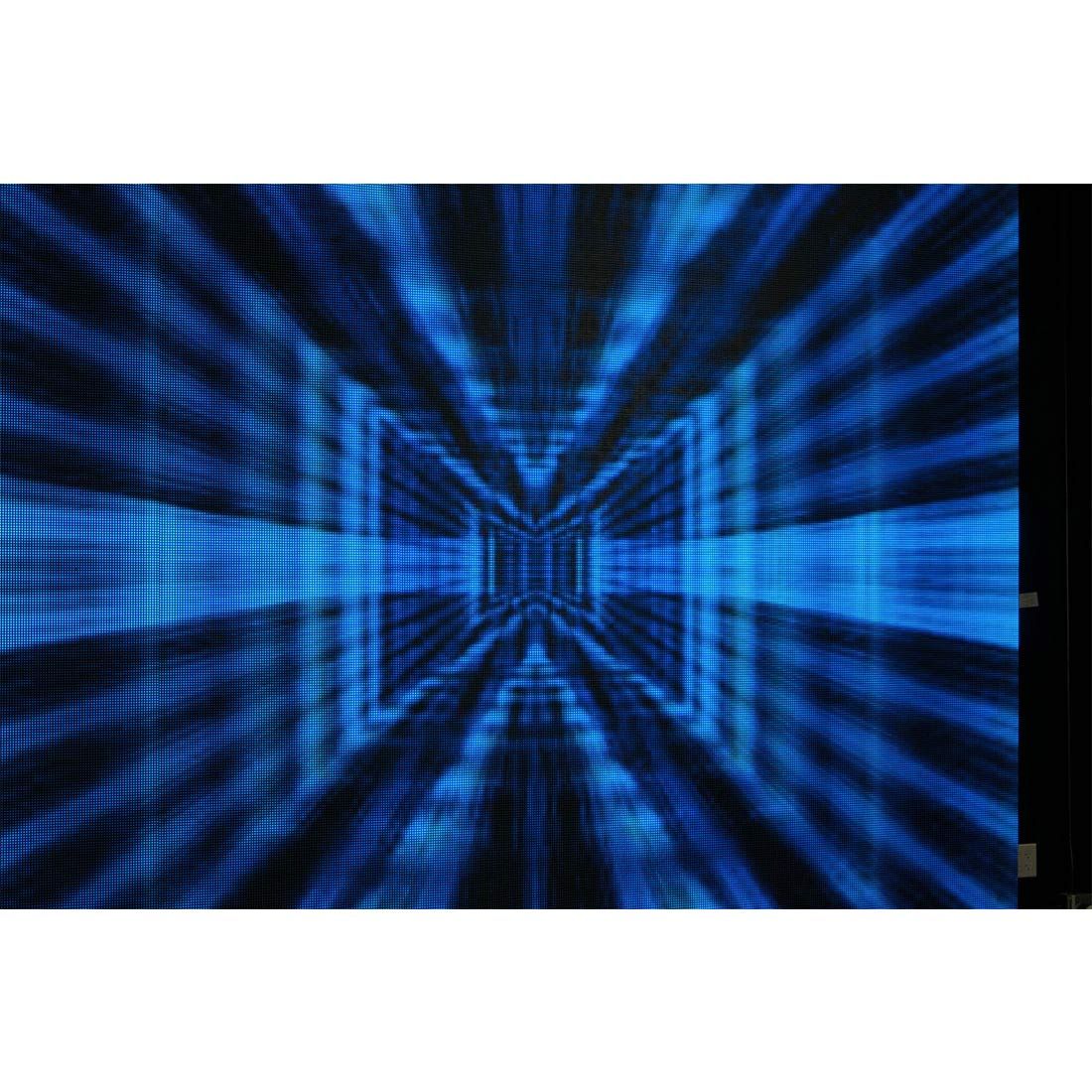

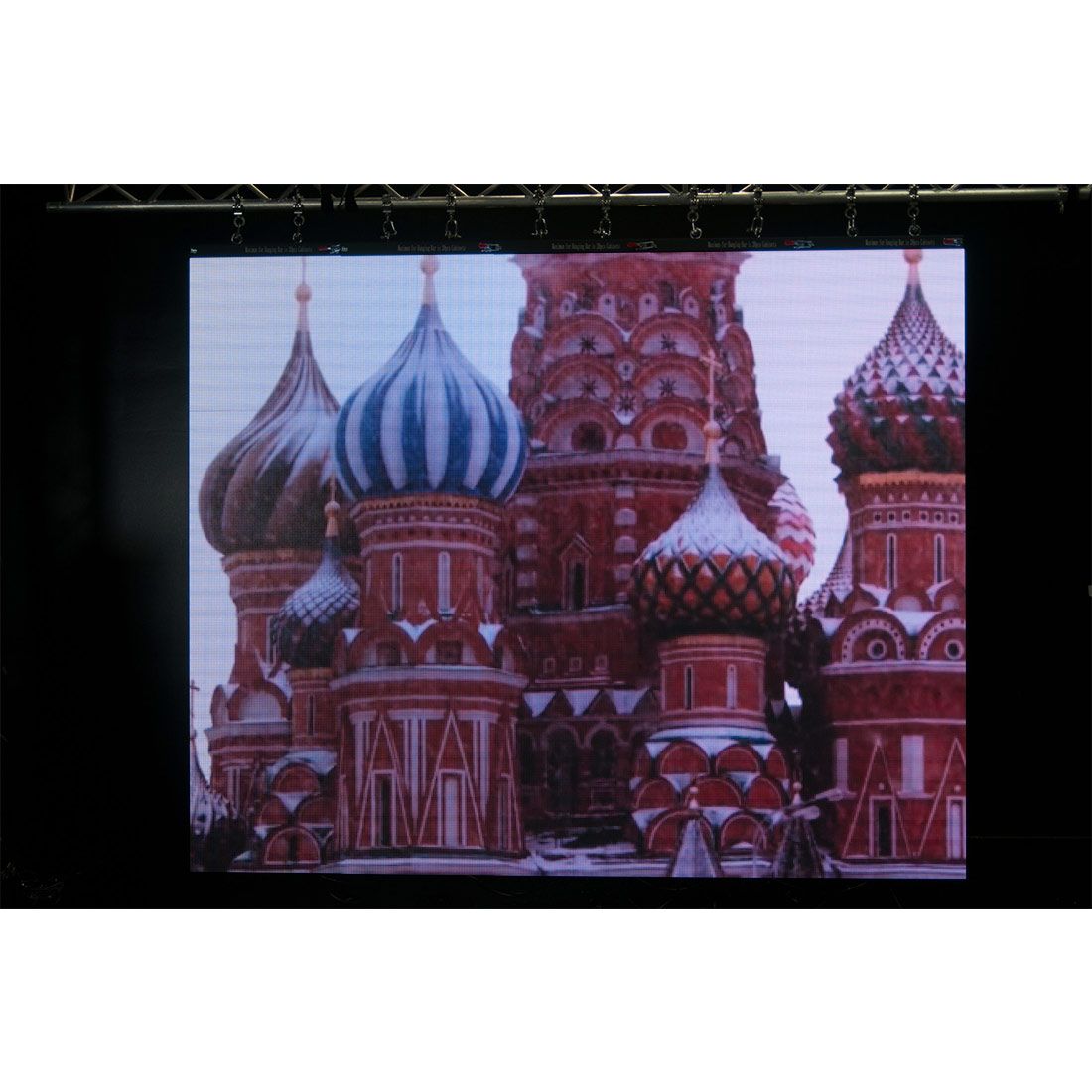

Gallery
Specification
- MECHANICAL RATINGS:- Surface Flatness: Gaps<0.5mm
- OPITCAL RATINGS:- Brightness: 1200 NITS- View Angle: Horizontal 140°/Vertical 140°- Distance: 20ft (6m)- Gray Scale / Display Color: 14Bit - Brightness Adjustment: 0~100% 100 Levels- Processing: 14Bit

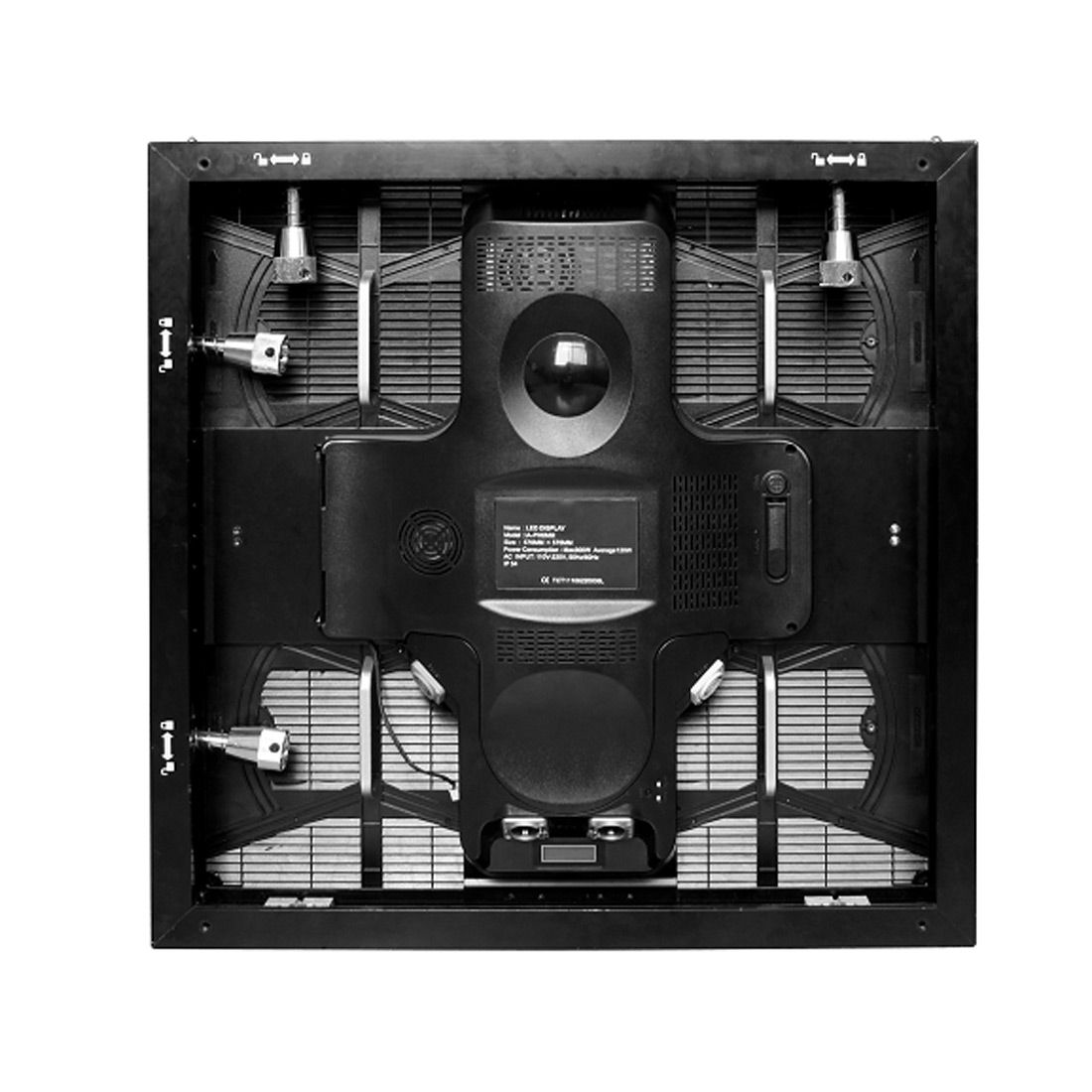

- POWER SUPPLY:- Operation Power: 100~240V 50-60Hz- Max. Power Consumption: 300W/per panel- Ave. Power Consumption: 120W/per panel- Connections Power/Data: Power-Locking PowerIn/Out; Data Locking RJ45 In/Out
- CONTROL SYSTEM:- Control Mode: Nova Star Synchronous System with Control via DVI- Frame Update Frequency: 50-60Hz- Scan Mode: 1/12 Duty- Refresh Rate: 1200Hz - Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI- Control Distance: Ethernet Cable <100m or Fiber Optic>120m- Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668- Brightness Correction: Pixel, Module, Cabinet
- ENVIRONMENTAL:- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation) - Operating Life / MTBF: 100,000 Hours / 5,000 Hours- Protection Level: IP20 (Front and Back)- Out of Control Rate: <0.02%
- HEAT EMISSIONS:- 100% Brightness = 172W = 587 BTU/h- 75% Brightness = 133W = 454 BTU/h- 50% Brightness = 96W = 327 BTU/h- 25% Brightness = 57W = 195 BTU/h
- LISTINGS:cETL, CE, FCC Class A
- OPTIONAL ACCESSORIES:AV6FC: Flight Case - fits 8 AV6 Video Walls Click hereAV6RB1: Rigging Bar - Connect up to 20 AV6 Video Walls Click hereMCTRL-300: Video Processor Click here
Specifications subject to change without notice
