AV4XIP Select
Product Information

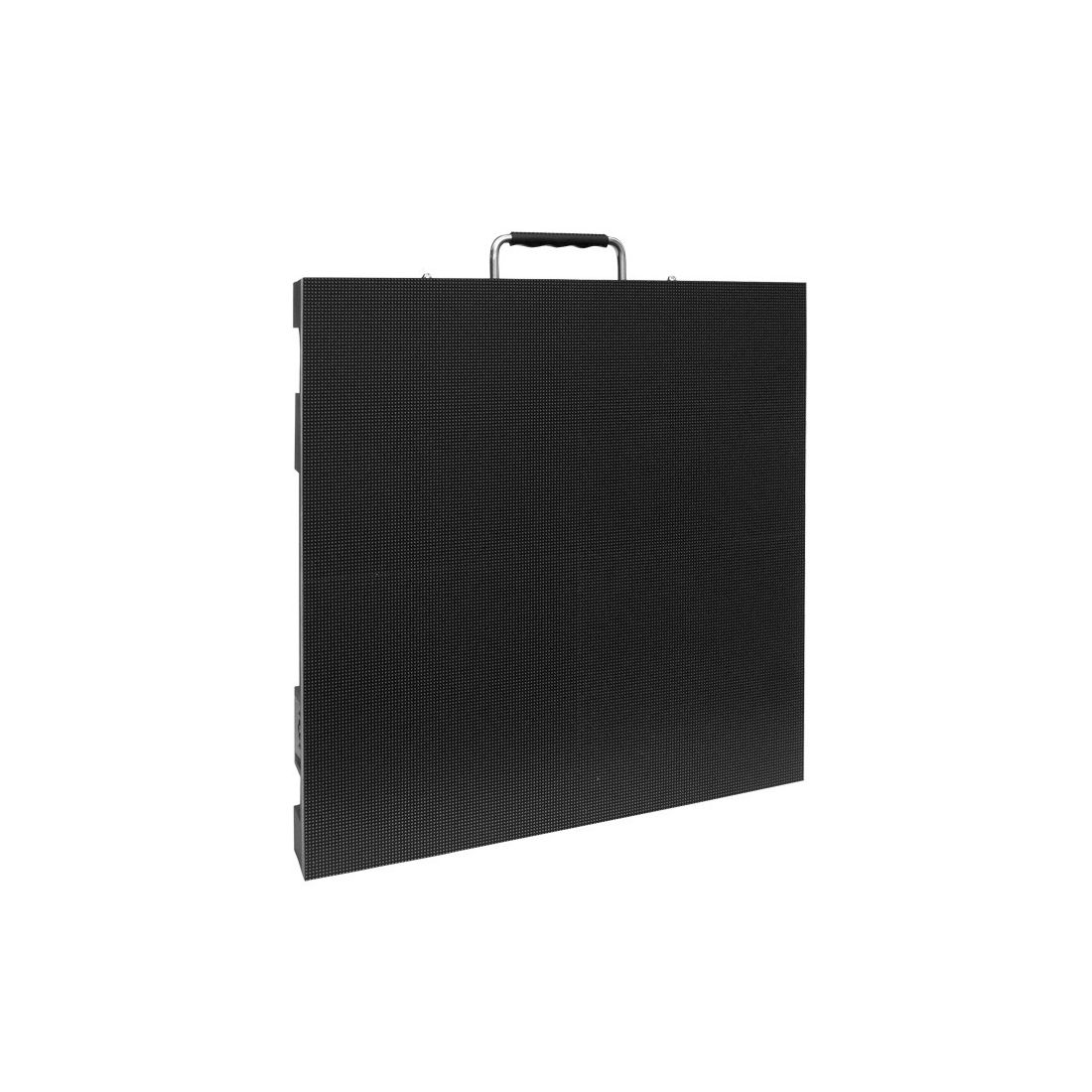

The AV4XIP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 4.81mm with a configuration of a 3-in-1 RGB SMD1921 LED's. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4000 NITS. There are 2 LED modules per panel. This allows for easy serviceability. The AV4XIP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a Novastar receiving card.
The AV4XIP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
• 4.81mm pixel pitch high resolution video panel
• IP65 Front, IP54 Back (for temporary outdoor use)
• SMD1921 3-IN-1 RGB LEDs
• NITS: 4,000
• Pixel Count: 104x104

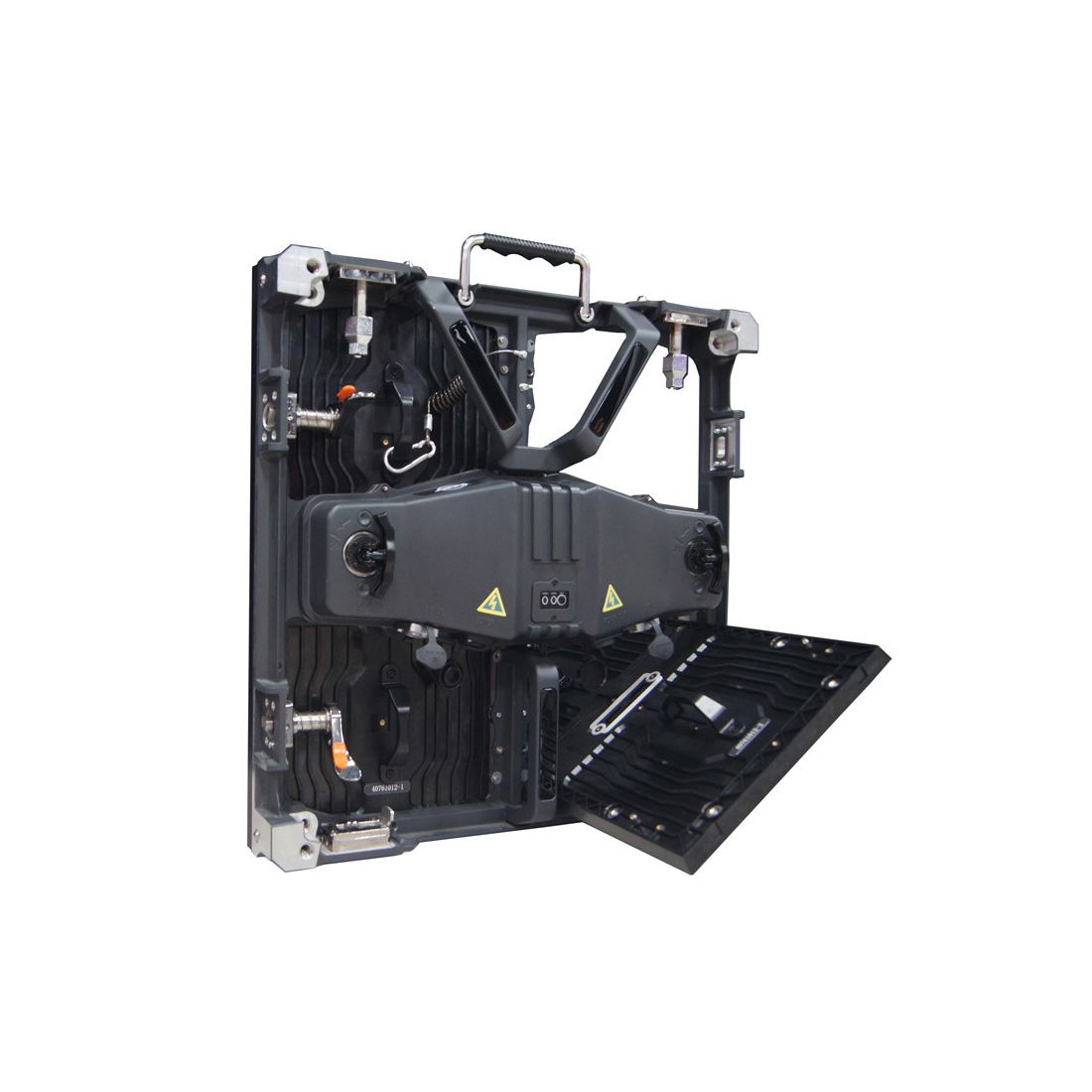

• Quick release power supply / receiving card module
• IP65 Locking Power In/Out Connections
• Locking RJ45 Ethernet In/Out Connections
• Novastar receiving card
• Dimensions: 19.7" x 19.7" (500x500mm) panel size
• Flight Case: 1521000305 ADJ Touring Case 8xAV3/AV4 - fits 8 AV4IP Panels
• Rigging Bar: 1226300057 AV3/AV4RB1
Gallery
Specification
- • Light Source: RGB SMD1921 LEDs
- • Pixel Density : 104 x 104 pixels, 43264 per square meter
- • Average LED lifetime/MTBF : 50,000 hrs./5,000 hours
- • Pixel Pitch: 4.81mm
- • Gaps < 0.5mm
- • Brightness: 4000 NITS
- • View Angle: Horizontal 140°/Vertical 140°
- • Gray Scale / Display Color: 14-bit
- • Brightness Adjustment: 0~100% 100 Levels
- • Processing: 14-bit
- • Built-In Novastar Receiving Card
- • LED Refresh Rate: 1920Hz
- • Control Distance: IP65 Ethernet Cable <100m or Fiber Optic >120m
- • Optional Novastar Sending Cards and Accessories available
- • RGB
- • Aluminium Frame
- • Module Quantity: 2
- • Module Size : 250 x 500mm
- • IP Rating: IP65 (Front), IP54 (Back, temporary outdoor use)
- • Multivoltage 100-240V 50/60Hz
- • Max Power Consumption: 180W/panel
- • Average Power Consumption: 60W/panel
- • Operational temperature: -10 to +50 degrees
- • Operational humidity: 10% — 90% (no condensation)
- • Locking IP65 RJ45 In/Out connections
- • Locking IP65 Power In/Out connections
- • Dimensions (LxWxH): 500 x 100 x 500mm
- • Weight: 9 kg.
- 1521000305 ADJ Touring Case 8x AV3/AV4IP: Flight Case for 8 x AV3 or 8 x AV4IP
- 1226300057 AV4RB1: Rigging Bar - Support up to 15 Panels vertically and can also be used as Ground Support
- 1226300059 AV3/AV4RSB: Adapter to augment screen rigidity and palois perfect panel alignment r
- 1226300138 AV4RTB: Truss Adapter to secure a ground supported screen
- 1226300067 Novastar VX4S: Video Processor & Scaler
- 1226300034 MCTRL300 : Video Processeur
- 1226300115 Corner Guard AV4IP: Magnetic Panel Corner Protector
