The AV3 is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1000NITS. There are 2 mini modular panels with-in the master panel. This allows for easy serviceability. The AV3 connections include Locking Power In/Out and Locking RJ45 In/Out. This panel also features a Novastar receiving...
Read More

Product Information

SKU: 1226300055
GTIN: 819730019288

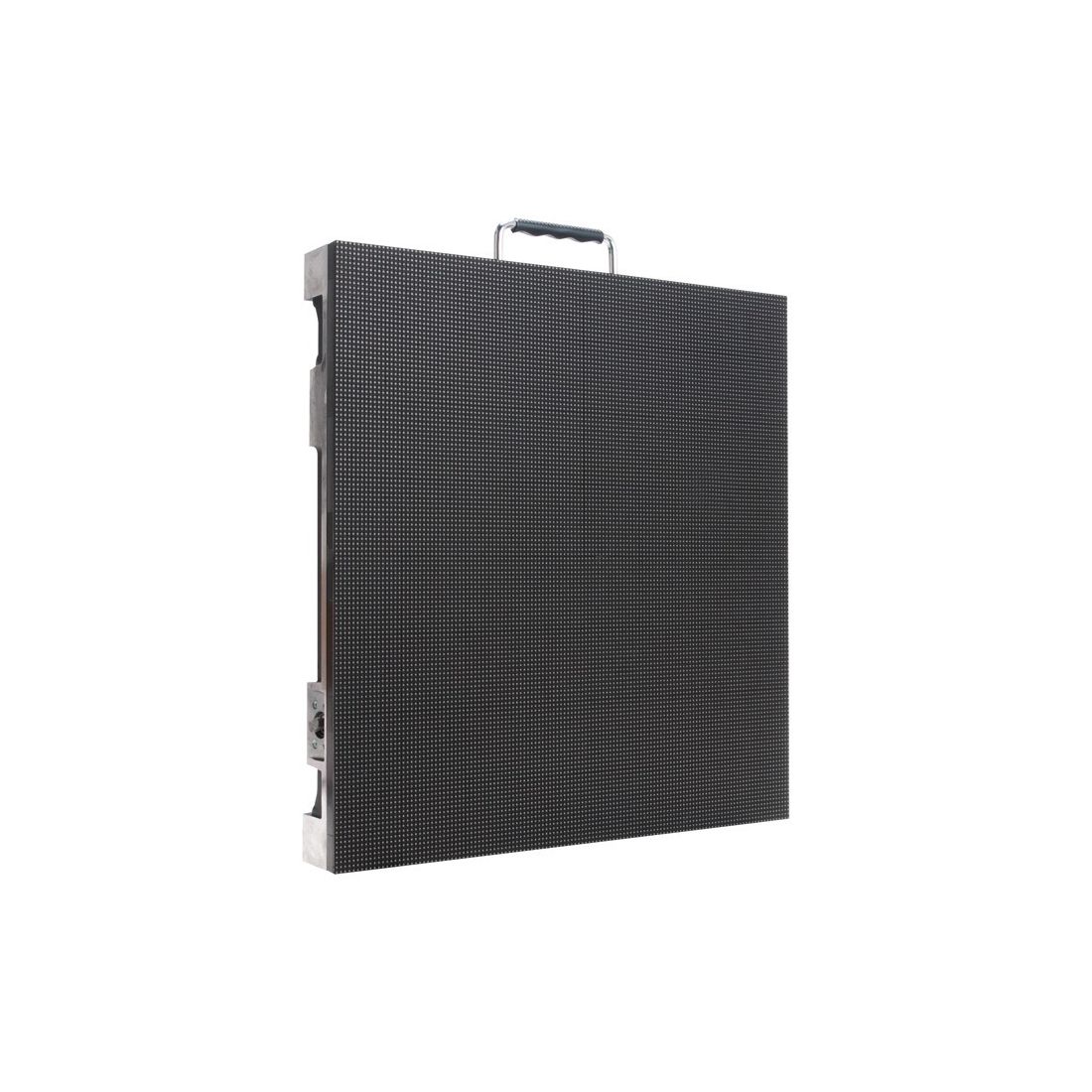

The AV3 is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1000NITS. There are 2 mini modular panels with-in the master panel. This allows for easy serviceability. The AV3 connections include Locking Power In/Out and Locking RJ45 In/Out. This panel also features a Novastar receiving card.



ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.




Learn more about the AV3 in this product spotlight: http://tinyurl.com/z99rwk8

Gallery

Specification

  • • Pixel Pitch: 3.91mm (0.25”)
  • • LED Configuration: 3-in-1 SMD2121 LED
  • • Pixel Density: 128x128; 65536 per square meter
  • • Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
  • • Module Quantity: 2
  • • Weight: 20 lbs. / 9kg.

    • • Surface Flatness: Gaps<0.5mm

    • • Brightness: 1000 NITS
    • • View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
    • • Gray Scale / Display Color: 14-bit
    • • Brightness Adjustment: 0~100% 100 Levels
    • • Processing: 14-bit

    • • Operation Power: 100~240V 50-60Hz
    • • Max. Power Consumption: 170W/per panel
    • • Ave. Power Consumption: 70W/per panel

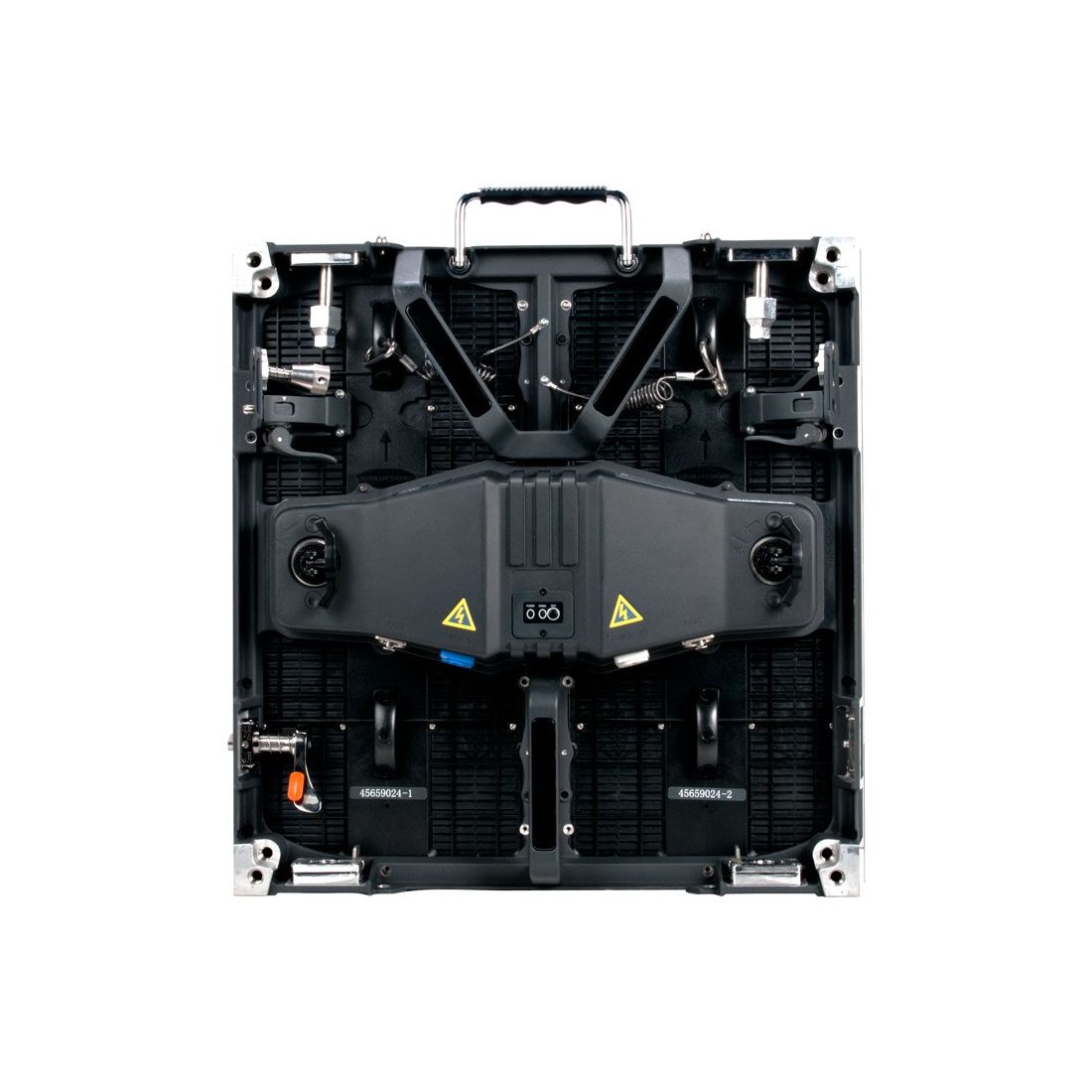

    • • Connections Power/Data: Power-Locking PowerIn/Out; Data Locking RJ45 In/Out

    • • Control Mode: Nova Star Synchronous System with Control via DVI
    • • Frame Update Frequency: 50-60Hz
    • • Scan Mode: 1/16
    • • Refresh Rate: 1920Hz
    • • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
    • • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • • Brightness Correction: Pixel, Module, Cabinet

    • • Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
    • • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
    • • Protection Level: IP20 (Front and Back)
    • • Out of Control Rate: <0.02%
    • • Listings: ETL, CE, FCC Class A

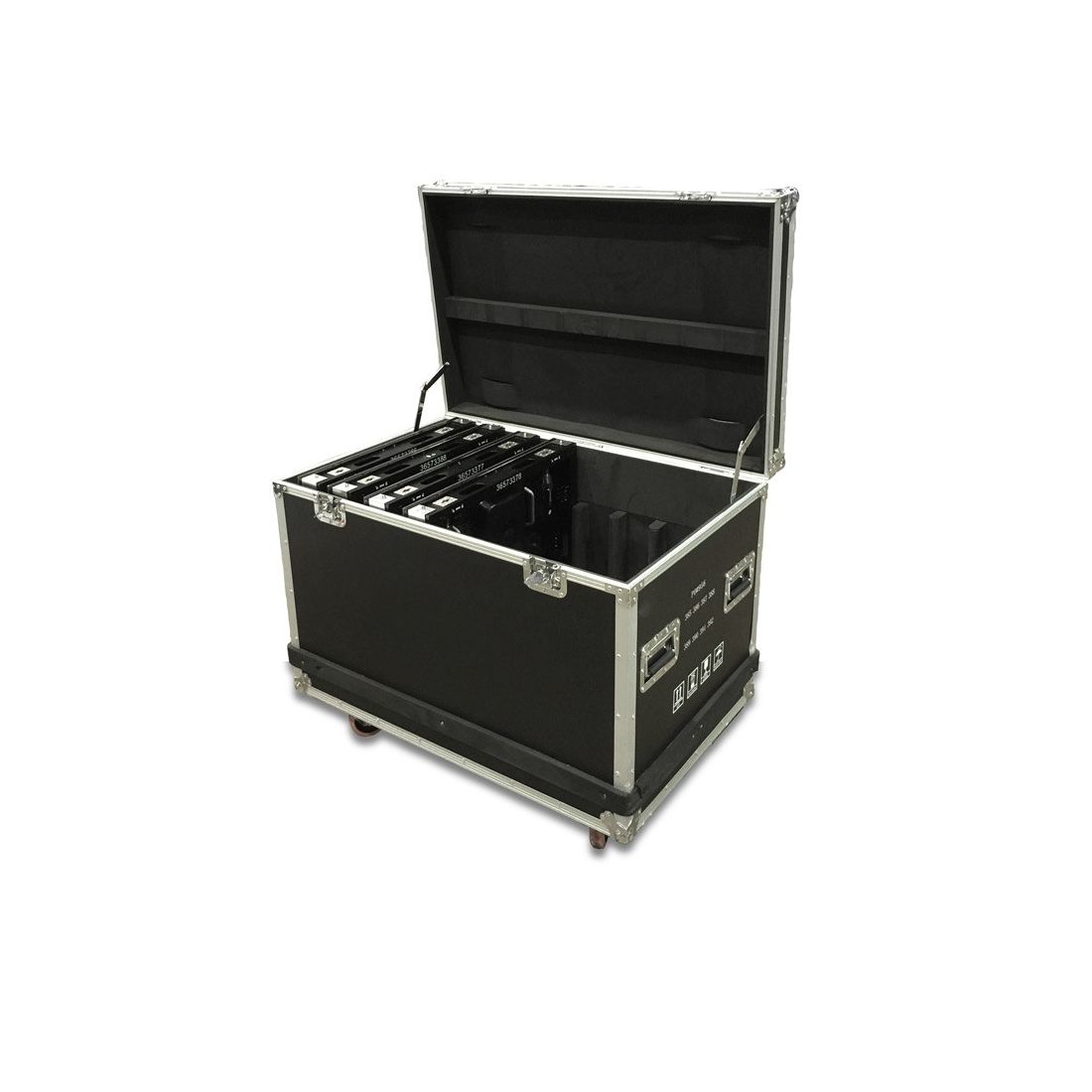

    • AV3FC (AV3095): Flight Case - fits 8 AV6 Video Walls

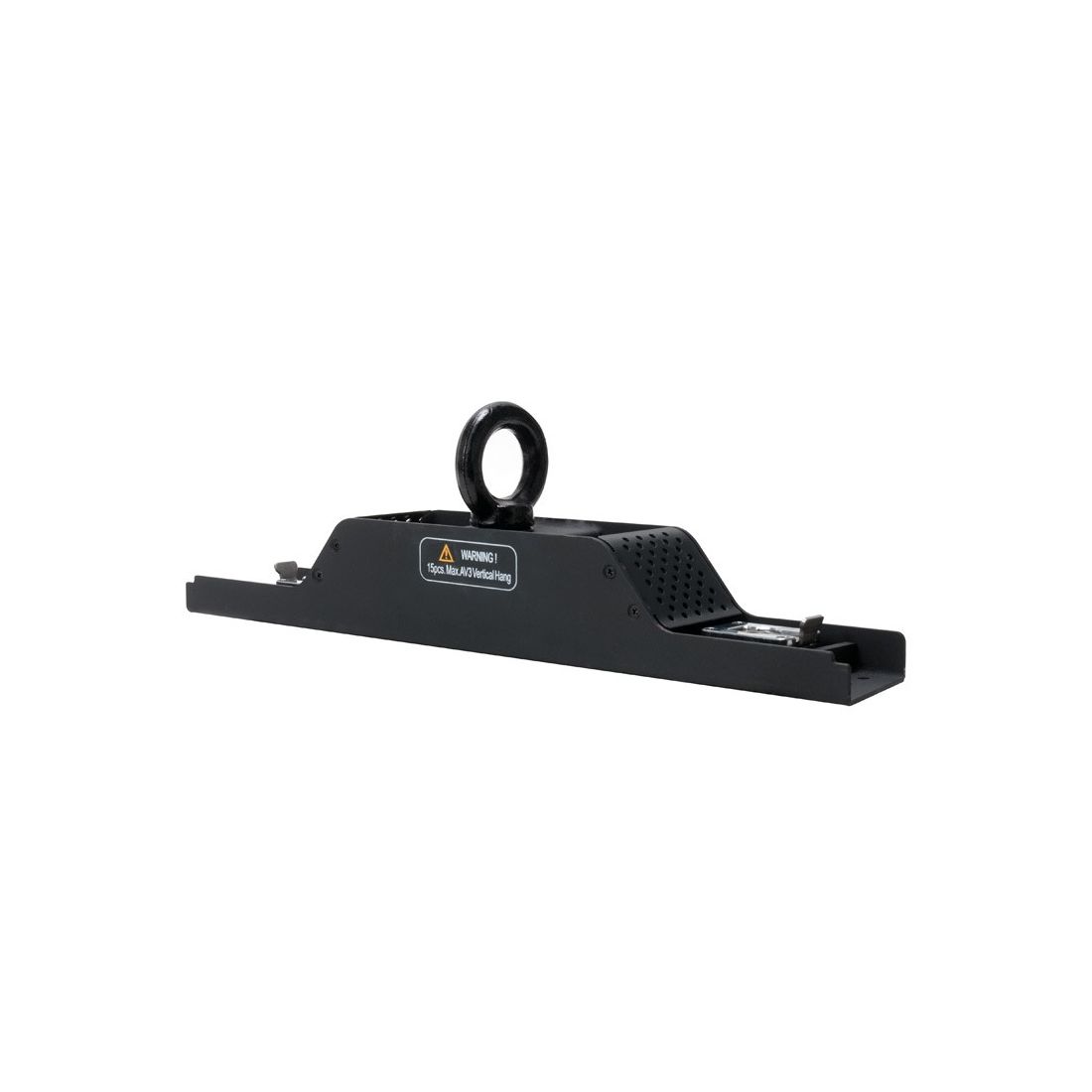

    • AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3 Video Panels
    • AV3FWA (AV3111): Flat wall adapter
    • Novastar VX4S: Video Processor
    • Novastar MCTRL-300: Video Processor
    • Media Master Express 4: Video Software
    • GrandVJ 2.0: Video Software
