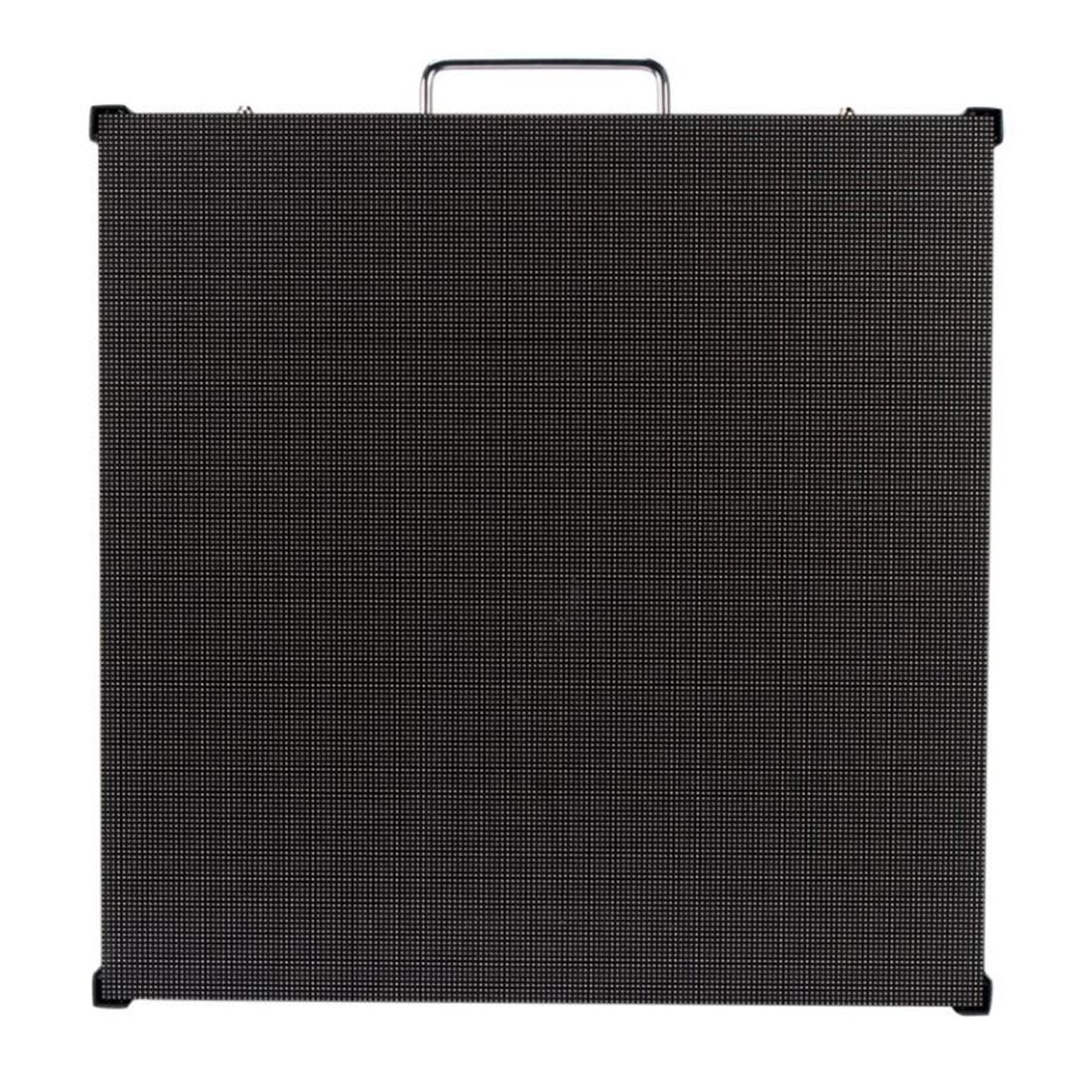

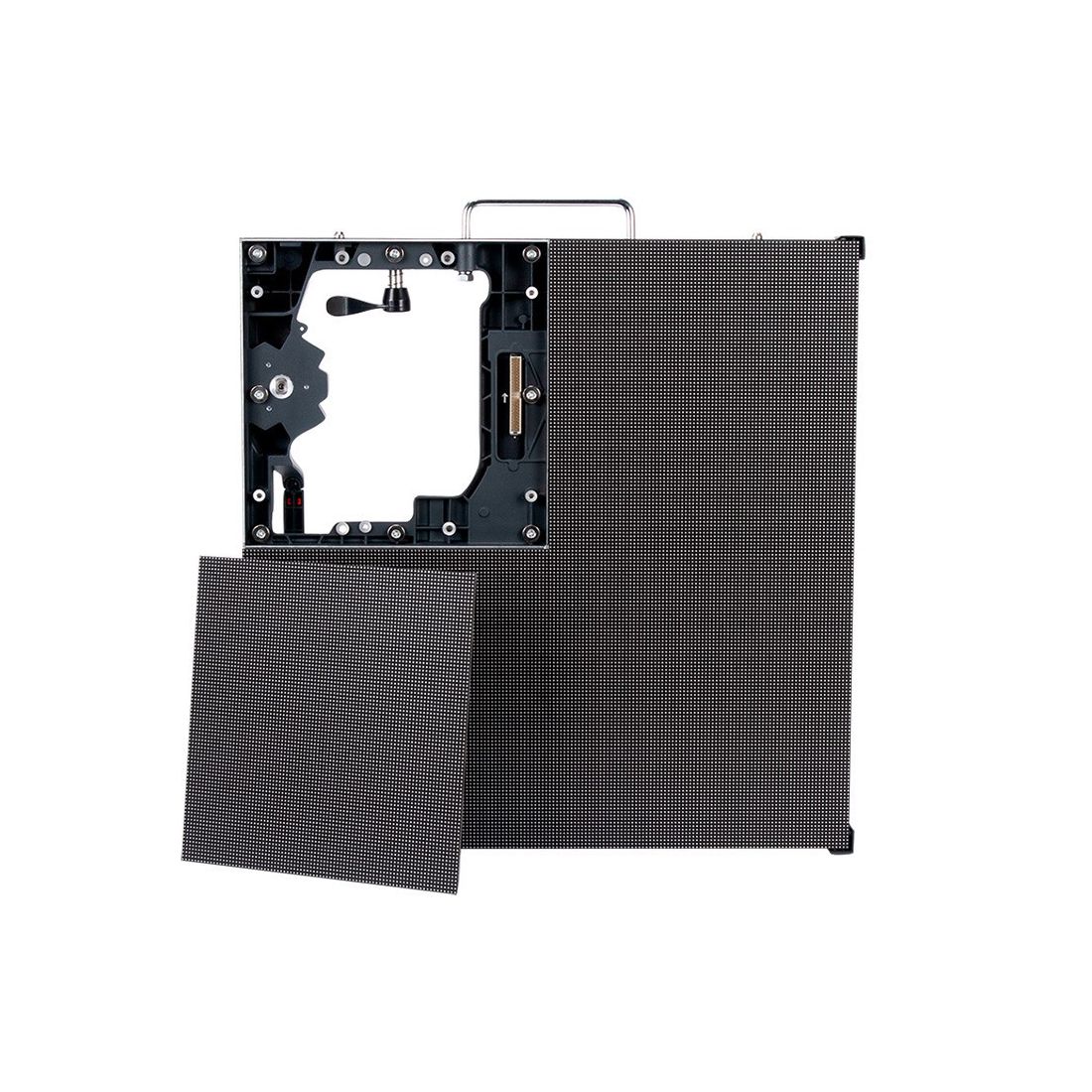

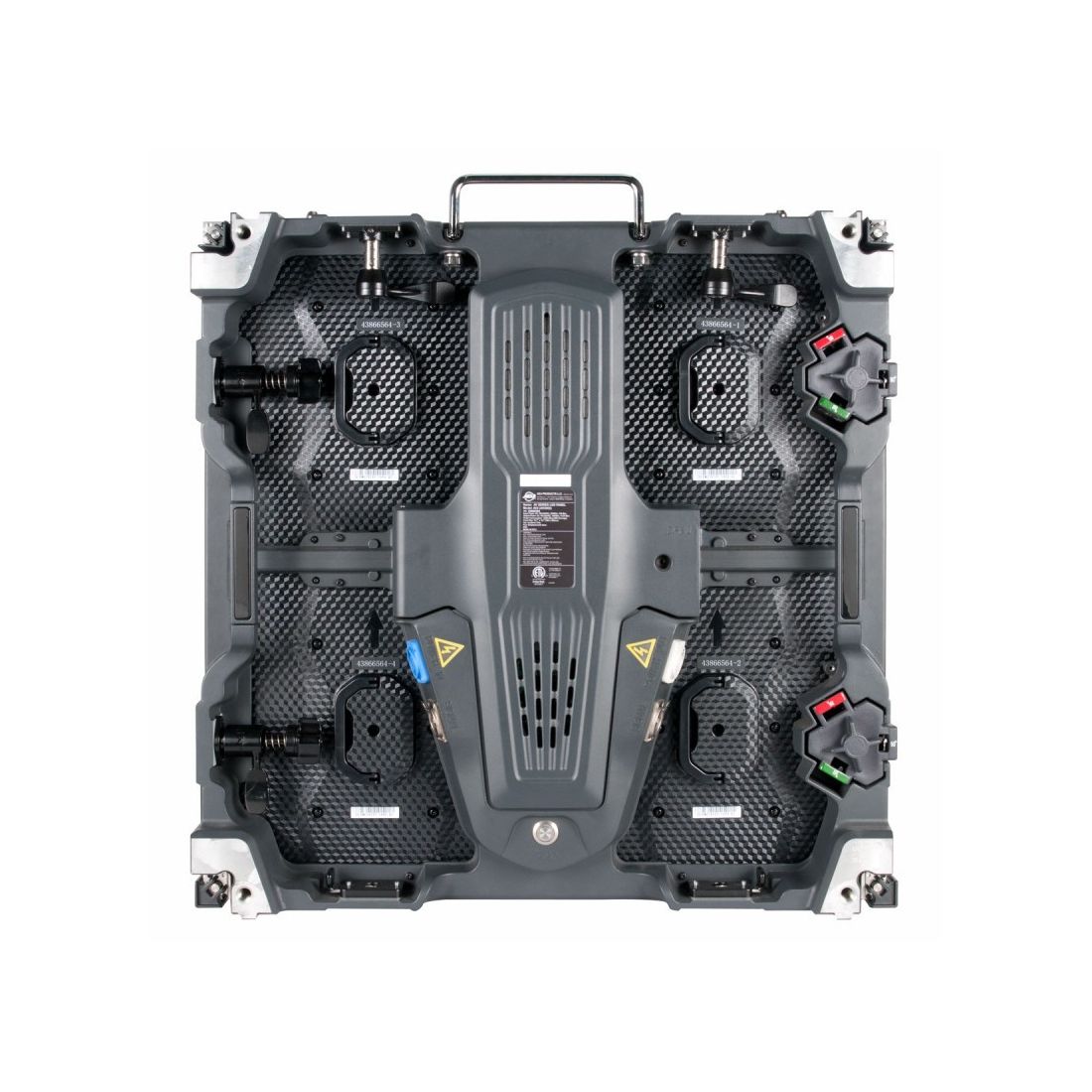

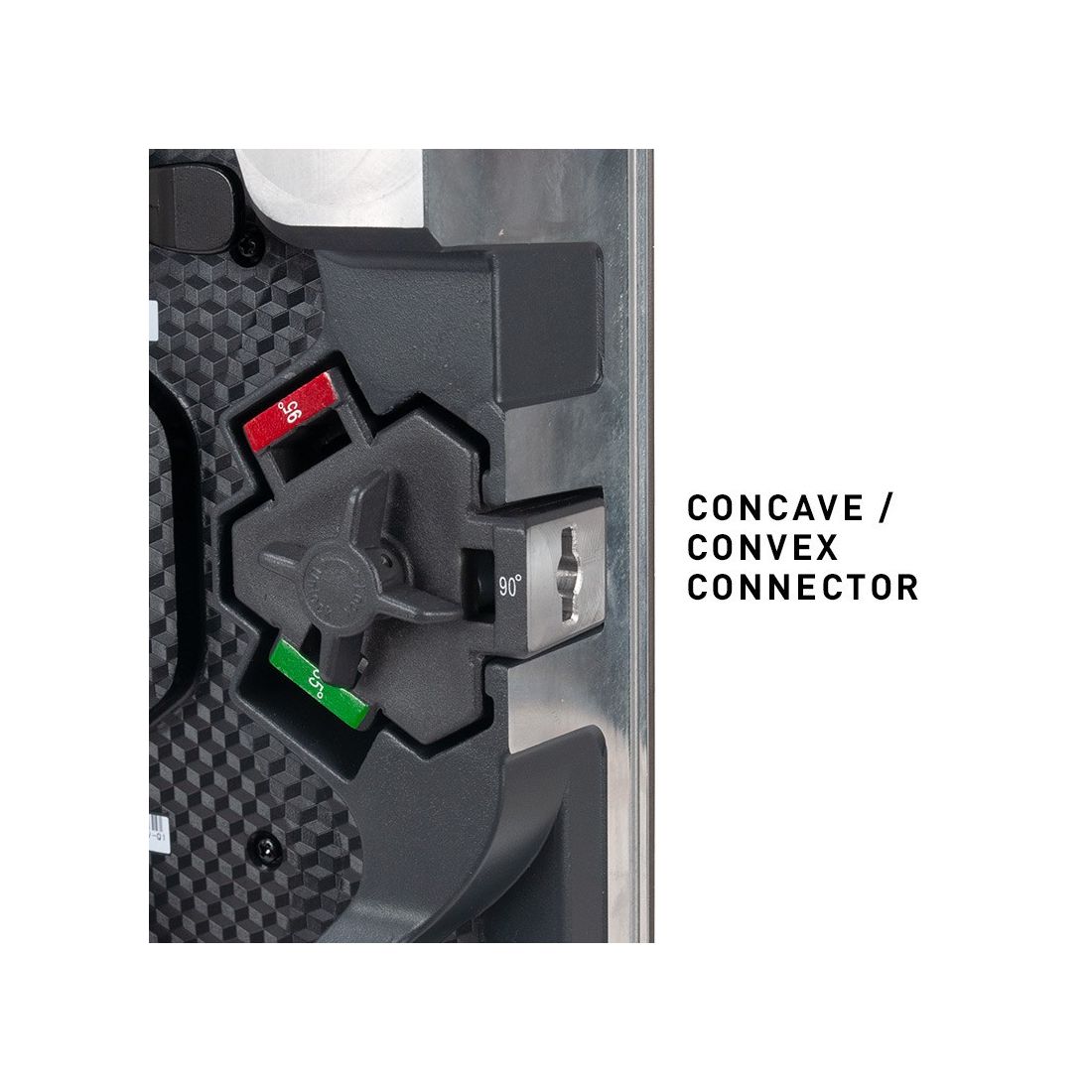

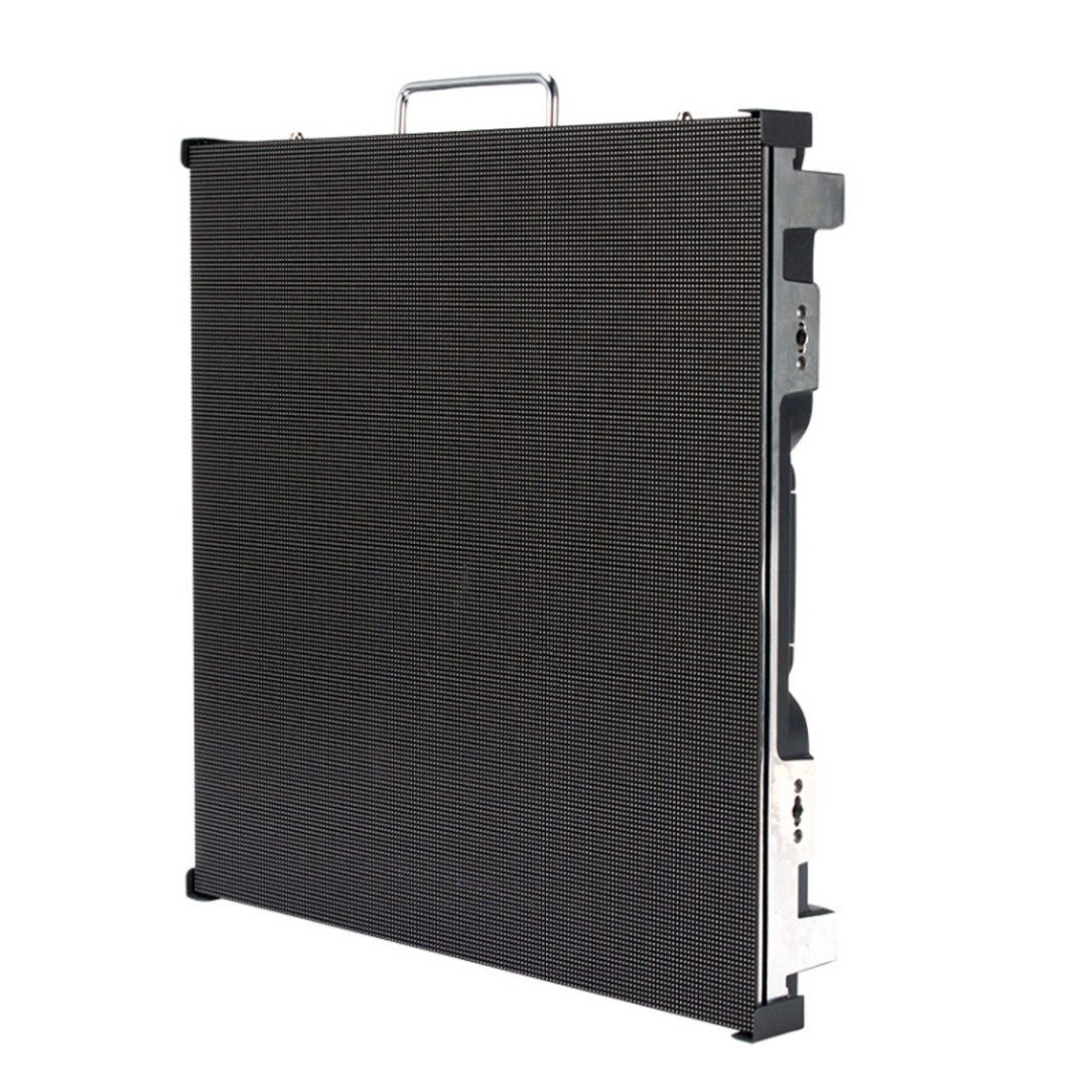

The AV2 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave +/-5°. The brightness is 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV2 connections include Locking Power In/Out and Locking RJ45 In/Out. This panel also features a Novastar A5s receiving card.
ADJ offers full packages with video processors,...
Product Information
SKU: 1226300116
GTIN: 818651025620
HS-Code: 8529909299

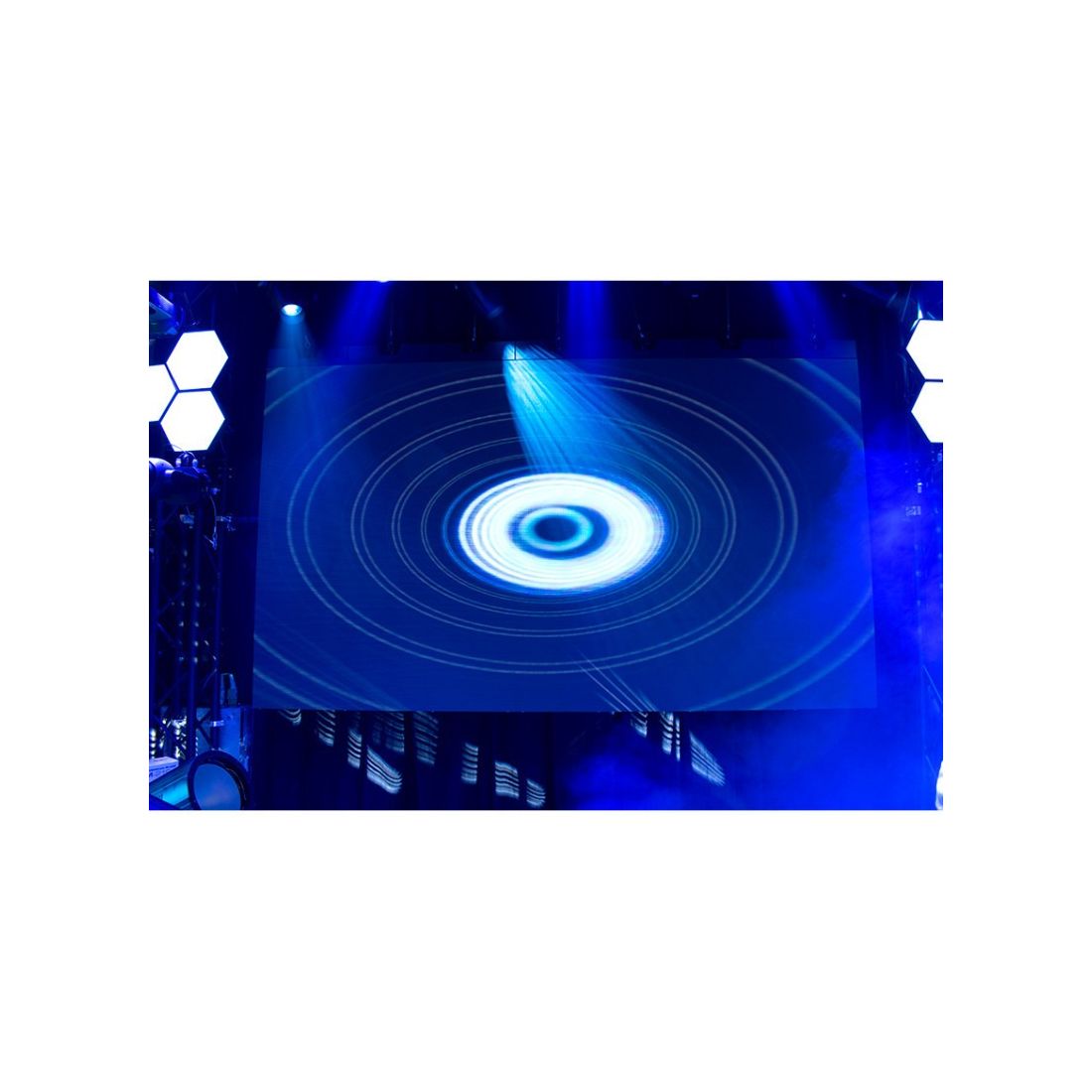

The AV2 is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 2.97mm with a configuration of a 3-in-1 RGB SMD2121 LED. The panel can curve in convex or concave +/-5°. The brightness is 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The AV2 connections include Locking Power In/Out and Locking RJ45 In/Out. This panel also features a Novastar A5s receiving card.
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
Gallery
Specification
- • Light Source: RGB SMD2121 LEDs
- • Pixel Density : 168 x 168 pixels, 112896 per square meter
- • Average LED lifetime/MTBF : 50,000 hrs./5,000 hrs
- • Pixel Pitch: 2.97mm
- • Gaps < 0.5mm
- • Brightness: 1000 NITS
- • View Angle: Horizontal 160°/Vertical 120°
- • Gray Scale / Display Color: 14-bit
- • Brightness Adjustment: 0~100% 100 Levels
- • Processing: 14-bit
- • Built-In Novastar Receiving Card
- • LED Refresh Rate: 1920Hz
- • Control Distance: Ethernet Cable <100m or Fiber Optic >120m
- • Optional Novastar Sending Cards and Accessories available
- • RGB
- • Aluminium Frame
- • Module Quantity: 4
- • Module Size : 250 x 250mm
- • IP Rating: IP20 (Front & Back)
- • Multivoltage 100-240V 50/60Hz
- • Max Power Consumption: 120W/panel
- • Average Power Consumption: 48W/panel
- • Operational temperature: -20 to +40 degrees
- • Operational humidity: 10% — 90% (no condensation)
- • Locking RJ45 In/Out connections
- • Locking Power In/Out connections
- • Dimensions (LxWxH): 500 x 73 x 500mm
- • Weight: 8 kg.
