Allegro Z6 Select Archive
Key Features
Color
• RGBW Color Mixing
• 15 Color Temperature Presets from 2700K - 7000K
• Separate DMX channels for Foreground and Background color control
• RGBW Color Mixing
• 15 Color Temperature Presets from 2700K - 7000K
• Separate DMX channels for Foreground and Background color control
Optics
• Variable Beam Angle: 3.5 - 38°
• Individual Pixel Control, Pixel Flip Mode
• Motorized Zoom
• Variable Beam Angle: 3.5 - 38°
• Individual Pixel Control, Pixel Flip Mode
• Motorized Zoom
Source
• Light Source: 6x 30W RGBW LEDs (Red, Green, Blue & White LED)
• 6,590 lux @ 5m/3.5°/Full On - 353 lux @ 5m/38°/Full On
• Light Source: 6x 30W RGBW LEDs (Red, Green, Blue & White LED)
• 6,590 lux @ 5m/3.5°/Full On - 353 lux @ 5m/38°/Full On
Product Information
SKU: 1226200021
GTIN: 818651026870
HS-Code: 94054210

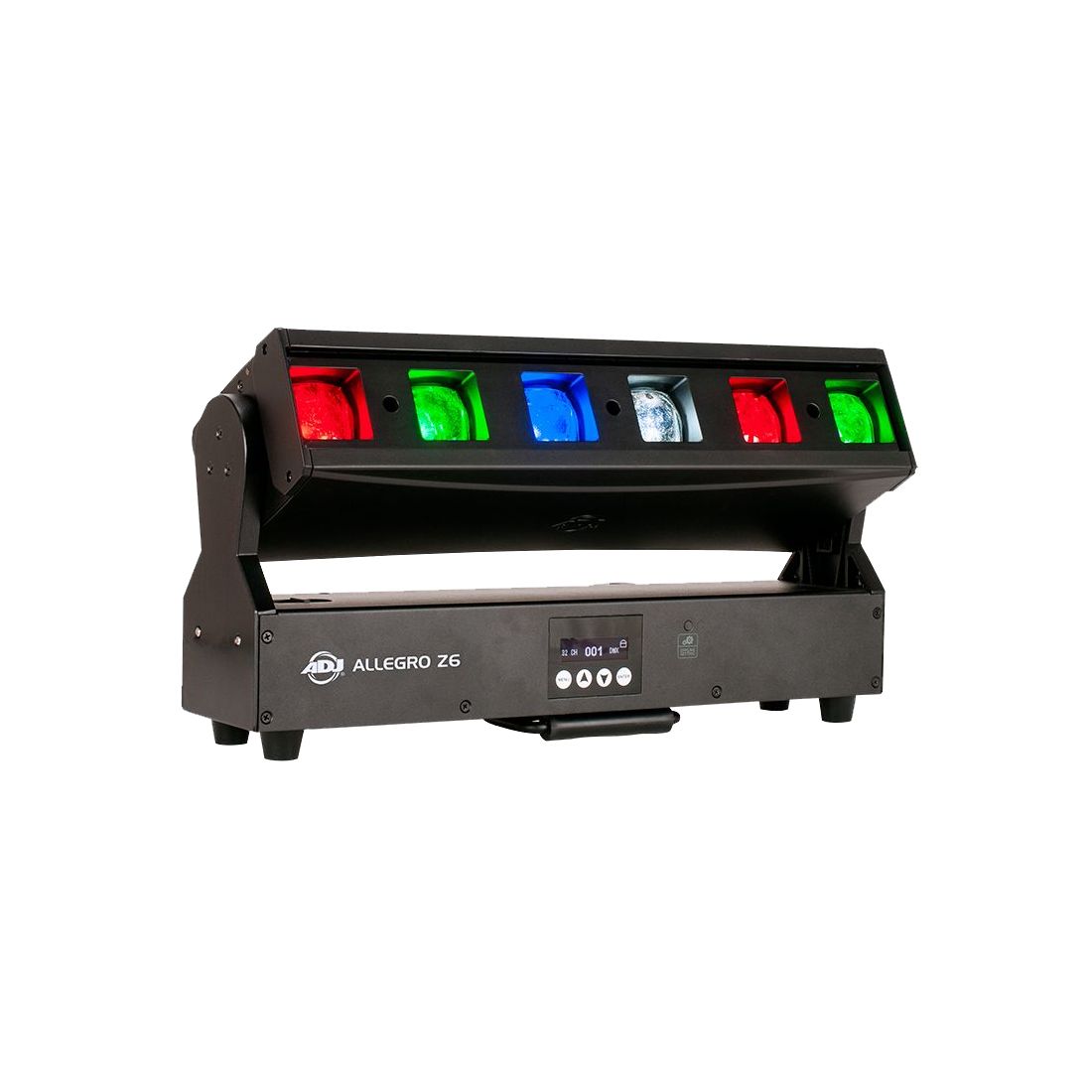

The ADJ Allegro Z6 is a pixel zoom bar wash luminaire with motorized zoom and 220-degree Tilt. It features individual 30W RGBW 4-in-1 LEDs, ultra-wide 3.5?- 38? motorized zoom, full individual pixel control, variable dimming curves, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET (DMX over Ethernet) support, Locking 5pin DMX in/out, Locking RJ45 in/out, and IP65 Locking Power in/out connections, flicker free operation for TV and Film, 4 button control 180° reversible menu display and a multi-voltage universal auto switching power supply (100-240V).
Gallery
Specification
- • Light Source: 6 RGBW LEDs (Red, Green, Blue & White LED)
- • Individual LED wattage : 30W
- • Average LED lifetime :approximately 50,000 hrs.
- • Variable Beam Angle: 3.5 - 38 degrees
- • Individual Pixel Control, Pixel Flip Mode
- • Motorized Zoom
- • 6590 lux @ 5m/3.5 degree/Full On - 353 lux@5m/38 degree/Full On
- • KlingNet, ArtNet, sACN and DMX Control
- • 2 DMX Modes: 17 & 37-channel
- • RDM compatible
- • 16bit Electronic Dimming: 0 - 100%
- • 220-degree motorized Tilt
- • 7 built-in Macros
- • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- • Adjustable dimming delay time from 0.1secs - 10 secs
- • Adjustable LED refresh Rate : 900Hz - 25kHz
- • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.6/2.8
- • Silent Fan Mode
- • LED pulse and strobe effect
- • 4-button, DMX digital display on rear panel
- • RGBW Color Mixing
- • 15 Color Temperature Presets from 2700K - 7000K
- • Separate DMX channels for Foreground and Background color control
- • Metal Housing
- • Alignment Pin Switch for perfect alignment of multiple fixtures
- • Tilt Lock for stable transporting
- • Folding carrying handle
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 240W
- • 5-pin Locking DMX connectors
- • IP65 Locking Power In/Out connections
- • Locking RJ45 In/Out for KlingNet/ArtNet control
- • USB Update Port
- • Dimensions (LxWxH): 500 x 113 x 278mm
- • Weight: 10 kg.
