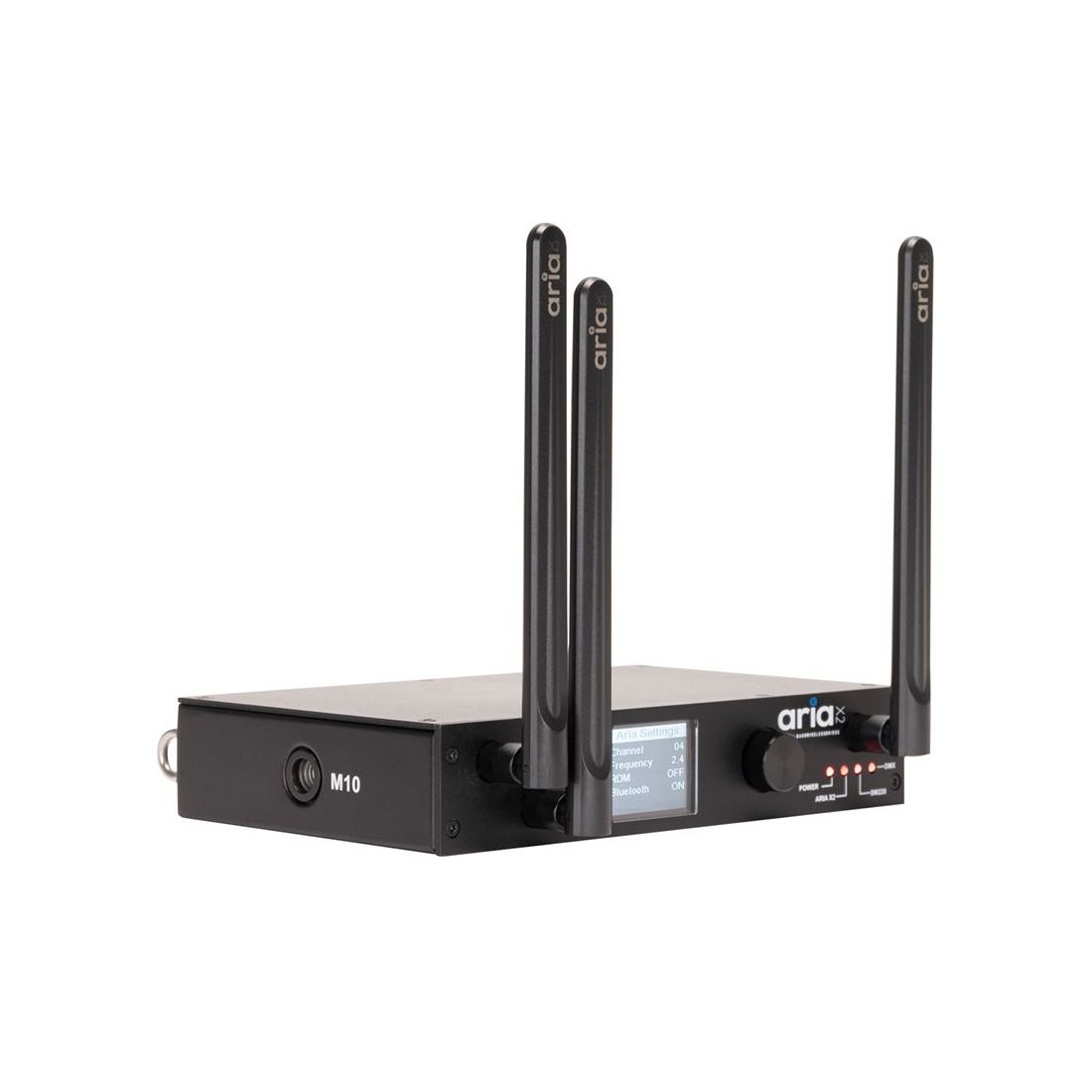

Aria X2 Bridge Select New
Key Features
Connections
• Single DMX Universe
• 900Mhz., 2.4 GHz WiFi and Bluetooth
• Single DMX Universe
• 900Mhz., 2.4 GHz WiFi and Bluetooth
Construction
• IP20 Aluminum / Metal enclosure
• M10 and M12 Threads
• Safety Eyelet
• IP20 Aluminum / Metal enclosure
• M10 and M12 Threads
• Safety Eyelet
Control

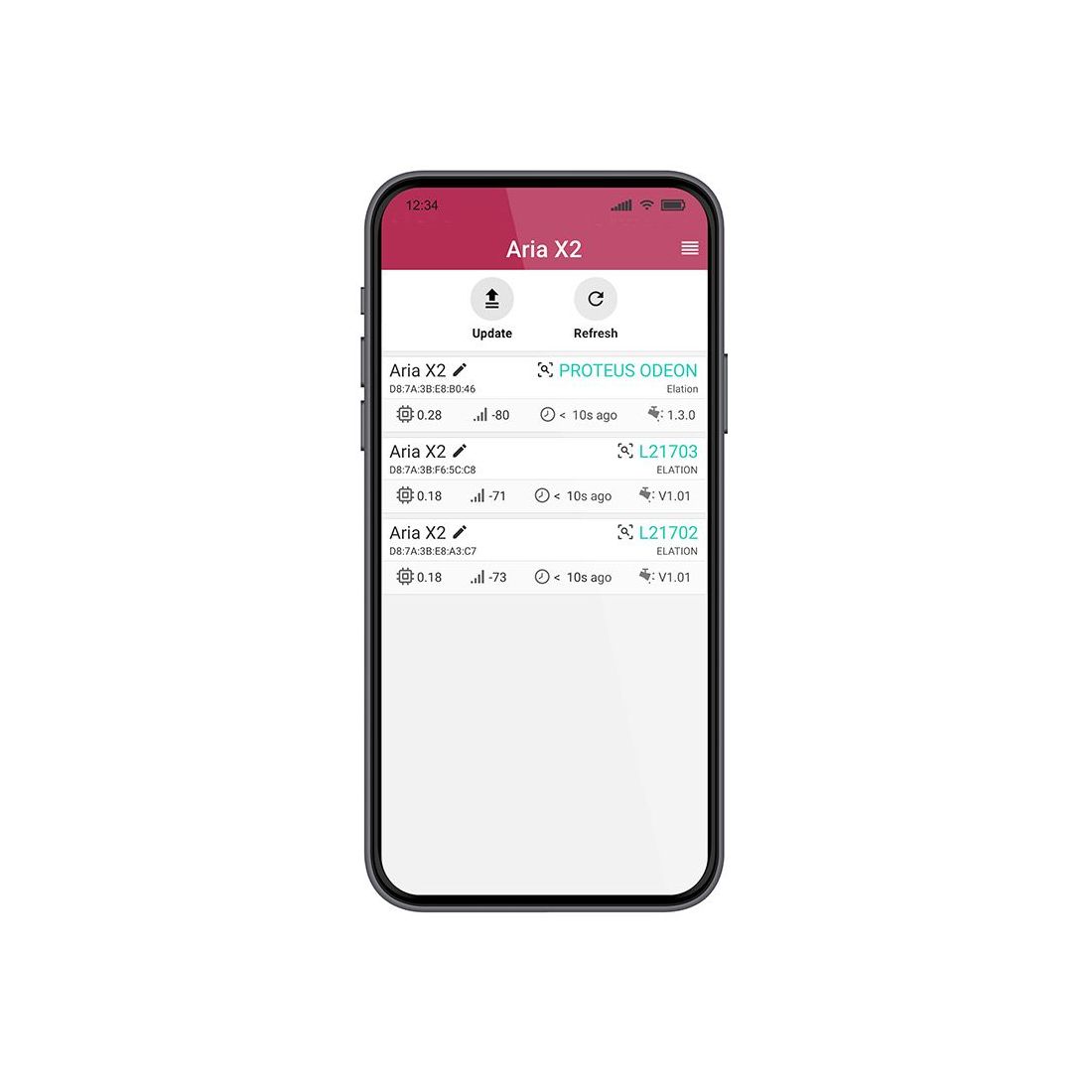

• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
Product Information
SKU: 1321000090
GTIN: 10840063548074
HS-Code: 8517620000
EMPOWER YOUR LIGHTING EXPERIENCE TO A NEW DIMENSION!
Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show. Aria X2 Bridge “bridges the gap” between the new Aria X2 serial protocol and existing wireless DMX solutions. The Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.
Frequency Agility:
Aria modules boast the capability to transmit and receive signals on
standard 802.15.4 channels, both in the 2.4GHz and 915MHz (U.S) or 2.4GHz, 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums, ensuring network reliability.
Bluetooth Low Energy (BLE) Configuration:
Aria simplifies device setup with BLE, enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments, opening doors to creative control possibilities.
OTA Updates:
Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus. A cloud repository stores these updates, and the service app efficiently retrieves them, with future multi-hop DMX support enabling mesh network updates.
Wireless Mesh Excellence:
Aria’s robust foundation lies in its Wireless Mesh technology, featuring a versatile multi-hop DMX protocol. It adapts to various settings and use cases, with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics, ensuring low latency and reduced collisions (available: TBA).
Frequency Hopping:
Aria modules will implement a frequency hopping scheme, enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization, providing a seamless and efficient lighting experience (available: TBA).
Gallery
Specification
- • Single DMX Universe
- • 900Mhz., 2.4 GHz WiFi and Bluetooth
- • Configuration via App (Coming Soon) or Front panel
- • Wireless to DMX or DMX to Wireless
- • Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
- • SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
- • DMX
- • RDM (Planned for future software release)
- • Proprietary 802.15.4
- • Aria X2 Mesh Protocol
- • Bluetooth 5.2 (BLE)
- • Aria X2 Serial Protocol
- • This is our proprietary serial protocol for communicating with a variety of fixtures.
- • Frequency range
- • 2404-2480 MHz
- • 863-870 MHz (EU)
- • 902-928 MHz
- • Radio module: Aria X2
- • Interference mitigation
- • CSMA
- • Adaptive frequency hopping (on the roadmap)
- • OTA updates

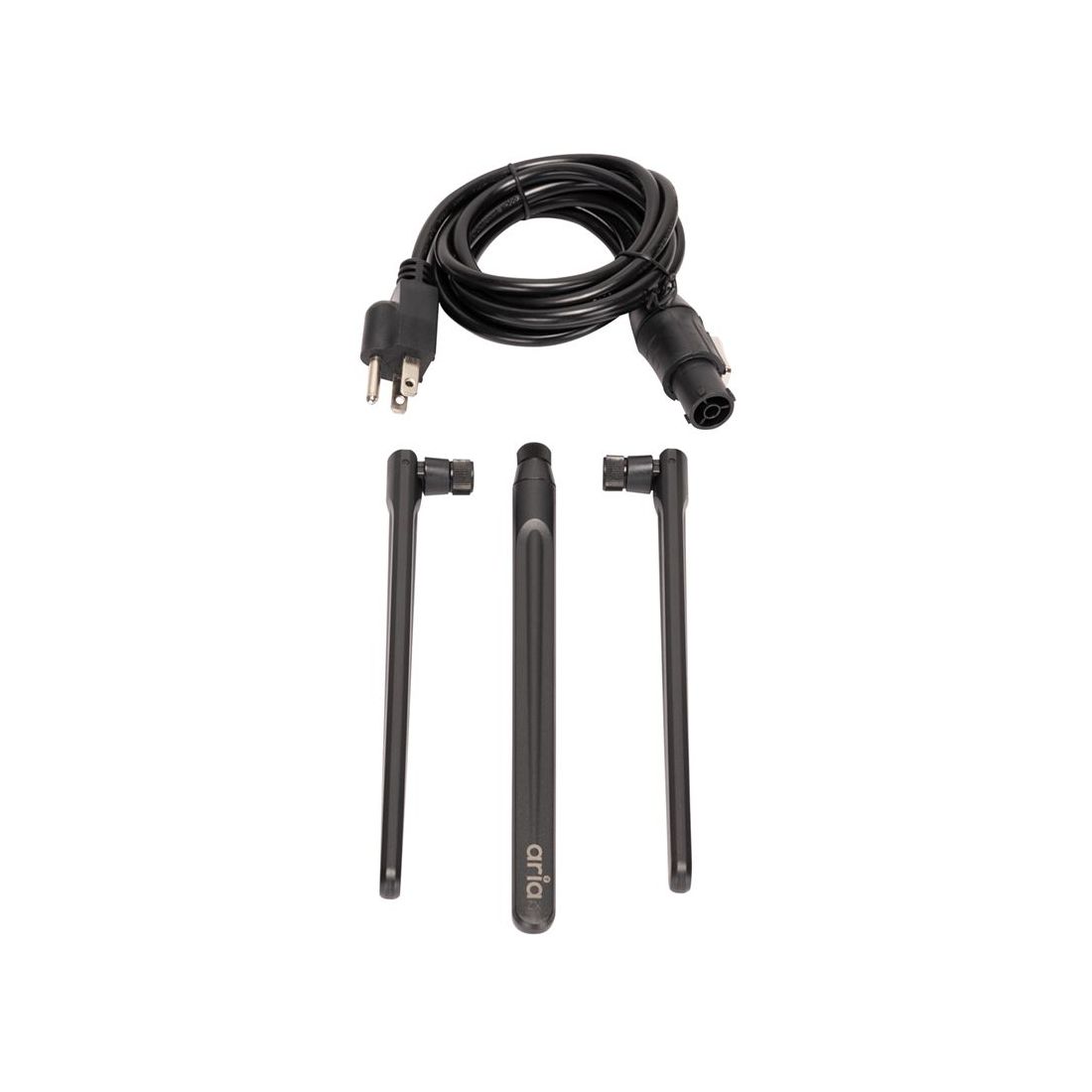

- • Antenna: 5G JT SMA

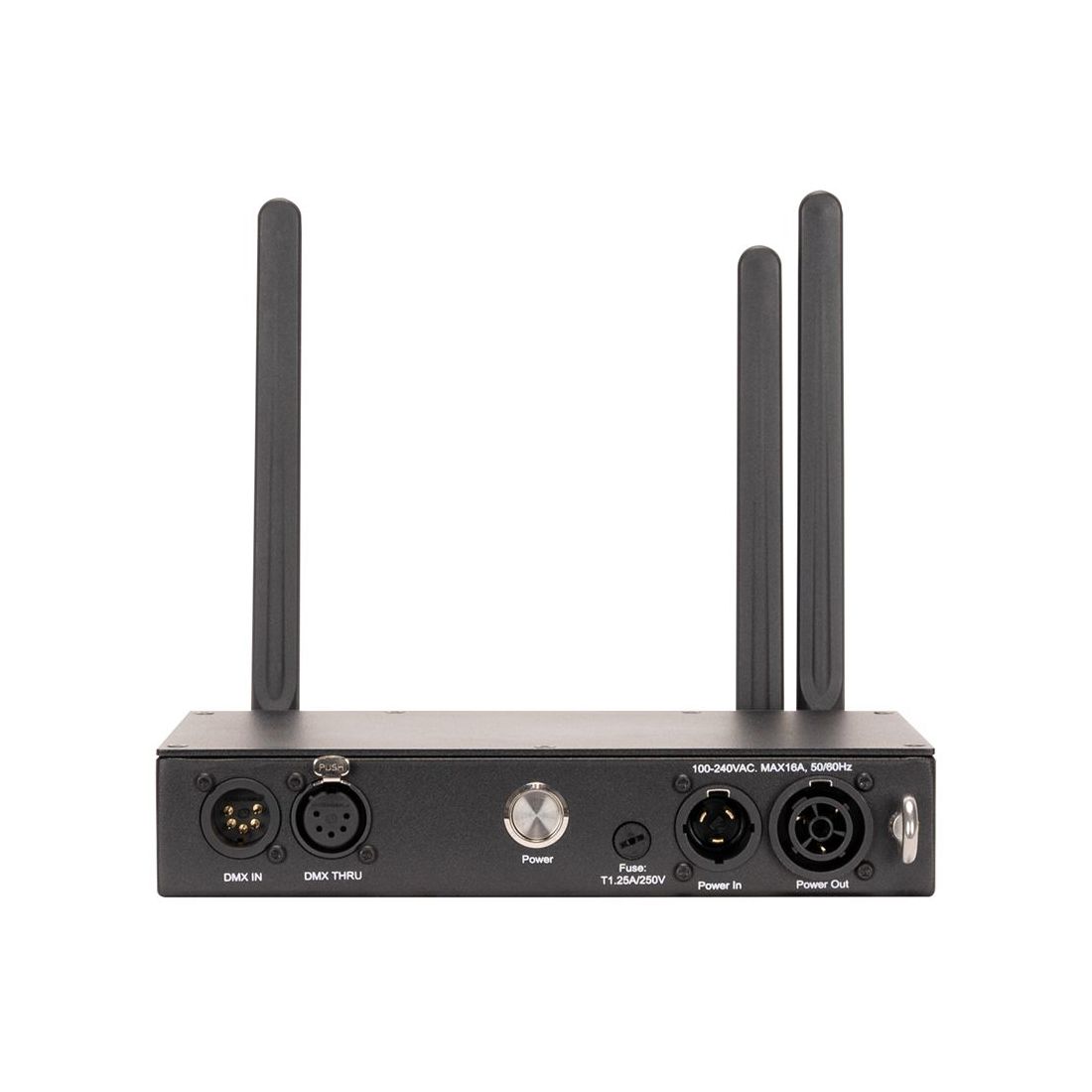

- • DMX: 5-pin XLR Input and Output
- • DC: 2.5mm/5.5mm Barrel connector
- • Outdoor Locking Power Input and Output
- • AC100-240V 50/60Hz
- • Power Consumption: 2W
- • Power Fuse: T1.25A/250V. (5 x 20mm)
- • IP20 Aluminum / Metal enclosure

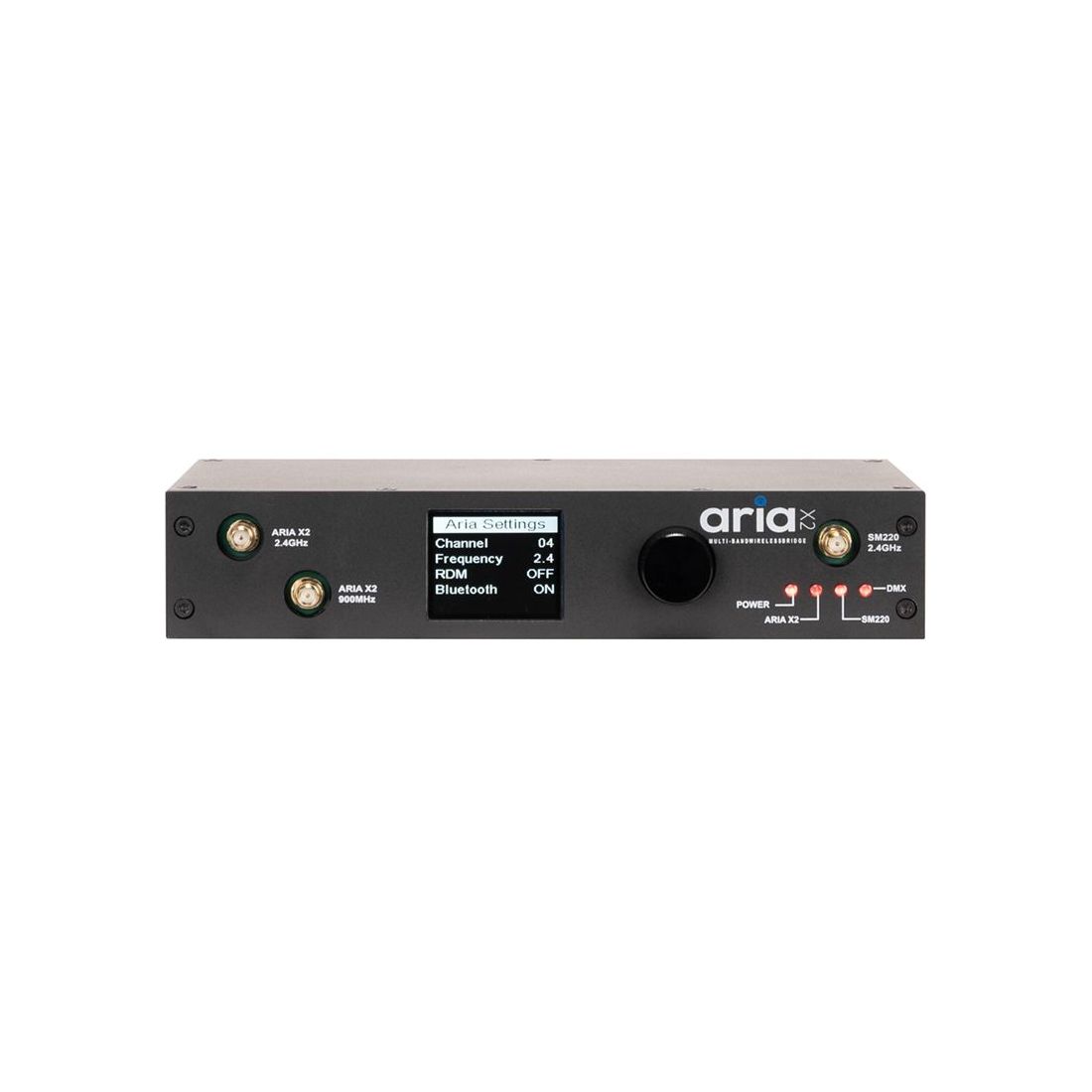

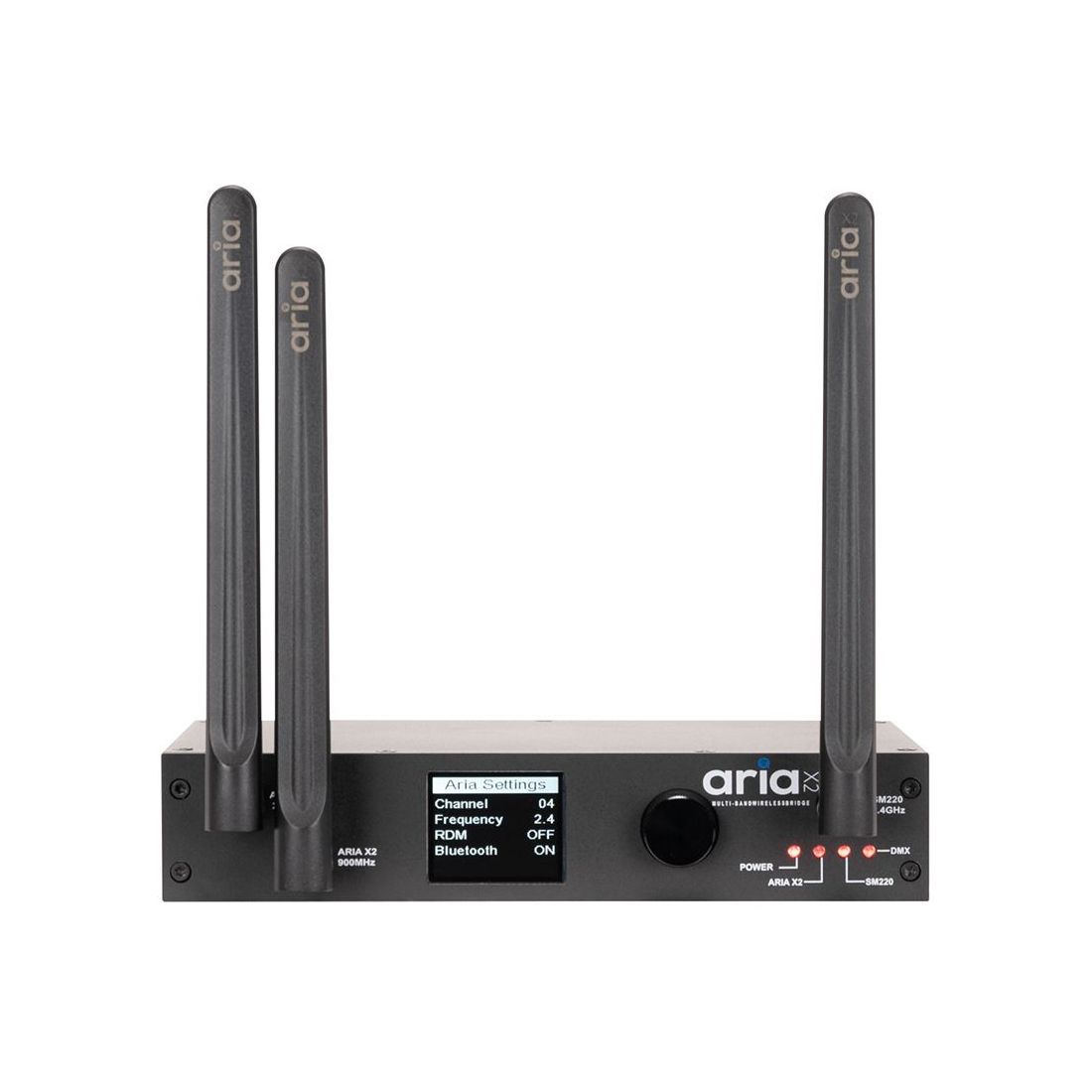

- • Front panel digital screen and rotary knob

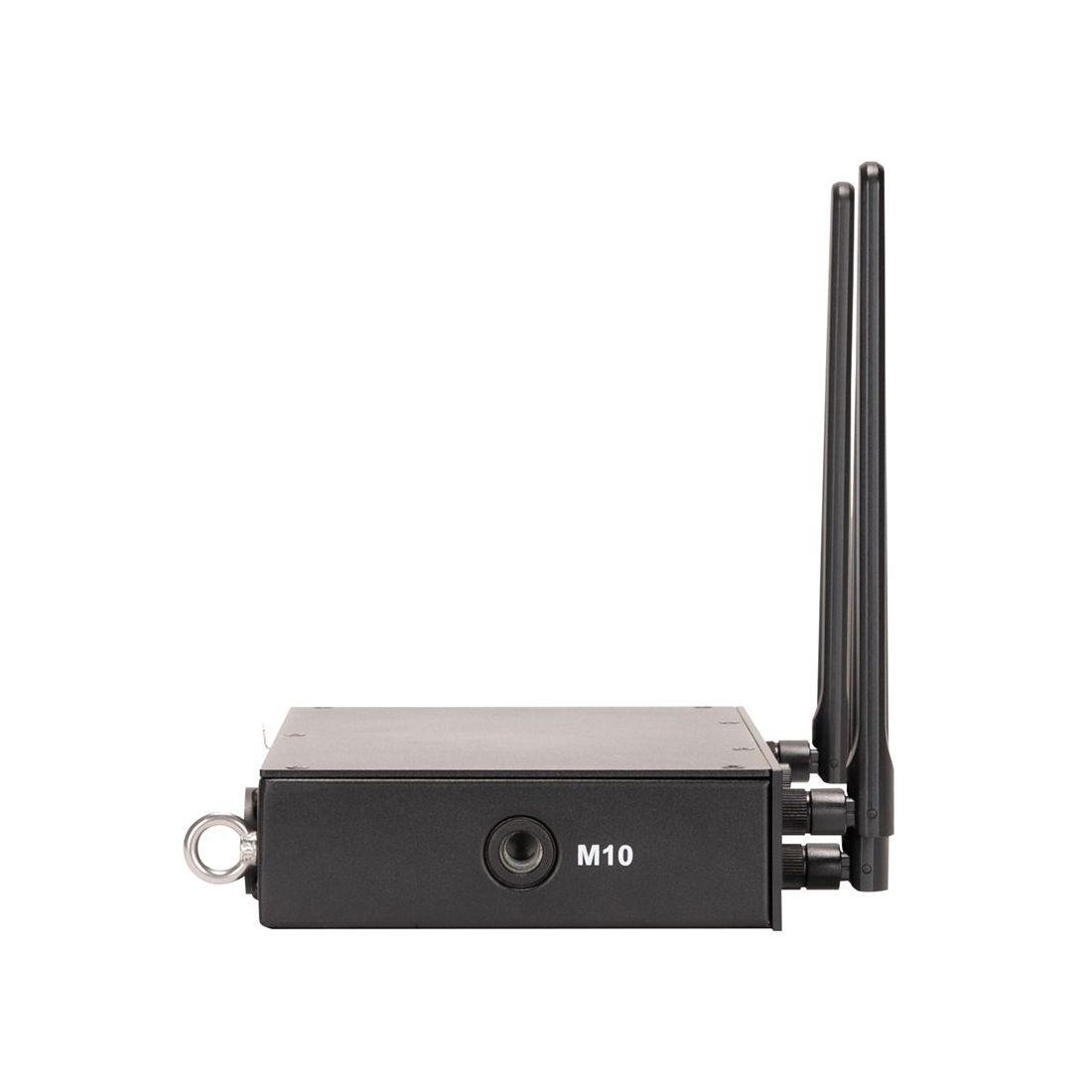

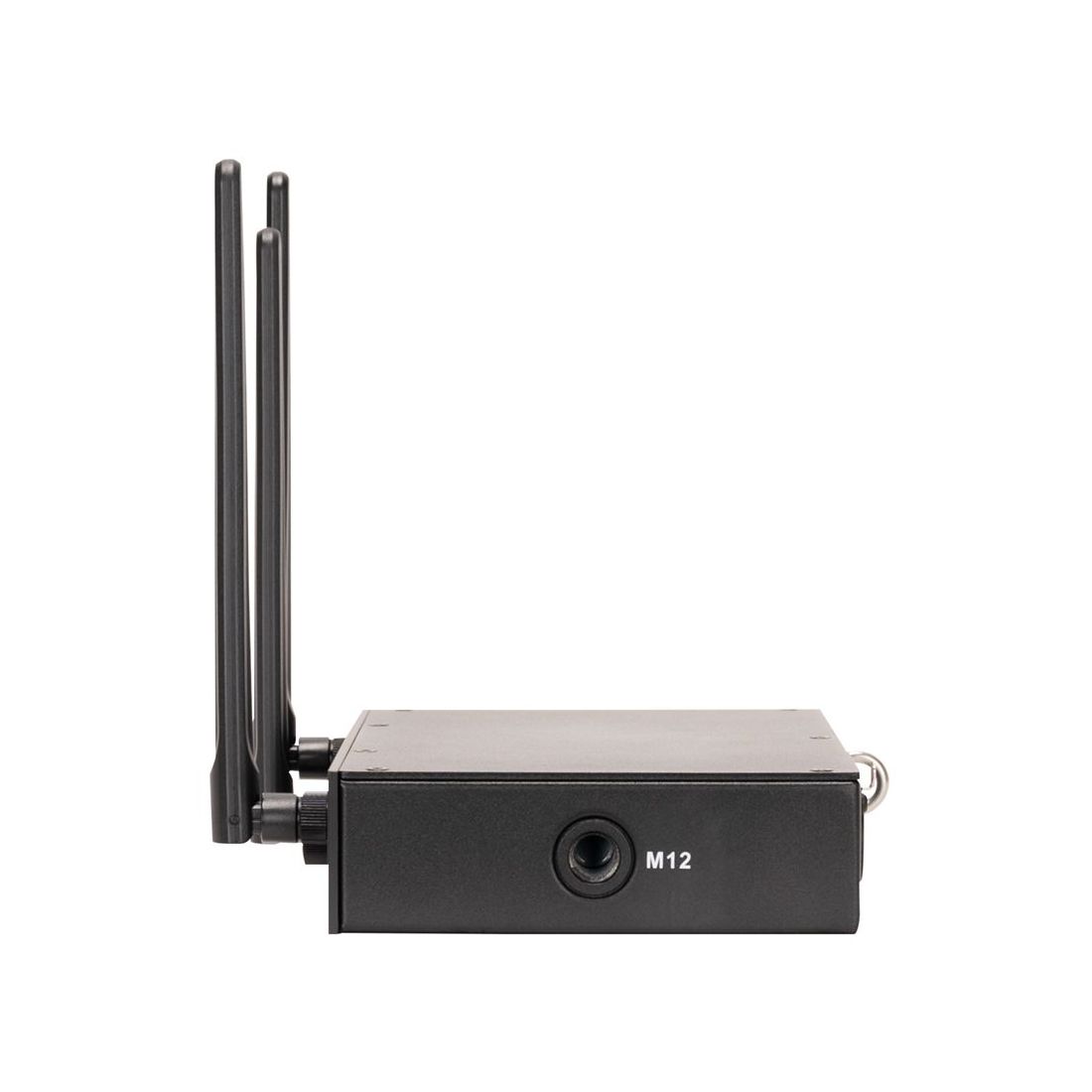

- • M10 and M12 Threads
- • Safety Eyelet
- • Max ambient operating temp: 45°C
- • Max operating humidity: 75%
- • Storage temperature: 25°C
- • Rack and wall mount accessories
- • Length: 163.95mm
- • Width: 215.30mm
- • Height: 42mm
- • 1.23kgs
Specifications subject to change without notice
