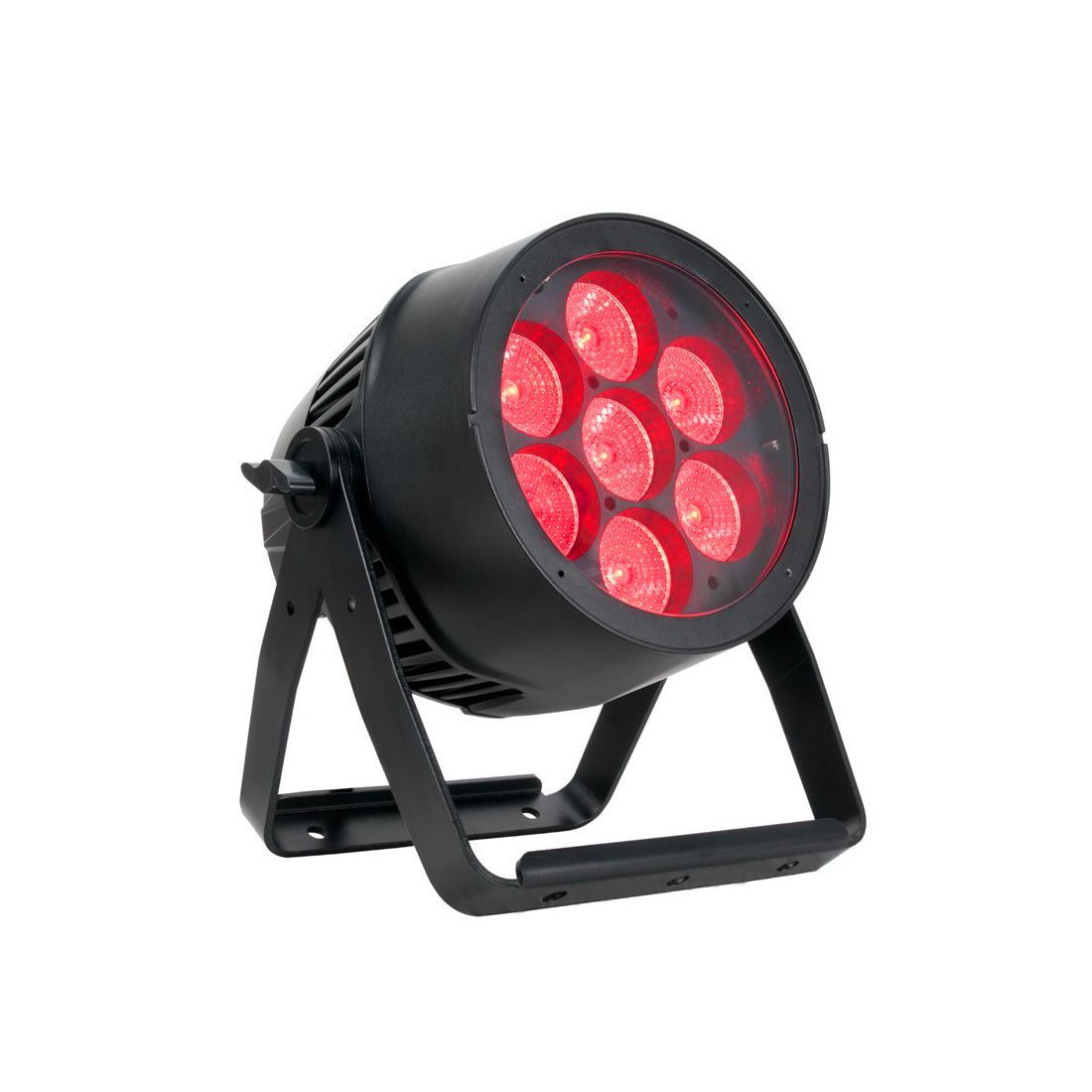

7PZ IP Select Archive
The 7PZ IP is a heavy duty, metal IP65 outdoor rated LED Par with motorized zoom and ADJ's WiFLY EXR wireless DMX built-in. It features seven 15W quad (4-IN-1 RGBW) LEDs with 63 built-in color macros. There are 5 dimming curves plus smooth 16-bit 0-100% electronic dimming. With 5 operational modes, 12 DMX channels modes and 4-button menu with function display, the 7PZ IP has a variety of control options. The zoom range is 5 ~ 45-degrees.
Product Information
The 7PZ IP is a heavy duty, metal IP65 outdoor rated LED Par with motorized zoom and ADJ's WiFLY EXR wireless DMX built-in. It features seven 15W quad (4-IN-1 RGBW) LEDs with 63 built-in color macros. There are 5 dimming curves plus smooth 16-bit 0-100% electronic dimming. With 5 operational modes, 12 DMX channels modes and 4-button menu with function display, the 7PZ IP has a variety of control options. The zoom range is 5 ~ 45-degrees.
Gallery
Specification

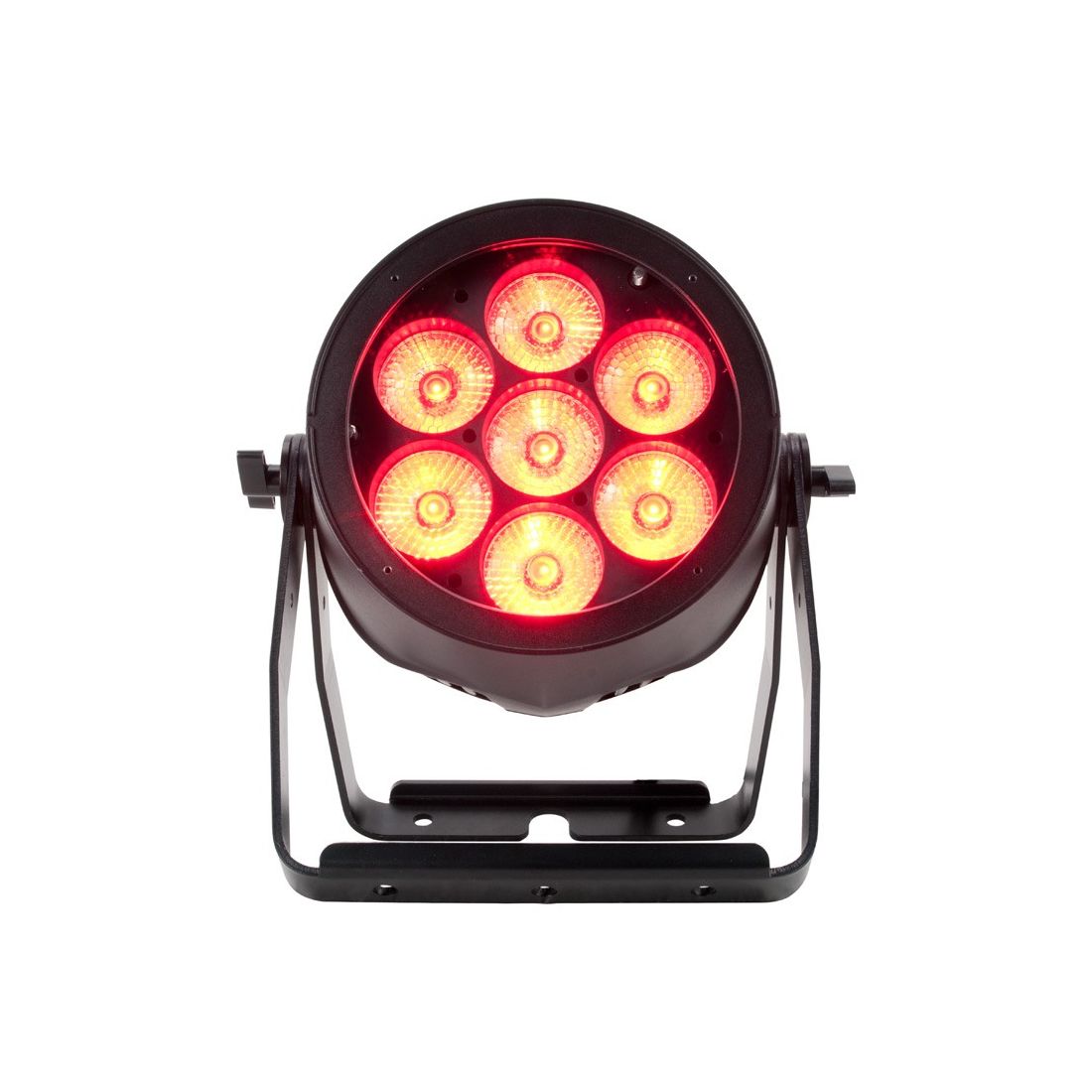

- • Light Source: 7 RGBW LEDs (Red, Green, Blue & White LED)
- • Individual LED wattage : 15W
- • Average LED lifetime :approximately 50,000 hrs.

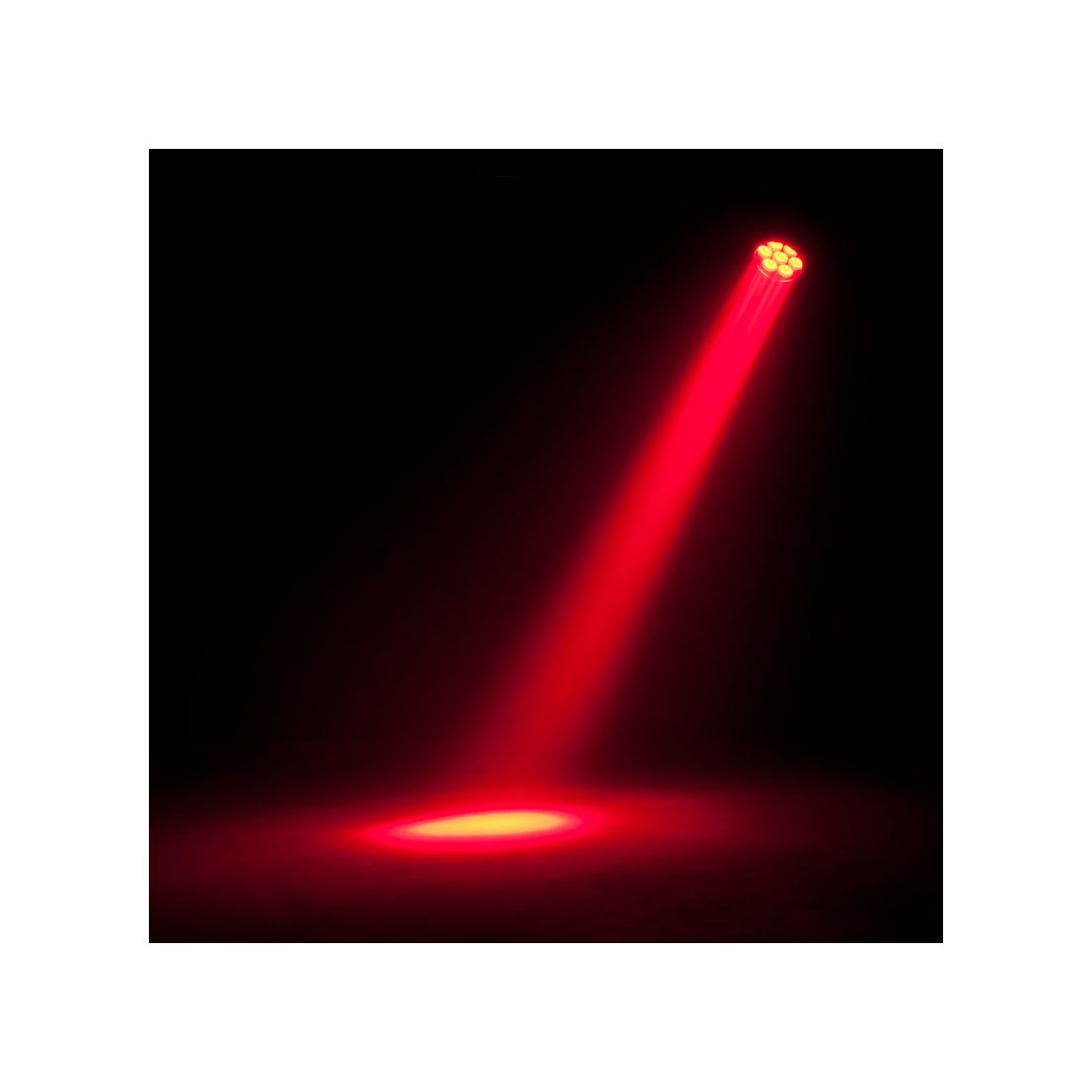

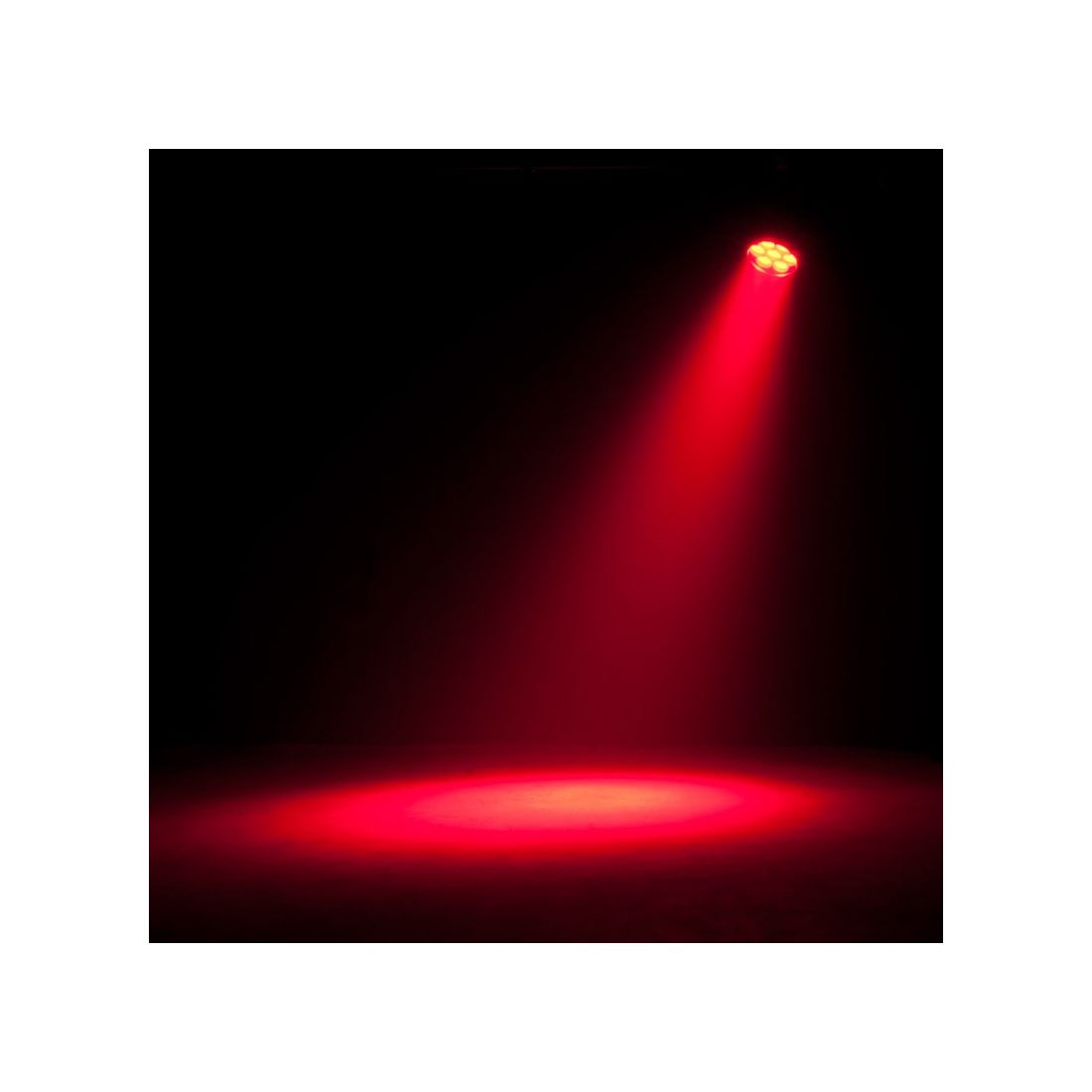

- • Variable Beam Angle: 5 - 45 degrees
- • Motorized Zoom
- • 5 Operational modes: Static Color Mode, RGBW Dimmer Mode, Program Mode, Color Fade Mode and
- DMX Control
- • 12 DMX Modes: 4 (HSI), 5, 5+, 6, 7, 7+, 8 , 9, 10, 10+, 12 & 13-channel
- • RDM compatible (Remote Device Management)
- • 16bit Electronic Dimming: 0 - 100%
- • 63 built-in Color Macros
- • 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
- • Built-In WiFly EXR Wireless DMX
- • LED pulse and strobe effect

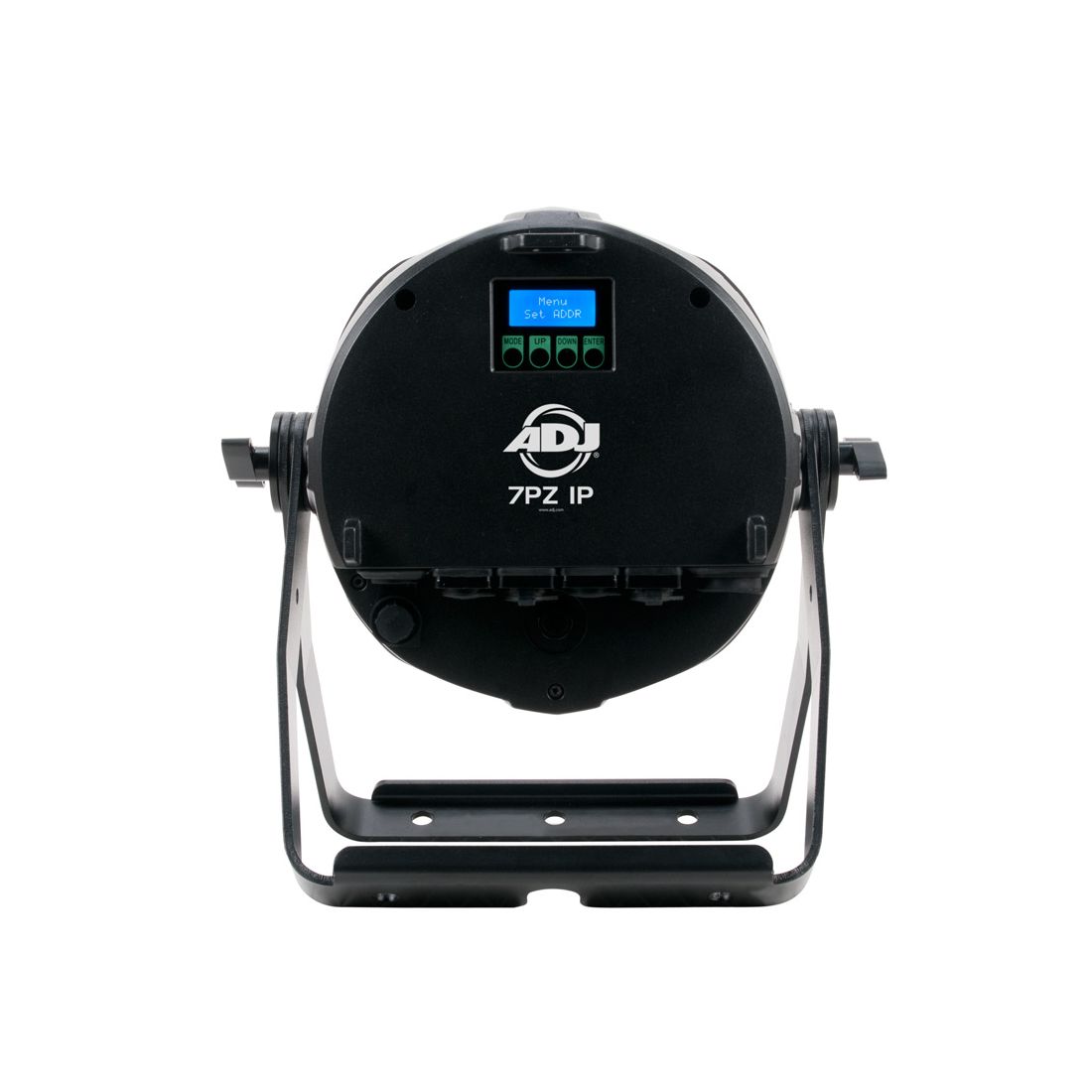

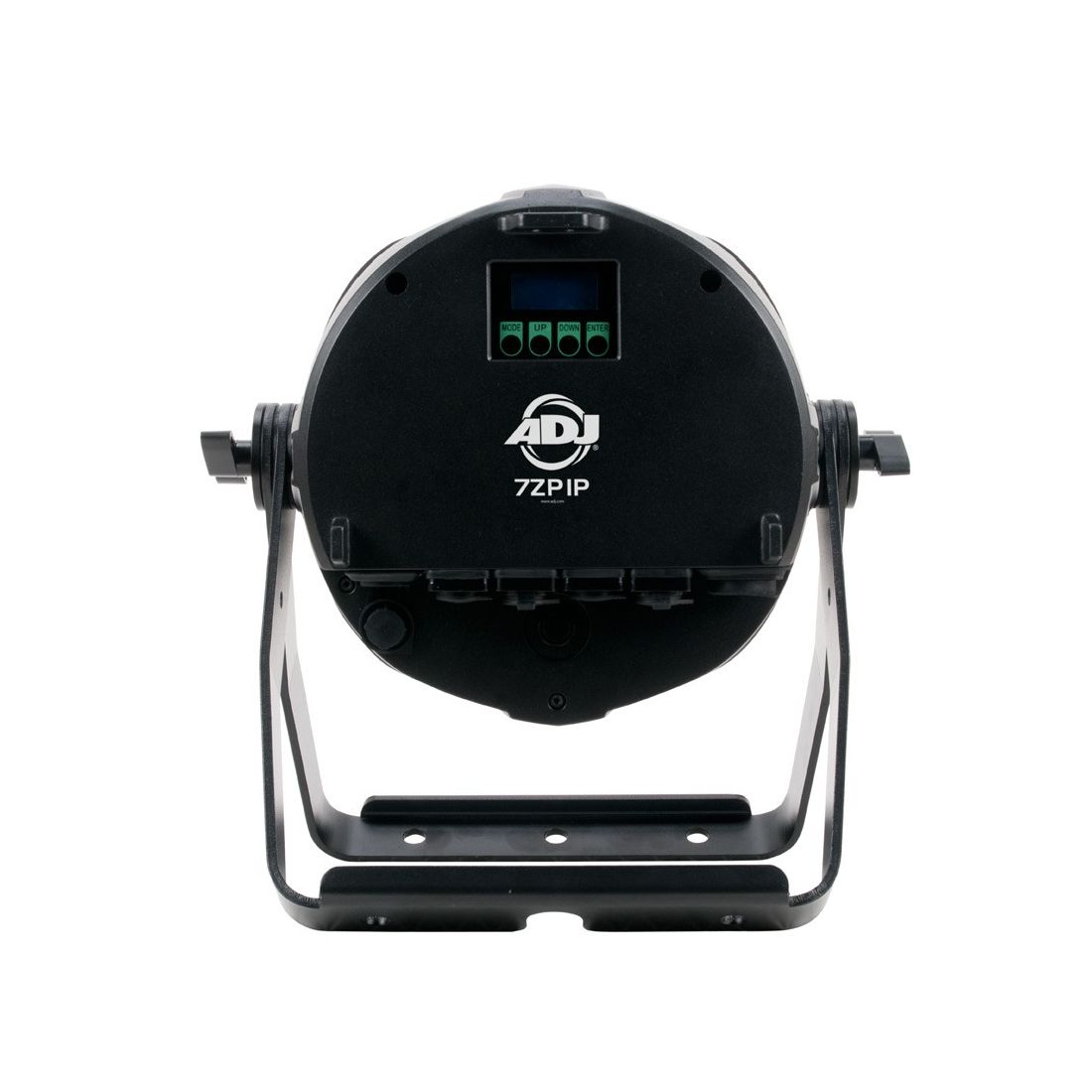

- • 4-button, DMX digital display on rear panel
- • RGBW Color Mixing
- • Metal Housing
- • IP Rating : IP65
- • Convection cooling
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 128 W
- • Operating Temperature: from -15°C to +45°C

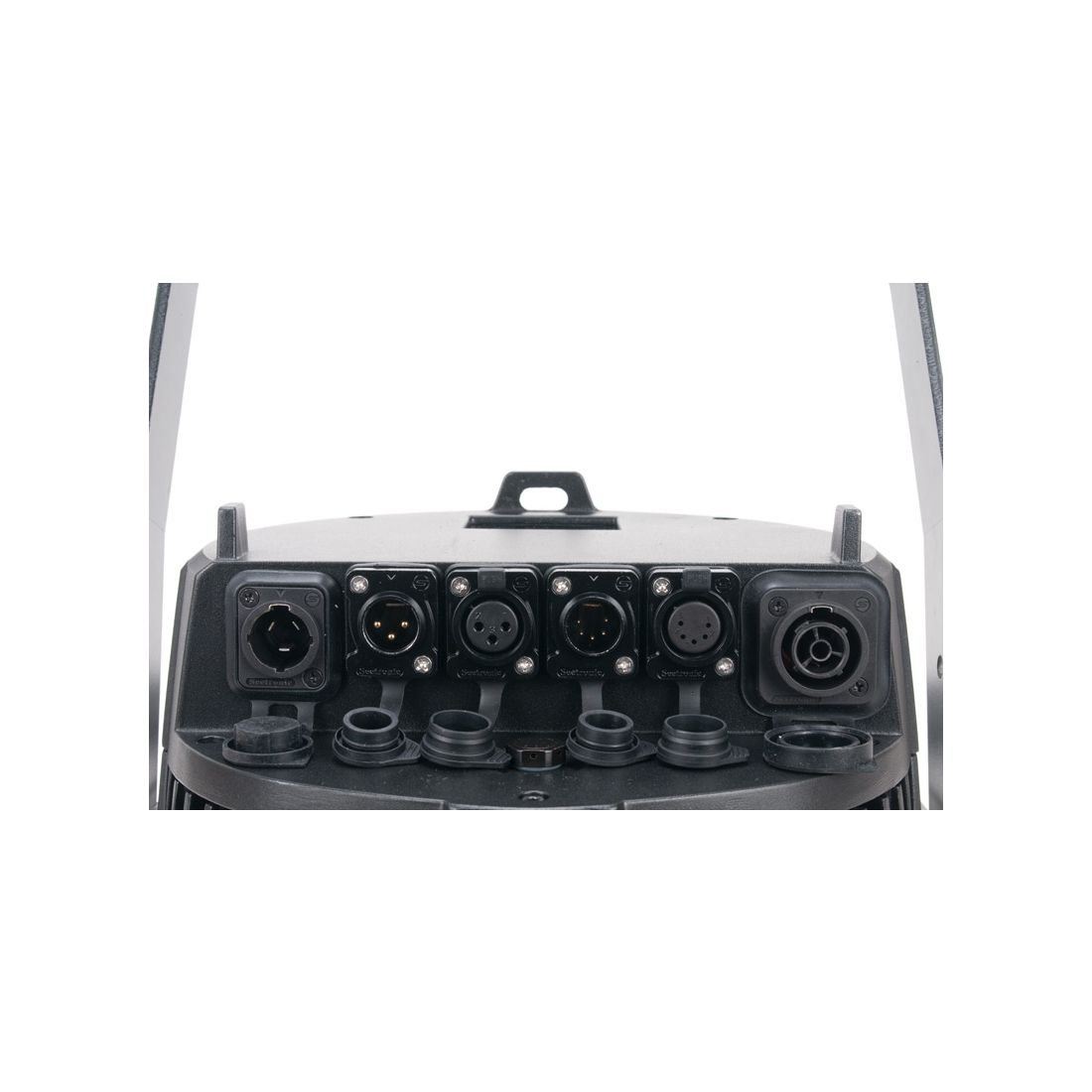

- • 3- and 5-pin Locking IP65 DMX connectors
- • IP65 Locking Power In/Out connections
- • Dimensions (LxWxH): 270x350x380mm
- • Weight: 11 kg.
