7P HEX IP Select
Key Features
• Metal Housing
• IP Rating : IP65
• Convection cooling
• Beam Angle: 25 degrees
• 7x 12W RGBAW + UV LEDs
Product Information

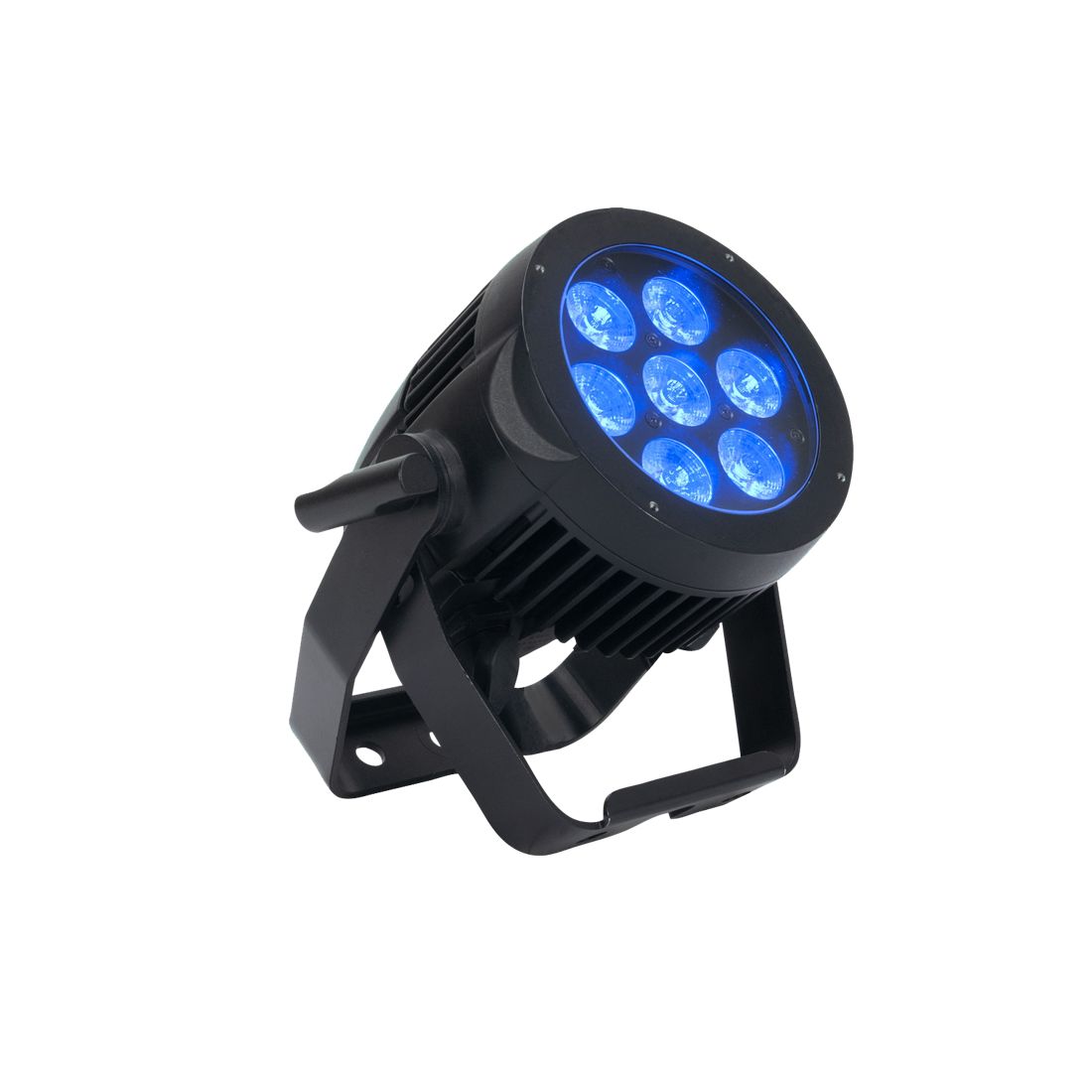

The ADJ 7P Hex IP is a versatile IP65 outdoor rated Par with 7 x 12-Watt (6-IN-1 HEX) LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with IP 65 rating, it is a great solution for temporary outdoor lighting of stages or events. The IP 65 rating helps protect the fixture from rain, snow and dust.

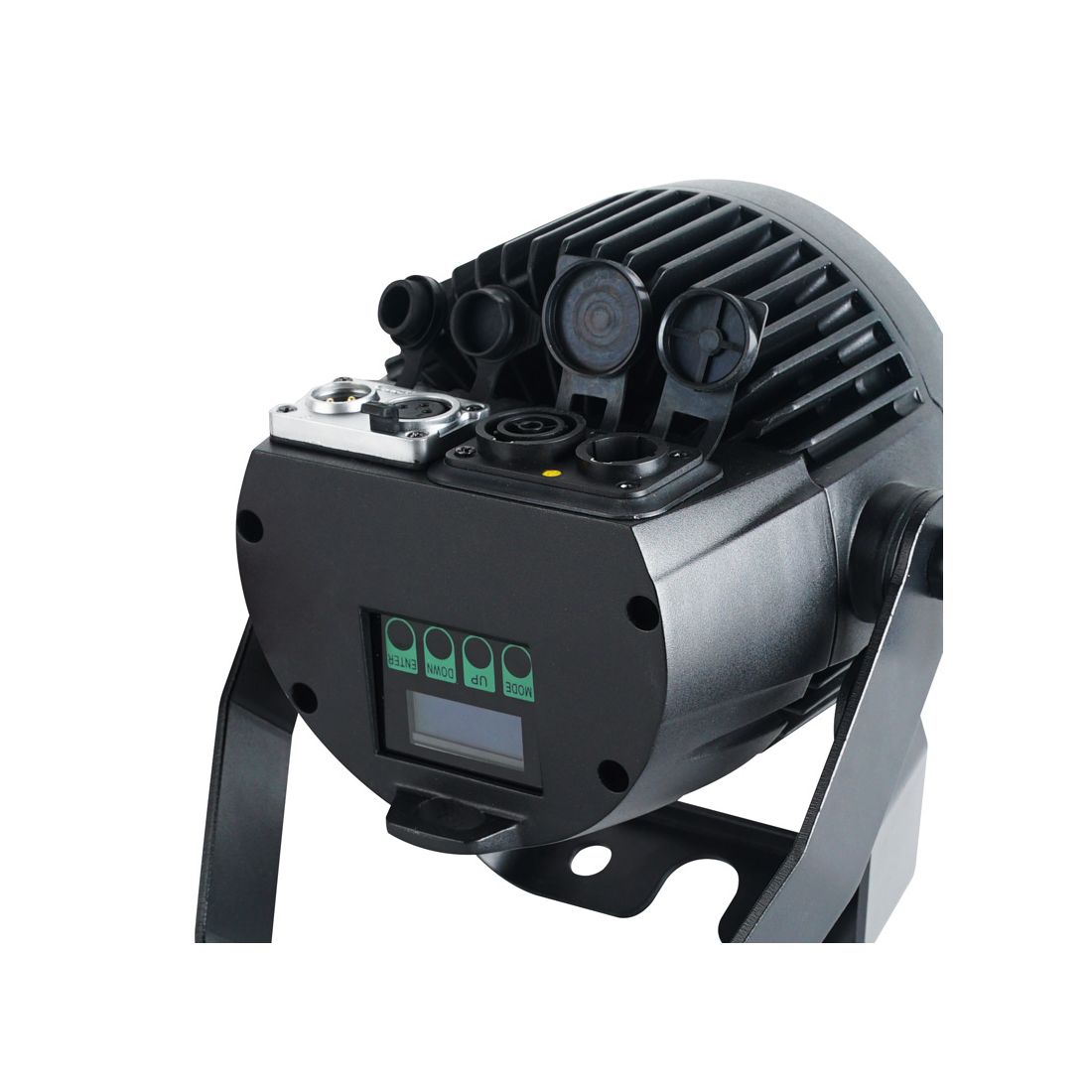

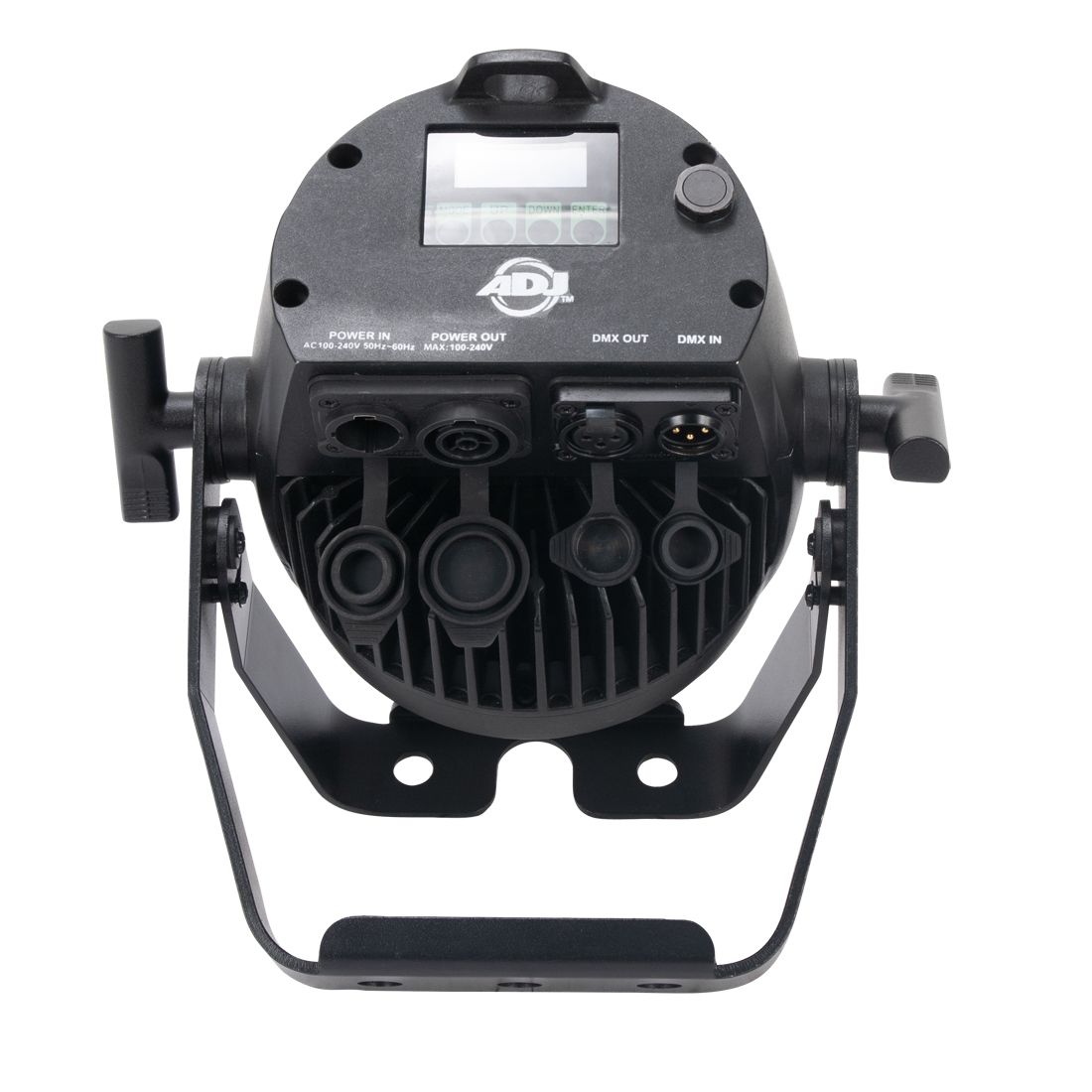

7P HEX IP professional features include: 4 DMX modes, 5 operational modes, 4 dim modes, flicker free operation and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power and IP rated 3-pin DMX rubber covers and connectors.

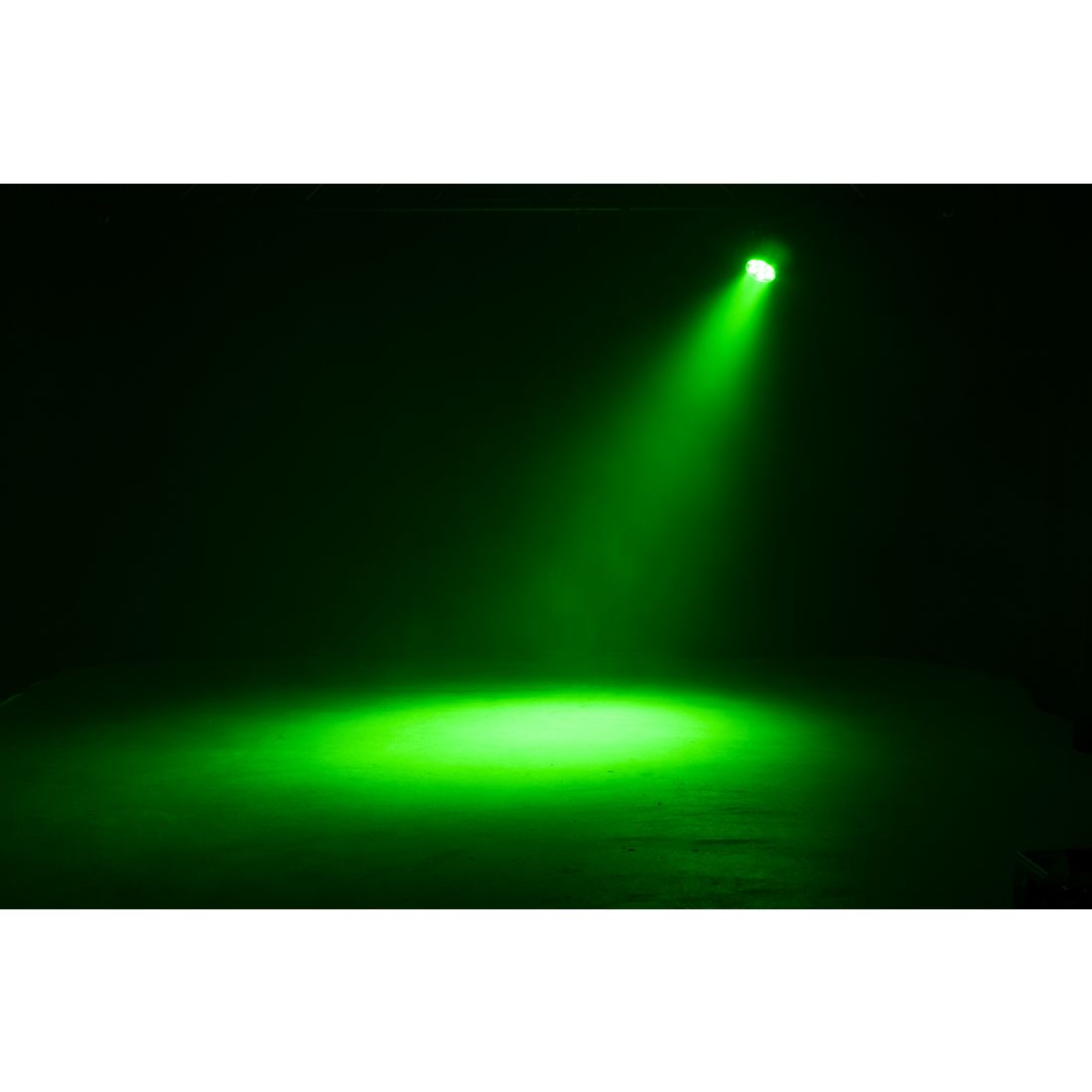

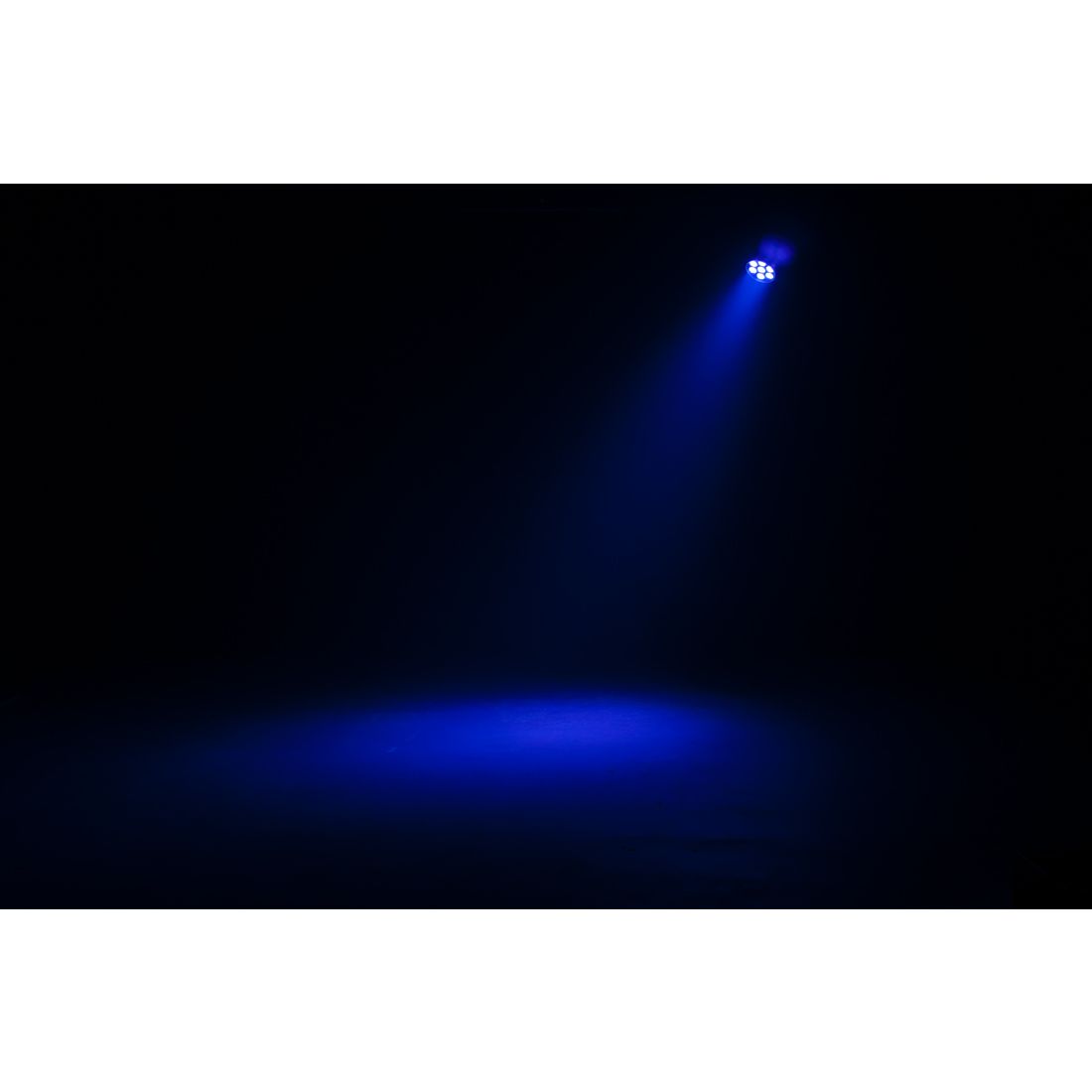

Gallery
Specification
- • Light Source: 7 RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED)
- • Individual LED wattage : 12W
- • Average LED lifetime :approximately 50,000 hrs.
- • Beam Angle: 25 degrees
- • 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Color Macro Mode andDMX Control
- • 4 DMX Modes: 6, 7, 8 & 13-channel
- • RDM compatible (Remote Device Management)
- • Electronic Dimming: 0 - 100%
- • 63 built-in Color Macros
- • 4 selectable Dim Curves (Linear, Square, Inverse Square, S-Curve)
- • LED Refresh Rate control : Manual LED refresh rate setting : 900Hz-25khz
- • LED pulse and strobe effect
- • 4-button, DMX digital display on rear panel
- • RGBAW+UV Color Mixing
- • Metal Housing
- • IP Rating : IP65
- • Convection cooling
- • Scissor Yoke
- • Multivoltage 100-240V 50/60Hz
- • Power Consumption: 63,1W
- • Daisy chain: 20 units (120V); 37 units (220V)
- • Operating Temperature: from -15°C to +45°C
- • 3-pin Locking IP65 DMX connectors
- • IP65 Locking Power In/Out connections
- • Dimensions (LxWxH):232,5 x 256 x 161,7mm
- • Weight: 3,4 kg.
