5PX HEX
Product Information

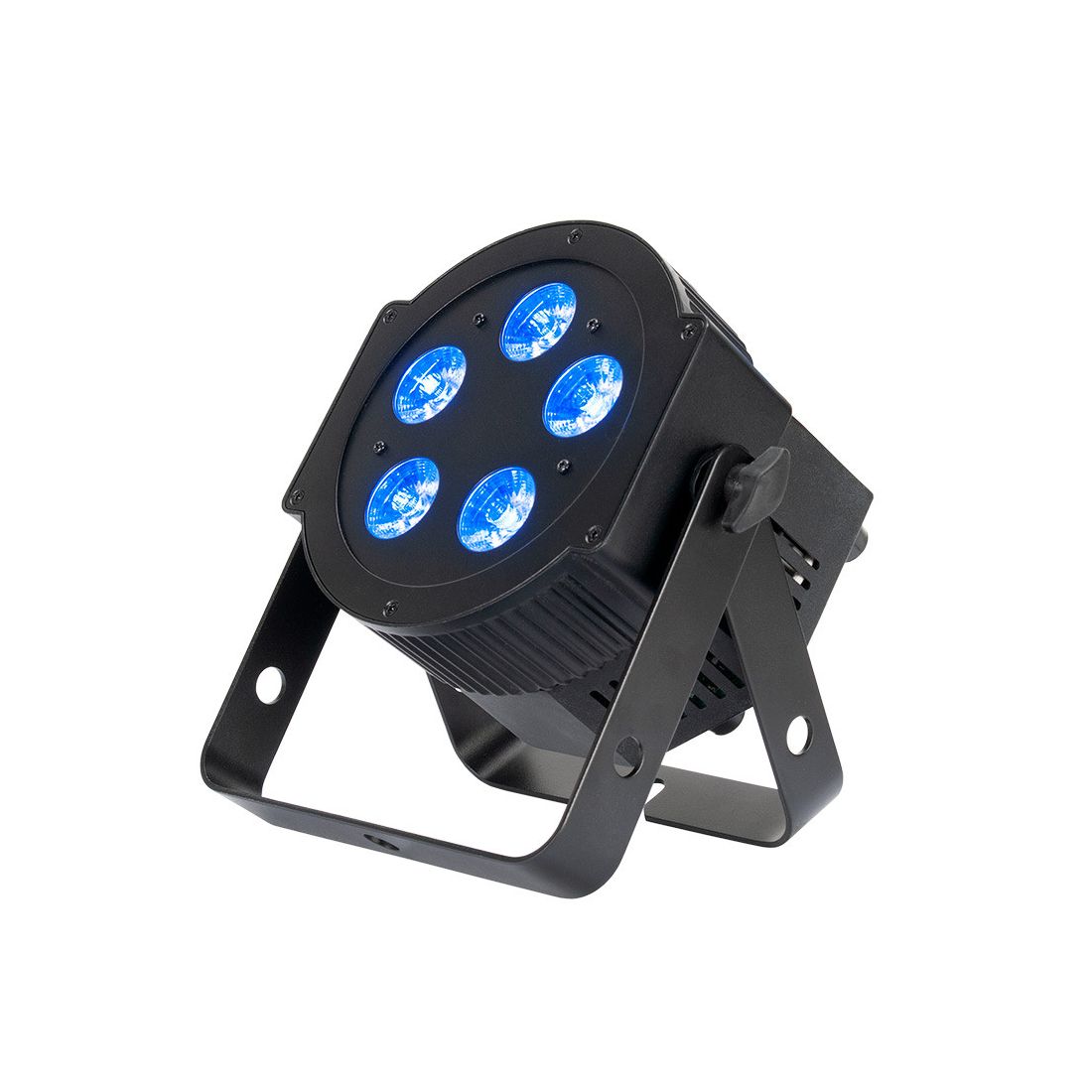

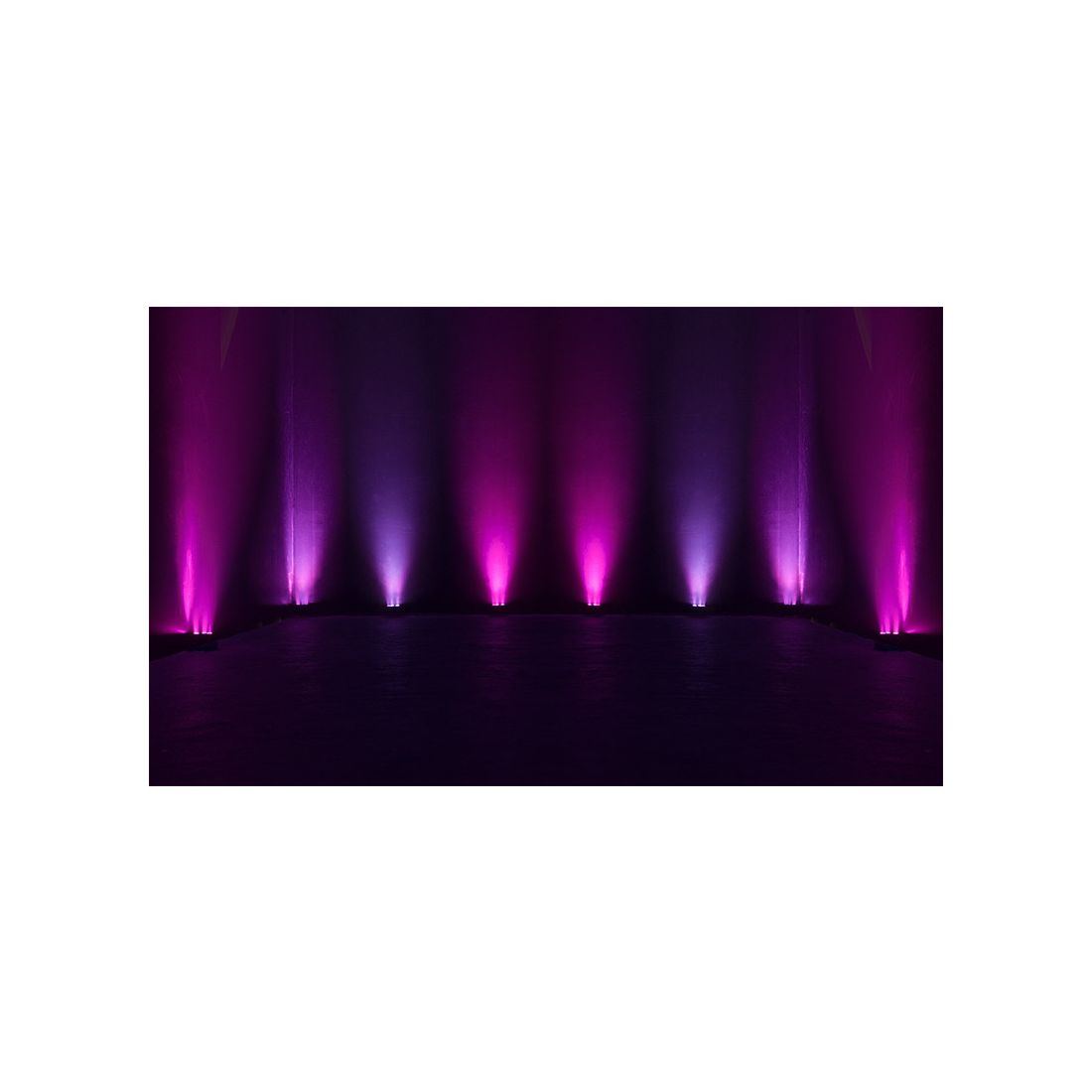

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt , 6-IN-1 HEX LEDs. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, Locking Power and 3 & 5pin DMX connectors, it’s great for uplighting a venue.
5PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out connectors.
The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
Gallery
Specification
- • 5 RGBAW + UV LEDs (red, green, blue, amber, white and UV LED)
- • Individual LED power: 12W
- • Average LED life: 50,000 hours
- • Beam angle: 25°
- • Including filter frame for optional diffusion filters

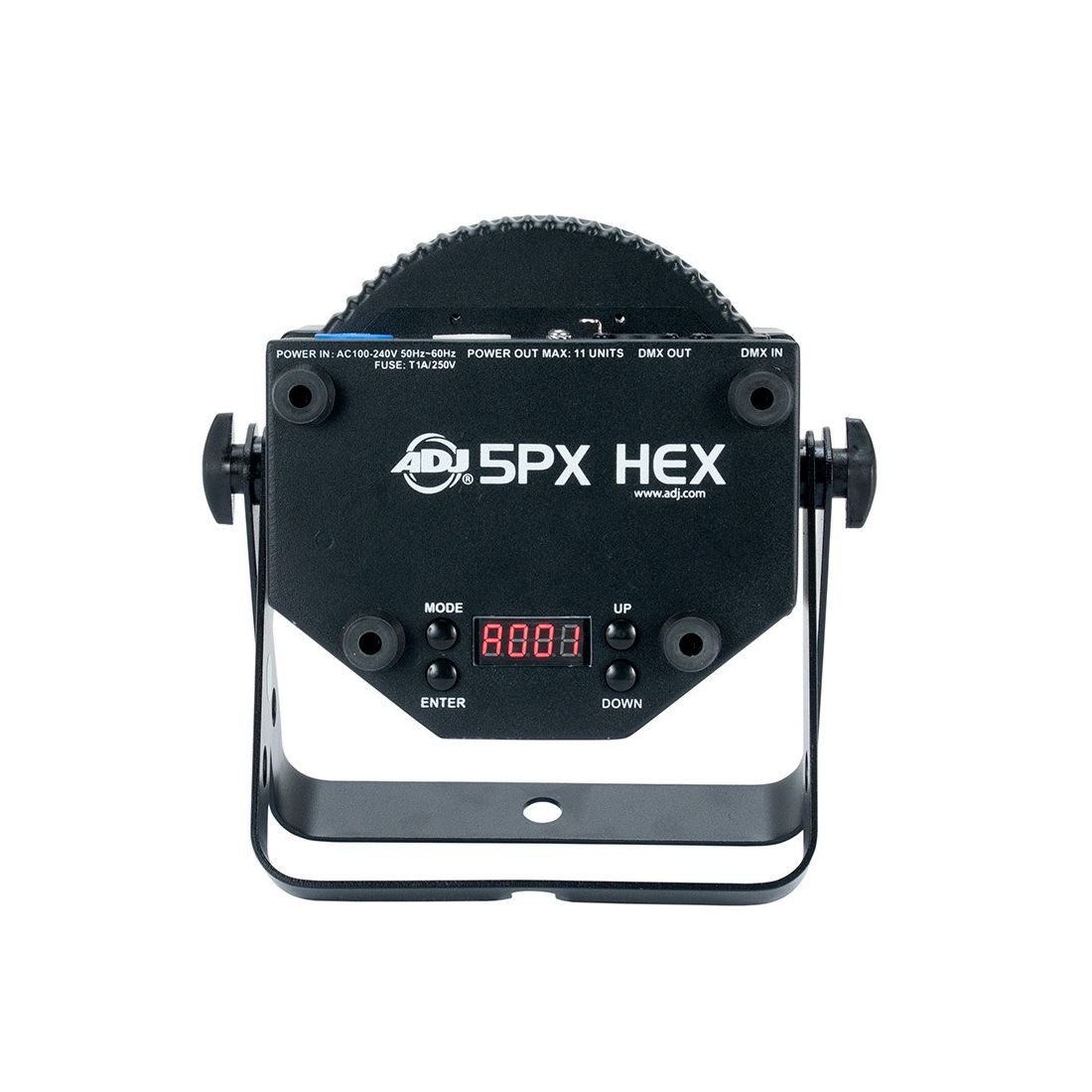

- • 4-button digital display on the back
- • 5 operating modes: static color mode, RGBAW and UV dimmer mode, integrated program sequences, sound active mode and DMX control
- • 4 DMX channel modes: 6, 7, 8 and 12 channels
- • Electronic dimming: 0 - 100%
- • 63 built-in color macros
- • 7 built-in programs, Sound Active mode
- • 5 selectable dimmer curves (standard, stage, TV, architecture & theater)
- • Operation also possible with the optional Dotz PAR RF remote control (item no.1223200035)
- • LED pulse and strobe effect
- • RGBAW + UV color mixing
- • Metal housing
- • Fan cooled
- • Double bracket
- • Automatic switching power supply: 100-240V 50 / 60Hz
- • Power consumption: 60 watts

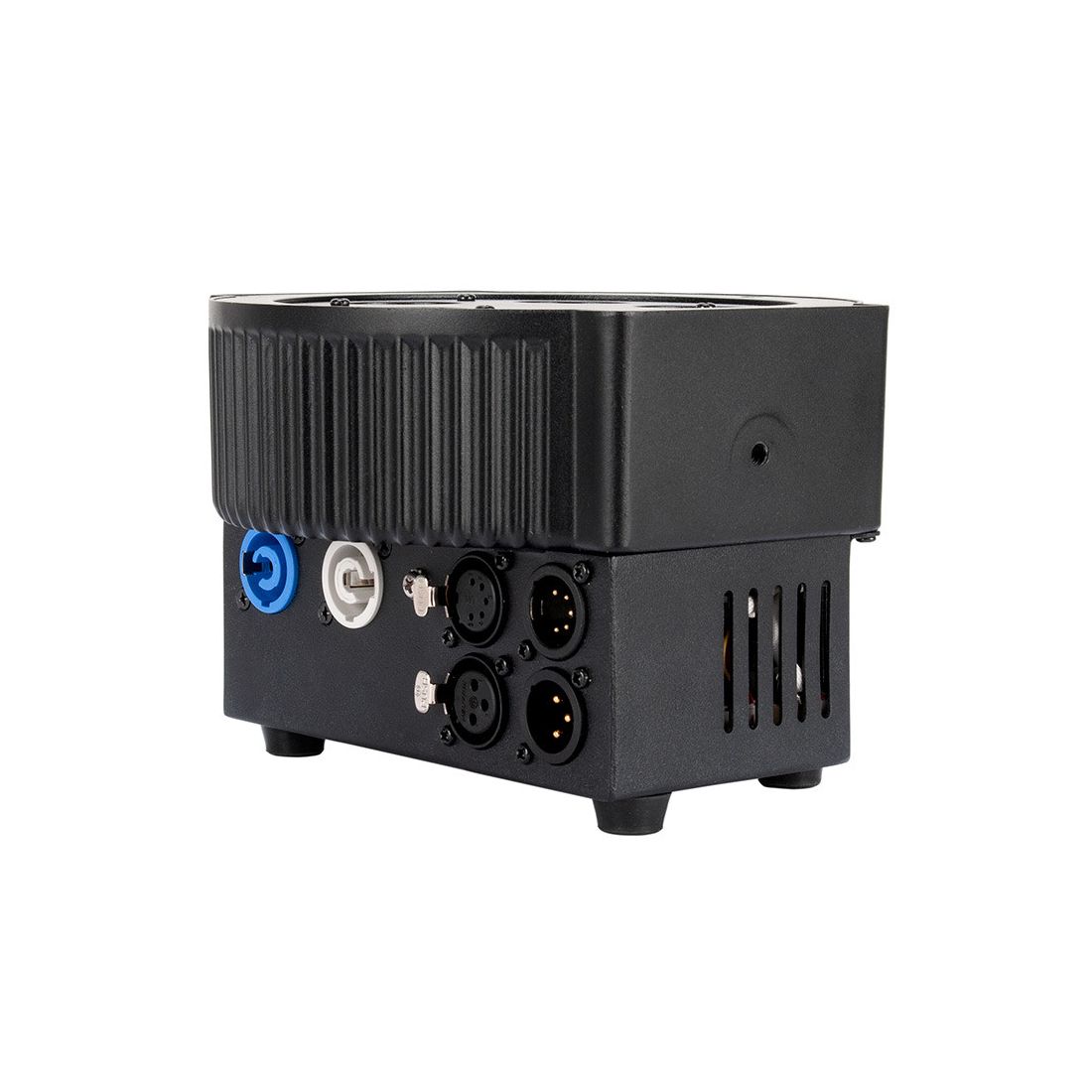

- • 3- and 5-pole Locking DMX inputs and outputs
- • Locking power inputs and outputs
- • Dimensions (LxWxH): 114 x 208 x 222 mm
- • Weight: 2.6 kg
