40 Hex IP Panel Select New
Key Features
Construction
• IP65 rated – protects from dust, sand, moister, water
• IP65 rated – protects from dust, sand, moister, water
Control
• Control Mode: DMX512, RDM (Remote Device Management)
• Aria X2 wireless management system
• Control Mode: DMX512, RDM (Remote Device Management)
• Aria X2 wireless management system
Source

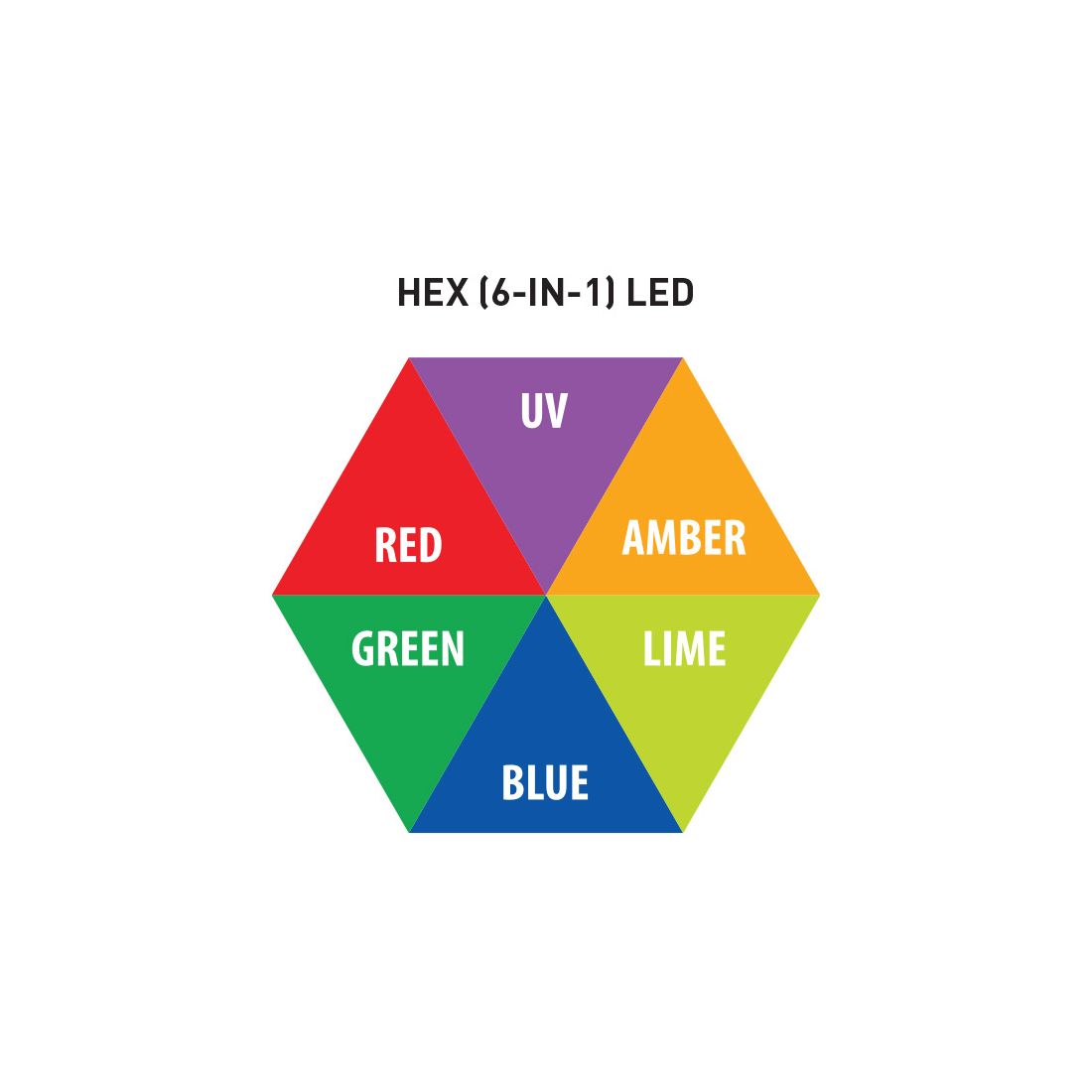

• 40x 20W HEX (6-In-1) RGBAL+UV LEDs
• Beam Angle: X = 28.61°, Y = 23.72°
• Lumens: 19,590
• 40x 20W HEX (6-In-1) RGBAL+UV LEDs
• Beam Angle: X = 28.61°, Y = 23.72°
• Lumens: 19,590
Product Information
SKU: 1226100438
GTIN: 810087373818
HS-Code: 9405423990

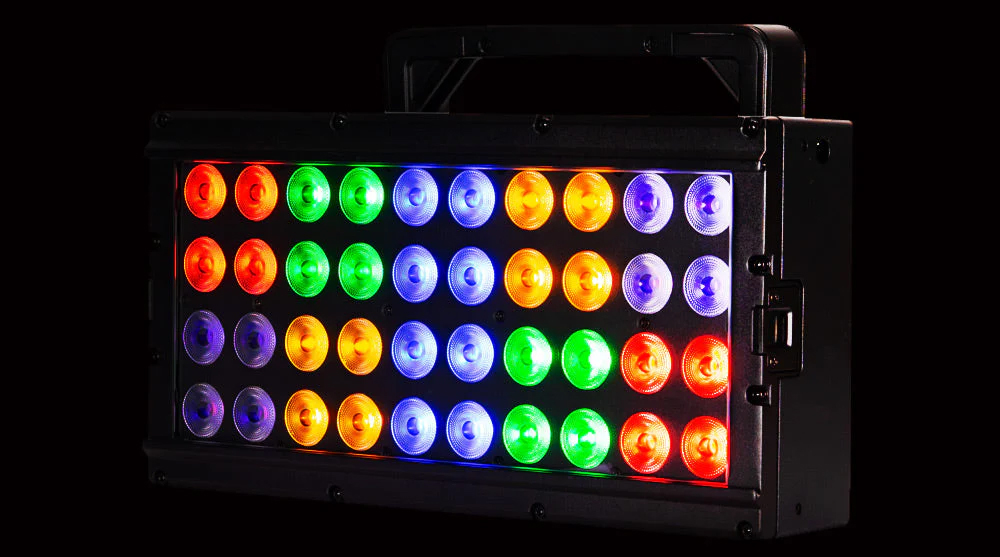

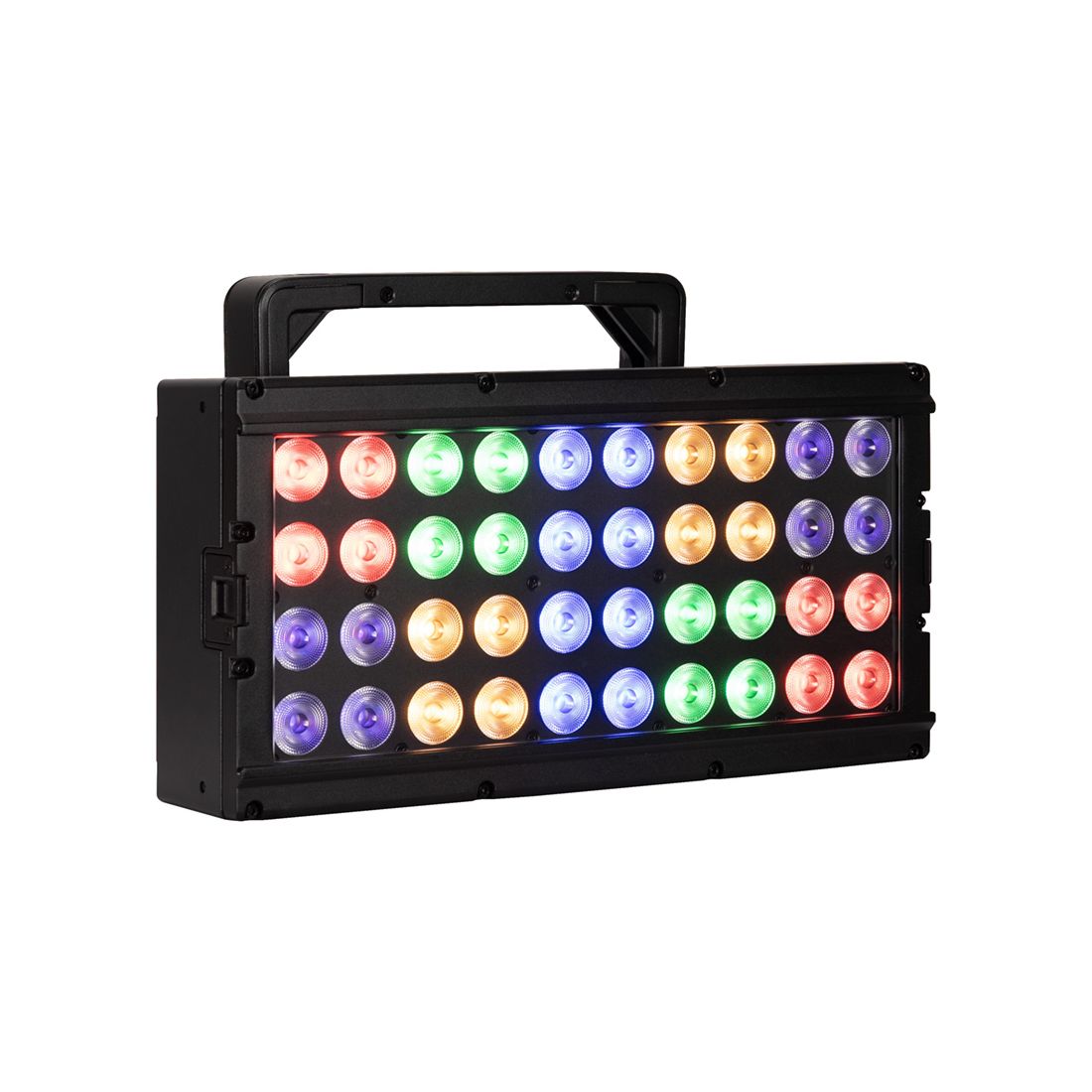

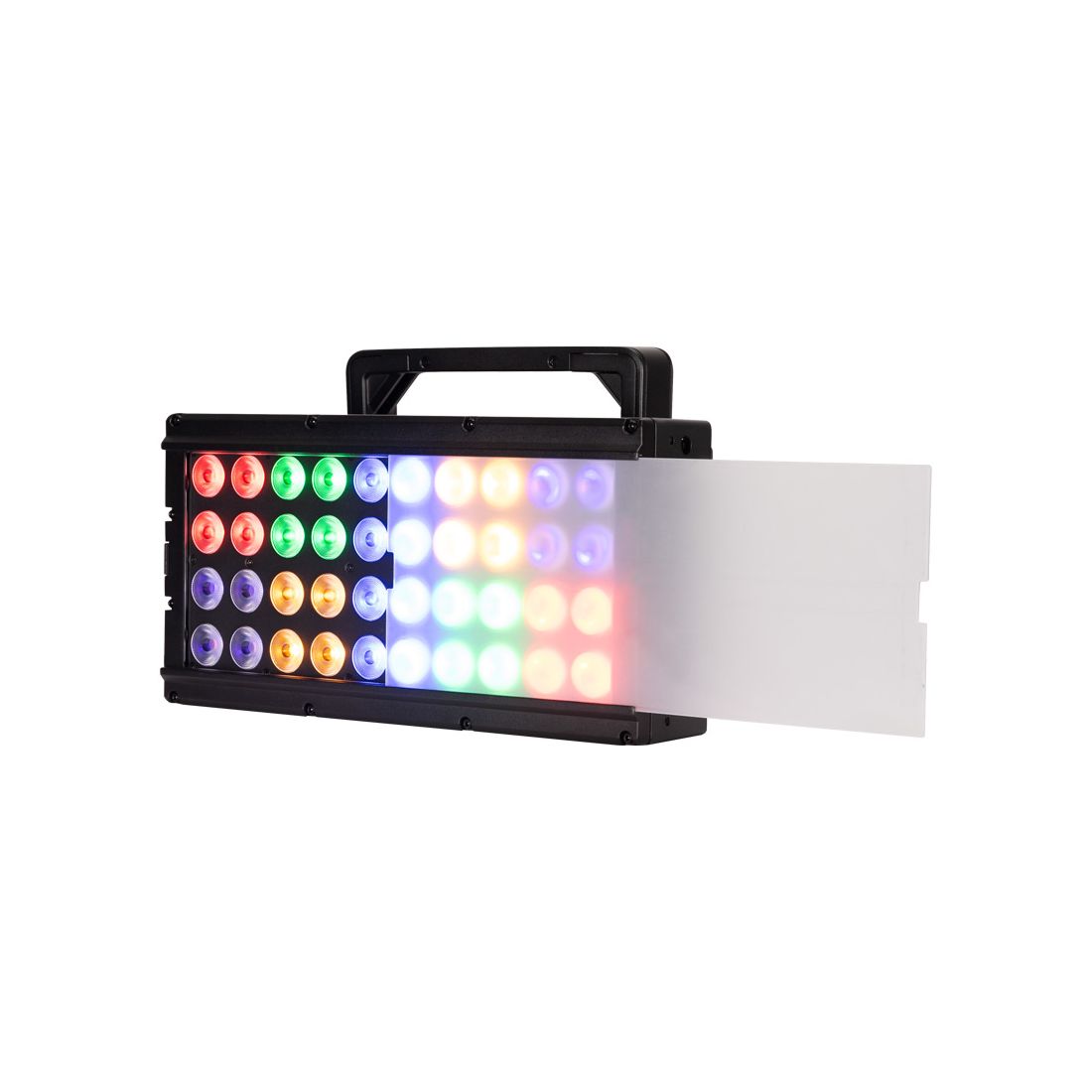

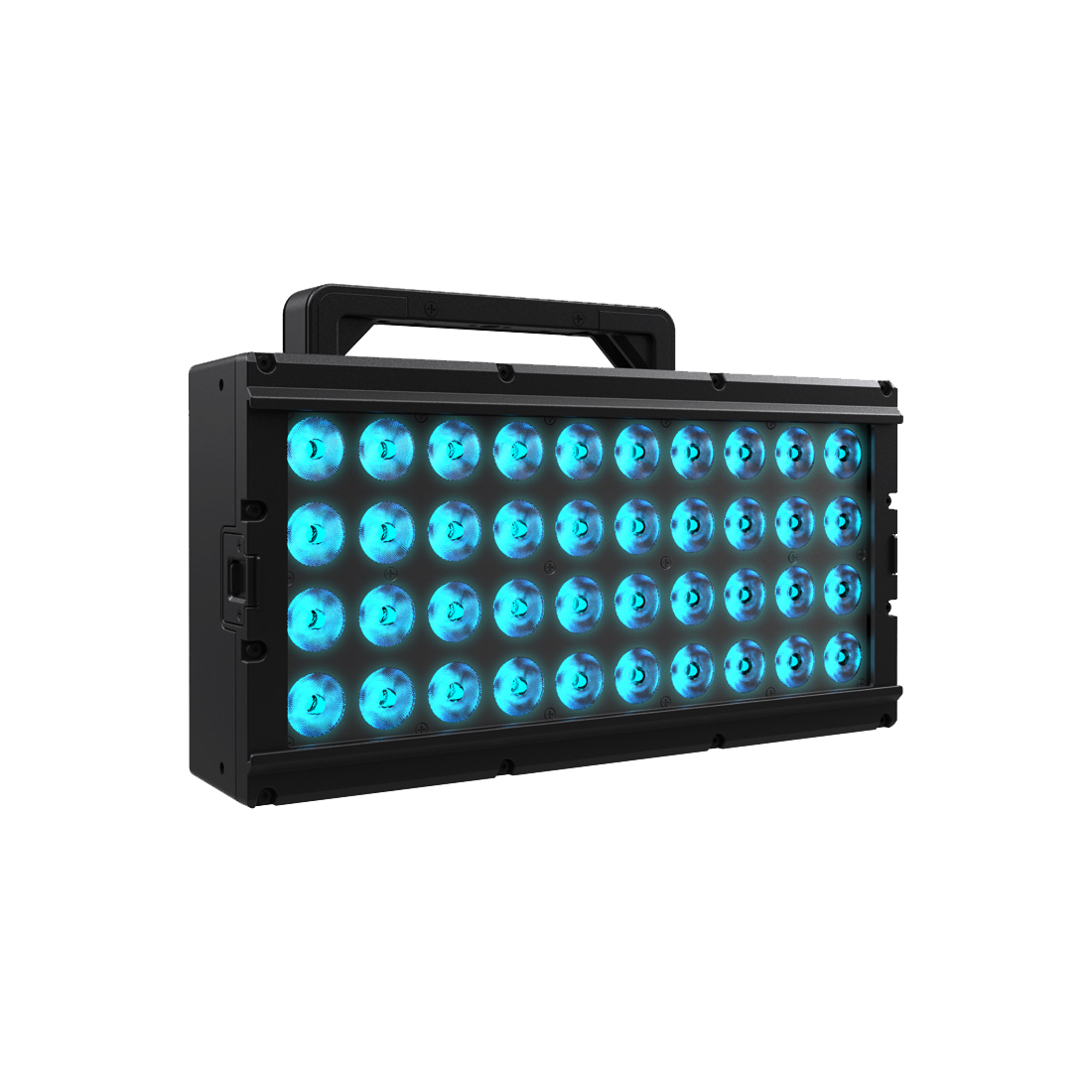

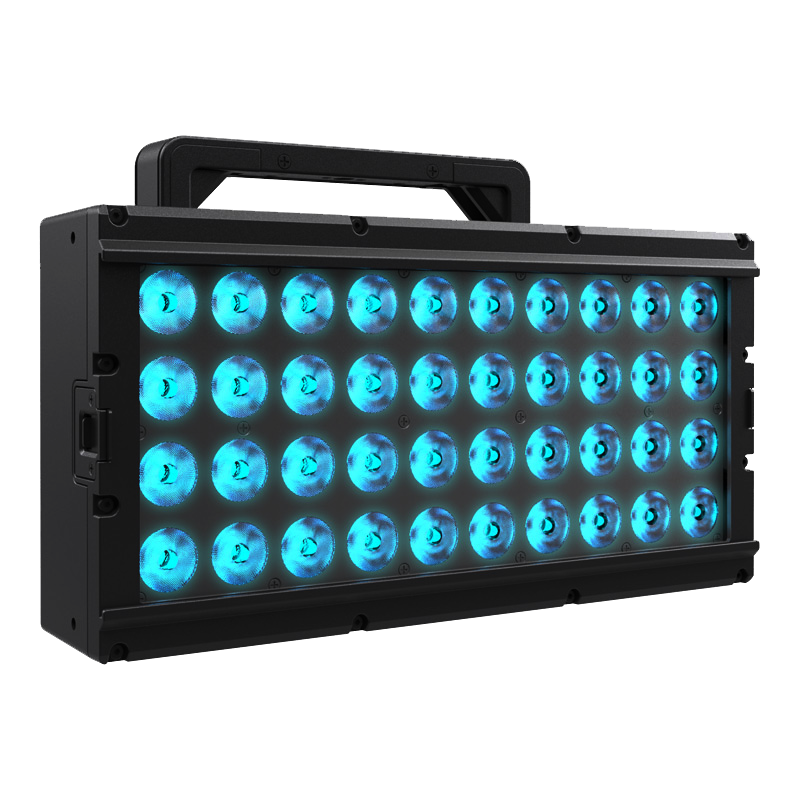

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.

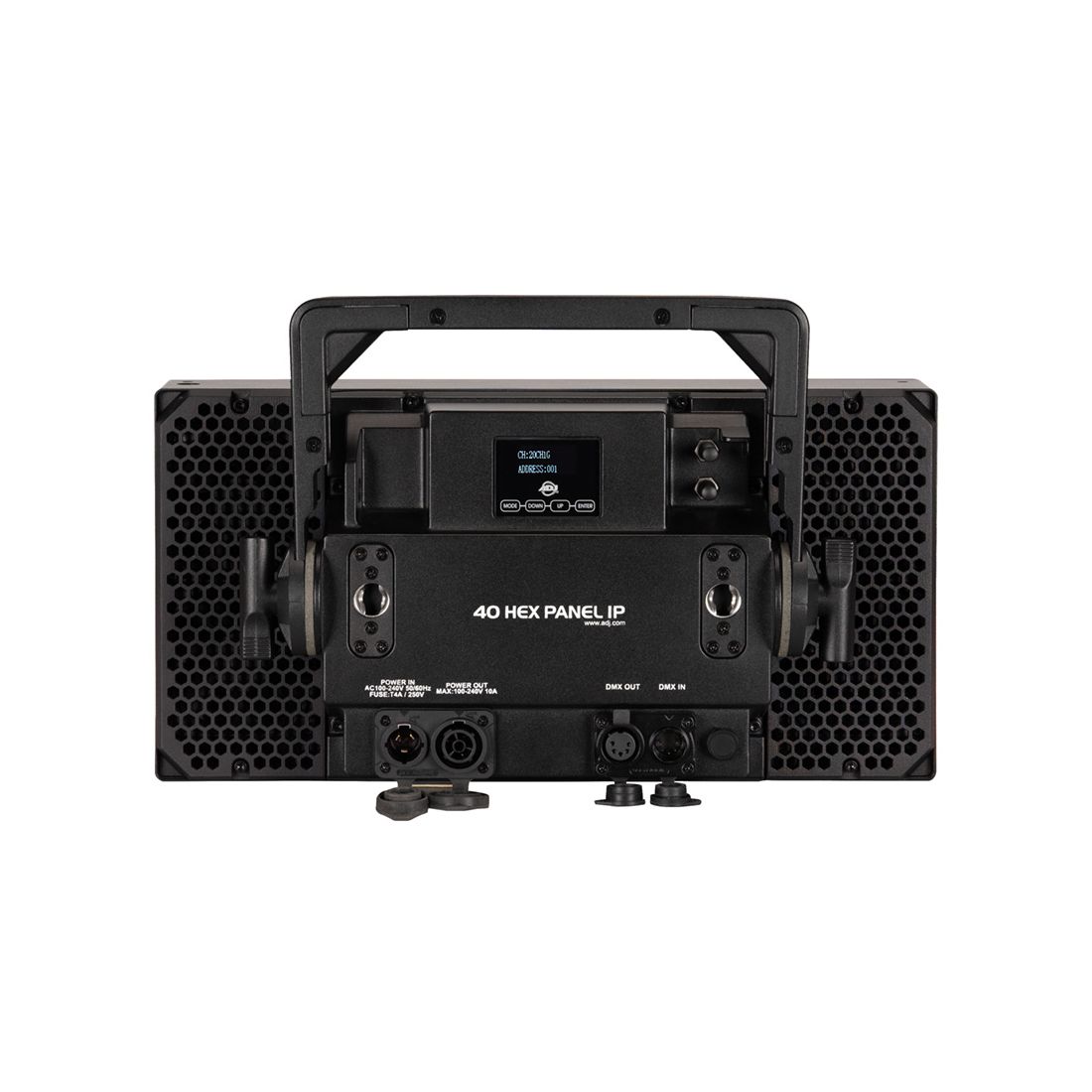

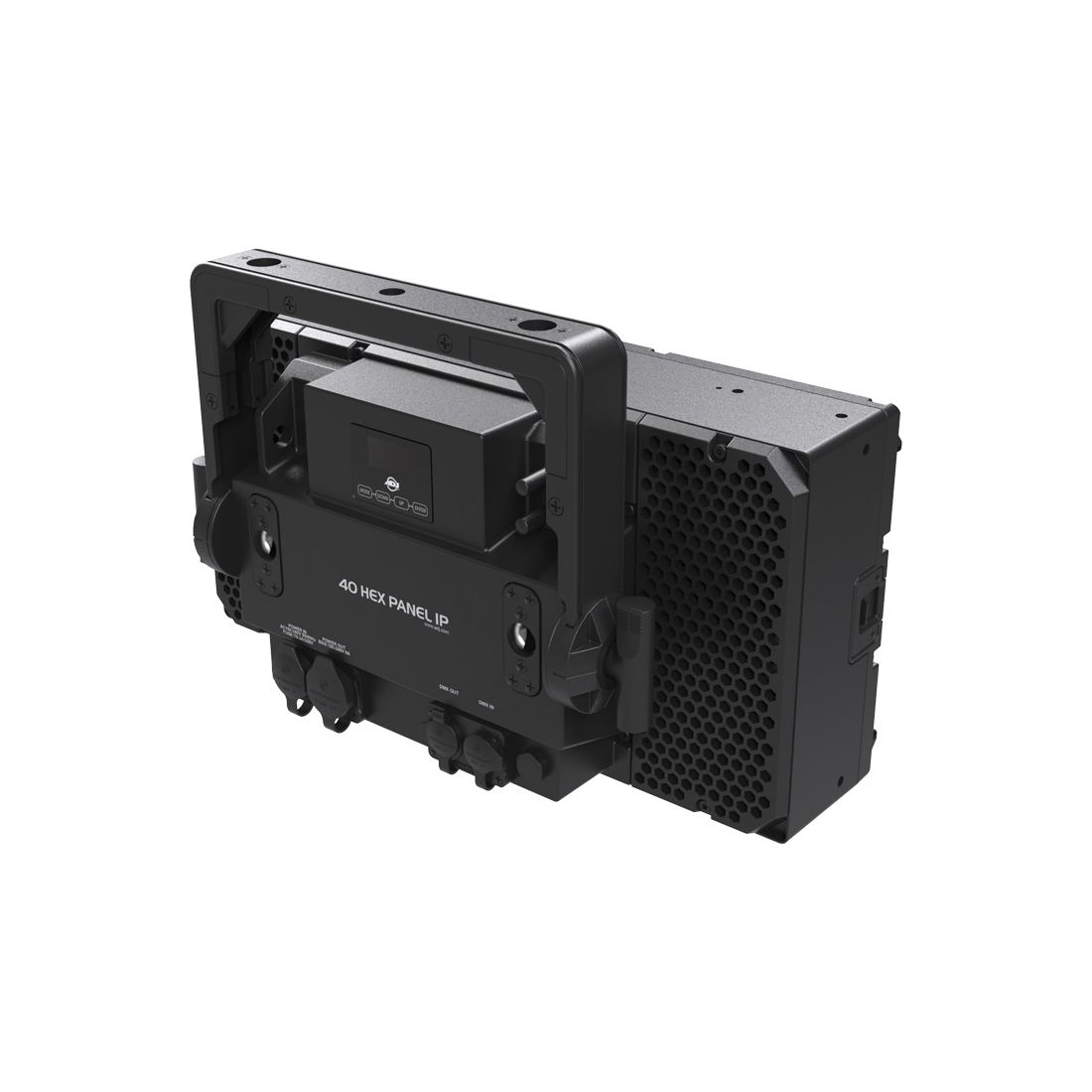

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.
Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.
Gallery
Specification
- • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
- • Beam Angle: X = 28.61°, Y = 23.72°
- • Field Angle: X = 50.82°, Y = 44.95°
- • Lumens: 19,590
- • IP65 rated - protects from dust, sand, moisture, water
- • Aria X2 Management System
- • All-metal construction with black housing
- • Includes heavy-duty bracket
- • Flicker free for film and broadcast

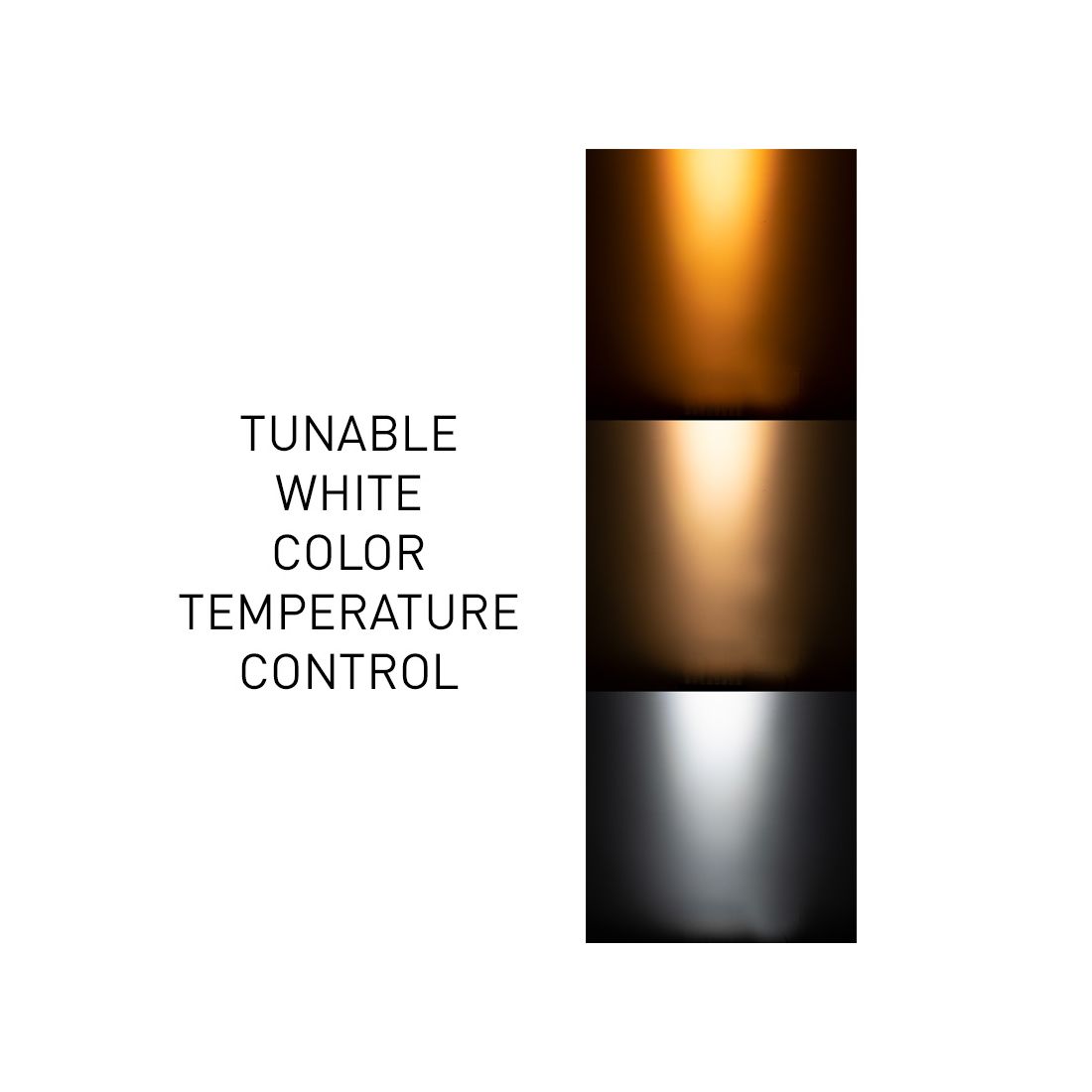

- • Linear variable white temperature control
- • Display: OLED display with function buttons
- • All-metal heavy-duty housing built to last in outdoor or touring applications
- • 24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
- • 4 Control Groups: 1 / 2 / 5 & 10 Groups
- • 0-100% Dimming + smooth 16-bit Dimming
- • 5 Dimming Curve Modes
- • Control Mode: DMX512, RDM (Remote Device Management)
- • LED Refresh Rate: Multiple settings
- • With Wired Digital Communication Network
- • Data: IP65 Locking 5-pin DMX In/Out
- • Power: IP65 Locking Power In/Out
- • 100-240V 50Hz/60Hz (Auto Sensing)
- • Max Power Consumption: 492W @220V
- • Max Power Link: 4pcs @230V
- • Fuse Protected: T4A/250V Glass Fuse (5x20MM)
- • Dimensions (LxWxH): 417x296.8x212mm
- • Weight: 11.15 kg
- • 1 x IP65 Locking Power Cable
- • 1 x Frost Filter
- • 1 x Safety Cable
- • 180mm Omega Bracket
- • JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP)
- • JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
- • JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
- • IP65
Specifications subject to change without notice
