3D VISION
Archive

Brand

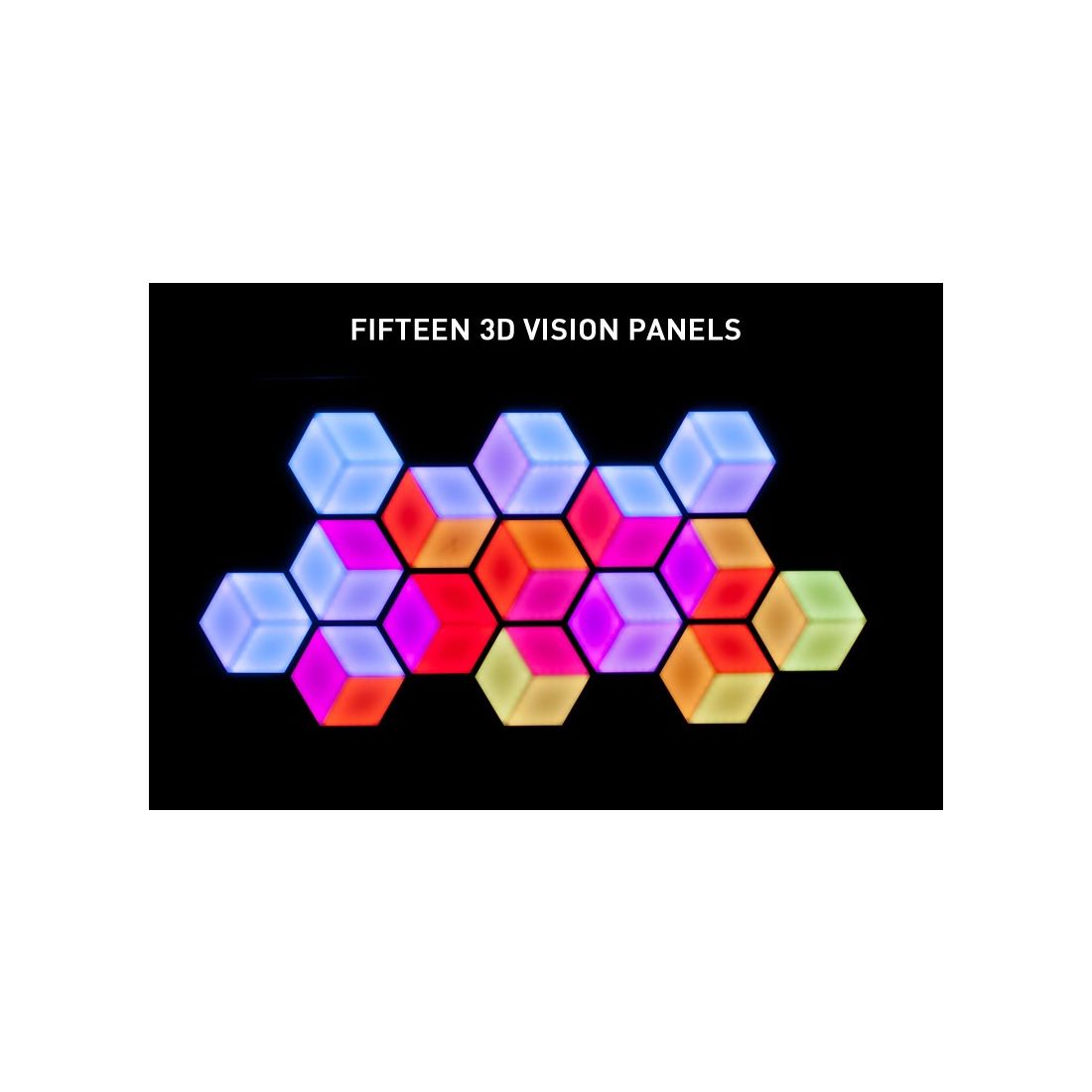

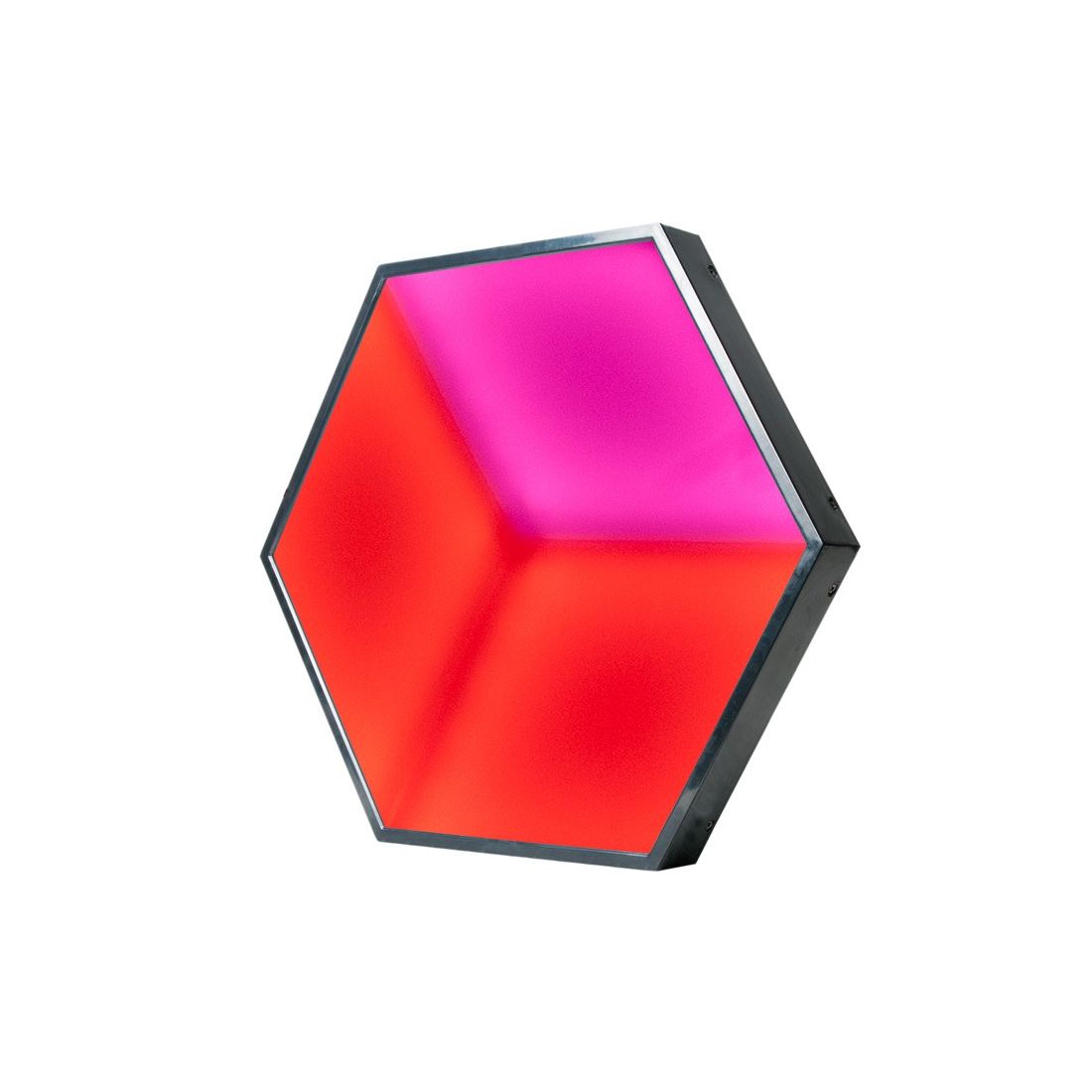

Hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. Controllable via DMX. Can also be used with EZ Kling interface for KlingNet /LED Master or Artnet control through DMX out. Link multiple panels together via Locking Power input/output with RJ45 ports for DMX linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also...
Read More

Product Information

SKU: 1226300060
GTIN: 819730019325

Hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. Controllable via DMX. Can also be used with EZ Kling interface for KlingNet /LED Master or Artnet control through DMX out. Link multiple panels together via Locking Power input/output with RJ45 ports for DMX linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also available for dead hang installation (m10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe). To be able to set the DMX-address and channel mode, you need the 3D Vision encoder (1226300061)

Gallery

Specification

  • • 3D LED Effect panel. Use in multiples to create a dynamic
  • • Modular connecting system allows you to create different configurations
  • • Quick lock rigging system allows you to assemble and disassemble quickly

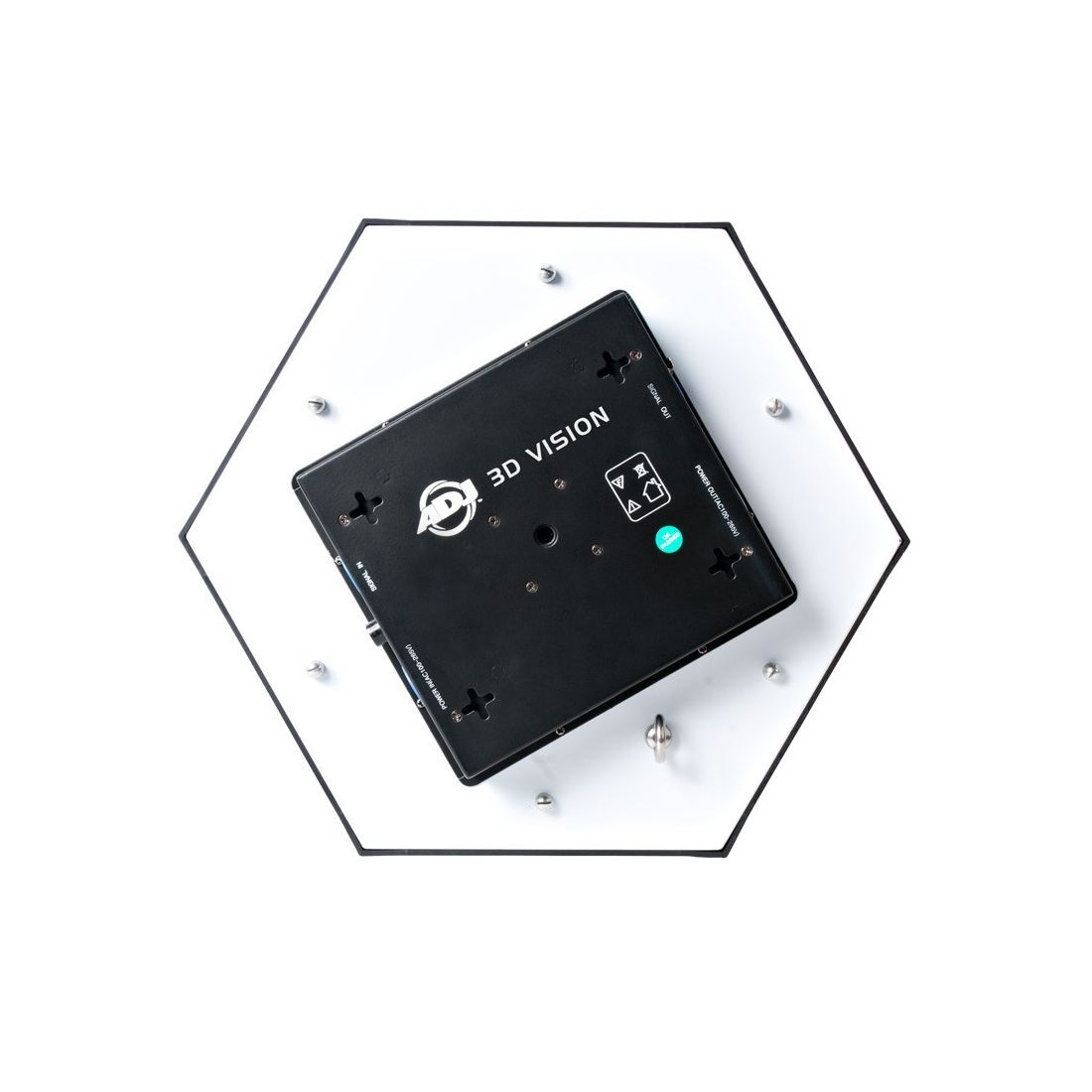

  • • 10mm thread on rear for standard Pro Clamp, truss mount
  • • Control Protocol: DMX512
  • • Data Connections: Locking RJ45, Input, and Output
  • • Product Size: 15.8” x 15.8” x 2.7” (400 x 400 x 68mm)
  • • LED Quantity, per unit: 72pcs.
  • • LED Type: 5050 SMD, 3in 1
  • • Power Connections:Locking Power Input and Output
  • • Max Power Consumption: 13W
  • • Input Voltage: 100-250V
  • • Net Weight: 6 lbs. (2.74kg)
  • • Face Material: Frosted Whtie Acrylic
  • • Viewing Angle: 180-degrees
  • • Working Temperature: -4 to 140 F (-20 to +60 C)
  • • ETL Approved
  • • Working Lifespan: ≥50,000 Hours
  • • Includes one (1) data cable, one (1) power linking cable and one (1) safety cable
  • Main power cable sold separately

    • • myDMX 3.0: DMX Control Software (Click Here)
    • • ACRJ453PFM: RJ45 to 3-pin male XLR DMX (Click Here)
    • • 3D Vision Encoder (3DV125): Sets DMX channels for 3D Vision panels (Click Here)
    • • 3D Vision Quick Release Panel Lock (3DV175) (Click Here)
    • • 3D Vision Rigging Bar (3DV149) (Click Here)

    Videos

    Downloads

    User Manual

    3D VISION User Manual
    (Size: 55.4 KB)
