12PX HEX Pearl
Select

Brand

Key Features

Construction
Construction
• Pearl Metal Housing
• Fan cooling
• Scissor yoke
Optics
Optics
• Beam Angle: 25°
• Gel frame for diffusion filters included (diffusion filters optional)
Source
Source
• 12x 12W RGBWA+UV LEDs

Product Information

SKU: 1226100366
GTIN: 10818651025399
HS-Code: 9405423990

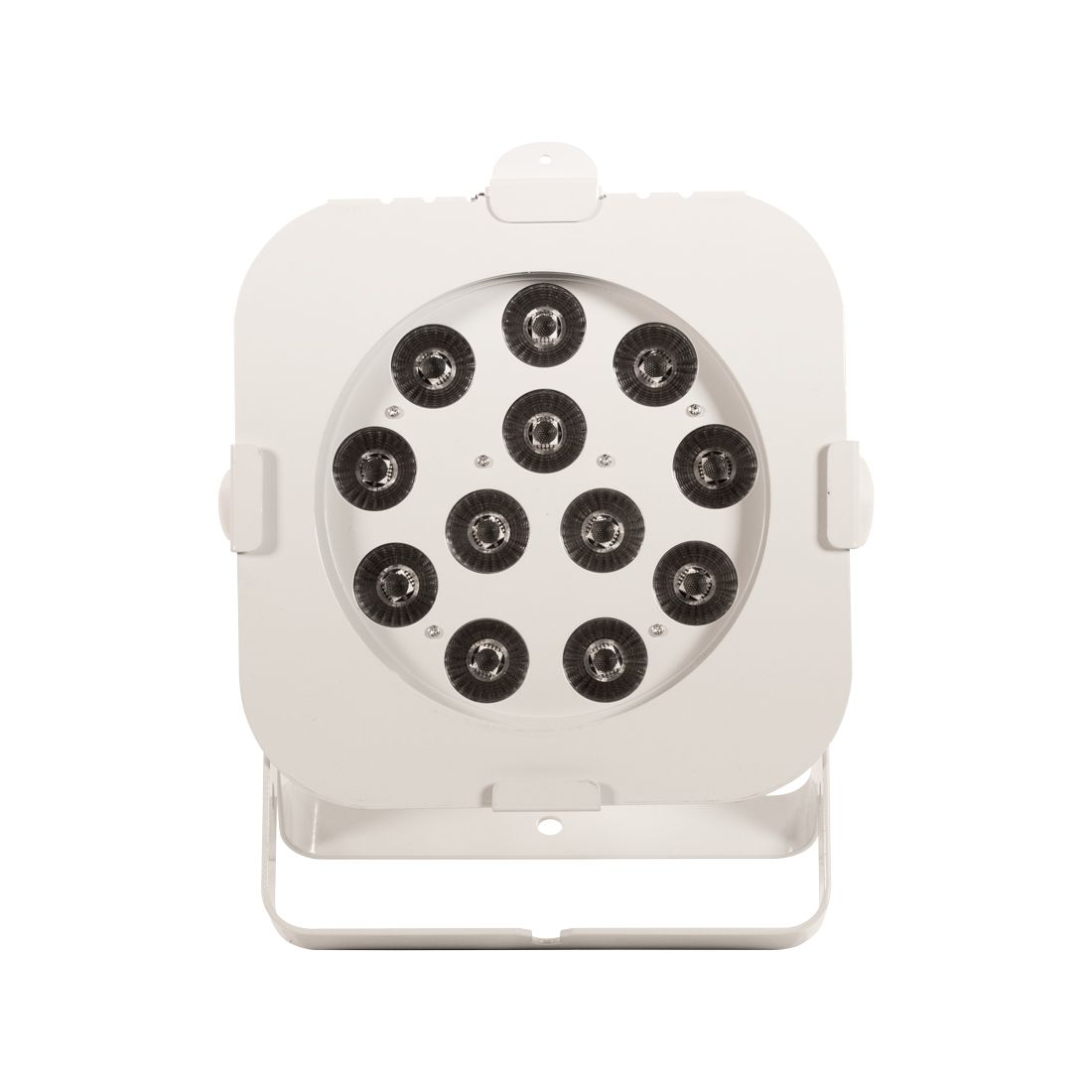

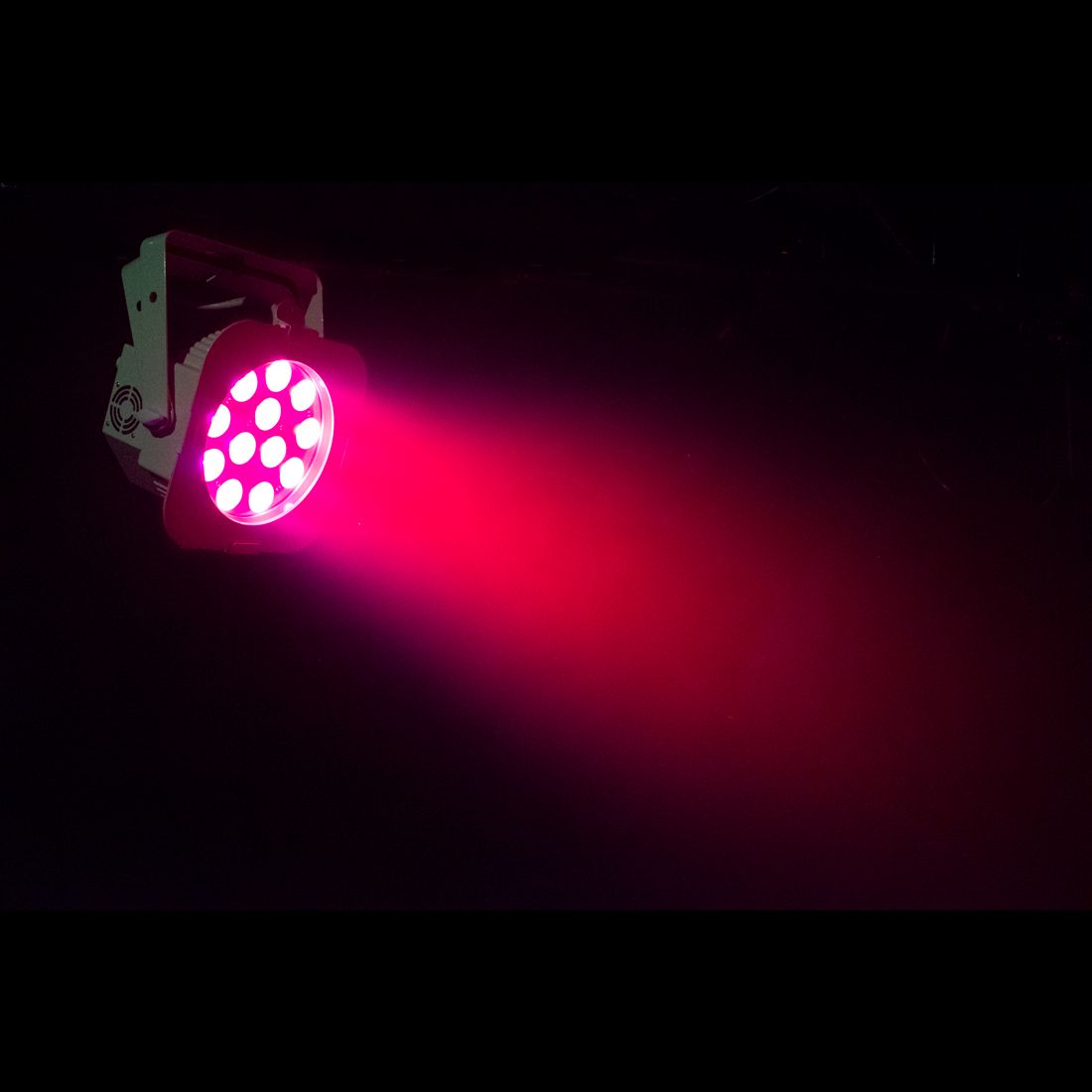

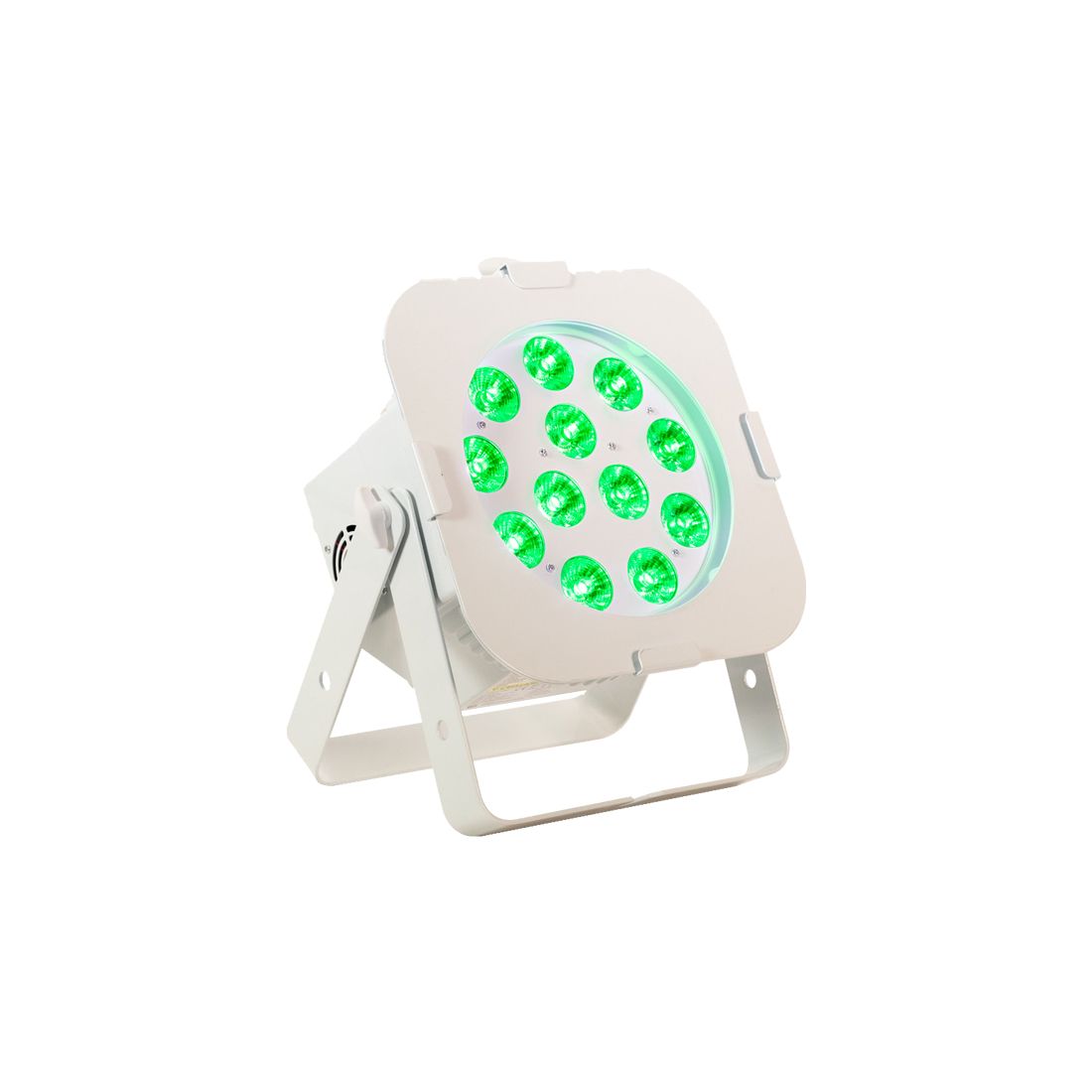

The ADJ 12PX Hex Pearl is a versatile LED Par fixture with 12 x 12-Watt , 6-IN-1 HEX LEDs in a white metal housing. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, Locking Power and 3 & 5pin DMX connectors, it’s great for uplighting a venue.



12PX HEX Pearl professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out power connectors.



The 12PX HEX Pearl is compatible with the optional Dotz Par RF, easy-to-use, wireless RF remote. Alternatively the fixture may be operated via a DMX controller or the units built-in programs.

Gallery

Specification

  • • Light Source: 12 RGBWA+UV LEDs (Red, Green, Blue, White, Amber & UV LED)
  • • Individual LED wattage : 12W
  • • Average LED lifetime :approximately 50,000 hrs.

  • • Beam Angle: 25 degrees
  • • Gel frame for diffusion filters included (optional diffusion filters)

  • • 5 Operational modes: Static Color Mode, RGBWA+UV Dimmer Mode, Program Mode, Sound Active Mode and
  • DMX Control
  • • 4 DMX Modes: 6, 7, 8 & 12-channel
  • • Electronic Dimming: 0 - 100%
  • • 63 built-in Color Macros
  • • 7 built-in Programs, Sound Active Mode
  • • 5 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre)
  • • Optional Dotz PAR RF Remote available (order code 1223200035)
  • • LED pulse and strobe effect

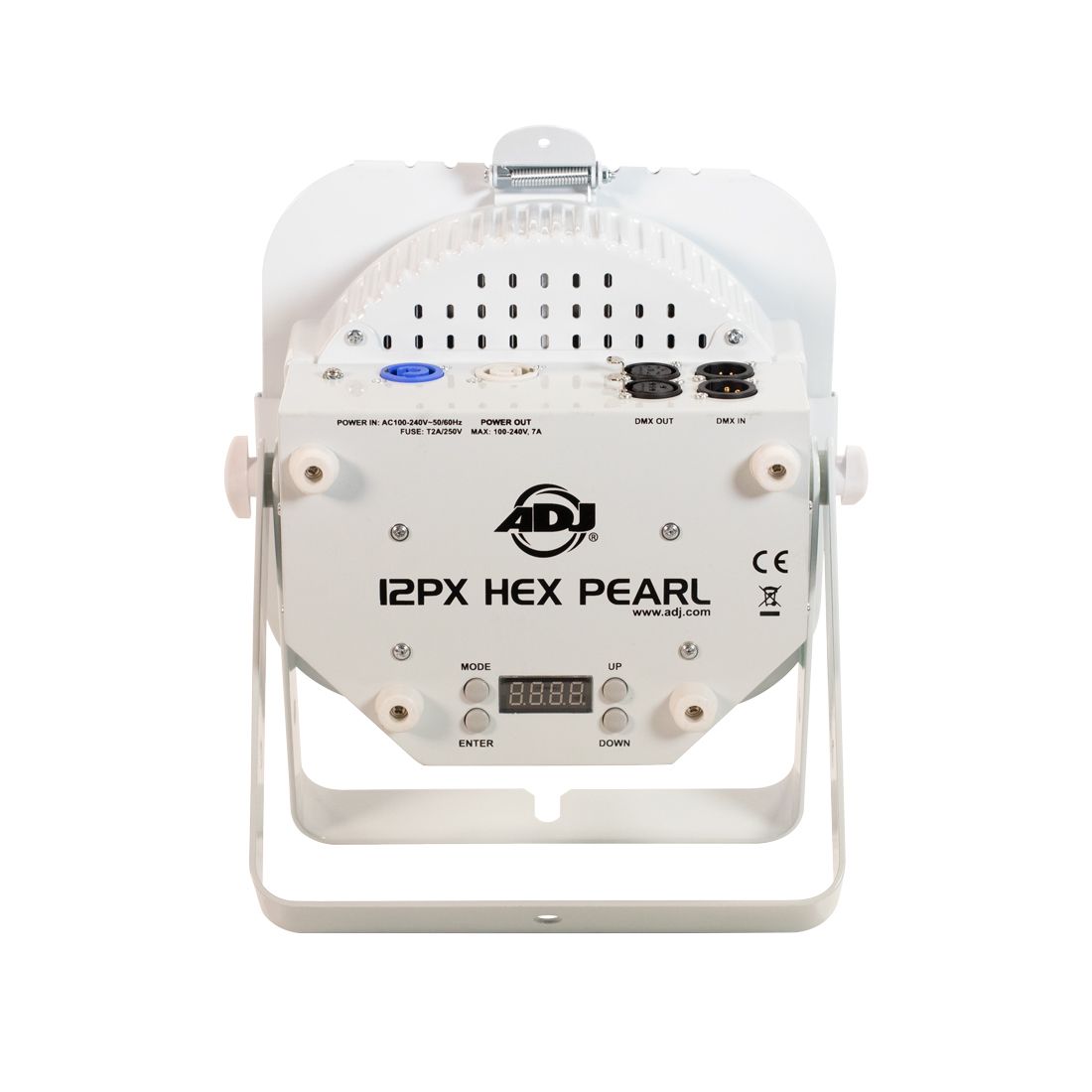

  • • 4-button, DMX digital display on rear panel

  • • RGBWA+UV Color Mixing

  • • White Metal Housing
  • • Fan cooling

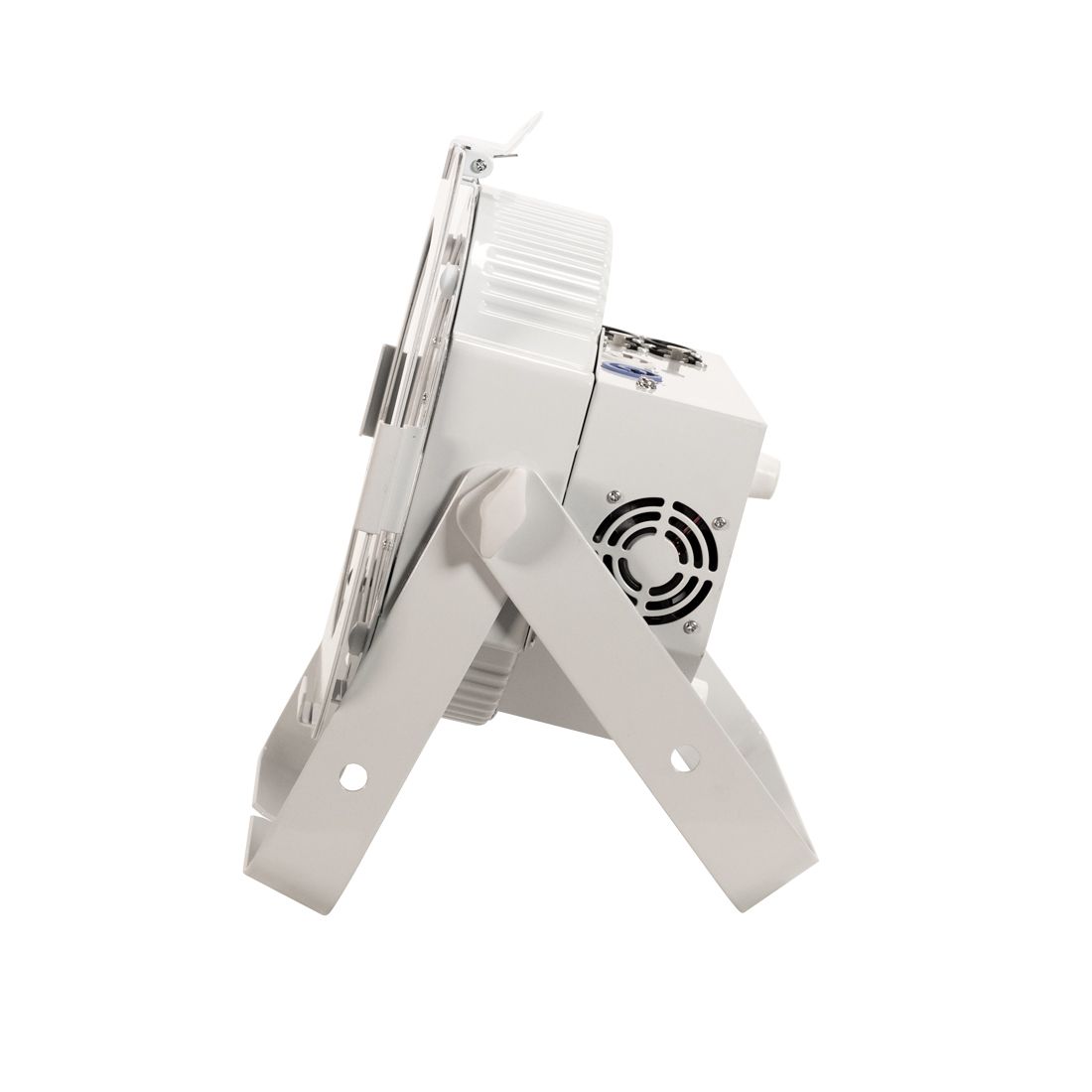

  • • Scissor yoke

  • • Multivoltage 100-240V 50/60Hz
  • • Power Consumption: 133W

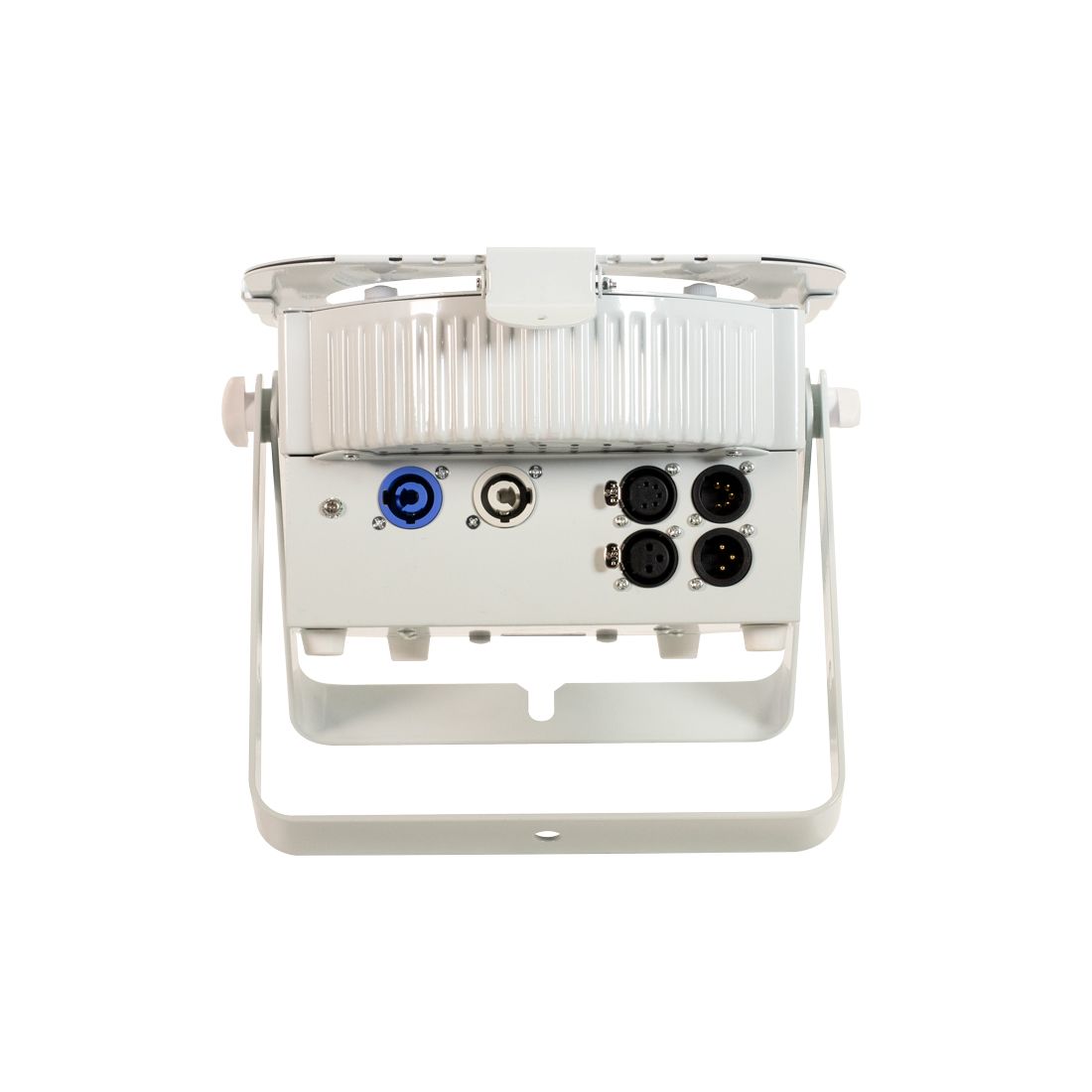

  • • Sideways 3- & 5-pin Locking DMX connectors
  • • Sideways Locking Power In/Out connections

  • • Dimensions (LxWxH): 135.8 x 249 x 297.4mm
  • • Weight: 4 kg
Specifications subject to change without notice

Downloads

DMX Traits

12PX HEX Pearl ADJ 12PX HEX - 12PX HEX Pearl DMX Traits (Size: 1.3 MB)

CAD Drawings

12PX HEX Pearl ADJ 12PX HEX 3D CAD File
(Size: 4.2 MB)

Specifications Sheet

12PX HEX Pearl ADJ 12PX HEX Pearl Cutsheet (Size: 290.6 KB)

Photometric IES File

12PX HEX Pearl ADJ 12PX HEX Photometric IES Files (Size: 19.5 KB)

Photometric Data

12PX HEX Pearl ADJ 12PX HEX Photometrics
(Size: 5.3 MB)

Additional Downloads

12PX HEX Pearl Fixture Libraries Download (Size: 169.2 KB)

User Manual

12PX HEX Pearl User Manual
(Size: 4.9 MB)
